GIGAIPC QBiX-JMB-ADLA67EH-A1 Installation and operation manual

1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
QBiX-JMB-ADLA67EH-A1
Industrial Fanless System with Intel® Q670E Chipset,
Support for Intel® 13th/12th Gen. Core™ i Processor
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
1. Screw HDD x 20 pcs (25984G-1C014-S00)
2. 4-pin Terminal Blocks Male Plug x 1 pcs
(25IO0-2ESDV0-D2R)
Dimension Specifications
Dimension System Size: 224W x 256.1D x 77.7H(mm)
CPU Support for 13th/12th Generation Intel®
Core™ i9/i7/i5/i3, Pentium® and Celeron®
processors in the LGA1700 package,
TDP under 65W
Chipset Intel® Q670E Express Chipset
Memory 2 x DDR4 SO-DIMM sockets supporting up to
64 GB, Dual channel DDR4 3200 MHz
Ethernet 1 x 2.5GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Intel® I219LM, Vpro
support)
2 x GbE LAN Ports (Intel® I211AT)
Graphic
support
Integrated Graphics Processor -
depends on CPU:
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x D-Sub port, supporting a maximum
resolution of 1920x1200 @60Hz
1 x DP port, supporting a maximum resolution
of 4096x2160 @60Hz
3 independent displays output
Audio Realtek® ALC897
Storage 4 x 2.5" HDD/SSD (SATA 6Gb/s)
Raid RAID 0/1/5/10
Expansion
Slots
1 x 2280 M.2 M-Key (PCIe Gen4x4)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot
73.3
50
14 28.66 36 35.37 38 35.28 22.65
23.17 36.53 60.7 27.05 18.9 21 18.32
14
18.33
23.24 36.46 31.72
224.04
264.47
256.1
77.75
75.75
Caution: DANGER OF EXPLOSION
IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER’S
INSTRUCTIONS.

2www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Front I/O 1 x Power Switch/Power/HDD LED
1 x DC IN (4-pin Terminal Block +12V~48V)
1 x VGA / 1 x DVI-D /1 x DP
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
4 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
6 x USB 2.0
3 x Audio Jacks (Line in, Line out & Mic in)
2 x External Antenna Holes (Optional)
Rear I/O —
Power DC in +12V~48VDC (Full Range)
Operation
Temperature
Operating temperature: -20°C to 50°C (CPU
65W TDP)
Operating temperature: -20°C to 60°C (CPU
35W TDP) Operating humidity: 0-90% (non-
condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-
condensing)
Use wide temperature range memory and
storage
Vibration
During
Operation
Operation: IEC 60068-2-64, 3 Grms, random,
5 ~ 500 Hz, 1 hr / Per Axis, with SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~
500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During
Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11
ms duration, With SSD
Packaging
Content
Carton size: 300 x 351 x 166 (mm)
Packing Capacity : 1
Including:
Terminal Blocks Male Plug x 1pc
(25IO0-2ESDV0-D2R)
Screw M3x4L x 20pcs (25984G-1C014-S00)
Order
Information
System : 6BQJQ67EAMR-SI (Box packing)
Jumpers and Connectors
The board has a number of jumpers that allow
you to configure your system to suit your
application. The table below lists the function
of each of the jumpers and connectors.
Front I/O Connectors
No. Code Scription
1VGA VGA Connector
2DVI-D DVI-D Connector
3DP Digital Display Port
4COM 1/2 RS-232/422/485
5COM 3/4 RS-232
6USB 1 2 x USB 3.2 Gen 1
7USB 2 2 x USB 3.2 Gen 2x1
8USB 3 4 x USB 2.0
9 USB C1 2 x USB 2.0
10 LAN 1 Intel® I219LM
11 LAN 2 Intel® I226V
12 LAN A Intel® I211AT
13 LAN B Intel® I211AT
14 LED Power and Storage Device Status LED
15 DC-12-48V Power connector
16 Audio Audio Jacks (Line in, Line out & Mic in)
System I/O Interface
LAN 1
LAN BLAN ACOM 4
DVI-D
COM 3
External Antenna (optional) External Antenna (optional)
VGA
HDD LED
Power switch
COM 1/2
Digital Display
USB3 (USB2.0)
USB1 (USB3.0)
USBC1 (USB2.0)
Audio Jacks
LAN 2
DC IN (4-pin Terminal block, 12V~48V)
USB2
(USB3.0)

3
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Internal I/O Connectors
COM3
2 x DDR4 SO-DIMM
sockets
SATA Power Connector
4 x SATA 6 Gb/s
Connector
TPM Connector
M2E Slot
M2M Slot
MINI-PCIe Slot
SIM Card Slot
PCIE X8 Slot PCIE X16 Slot
COM4

4www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Memory Installation
QBiX-JMB-ADLA67EH-A1 supports DDR4 SO-DIMM type memory module.
1. Loosen 7 screws and remove the bottom cover.
2. Loosen 4 screws to remove memory thermal cover.
3. Remove the release paper, and assemble memory.
4. Install 4 screws and memory thermal cover.
Note : Thermal pad and memory thermal cover must be fully mated and compacted.
5. Replace the bottom cover and secure with screws.
Simple Installation Process
1
12
34

5
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
M2E (Support NGFF-2230 Wifi/BT) Installation
1. Loosen 7 screws and remove the bottom cover.
2. Loosen 4 screws to remove M2E thermal cover.
3. Install the module in the M2E (Support NGFF-2230 Wifi/BT) slot and secure with screws.
4. Remove the release paper on the thermal pad.
5. Install 4 screws and M2E thermal cover.
6. Replace the bottom cover and secure with screws.
1
11 2
1
31
4

6www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Storage Installation 1 (2.5” HDD/SSD)
1. Loosen 7 screws and remove the bottom cover
2. Loosen 4 screws to remove storage tray.
3. Secure storage with 4 x screws.
4. Assemble SATA cable/power cable and replace storage tray securely with 4 x screws.
5. Replace the bottom cover and secure with screws.
1
11 2
1
31 4

7
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Storage Installation 2 (M2M Storeage)
1. Loosen 7 screws, and then remove the bottom cover
2. Loosen 4 screws to remove the hard disk storage aluminum sheet
3. Loosen the 2 screws to remove the aluminum heat sink.
4. Assemble the M2M (NGFF-2280 SATA) storage hard drive, and remove the release paper which is
on the aluminum heat sink.
5. Install the 2 screws to securely replace the aluminum heat sink and heat sink paste.
6. Install 4 screws to firmly install the hard disk storage aluminum sheet
7. Replace the bottom cover and secure with screws.
1
11
2
1
31 4

8www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Mini-PCIe Slot (PCIex1 + USB2.0) and SIM Card Slot Installation
QBiX-JMB-ADLA67EH-A1 supports one full size Mini-PCIe.
1. Loosen 7 screws, and then remove the bottom cover
2. Loosen 4 screws to remove the hard disk storage aluminum sheet
3. Assemble the Mini-PCIe expansion Card (Mini-PCIex1 + USB2.0) or 3G/4G SIM Card in SIM Slot.
4. Install 4 screws to firmly install the hard disk storage aluminum sheet
5. Replace the bottom cover and secure with screws.
1
11
2
1
3

9
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this Startup Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or
spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO
NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the power
outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by
transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
• The power cord or plug is damaged.
• Liquid has penetrated into the equipment.
• The equipment has been exposed to moisture.
• The equipment does not work well, or you cannot get it to work according to the user’s manual.
• The equipment has been dropped and damaged.
• The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE
MAY GO BELOW -40°C (-40°F) OR ABOVE 85°C (185°F). THIS COULD DAMAGE THE EQUIPMENT. THE
EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
16. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
17. RESTRICTED ACCESS AREA: The equipment should only be installed in a Restricted Access Area.
18. DISCLAIMER: This set of instructions is given according to IEC 704-1. GIGAIPC disclaims all
responsibility for the accuracy of any statements contained here in.

10 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
QBiX-JMB-ADLA67EH-A1
Industrial Fanless System with Intel® Q670E Chipset,
Support for Intel® 13th/12th Gen. Core™ i Processor
BIOS Manual
Introduction
How to Entering into BIOS menu
Function Keys to setup in BIOS Setup program
BIOS (Basic input/output system) provides hardware detailed information and boot-
up options, which include firmware to control, set-up and test all hardware settings.
Therefore, BIOS is the communication bridge between OS/application software and
hardware.
Once the system is power on, press the <DEL> key as soon as possible to access into BIOS
Setup program.
Function keys Description
→← Select Screen
↑↓ Select Item
Enter Execute command or enter the submenu
＋Increase the numeric value or make changes
–Decrease the numeric value or make changes
F1 General Help
F2 Previous Values
F3 Load Optimized Defaults Settings
F4 Save changes & Exit the BIOS Setup program
ESC Exit the BIOS Setup program

11
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Function keys Description
→← Select Screen
↑↓ Select Item
Enter Execute command or enter the submenu
＋Increase the numeric value or make changes
–Decrease the numeric value or make changes
F1 General Help
F2 Previous Values
F3 Load Optimized Defaults Settings
F4 Save changes & Exit the BIOS Setup program
ESC Exit the BIOS Setup program
1. The Main Menu
The main menu shows the basic system information.
Use arrow keys to move among the items.
Items Description
Project Name Shows Project name information
BIOS Version Shows the BIOS version of the system
Build Date and Time Shows the Build Date and Time when the BIOS was created.
LAN1 MAC Address Shows LAN1 MAC Address information
LAN2 MAC Address Shows LAN2 MAC Address information
LANA MAC Address Shows LANA MAC Address information
LANB MAC Address Shows LANB MAC Address information
Total Memory Shows the total memory size of the installed memory
ME FW version Shows ME firmware version
EC FW version Shows EC firmware version
System Date Set the Date for the system
(Format : Week - Month - Day - Year)
System Time Set the time for the system
(Format : Hour - Minute - Second)

12 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2. Advanced
The Advanced menu is to configure the functions of hardware settings through submenu.
Use arrow keys to move among the items, and press <Enter> to access into the related
submenu.

13
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.1 AMT configuration
Item Description
USB Provisioning of
AMT
Inserting a specially formatted USB drive into a system, to let the other
system remotely control.
Disabled : Disables USB Provisioning of AMT
Enabled : Enables USB Provisioning of AMT (Default setting)
MAC Pass Through Disabled : Disables MAC Pass Through function (Default setting)
Enabled : Enables MAC Pass Through function
Activate Remote
Assistance Process
Trigger CIRA boot
Disabled : Disables TPM feature (Default setting)
Enabled : Enables TPM feature
Unconfigure ME
To Un-configure ME without password.
Disabled : Disables Unconfigure ME (Default settings)
Enabled : Enables Unconfigure ME

14 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

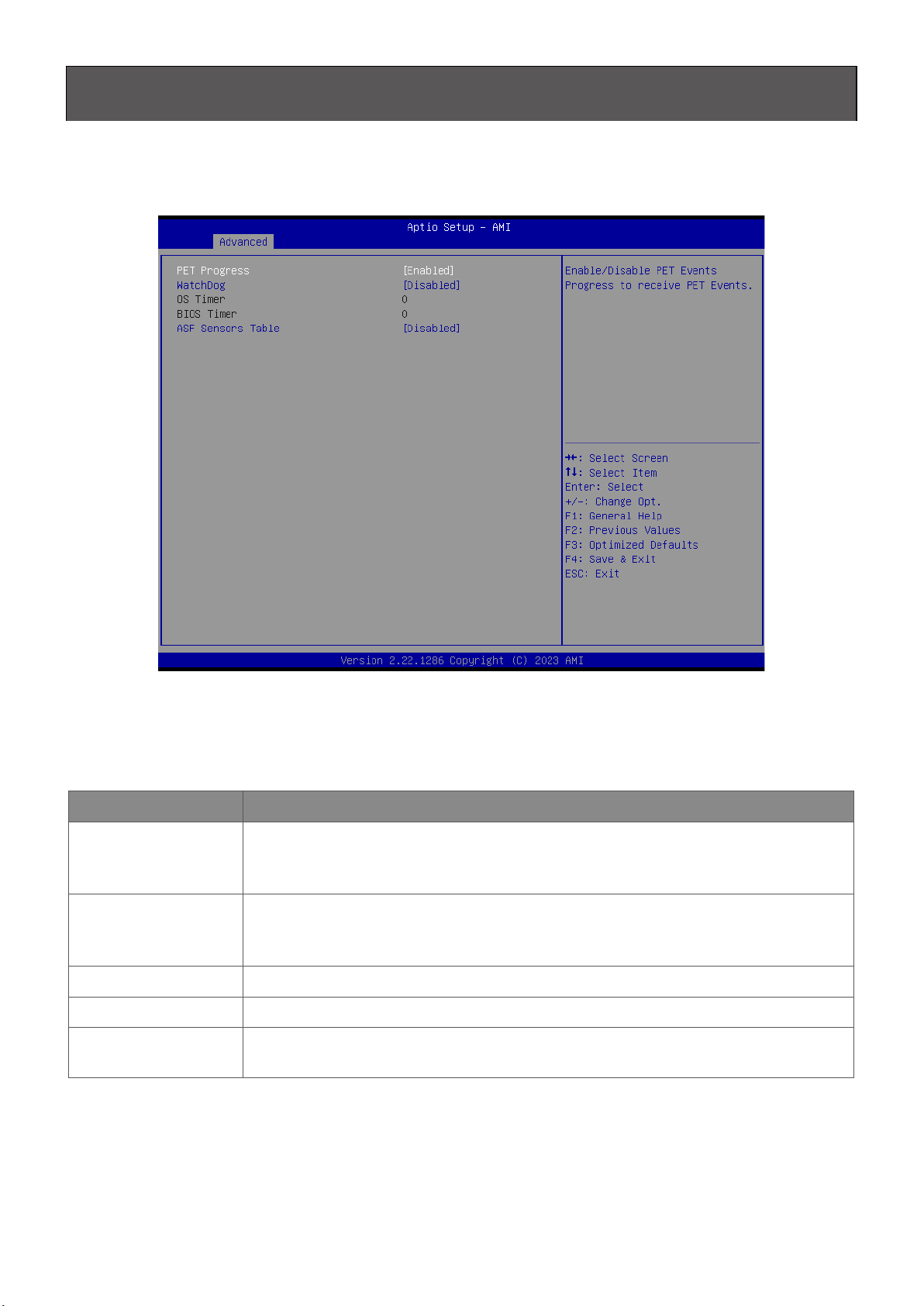

ASF Configuration
Item Description
PET Progress
Choose to receive PET events or not
Disabled : Disables PET Progress
Enabled : Enables PET Progress (Default setting)
Watchdog
Choose to enables watchdog timer or not
Disabled : Disables watchdog Timer (Default setting)
Enabled : Enables watchdog Timer
OS Timer Sets OS Watchdog Timer.
BIOS Timer Sets BIOS Timer.
ASF Sensors Table Disabled : Disables ASF Sensors Table (Default setting)
Enabled : Enables ASF Sensors Table

15
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Secure Erase Configuration
Item Description
Secure Erase mode
Choose to enables secure erase mode or not.
Simulated : Performs SE flow without erasing SSD (Default setting)
Real : Erase SSD
Force Secure Erase
Force Secure Erase on next boot.
Disabled : Disables Force Secure Erase (Default setting)
Enabled : Enables Force Secure Erase

16 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
One Click Recovery (OCR) Configuration
(This item will appear when assembling i7/i5/i3 CPU)
Item Description
OCR Https Boot Enabled : Enables One Click Recovery Https Boot. (Default setting)
Disabled : Disables One Click Recovery Https Boot.
OCR PBA Boot Enabled : Enables One Click Recovery PBA Boot. (Default setting)
Disabled : Disables One Click Recovery PBA Boot.
OCR Windows
Recovery Boot
Enabled : Enables One Click Recovery Windows recovery boot.
(Default setting)
Disabled : Disables One Click Recovery Windows recovery boot.
OCR Disable Secure
Boot
Allows CSME to request Secureboot to be disabled for One Click Recovery.
Enabled : Enables One Click Recovery disable Secure Boot function.
(Default setting)
Disabled : Disables One Click Recovery disable Secure Boot function.

17
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.2 TPM configuration
Use TPM Configuration submenu to choose TPM interface.
Item Description
TPM Device Selection
PTT : Internal TPM (Default setting)
dTPM : External TPM (When using External TPM module or having TPM chip
on MB)

18 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Trusted Computing : Shows TPM information, and TPM module configuration setting.
Item Description
Security Device
Support
Enabled : Enables TPM feature (Default setting)
Disabled : Disables TPM feature
Pending operation None : No execution will be conducted (Default setting)
TPM clear : Set to clear data on TPM

19
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.3 CPU Configuration
Item Description
Intel (VMX)
Virtualization
Technology
Virtualization enhanced by Intel® Virtualization Technology will allow a platform to
run multiple operating systems and applications in independent partitions. With
virtualization, one computer system can function as multiple virtual systems.
Enabled : Enables Intel Virtualization Technology (Default setting)
Disabled : Disables Intel Virtualization Technology
Intel(R) Speed Shift
Technology
To speed up CPU frequency transition time from basic frequency to maximum
frequency.
Enabled : Enables Intel(R) Speed Shift Technology Interrupt control (Default setting)
Disabled : Disables Intel(R) Speed Shift Technology Interrupt control
Intel(R)
SpeedStep(tm)
According to Intel CPU loading, Intel SpeedStep Technology will automatically adjust the
CPU voltage and core frequency to decrease heat and power consumption for power
saving.
Enabled : Enables Intel SpeedStep Technology (Default setting)
Disabled : Disables Intel SpeedStep Technology
C states
Command CPU to enter into low power consumption mode when CPU is under idle
mode.
Enabled : Enables CPU C states function (Default setting)
Disabled : Disables CPU C states function
Dual Tau Boost
To optimize CPU performance.
Enabled : Enables Dual Tau Boost function
Disabled : Disables Dual Tau Boost function (Default setting)

20 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.4 SATA Configuration
Item Description
VMD setup menu
/ Enable VMD
controller
Intel VMD feature helps you to control and manage NVMe PCIe SSD.
Enabled : Enables Intel VMD feature
Disabled : Disables Intel VMD feature (Default setting)
Serial ATA Port 4
shows 2.5" SATA HDD/SSD information
Serial ATA Port 5
Serial ATA Port 6
Serial ATA Port 7
