GIGAIPC QBiX-Pro-KBLB7100H-A1 User manual

System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
1www.gigaipc.com
QBiX-Pro-KBLB7100H-A1
(GB-CKAC-SI)
QBiX-Pro Industrial Embedded System
Quick Start Guide

2
www.gigaipc.com
Copyright Notice
This document is copyrighted, 2019. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translat¬ed, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no respon¬sibility for its use, or for any
in¬fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its accuracy,
GIGAIPC assumes no liabilities resulting from errors or omissions in this
document, or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
3www.gigaipc.com
Acknowledgement
All other products’ name or trademarks are properties of their
respective owners.
• AMD is trademark of Advanced Micro Devices.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

4
www.gigaipc.com
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
SCREW I HEAD FOR 25HDD M3x8L (25KSG-130081-K1R) 4
THERMAL PAD (25ST3-200052-T5R) 2
THERMAL PAD (25ST3-200053-T5R) 1
THERMAL PAD (25ST3-200051-T5R) 1
CABLE SATA (25CF4-170020-S9R) 1
TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R) 1
Exsiccator (10g) 1
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
5www.gigaipc.com
About this Document
This User’s Manual contains all the essential information, such as
detailed descriptions and explanations on the product’s hardware
and software features (if any), its specifications, dimensions, jumper/
connector settings/definitions, and driver installation instructions (if
any), to facilitate users in setting up their product.
Users may refer to the GIGAIPC.com for the latest version of this
document.

6
www.gigaipc.com
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do
not place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before
cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is
easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat
dissipation.

System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
7www.gigaipc.com
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge
when installing the internal components. Use a grounding
wrist strap and contain all electronic components in any static-
shielded containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
FCC Statement
This device complies with Part 15 FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device
must accept any interference received including
interference that may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant
et les directives gouvernementales de recyclage.

System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
9www.gigaipc.com
Table Contents
QBiX-Pro Industrial Embedded System 1
Quick Start Guide 1
Copyright Notice .......................................................................... 2
Acknowledgement ....................................................................... 3
Packing List................................................................................... 4
About this Document ................................................................... 5
Safety Precautions ....................................................................... 6
FCC Statement.............................................................................. 8
Chapter 1 - Product Specifications 11
1.1 Specifications ............................................................... 13
Chapter 2 – QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI) Industrial
Embedded System Kit 15
2.1 Dimension .................................................................... 16

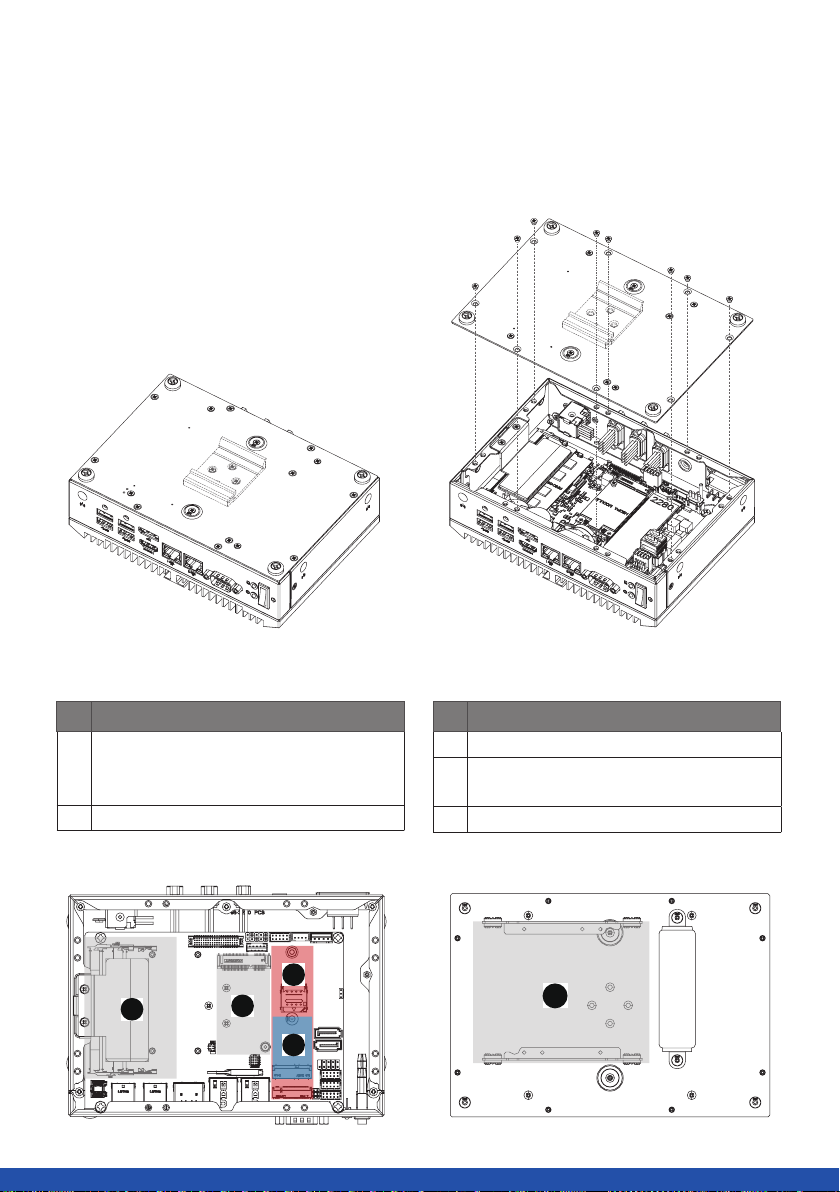

2.2 Getting Familiar with Your Unit..................................... 17

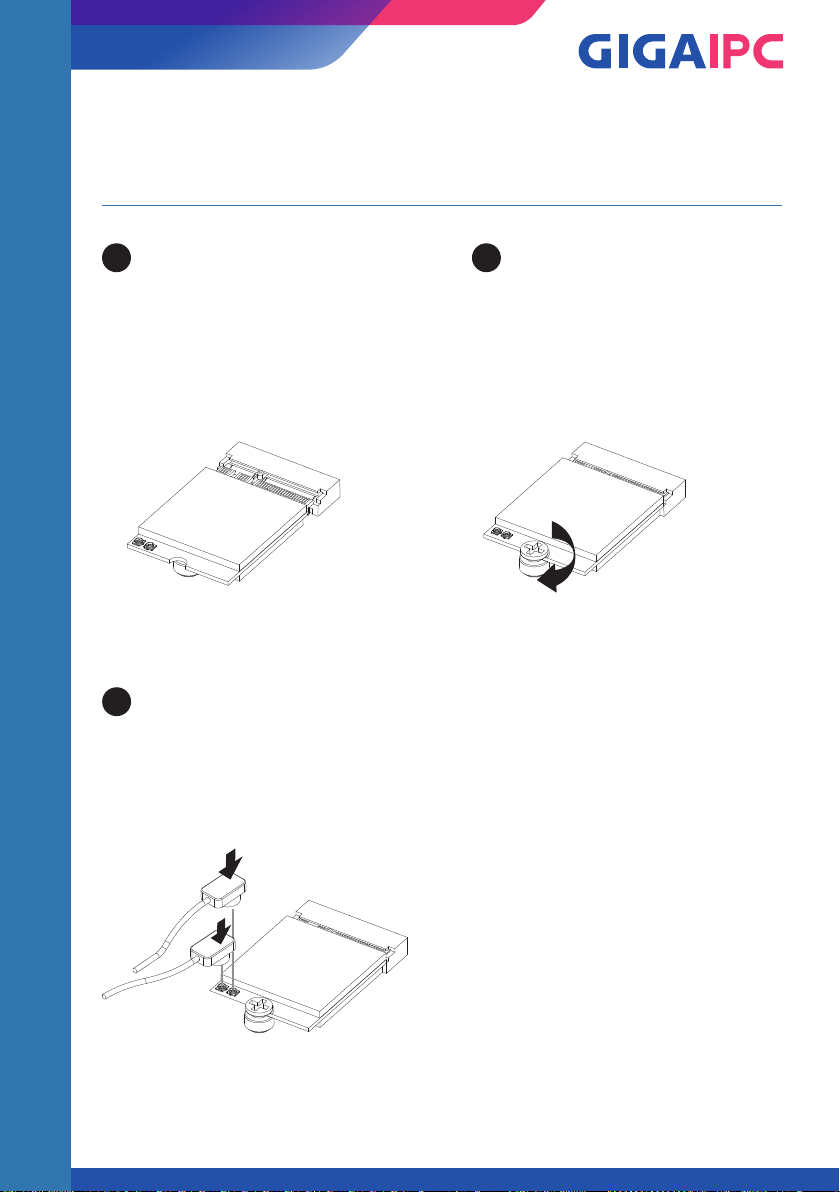

2.3 A) Wireless Module: How to safely install the Module
(Wireless Module inclusion may vary based on local
distribution) .................................................................. 19
2.4 B) Memory Installation: DDR4 SO-DIMM .................... 20
2.5 Antenna Installation (Antenna inclusion may vary based
on local distribution) .................................................... 21
2.7 Support ........................................................................ 23
2.8 Safety and Regulatory Information............................... 24

10
www.gigaipc.com
Chapter 3 – Board Hardware Information 25
3.1 Jumpers and Connectors ............................................. 26
3.2.1 CPU FAN (CPU FAN connector) .................................... 29
3.2.2 System FAN (System FAN connector) .......................... 30
3.2.3 COM2, COM3, COM4 (Serial port header) ................... 31
3.2.4 FUSB (USB 2.0 header) .................................................. 32
3.2.5 SATAIII_0, SATAIII_1 (SATA 6GB/S Connector) .............. 33
3.2.6 GPIO_CNT (General Purpose input/output header ).... 34
3.2.7 SATAPW1, SATAPW2 (SATA 6Gb/s power connector) ... 35
3.2.8 AT_CN (AT/ATX power mode select jumper) ................ 36
3.2.9 DC_IN (DC IN 1x4-pin power connector )..................... 37
3.2.10 SPK_OUT (Speaker out connector) ............................... 38
3.2.11 FP_Audio (Front Audio connector) ............................... 39
3.2.12 BKL_CN (Back light brightness control connector)....... 40
3.2.13 SYS_PANEL (Front panel header) ...................................41
3.2.14 LVDS (LVDS connector).................................................. 42
3.2.15 LSW (LVDS resolution jumper) ...................................... 43
3.2.16 BATTERY (Battery cable connector).............................. 44
3.2.17 JCOM1 (COM1 RI# pin RI#/5V/12V Select).................... 45

11 www.gigaipc.com
System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
Chapter 1
Chapter 1 - Product Specifications

12
www.gigaipc.com

13 www.gigaipc.com
System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
1.1 Specifications
System QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
Dimension System Size : 178W x 125D x 52.7H (mm)
CPU
Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads 2.40 GHz
TDP 15W, 3 MB SmartCache
Chipset SOC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Dual channel memory architecture
Support DDR 2133MHz
Ethernet 2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
Graphic support
Integrated Graphics Processor - Intel® HD Graphics 620
support
1 x HDMI2.0 port, supporting a maximum resolution of 4096 x
2160@60 Hz
1 x DP port, supporting a maximum resolution of 4096 x
2160@60 Hz
Audio Realtek ALC269
High Definition Audio
Storage 1 x SATA 6 Gb/s port (Support 2.5’’ Hard drive/SSD)
Expansion Slots
1 x M.2 slot (Support NGFF-2230 Wifi/BT)
1 x M.2 slot (Supports NGFF-2280 SATA/PCIeX4)
1 x Mini-PCIe slot (PCIeX1+USB2.0) with Sim Slot
Front I/O
2 x RJ45 LAN ports
4 x USB 3.0
1 x HDMI
1 x Display Port
1 x Power switch
1 x COM port (RS-232,422/485, RI/5V/12V)
Rear I/O
2 x USB2.0
3 x COM Port (RS-232)
1 x 3 pin Terninal Block connector
Side I/O 2 x Antenna option
TPM —
Power DC 9~36V Full Range (DC19V, 3.42A)

14
www.gigaipc.com
System QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
Operation
Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During
Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr
/ Per Axis, with SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/
min, 1 hr / Per Axis
Shock During
Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration,
With SSD
Packaging Content
Box Packing Capacity: 5pcs
Carton size: 505 x 231 x 333(mm)
Content:
SCREW I HEAD FOR 25HDD M3 x 8L x 4 (25KSG-130081-K1R )
THERMAL PAD x 2 (25ST3-200052-T5R)
THERMAL PAD x 1 (25ST3-200053-T5R)
THERMAL PAD x 1 (25ST3-200051-T5R)
CABLE SATA x 1 (25CF4-170020-S9R )
TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R )
Order Information System : 6BCKACMR-SI

15 www.gigaipc.com
System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
Chapter 2
Chapter 2 – QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
Industrial Embedded System Kit

16
www.gigaipc.com
2.1 Dimension

17 www.gigaipc.com
System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
2.2 Getting Familiar with Your Unit
[Rear I/O Side]
[Front I/O Side]
[Right Side]
[Left Side]
System LED
4 x USB 3.0
1 x HDMI 2.0 port
1 x Power Switch
2 x Antenna (optional)
2 x Antenna (optional)
1 x COM Port (COM1, RS-232/422/485, RI/5V/12V)
HDD LED
2 x RJ45 LAN ports
1 x DP 1 x Antenna (optional)
2 x USB2.0
1 x COM Port (COM3, RS-232)
1 x COM Port (COM2, RS-232)
1 x COM Port (COM4, RS-232)
1 x 3 pin Terninal
Block connector

18
www.gigaipc.com
[Install]
[Bottom PCB Side]
* Before opening the case, make
sure to unplug the power cord.
* Before Connecting the power,
make sure to fasten the case
securely.
Information
A
2 x DDR4 SO-DIMM sockets, Max.
Capacity 32 GB, Support Dual
Channel DDR4 2133 MHz
B 1 x Full-size miniPCIe with SIM slot
Information
C 1 x 2230 M.2 E-Key
D1 x 2280 M.2 M-Key
(PCIe x4, SATA 6Gb/s)
E 2.5’’ Hard drive/ SSD
A
B
C
D
E

19 www.gigaipc.com
System - QBiX-Pro Series QBiX-Pro-KBLB7100H-A1 (GB-CKAC-SI)
2.3 A) Wireless Module: How to safely install the
Module (Wireless Module inclusion may vary based on
local distribution)
3
向下安裝連結於無線模組左側頂端天線。
青山依舊在，幾度夕陽紅。慣看秋月春風。一
壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭
Install the antenna on the left side of the connection
wireless module down.
2
Lock the screw in the middle.
鎖入固定於無線模組中央頂端的螺
絲。
1
Carefully insert the wireless module into
the M.2 slot
小心地將無線模組安裝於M.2插槽中。

20
www.gigaipc.com
2.4 B) Memory Installation: DDR4 SO-DIMM
SO-DIMM
1
2
3
4
