GILANI ENGINEERING GE-F2 User manual

INSTRUCTION MANUAL
MODEL: GE-F2 MOBILITY SCOOTER
Congratulations !
Proper use of this product to ensure safety, convenience and durability.
Please read this instruction carefully before using, and be sure to master the matters
marked ★.
Gilani Engineering Pty Ltd

Catalogue
1. Product Drawing........................................................................................................... 1
2. Control Panel.................................................................................................................1
3. Armrest Installation ......................................................................................................2
4. Parameters..................................................................................................................... 3
5. Battery Instruction.........................................................................................................4
6. Folding and Opening the scooter.................................................................................5
7. Electric Mode and Manual Pushing Mode................................................................. 6
8. Attention for Driving.................................................................................................... 6
9. Error and Trouble shooting...........................................................................................7
10. Quality Assurance....................................................................................................... 8

1

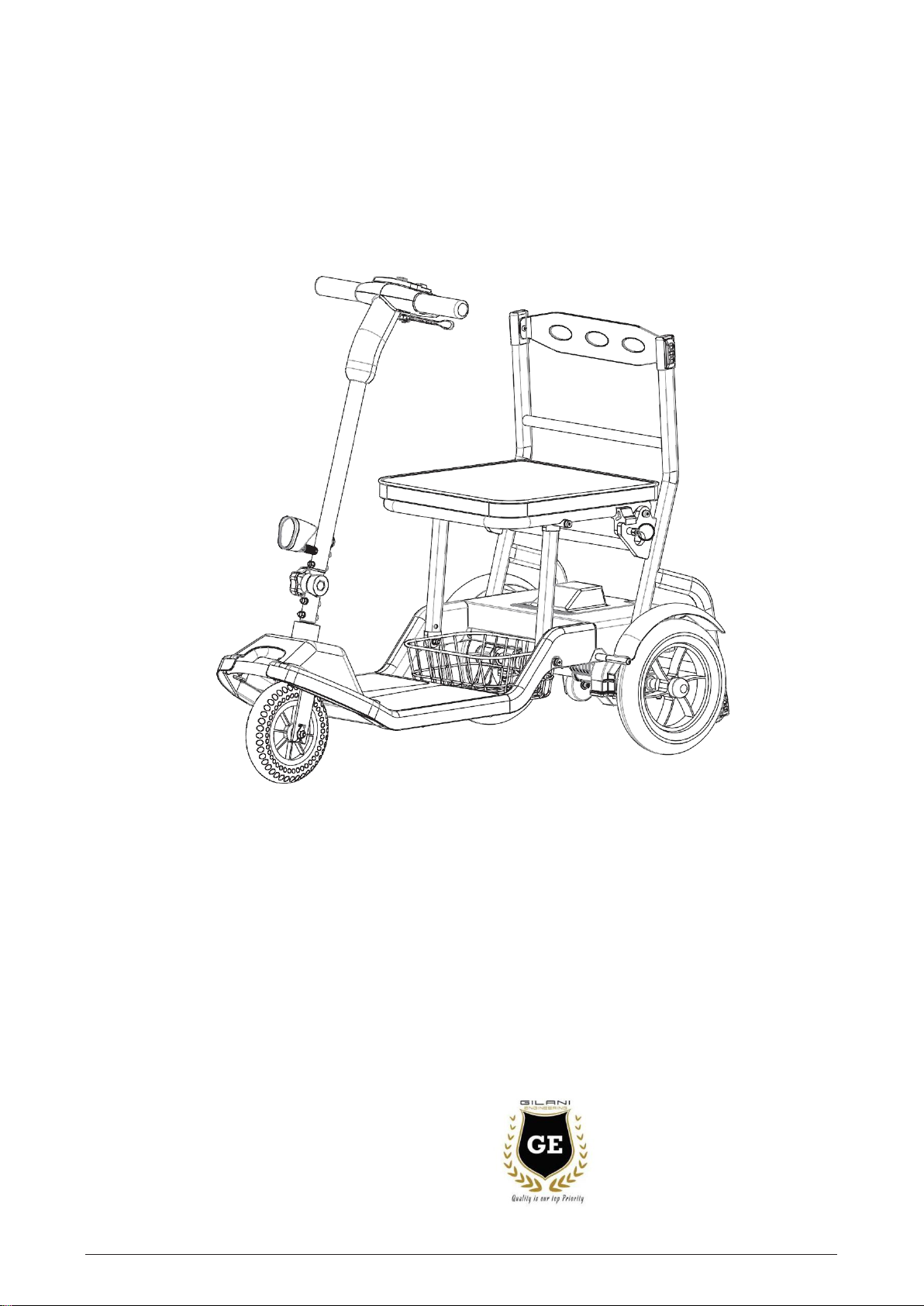

1. Product Drawing
①Control Panel ②Handle grip ③Accelerator ④Handle bar
⑤Head light ⑥Folding Release ⑦Pedal board ⑧Front wheel
⑨Seat ⑩Battery 11. Rear wheels 12.Basket
2. Control Panel
①Speed level adjusting
②Battery power meter
③Start switch
④Headlight switch
⑤Horn
⑥Accelerator
①Speed level adjusting
The speed adjustment knob can adjust the speed of the scooter from 0~6 Km/h.
②Battery power meter
The green part means the power is strong,
The yellow part means the electricity is weak,
The red part means the electricity is low, must be charged in time.
1
2
4
3
5
9
6
10
7
8
12
11
2
1
3
4
6
5

2
③Start the scooter：
Push ON of battery , then Push ON at the control panel .
④Headlight switch
Turn on the light forward, turn off the light back.
⑤Horn
Pressing down the button to alarm.
⑥Accelerator : Forward, Backward, Brake
Push Right lever : Forward
Push Left lever : Backward . Note : The horn will alarm while backward.
Brake : Release the levers , it will automatically stop in the "center" position,
and the electromagnetic brake will automatically stop the scooter.
3. Armrest installation (non-standard, optional if necessary)
Attached the armrest on the left and right sides of the seat;
Fasten the armrest with the screws.
①Armrest ②Screw
1

3
4. Parameters
Model
GE-F2
Maximum passenger weight (kg)
120 kg
Dimensions (mm)
557x930x1019(length x width x height)
Folding dimensions (mm)
557x459x950(length x width x height)
Front wheels (mm)
155 x25 Plastic hub
Back wheels (mm)
250 x49 Inflatable tyres Integrated hub
Maximum speed
6.5 km/h
Climbing ability
≤8°
Static stability
≥6°
Dynamic stability
≥6°
Altitude (mm)
≤60
Ditch width (mm)
100
Theoretical Driving Distance
km 20
Minimum radius of rotation
1.55 m
Ground clearance (mm)
75
Weight (kg)(excluding batteries)
17.1 kg
Brake system
Electromagnetic brake
Drive system
Rear wheel (differential) drive
Controller
Intelligent Brushless Controller
Battery type
25.2 V/10Ah( Lithium batteries)
Motor power (VA)
180W Brushless Motor
Charger
29.4 V2A fully automatic protective
charger
★Specification is based solely on actual products; Subject to change without prior notice.

4
5. Battery Instruction
Remove / Install battery
Make sure the switch is on “ O” .
Pull up to remove the battery as shown in the picture .
With regard to lithium batteries
★Understanding lithium battery and correctly charging
are helpful to prolong battery life and reduce accidents.
★If you don't often use your scooter (once a week or less), charge at least once a week.The battery charge time should be
guaranteed at 12-14 hours.
★Lithium batteries are prohibited from near fire, immersion, overheating (45℃), violent vibration, collision and positive and
negative short connection.
★Please do not charge the lithium battery over 20 hours.
★Contact the dealer or our company when you abandon the Lithium battery.
How to charge battery
★Note: The switch on the battery box should be in "ON" state while charging.
(1) First charging
★Don’t charge the battery for the first several riding until the power indicates red.
This may increase the battery service life and eliminates the lithium battery charge memory.
(2) Charging mode:
The battery could be removed to charged .
(3) For safety,
Do not charge with wet hands or wet connectors.
Avoid fire , rain, dew, sunlight and charge in a well-ventilated place.
Specification of charger
Charger model : HP060WL2
Charger input :AC 100~240 V ,50/60hz,1.2~0.5 A
Charger output :DC 24 V,2A MAX (1.8a)
The charger indicator has two states :
(1) Red: Charging; (2) Green: Fully charged.
★Note :The scooter is not allow to ride while charging.

5
2
1
3

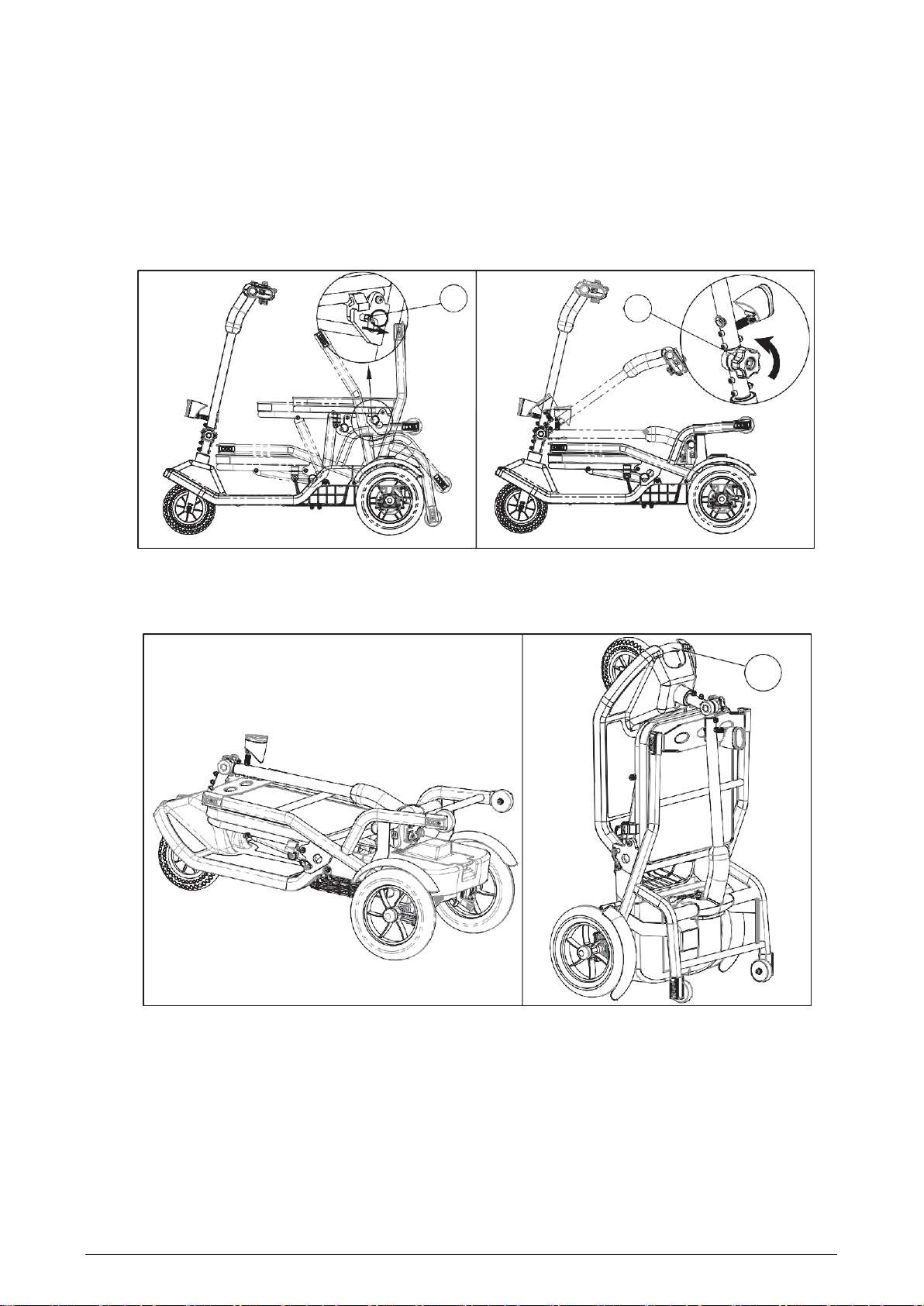

6. Folding and Opening the scooter
(1) Pull the pull pin out until it is out of the hole, then fold the seat forward;
(2) Loosen the knob, place the handlebar on the bottom of the seat, and then tighten the knob.
(3) Stand the scooter.
1. Pull pin 2. knob
3.Grip
The opening function of the scooter is just the opposite of folding.
（1）Loosen the knob, place the joystick at a comfortable angle of the arm, and then tighten the knob;
（2）Turn the seat back until you hear a click sound, and the pin is automatically stuck in the hole.
Cl os
Fi gh

6
7. Electric Mode and Manual Pushing Mode
Pull the brake lever can select electric mode and manual pushing mode.
(1) Pull down the lever,scooter is in electric mode .
(2) When the battery runs out , pull up the lever to release the electric magnetic brake .
Then you can push the scooter manually .
★Warning: do not unlock the brake lever when downhill
8. Attention for Driving
Inspection and maintenance before driving
1 .Check whether the battery is full of electricity to ensure that all kinds of cables are properly connected.
2.Check whether the brake system is sensitive and effective.
3.Check whether the tire pressure is normal
4.Before driving, please correct the front wheel and tighten the handle fastening handle.
5.The handlebar and the moving clearance of each part, should be inspect fastening and lubricate irregularly
★Follow traffic rules and maintain moderate speed;
Driving at top speed will not only dramatically increase power consumption and reduce range,
but also reduce safety
★When driving in a crowded indoor environment, such as a supermarket,
you must keep a low speed to control the braking distance.
When turning, the speed must not exceed 2km/h
★It should not be used in rainy days, and wading should be avoided as far as possible.
When wading through, the wading depth should not exceed 20mm and the speed should not exceed 1 km/h
★In the non-driving state, the power switch must be closed and the key pulled out, to prevent children and
others from wrong operation
★Please switch the power to OFF". when get on and off.
★Do not operate the left /right accelerator lever at the same time.
★Please do not dial the power switch to "OFF" while driving, will cause the emergency brake.

7
Serial
number
Flashing/beeping
times
Figures
Fault content
Causes and troubleshooting methods
1
★ ★★
1-2
Non-electrical
Accelerator
Check wire connecting or welding condition and plug
contact in place.
2
★★ ★★★★★
2-5
Short-circuit of
accelerator
Accelerator connection has short circuit , replace a new
accelerator .
3
★ ★★★★★★
1-6
The accelerator
lever is not
central
Scooter couldn’t move by accelerator . Try to adjust the
levers to central position .
4
★★★ ★★
3-2
Electromagnetic
brake failure
Check whether the brake lever is in electric mode
position. (Down position)
5
★ ★★★
1-3
Charge ban
The scooter is not allow to control while charging
6
★ ★★★★★
1-5
Low battery
power
Please check the battery voltage
The battery voltage is so low that the controller breaks
down . If you turn off the scooter for a few minutes. The
battery may recover a little power. You can allow a short
period of driving.
7
★ ★★★★
1-4
Motor Hall fault
Test with multimeter DC20V
(0 V/5V) Conversion normal
8
★★ ★★★★
2-4
Controller fault
Please contact the agent or manufacturer.
Remarks
1. when the controller detects the above fault, the fault indicator lamp and buzzer will flicker and beep
synchronously, and the fault indicator lamp will flicker until the fault is eliminated and restarted to avoid
noise pollution. The buzzer is set to synchronous buzzer 2 times to turn off;
2. example :"*** * *" means that the fault indicator flashes 3 times and then flashes twice after a short
interval (or the buzzer sends out "drops "), indicating that the electromagnetic brake detects the fault.
9. Error and Trouble shooting
The controller contains a program used to identify problem points and troubleshoot.
When the diagnostic program detects problems and errors, the buzzer on the controller will alarm, and the buzzer will be
continuously alerted until the fault is eliminated.
Users can try to solve the problem according to the following methods.
If the problem persists, please contact us or our agent.
★Please fill in the form bellow for records
Maintenance records
Date
Issues
Reasons
Remarks

8
10. Quality Assurance
In order to protect your interests and get our good after-sales service,
please read this chapter carefully.
Accessories warranty : (Date from you get the scooter )
(1) The main frame in 3 years.
(2) Controller +Motor + Gear box + Brake in 1 year.
(3) Other electrical parts (except batteries), covered within 1 year.
(4) Expendable items (such as tyres, handle sets, seats, back cushions, etc.) in 6 month.
The warranty not cover :
★Not properly used in accordance with the instructions ;
★Not repaired at the maintenance office designated by the company;
★Beyond the guarantee period;
★Not using parts manufactured by the Company;
★Used in over carrying of the maximum carrying capacity (120 kg);
User's Name:
Address:
Contact number:
Product Name:
Bar code:
Date of purchase:
Contact of dealer
Note: The buyer is requested to register the warranty with the dealer within one month.
This card is sealed by the dealer or manufacturer.
