Gima OXFORD User manual

CARROZZINA OXFORD E OXFORD PLUS
OXFORD AND OXFORD PLUS WHEELCHAIR
FAUTEUIL ROULANT OXFORD ET OXFORD PLUS
SILLA DE RUEDAS OXFORD Y OXFORD PLUS
Manuale d’uso - User manual
Manuel de l’utilisateur - Guía de uso
M43270-M-Rev.2.02.20
PROFESSIONAL MEDICAL PRODUCTS
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]
www.gimaitaly.com
Made in China
43270 - 43271 - 43272
43274 - 43275
È necessario segnalare qualsiasi incidente grave vericatosi in relazione al dispositivo medico da noi fornito
al fabbricante e all’autorità competente dello Stato membro in cui si ha sede.
All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and
competent authority of the member state where your registered ofce is located.
Il est nécessaire de signaler tout accident grave survenu et lié au dispositif médical que nous avons livré au
fabricant et à l’autorité compétente de l’état membre où on a le siège social.
Es necesario informar al fabricante y a la autoridad competente del Estado miembro en el que se encuentra
la sede sobre cualquier incidente grave que haya ocurrido en relación con el producto sanitario que le hemos
suministrado.

1. Simple Structure Figure
Self-Driving Version with 24” Rear Wheels
This wheelchair version is particularly suitable for the patient transfer.
10
14
1 Handle 2 Side plate
3 Spoke rear wheels 4 Pneumatic tires (for Oxford model)
PU tires (for Oxford Plus model)
5 Hand rim 6 Quick-Released axles
7 Front wheels 8 Front forks
9 Footrests 10 Leg strap
11 Seat and Back upholstery 12 Cross braces
13 Foot plates 14 Anti-Tipper (only for Oxford Plus model)
ENGLISH

11 ENGLISH
2. General Safety Instructions
2.1 Please read the instructions for use rst! Before using the product, you should
be familiar with the handling, function and use of the product. You may com-
promise your safety if you do not observe these instructions. However, it is
impossible to protect against and avoid all unforeseeable circumstances and
situations.
2.2 Do not ascend or descend stairs without the assistance of attendants.
If devices such as ramps or elevators are available, they should be used. If
wheelchair-friendly access is missing, two attendants must carry the wheel-
chair over the obstacle.
2.3 If possible, the footplates should be ipped up before getting into or out of the
wheelchair.
2.4 Risk of accident when driving without experience. This can lead to falls and
other dangerous situations. Therefore, familiarize yourself with the new wheel-
chair by practicing on even, straightforward terrain rst. Learn how the wheel-
chair reacts when the center of gravity shifts; for example on slopes or inclines
or when clearing obstacles such as steps and curbs. This should be done only
with the assistance of another person. Using an anti-tipper is strongly recom-
mended for inexperienced wheelchair users.
2.5 All brakes acting on the tires do not serve as service brake but are only de-
signed as parking brake (wheel lock). The wheel locks must not be used as
driving brakes for slowing down the wheelchair, as in extreme cases, the
abrupt stopping of the wheelchair can lead to falls.
2.6 Risk of damage caused by overload. The maximum load capacity is 120 kg.
2.7 The drive wheels must be replaced in case of tire damage (tread becomes
worn down to such an extent that there is only 5 mm of radius left on the outer
edges of the tire) or damage on the rim.
The 12” drive wheels of the transfer version is replaced in the same way.
3. Delivery and Preparation for Use
(Please Note: The photos here may show differences to the wheelchair you actually
received).
Your wheelchair is usually delivered fully assembled, folded, and with the rear
wheels mounted.
A few simple steps are sufcient to prepare it for use:
1. While standing next to the wheelchair (Figure 1), unfold the wheelchair using at
hands (Figure 2). Ensure that the telescoping bars (Figure 1-A) are completely
collapsed and that the seat upholstery is attened out.

g. 1 g. 2
2. If applicable, insert the footrests into the receivers from the side (Figure 3). Turn
the footrests inward until locking to the right place. Finally, fold down the foot-
plates (Figure 4).
g. 3 g. 4
ENGLISH 12

13 ENGLISH
4. Mounted Anti-Tipper
(only for Oxford Plus model)
The anti-tipper prevents the wheelchair from tipping too far backward.
The anti-tipper must be rotated into the active position on one or both sides be-
fore use. This is accomplished by pressing the ball ratchets (Item A) and making
the adjustment. The anti-tipper must audibly lock in place, before it is able to bear
loads.
For untrained wheelchair users, the use of an anti-tipper is strongly recommended.
5 Transportation
Grab the middle of seat upholstery at the front and the back and pull it upwards,
the wheelchair will be folded (Figure 5).
For more manageable transportation, e.g. in cars, the footrests can be entirely
removed in just a few easy steps. To move the footrest, press the release lever to
the inside (Figure 6). The footrest with footplate can then be swung outward by 90°
and be removed by pulling it upward.

g. 5 g. 6
6. Armrest usage
The side panels can be ipped-up to the rear for transfer user (Figure 7).
To raise the side panel, manipulate the release lever (Figure 8) behind the side
panel tube. The height of the armrest is not adjustable.
g. 7 g. 8
ENGLISH 14

15 ENGLISH
7. Footrests usage
The height of standard footrests can be changed with tools (Figure 9). To release
the screws and then adjust the height to right place for user, nally tighten the
screws.
g. 9 g. 10
8. Replacing the Seat and Back Upholstery
Can be removed if necessary by loosening the cross screws (Figure 10).
9. Cleaning and Disinfection
9.1 Clean the upholstery with warm water and a washing-up liquid.
Remove spots with a sponge or a soft brush. Rinse with clear water and let
the components dry.
9.2 Do not use any aggressive cleansing agents, solvents, or hard brushes etc.
9.3 No wet-cleaning. Components are not machine washable. For disinfection,
water-based agents (e.g. Sagrotan original concentrate) should be used. The
manufacturer‘s instructions for use must be observed.
9.4 Before disinfecting, the pads and handles must be cleaned. Plastic parts,
frame parts as well as chassis and wheels can be cleaned with a mild deter-
gent. Dry thoroughly afterwards.

10. Re-use
Information on Re-Use
The product is suitable for re-use. Similar to second-hand machines or cars, prod-
ucts that are being re-used are subject to increased strain. Features and functions
must not change in a way that could endanger patients or other persons within the
product’s life cycle.
Based on market observations and the current state of technology, the manufac-
turer has calculated that the product can be used for a period of 4 years, provid-
ed that it is used properly and that the service and maintenance instructions are
observed. Periods during which the product is stored at the dealer or with the
third-party payer are not included in this period. It should be clearly pointed out,
however, that the product is reliable far beyond this dened period of time, provid-
ed that it is cared for and maintained appropriately.
In cases of re-use, the affected product must rst be thoroughly cleaned and dis-
infected. Subsequently, the product must be examined by an authorised specialist
to check the condition, wear and possible damage. Any worn and damaged com-
ponents as well as components which do not t or are not suitable for the user
must be replaced.
11. Specications and Parameters
ENGLISH 16
Specications
Style Self-propelled
Surface nishing Powder coating
Frame Steel and foldable
Armrest Flip-up desk length armrest
Seat and backrest Nylon upholstery
Cross bars Seat width 43cm with single (for Oxford model)
Seat width 46cm with single
Seat width 51cm with double
Footrest Swing away footrest with leg strap
Rear wheel 24” Spoke rear wheel Pneumatic tire (for Oxford model)
PU tire (for Oxford Plus model) & quick-release axles
Front wheel 8”x2”
Handrim Steel with chromeplate
Front fork Steel with black powder coating
Footplate Plastic
Anti-tipper Not available for Oxford model
With anti-tipper (only for Oxford Plus model)
Brake With hand brake

17 ENGLISH
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.

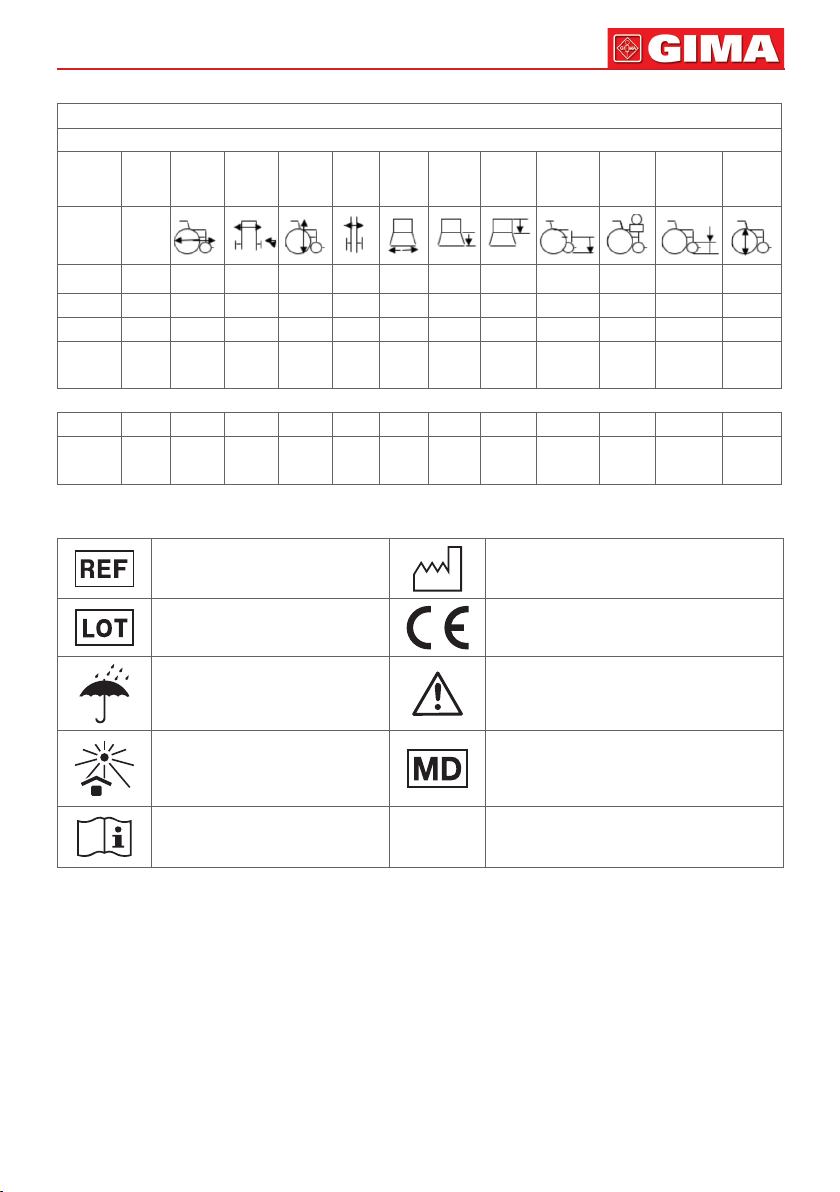

Measurements
Static stability: (vertical) ≥10°, (lateral) ≥15°
Model No Size Over
length
mm
Over
width
mm
Over
height
mm
Fold-
ing
size
mm
Seat
width
mm
Seat
depth
mm
Back
height
mm
Seat
height to
oor
mm
Max
loading
weight
Kg
Front
cast size
mm
Real
wheel
size
mm
43270 43cm 1030 600 910 265 430 400 440 500 120 200 610
43271 46cm 1030 630 910 265 460 400 440 500 120 200 610
43272
double
cross
51cm 1030 680 910 265 510 400 440 500 120 200 610
43274 46cm 1030 630 910 265 460 400 440 500 120 200 610
43275
double
cross
51cm 1030 680 910 265 510 400 440 500 120 200 610
Symbols
Product code Manufacturer
Lot number Medical Device compliant with
Regulation (EU) 2017/745
Keep in a cool, dry place Caution: read instructions
(warnings) carefully
Keep away from sunlight Medical Device
Consult instructions
for use
