Gima ESSEX User manual

Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[email protected] - [email protected]
www.gimaitaly.com
CARROZZINA ESSEX
ESSEX WHEELCHAIR
FAUTEUIL ROULANT ESSEX
SILLA DE RUEDAS ESSEX
Manuale d’uso - User manual
Manuel de l’utilisateur - Guía de uso
ATTENZIONE: Gli operatori devono
leggere e capire completamente questo
manuale prima di utilizzare il prodotto.
ATTENTION: The operators must
carefully read and completely understand
the present manual before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d’utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.
M-43260-43261-43262-M-Rev.1.09.18
PROFESSIONAL MEDICAL PRODUCTS
Gima S.p.A. Via Marconi, 1
20060 Gessate (MI) - Italy
Made in China
(P.R.C.)
43260 - 43261 - 43262

ITALIANO
1. Simple Structure Figure
Transfer Version with 12” Rear Wheels
This wheelchair version is particularly suitable for the patient transfer.
1 Handle 2 Side plate
3 Rear wheels 4 Front wheels
5 Front forks 6 Foot rest
7 Leg strap 8 Seat and back upholstery
9 Cross bars 10 Footplate
2. General Safety Instructions
2.1 Please read the instructions for use rst! Before using the product,
you should be familiar with the handling, function and use of the product.
You may compromise your safety if you do not observe these
instructions. However, it is impossible to protect against and avoid
all unforeseeable circumstances and situations.
10

11 ENGLISH
2.2 Do not ascend or descend stairs without the assistance of attendants.
If devices such as ramps or elevators are available, they should be used.
If wheelchair-friendly access is missing, two attendants must carry the
wheelchair over the obstacle.
2.3 If possible, the footplates should be ipped up before getting into
or out of the wheelchair.
2.4 Risk of accident when driving without experience. This can lead to falls
and other dangerous situations. Therefore, familiarize yourself with
the new wheelchair by practicing on even, straightforward terrain rst.
Learn how the wheelchair reacts when the center of gravity shifts; for
example on slopes or inclines or when clearing obstacles such as steps
and curbs. This should be done only with the assistance of another
person. Using an anti-tipper is strongly recommended for inexperienced
wheelchair users.
2.5 All brakes acting on the tires do not serve as service brake but are only
designed as parking brake (wheel lock). The wheel locks must not be
used as driving brakes for slowing down the wheelchair, as in extreme
cases, the abrupt stopping of the wheelchair can lead to falls.
2.6 Risk of damage caused by overload. The maximum load capacity
is 110 kg.
2.7 The drive wheels must be replaced in case of tire damage (tread
becomes worn down to such an extent that there is only 5 mm of radius
left on the outer edges of the tire) or damage on the rim.
The 12” drive wheels of the transfer version is replaced in the same way.
3. Delivery and Preparation for Use
(Please Note: The photos here may show differences to the wheelchair
you actually received).
Your wheelchair is usually delivered fully assembled, folded, and with the rear
wheels mounted.
A few simple steps are sufcient to prepare it for use:

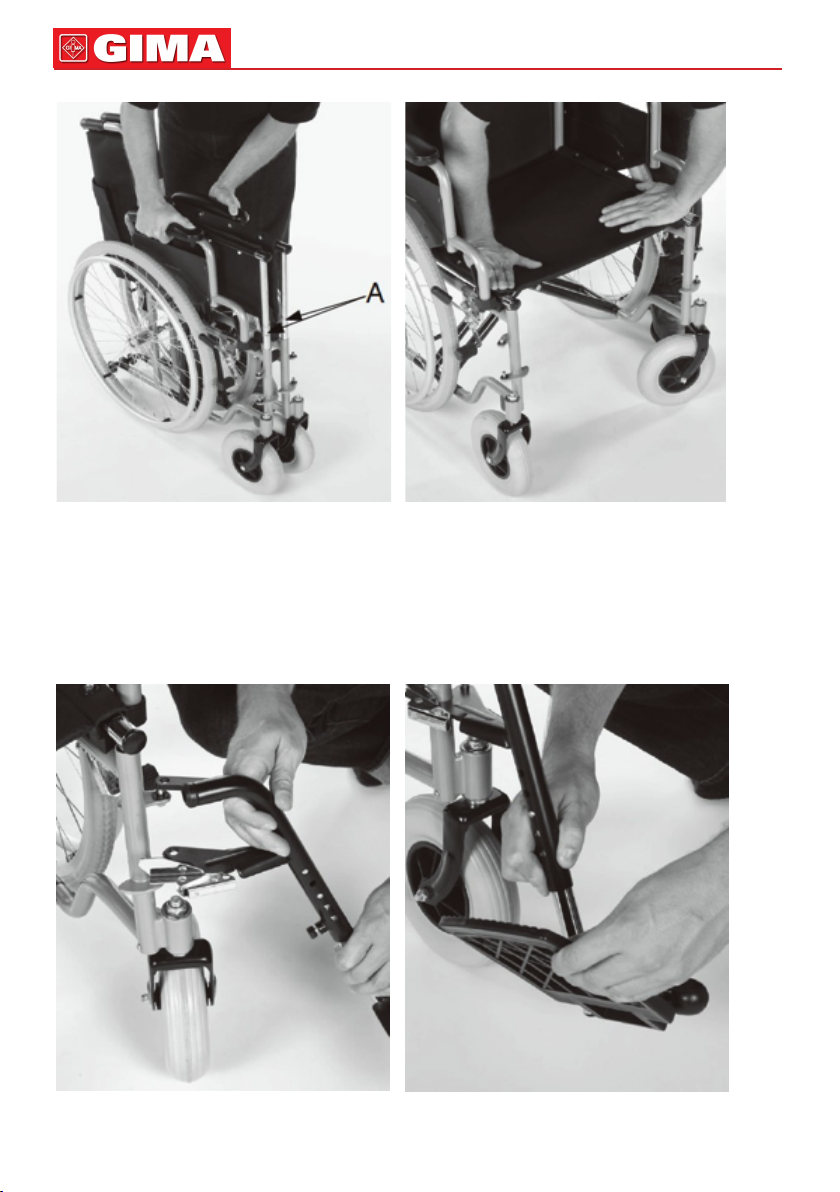

1. While standing next to the wheelchair (Figure 1), unfold the wheelchair
using at hands (Figure 2). Ensure that the telescoping bars (Figure 1-A)
are completely collapsed and that the seat upholstery is attened out.

g. 1 g. 2
2. If applicable, insert the footrests into the receivers from the side (Figure 3).
Turn the footrests inward until locking to the right place. Finally, fold down
the footplates (Figure 4).
g. 3 g. 4
ENGLISH 12

13 ENGLISH
4 Transportation

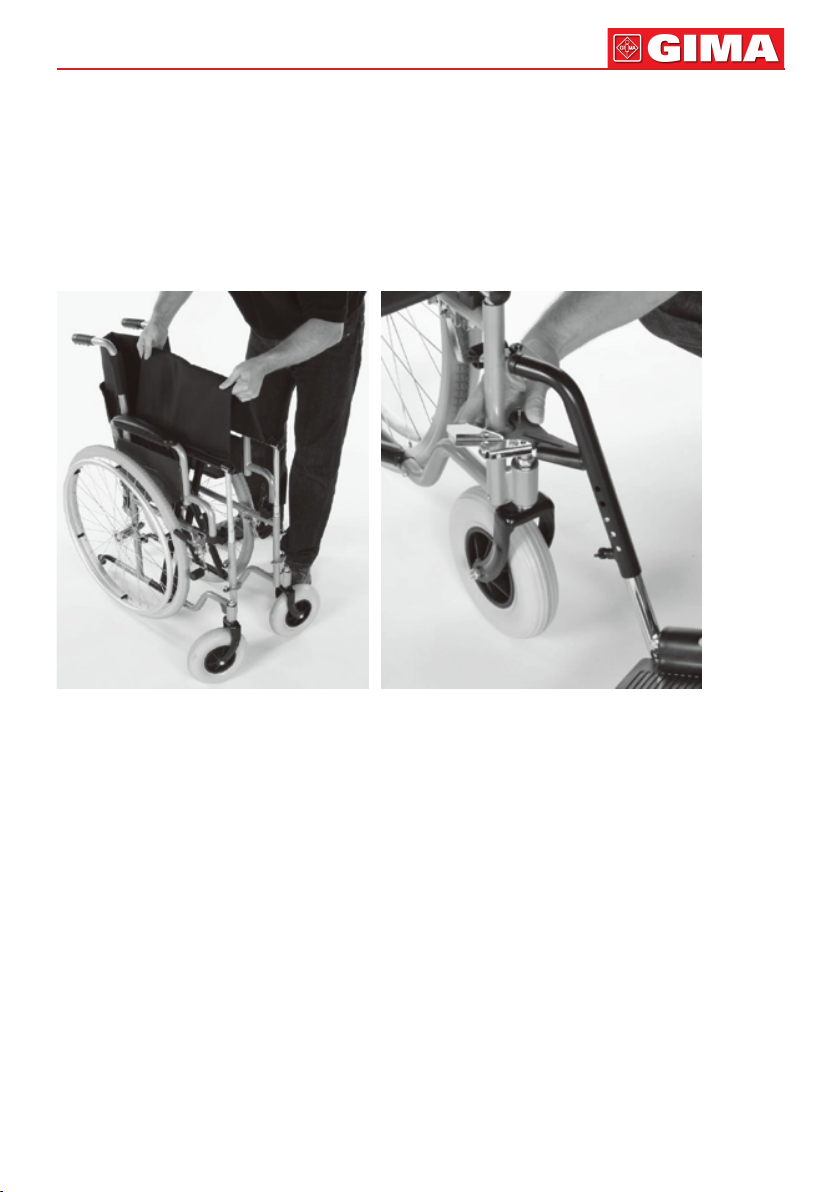

Grab the middle of seat upholstery at the front and the back and pull it
upwards, the wheelchair will be folded (Figure 5).
For more manageable transportation, e.g. in cars, the footrests can be enti-
rely removed in just a few easy steps. To move the footrest, press the release
lever to the inside (Figure 6). The footrest with footplate can then be swung
outward by 90° and be removed by pulling it upward.
g. 5 g. 6
5. Armrest usage
The side panels can be ipped-up to the rear for transfer user (Figure 7).
To raise the side panel, manipulate the release lever (Figure 8) behind the
side panel tube. The height of the armrest is not adjustable.

g. 7 g. 8
6. Footrests usage
The height of standard footrests can be changed with tools (Figure 9).
To release the screws and then adjust the height to right place for user,
nally tighten the screws.
g. 9 g. 10
ENGLISH 14

15 ENGLISH
7. Replacing the Seat and Back Upholstery
Can be removed if necessary by loosening the cross screws (Figure 10).
8. Cleaning and Disinfection
8.1 Clean the upholstery with warm water and a washing-up liquid.
Remove spots with a sponge or a soft brush. Rinse with clear water
and let the components dry.
8.2 Do not use any aggressive cleansing agents, solvents, or hard brushes
etc.
8.3 No wet-cleaning. Components are not machine washable.
For disinfection, water-based agents (e.g. Sagrotan original concentrate)
should be used. The manufacturer‘s instructions for use must be
observed.
8.4 Before disinfecting, the pads and handles must be cleaned. Plastic parts,
frame parts as well as chassis and wheels can be cleaned with a mild
detergent. Dry thoroughly afterwards.
9. Re-use
Information on Re-Use
The product is suitable for re-use. Similar to second-hand machines or cars,
products that are being re-used are subject to increased strain. Features
and functions must not change in a way that could endanger patients or
other persons within the product’s life cycle.
Based on market observations and the current state of technology,
the manufacturer has calculated that the product can be used for a period
of 4 years, provided that it is used properly and that the service and
maintenance instructions are observed. Periods during which the product
is stored at the dealer or with the third-party payer are not included in this
period. It should be clearly pointed out, however, that the product is reliable
far beyond this dened period of time, provided that it is cared for and
maintained appropriately.
In cases of re-use, the affected product must rst be thoroughly cleaned and
disinfected. Subsequently, the product must be examined by an authorised
specialist to check the condition, wear and possible damage. Any worn and
damaged components as well as components which do not t or are not
suitable for the user must be replaced.

10. Specifications and Parameters
Specifications
Style
Surface finishing
Frame
Armrest
Seat and backrest
Cross bars
Footrest
Rear wheel
Front wheel
Handrim
Front fork
Footplate
Anti-tipper
Brake
Measurements
Total length
Total width
Total height
Folding width
Seat width
Seat depth
Backrest height
Front of seat to floor
Net weight
Gross weight
Weight capacity
Carton size
ENGLISH 16
Transport
Powder coating
Steel and foldable
Flip-up desk length armrest
Nylon upholstery
Seat width 43cm with single
Seat width 46cm with single
Seat width 51cm with double
Swing away footrest with heel strap
and height adjusted clips
12” Mag rear wheel with PU tire
8”x2”
Without
Steel with black powder coating
Aluminum alloy
Without
With hand brake
960 mm
580 mm - 610 mm - 660 mm
910 mm
250 mm
430 mm - 460 mm - 510 mm
400 mm
410 mm
500 mm
16kg
18 kg
110 kg
760x250x930 mm

17 ENGLISH
GIMA WARRANTY CONDITIONS
Congratulations for purchasing a GIMA product. This product meets high qualitative
standards both as regards the material and the production. The warranty is valid
for 12 months from the date of supply of GIMA. During the period of validity of the
warranty, GIMA will repair and/or replace free of charge all the defected parts due
to production reasons. Labor costs and personnel traveling expenses and packaging
not included. All components subject to wear are not included in the warranty.
The repair or replacement performed during the warranty period shall not extend
the warranty. The warranty is void in the following cases: repairs performed
by unauthorized personnel or with non-original spare parts, defects caused
by negligence or incorrect use. GIMA cannot be held responsible for malfunctioning
on electronic devices or software due to outside agents such as: voltage changes,
electro-magnetic elds, radio interferences, etc. The warranty is void if the above
regulations are not observed and if the serial code (if available) has been removed,
cancelled or changed.
The defected products must be returned only to the dealer the product was
purchased from. Products sent to GIMA will be rejected.
