Ginlong S5 EO Series User manual

Instruction Manual
S5 EO Series Off-grid Inverter
Ginlong Technologies Co., Ltd.
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: [phone]
Fax: [phone]
Ver 1.1
Please adhere to the actual products in case of any discrepancies in this user manual.

Smart O&M
In order to improve our products and provide you with higher quality services, this device has
a built-in data logging module for collecting relevant information during operation (such as power
generation data, fault data)
Commitment:
1. We will only collect, use and process your device information for the purpose of improving
our products and services.
2. We will take all reasonable and feasible measures to ensure that no irrelevant information is
collected and we will protect your device information.
3. We will not share, transfer or disclose the collected device information with any company,
organization or individual.
4. When we stop operating products or services, we will stop collecting your device information in
a timely manner.
5. If you do not want to provide such information, you can notify our company to turn off this
function, which will not affect your normal use of other functions of the product.

2
4
7
7
8
11
13
14
4
2
3
9
18
26
28
21
21
21
1.1 Product Description
………………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
……………………………………………………………………………………
……………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
1. Introduction
1.3 Packaging
2. Safety & Warning
2.1 Safety
2.2 General Safety Instructions
3. Installation
3.1 Select a Location for the Inverter
3.2 Mounting the Inverter
3.3 Preparation
3.5 Assembling the AC Connector
3.6 Grounding
5. Operation
5.1 Startup Guide
5.3 Information
5.4 Settings
5.5 Advanced Infomation
Contents
………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
4
20
20
20
…………………………………………………………………………………………
………………………………………………………………………………
…………………………………………………………………………………………………………………
4. Commissioning
4.1 Preparation of Commissioning
4.2 Commissioning Procedure
7. Troubleshooting ……………………………………………………………………………………………………………… 43
32
………………………………………………………………………………………………………………
5.6 Advanced Settings
…………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………
2.3 Notice For Use 6
…………………………………………………………………………………………………………………………
………………………………………………………………………………………
………………………………………………………………………………………
16
49
……………………………………………………………………………………………………
………………………………………………………………………………………………………………………
8. Specifications
…………………………………………………………………
…………………………………………………………………………………………………………
10
3.4 PV Input Terminal Assembly …………………………………………………………………………………………
21
5.2 Main Menu ………………………………………………………………………………………………………………………………
6. Maintenance ……………………………………………………………………………………………………………………… 42
6
……………………………………………………………………………………………………………………
2.4 Notice for Disposal
3.7 Battery Terminal Components
3.8 Battery Communication
3.11 External Communcation Stick Connection
3.12 LED Indicates 19
……………………………………………………………………………………………………………………
19
……………………………………………………………………………………………………………
3.10 Parallel Connection
3
1.2 System Description …………………………………………………………………………………………………………
17
…………………………………………………………………………………………………
3.9 External Communication

1.1 Product Description
Solis EO series inverter is designed for off-grid systems.
This series of inverters is highly flexible and can work with or without the grid to provide
power to the load. It has battery connections for low voltage batteries and up to 2 PV
string inputs. It is able to charge the batteries through the PV, grid or onsite generator.
Inverter x1
R Terminal x2
(For Battery Connection)
Sheet Copper Terminal x10
(For PV/AC Wiring Connection)
Fixing Screws x1
(For Grounding Connection)
.3..2.
1. Introduction 1. Introduction
1.3 Packaging
Please ensure that the following items are included in the packaging with your machine:
If anything is missing, please contact your local Solis distributor.
Expansion Bolt x3
(For Mounting)
This manual covers the EO series inverter model list listed below:
S5-EO1P4K-48, S5-EO1P4K-48-P, S5-EO1P5K-48, S5-EO1P5K-48-P

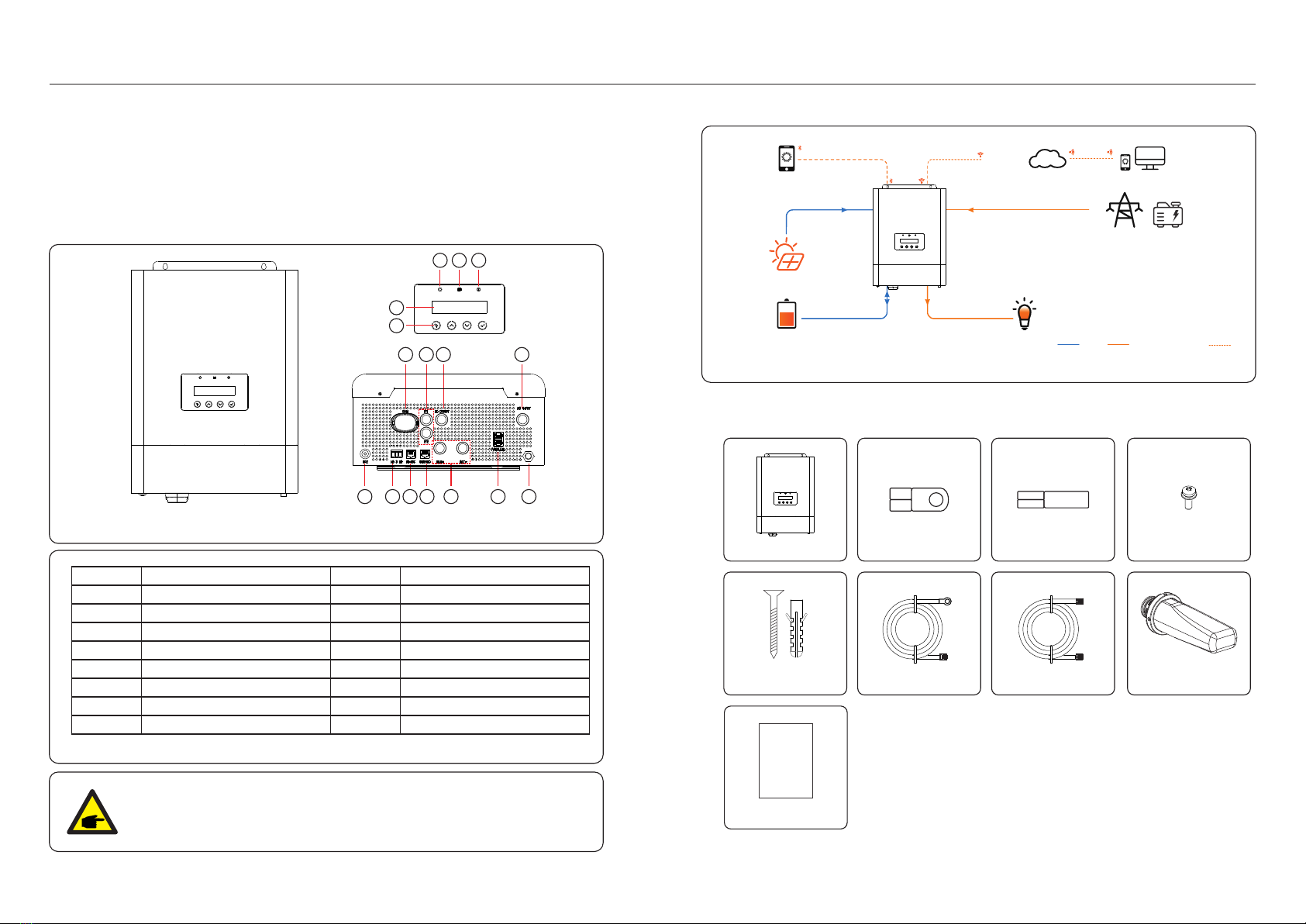

Figure 1.1
Product Description
1
2 3 4
5
6 7 8 9
10 11 12 13 14 15 16
Table 1.1
Product Description
NO. Description NO. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
LCD Display
Status Indicator
Battery Indicator
Fault Indicator
Function Buttons
COM Port
PV Input
AC Output
AC Input
Parallel Communication Ports
Dry Contact
RS-485 Communicaton Port
BMS/NTC Port
Battery Connections
Circuit Breaker
Battery Wake-Up Switch
NOTE:
Please refer to the specification of the battery before configuration.
Temperature Sensor x1
User Manual x1
Manual
BMS Communication Line x1
(Optional)
Monitor Stick x1
(Optional)
1.2 System Description
APP
PV
Battery Home Load
Grid or Generator
DC AC Communication
Internet
(Solis Cloud)
APPL Web
Figure 1.2
System Connection Diagram

2.1 Safety
The following types of safety instructions and general information appear in this document as
described below:
.5..4.
CAUTION:
“Caution” indicates a hazardous situation which if not avoided, could result
in minor or moderate injury.
WARNING:
“Warning” indicates a hazardous situation which if not avoided, could result
in death or serious injury.
DANGER:
“Danger” indicates a hazardous situation which if not avoided, will result in
death or serious injury.
NOTE:
“Note” provides tips that are valuable for the optimal operation of your
product.
2. Safety & Warning 2. Safety & Warning
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Please don’t connect PV array positive (+) or negative (-) to ground, it could
cause serious damage to the inverter.
WARNING:
Only devices in compliance with SELV (EN 69050) may be connected to the
RS485 and USB interfaces.
WARNING:
Do not touch any inner live parts until 5 minutes after disconnection
from the utility grid and the PV input.
CAUTION:
The PV array supplies a DC voltage when they are exposed to sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter, do not
remove cover for 5 minutes after disconnecting all power sources (service technician
only). Warranty may be voided if the cover is removed without authorization .
CAUTION:
The surface temperature of the inverter can reach up to .60℃ (140 ℉)
To avoid risk of burns, do not touch the surface of the inverter while it’s operating.
Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic source
and output circuit conductors shall have that comply with the NECisolators
Article 690, Part II.
CAUTION:
Risk of electric shock, do not remove the upper cover ( lower cover can be
removed for connection). There is no user serviceable parts inside, refer
servicing to qualified and accredited service technicians.
NOTE:
PV module used with inverter must have an IEC 61730 Class A rating.
WARNING:
Operations below must be accomplished by licensed technician or Solis
authorized person.
WARNING:
Operator must put on the technicians’ gloves during the whole process in case
of any electrical hazards.
WARNING:
For PV system, between the PV string and PV input of the inverter, it is
required to install a DC isolator to meet local installation regulations.

2. Safety & Warning
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
.6. .7.
2.4 Notice for Disposal
This product shall not be disposed of with household waste. They should
be segregated and brought to an appropriate collection point to enable
recycling and avoid potential impacts on the environment and human health.
Local rules in waste management shall be respected .
3. Installation
3.1 Select a Location for the Inverter
To select a location for the inverter, the following criteria should be considered:
Exposure to direct sunlight may cause the output power to decrease. It must install
the inverter indoors and avoid direct sunlight and rain.
This inverter is IP21 rated and it can be used indoors with environmental pollution
level II. Please install it indoors to avoid rain, spraying water or splashing water.
To avoid overheating, always make sure the flow of air around the inverter is not
blocked. A minimum clearance of 200mm should be kept between inverters or
objects and 500mm clearance between the bottom of the machine and the ground.
Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause
output power derating.
Install on a wall or strong structure capable of bearing the weight of the machine (14kg).
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials
or gases.
Do not install the inverter in potentially explosive atmospheres.
WARNING:
Solis requires using two magneto-thermic automatic switchs with an RCD
module (with adequate voltage and current rating basing on the grid
characteristics and on the output current of the inverter) with a sensitivity of
30mA, B-type. One switch with the RCD module needs to be installed on the
AC input side, one RCD needs to be installed on the AC backup output side. It is recommended that the inverter is installed in a cooler ambient which doesn't
exceed 131℉/55℃.

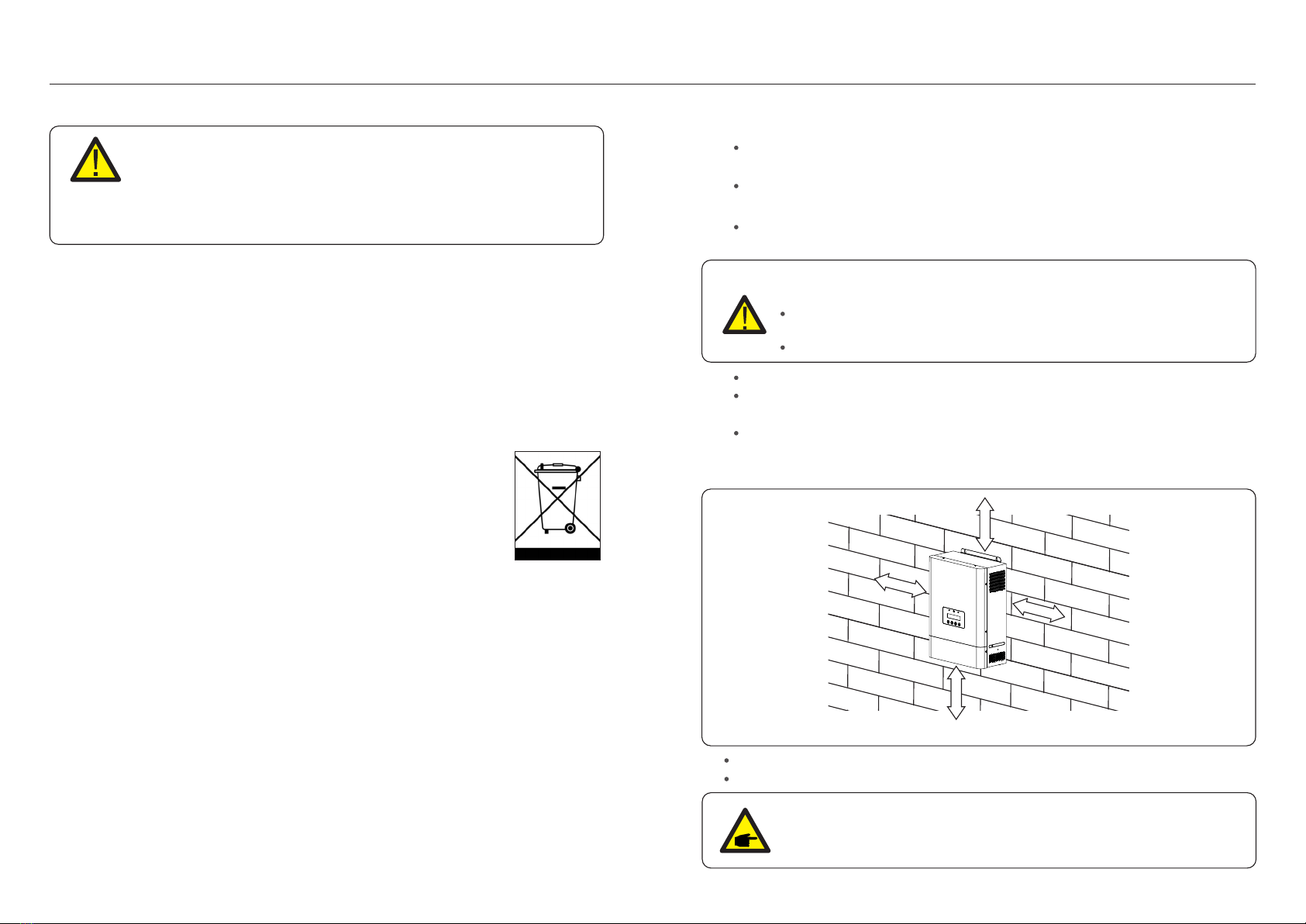

Figure 3.1 Inverter Mounting Clearance
50cm
Visibility of the LEDs and LCD should be considered.
Adequate ventilation must be provided.
NOTE:
Nothing should be stored on or placed against the inverter.
50cm
20cm
20cm

.9..8.
3. Installation3. Installation
3.2 Mounting the Inverter

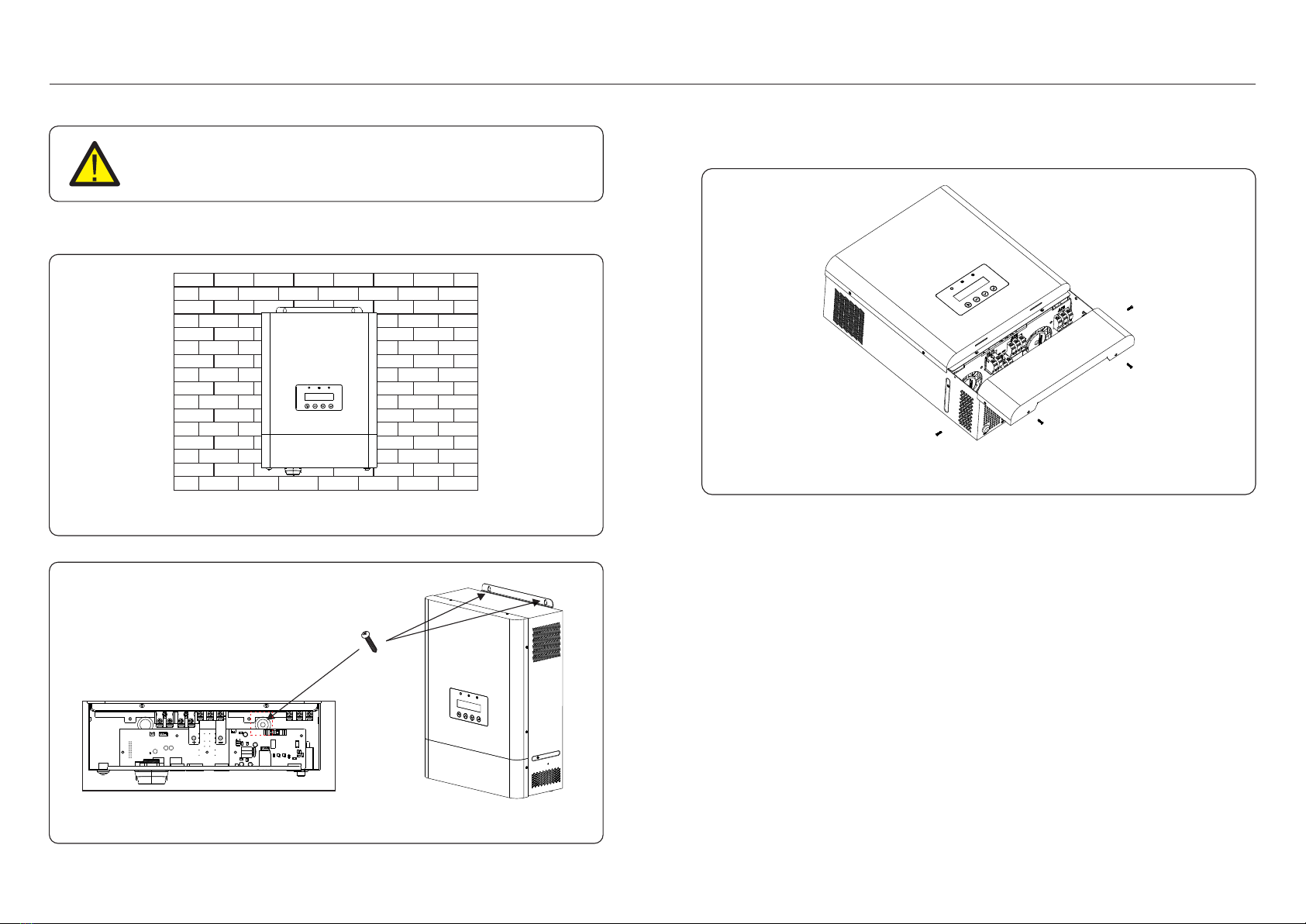

Figure 3.2 Wall Mount Inverter
WARNING:
The inverter must be mounted vertically.
Select the mounting height of the inverter and mark the mounting holes.
It’s recommended to install the inverter tighten by using two M5 screws.
Figure 3.3 Fix inverter on the wall
3.3 Preparation
Before connecting all wiring, please take off the bottom cover by removing the screws
as shown below.
Figure 3.4 Remove the Junction Box Cover
Fix the two holes on the top of the machine and one hole in the box with screws.

3.4 PV Input Terminal Assembly
Please ensure the following before connecting the inverter:
Make sure the voltage of the PV string will not exceed the max DC input voltage
(550Vdc). Violating this condition will void the warranty.
Make sure the polarity of the PV connectors are correct.
Make sure the battery, AC Input, and AC Output are all in their off-states.
Make sure the PV resistance to ground is higher than 20K ohms.
PV wire diameter requirements: .12AWG(3.3mm²）
Figure 3.5
1. Remove insulation sleeve 10mm for positive and negative conductors.
3. Please ensure the secure and correct polarity connection between PV modules and PV
input connectors or the system will be damaged. Connect the positive pole (+) of the
connection cable to the positive pole (+) of the PV input connector. Connect the negative
pole (-) of the connection cable to the negative pole (-) of the PV input connector.
PV1 PV2
Figure 3.6 PV Input Terminals
.10. .11.
3.5 Assembling the AC Connector
To protected from over current of AC input, Solis recommends installing a separate AC
breaker between the inverter and the AC input power source.
This AC breaker should be at least 32A.
Item Cable Size
(AWG) Torque
PE
L
N
10
10
10
1.2-1.6Nm
1.2-1.6Nm
1.2-1.6Nm
L
N
10
10
1.2-1.6Nm
1.2-1.6Nm
AC Input
AC Output
1. Ensure the cables are within the suitable specifications as shown in the table below:
4. Insert the AC input wires according to polarities indicated on terminal block and tighten
the terminal screws. Ensure that the PE protective conductor is connected first.
The connection sequence should be PE/L/N.
Figure 3.7 AC Input Terminals
Table 3.1 AC Wire Specification
Before connecting to PV modules, please install separately a DC circuit breaker
between inverter and PV modules.
PE/L/N
2. Insert the wire into the sleeve and use a suitable crimping tool for crimping.
10mm Crimping plier
Crimping sleeve
(In the accessory bag)
2. Remove the 10mm insulation sleeve for the positive and negative conductors.
3. Insert the wire into the sleeve and use a suitable crimping tool for crimping.
(see Figure 4.6)
PE/L/N
3. Installation3. Installation
PE 10 1.2-1.6Nm
Cable Size
(Cross Section)
5.3mm²
5.3mm²
5.3mm²
5.3mm²
5.3mm²
5.3mm²

.13..12.
6. Insert AC output wires according to polarities indicated on terminal block and tighten
terminal screws with the torque of 1.2-1.6Nm. The connection sequence should be PE-L-N.
7. Ensure the wires are securely connected.
WARNING:
Be sure to connect AC wires with correct polarity. If L and N wires are
connected in reverse, it may cause utility short-circuit when inverters
are working in the parallel operation.
Figure 3.9 AC Output Terminals
5. The dry contact is used for an onsite generator.
Description Signal Name Pin
NC RELAY1_NC 1
COM RELAY1_COM 2
NO RELAY1_NO 3
Figure 3.8 Dry Contact
PE/L/N
3.6 Grounding
To effectively protect the inverter, a grounding methods must be performed.
Connect the external grounding terminal.
To connect the grounding terminal on the heat sink, please follow the steps below:
3. Connect the grounding cable to the grounding point on the heat sink and tighten the
grounding screw. The torque rating is 1.0-1.2Nm.
1. Remove insulation sleeve 10 mm for positive and negative conductors.
2. Insert the wire into the sleeve and use a suitable crimping tool for crimping.
10mm
Crimping plier
Crimping sleeve
(In the accessory bag)
Grounding screw
For improving anti-corrosion performance, after the ground cable is
installed,apply silicone or paint to protect the connection.
IMPORTANT:
Figure 3.10 Grounding connection
3. Installation3. Installation
NOTE:
An automatic disconnect device which complies with EN62109-2 standard
should be installed on the outside of the AC input port.
Note: The PCB of the inverter has been grounding shown as below.
PE
AC O UPU T
PE / L /N AC I NPU T
PE / L /N
PE
Item Cable Size
(AWG) Torque
PE 12 1.0-1.2Nm
Cable Size
(Cross Section)
3.3mm²

3.7 Battery Terminal Components
If you choose a lead-acid battery, the allowed battery types are AGW-type,
flooded-type and Gel-type. The battery voltage to connect with the inverter is 48V.
Considering the installation environment and operation safety, please pay attention to
the following points:
The natural surrounding ventilation of a Lead-acid battery should be sufficient and the
environment temperature is within 25±10℃.
Fix the bolts of the wire terminal ensure a good connection and to prevent the battery
from sparking. The battery should avoid direct sunlight.
Do not put the batteries in an environment with excessive radiation, infrared radiation,
ultraviolet radiation, organic solvent gas, and corrosive gas.
Batteries with different capacity and functionality can't be interconnected with each
other.
Check the battery voltage and polarity before connecting it to the inverter and turning
on the system.
Ensure the installation site has enough PV generation to support the battery system.
3.7.1 Lead-acid Battery
3.7.2 Lithium Battery
If you choose a lithium battery, you are allowed to use Pylontech, BYD and Dyness.
Other batteries are available but please check the battery compatibility document
available on www.solisinverters.com
Considering the installation and operation safety, please pay attention to the following
points:
Before completing the final DC connection or closing DC breaker, please ensure the
correct polarity of the battery connection and positive (+) must be connected to BAT (+)
and negative (-) must be connected to BAT (-).
Please carefully read the user manual of the battery and strictly follow the precautions
in the battery manual.
3. Installation3. Installation
To avoid DC Arcs, Solis recommends installing a DC switch between the battery(s) and
inverter.
Insert the ring terminal of the battery cable flat onto battery connector of the inverter and
ensure the bolts are tightened with a torque rating of 2.0-3.0Nm.
Ensure the polarity at both the battery and the inverter are correctly connected and the
ring terminals are tightly screwed to the battery terminals.
NOTE:
Before connecting the battery, please carefully read the user manual of the
battery and perform the installation exactly as the battery manufacturer
requests.
Item Colour Torque
BAT+
BAT-
Red
Black
2.0-3.0Nm
2.0-3.0Nm
Battery
Ensure the cables within the suitable specifications as shown in the table below.
3.7.3 Battery Connection
Figure 3.12 Battery Fuse Terminal Connections
Table 3.2 Battery Power Cable Requirement
Bat + Bat -
.15..14.
Cable Size
(AWG)
Cable Size
(Cross Section)
4
4
21.2mm²
21.2mm²
NOTE:
Please note it is integrated with a 70 Vdc, 150A fuse (non-delay) on the
battery input side to protect electrical equipment from overcurrent.

3.8 Battery Communication
The EO Series inverter uses RS485 cable to communicate with port to BMS/NTC
communicate with the BMS of Lithium and NTC of Lead-acid battery.
Procedure for Connecting the BMS Cable or NTC Cable:
If it is connected to a lithium battery, please take out the BMS communication cable from
the accessory package. Connect one side of the cable to the battery and the other side to
the BMS/NTC port;
If it is connected to a lead-acid battery, please take out the NTC communication cable from
the accessory package. Connect the RJ45 side of the cable to the BMS/NTC port, and put
the other side with the ring near the negative pole of the battery.
NOTE:
Lead-Acid and other older-technology battery types require experienced
and precise design, installation and maintenance to work effectively.
For lead-acid battery, battery SOC calculation may not be accurate
according to battery inconformity between cells, battery aging or other
specifications of lead-acid battery etc.
NOTE:
NTC temperature sensor should be attached to the surface of the lead-acid
battery for detecting the temperature in real time.
3. Installation3. Installation
.17..16.

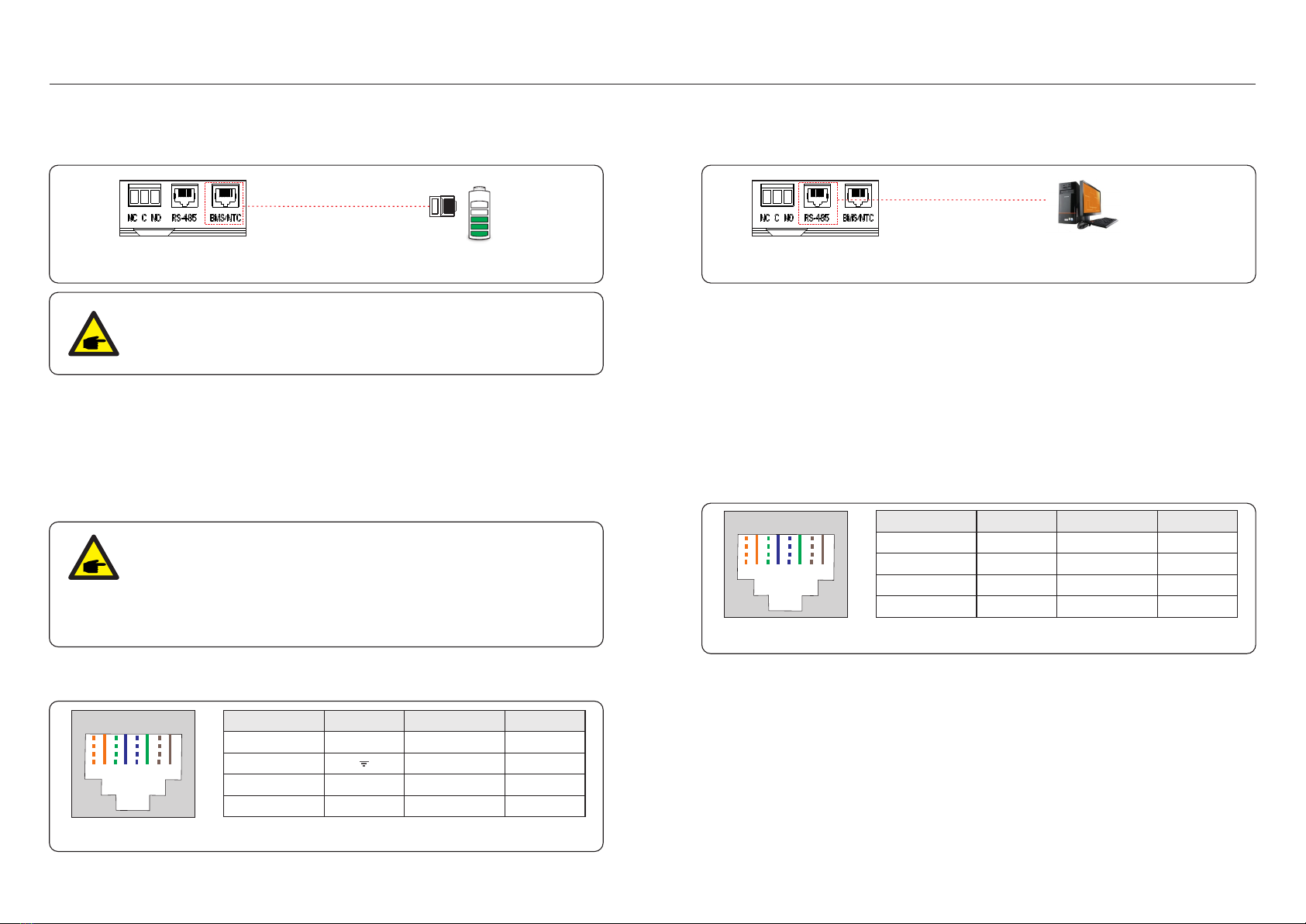

3.9 External Communication
Figure 3.13
RS-485 is one standard communication interface which can transmit the real data from
inverter to PC or other monitoring equipments.
BMS/NTC PIN Definition
Communication interface bewteen inverter and battery is RS485 with a RJ45 connector.
RJ45terminal
1 2 3 4 5 6 7 8 Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
RT1
RT2
CAN_H
CAN_L
NC
Pin Definition Pin Definition
BMS/NTC BMS/NTC
Pin 1
BMS485_A
BMS485_B
Figure 3.14
Monitoring equipments
Procedure for Connecting the RS485 Cable:
RJ45terminal
1 2 3 4 5 6 7 8 Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
GND
RS485_A
NC
Pin Definition Pin Definition
RS485
Pin 1
+5V_RS485
+5V_WIFI
WIFI_B
WIFI_A
RS485_B
Figure 3.15
Figure 3.16
CAN
RS485
RS485 PIN Definition
Communication interface bewteen inverter and external device is RS485 with a RJ45
connector.
User can use the RS-485 port for external communication.
User should prepare the Comm-cable by themselves according to the pin-definition
sheet shown as below.
The insert terminal need to use the RJ45 plug.
Insert one side of the cable into the RS-485 port of the inverter, and insert another
side into PC or other monitioring device.

3.10 Parallel Connection
The "-P" type in the EO series inverter has the parallel capability and can be operated
in parallel.
This inverter can be used in parallel with two different operation modes.
1.Parallel operation in single phase with up to 10 units.
2.Maximum 10 units work together to support 3-phase equipment.
n
PV PV
LOAD
GRID
GENERATOR
BATERY
n≤10pcs
Figure 3.17 Parallel Operation in Single Phase
DC AC Communication
GRID
BATTERY BATTERY BATTERY
PV
n2 n3
ATS
GENERATOR
PV PV PV PV PV single phase LOAD
three phase LOAD
DC AC Communication
Figure 3.18 Parallel Operation in Three Phase
n1+n2+n3≤10pcs
n1≥1
n2≥1
n3≥1
three phase LOAD
must be Y type
n1
For specific information, please refer to 《Parallel Quick Installation Guide》.
3. Installation3. Installation
Description
Status
Light
BATTERY
3.12 LED Indicates
There are three LED indicators on the EO series inverter which indicate the working
status.
Table 3.3 Status Indicator Lights
Color
FLASHING
ON
OFF
Green
The inverter is in self-test(Fast flashing for 0.5S).
The inverter is in standby(Slow flashing for 3S).
The inverter is normal operation.
Or The inverter is operating normally.
The inverter is deenergized.
Green/Yellow
Yellow/Red
ALARM
STATUS
GREEN FLASHING
GREEN CONSTANT
Battery is charging.
Battery is discharging.
YELLOW CONSTANT
OFF Battery is not installed or in the off position.
Battery failure.
YELLOW CONSTANT
RED CONSTANT
OFF
There is an alarm but system is operational.
There is an alarm and the system has stopped.
No Alarm.
.18. .19.
3.11 External Communcation Stick Connection
Inverter provides a Monitoring port which can collect data from inverter and transmit it to
monitoring-website via an external monitoring data collector.
For details please refer to WiFi Stick Data logger Quick installation guide.

5. Operation
Figure 5.1 Operation Overview

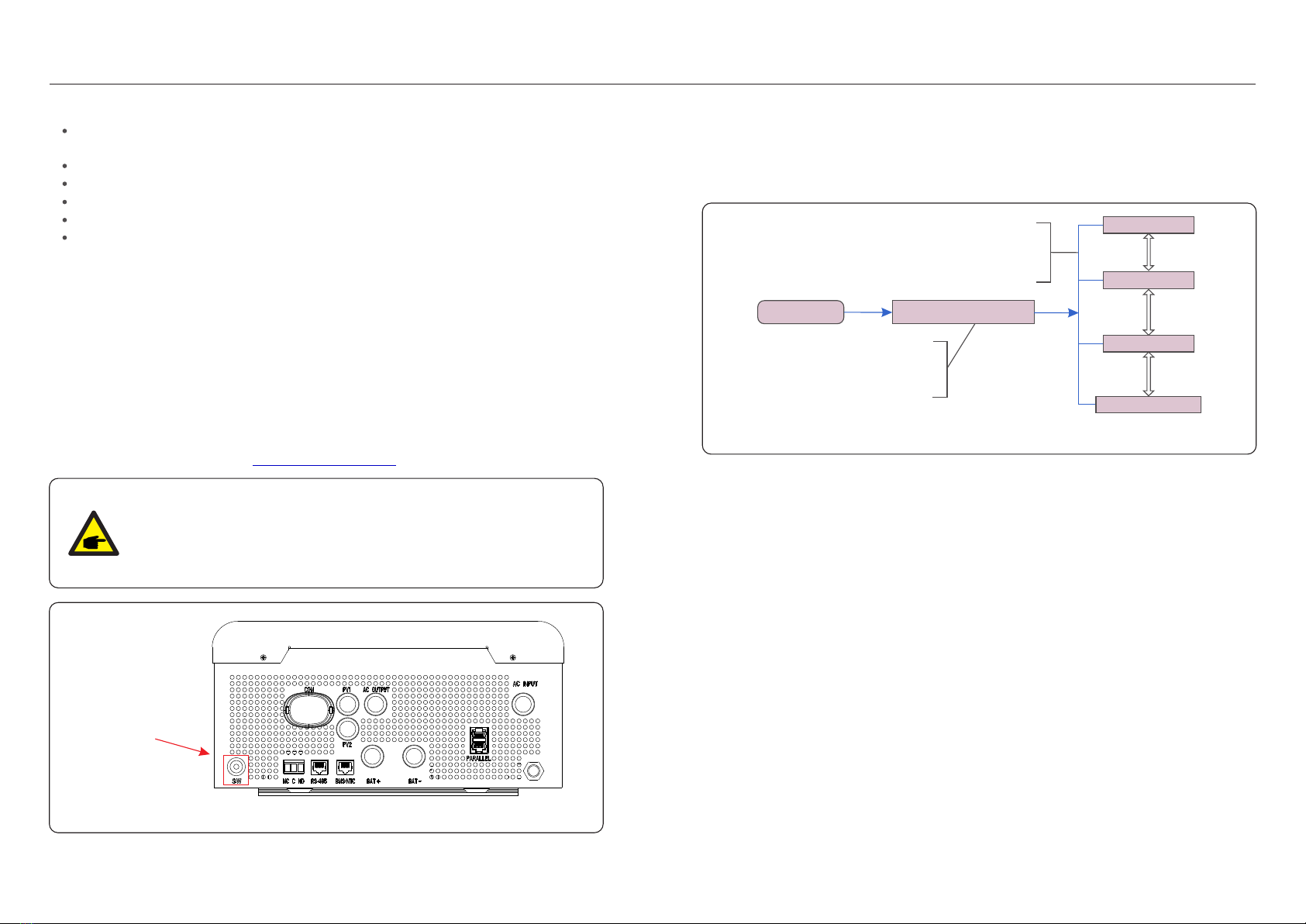

5.2 Main Menu
There are four submenu in the Main Menu (see Figure 5.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
Start Main interface
Information
Settings
AdvancedInfo.
Advanced Settings
UP/DOWN
UP/DOWN
UP/DOWN
Pressing the ENTER
key to switch
to the submenu
Pressing the ESC
key calls back
the previous menu
ENTER
3 sec
5.1 Startup guide
Please follow the steps to complete the initial setup process.
Steps:
Start-up Wizard Language ＞ Time ＞ Connect battery? ＞ Battery Type ＞
Connect generator? ＞ Back up setting ＞ Setting successfully
.20. .21.
4.1 Preparation of Commissioning
Ensure all the devices are accessible for operation, maintenance and service.
Check and confirm that the inverter is firmly installed.
Ensure space for ventilation is sufficient for one inverter or multiple inverters.
Ensure Nothing is left on top of the inverter or battery module.
Ensure inverter and accessories are correctly connected.
Ensure cables are routed in a safe location or protected against mechanical damage.
Ensure warning signs and labels are suitably affixed and durable.
4.2 Commissioning Procedure
If all the items mentioned above meet the requirements, proceed as follows to start up
the inverter for the first time.
4. Commissioning
1. Switch on the AC-Output and AC-Input.
2. Refer to “Part 5” to configure the parameters. Ensure to run through the Startup Wizard.
3. Switch on the DC circuit breaker between inverter and battery.
a. If the battery equipped is Pylon Li-ion Battery, actuate the switch on the battery manually.
The relay will make 'clicking' sounds and it will take a short-time to work automatically.
4. Verify the system is working properly.
5. Proceed to setup the systems communication and refer to the datalogger manual.
a. All manuals can be found at www.solisinverters.com
5.3 Information
In the information section, operating data and information data can be viewed.
Sub-sections include:
1. General Information
2. System Information
3. Energy Records
4. BMS information
NOTE:
When the loads are only supported by the battery and there is no PV and
AC power, after turning on the battery breaker, please long press on the
SW button at the bottom side of the inverter , till the screen (see Figure 4.1)
light up.
SW Button
Figure 4.1

5.3.3 Energy Records
Sub-sections of the Yield information section include:
1. Battery Yield
2. Grid Yield
3. Load Yield
The example displays are shown in the following figures.
Values are for reference only.
Figure 5.4 Battery Yield
BattChgE Today：
000.0kWh
Shows the total battery charged energy.
Shows yesterday’s battery charged energy.
Shows the total battery discharged energy.
Shows today’s battery discharged energy.
Shows yesterday’s battery discharged energy.
Shows today’s battery charged energy.
Display Description
BattChgE Total：
0000000kWh
BattChgE Lastday:
000.0kWh
BattDisChgE Total:
0000000kWh
BattDisChgE Today:
0000000kWh
BattDisChgE Lastday:
0000000kWh
GridGetE Lastday：
000.0kWh
Shows the total energy received from the grid.
GridGetE Total：
0000000kWh
GridGetE Today:
000.0kWh
Shows yesterday’s energy received from the grid.
Shows today’s energy received from the grid.
Figure 5.5 Grid Yield
Display Description
5. Operation5. Operation
.22. .23.
5.3.1 General Information
The example displays are shown in the following figures.
The user can view it by pressing the up and down keys.
Values are for reference only.
Figure 5.2 General Information
Inverter SN:
000000000000000
SoftVer.：
040000
Display Description
Mute State:
OFF
Model. :
S5-E01P5K-48
Shows the inverter serial number.
Show the mute status of the device.
Shows the model of the device.
Shows the DSP and ARM version of the inverter.
5.3.2 System Information
The example displays are shown in the following figures.
The user can view it by pressing the up and down keys.
Values are for reference only.
V_DC:
I_DC:
000.0V
000.0A
Figure 5.3 System Information
Display Description
V_AC:
I_AC:
000.0V
000.0A
Shows the grid frequency value.
Grid Frequency:
00.00Hz
Battery V:
Battery I:
Backup V:
Backup P:
Charge P:
DisCharge P:
000.0V
000.0A
000.0V
00.0kW
00.0kW
00.0kW
Shows the voltage on DC side.
Shows the current on DC side.
Shows the voltage on AC side.
Shows the current on AC side.
Shows the battery voltage.
Shows the battery current.
Shows the voltage on backup.
Shows the power on backup.
Shows the charging power.
Shows the discharging power.

Figure 5.7 PV Yield
Display Description
PV E Total:
000.0kWh Shows total energy received from PV.
Shows today’senergy received from PV.
Shows yesterday’s energy received from PV.
Figure 5.6 Load Yield
Display Description
LoadE Total:
0000000kWh
LoadE Today:
000.0kWh
LoadE Lastday：
000.0kWh
Shows total load energy.
Shows today’s load energy.
Shows yesterday’s load energy.
PV E Today:
000.0kWh
PV E Lastday:
000.0kWh
5.3.4 BMS Information
The example displays are shown in the following figures.
The user can view it by pressing the up and down keys.
Values are for reference only.
Figure 5.8 BMS Information
BMS Status:
CAN Fail
BMS Version:
0.0
Display Description
Battery V:
Battery I:
00.00V
+00.00A
ChargeILmt:
DischargILmt:
ChargeVLmt:
DischargVLmt:
000.0A
000.0A
000.0A
000.0A
SOC Value:
SOH Value:
000%
000%
Battery V: Shows battery voltage(From BMS).
Battery I: Shows battery current(From BMS).
Shows that Battery BMS communication status.
Shows that Battery BMS version.
SOC value: Shows battery state of charge.
SOH value: Shows battery state of health..
ChargeILmt: Shows battery charge limit(Current).
DischargeILmt: Shows battery discharge limit(Current).
ChargeILmt: Shows battery charge limit(Voltage).
DischargeILmt: Shows battery discharge limit(Voltage).
BMS ONLY support CAN communication not RS485, and all the data will display “0"
when the battery has been selected as Lead-acid battery which is monitored by NTC
in CAN/NTC port.
5. Operation5. Operation
.25..24.

The following submenus are displayed when the Settings menu is selected:
1. Set Time/Date
2. Set Address
3. Set Mute
4. Mode Settings
5.4 Settings
5.4.1 Set Time/Date
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 5.9.
NEXT=<ENT> OK=<ESC>
01-01-2020 00:00
Figure 5.9 Set Time
5.4.2 Set Address
This function is used to set inverter address for data logger connection/modbus
communication/parallel connection.
YES=<ENT> NO=<ESC>
Set Address: 02
Figure 5.10 Set Address
5.4.3 Set Mute
This function allows you to turn on/off the keypad tone and buzzer sound.
Select YES to disable the sound and select NO to enable the sound. Default is "YES" .
Set Mute:
YES
Figure 5.11 Set Mute
5.4.4 Mode Settings
Figure 5.12 Mode Settings
Work Mode
Charger Src. Pri.
Inverter work mode and charge source priority can be set in this section.
5.4.4.1 Work Mode
This section describes the working logic of each work mode of the inverter.
Work Mode:
Batt Reserve
Work Mode:
Back up
Work Mode:
Self Use
* PV supports the loads at first priority.
* If there is excess PV power, it will charge the battery,
* If PV is not sufficient to support the loads, battery
discharges.
* If battery reaches the Batt Low Volt (Lead-acid) or Min SOC
Set (Lithium), PV will provide power to the battery and Grid
will support loads.
* When there is no PV input, the battery will stop discharging
and use the grid power to support the loads in order to
reserve a higher battery capacity.
* Grid supports the loads at first priority.
* When Grid is available, battery will not discharge in order
to keep a higher battery capacity.
* When Grid is not available, battery will discharge.
* PV supports the loads at first priority.
* If there is excess PV power, it will charge the battery,
* If PV is not sufficient to support the loads, battery
discharges.
* If battery reaches the Batt Low Volt (Lead-acid) or Min SOC
Set (Lithium), PV will provide power to the battery and Grid
will support loads.
Figure 5.13 Work Mode
Display Description
5.4.4.2 Charger Source Priority
Charge source priority settings are shown in the following figure.
Only PV is allowed to charge the battery.
Both PV and Grid are allowed to charge the battery.
Charger Src. Pri.
PV Only
Charger Src. Pri.
PV&Grid
Display Description
Figure 5.14 Charger Source Priority
5. Operation5. Operation
.26. .27.

5.5 Advanced Information
NOTE:
This area is for fully qualified and accredited technicians only.
Enter the password 1000 to access to the following sections.
1. Alarm Message
2. Warning Message
3. Running Status
4. Communication data
5. Yield Profile
YES=<ENT> NO=<ESC>
Password:0000
Figure 5.15 Enter Password
The screen can be scrolled by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to a submenu.
Press the ESC key to return to the Main Menu.
5.5.1 Alarm Message
The display shows the 500 latest alarm messages.
Screens can be scrolled by pressing the UP/ DOWN keys.
Alm000: NO-Grid
T:01-01 00:02 D:0000
Figure 5.16 Alarm Message
Press the ESC key to return to the previous menu.
Press the ENTER key to return to the next menu.
The example displays are shown in the following figures.
Values are for reference only.
The display shows the warning messages appeared on screen, can store in total 500pcs.
Press the ESC key to return to the previous menu.
Msg000:
T:01-01 00:02 D:0000
Figure 5.17 Warning Message
5.5.2 Warning Message
5.5.3 Running Status
This section is for maintenance personnel to view the running information (Values are
for reference only).
Figure 5.18 Running Status
General Status
Advanced Status
Figure 5.19 General Status
DC Bus Voltage:
0.0V
Display Description
Power Factor:
+0.000
Power Limit%:
000%
Inverter Temp:
+0.0degC
Grid Standard:
Flash State:
11111111
Shows DC bus voltage.
Shows power factor of the inverter.
Shows the power output percentage of the inverter.
Shows grid standard.
Shows the data migration time.
NOTE:
The advanced status is reserved for Solis technicians.
Shows heat sink temperature of the inverter.
5. Operation5. Operation
.29..28.

Figure 5.20 Advanced Status
Ground Voltage:
000.0V
Display Description
Relay-Fault Func.:
RUN
GRID-INTF.02 Func.:
RUN
5.5.4 Communication data
This section shows the communication data between HMI and DSP.
For Solis engineers ONLY.
Figure 5.21 Communication Data
01-05: 00 00 00 00 00
06-10: 00 00 00 00 00
Shows the status of the relay.
Shows the voltage to the ground.
Shows the interference status from the grid.
5.5.5 Yield Profile
5.5.5.1 Energy Battery
Shows the battery charge & discharge energy.
Battery Discharge
Shows the battery charge energy.
Shows the battery discharge energy.
Battery Charge
5.5.5.2 Grid Energy
Energy received from the grid. or Energy from the grid.
5.5.5.3 Energy Backup
Energy provided from backup port.
Figure 5.22 Battery Charge
Display Description
Shows the energy received from the grid.
Energy Received
Figure 5.23 Energy Received from Grid
Display Description
Monthly Energy
Shows the .daily energy
Shows the .yearly energy
Shows the .monthly energy
Daily Energy
Yearly Energy
Figure 5.24 Energy Backup
Display Description
5. Operation5. Operation
.30. .31.

5.6 Advanced Settings
NOTE:
This area is for fully qualified and accredited technicians only.
YES=<ENT> NO=<ESC>
Password:0000
Figure 5.25 Enter Password
5.6.1 Output Settings
Output Settings are to set the parameters for the AC output port.
1. Backup ON/OFF
When you select ON, AC output port is enabled.
When you select OFF, AC output port is disabled.
2. Backup Settings
Set the AC output port voltage and frequency based on load specification.
Figure 5.26 Backup ON/OFF
Enter the password 1000 to access to the following sections.
1. Output Settings
2. Battery Settings
3. Special Settings
4. Equalizer Settings
5. Password Settings
The screen can be scrolled by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to a submenu.
Press the ESC key to return to the Main Menu.
Backup ON/OFF
Figure 5.27 Backup Settings
Display Description
BackupFrequency:
50.0Hz or 60.0Hz
BackupVoltage:
220.0V-230.0V Shows the .backup voltage
Shows the .backup frequency
5.6.2 Battery Settings
This EO series is compatible with both lithium-ion and lead acid batteries below is the
compatibility list. For more compatible batteries please reference our Battery
Compatibility Document at www.solisinverters.com that is updated frequently.
Table 5.1 Battery Select
5.6.2.1 Battery Select
BYD
Brand
Pylontech
Dyness
Select "B-BOX"
Setting
Select "Pylon"
Select "Dyness"
PREMIUM LVS, PREMIUMLVL,
Box Pro 2.5-13.8
Model
US2000/US3000
Powerdepot/Powerbox/B4850
The section has 4 parts:
1. Battery Select
2. Battery Wakeup
3. Quick Charge
4. Advanced Battery Settings
5. Operation5. Operation
.32. .33.
Set Backup:
OFF
EO Series inverters can work with several kinds of lead acid batteries such as flooded
type, AGM type, GEL Type.
When working with lead acid batteries, set capacity type accordingly.

Figure 5.28 Battery Select
Battery Select:
PYLON_LV
The battery wake-up button will put low voltage on the battery port to wake up the battery.
After the wake-up command succeeds, the battery will continue to be charged according
to the normal charging logic.
5.6.2.2 Battery Wakeup
Figure 5.29 Battery Wakeup
YES=<ENT> NO=<ESC>
Are you sure?
This function can quickly fully charge the battery.
This function is only effective when grid is available.
After activated, the grid and PV will quickly charge the battery at the max current.
For Lead-acid battery, it will charge until the battery voltage reaches "Floating Chg
voltage".
For Lithium battery, it will charge until the battery SOC reaches "Max SOC Set".
5.6.2.3 Quick Charge
Figure 5.30 Quick Charge
YES=<ENT> NO=<ESC>
Are you sure?
The following is the setting of battery parameters. For different lithium batteries,
the inverter has been set with the optimal battery configuration, and it is recommended
that customers do not modify it without authorization.
For lead-acid batteries, the installer should set it according to the battery type.
5.6.2.4 Advanced Battery Settings
Display Description
Max Charge Curr
Max Grid Chg Cur
Force Curr.Set
Min SOC Set
Max Charge Current.
Max Charge Current from Grid.
Force Charge Current Setting. When battery is discharged to
"Force SOC Set", force charge logic activated and inverter
will charge the battery at this current rate to prevent battery
entering sleep mode.
The minimum SOC Setting. Default 20%, adjustable from
10-40%.
When Grid is available, inverter will stop discharging the
battery at this SOC level.
If there is load, PV charges battery and grid supports the load.
If charge source is set with "PV&Grid", grid will also charge
the battery.
It will charge the battery until Max SOC Set or start to
discharge when there is a need of discharging battery.
Max SOC Set Max Charge SOC.
Force SOC Set
Force Charge SOC Setting. Default 10%, adjustable from
5% - Min SOC Set. It is the SOC level to trigger the force
charge stage to prevent battery entering sleep mode.
It will charge the battery until battery SOC reaches Min
SOC set.
Batt under Volt
The lowest discharge voltage. If grid is not available, battery
may be continuously discharged until it reaches Batt Under
Volt. It will reports alarm if load is larger than PV power.
If there is no PV, the battery will still provide power for the
inverter screen and communication circuit until it reaches
(Batt Under Volt - 2V) and triggers the mechanical protection.
For lithium batteries, these are the following settings:
5. Operation5. Operation
.34. .35.
Batt over Volt
The highest charge protection voltage. If battery voltage
reaches over this value, it will stop battery charging and give
alarm.
Figure 5.31 For Lithium Batteries
