Ginlong S5 Series User manual

Installation and Operation Manual
Solis S5 Three Phase Inverter
S5-GC(25-50)K
Ginlong Technologies Co., Ltd.
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: [phone]
Fax: [phone]
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Please adhere to the actual products in case of any discrepancies in this user manual.
Ver1.2

2
4
6
6
6
6
6
9
9
13
26
26
26
4
2
3
5
11
27
27
27
…………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………
………………………………………………………………………………………………………
……………………………………………………………………………………………………
………………………………………………………………………………………
……………………………………………………………………………………………………………………………
……………………………………………………………………………………………
………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
4
……………………………………………………………………………………………
29
………………………………………………………………………………………………………………………………
30
………………………………………………………………………………………………………………………
33
………………………………………………………………………………………………………………
7
7
8
…………………………………………………………………………………
………………………………………………………………………………………………………………
……………………………………………………………………………………………………………
1. Introduction
2. Safety Instructions
2.1 Safety Symbols
2.2 General Safety Instructions
2.3 Notice For Use
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
3.3 Keypad
3.4 LCD
5. Installation
5.1 Select Location for the Inverter
5.2 Mounting the Inverter
5.3 Electrical Connections
7. Operation
6. Start & Stop
6.1 Start the Inverter
6.2 Stop the Inverter
1.1 Product Description
1.2 Packaging
7.2 Information
7.1 Main Menu
4. Product handing and storage
4.1 Product handling
4.2 Product Storage
7.3 Settings
7.4 Advanced Info.
7.5 Advanced Settings
……………………………………………………………………………………………………………………………………
Contents
……………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
8. Maintenance
9. Troubleshooting
10. Specifications
45
46
48
44
…………………………………………………………………………………………………………………………
7.6 AFCI function
………………………………………………………………………………………………………………………………
11. Appendix 58
58
………………………………………………………………………………………
11.1 Grid standard selection guide
………………………………………………………………………………………………………………
2.4 Notice for Disposal 5

1.1 Product Description
.3..2.
LED lights
LCD display
4 buttons

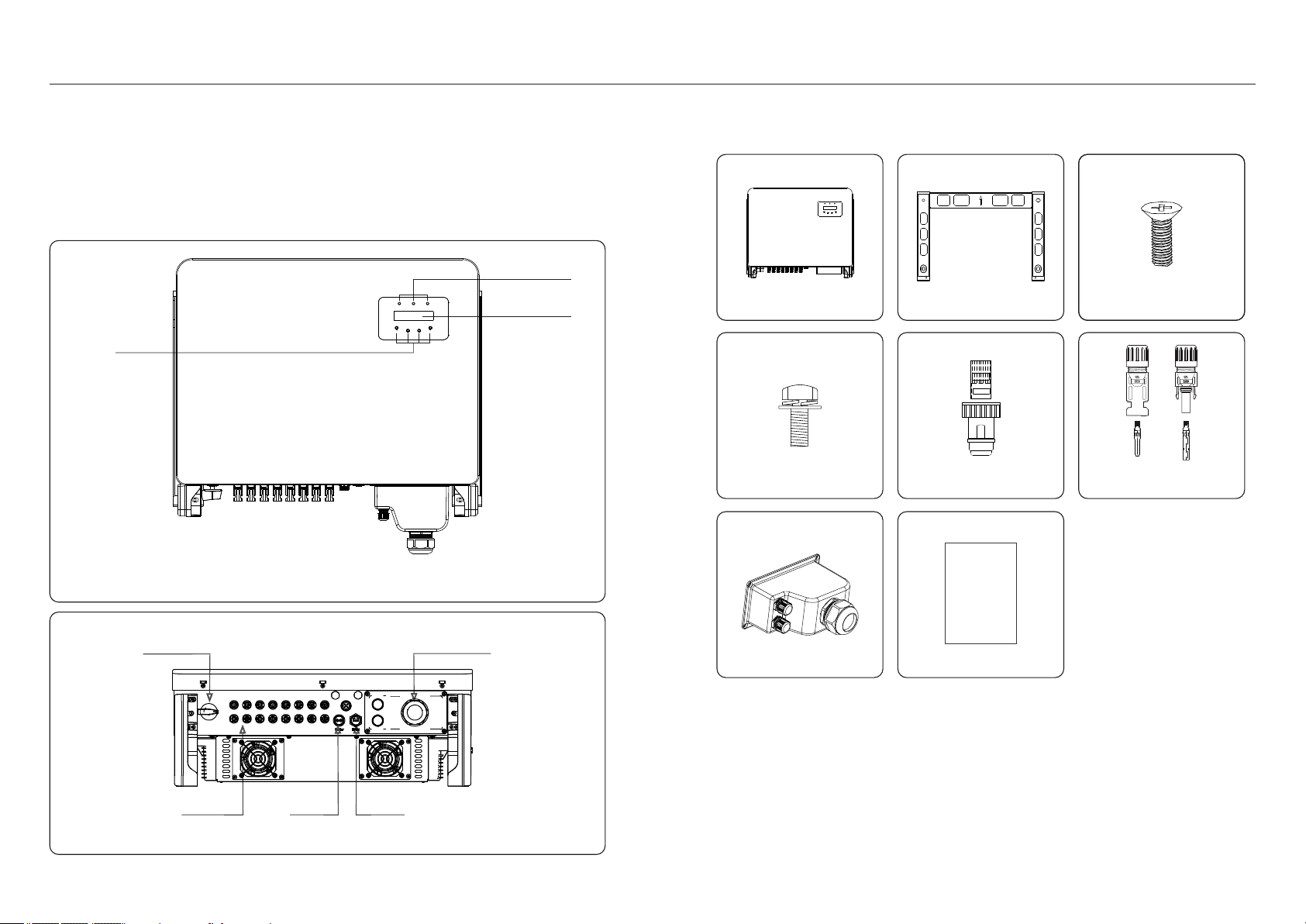

Figure 1.1 Front view
Figure 1.2 Bottom view
Inverter x1 Back plate x1
1.2 Packaging
When you receive the inverter, please ensure that all the parts listed below are included:
1. Introduction 1. Introduction
If anything is missing, please contact your local Solis distributor.
AC output
DC input
DC Switch
Cross screws x4
Hex screws x2
AC terminal cover x1 User manual x1
DC connectors
(15-33)K x6, (36-50)K x8
RJ45 connector x1
Meter DRM
Solis three phase inverter is suitable for utility-scale PV projects .
This manual covers the three phase inverter model listed below:
S5-GC25K, S5-GC30K, S5-GC33K, S5-GC36K, S5-GC40K, S5-GC40K-HV,
S5-GC50K-HV, S5-GC15K-LV, S5-GC20K-LV, S5-GC23K-LV
The following one model is specially supplied for Brazil market:
S5-GC37.5K
Manual

.5..4.
2. Safety Instructions 2. Safety Instructions
2.1 Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
2.2 General Safety Instructions
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter.
Do not remove cover for 5 minutes after disconnecting all power sources
(service technician only). Warranty may be voided if the cover is removed
without unauthorized.
CAUTION:
The surface temperature of the inverter can exceed 75℃ (167℉).
To avoid risk of burns, DO NOT touch the surface when inverter is operating.
The inverter must be installed out of reach of children.
2.3 Notice For Use
CAUTION:
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed, could result in some damage or the destruction of the inverter.
WARNING:
WARNING symbol indicates important safety instructions, which if not
correctly followed, could result in serious injury or death.
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Please don’t connect PV array positive(+) or negative(-) to ground, it could
cause serious damage to the inverter.
CAUTION:
The PV array (Solar panels) supplies a DC voltage when they are exposed to
sunlight.
CAUTION:
Risk of electric shock. Do not remove cover. There is no user serviceable
parts inside. Refer servicing to qualified and accredited service technicians.
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications only:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the Inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic
source and output circuit conductors shall have disconnects that comply
with the NEC Article 690, Part II. All Solis three phase inverters feature
an integrated DC switch.
5. To startup the inverter, the Grid Supply Main Switch (AC) must be switched on, before
the solar panel's DC isolator shall be switched on. To stop the inverter, the Grid Supply
Main Switch (AC) must be switched off before the solar panel's DC isolator shall be
switched off.
2.4 Notice for Disposal
This product shall not be disposed of with household waste. They should
be segregated and brought to an appropriate collection point to enable
recycling and avoid potential impacts on the environment and human health.
Local rules in waste management shall be respected .

.6.
Light
1
2
3
POWER
OPERATION
ALARM
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Description
The inverter can detect DC power.
No DC power or low DC power.
The inverter is operating properly.
The inverter has stopped to supply power.
The inverter is initializing.
Alarm or fault condition is detected.
Figure 3.1 Front Panel Display
Table 3.1 Status Indicator Lights
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter,
which shows the following information:
Inverter operation status and data; Service messages for operator;
Alarm messages and fault indications.
4.1 Product handling
Please review the instruction below for handling the inverter:
1. The red circles below denote cutouts on the product package.
Push in the cutouts to form handles for moving the inverter (see Figure 4.1).
Figure 4.1 move the inverter
2.Open the carton, then two people handle both sides of inverter through the area
denoted dotted line. ( see figure 4.2).
4. Product handing and storage
The inverter is operating without fault or alarm.
.7.
Figure 4.2 Inverter handles
NOTE:
Be careful to lift the inverter. The weight is around 45kg.
3

.9..8.
4.2 Product Storage 5.1 Select a Location for the Inverter
5. Installation
4. Product handing and storage
Storage temperature must be between -40℃ and 70℃ and the humidity should be
between 0 and 95% non-condensing.
Stacknomorethanthree(3)invertershigh.
If the inverter is not to be installed immediately, storage instructions and environmental
conditions are below:
Use the original box to repackage the inverter, seal with adhesive tape with the
desiccant inside the box.
Store the inverter(s) in a clean and dry place, free of dust and dirt.
Keep box(es) away from corrosive materials to avoid damage to the inverter enclosure.
Inspect packaging regularly. If packaging is damaged(wet, pest damage, etc),
repackage the inverter immediately.
Store the inverter(s) on a flat, hard surface - not inclined or upside down.
After long-term storage, the inverter needs to be fully examined and tested by qualified
service or technical personnel before using.
Restarting after a long period of non-use requires the equipment to be inspected
and, in some cases, the removal of oxidation and dust that has settled inside the
equipment will be required.
To select a location for the inverter, the following criteria should be considered:
Do not install in small closed spaces where air cannot circulate freely. To avoid
overheating, always make sure the flow of air around the inverter is not blocked.
Exposure to direct sunlight will increase the operational temperature of the inverter and
may cause output power limiting. Ginlong recommends inverter installed to avoid
direct sunlight or raining.
To avoid over heating ambient air temperature must be considered when choosing
the inverter installation location. Ginlong recommends using a sun shade minimizing
direct sunlight when the ambient air temperature around the unit exceeds 104°F/40°C.

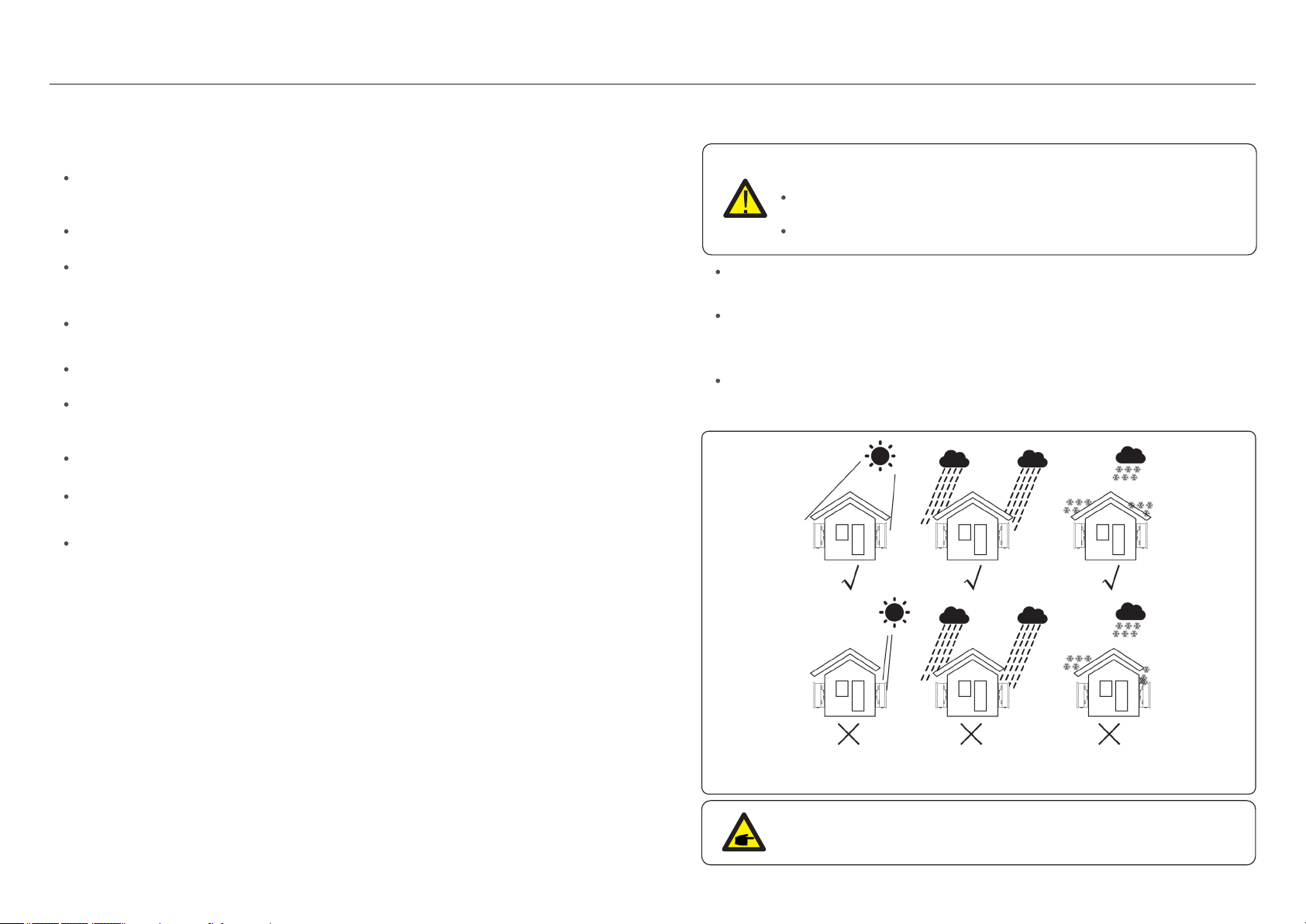

Figure 5.1 Recommended Installation locations
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
NOTE:
Nothing should be stored on or placed against the inverter.

.11..10.
5.2 Mounting the Inverter
Figure 5.3 Inverter wall mounting
Refer to figure 5.4 and figure 5.5. Inverter shall be mounted vertically.
The steps to mount the inverter are listed below.
1. Refer to Figure 5.4, the holes for expansion bolt based on the hole diameter of bracket
(M10*70) , using the percussion drilling with the 10mm drill need to stay vertically on
the wall. And the drill hole must be vertically on the wall. And all drill holes' depth is 60mm.
2. Make sure the bracket is horizontal. And the mounting holes (in Figure 5.4) are marked
correctly. Drill the holes into wall at your marks.
3. Use the suitable expansion screws to fix the bracket on the wall.
Figure 5.4 Inverter wall mounting
5. Installation5. Installation
× ×
Inverted

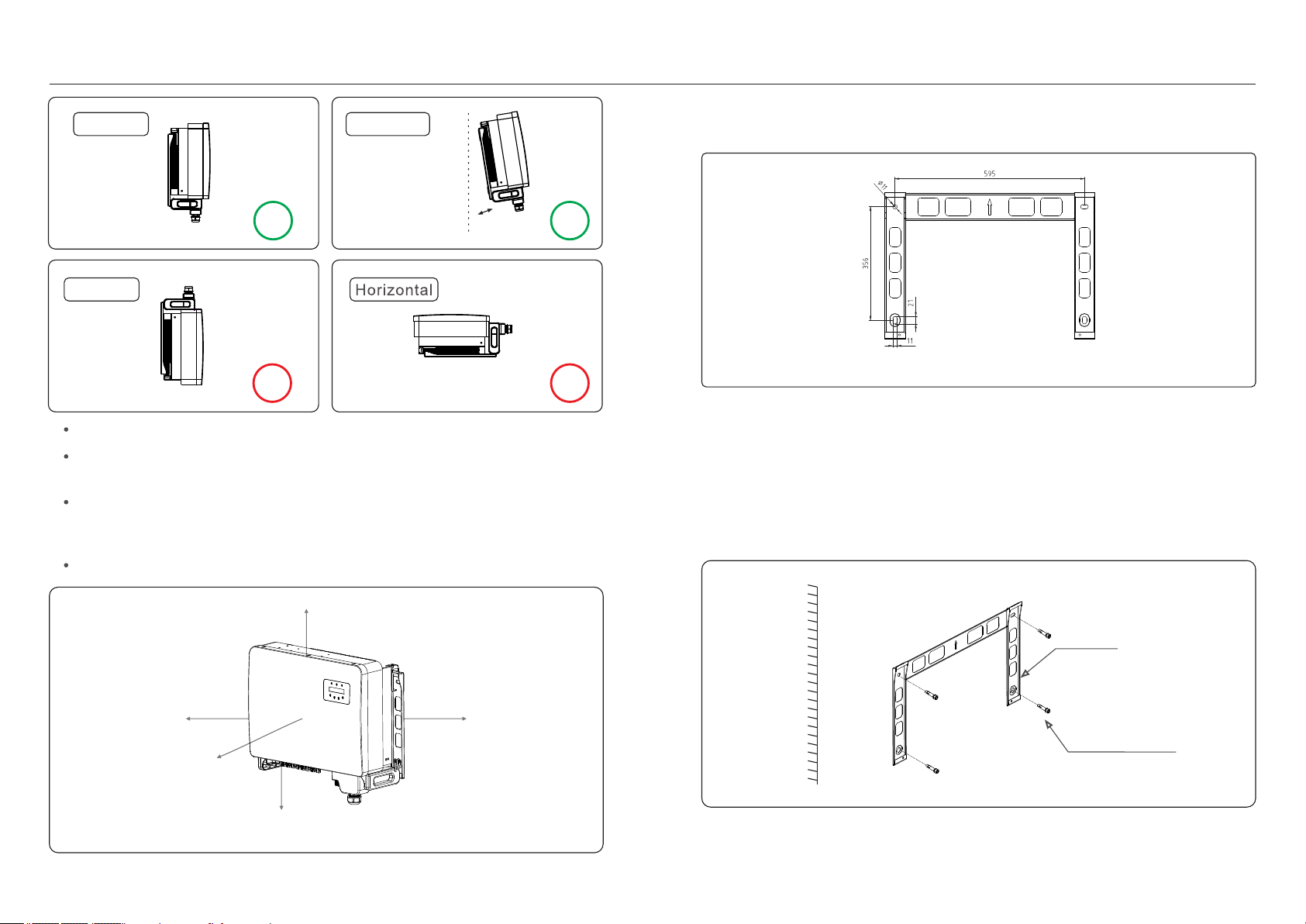

Figure 5.2 Inverter Mounting clearance
Install on a vertical surface or structure capable of bearing the weight.
Please install the inverter vertically. If the inverter cannot be mounted vertically, it may
be tilted backward to 15 degrees from vertical.
For multiple inverters are installed on site, a minimum clearance of 500mm,should be kept
between each inverter and any other mounted equipment. The bottom of the inverter must
be at least 500mm from the ground or floor. See figure 5.2.
Visibility of the LED status indicator lights and LCD display screen should be considered.
Suitable fixing screws
Bracket
Back hanging plate size:
≤15°
√ √
Vertical Backward
1000mm
500mm
500mm
500mm
500mm

.12. .13.
Figure 5.5 Install the inverter
WARNING:
The inverter must be mounted vertically.
5. Installation5. Installation
4. Lift the inverter and hang it on the bracket, and then slide down to make sure they
match perfectly.
Figure 5.6
5. If the installation position is high, the inverter cannot be directly mounted on the
mounting plate, and the hoisting rope is hoisted through the two lifting holes.
（The rope needs to meet the load-bearing requirements of this product）.
5.3 Electrical Connections
Table 5.1 Electrical connection symbols
The electrical connection of the inverter must follow the steps listed below:
ON
DC input terminal
DC 1 ~ DC 8
OFF

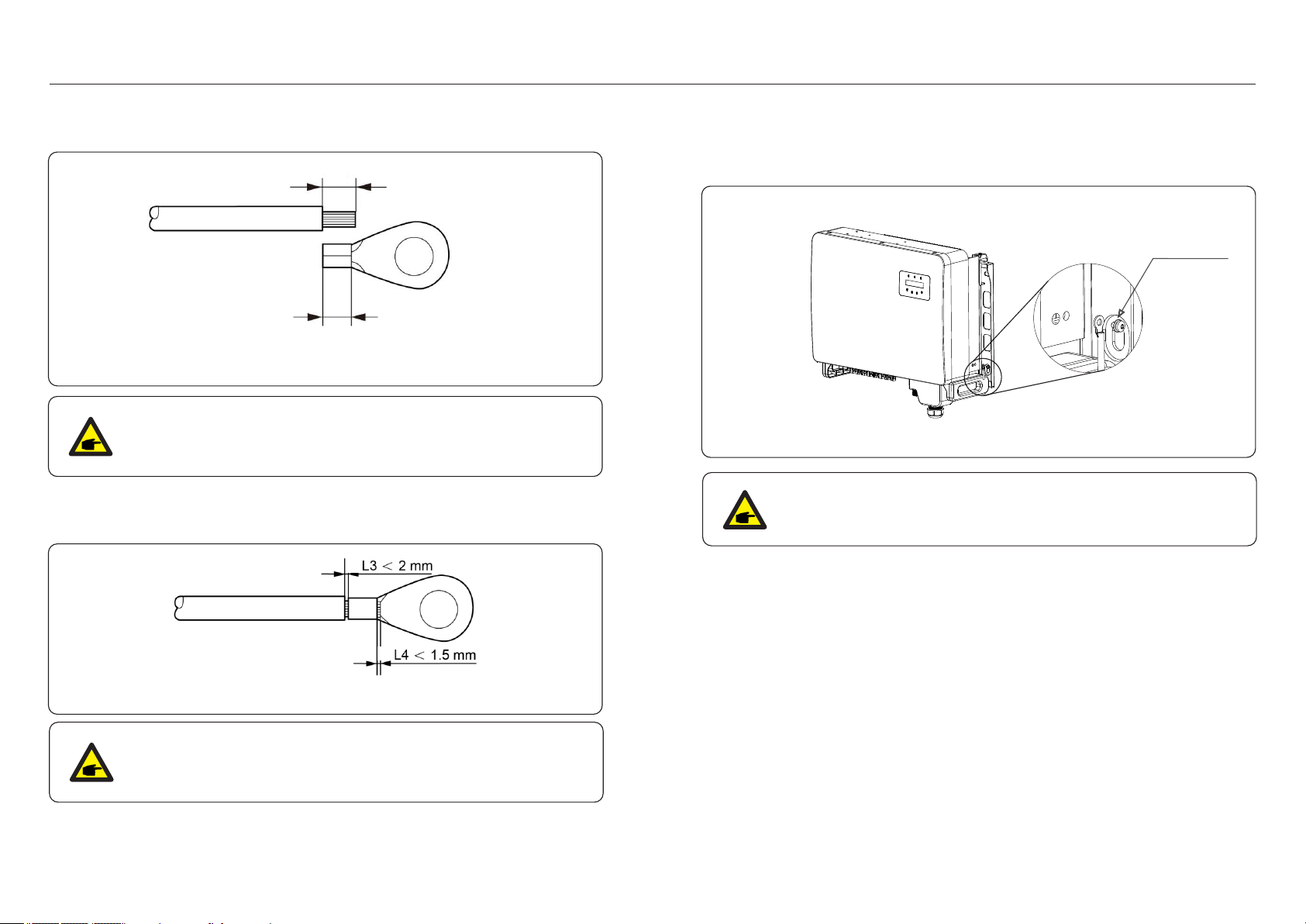

2. Prepare OT terminals: M6.
1. Prepare the grounding cable: recommend to use the ≥ 16mm² outdoor
copper-core cable.
Important:
For multiple inverters in parallel , all inverters should be connected to the
same ground point to eliminate the possibility of a voltage potential existing
between inverter grounds.
5.3.1 Grounding

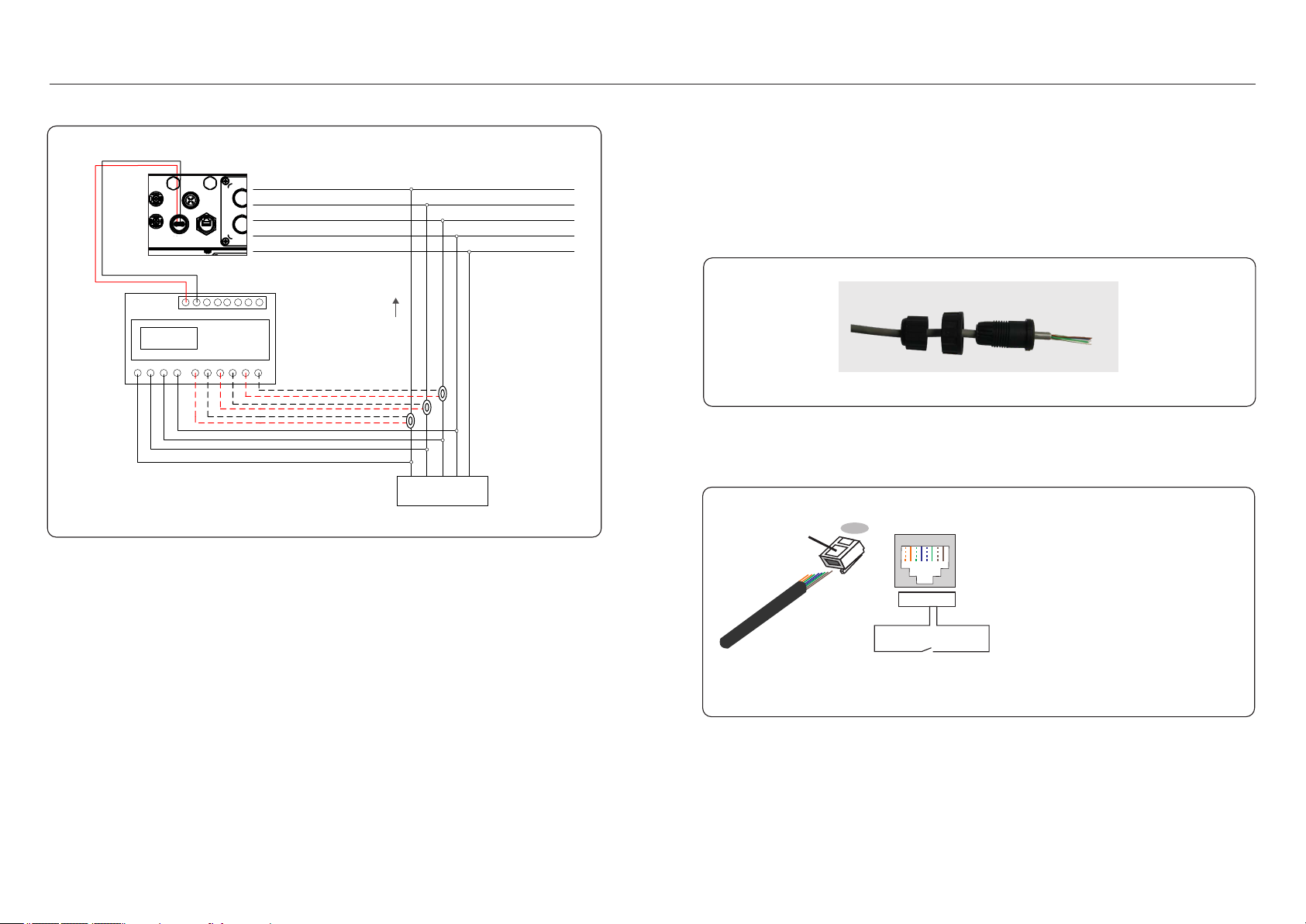

COM1
METER
DRM
Switch on the DC switch
Switch off the DC switch
COM port for monitoring
COM port for Meter
COM port for DRM
Inverter designs quick-connect terminal, so top cover needn't open during electrical
connection. The sign meaning located the bottom of inverter, as shown below in table 5.1.
All electrical connections are suit for the local or national standard.
1. Switch the Grid Supply Main Switch (AC) OFF.
2. Switch the DC Isolator OFF.
3. Connect the inverter to the grid.
4. Assemble PV input connector to the Inverter.
To effectively protect the inverter, two grounding methods must be performed.
Connect the AC grounding cable (Please refer to section 5.3.3)
Connect the external grounding terminal.
To connect the grounding terminal on the heat sink, please follow the steps below:

5. Installation5. Installation
.14. .15.
A
B
3. Strip the ground cable insulation to a suitable length(see Figure 5.7).
Figure 5.7 Suitable length
Important:
4. Insert the stripped wire into the OT terminal crimping area and use the hydraulic
clamp to crimp the terminal to the wire (see Figure 5.8).
B (insulation stripping length) is 2mm~3mm longer than A (OT cable
terminal crimping area) 2mm~3mm.
D
C
Figure 5.8 Strip wire
Important:
After crimping the terminal to the wire, inspect the connection to ensure the
terminal is solidly crimped to the wire.
Grounding screw
5. Remove the screw from the heat sink ground point.
Figure 5.9 Fixed cable
For improving anti-corrosion performance,
after ground cable installed, apply silicone or paint is preferred to protect.
Important:
6. Connect the grounding cable to the grounding point on the heat sink,and tighten the
grounding screw, Torque is 3-4Nm(see figure 5.9).

.16. .17.
5. Installation5. Installation
4.0~6.0 4.0（12AWG）
（12~10AWG）
Before connecting inverter, please make sure the PV array open circuit
voltage is within the limit of the inverter.
Before connection, please make sure the polarity of the output voltage of
PV array matches the“DC+”and“DC-”symbols.
Figure 5.10 DC+ Connector Figure 5.11 DC- Connector
Please use appropriate DC cable for PV system.
Cable type
Cross section（mm²）
Range
Industry generic PV cable
（model:PV1-F）
Recommended value
The steps to assemble the DC connectors are listed as follows:
1. Strip off the DC wire for about 7mm, disassemble the connector cap nut. (see Figure 5.12)
3. Crimp the contact pin to the wire using a proper wire crimper. (see Figure 5.14)
2. Insert the wire into the connector cap nut and contact pin. (see Figure 5.13)
4. Insert metal connector into top of connector, and tighten nut with torque 3-4 Nm
(see figure 5.15).
5.3.2 Connect PV side of inverter
+
-
Figure 5.16 Multimeter measurement Figure 5.17 Connect the DC
Connectors to the Inverter
5. Measure PV voltage of DC input with multimeter, verify DC input cable polar
(see figure 5.16), and ensure each string of PV voltage in range of inverter operation.
Connect DC connector with inverter until hearing a slight clicking sound indicates
connection succeed. (see figure 5.17)
Figure 5.12 Disassemble the Connector Cap nut Figure 5.13 Insert the Wire into the
Connector Cap nut and contact pin
Figure 5.14 Crimp the contact pin to the wire Figure 5.15 Connector with Cap nut Screwed on
Crimping plier
Caution:
If DC inputs are accidently reversely connected or inverter is faulty or not
working properly, it is NOT allowed to turn off the DC switch. Otherwise it may
cause DC arc and damage the inverter or even lead to a fire disaster.
The correct actions are:
*Use a clip-on ammeter to measure the DC string current.
*If it is above 0.5A, please wait for the solar irradiance reduces until the
current decreases to below 0.5A.
*Only after the current is below 0.5A, you are allowed to turn off the DC
switches and disconnect the PV strings.
* In order to completely eliminate the possibility of failure, please disconnect
the PV strings after turning off the DC switch to aviod secondary failures due
to continuous PV energy on the next day.
Please note that any damages due to wrong operations are not covered in
the device warranty.

.19..18.
5. Installation5. Installation
5.3.3 Connect grid side of inverter
For the AC connection, 10-35mm² cable is required to be used.
Please make sure the resistance of cable is lower than 1.5ohm.
22~32
27
Cable specification
Copper-cored cable
Cable outer diameter
(mm)
Traverse cross
sectional area (mm )²
Range
Recommended
Range
Recommended
NOTE:
For reliable connection, recommend customer select corresponding Euro
type connectors based on wiring specification to connect the terminal.
1. Strip the end of AC cable insulating jacket about 80mm then strip the end of each wire.
(as shown in figure 5.18)
The steps to assemble the AC grid terminals are listed as follows:
Figure 5.18 Strip AC cable
NOTE:
S2 (insulation stripping length) should be as long as S1
(AC terminal cable compression area).
10~35
25
3. Leave the AC breaker disconnected to ensure it does not close unexpectedly.
4. Remove the 4 screws on the inverter junction box and remove the junction box
cover .
5. Insert the cable through the nut, sheath, and AC terminal cover. Connect the cable to
the AC terminal block in turn, using a socket wrench.Tighten the screws on the terminal block.
The torque is 3~4Nm (as shown in Figure 5.19).
Figure 5.19 wiring
2. Strip the insulation of the wire past the cable crimping area of the OT terminal,
then use a hydraulic crimp tool to crimp the terminal. The crimped portion of the terminal
must be insulated with heat shrinkable tube or insulating tape.
S2
PE
N
L
｝
S1
80MM
5.3.4 Inverter monitoring connection
The inverter can be monitored via Wi-Fi or GPRS. All Solis communication devices are
optional (Figure 5.20). For connection instructions, please refer to the Solis Monitoring
Device installation manuals.
GPRS monitoring
Wi-Fi monitoring
Wi-Fi monitoring
Router
Wi-Fi box
Internet
Smart phone monitoring
PC monitoring
Web server
Figure 5.20 Wireless communication function

.20.
5. Installation5. Installation
Monitoring system for multiple inverters
Multiple inverters can be monitored by RS-485 daisy chain configuration. (See figure 5.26).
≈
Inverter 1 Inverter 2 Inverter n
RS485 IN | OUT RS485 IN | OUT RS485 IN | OUT RS485terminal
RS485 RS232 RS232
Ethernet
Wi-Fi box
RS485-232converter PC
Router
RS485terminal
GPRS box
Internet
Internet
Figure . Multiple inverter monitoring system 5 21
5.3.4.1 RS485 Connection
1 2 3 4
8mm
30mm
Install the RS485 communication cables through the terminal block as shown in Figure 5.22.
Recommended cable cross sectional area is 0.2 - 1.5mm², the cable outer diameter is
5mm -10mm.
Figure 5.22 RS485 Terminal Definition
NO.Port definition Description
1
2
3
4
RS485A1,RS485 differential signal+
RS485B1,RS485 differential signal-
RS485A2,RS485 differential signal+
RS485B2,RS485 differential signal-
RS485A1 IN
RS485B1 IN
RS485A2 OUT
RS485B2 OUT
Table 5.2 Port definition
Terminal block connection
a. Use a wire stripper to peel off the insulation layer of the communication cables to a
certain length as shown in Figure 5.23.
b. Screw off the covers of "COM2" and "COM3" on the inverter as shown in Figure 5.24.
c. Insert the communication cables into the "COM2" and "COM3" ports.
d. Fasten the cables onto the pluggable terminals provided in the accessory package.
e. Match the pluggable terminals to the terminal block in the inverter and press to fasten it.
Figure 5.23
.21.
Figure 5.24
After cable installation, please remember to fasten the screws of the AC terminal cover in
case of water damage.
5.3.5 Max. over current protection device (OCPD)
To protect the inverter's AC grid connection conductors, Solis recommends installing
breakers that will protect against overcurrent. The following table defines OCPD
ratings for the Solis Three phase inverters.
Table 5.3 Rating of grid OCPD
Inverter Rated
voltage(V)
Rated output
current (Amps)
Current for protection
device (A)
S5-GC25K 220/380,230/400 38.0/36.1
45.6/43.3
50
50.1/47.6
S5-GC33K
S5-GC30K
63
63
54.7/52.0
57.0/54.1
60.8/57.7
48.1
60.1
39.4
52.5
60.4
S5-GC36K
S5-GC37.5K
S5-GC40K
S5-GC40K-HV
S5-GC50K-HV
S5-GC15K-LV
S5-GC20K-LV
S5-GC23K-LV
80
80
80
63
80
63
80
80
480
480
220
220
220
220/380,230/400
220/380,230/400
220/380,230/400
220/380,230/400
220/380,230/400

.23..22.
5. Installation 5. Installation
5.3.6 Meter Connection(optional)
The inverter can work with a three phase smart meter to achieve Export Power Management
function and/or 24hour consumption monitoring function.
To achieve Export Power Management function, the smart meter can be installed on
either grid side or load side.
To achieve 24hour consumption monitoring function, the smart meter can only be
installed on grid side.
NOTE
Two types of meters are supported:
Direct Insert Type Meter - Max input current 80A(DTSD1352-Direct Insert Type).
External CT Type Meter - 150A/5A CTs are supplied(DTSD1352-External CT Type).
Customer can place the order for a suitable meter from Solis Sales Reps.
Below are the connection diagrams of different meters connecting to different locations.
Detailed settings please refer to Section 7.5.12
Figure 5.25 Direct Insert Type Meter - “Meter in Grid”
Pre-made Cable in Meter Package
2-Pin Connector
L1 L2L3NPE
Load
INV L1
INV L2
INV L3
INV N
INV PE
Grid L1
Grid L2
Grid L3
Grid N
Grid PE
L1 L1' L2 L2' L3 L3' N
21 22 171819 20
A B
Meter DRM
L1 L1' L2 L2' L3 L3' N
21 22 1718 19 20
A B
Figure 5.26 Direct Insert Type Meter - “Meter in Load”
L1 L2L3NPE
Load
Pre-made Cable in Meter Package
2-Pin Connector
Pre-made Cable in Meter Package
2-Pin Connector
L1 L2L3NPE
Load
Figure 5.27 External CT Type Meter - “Meter in Grid”
INV L1
INV L2
INV L3
INV N
INV PE
Grid L1
Grid L2
Grid L3
Grid N
Grid PE
INV L1
INV L2
INV L3
INV N
INV PE
Grid L1
Grid L2
Grid L3
Grid N
Grid PE
UaUb Uc N Ia* Ia Ib* Ib Ic* Ic
21 22 17 1819 20
A B
CT Arrow Grid
Meter DRM
Meter DRM

UaUb Uc N Ia* Ia Ib* Ib Ic* Ic
21 22 17 1819 20
A B
Figure 5.28 External CT Type Meter - “Meter in Load”
Pre-made Cable in Meter Package
2-Pin Connector
L1 L2L3NPE
Load
INV L1
INV L2
INV L3
INV N
INV PE
Grid L1
Grid L2
Grid L3
Grid N
Grid PE
CT Arrow Grid
5. Installation 5. Installation
Please follow below steps to assemble RJ45 connector.
1. Insert the network cable into the communication connection terminal of RJ45.
Figure 5.29 RJ45 communication connection terminals
2. Use the network wire stripper to strip the insulation layer of the communication cable.
According to the standard line sequence of figure 5.30 connect the wire to the plug of
RJ45, and then use a network cable crimping tool to make it tight.
Correspondence between the cables
and the stitches of plug, Pin5 and Pin6
of RJ45 terminal is used for the logic
interface, other Pins are reserved.
Pin 1: Reserved; Pin 2: Reserved
Pin 3: Reserved; Pin 4: Reserved
Pin 5: Switch_input1; Pin 6: Switch_input2
Pin 7: Reserved; Pin 8: Reserved
1--8
Rj45 plug
Rj45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
DRM(logic interface)
Switch_input1 Switch_input2
Figure 5.30 Strip the insulation layer and connect to RJ45 plug
3. Connect RJ45 to DRM (l ) . ogic interface
5.3.7 Logic interface connection
.25..24.
Logic interface is required by some local regulations that can be operated by a simple switch
or contactor(Not available in South Africa).
When the switch is closed the inverter can operated normally. When the switch is opened,
the inverter will reduce it’s output power to zero within 5s.
Pin5 and Pin6 of RJ45 terminal is used for the logic interface connection.
After wire connection, please refer chapter 7.5.9.1 to enable the logic interface function.
Meter DRM

.26. .27.
7. Operation
In normal operation, LCD screen alternatively shows inverter power and operation status
(see Figure 7.1). The screen can be scrolled manually by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to Main Menu.
5 sec
Start
Power 110000W
01-01-2019 12:04
Status: Generating
01-01-2019 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu
Figure 7.1 Operation Overview
7.1 Main Menu
There are four submenus in the Main Menu (see Figure 7.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
The Solis three Phase Inverter main menu provides access to operational
data and information. The information is displayed by selecting "Information" from the
menu and then by scrolling up or down.
7.2 Information
6.1 Start the Inverter
To start up the Inverter, it is important that the following steps are strictly followed:
1. Switch the grid supply main Switch (AC) ON first.
2. Switch the DC switch ON. If the voltage of PV arrays are higher than start up voltage,
the inverter will initialize. The red LED power will light.
3. When both the DC and the AC sides supply to the inverter, it will be ready to generate
power. Initially, the inverter will check both its internal parameters and the parameters
of the AC grid, to ensure that they are within the acceptable limits. At the same time,
the green LED will flash and the LCD displays the information of INITIALIZING.
4. After 30-300 seconds (depending on local requirement), the inverter will start to
generate power. The green LED will be on continually and the LCD displays
GENERATING.
WARNING:
Do not touch the surface when the inverter is operating. It may be
hot and cause burns.
6.2 Stop the Inverter
6. Start & Stop
To stop the inverter, it is mandatory that the steps below are followed in the exact order outlined.
1. Select "Grid Off" in the Advanced Setting of Inverter LCD.
2. Turn off the AC Switch between Solis inverter and Grid.
3. Wait approximately 30 seconds (during this time, the AC side capacitors are dissipating
energy). If the inverter has DC voltage above the start-up threshold, the red POWER
LED will be lit. Switch the DC switch OFF.
4. Confirm all LED's switch OFF (~one (1) minute).
CAUTION
Although the inverter DC disconnect switch is in the OFF position and all
the LED's are OFF, operators must wait five (5) minutes after the DC power
source has been disconnected before opening the inverter cabinet. DC
side capacitors can take up to five (5) minutes to dissipate all stored energy.

.28. .29.
7. Operation7. Operation
The following submenus are displayed when the Settings menu is selected:
1. Set Time
2. Set Address
7.3 Settings
7.3.1 Set Time
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 7.3.
NEXT=<ENT> OK=<ESC>
01-01-2019 16:37
Figure 7.3 Set Time
Press the UP/DOWN keys to set time and data. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
7.3.2 Set Address
This function is used to set the address when muti inverters are connected to three monitor.
The address number can be assigned from “01”to “99”(see Figure 7.4). The default address
number of Solis Three Phase Inverter is “01”.
YES=<ENT> NO=<ESC>
Set Address: 01
Figure 7.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.
7.2.1 Lock screen
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 7.2(a)) or unlocks (Figure 7.2 (b)) the screen.
(b)(a)
Figure 7.2 Locks and Unlocks the Screen of LCD
I_PV01: +05.0A
I_PV02: +04.9A
...
I_PV08: +05.2A
V_DC01: Shows input DC voltage.
I_DC01: Shows input DC current.
Table 7.1 Information list
Status: Generating
Power: 0000W
Grid Frequency
F_Grid 00.00Hz
Total Energy
0000000 kwh
This Month: 0000kwh
Last Month: 0000kwh
Today: 00.0kwh
Yesterday: 00.0kwh
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
Status: Shows instant status of the Inverter.
Power: Shows instant output power value.
F_Grid: Shows the grid's frequency value.
Total generated energy value.
This Month: Total energy generated this month.
Last Month: Total energy generated last month.
Today: Total energy generated today.
Yesterday: Total energy generated yesterday.
Display Duration Description
Inverter SN
00000000000000
10 sec
Display series number of the inverter.
10 sec
V_C: Shows the grid's voltage value.
I_C: Shows the grid's current value.
10 sec V_A: Shows the grid's voltage value.
I_A: Shows the grid's current value.
Rea_Power: 0000Var
App_Power: 0000VA 10 sec Rea_Power: Shows the reactive power of the inverter.
App_Power: Shows the apparent power of the inverter.
Work Mode: NULL
DRM NO.:08 10 sec
10 sec
Work Mode: Shows current working mode.
DRM NO.: Shows DRM Number.
I_PV01 : Shows input 01 current value.
I_PV02 : Shows input 02 current value.
...
I_PV08 : Shows input 08 current value.
V_A: 000.0V
I_ A: 000.0A
V_C: 000.0V
I_ C: 000.0A
V_DC01: 0000.0V
i_DC01: 0000.0A

.31..30.
7. Operation7. Operation
7.4.4 Daily Energy
The function is for checking the energy generation for selected day.
Figure 7.8 Select date for daily energy
YES=<ENT> NO=<ESC>
Select: 2019-01-01
Press DOWN key to move the cursor to day, month and year, press UP key to change the digit.
Press Enter after the date is fixed.
2019-01-01: 051.3kWh
2019-01-01: 061.5kWh
Figure 7.9 Daily energy
Press UP/DOWN key to move one date from another.
7.4.5 Monthly Energy
YES=<ENT> NO=<ESC>
Select: 2019-01
Figure 7.10 Select month for monthly energy
2019-01: 0510kWh
2019-01: 0610kWh
Figure 7.11 Month energy
Press UP/DOWN key to move one date from another.
The function is for checking the energy generation for selected month.
Press DOWN key to move the cursor to day and month, press UP key to change the digit.
Press Enter after the date is fixed.
Model: 08
Software Version: D20001
Figure 7.7 Model Version and Software Version
7.4 Advanced Info - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Enter menu “Advanced Info.” and “Advanced settings” (need password).
Select “Advanced Info.” from the Main Menu. The screen will require the password as below:
YES=<ENT> NO=<ESC>
Password:0000
Figure 7.5 Enter password
1. Alarm Message 2. Running message 3.Version 4. Daily Energy 5. Monthly Energy
6. Yearly Energy 7. Daily Records 8. Communication Data 9. Warning Message
The screen can be scrolled manually by pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a submenu. Press the ESC key to return to the Main Menu.
7.4.1 Alarm Message
The display shows the latest alarm messages (see Figure 7.6). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Alm000: OV-G-V
T: 00-00 00:00 D:0000
Figure 7.6 Alarm Message
7.4.2 Running Message
This function is for maintaince person to get running message such as internal temperature,
Standard No.1,2,etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
7.4.3 Version
The screen shows the model version of the inverter. And the screen will show the
software ver by pressing the UP and DOWN at the same time.(see Figure 7.7).
The default password is “0010".
Please press “down” to move the cursor, press “up” to select the number.
After enter the correct password the Main Menu will display a screen and be able to access
to the following information.

.33..32.
7. Operation7. Operation
7.5 Advanced Settings - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 7.4 to enter password to access this menu.
7.5.1 Selecting Standard
This function is used to select the grid's reference standard (see Figure 7.16).
YES=<ENT> NO=<ESC>
Standard:G59/3
Figure 7.16
NOTE:
This function is for technicians use only.
Selecting the “User-Def” menu will access to the following submenu (see Figure 7.17),
Figure 7.17
OV-G-V1: 400V
OV-G-V1-T: 1.0S
NOTE:
The " User-Def" function can be only used by the service engineer and
must be allowed by the local energy supplier.
7.4.8 Communication Data
The screen shows the internal data of the Inverter (see Figure 7.14), which is for service
technicians only.
01-05: 01 25 E4 9D AA
06-10: C2 B5 E4 9D 55
Figure 7.14 Communication Data
7.4.6 Yearly Energy
YES=<ENT> NO=<ESC>
Select: 2019
Figure 7.12 Select year for yearly energy
2018: 0017513kWh
2017: 0165879kWh
Figure 7.13 Yearly energy
Press UP/DOWN key to move one date from another.
The function is for checking the energy generation for selected year.
Press DOWN key to move the cursor to day and year, press UP key to change the digit.
Press Enter after the date is fixed.
7.4.7 Daily Records
The screen shows history of changing settings. Only for maintance personel.
The display shows the latest warn messages (see Figure 7.15). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Msg000:
T: 00-00 00:00 D:0000
Figure 7.15 Warning Message
7.4.9 Warning Message
Press the UP/DOWN keys to select the standard (G59/3, UL-480V, VDE0126, AS4777-15,
AS4777-02, CQC380A, ENEL, UL-380V, MEX-CFE, C10/11 and “User-Def” function).
Press the ENTER key to confirm the setting.
Press the ESC key to cancel changes and returns to previous menu.
Select Advanced Settings from the Main Menu to access the following options:
1. Select Standard 2. Grid ON/OFF 3. 24H Switch 4. Clear Energy
5. Reset Password 6. Power Control 7. Calibrate Energy 8. Special Settings
9. STD. Mode Settings 10. Restore Settings 11. HMI Update 12. Internal EPM Set
13. External EPM set 14. Restart HMI 15. Debug Parameter 16. Fan Text
17. DSP Update 18. Compensation Set 19.I/V Curve

.35..34.
7. Operation7. Operation
Below is the setting range for “User-Def”. Using this function, the limits can be changed
manually.
Press the UP/DOWN keys to scroll through items. Press the ENTER key to edit the highlighted
item. Press the UP/DOWN keys again to change the setting. Press the ENTER key to save the
setting. Press the ESC key to cancel changes and returns to the previous menu.
7.5.2 Grid ON/OFF
This function is used to start up or stop the power generation of Solis Inverter.
Grid ON
Grid OFF
Figure 7.18 Set Grid ON/OFF
Screens can be scrolled manually by pressing the UP/DOWN keys. Press the ENTER key
to save the setting. Press the ESC key to return to the previous menu.
For different countries, the grid standard needs to be set as different according to local
requirements. If there is any doubt, please consult Solis service technicians for details.
NOTE
7.5.3 24H Switch
This function controls the 24H hours consumption function enable or disable.
Enable
Disable
Figure 7.19 Set 24H ON/OFF
NOTE:
When this is enabled, the inverter LCD will still be alive at night with
the power LED light on. If the grid is in malfunction at night, the system can’t
recover even after the grid is back to normal but the consumption data will
still be recorded in the meter. Until the sunrise, the system will start to work
again while the meter data can be uploaded to the Solis monitoring system
to calibrate the load consumption data.
These two functions are applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
7.5.4 Clear Energy
Clear Energy can reset the history yield of inverter
7.5.5 Reset Password
This function is used to set the new password for menu “Advanced info.” and “Advanced
information” (see Figure 7.20).
Figure 7.20 Set new password
YES=<ENT> NO=<ESC>
Password: 0000
Enter the right password before set new password. Press the DOWN key to move the cursor,
Press the UP key to revise the value. Press the ENTER key to execute the setting.
Press the ESC key to return to the previous menu.
Table 7.2 Setting ranges for User-Def (L-N)
OV-G-V1: 220---374V
OV-G-V1-T: 0.01---300S
OV-G-V2: 220---374V
OV-G-V2-T: 0.01---300S
UN-G-V1: 110---277V
UN-G-V1-T: 0.01---300S
UN-G-V2: 110---277V
UN-G-V2-T: 0.01---300S
Startup-T: 10-600S
OV-G-F1: 50.1-65Hz
OV-G-F1-T: 0.01---300S
OV-G-F2: 50.1-65Hz
OV-G-F2-T: 0.01---300S
UN-G-F1: 45-59.9Hz
UN-G-F1-T: 0.01---300S
UN-G-F2: 45-59.9Hz
UN-G-F2-T: 0.01---300S
Restore-T: 10-600S

.37..36.
7. Operation7. Operation
7.5.7 Calibrate Energy
Maintenance or replacement could clear or cause a different value of total energy. Use this
function could allow user to revise the value of total energy to the same value as before. If
the monitoring website is used the data will be synchronous with this setting automatically.
Figure 7.21 Calibrate energy
YES=<ENT> NO=<ESC>
Energy:0000000kWh
Press the DOWN key to move the cursor, Press the UP key to revise the value. Press the
ENTER key to execute the setting. Press the ESC key to return to the previous menu.
7.5.8 Special Settings
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.6 Power control
Active and reactive power can be set through power setting button.
There are 5 item for this sub menu:
1. Set output power 2. Set Reactive Power 3. Out_P With Restore
4. Rea_P With Restore 5. Select PF Curve
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.9 STD Mode settings
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.10 Restore Settings
There are 5 items in initial setting submenu.
Thescreenshowsasbelow:
Restore setting could set all item in 7.5.8 special setting to default.
Figure 7.22 Restore Settings
Are you sure?
YES=<ENT> NO=<ESC>
PresstheEnterkeytosavethesettingaftersettinggridoff.
PresstheESCkeytoreturnthepreviousmean.
7.5.11 HMI Update
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
This function is used for updating the LCD program.
7.5.9.1 Enable logic interface settings
When select G98 or G99 standard to use the logic interface function, please follow below
settings to enable the DRM. DRM default setting is “OFF” , if DRM set “ON”, but the logic
interface un-connected to the switch or the switch is open, the inverter HMI will display “Limit
by DRM” and the inverter output power will be limited to zero.
1. Select Initial Settings
2. Select DRM and set it “ON”
There are 6 setting under STD. Mode settings.
1. Working Mode Set 2. Power Rate Limit 3. Freq Derate Set
4. 10mins Voltage Set 5.Power Priority 6.Initial Settings
