Ginlong Solis RHI-HV Series User manual

Instruction Manual
Solis RHI-HV Series Hybrid Inverter
Ginlong Technologies Co., Ltd.
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: [phone]
Fax: [phone]
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Please adhere to the actual products in case of any discrepancies in this user manual.
ComplywithCARule21/
CertifiedtoUL1741SA
Certified to UL Std. No. 1741-Second Edition
& CSA-C22.2 No.107.1-16
SunSpec
Certified
(ForUSA)
Ver 1.1

2
4
7
7
7
8
8
10
13
15
16
4
2
3
7
13
27
29
23
21
21
1.1 Product Description
……………………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
……………………………………………………………………………………
……………………………………………………………………………………………………………………………………
……………………………………………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
1. Introduction
1.2 Packaging
2. Safety & Warning
2.1 Safety
2.2 General Safety Instructions
3. Overview
3.1 Screen

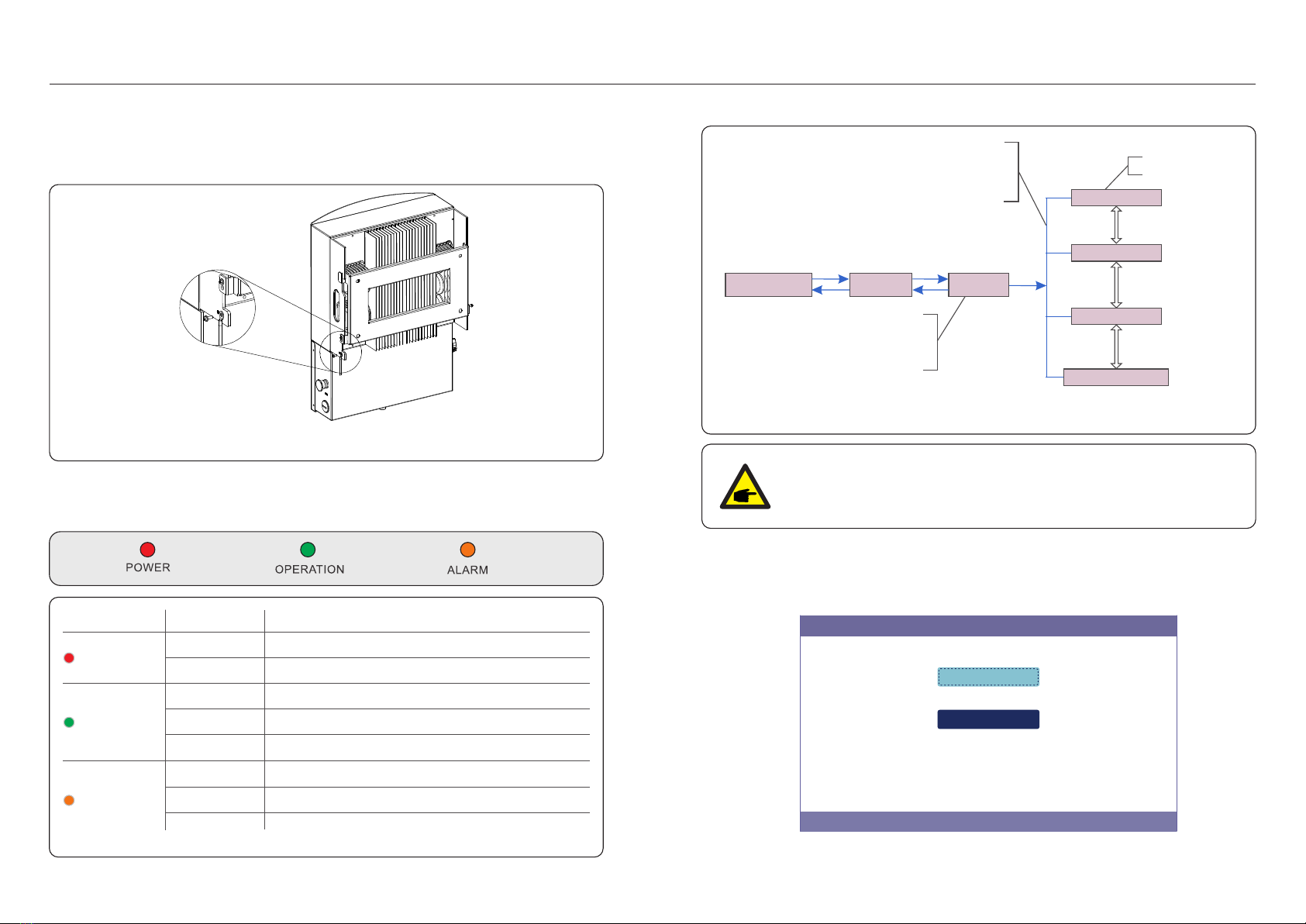

4.8 LED Indicators
3.2 Keypad
4. Installation
4.1 Select a Location for the Inverter
4.2 Mounting the Inverter
4.3 PV Terminals
4.4 Assembling the AC Terminals
4.5 Battery Fuse Terminals
4.6 Communication Terminals
5. Operation
5.1 Initial Display
5.2 Main Menu
5.4 Settings
5.5 Advanced Information
Contents
………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
4
61
61
61
…………………………………………………………………………………………
………………………………………………………………………………
……………………………………………………………………………………………………………
6. Commissioning
6.1 Preparation of Commissioning
6.2 Commissioning Procedure
7. Troubleshooting ……………………………………………………………………………………………………………… 62
33
………………………………………………………………………
5.6 Advanced Settings - Technicians Only
…………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
2.3 Notice For Use 6
…………………………………………………………………………………………………………………………
3.3 Terminal Connection …………………………………………………………………………………………………………
………………………………………………………………………………………
………………………………………………………………………………………………
20
68
………………………………………………………………………………………………………………………
8. Maintenance
…………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………
23
5.3 Information ………………………………………………………………………………………………………………………………
20
4.7 External Ground Connection ……………………………………………………………………………………………

1.1 Product Description
The Solis RHI-HV 5G series is designed for residential hybrid systems, which can work
with high voltage lithium ion batteries to maximize self-consumption rate.
This product can operate in both ON-Grid and OFF-Grid modes.
The Solis RHI-HV hybrid inverter series contain 3 different models which are grid support
transformerless utility interactive inverters:
Figure 1.1
Front side view
LED Indicators
Figure 1.2
Bottom side view
Inverter x1 Back plate x1 Expansion bolt x4 Hexagon bolt x2
.3..2.
1. Introduction 1. Introduction
1.2 Packaging
Please ensure that the following items are included in the packaging with your machine:
If anything is missing, please contact your local Solis distributor.
Display
Keys
External meter x1
RHI-1P5K-HVES-5G, RHI-1P7.6K-HVES-5G, RHI-1P10K-HVES-5G
User manual x1
DCSwitch
CT x2
Manual

2.1 Safety
The following types of safety instructions and general information appear in this
document as described below:
.5..4.
CAUTION:
“Caution” indicates a hazardous situation which if not avoided, could result
in minor or moderate injury.
WARNING:
“Warning” indicates a hazardous situation which if not avoided, could result
in death or serious injury.
DANGER:
“Danger” indicates a hazardous situation which if not avoided, will result in
death or serious injury.
NOTE:
“Note” provides tips that are valuable for the optimal operation of your
product.
2. Safety & Warning 2. Safety & Warning
2.2 General Safety Instructions
WARNING:
Please do not connect PV array positive (+) or negative (-) to ground, it could
cause serious damage to the inverter.
WARNING:
Only devices in compliance with SELV (EN 69050) may be connected to the
RS485 and USB interfaces.
WARNING:
Do not touch any inner live parts until 5 minutes after disconnection
from the utility grid and the PV input.
CAUTION:
The PV array supplies a DC voltage when they are exposed to sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter, do not
remove cover for 5 minutes after disconnecting all power sources (service technician
only). Warranty may be voided if the cover is removed without authorization.
CAUTION:
The surface temperature of the inverter can reach up to 75℃ (167℉).
To avoid risk of burns, do not touch the surface of the inverter while it is operating.
Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic source
and output circuit conductors shall have that comply with the NECisolators
Article 690, Part II. All Solis single phase inverters feature an integrated
DC switch.
CAUTION:
Risk of electric shock, do not remove cover. There is no user serviceable
parts inside, refer servicing to qualified and accredited service technicians.
NOTE:
PV module used with inverter must have an IEC 61730 Class A rating.
Save These Instructions:
This manual contains important instructions that shall be followed during
installation and maintenance of the inverter.
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Operators must put on the electricians’ gloves during the whole process in case
of any electrical hazards.
NOTE:
If you want to cut off the MLRSD, push the button on the right side of the wire
box labeled “RSD-Estop”. Rotate the button clockwise to reset the switch.

2. Safety & Warning
3.1 Screen
Solis RHI-HV series has a 7 inch color screen that displays the status,
operating information, and settings of the inverter.
3. Overview
WARNING:
The RHI series does not support parallel (three- and single-phase) operation
on the AC-BACKUP port. Parallel operation of the unit will void the warranty.
1 Phase LOAD3 Phase LOAD
× × ×
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
.6. .7.
× ×
3.2 Keypad
There are four keys on the front panel of the inverter (from left to right):
ESC, UP, DOWN and ENTER. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access and modification of settings (the ESC and ENTER keys).
Figure 3.1 Keypad
Solis RHI series inverter is different from a normal grid-tied refer inverter, please refer
the instructions below before initial connection.
3.3 Terminal Connection
Figure 3.2 Front Panel Display
Vent AC-BACKUP
MeterCOM2
Commnication
BAT
DC
BMS
WARNING:
Operations below must be accomplished by licensed technician or Solis
authorized person.
WARNING:
AC-BACKUP of RHI-HV series is forbidden to connect to the grid.
AC-GRID
RSD E-STOP

.9..8.
4. Installation
4.1 Select a Location for the Inverter
Figure 4.1 Recommended Installation locations
To select a location for the inverter, the following criteria should be considered:
Exposure to direct sunlight may cause output power derating. It is recommended to
avoid installing the inverter in direct sunlight.
It is recommended that the inverter is installed in a cooler ambient which doesn't
exceed 104F/40C.
4. Installation
To avoid overheating, always ensure the flow of air around the inverter is not
blocked. A minimum clearance of 300mm(11.8in) should be kept between inverters or
objects and 500mm(19.6in) clearance between the bottom of the machine and the ground.
Visibility of the LEDs and LCD should be considered.
Adequate ventilation must be provided.
NOTE:
Nothing should be stored on or placed against the inverter.
Install vertically with a maximum incline of +/- 5 degrees: exceeding this may cause
output power derating.
Figure 4.2 Inverter Mounting clearance
Install on a wall or strong structure capable of bearing the weight of the machine (30kg).
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials
or gases.
Do not install the inverter in potentially explosive atmospheres.
300mm
(11.8in)
300mm
(11.8in)
300mm
(11.8in)
300mm
(11.8in)
300mm
(11.8in)
500mm
(19.6in)
500mm
(19.6in)

4. Installation4. Installation

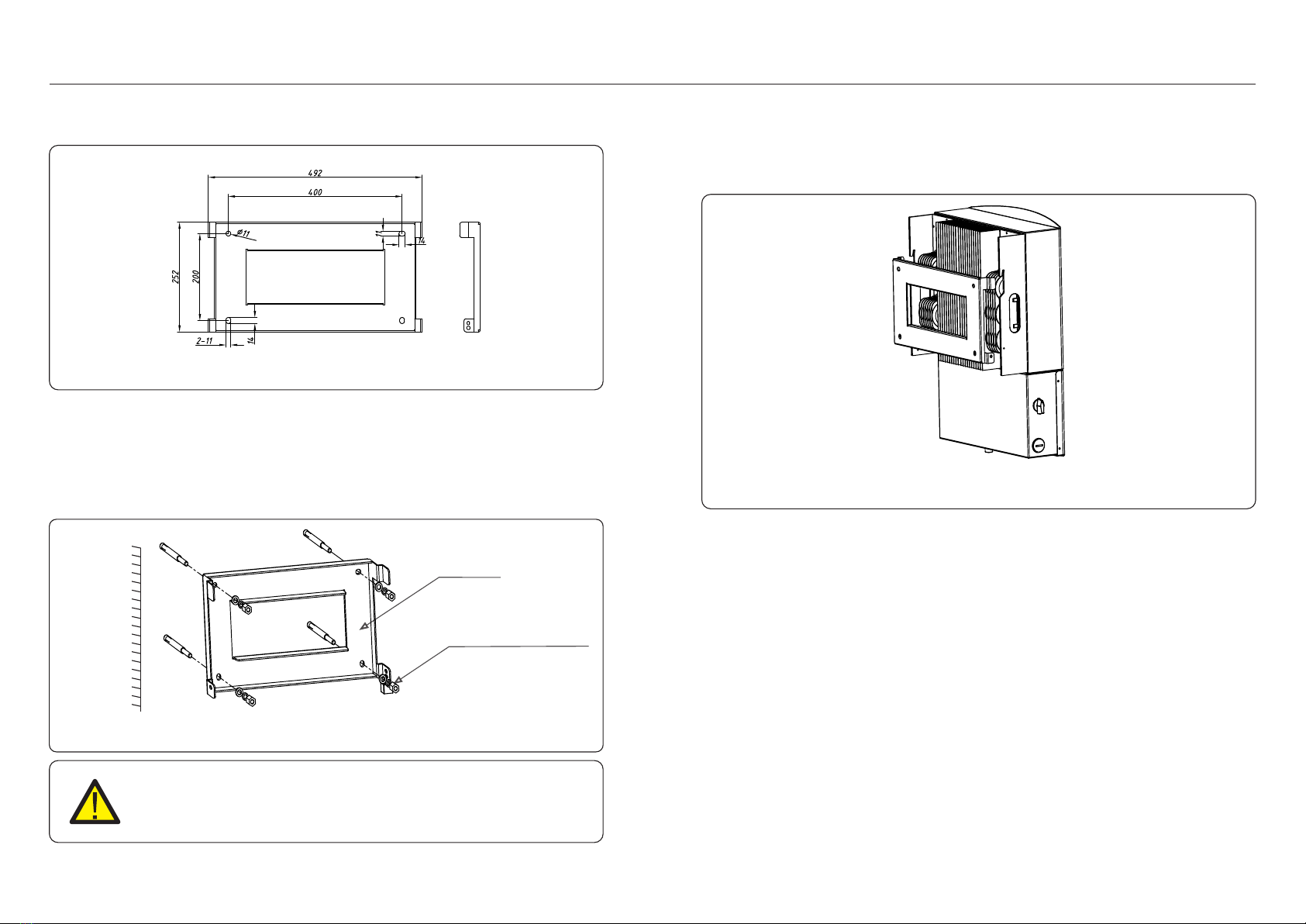

4.2 Mounting the Inverter
The inverter shall be mounted vertically.
The steps to mount the inverter are listed below:
1. Select the mounting height of the bracket and mark the mounting holes.
For brick walls, the position of the holes should be suitable for the expansion bolts.
Figure 4.4 Fix bracket on the wall
.10.
Figure 4.5 Wall Mount Bracket
WARNING:
The inverter must be mounted vertically.
2. Lift up the inverter (be careful to avoid body strain) and align the back bracket on the
inverter with the convex section of the mounting bracket. Hang the inverter on the
mounting bracket and ensure the inverter is secure (see Figure 4.5)
.11.
Once a suitable location has been found according to 4.1 using figures 4.3 and 4.4
mount the wall bracket to the wall.
Dimensions of mounting bracket:
Figure 4.3 Inverter wall mounting
Suitable fixing screws
Bracket

.13..12.
4. Installation4. Installation

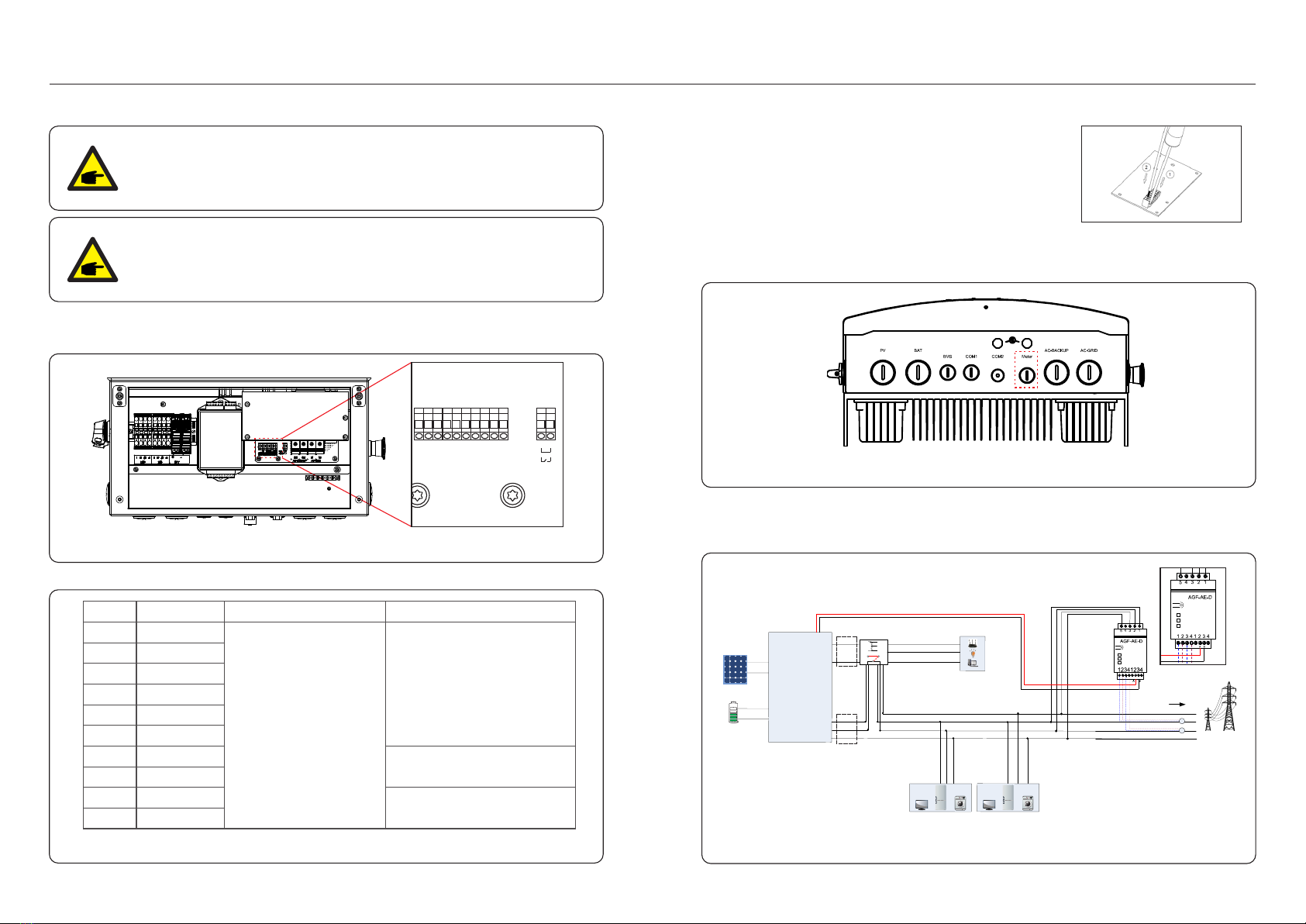

Figure 4.6 PV input terminals
Cross-sectional
Dimension Functionality Where to connect
From PV strings to
terminal “DC+” and “DC-”
From Battery modules to
terminal “BAT+” and “BAT-”
From incoming AC distribution
box to terminal AC-GRID
“L1” and “L2”
From backup loads to terminal
AC-BACKUP “L1”,and “L2”
From AC groundings to copper
bar inside the wiring box
12-10AWG,
90°C Copper
10-8AWG,
90°C Copper
8-4AWG for 5-9K system,
6-4AWG for 10K system,
90°C Copper
10-4AWG,
90°C Copper
8-4AWG,
90°C Copper
PV DC source
Battery DC source
AC Grid connection
AC Backup
connection
Grounding connection
(Dimension depends on AC
backup cables and AC grid
cables)
PV Cables
Battery Cables
AC Grid Cables
AC Backup
Cables
Ground Cables
From meter to terminal MT
“A” and “B”. Details refer to
“4.2.2 Install the energy meter”
From battery to terminal CAN
“L” and “H”. Details refer to
4.2.3 Install the battery
Not Applicable in these systems
From grounding screw on the
inverter external cover
to the ground
4-pin COM port at the bottom
of the inverter.
(Detailed info please refer to
Solis datalogger user manual)
22-16AWG,
90°C Copper
22-16AWG,
90°C Copper
22-16AWG,
90°C Copper
Same as
Ground cable
Pre-assembled Plug
Communication
between inverter to Meter
Communication
between inverter to Battery
Not Applicable
in these systems
Ground the
inverter cover
Modbus/Sunspec
Communication between
the system and the
Solis monitoring portal
Meter COM cable
CAN Cable
BMS Cable
Cover External
Grounding Cable
Datalogger
(Optional)
4.3 PV Terminals
Please ensure the following before connecting the inverter:
Ensure the voltage of the PV string will not exceed the max DC input
voltage (500Vdc). Violating this condition will void the warranty.
Ensure the polarity of the PV terminals and battery are correct.
Ensure the DC-switch, battery, AC-BACKUP, and AC-Grid are all in their off-states.
Ensure the PV resistance to ground is higher than 20K ohms.
PV wire requirements 12-10AWG 90°C Copper:
Table 4.1 Wire Specification
1. Ensure you use a cable within the correct specifications as shown in the
image below.
There are two AC terminals and the assembly steps for both are the same.
RemovetheACconnectorpartsfromthepackaging.
4.4 AssemblingtheACTerminals
Describe
Recommend
10~4 AWG
10 AWG
18mm
Traverse cross sectional area
Exposure Length
AC-BACKUP AC-GRID
(For 5~9KW)
AC-GRID
(For 10KW)
8~4 AWG 6~4 AWG
8 AWG 6 AWG
Table 4.2 AC wire specification
optional RGM
NOTE:
The installation shall meet the National Electrical Code, ANSI/NFPA 70 and
Canadian Electrical Code wiring methods.

.15..14.
4. Installation4. Installation
2. Lead the AC cable through the cable gland and the housing.
3. Remove a length of 40mm of the cable jacket and strip the wire insulation to a length of
18 – 19mm.
4. Each of the terminals are labeled. Ensure that conductors are secured
(2 N.m. torque) in the correct terminals.
5. Ensure the rib of the PV terminal blocks and the grooves on the housing engage
correctly and a “click” is heard or felt.
BL1 BL2 L2L1
AC-BACKUP AC-GRID
Figure 4.7 AC output terminals
40 mm
18 mm - 19 mm
N
L1
L2
40 mm
18 mm - 19 mm
L2
L1
Over-Current Protection Device (OCPD) for the AC side
To protect the inverter's AC connection line, we recommend installing a device for protection
against over-current and leakage, with the following characteristics noted in Table 4.2:
RHI-1P5K-HVES-5G
RHI-1P7.6K-HVES-5G
RHI-1P10K-HVES-5G
Table 4.2 Rating of grid OCPD
Inverter Rated
voltage(V)
Rated output
current (Amps)
Current for protection
device (A)
24/21
36.5/31.7
48/41.7
208/240
208/240
208/240
30/30
50/40
60/60
Note:
AC Grid and AC Backup output 240V L1-L2.
For 120V load, auto-transformer is required in the system.
For detailed information about the autotransformer please refer to
Solis auto-transformer quick installation guide.

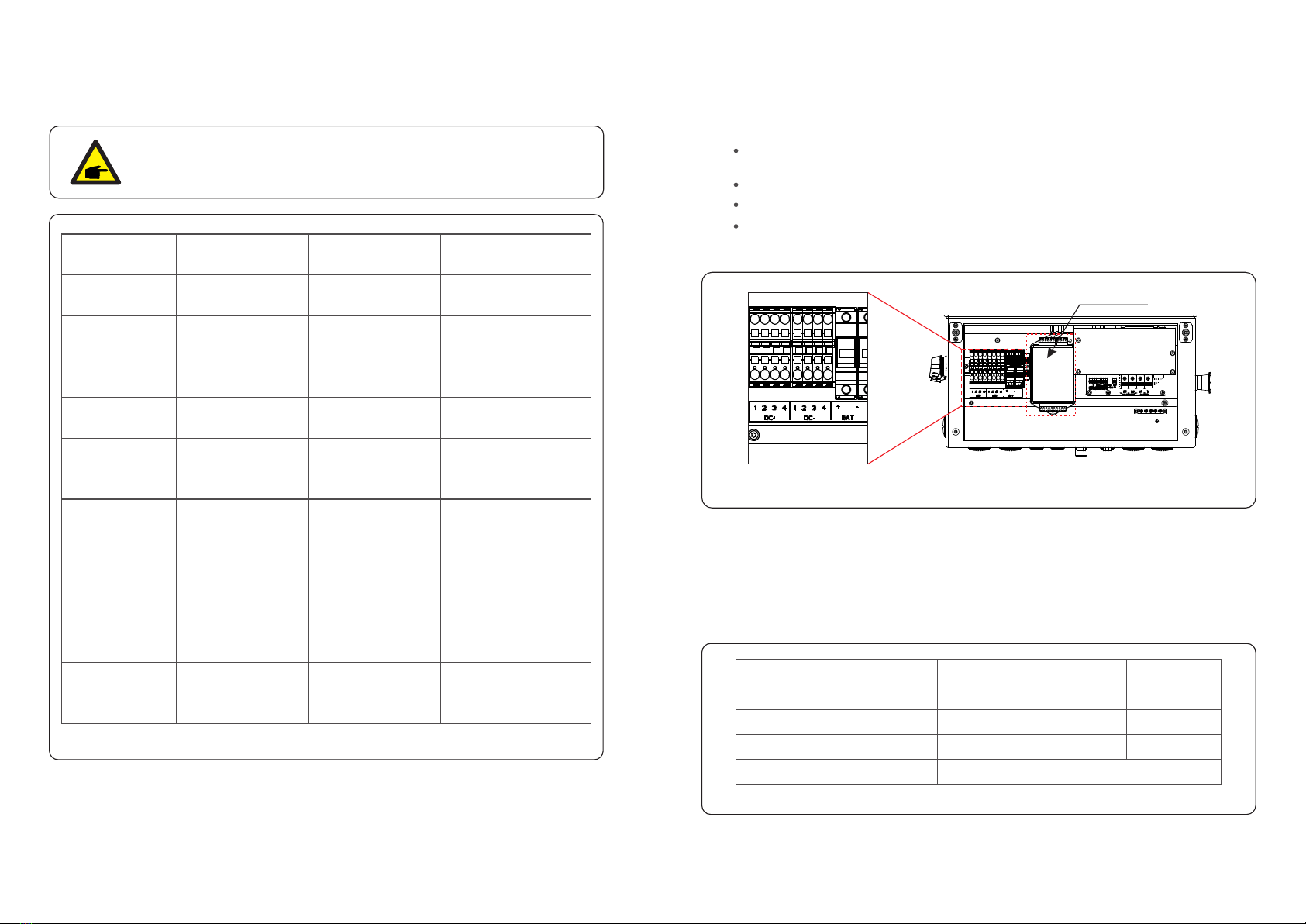

4.5 Battery Fuse Terminals
Battery power cables should be connected to the battery fuse terminals in the wiring
box through the BAT conduit.
Figure 4.8 Connected to the battery fuse terminals
Exposure length
10~8 AWG
12 mm
2~4N.m
Cross sectional area
Torque
Table 4.3 Battery power cable requirement
Warning:
Observe the terminal layout of terminal block.
Do not connect the phase lines to “Ground” terminal, otherwise the inverter
will not function properly.

4. Installation
.17..16.
4.6.1 Meter Communication
Communication Terminals: MTR485B and MTR485A.
Figure 4.10 Meter terminals
4. Installation
The Solis RHI-HV 5G series inverter integrates export power control function
which requires an external meter to detect the power flow.
The following figure shows the corresponding connection of the meter.
Figure 4.7 Meter (AGF-AE-D)
Note:
The battery fuses in the wiring box are replaceable.
The replacement must be done by Solis authorized technicians only.
Fuse specification: 600V, 30A.
Note:
Before connecting the battery, please carefully read the user manual of the
battery and perform the installation exactly as the battery manufacturer
requests.
4.6 Communication Terminals
From left to right, the communication terminals consist of ten ports.
Figure 4.9 Communication port
CANL CANH ENABLE GND BMS485B BMS485A
RS485B RS485A
MTR485B MTR485A
Inner
External
A B
Symbol
CANL
CANH
ENABLE
GND
BMS485B
BMS485A
RS485B
RS485A
MTR485B
MTR485A
Table 4.4 communication terminals
Wire Requirement
22-16AWG
Recommend:18AWG
Exposure length: 11mm
Comments
Battery communication
depends on the battery
type.
Refer to Section 4.6.2 for
details.
RS485 Communication
Meter Communication
NO.
1
2
3
4
5
6
7
8
9
10
Cable connection steps:
1. Use slot type screwdriver to press the block on the top.
2. Insert the exposed copper part of the cable into the terminal.
3. Remove the screwdriver and the terminal will clamp down
on the exposed copper.
4. Give the cable a gentle tug to ensure that it is firmly secured.
Note:
If the CT is installed in the wrong direction,
the Hybrid Inverter can't work normally.
PV strings
Battery
RHI-1P10K-HVES-5G
Meter
RS485 A B
Back-up
L1
L2
L1
L2
PE
Auto-
Transformer
Critical Load
240V L1-L2
120V L1-N or L2-N
Integrated
Bypass Switch
AC
Backup
AC
Grid
Load
Grid
L1
L2
N
L1 PE
L2 L1 L2 PE
240V Load 120V Load
CT direction
towards to grid
N
L1
L2
PE Grid
CT1
CT2

4. Installation
.19..18.

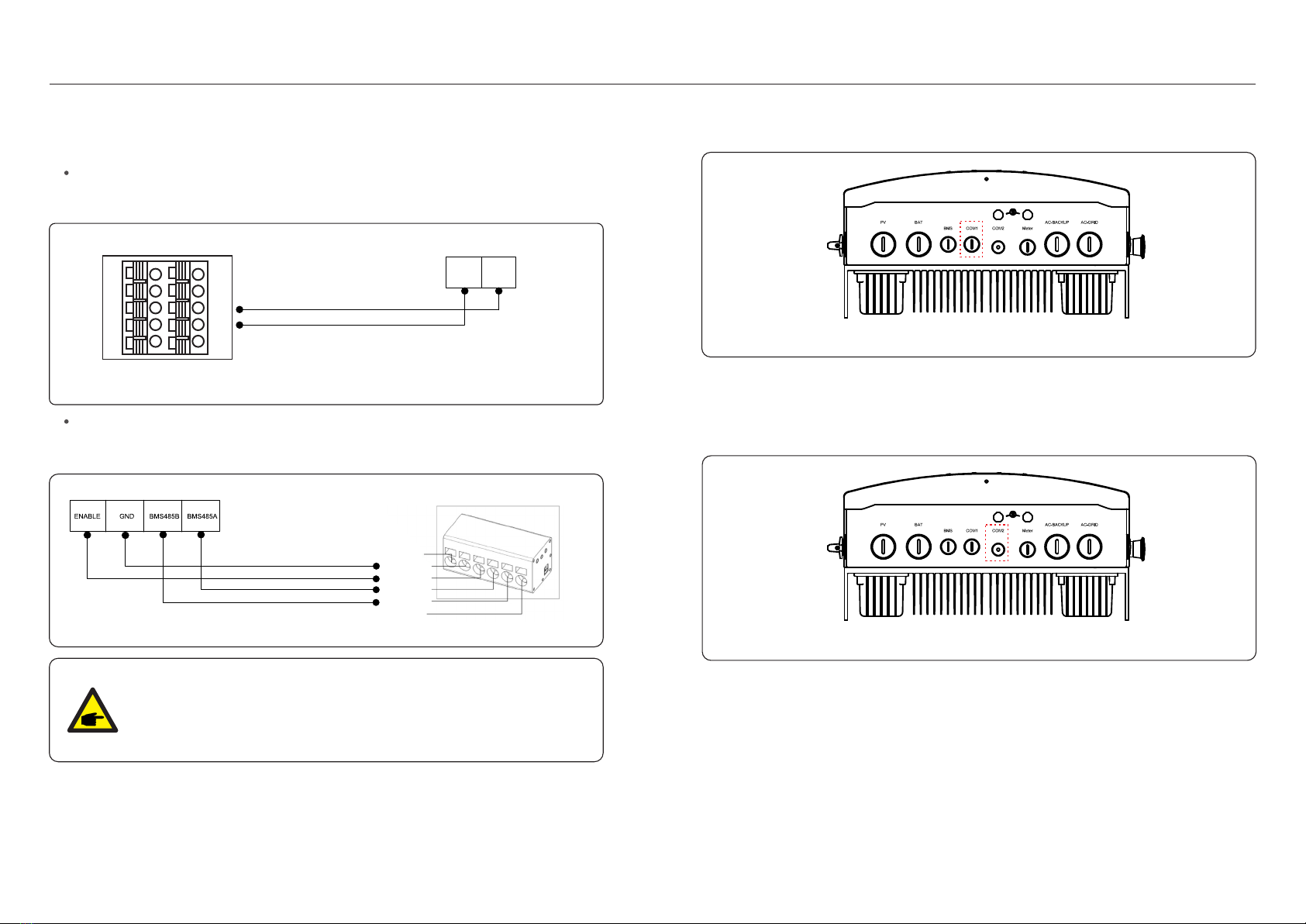

4.6.2 Battery Communication
Communication Terminals: CANL,CANH,ENABLE,GND,BMS485B,BMS485A
Different battery types have different communication requirements.
BYD Battery
For BYD Battery-BoxH, CANL and CANH are used.
The detailed connection is shown in the following figure.
LG Battery
For LG RESU10H Type R, ENABLE,GND,BMS485B and BMS485A are used.
The detailed connection is shown in the following figure.
Figure 4.13 LG Battery Communication
LG RESU10H Type R
CAN_High
Enable_GND
Enable_High
RS485_High
RS485_Low
CAN_Low
Solis-RHI-1P(5-10)K-HVES
4.6.3 RS485 Communication
Communication Terminals: RS485B and RS485A.
Figure 4.14 RS485 Communication
This pair of RS485 terminals is reserved for external communication to a third party.
4. Installation
4.6.4 Monitoring/Upgrade Communication.
Communication Port: COM2.
Figure 4.15 Monitoring/Upgrade Communication
COM2 is a 4-pin RS485 communication port which is used to connect a Solis data logger
stick.
If necessary, firmware upgrades can be done with an upgrade tool stick that also plugs
into this port.
Note:
When working with LG batteries in OFF-GRID mode, due to the circuit design
of the battery, some specific loads may cause the inverter to display battery
alarm. This is a normal situation and the system will recover once the grid is
available.
Solis is also able to remotely push firmware updates to systems as long as they are
reporting to SolisCloud..
1 2
3 4
56
7 8
9 10
BYD Battery-BoxH Solis-RHI-1P(5-10)K-HVES
Figure 4.12 BYD Battery Communication
CAN L CAN H

5. Operation
Monthly Energy
information
settings
advanced info.
advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
Pressing the ENTER
key to switch
to the submenu
Pressing the ESC
key calls back
the previous menu
main menu
Figure 5.1 Operation overview
ESC
ESC
ENTER
5.1 Initial Display
When powering up the inverter for the first time, it is required to set the language.
Press "ENT" to select.
Figure 5.2 Set Language
Settings
Set Language 2015-02-23 19 35
English
中文
YES=< E N T > N O =< E S C >
4. Installation
Description
The inverter can detect DC power.
No DC power.
The inverter is fully operational.
The inverter has stopped operating.
The inverter is initializing.
Fault condition is detected.
No fault condition detected.
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Light
POWER
OPERATION
ALARM
4.8 LED Indicators
There are three LED indicators on the RHI inverter (Red, Green, and Orange)
which indicate the working status of the inverter.
Table 4.1 Status Indicator Lights
FLASHING Either the grid or solar cannot be detected.
.20. .21.
An external ground connection is provided at the right side of inverter.
Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal.
Connect the OT terminal with ground cable to the right side of inverter. The torque is 2N.m.
4.7 External Ground Connection
Figure 4.16 Connect the external grounding conductor
Home Page
ESC
ENTER
Main Manu
Note:
All example displays shown in this section and the text/values are
for reference only.

5. Operation 5. Operation
After setting the language, press "ESC" to access the Home Page.
Figure 5.3 Home Page
Solar Power: When solar power is generated an arrow ,
indicates the direction of the power flow, and the value is shown
above the arrow in kilowatts (kW).
Battery: When the battery is connected successfully, it will
display “COM OK”, the battery SOC arrow and flow will also be
shown. If the battery is not connected it will show “COM FAIL”.
House Loads: Loads connected to the AC Grid port that will
shutdown in the event of a grid outage.
KWH
2.526 External Meter: When the smart meter is connected successfully,
it will display "RS485 OK", otherwise it will say"RS485 Fail".
Critical Loads: Loads connected to the AC backup port which will
be supported by battery and solar during a grid outage.
Grid: The arrow and value indicate the export/import power of
the system to/from the utility.
On the Home Page,
Press "ESC" : View the yield data on monthly bar charts. Then use "UP" and "DOWN"
to change the date and "ENT" to move the cursor.
Press "UP" or "DOWN": View different status on the top left of the Home Page.
Press "ENT": Enter the main menu.
KWH
2.526
COM OK
5.2 Main Menu
There are four submenus in the Main Menu:
1. Information 2. Settings 3. Advanced Information 4. Advanced Settings
Figure 5.4 Main Menu
Settings
Menu 2015-02-23 19 35
Information
Settings
Advanced Information
Advanced Settings
5.3 Information
In the Information section, operating data and information data can be viewed.
Subsections of Information menu include:
1.General Info 2.System Info 3.Energy Records 4.BMS Info 5.Meter Info
SettingsInformation 2015-02-23 19 35
General Info
System Info
Energy Records
BMS Info
Meter Info
Figure 5.5 Information
.22. .23.

5. Operation 5. Operation
Figure 5.7 System information
SettingsSystem Info 2015-02-23 19 35
Solar Power：
Solar Voltage1：
Solar Voltage2：
Solar Current2：
00000W
000.0V
000.0V
00.0A
ESC
Solar Current1：00.0A
Grid Power：
Grid Voltage：
Grid Frequency：
+00.0kW
000.0V
00.00Hz
Backup Voltage：
Battery Voltage：
Charge Power：
000.0V
000.0V
+00.0kW
Figure 5.8 Energy information
Settings
EnergyRecords 2015-02-23 19 35
Total Energy：
Today：
Yesterday：
0000008kWh
ESC
This Month：
Last Month：
This Year：
Last Year：
0000.0kWh
0000.0kWh
0000kWh
0000kWh
0000008kWh
0000000kWh
Figure 5.6 General Info
Settings
General Info 2015-02-23 19 35
Inverter SN：
Device Status：
Battery Status：
Grid Status：
Wakeup Status：
000F80017A20515
Waiting
Waiting
Off Grid Mode
Undone
ESC
Backup Status：Waiting
DRM NO.：
Model NO.：
Software Ver.：
08
00
040000
SettingsBMS Info 2015-02-23 19 35
Battery Voltage：
Battery Current：
Charge Limit：
SOC Value：
SOH Value：
000.0V
ESC
Discharge Limit：
BMS Status：CAN Fail
+00.0A
000.0A
000.0A
000%
000%
Figure 5.9 BMS information
.24. .25.

Figure 5.10 Meter Info
Settings
Meter Info 2015-02-23 19 35
External：
Meter CurrentL1：
Meter VoltageL2：
Meter Power：
Meter Energy：
ESC
Meter CurrentL2：
00.00A
+000000W
0000000.00kWh
5. Operation 5. Operation
Meter VoltageL1：
000.0V
00.00A
000.0V
Output Energy：0000000.00kWh
Internal：
Meter Current：
Meter Power：
Meter Energy：
00.00A
+000000W
0000000.00kWh
Meter Voltage：000.0V
Output Energy：0000000.00kWh
NOTE:
Meter Power/Grid Power: Positive value indicates exporting power to the
grid. Negative value indicates importing power from the grid.
Charge Power: Positive value indicates charging, negative value indicates
discharging.
5.4 Settings
In the Settings section, time and date, slave address and language can be set and
modified. Subsections of Settings menu include:
1.Set Time/Date 2.Set Address 3.Set Language.
Figure 5.11 Setting
Settings
Settings 2015-02-23 19 35
Set Time/Date
Set Address
Set Language
5.4.1 Set Time/Date
Figure 5.12 Set Time
Set Time/Date 2015-02-23 19 35
N E X T =< E N T > D O N E =< E S C >
MM DDYY
2 232015 --
HH MM
20 53 :
E S C U P D O W N E N T
Set the time and date on the inverter. This must be set according to local time as it
affects the daily yield calculation. If Solis monitoring is used, you must set the correct
time zone for the system, otherwise the datalogger will update the inverter time based
on the time zone of the system.
Press "UP" and "DOWN" to change the value.
Press "ENT" to move the cursor.
Press "ESC" to save the change.
.27..26.

5. Operation 5. Operation
5.5 Advanced Information
In the Advanced Information section, user can get access to more information.
Subsections of Advanced Information menu include:
1. Alarm Message 2. Warning Message 3. Running Status
4. Communication Data 5. Yield Profile
Figure 5.15 Advanced information
SettingsAdvanced Information 2015-02-23 19 35
Warning Message
Yield Profile
Running Status
Communication Data
Alarm Message
5.4.2 Set Address
Set the slave address of the inverter. The default address is 01.
Figure 5.13 Set Address
Settings
Set Address 2015-02-23 19 35
Y E S =< E N T > N O =< E S C >
Slave Address：01
ESC U P D O W N E N T
5.4.3 Set Language
Set the system language. Chinese and English are available.
Settings
Figure 5.14 Set Language
Set Language 2015-02-23 19 35
English
中文
Y E S =< E N T > N O =< E S C >
40 pages of the latest alarm messages (5 per page are displayed).
Alarm messages can lead to inverter shutdown as a safety function.
Figure 5.16 Alarm Message
Alarm Message 2015-02-23 19 35
Message
NO-Grid
NO-Grid
NO-Grid
NO-Grid
NO-Grid
Date/Time
02-23 19:35
02-23 19:34
02-23 19:34
02-23 19:24
02-23 18:22
01/40
0000
0000
0000
0000
0000
ESC U P D O W N E N T
Date
5.5.1 Alarm Message
.28. .29.

5. Operation 5. Operation
5.5.3 Running Status
This function is for technicians to get operating information such as internal
temperature, grid standard, etc.(Values are for reference only).
Settings
Figure 5.18 Running Status
Running Status 2015-02-23 19 35
ESC
General Status
Advanced Status
Settings
General Status 2015-02-23 19 35
DC Bus Voltage：
Power Factor：
Power Limit：
Inverter Temperature：
Grid Standard：
000.0V
-0.00
000%
ESC
+000.0degC
Figure 5.19 General Status
Settings
Warning Message 2015-02-23 19 35
Message Date/Time Data
NO message.
E S C U P D O W N E N T
5.5.2 Warning Message
Figure 5.17 Warning Message
10 pages of the latest warning messages (5 per page are displayed).
Warning messages show when there is an abnormality but they will not lead to inverter
shutdown.
Settings
Advanced Status 2015-02-23 19 35
Grid Filter NO.：
Ground Voltage：
00
000.0V
ESC
Relay-Fault Func.：
ILeak-Fault Func.：
AFCI-Fault Func.：
PV-G-Fault Func.：
OV-F-Fault Func.：
GRID-INTF.02 Func.：
RUN
RUN
RUN
RUN
RUN
RUN
Figure 5.20 Advanced Status
.31..30.

5. Operation 5. Operation
Figure 5.22 Yield Profile
SettingsYield Profile 2015-02-23 19 35
Monthly Energy
5.5.5 Yield Profile
Yearly Energy
Total Energy
The yield profile includes: Monthly Energy, Yearly Energy and Total Energy.
All the historical energy generation records can be easily viewed in this section.
5.5.4 Communication Data
Internal communication data can be viewed in this submenu. (For technicians only).
Values are for reference only.
Figure 5.21 Communication Data
Communication Data 2015-02-23 19 35
01-10：
11-20：
21-30：
31-40：
41-50：
51-60：
61-70：
71-80：
81-90：
86 61 A1 00 01 50 8A 06 1E 00
D5 05 1E 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00
09 02 00 00 00 00 B8 10 C0 00
20 5C 80 01 00 00 43 00 07 02
01 00 04 00 6D 04 E6 05 01 00
DC 05 1E 00 59 06 1E 00 D4 03
10 27 00 00 00 00 00 00 00 00
00 00 00 00 00 00 60 00 00 00
E S C
5.6 Advanced Settings - Technicians Only
NOTE:
This function is for authorized technicians only. Improper access and
operation may result in abnormal results and damage to the inverter.
Password required – restricted access – authorized technicians only.
Unauthorized access may void the warranty.
Select Advanced Settings from main menu, the LCD screen show the password(0010)
is needed:
Settings
Password 2015-02-23 19 35
Please Input The Current Password
X X XX
ESC U P D O W N E N T
Y E S =< E N T > N O =< E S C >
Figure 5.23 Enter Password
Figure 5.24 Advanced Settings
Advanced Settings 2015-02-23 19 35
Select Standard
Export Power Set
Software Update
STD.Mode Settings
In the Advanced Settings section, user can get access to more settings.
Subsections of Advanced Settings menu include:
1.Select Standard 2.Switches 3.Battery Select 4.Backup Control
5.Storage Energy Set 6.STD. Mode Settings 7.Software Update 8.Export Power Set
9.Calibrate 10.Reset Password 11.Restart HMI 12.Special Settings
Switches
Restart HMI
Calibrate
Reset Password
Storage Energy Set
Backup Control
Battery Select
.32. .33.
Special Settings

5. Operation 5. Operation
This function is used to select corresponding grid standards.
Please refer to the actual LCD setting for the grid standard options.
Figure 5.25 Select Standard
5.6.1 Select Standard
Settings
Select Standard 2015-02-23 19 35
Y E S =< E N T > N O =< E S C >
UL-240V
Select Standard:
Press "UP" and "DOWN" to go through the list.
Press "ENT" to check the parameters, press "ENT" again to select the standard.
This function is used to start or stop the generation of the inverter (see Figure 5.26).
Figure 5.26 Set Switches
5.6.2 Switches
SettingsSwitches 2015-02-23 19 35
ON
OFF
YES=< E N T > N O =< E S C >
5.6.3 Battery Select
If the hybrid inverter is not connected to a battery, then select "No Battery" to prevent
alarms.
For the above compatible battery modules, only two parameters need to be defined:
* OverDischg SOC (10%~40%, default 20%)
--Inverter will not discharge the battery when the OverDischg SOC is reached.
Battery self-discharge is unavoidable, the SOC may go lower than the limit if the battery
is unable to charge for a long period of time.
* ForceCharge SOC (5%~10%, default 10%)
--To prevent the battery from going into sleep mode, when the ForceCharge SOC is
reached the inverter will charge the battery using power from either PV or the grid,
if permitted.
.34. .35.
Press the UP/DOWN keys to select the standard (UL-240V, UL-208V, R21P3-240,
R21P3-208, ISONE240, ISONE208, MEX-CFE , User-Def, etc.).
Press the ENTER key to confirm the setting.
Press the ESC key to cancel changes and return to previous menu.
There are 6 settings for USA and CSA market, UL-240V, UL-208V, R21P3-240, R21P3-208,
ISONE240 and ISONE208. The default grid setting is UL-240V.
NOTE:
ON: AC Relay is ON.
OFF: AC Relay is OFF.
B-BO X HV

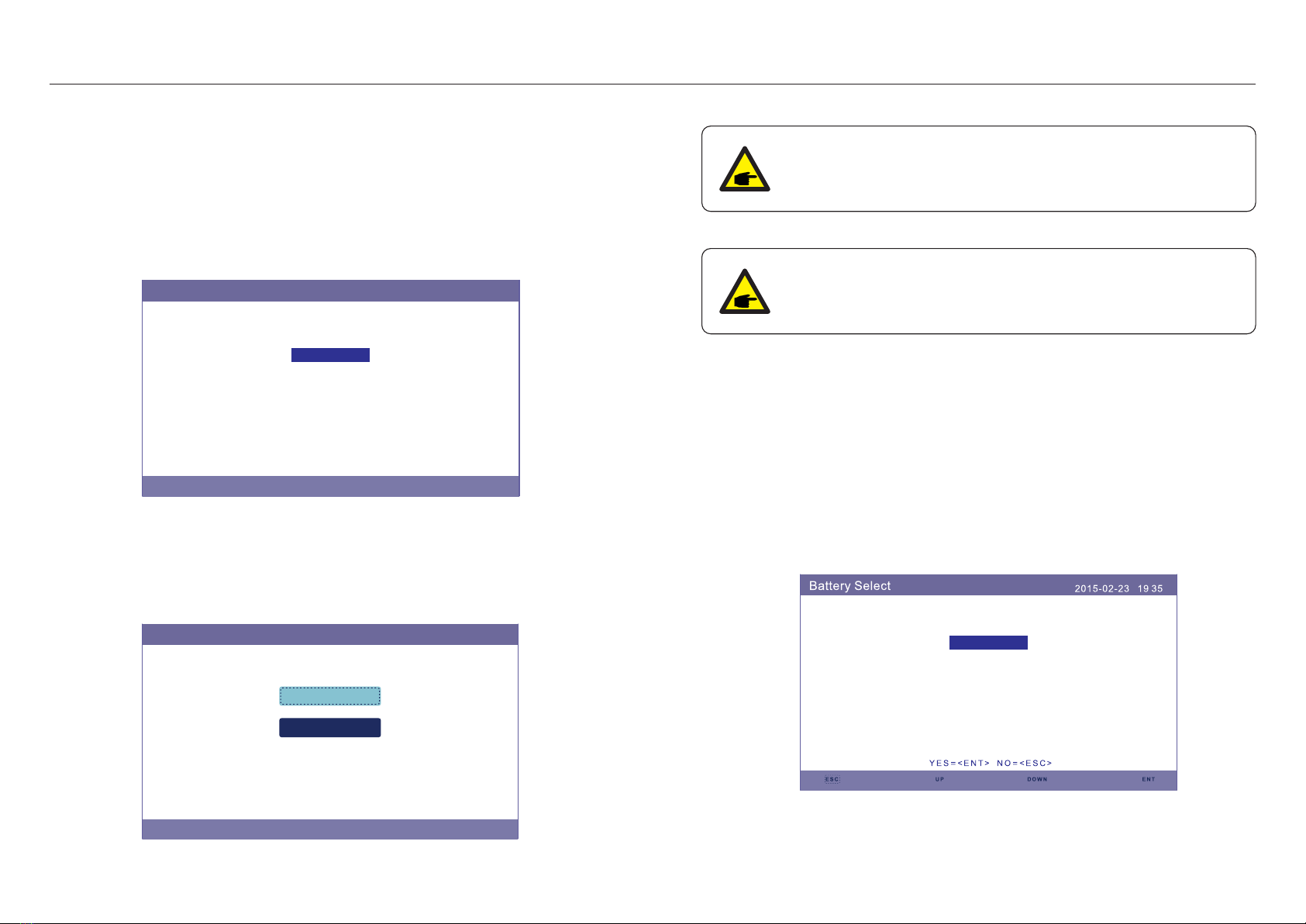

Figure 5.27 Battery Select
Battery Module:
NOTE:
Please refer to the battery compatibility list on the company website to
confirm the latest battery options available in the inverter firmware.
Connecting a non-compatible battery will void the inverter warranty.

5. Operation 5. Operation
Settings
Battery Select 2015-02-23 19 35
Y E S =< E N T > N O =< E S C >
ESC U P D O W N E N T
OverDischg SOC：020%
Figure 5.28 Over Discharge SOC.
Figure 5.29 ForceCharge SOC
Settings
Battery Select 2015-02-23 19 35
Y E S =< E N T > N O =< E S C >
E S C U P D O W N E N T
ForceCharge SOC：005%
.36. .37.
This section is used to set the configuration of the backup port.
5.6.4 Backup Control
Figure 5.30 Backup Control
Settings
Backup Control 2015-02-23 19 35
Backup O N/O FF
Backup Settings
YES=< E N T > N O =< E S C >
Figure 5.31 Backup ON/OFF
SettingsBackup ON/OFF 2015-02-23 19 35
Backup O N
Backup O FF
Y E S =< E N T > N O =< E S C >
5.6.4.1 Backup ON/OFF
This switch can enable/disable the electrical connection of the backup port.
