Ginlong Solis 5G Series User manual

User Manual
for 5G Series Grid Inverter
Version 1.6, Release Date: 11,2022
Applicable models
Solis-185K-EHV-5G-US
Solis-255K-EHV-5G-US
Solis-125K-EHV-5G-US-PLUS
Solis-185K-EHV-5G-US-PLUS
Solis-255K-EHV-5G-US-PLUS

Important notes
● Product specifications are subject to change without notice. Every attempt has been made
to make this document complete, accurate and up-to-date. Individuals reviewing this
document and installers or service personnel are cautioned, however, that Solis
reserves the right to make changes without notice and shall not be responsible for any
damages, including indirect, incidental or consequential damages caused by reliance
on the material presented including, but not limited to, omissions, typographical errors,
arithmetical errors or listing errors in the material provided in this document.
● Solis accepts no liability for customers' failure to comply with the
instructions for correct installation and will not be held responsible for upstream or
downstream systems Solis equipment has supplied.
● The customer is fully liable for any modifications made to the system; therefore,
any hardware or software modification, manipulation, or alteration not expressly
approved by the manufacturer shall result in the immediate cancellation of the warranty.
● Given the countless possible system configurations and installation environments, it is
essential to verify adherence to the following:
● There is sufficient space suitable for housing the equipment.
● Airborne noise produced depending on the environment.
● Potential flammability hazards.
● Solis will not be held liable for defects or malfunctions arising from:
● Improper use of the equipment.
● Deterioration resulting from transportation or particular environmental conditions.
● Performing maintenance incorrectly or not at all.
● Tampering or unsafe repairs.
● Use or installation by unqualified persons.
● This product contains lethal voltages and should be installed by qualified electrical or
service personnel having experience with lethal voltages.

10 Appendix
9 Specifications
8 Troubleshooting
7 Maintenance
6 Settings
5 Commissioning
4 Communication
3 Installation
2 Safety
1 Introduction
Table of Contents

Table of Contents
1. Introduction
1.1 Product Description
1.2 Front Panel Display
1.7 Storage
2. Safety & Warning
2.1 Safety symbols
2.2 General safety instructions
2.3 Notice for use
2.4 Protection Circuitry and Controls
3. Installation
3.1 Environmental considerations
3.1.1 Select a location for the inverter
3.1.2 Other environmental considerations
3.2 Product handling
…………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………
………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………
………………………………………………………………………………………
3.3 Mounting the Inverter
4
4
5
8
9
9
9
10
10
11
11
11
12
14
16
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………………………
…………………………………………………………………………………
………………………………………………………………
………………………………………………………
…………………………………………………………………………………………………………
…………………………………………………………………………………………………
…………………………………………………………………………………
16
…………………………………………………………………………………………………
3.3.1 Wall mounting
3.4 Electrical Connections 17
…………………………………………………………………………………………………
18
…………………………………………………………………………………………………
3.4.1 Grounding
20
…………………………………………………………………………
3.4.2 Connect PV side of inverter
22
………………………………………………………………………
3.4.3 Connect grid side of inverter
27
………………………………………………………………………………………………
4. Communication & Monitoring
5. Commissioning
5.1 Selecting the appropriate grid standard
5.1.1 Verifying grid standard for country of installation
29
29
29
………………………………………………………………………………………………………………………………
………………………………………………………………
………………………………
5.2 Changing the grid standard
5.2.1 Procedure to set the grid standard
5.3 Setting a custom grid standard
5.4 Preliminary checks
5.4.1 DC Connections
5.4.2 AC Connections
5.4.3 DC configuration
29
29
30
31
31
31
31
………………………………………………………………………………………
…………………………………………………………
………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………
………………………………………………………………………………………………
……………………………………………………………………………………………
…………………………………………………………………………………………
5.4.4 AC configuration 32
………………………………………………………………………………………………………………………
……………………………………………………………………………………………………
6. Start and Shutdown
6.1 Start-up procedure
6.2 Shutdown procedure
33
33
33
……………………………………………………………………………………………………
4.1 RS485 communication connection 27
………………………………………………………
1.8 Notice for Disposal 8
………………………………………………………………………………………………………
1.3 LED Status Indicator Lights
………………………………………………………………………………………………
5
1.4 Unpacking
………………………………………………………………………………………………
6
1.5 Inverter Circuit Diagram
………………………………………………………………………………………………
7
4.2 PLC (Power Line Communication) connection 28
………………………………………………………
1.6 Tools Required for Installation
………………………………………………………………………………………………
7

……………………………………………………………………………………………………
7.3.1 Set Time 37
………………………………………………………………………………………………………………………………
7.3 Settings 37
……………………………………………………………………………………………………
7.3.2 Set Address 37
……………………………………………………………………………
7.4 Advanced Info - Technicians Only 38
……………………………………………………………………………………………………
7.4.1 Alarm Message 38
……………………………………………………………………………………………
7.4.2 Running Message 38
…………………………………………………………………………………………………………………
7.4.3 Version 39
…………………………………………………………………………………………………………
7.4.4 Daily Energy 39
……………………………………………………………………………………………………
7.4.5 Monthly Energy 39
………………………………………………………………………………………………………
7.4.6 Yearly Energy
40
………………………………………………………………………………………………………
7.4.7 Daily Records
40
………………………………………………………………………………………
7.4.8 Communication Data
40
………………………………………………………………………………………………
7.4.9 Warning Message
40
……………………………………………………………………
7.5 Advanced Settings - Technicians Only 41
…………………………………………………………………………………………
7.5.1 Selecting Standard 41
……………………………………………………………………………………………………
7.5.2 Grid ON/OFF 43
……………………………………………………………………………………………………
7.5.3 Clear Energy 44
……………………………………………………………………………………………………
7.5.4 Reset Password 44
……………………………………………………………………………………………………
7.5.5 Power control 44
……………………………………………………………………………………………………
7.5.6 Calibrate Energy 45
……………………………………………………………………………………………………
7.5.7 Special Settings
45
……………………………………………………………………………………………
7.5.8 STD Mode settings
45
…………………………………………………………………………………………………
7.5.9 Restore Settings
58
………………………………………………………………………………………………………
7.5.10 HMI Update
58
……………………………………………………………………………………………………
7.5.11 Restart HMI
58
……………………………………………………………………………………………………
7.5.13 DSP Update 59
…………………………………………………………………………………………
7.5.14 Compensation Set 59
……………………………………………………………………………………………………………
7.5.15 I/V Curve
60
8. Maintenance ……………………………………………………………………………………………………………………………………… 62
………………………………………………………………………………………………………………
7.5.12 Fan Test
59
………………………………………………………………………………………………………………
8.2 Fan Maintenance 63
9. Troubleshooting ……………………………………………………………………………………………………………………………… 64
10. Specifications …………………………………………………………………………………………………………………………………… 67
………………………………………………………………………………………………………………
8.1 Anti-PID Function 62
11. Appendices ……………………………………………………………………………………………………………………………………… 72
……………………………………………………………………………………………………………………
7.6 AFCI function 61
………………………………………………………………………………
7.6.1 Enable the AFCI function 61
………………………………………………………………………………………………………………
7.6.2 Arc Fault 61
Table of Contents
……………………………………………………………………………………………………… 36
7.2.1 Lock screen
34
7.2 Information ………………………………………………………………………………………………………………………
7.1 Main Menu 34
………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
7. Normal operation 34

1. Introduction User Manual

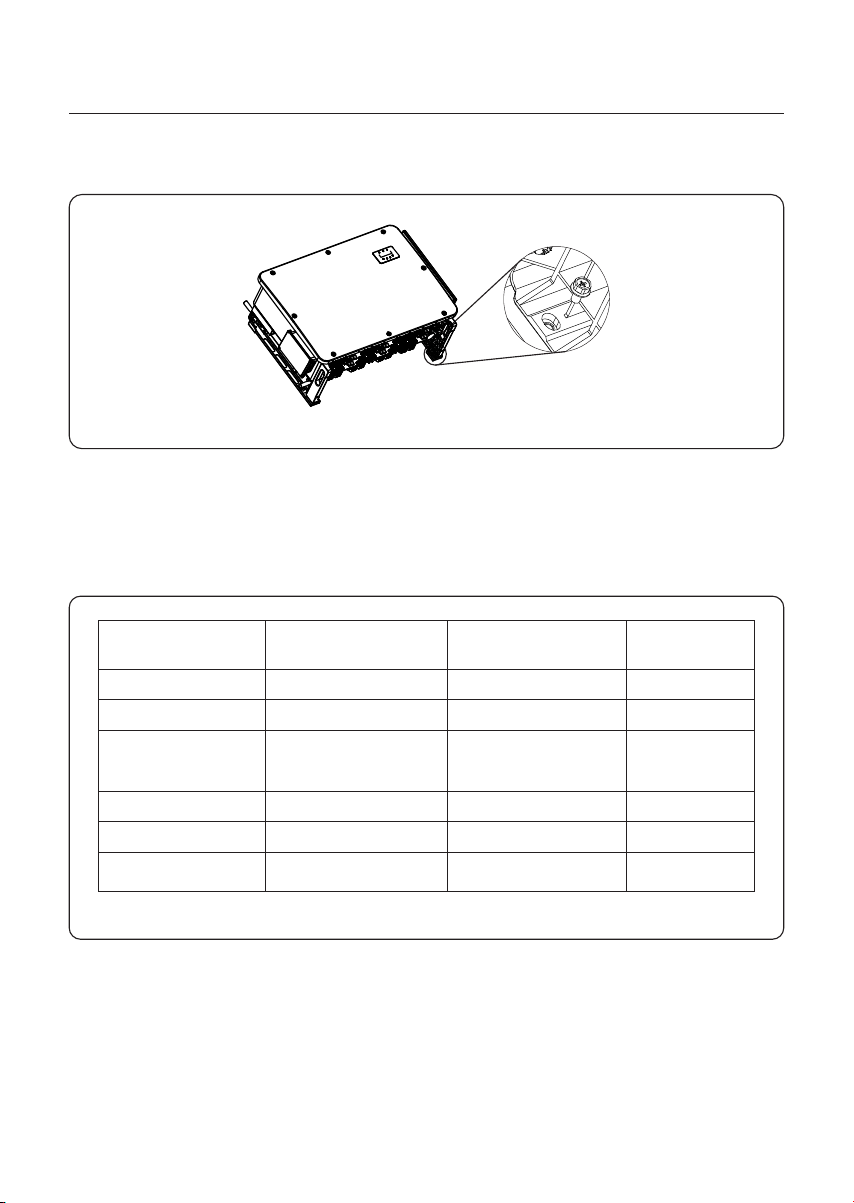

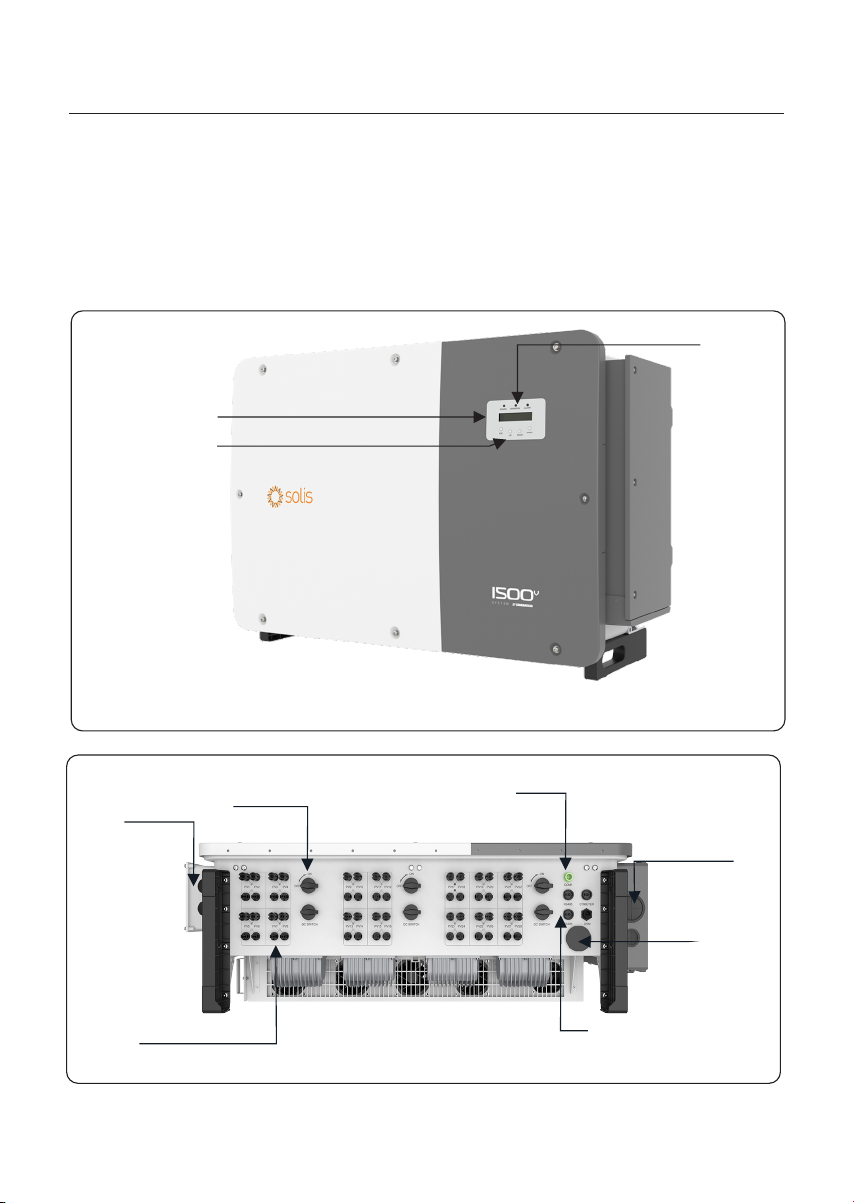

Figure 1.1 Front view
Figure 1.2 Bottom view
1.1 Product Description
Solis Three phase Transformerless Grid Support Utility Interactive PV Inverters convert
DC power from the photovoltaic(PV) array into alternating current(AC) power that can satisfy
local loads as well as feed into the power distribution grid.
This manual covers the three phase inverter models listed below:
Solis-185K-EHV-5G-US, Solis-255K-EHV-5G-US, Solis-125K-EHV-5G-US-PLUS,
Solis-185K-EHV-5G-US-PLUS, Solis-255K-EHV-5G-US-PLUS
4
LED lights
LCD display
4 buttons
DC Switch
AC Output
DC Input
Vent
COM
COM
DC Coupler
Input

1. Introduction User Manual
5
1.2 Front Panel Display

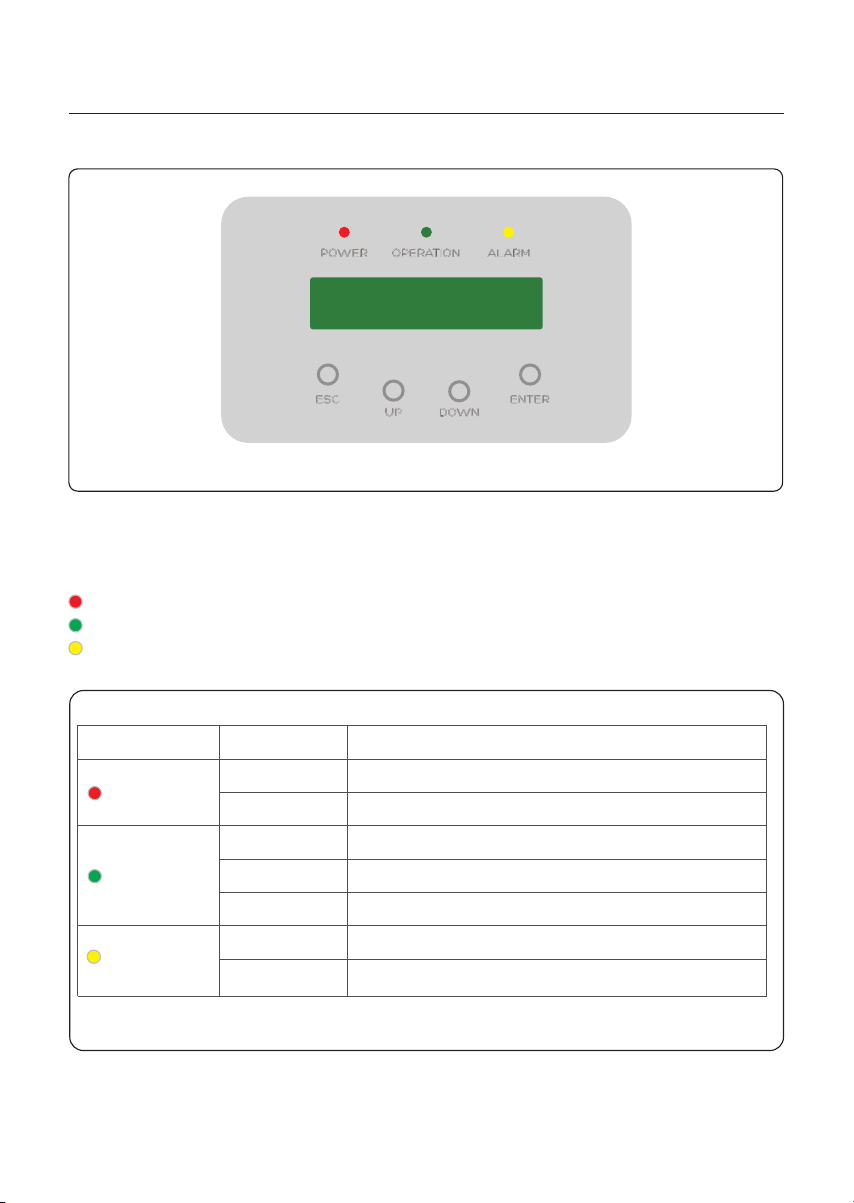

Figure 1.3 Front Panel Display
Figure 1.4 Status Indicator LED
1.3 LED Status Indicator Lights
There are three LED status indicator lights on the front panel of the inverter.
POWER LED (red) indicates the power status of the inverter.
OPERATION LED (green) indicates the operation status.
ALARM LED (yellow) indicates the alarm status.
Description
The inverter detects DC power.
No DC power or low DC power.
The inverter is operating properly.
The inverter has stopped producing power.
The inverter is initializing| Updating software
Alarm or fault condition is detected.
No fault or alarm is detected.
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Light
POWER
OPERATION
ALARM

1. Introduction User Manual
1.4 Unpacking
The inverter ships with all accessories in one carton.
When unpacking, please verify all the parts listed below are included:
123
56
4
7 8
Inverter packing list
Part #
1
2
Description
Inverter
Mounting Bracket
Quantity
1
1
Hexagon bolt M10*40
Remarks
4
5
6
Fastening screw, hex nut and flat gasket 4
DC connector
Staubli Electrical Connectors AG
PV-KBT4-EVO 2/6I-UR
PV-KST4-EVO 2/6I-UR
3
7RJ45 connector 1
8Handle 4
Hexagon bolt M6*12
3Fastening screw 2
2 pin port
18,24,28
6

1. Introduction User Manual
7
1.6 Tools Required for Installation
Technician Screwdriver Torqx T20 Screwdriver Wire Strippers
12AWG to 6AWG
Wire Strippers
20AWG to 10AWG
Drill and Impact Driver
Multimeter (AC/DC amps)
Channel Locks
LUG Crimping Tool
Torque Screwdriver Mc4 Crimping Tool
1.5 Inverter Circuit Diagram
Solis-(125-255)KW-EHV-5G-US
Three Phase Inverter
DC-1
+
-
DC-14
+
-MPPT-14
DC
Switch
DC
Bus
Inverter
Module
Output
Filter
AC
Relay
DC
Filter MPPT-1
Current
Sense
DC Link
Cap
L1
L2
AC
Grid
EMI
Filter-1
AC
Filter
AC EMI
Filter
L3
+
--
SPD
EMI
Filter-
10
EMI
Filter-14 PE
SPD
SPD
Figure 1.5 Inverter Circuit Diagram

User Manual
● Use the original box to repackage the inverter, seal with adhesive tape with the desiccant inside the
box.
● Store the inverter in a clean and dry place, free of dust and dirt. The storage temperature must be
between 40~176°F and humidity should be between 0 to 95%, non-condensing.
● Do not stack more than two (2) inverters high on a single pallet.
● Keep the box(es) away from corrosive materials to avoid damage to the inverter enclosure.
● Inspect the packaging regularly. If packing is damaged (wet, pest damages, etc.), repackage the
inverter immediately.
● Store inverters on a flat, hard surface -- not inclined or upside down.
● After 100 days of storage, the inverter and carton must be inspected for physical damage before
installing. If stored for more than 1 year, the inverter needs to be fully examined and tested by
qualified service or electrical personnel before using.
● Restarting after a long period of non-use requires the equipment be inspected and, in some cases,
the removal of oxidation and dust that has settled inside the equipment will be required.
1.7 Storage
If the inverter is not installed immediately, storage instructions and environmental conditions are below:
1.8 Notice for Disposal
This product shall not be disposed of with household waste. They should
be segregated and brought to an appropriate collection point to enable
recycling and avoid potential impacts on the environment and human health.
Local rules in waste management shall be respected .
1. Introduction
8
SAVE THESE INSTRUCTIONS – This manual contains important instructions for Models
Solis-185K-EHV-5G-US, Solis-255K-EHV-5G-US, Solis-185K-EHV-5G-US-PLUS and
Solis-255K-EHV-5G-US-PLUS, that shall be followed during installation and maintenance
of the inverter.
DO NOT STACK
MORE THAN HIGH
2

2. Safety & Warning User Manual
9
2.1 Safety symbols
Safety symbols used in this manual, which highlight potential safety risks and important safety
information, are listed below:
WARNING
Symbol indicates important safety instructions, which if not correctly
followed, could result in serious injury or death.
NOTE
Symbol indicates important safety instructions, which if not correctly
followed, could result in damage to or the destruction of the inverter.
CAUTION, RISK OF ELECTRIC SHOCK
Symbol indicates important safety instructions, which if not correctly
followed, could result in electric shock
CAUTION, HOT SURFACE
Symbol indicates safety instructions, which if not correctly
followed, could result in burns.
2.2 General safety instructions
WARNING
Do not connect PV array positive (+) or negative (-) to ground – doing
so could cause serious damage to the inverter.
WARNING
Electrical installations must be done in accordance with local and
national electrical safety standards.
WARNING
To reduce the risk of fire, branch circuit over-current protective
devices (OCPD) are required for circuits connected to the Inverter.
CAUTION
The PV array (solar panels) supplies a DC voltage when exposed to light.
CAUTION
Risk of electric shock from energy stored in the inverter's capacitors.
Do not remove cover until 20 minutes have passed after disconnecting
all sources of supply, and this can only be performed by a service technician.
The warranty may be voided if any unauthorized removal of cover occurs.

User Manual
10
CAUTION
The inverter's surface temperature can reach up to 167°F . To avoid
risk of burns, do not touch the surface when the inverter is operating.
Inverter must be installed out of the reach of children.
WARNING
The inverter can only accept a PV array as a DC input. Using any other
type of DC source could damage the inverter.
The inverter has been constructed according to applicable safety and technical guidelines.
Use the inverter in installations that meet the following requirements ONLY:
1. The inverter must be permanently installed.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The system design must meet inverter specifications.
5. The inverter can only be used for industrial applications.
To start-up the inverter, the Grid Supply Main Switch (AC) must be turned on, BEFORE the DC
Switch is turned on. To stop the inverter, see power down instruction on page 38 Section 6.2.
2.3 Notice for use
2. Safety & Warning
2.4 Protection Circuitry and Controls
To meet relevant codes and standards, the Solis U.S. three phase inverter line is
equipped with protective circuitry and controls. These include Arc Fault Circuit Interrupter
(AFCI) and Anti-Islanding Protection.
Arc Fault Circuit Interrupter AFCI:
Edition 2011 of the National Electrical Code®, Section 690.11, requires that all PV plants
attached to a building are fitted with a means of detecting and interrupting serial electric
arcs in the PV wiring and array. An electric arc with a power of 300W or greater must be
interrupted by the AFCI in the time specified by UL 1699B. A triggered AFCI fault may only
be reset manually. After clearing the source of the fault, the AFCI can be deactivated via
the inverter front panel interface.
Anti-Islanding Protection:
Anti-Islanding is a condition where the inverter cease to produce power when the grid
is not present. Circuitry, along with firmware, has been designed to determine if the grid is
present by adjusting the output frequency of the inverter. In the case of a 60Hz resonant
system where the inverter is partially isolated from the grid, the inverter programming can
detect if there is a resonant condition or if the grid is actually present. It can also
differentiate between inverter’s operating in parallel and the grid.

User Manual
11
3.1 Environmental considerations
3.1.1 Select a location for the inverter
When selecting a location for the inverter, consider the following:
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
3. Installation
● The temperature of the inverter heat-sink can reach 167°F.
● The ambient temperature and relative humidity should meet the following requirements.
● If multiple inverters are installed on site, a minimum clearance of 32 inches should be kept
between each inverter and all other mounted equipment. The bottom of the inverter should be
at least 32 inches above of the ground or floor (see Figure 3.2 and 3.3).
● The LED status indicator lights and the LCD located on the inverter's front panel should not be
blocked.
● Adequate ventilation must be present if the inverter is to be installed in a confined space.
CAUTION, HOT SURFACE CAUTION, HOT SURFACE
● The load bearing structure shall meet the following requirements.
Made of non-inflammable materials
Max. load bearing capacity ≥ 4
times of inverter weight
NOTE
For additional installation details, watch the installation video in the link below
(568) Solis-(215-255)K-EHV-5G inverter Installation video - YouTube

3. Installation User Manual
3.1.1.1 Examples of correct and incorrect installations
3.1.2 Other environmental considerations
3.1.2.1 Consult technical data
Consult the specifications section (section 10) for additional environmental conditions
(protection rating, temperature, humidity, altitude, etc.).
3.1.2.2 Vertical wall installation
This model of Solis inverter should be mounted vertically.
Figure 3.1 Recommended Installation locations
3.1.2.3 Avoiding direct sunlight
Installation of the inverter in a location exposed to direct sunlight should to be avoided.
Direct exposure to sunlight could cause:
● Power output limitation (with a resulting decreased energy production by the system).
● Premature wear of the electrical/electromechanical components.
● Premature wear of the mechanical components (gaskets) and user interface.
12
Indoor Direct Sun
Shade Cover
Shade Cover
Direct Rain
Shade Cover
Rating
NEMA 4X
NOTE
Nothing should be stored on or placed against the inverter.

3. Installation User Manual
13
Figure 3.3 Distances required between inverters when multiple inverters are installed
≥32in
≥32in ≥32in
≥20in
Figure 3.2 Clearance distances requirement for the inverter
≥24in
≥32in
≥24in
≥32in
≥40in

User Manual
14
3. Installation
3.1.2.5 Flammable substances
Do not install near flammable substances. Maintain a minimum distance of three (3) meters
(10 feet) from such substances.
3.1.2.6 Living area
Do not install in a living area where the prolonged presence of people or animals is expected.
Depending on where the inverter is installed (for example: the type of surface around the
inverter, the general properties of the room, etc.) and the quality of the electricity supply, the
sound level from the inverter can be quite high.
3.2 Product handling
Figure 3.4 Handles used to move the inverter shown circled in red
3.1.2.4 Air circulation
Do not install in small, closed rooms where air cannot freely circulate. To prevent overheating,
always ensure that the air flow around the inverter is not blocked.
Please review the instruction below for handling the inverter:
1. The red circles below denote cutouts on the product package.
Push in the cutouts to form handles for moving the inverter around 249lb (see Figure 3.4).
2. Two people are required to remove the inverter from the shipping box. Use the handles
integrated into the heat sink to remove the inverter from the carton (see Figure 3.5).

User Manual
3. Installation
WARNING
Due to the weight of the inverter, contusions or bone fractures could
occur when incorrectly lifting and mounting the inverter. When mounting
the inverter, take the weight of the inverter into consideration. Use a suitable
lifting technique when mounting. When installers are carrying the inverter,
please use 4 handles to secure safety. Lifting force of each handle shall not
exceed 1.5 times of the inverter weight.
In case of using hoisting to lift the inverter, fix the hoisting cable to the hanger shown in the
graph. Please make a reasonable selection of hoisting equipment considering the inverter
weight of 113kg/249lb.

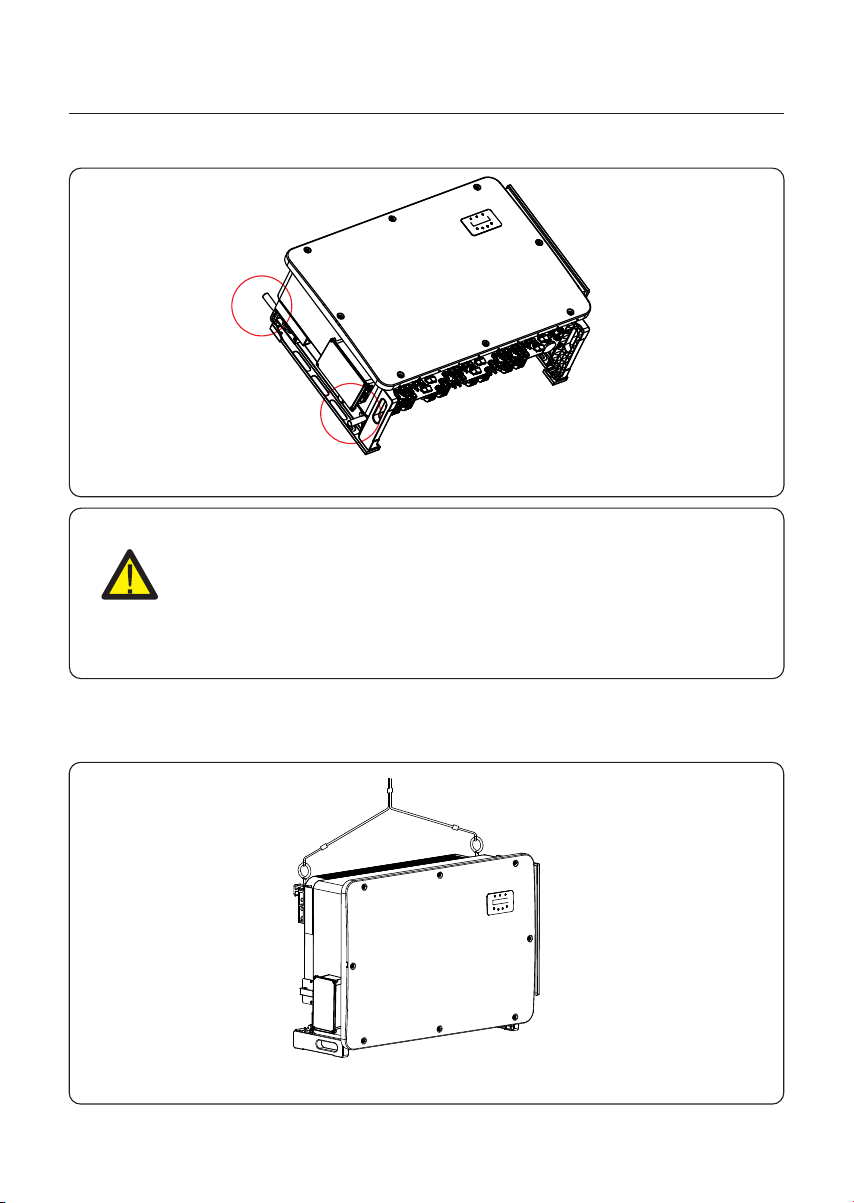

Figure 3.6 Hoisting sketch
15
Figure 3.5 Inverter handles

User Manual
Inverter shall be mounted vertically. The steps to mount the inverter are listed below.
1. Refer to Figure 3.7, drill holes for mounting screws based on the hole diameter of
bracket using a precision drill keeping the drill perpendicular to the wall.
Max depth is 3.6 in.
2. M ake sure the bracket is horizontal, and the mounting holes are marked correctly.
Drill the holes into wall at your marks.
3.3.1 Wall mounting
3. Use the suitable mounting screws to attach the bracket on the wall.
Figure 3.8 Install the inverter
4. Lift the inverter and hang it on the bracket, and then slide down to make sure they
match perfectly.
Inverter hook Torque:22.1-25.8 ft.lbs
3.3 Mounting the Inverter
The inverter can be mounted to the wall or metal array racking. The mounting holes should be
consistent with the size of the bracket or the dimensions shown in Figure 3.7.
Figure 3.7 Inverter wall mounting
10 mm( in)26 40.39
970 38.1mm( 8in)
677mm(26 65in).
520mm(20 47in).
Φ11mm(0.43in)
3. Installation
16

User Manual
3.4 Electrical Connections
The electrical connection of the inverter must follow the steps listed below:
1. Switch the Grid Supply Main Switch (AC) OFF and LOTO the AC Switch.
2. Switch the DC Switch OFF.
3. Connect the inverter to the grid.
4. Assemble PV connector and connect to the Inverter.
Inverter design uses PV style quick-connect terminal. The top cover does not need be opened
during DC electrical connection. The labels located the bottom of the inverter are described
below in table 3.1. All electrical connections are suitable for local and national standard.
Table 3.1 Electrical connection specification
Cable Connection Cable size Torque
DC terminal
Ground terminal
Grid terminal
RS-485 terminal
COM terminal
PV strings
AC ground
Grid
Communication cable
Wi-Fi/Cellular stick
12-10 AWG
2-4/0 AWG
1/0 AWG-600 MCM
(Max 600MCM)
20-18 AWG
NA
7.4-8.9 ft.lbs
17-21 ft.lbs
0.44 ft.lbs
NA
DC surge protection
device NA NANA
NA
Figure 3.9 Fix the inverter
5. Use screws in the packaging to fix the inverter to the mounting bracket.
Torque:1.5-2.2 ft.lbs
3. Installation
17

User Manual
18
3.4.1 Grounding
2. Prepare OT terminals: M10.
To effectively protect the inverter, two grounding methods must be performed.
Connect the AC grounding cable (Please refer to section 3.4.3)
Connect the external grounding terminal.
1. Prepare the grounding cable: recommend to use the outdoor copper-core cable.
Cable ampacity of the ground conductor should be more than half the ampacity ratings
of AC phase L1,L2,L3 conductors.
To connect the grounding terminal on the heat sink, please follow the steps below:
NOTE
3. Strip the ground cable insulation to a suitable length.
Figure 3.10 Suitable length
For multiple inverters in parallel , all inverters should be connected to the
same ground point to eliminate the possibility of a voltage potential existing
between inverter grounds.
3. Installation
A
B = A + (2~3)mm
12
