Ginlong Solis-20K User manual

PV Grid Tie Inverter
Installation and Operation Manual
Ver 2.3
Solis Three Phase Inverter
Ginlong Technologies Co., Ltd
C
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: [phone]
Fax: [phone]
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Please adhere to the actual products in case of any discrepancies in this user manual.

Important notes
Product specifications are subject to change without notice. Every attempt has been made
to make this document complete, accurate and up-to-date. Individuals reviewing this
document and installers or service personnel are cautioned, however, that Ginlong
Technologies reserves the right to make changes without notice and shall not be responsible
for any damages, including indirect, incidental or consequential damages caused by reliance
on the material presented including, but not limited to, omissions, typographical errors,
arithmetical errors or listing errors in the material provided in this document.
Ginlong Technologies accepts no liability for customers' failure to comply with the instructions
for correct installation and will not be held responsible for upstream or downstream systems
Ginlong's equipment has supplied.
The customer is fully liable for any modifications made to the system; therefore, any hardware
or software modification, manipulation, or alteration not expressly agreed with the
manufacturer shall result in the immediate cancellation of the warranty.
Given the countless possible system configurations and installation environments, it is
essential to verify adherence to the following:
● There is sufficient space suitable for housing the equipment.
● Airborne noise produced depending on the environment.
● Potential flammability hazards.
Ginlong Technologies will not be held liable for defects or malfunctions arising from:
● Improper use of the equipment.
● Deterioration resulting from transportation or particular environmental conditions.
● Performing maintenance incorrectly or not at all.
● Tampering or unsafe repairs.
● Use or installation by unqualified persons.
This product contains lethal voltages and should be installed by qualified electrical or
service personnel having experience with lethal voltages.

Content
2.3 Notice For Use
3. Overview
3.1 Inverter Interface Instructions
3.2 LED Status Indicator Light
3.3 Keypad
3.4 LCD
4. Product handing and storage
4.1 Product handing
4.2 Product storage
3
5
5
5
6
7
7
7
8
8
9
9
10
1. Introduction
2. Safety Instructions
2.1 Safety Symbols
2.2 General Safety Instruction
……………………………………………………………
……………………………………………………
…………………………………………………
……………………………………
…………………………………………………
……………………………………………………………
…………………………
…………………………………
………………………………………………………
…………………………………
4
1.2 Packaging List …………………………………………………
……………………………………………………………
3
1.1 Product Description …………………………………………
………………………………………………
………………………………………………
5. Installation
5.1 Select a Location for the Inverter
5.2 Mounting the Inverter
5.3 Electrical Connections
6. Start and Stop
6.1 Start the Inverter
6.2 Stop the Inverter
11
11
13
15
25
25
25
…………………………………………………………
………………………
………………………………………
……………………………………
……………………………………………………
………………………………………………
5.3.2 DC side connection
5.3.3 AC side connection
18
20
5.3.4 Inverter monitoring connection 22
…………………………………
……………………
…………………………………
7. General Operation 26
………………………………………………
………………………………………………
7.1 Interface 26
………………………………………………………
5.3.1 Protective ground wire connection(PE) 16
…………

.3.
1. Introduction
Figure 1.1 Front view
Figure 1.2a Bottom view(20-40)K
Content
1.1 Product Description
Solis three phase series PV inverters convert direct current (DC) power from the
photovoltaic (PV) array into alternating current (AC) power to satisfy local loads as
well as feed the power grid.
There are 10 models for Solis three phase inverter:
Solis-20K, Solis-25K, Solis-30K, Solis-33K, Solis-25K-HV Solis-30K-HV,
Solis-36K-HV, Solis-40K-HV, Solis-15K-LV, Solis-20K-LV
Figure 1.2b Bottom view(15-20)K-LV
7.1.1 Main Menu 27
……………………………………………
7.3 Settings
7.3.1 Set Time
7.3.2 Set Address
7.4 Advanced Info - Technicians Only
7.4.1 Alarm Message
7.4.3 Version
7.4.4 Communication Data
7.4.5 Daily Energy
7.5 Advanced Settings - Technicians Only
7.5.1 Select Standard
7.5.2 Grid ON/OFF
8. Maintenance
9. Troubleshooting
10. Specification
29
29
30
31
32
33
33
34
36
36
40
45
45
50
7.4.2 Running Message 32
7.5.3 Power Control 40
……………………………………………………
……………………………………………
………………………………………
………………………………………………
……………………………
…………………………………
………………………………………………
……………………………………………
……………………………………
7.3.3 HMI Update 30
7.4.7 Yearly Energy
7.4.8 Total Energy 35
35
7.4.6 Monthly Energy 34
………………………………………
………………………………………
……………………………………
………………………………………
7.5.6 Calibrate 41
41
7.5.7 Reset Password 42
…………………………………………
………………………………
……
…………………
……………………………………
…………………………………
7.5.5 Restore Settings
……………
………………………………………
…………………………………………………
7.2 Information 28
……………………………………………………
41
7.5.4 Clear Energy ………………………………………
…………………………………
7.5.9 Special Settings 42
43
7.5.10 STD. Mode Settings 43
…………………………………
……………………………
7.5.8 Restart HMI ………………………………………
7.5.11 External EPM set 44
………………………………
………………………………………

2. Safety Instructions
.5.
2.1Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
CAUTION：
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed could result in some damage or the destruction of the inverter.
WARNING:
WARNING symbol indicates important safety instructions, which if not correctly
followed, could result in serious injury or death.
Improper use may result in potential electric shock hazards or burns. This manual contains
important instructions that should be followed during installation and maintenance. Please
read these instructions carefully before use and keep them for future reference.
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
regulatory and electrical safety standards.
WARNING:
DC input and AC output must be electrically isolated before operation.
DO NOT connect PV array positive (+) or negative (-) to the ground. To do
so may cause serious damage to the inverter.
. .4

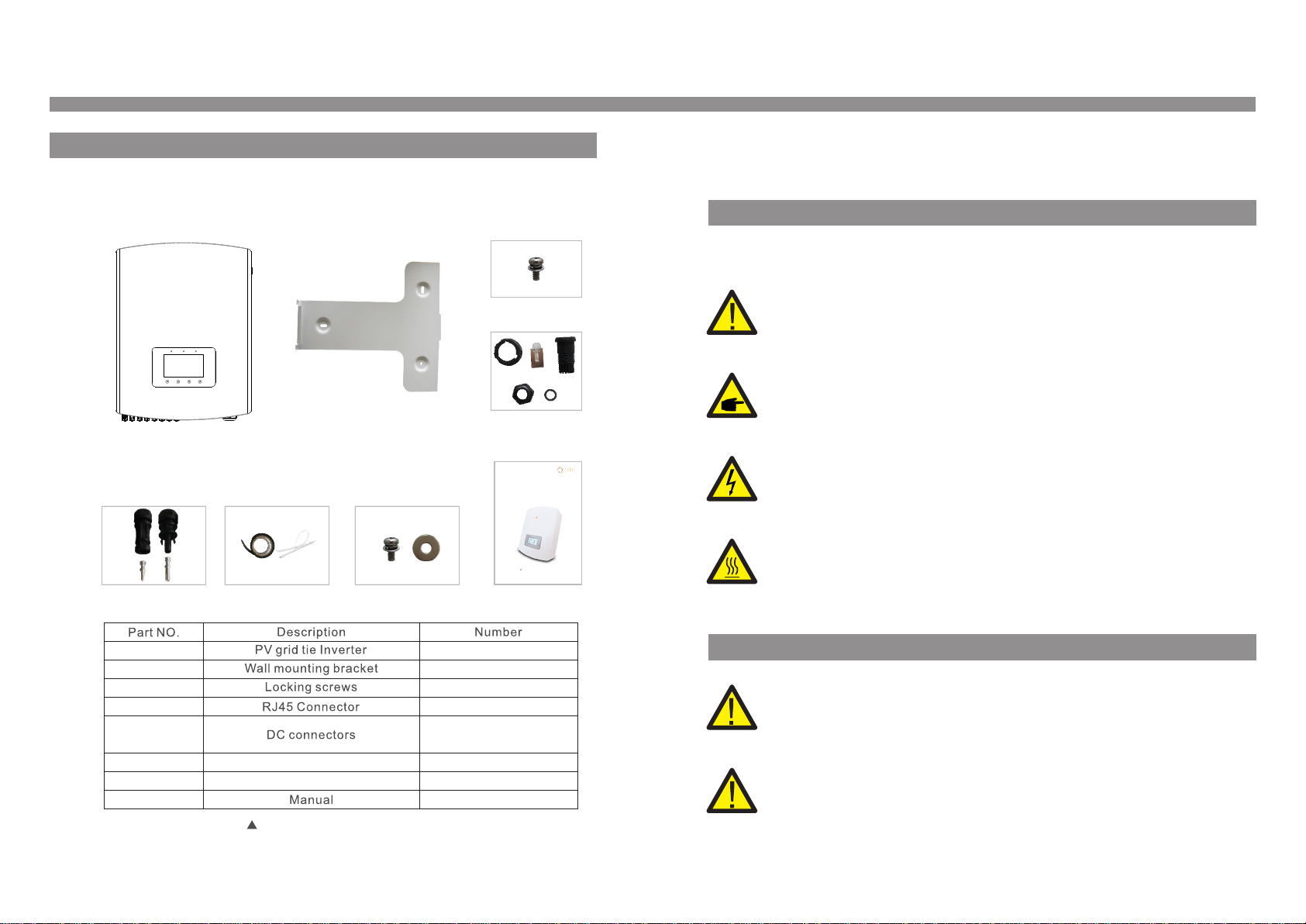

1.2 Packaging List
Please check according to following table, to see whether all the parts were included in the
packaging:
Adhesive tape set
Table 1.1 Material list
1. Introduction
1
2
3
4
5
6
7
1
1
2
1
Grounding M4 screw and washer
81
1
PV Gr id Tie Inv erter
Ins talla tion an d Opera tion Ma nual
Ver 2.3
Solis Three Phase Inverter
Ginl ong Techn ologi es Co., L td
C
4
2
3
1
56 87
8 pairs for (20-40)K
4 pairs for (15-20)K-LV
2

3. Overview
.6. .7.
3.1 Inverter Interface Instructions
Figure 3.1 Front Panel Display
3.2 LED Status Indicator Lights
There are three LED status indicator lights on the front panel of the inverter.
On the Left: POWER LED (red) indicates the power status of the inverter.
On the Middle: OPERATION LED (green) indicates the operation status.
On the Right: ALARM LED (yellow) indicates the alarm status.
Please see Table 3.1 for details
2. The inverter must be connected to a separate grounded AC group, to which no
other electrical equipment is connected.
3. The electrical installation must meet all the applicable regulations and standards.
4. The inverter must be installed according to the instructions stated in this manual.
5. The inverter must be installed according to the correct technical specifications.
2.3 Notice For Use
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are required
for circuits connected to the Inverter. The recommended rated trip current of
OCPD, Solis-20K should be 40A, Solis-15K-LV should be 50A, Solis-25K,
Solis-30K, Solis-25K-HV, Solis-30K-HV, Solis-36K-HV, Solis-40K-HV and
Solis-20K-LV should be 63A.
CAUTION:
Risk of electric shock. Do not remove cover. Refer maintenance servicing to
qualified and accredited service technician.
CAUTION:
The PV array (Solar panels) supplies a DC voltage when it is exposed to light.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter. Do not
remove cover until 5 minutes after disconnecting all sources of supply. Service
technician only. Warranty may be voided if any unauthorized removal of cover.
CAUTION:
The surface temperature of the inverter can exceed 75℃ (167℉).
To avoid risk of burns, DO NOT touch the surface when inverter is operating.
The inverter must be installed out of reach of children.
1. Secure inverter installation is required.
6. To startup the inverter, the Grid Supply Main Switch (AC) must be switched on, before
the solar panel's DC isolator switched on. To stop the inverter, the Grid Supply Main
Switch (AC) must be switched off before the solar panel's DC isolator switched off.
7. DC input voltage of inverter must less than its maximum input voltage of inverter.
2. Safety Instructions

4. Product handing and storage
. .8 .9.
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right): ESC, UP, DOWN
and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the Up and the Down keys).
.
The 7” Liquid Crystal Display (LCD) is located at the front panel of the inverter,
which displays the following information:
1. Inverter operation status and data;
2. Service messages for operator;
3. Alarm messages and fault indications.
POWER
OPERATION
ALARM
Access to modify the adjustable settings (the ESC and the ENTER keys).
3. Overview
Table 3.1 Status indicator
Figure 4.1 move the inverter
2.Two people are required to remove the inverter from the carton.
Handles are formed into the heatsink for ease of handling the inverter. See figure 4.2 below.
Figure 4.2 Inverter handles
4.1 Product handing
1. The red marks below indicate perforations used to form handles for carrying the carton
with the inverter. The inverter requires 2 people to lift and carry.
.
.

4. Installation 5. Installation
.11.
.10.
4.2 Product storage 5.1 Select a Location for the Inverter
Storage temperature must be between -40℃ and 70℃ and the humidity should be
between 0 and 100% non-condensing.
Stacknomorethanfour(4)invertershigh.
If the inverter is not to be installed immediately, storage instructions and environmental
conditions are below:
Use the original box to repackage the inverter, seal with adhesive tape with the
desiccant inside the box.
Store the inverter(s) in a clean and dry place, free of dust and dirt.
Keep box(es) away from corrosive materials to avoid damage to the inverter enclosure.
Inspect packaging regularly. If packaging is damaged(wet, pest damage, etc),
repackage the inverter immediately.
Store the inverter(s) on a flat, hard surface - not inclined or upside down.
After long-term storage, the inverter needs to be fully examined and tested by qualified
service or technical personnel before using.
Restarting after a long period of non-use requires the equipment to be inspected
and, in some cases, the removal of oxidation and dust that has settled inside the
equipment will be required.
Figure 5.1 Recommended installation position
mm
mm
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
℃.
℃

5.2 Mounting the Inverter
The inverter can be mounted to the wall or metal strut of module. The mounting holes
should be consistent with the size of the bracket or the dimensions shows below.
1. According to the figure 5.2, select the mounting height of the bracket and mark the
mounting holes. For brick walls, the position of the holes should be suitable for the
expansion bolts.
2.MAKE SURE the bracket is horizontal and the mounting holes A, B, and C (in
Figure 5.3) are in the correct points. Drilling the holes on the wall according
the marks.
WARNING:
The inverter must be mounted vertically on a vertical wall.
Use suitable expansion screws of bolts to attach the bracket
To the wall of rack as shown in figure 5.4.
The inverter should be mounted in a vertical position. The steps of mounting are as follows:
3. Using the expansion bolts to fix the bracket to the wall.
Install on a vertical surface or structure capable of bearing the weight.
Visibility of the LED status indicator lights and LCD display screen should be considered.
NOTE:
The inverter must be installed out of reach of children.
A minimum of 500mm clearance is required top, bottom, left and right of the inverter
(isolator enclosures excepted) for air flow and cooling.
Figure 5.2 Inverter mounting clearance
A B
C
5. Installation
A sun shade is recommended to minimise direct sun exposure where ambient
temperature may exceed 40℃.
5. Installation
.12. .13.
Figure 5.3 The dimensions of the mounting bracket (in mm)
500mm
500mm
500mm
1000mm
500mm
Must install vertically within +/- 5°. If the inverter is tilted from the vertical plane heat
dissipation can be inhibited. This may reduce system performance or reduce service
life of the inverter.

5. Use supplied screws to secure the bottom of the inverter to the mount bracket.
5.3 Electrical Connections
The electrical connection of the inverter must follow the steps listed below:
1. Switch the Grid Supply Main Switch (AC) OFF. Switch the DC Switch OFF.
2. Connect the inverter to PV array.
3. Connect the inverter to the grid.
The Inverter is designed with quick-connect terminal port for electrical connection
without removing the cover. The meanings of the symbols at the bottom of the inverter
are listed in Table 5.1. All electrical installations must be in accordance with all local
and national standards.
Table 5.1 Electrical connection symbols
GRID
COM1
Connecting terminal of the Grid
DC 1- DC4
+
_Positive DC input terminal
Negative DC input terminal
DC SWITCH Switch of DC input terminals (optional)
Communication port for Wi-Fi or GPRS stick
COM2、COM3 Communication port of RJ45
Figure 5.6 Secure the inverter
4. Lift up the inverter, and make the slot on the back bracket of inverter align to the
lip on the mounting bracket. Then lower the inverter to the bracket slowly until it
is stable (in figure 5.5).
Figure 5.4 Mount the bracket to the wall
Figure 5.5 Attach the inverter to the bracket
5. Installation 5. Installation
.14. .15.

.16. .17.
B (insulation stripping length) is 2mm~3mm longer than A (OT cable
terminal crimping area) 2mm~3mm.
Figure5.7 suitable length
Figure5.8 strip wire
In order to improve the corrosion resistance of the grounding terminal, we
recommend that the external grounding terminal should be coated with
silica gel or paint for protection after completing the installation of the
grounding cable.
Important:
Important:
Important:
Important:
A
B
D
C
5. Installation 5. Installation
5.3.1 Protective ground wire connection(PE)
For multiple inverters in parallel , all inverters should be connected to the
same ground point to eliminate the possibility of a voltage potential existing
between inverter grounds.
3) Strip the ground cable insulation to a suitable length as shown in Figure 5.7.
4) Insert the tripped wire into the OT terminal crimping area and use the hydraulic
clamp to crimp the terminal to the wire (as shown as Figure 5.8).
After crimping the terminal to the wire, inspect the connection to ensure the
terminal is solidly crimped to the wire.
5) Remove the screw from the heat sink ground point.
6) Use the screw from the ground point the attach the grounding cable.
Tighten the screw securely. Torque is 3Nm (as shown as Figure 5.9).
To effectively protect the inverter, two grounding methods must be performed.
Connect the AC grounding cable (Please refer to section 5.3.3)
Connect the external grounding terminal.
To connect the grounding terminal on the heat sink, please follow the steps below:
2) Prepare OT terminals: M4.
1) Prepare the grounding cable: recommend to use the 16mm² outdoor
copper-core cable.

3. Crimp the contact pin to the wire using a proper wire crimp tool as shown in Figure 5.14.
Figure 5.15 Connector with Cap nut Screwed on
Figure 5.14 Crimp the contact pin to the wire
Figure 5.16 Connect the DC Connectors to the Inverter
B) Connect the “DC+”and “DC-”to the input terminals; see Figure 5.10 and Figure 5.11.
A) Please make sure the polarity of the output voltage of PV array matches the
“DC+”and “DC-”symbols.
5.3.2 DC side connection
The steps of assembling the DC connectors are listed as follows:
2. Insert the wire into the connector cap nut and contact pin as shown in Figure 5.13.
Figure 5.12 Disassemble the Connector Cap nut
Figure 5.13 Insert the Wire into the Connector Cap nut and contact pin
5. Installation 5. Installation
.18. .19.
Cable type
Outside diameter of
cable（mm）
4.0~6.0
5.5~9.0
Traverse area（mm²）
Range
Industry generic PV cable
（model:PV1-F）
Recommended
value
4.0（12AWG）
（12~10AWG）
Figure 5.10 DC+ Connector (MC4) Figure 5.11 DC- Connector (MC4)
Crimping plier
1. Strip off the DC wire about 7mm, Disassemble the connector cap nut. (see Figure 5.12)
4. Insert the contact pin into the connector housing until it locks in place. Screw the cap
nut onto the connector housing. Torque to 2.5-3Nm. (as shown in Figure 5.15)
5. Connect the finished DC cables to the inverter. A small click will confirm connection.
See figure 5.16.
If DC inputs are accidently reversely connected or inverter is faulty or
not working properly, it is NOT allowed to turn off the DC switch as it
will damage the inverter and even leads to a fire disaster.
The correct actions are:
*Use a clip-on ammeter to measure the DC string current
*If it is above 0.5A, please wait for the solar irradiance reduces until the
current decreases to below 0.5A.
*Only after the current is below 0.5A,
you are allowed to turn off the DC switches and disconnect the PV strings.
Please note that any damages due to wrong operations are not covered in
the device warranty.
Caution:

A) Strip the end of AC cable outer insulating jacket about 90mm then strip the end of each
wire about 15mm. (as shown in figure 5.17)
Figure 5.17 Strip AC cable
The steps to assemble the AC grid terminals are listed as follows:
The adhesive tape is provided in the accessories.

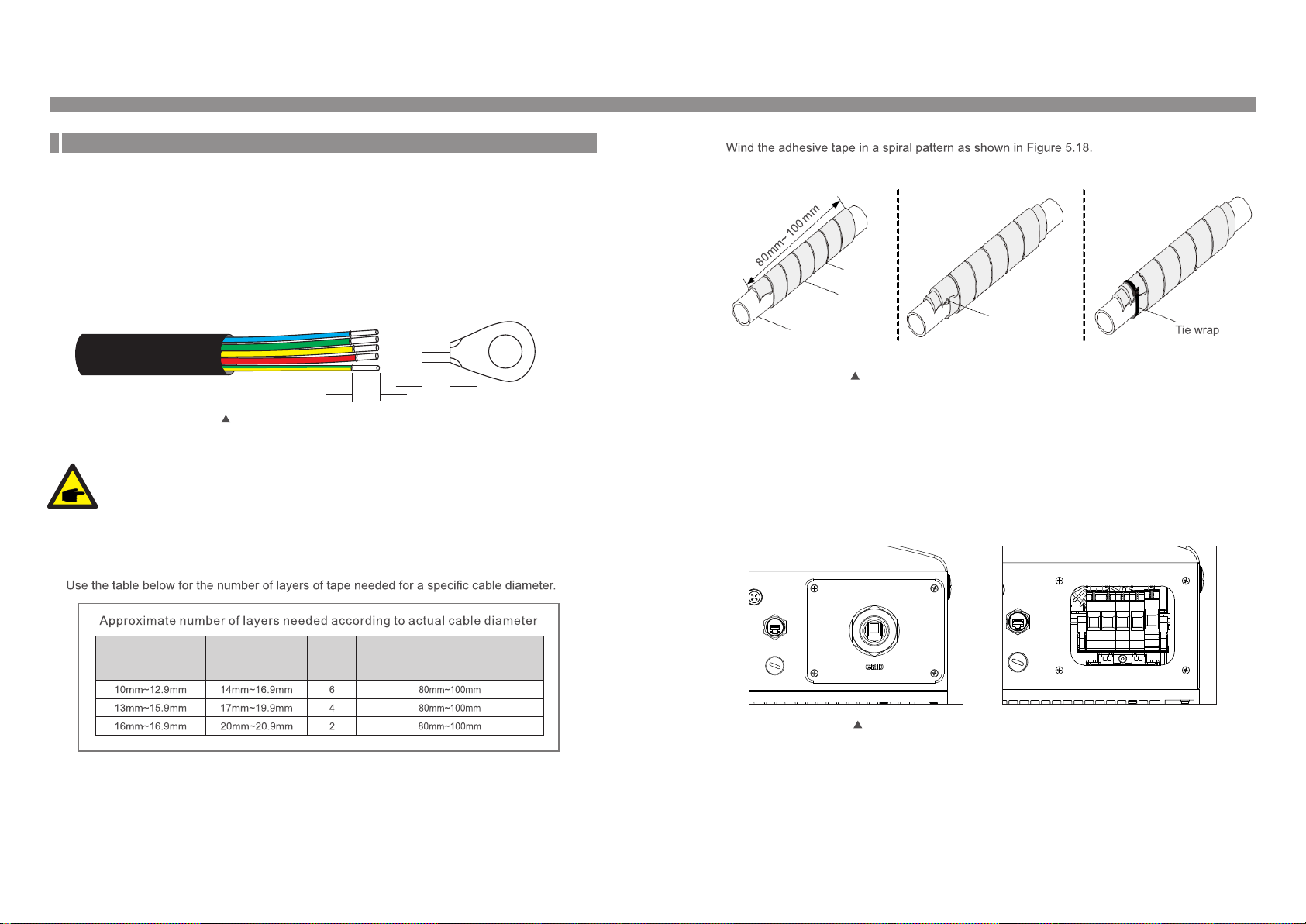

Figure 5.18 Winding tape in spiral pattern
AC cable
tape
clearance<1.0mm
Please winding after
the clearance of first
layer with the
adhesive tape.
layer
For all AC connections, 10- 35mm 105 ℃ cable is required to be used.
2
Please make sure the resistance of cable is lower than 1.5 ohm. If the wire is longer than
100m, it's recommended to use 16-35mm cable. Refer to local electrical codes for wire sizing.
2
5.3.3 AC side connection
The length after winding
AC cable diameter
30K model
AC cable diameter
20K model
①Winding the first
layer ②Winding the second layer(if needed) ③Please tie the end with a ribbon or rope
* This picture is for reference only. Actual cable may differ, use it as the standard.
B) Remove the 4 screws on the AC terminal cover and remove the cover. Remove
the screw under the terminal slide and pull out the terminal. (as shown in figure 5.19)
C) Insert the cable through cup nut, water proof sleeve and AC terminal cover into the AC
terminal and use a 4mm Hex wrench to tighten the screws. The torque is 3Nm.( as shown in
figure 5.20)
Figure 5.19 Disassemble AC terminal cover
If the wire is over 10mm , the L1 and PE can be 5mm longer than the L2, L3, and N. In this
2
way the L1 and PE can be easier connected to the terminal connector.
5. Installation 5. Installation
.20. .21.
L2 L1
PE
N
L
｝
Note:
If the diameter of the protective jacket of the AC cable is less than recommended
(20K models: 17-25mm; 30K models: 21-30mm) spiral wound tape should be
used to increase the cable diameter to the recommended size.

WARNING:
D) Push the AC terminals along the rail to the inside of the inverter then tighten the screw
under rack. Tighten the 4 screws of the AC terminal cover and tighten the AC entry cap nut.
(see Figure 5.21)
5.3.4 Inverter monitoring connection
There are 3 communication terminals for Ginlong 20-40kW inverter. COM1-COM3 are all
for RS485 communication. COM1 is a 4-pin connector which matches with the Wi-Fi or
GPRS wireless communication products.
COM2 and COM3 are for RJ45 terminal, which is used for communicating connection
between inverters as well as the wired data monitoring.

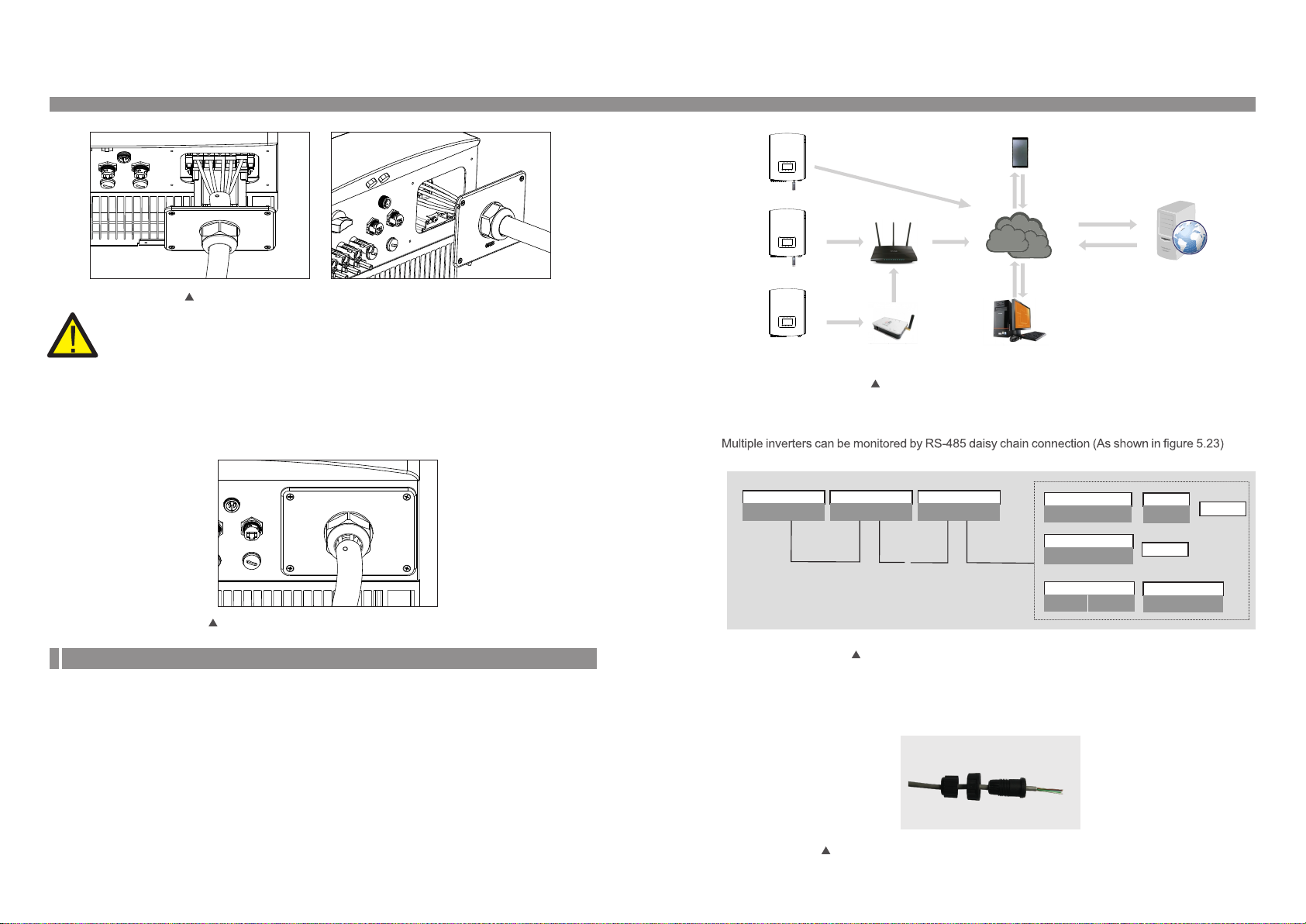

Figure 5.22 is the internet monitoring solution. Please refer to related instructions of Ginlong
communication products.
Figure 5.20 Connect cable to AC terminal
Figure 5.21 Tighten the AC terminal
RS485 communication connection of RJ45 network port
1. Insert the network cable into the communication connection terminal of RJ45.
(As shown in figure 5.24)
Figure 5.24 RJ45 communication connection terminals
Internet
GPRS monitoring
Wi-Fi monitoring
Smart phone monitoring
PC monitoring
Web server
Router
Wi-Fi monitoring Wi-Fi box
Monitoring system for multiple inverters
多台逆变器与电脑或数据采集器通讯时时，必须通过液晶设置通讯参数。
≈
Inverter 1 Inverter 2 Inverter n
RS485 IN | OUT RS485 IN | OUT RS485 IN | OUT RS485terminal
RS485 RS232 RS232
Ethernet
Wi-Fi box
RS485-232converter PC
Router
RS485terminal
GPRS box
Internet
Internet
Figure 5.22 Internet monitoring solution
Figure 5.23 Multi-inverters monitoring system
5. Installation 5. Installation
.22. .23.
Ensure the insulation of the cable is not into the terminal when tightening
the screws, otherwise it will cause poor contact.

2. Use the network wire stripper to strip the insulation layer off the communication cable.
Using the standard wire sequence referenced in TIA/EIA 568B, separate the wires in the
cable. Use a network cable crimp tool to trim the wire. Flatten the wire in the order shown
in Figure 5.25. Insert the wire into the RJ45 connector then crimp with the crimping tool.
3. Connect the RJ45 to COM2 or COM3, and tighten the nut.

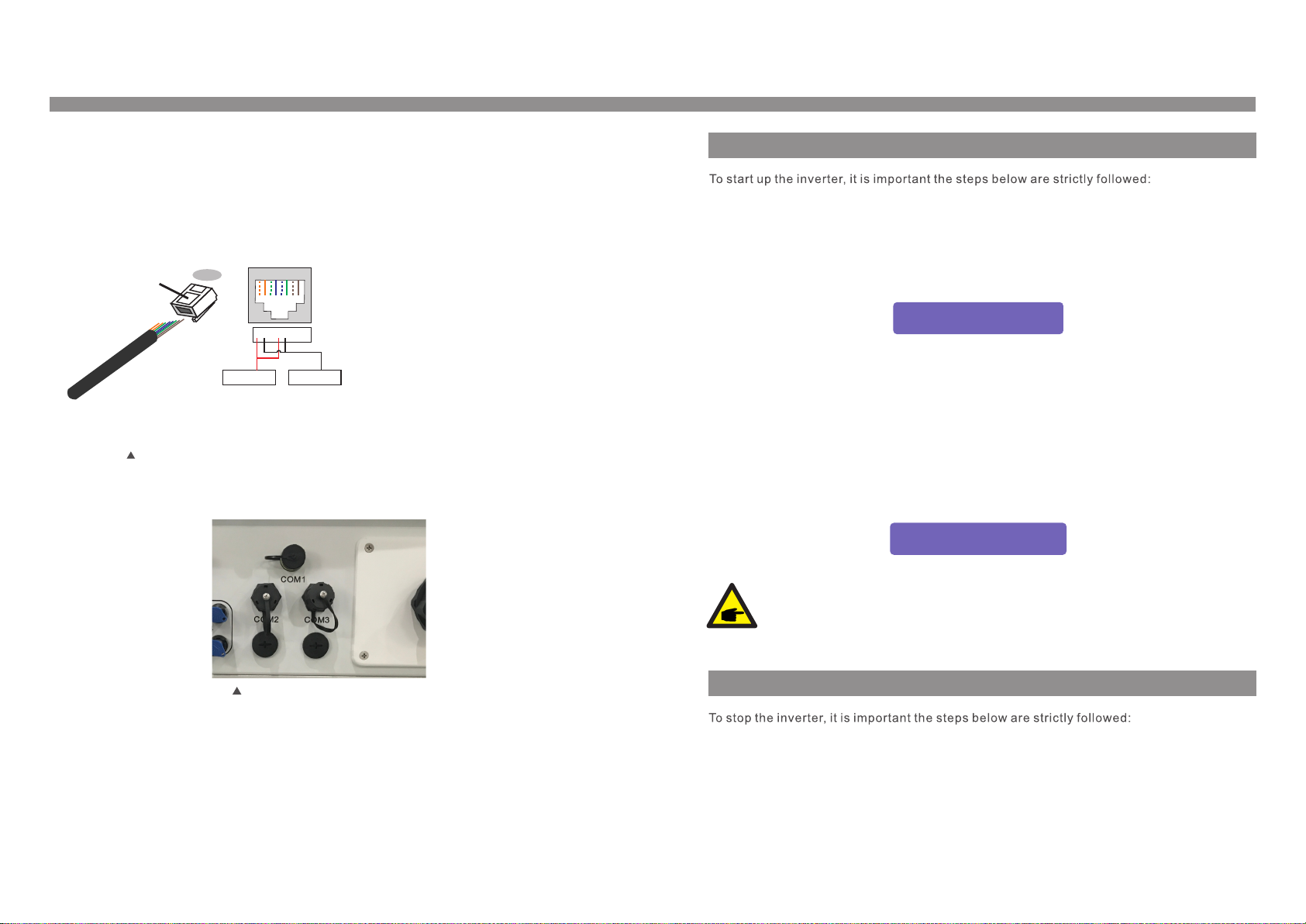

Figure 5.25 Strip the insulation layer and connect to RJ45 plug
Figure 5.26 Tighten the nut
Correspondence between the
cables and the stitches of plug
Pin 1: white and orange ; Pin 2: orange
Pin 3: white and green； Pin 4: blue
Pin 5: white and blue； Pin 6: green
Pin 7: white and brown； Pin 8: brown
Pin 1 with 4 and 2 with 5 are
used for communication connection
Pin 1 and 4 are connected with RS485+A
Pin 2 and 5 are connected with RS485 - B
1--8
Rj45 plug Rj45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
R S 4 8 5 + A R S 4 8 5 - B
6.2 Stop the inverter
1. Switch the Supply Main Switch (AC) OFF.
2. Wait 30 seconds. Switch the DC switch OFF or directly disconnect the DC output connector.
The LEDs and LCD of the inverter will be off within one minute.
6.1 Start the inverter
1. Switch the Supply Main Switch (AC) ON first.
2. Turn on the DC switch of PV array. If the voltage of PV array is higher than the start up
voltage, the inverter will turn on, and the initial interface of LCD will show “Current status:
Waiting” on the upper left corner.
3.When both the AC and DC are supplied to the inverter, it will be ready to generate power.
Initially, the inverter will check internal and AC parameters to ensure they are within
acceptable limits. At the same time, the green LED will flash and the LCD displays
INITIALIZING.
4. After around 30-180 second (based on local requirement), the inverter will start to generate
power. The green LED will be on continually and the LCD displays “Current status:
Generating.”
Current status: Waiting
Current status: Generating
NOTE:
If the DC input switch is ON before grid breaker, inverter may show fault message
“No_Grid” on current status, the fault will clear when grid voltage is normal.
6. Start and Stop
5. Installation
.24. .25.

7. General Operation
start
Current and total power generation
generation bar chart of the day
details of monthly generation
information
settings
advanced info.
advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
Press ESC to switch
Pressing the ENTER
key to switch
to the submenu
Pressing the ESC
key calls back
the previous menu main menu
Figure 7.1 Operation overview
7.1 Interface
Figure 7.2 The initial interface
Power Now Today’s Energy Monthly Energy
25.00kW 0054.4kWh 00491kWh
Yearly ENergy
0000.4MWh
Total Energy
0003.6MWh
Status: NO-Grid 2015-02-23 19 35
MENU=<E NT > MO NT HLY ENERGY=< ES C>
ESC UP DOWN ENT
0:003:006:009:0012:0 15:0 18:0 21:0 0:00
00
10
20
30
40
50
60
Power[kW]
7. General Operation
There are four submenu in the Main Menu:
Press the Up or Down key to enter the inverter yearly, monthly energy detail screen. In
the current interface, press the Enter key to move the cursor, press the Up or Down key
to view yearly, monthly energy detail.
Figure 7.3 Monthly energy detail
Monthly Energy 2015-02-23 19 35
2015- -23 : 071.2kWh02
000
100
200
300
400
500
600
Monthly E ne rg y[ kW h]
05 10 15 20 25
ESC UP DOWN ENT
Figure 7.4 Main Menu
Menu 2015-02-23 19 35
Information
Settings
Advanced Info.
Advanced Settings
.26. .27.
7.1.1 Main Menu

7. General Operation
7. General Operation
.28. .29.
7.2 Information
The inverter LCD provides access to operational data and information. Select
"Information" sub menu, turn the page by scrolling up or down.
Figure 7.5 Information (1)
Figure 7.6 Information (2)
Informtion 2015-02-23 19 35
1/2
Power：
V_DC1：
V_DC2：
V_DC3：
V_DC4：
V_A：
V_B：
V_C：
I_DC1：
I_DC2：
I_DC3：
I_DC4：
I_A：
I_B：
I_C：
00000W
000.0V
000.0V
000.0V
000.0V
000.0V
000.0V
000.0V
00.00A
00.00A
00.00A
00.00A
00.0A
00.0A
00.0A
ESC UP DOWN ENT
Informtion 2015-02-23 19 35
2/2
Status：
Total Energy：
This Year：
Last Year：
This Month：
Last Month：
Today：
Yesterday：
Frequency：
Carbon Offset：
Efficiency：
Generating
0000000kWh
0000000kWh
0000000kWh
0000kWh
0000kWh
0000.0kWh
000000kWh
00.00Hz
0000.00ton
00.00%
ESC UP DOWN ENT
7.3 Settings
The following interface is displayed when the Settings menu is selected, press the
UP/DOWN keys to select different option, press the ENTER key to enter the submenu.
7.3.1 Setting Time
This function allows time and date setting. When this function is selected,the LCD will
display.
Figure 7.7 Setting
Figure 7.8 Setting time
Settings 2015-02-23 19 35
Set Time/Date
Set Address
HMI Update
Set Time/Date 2015-02-23 19 35
NEXT=<ENT> DONE=<ESC>
MM DDYY
2 232015 --
HH MM
20 53 :
ESC UP DOWN ENT
Press the UP/DOWN keys to set time and date. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to the
previous menu.

7. General Operation 7. General Operation
.30. .31.
7.3.2 Setting Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
This function is used to set the address of an inverter connected to PC for communication
purposes. The address number can be assigned from “01” to “99” .
The default address number of the inverter is “01”.
Figure 7.9 Address setting
Set Address 2015-02-23 19 35
YES=<ENT> NO=<ESC>
Slave Address：01
ESC UP DOWN ENT
Press the ESC key to cancel the change and return to the previous menu.
7.4 Advanced Info - Technicians Only
NOTE:
Password required – restricted access – authorised technicians only
Un-authorised access may void the warranty.
Select Advanced Info from main menu, the LCD screen show the password is needed:
Figure 7.11Enter a password
7.3.3 HMI Update
This function is used to view the current system version.
Figure 7.10 HMI Update
HMI Update 2015-02-23 19 35
The Current HMI Version:26
ESC ENT
CANCE=<ESC> UPDATE SYSTEM=<ENT>
Password 2015-02-23 19 35
Please Input The Current Password
X X XX
ESC UP DOWN ENT
YES=<ENT> NO=<ESC>
The screen can be scrolled manually by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to a submenu.
The default password is "0010", press the DOWN key to move cursor, press the UP key to
change the digit for password, after entering correct password, the LCD will show as below:
Figure 7.12 Advanced information
Advanced Info. 2015-02-23 19 35
Alarm Message
Running Message
Version
Communication Data
Daily Energy
Mothly Energy
Yearly Energy
Totally Energy

7. General Operation 7. General Operation
.32. .33.
7.4.1 Alarm Message
The display shows the 10 latest alarm messages.
Screens can be scrolled manually by pressing the UP/ DOWN keys.
Figure 7.13 Alarm message
Alarm Message 2015-02-23 19 35
Message
NO-Grid
NO-Grid
NO-Grid
NO-Grid
NO-Grid
Date/Time Data
02-23 19:35
02-23 19:34
02-23 19:34
02-23 19:24
02-23 18:22
01/40
0000
0000
0000
0000
0000
ESC UP DOWN E NT
7.4.2 Running Message
The screen shows the internal operation parameters of the inverter.
7.4.3 Version
The screen shows the hardware version and the software version of the inverter.
Figure 7.15 Hardware and software versions
版本号 2015-02-23 19 35
Figure 7.14 Running information
Running Message 2015-02-23 19 35
DC Bus Voltage：
DC Bus Half Voltage：
Reactive Power Ratio：
Output Power Limit：
Control Word Status：
IGBT Temperature：
Standard：
000.0V
000.0V
+0.00
000%
0000H
+000.0degC
ESC
Version 2015-02-23 19 35
Model：
Software Ver.：00 000000
ESC
Grid Filter NO.：
Ground Voltage：00
000.0V
7.4.4 Communication Data
The screen shows the internal data of the inverter, which is for service technicians only.
Figure 7.16 Communication data
Communication Data 2015-02-23 19 35
01-10：
11-20：
21-30：
31-40：
41-50：
51-60：
61-70：
71-80：
81-90：
86 61 A1 00 01 50 8A 06 1E 00
D5 05 1E 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00
09 02 00 00 00 00 B8 10 C0 00
20 5C 80 01 00 00 43 00 07 02
01 00 04 00 6D 04 E6 05 01 00
DC 05 1E 00 59 06 1E 00 D4 03
10 27 00 00 00 00 00 00 00 00
00 00 00 00 00 00 60 00 00 00
ESC

7. General Operation 7. General Operation
.34. .35.
7.4.5 Daily Energy
The screen shows the daily energy detail of the inverter.
Press the Enter key to move cursor, press the UP/DOWN keys to select energy power
detail of different date.
Figure 7.17 Daily power generation capacity
Daily Energy 2015-02-23 19 35
2015- -2302
00
10
20
30
40
50
60
Daily Ene rg y[ kW ]
00:00 03:00 06:00 09: 00 12:00 15:00 18:00 21:00 00:00
ESC UP DOWN ENT
7.4.6 Monthly Energy
The screen shows the inverter daily energy detail of one month.
7.4.7 Yearly Energy
Press the UP/DOWN keys to switch to view monthly energy of different year.
Figure 7.18 Monthly power generation details
Figure 7.19 Annual generating capacity details
The screen shows the inverter monthly energy detail of one year.
Monthly Energy 2015-02-23 19 35
2015- -23 : 071.2kWh02
000
100
200
300
400
500
600
Monthly E ne rg y[ kW h]
05 10 15 20 25
ESC UP DOWN ENT
Press the Enter key to move cursor, press the UP/DOWN keys to select energy power
detail of different date.
Yearly Energy 2015-02-23 19 35
2015
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Year ly E ne rg y[ MW h]
01 02 03 04 05 06 07 08 09 10 11 12
00.51
ESC UP DOWN E NT
7.4.8 Total Energy
The screen shows the inverter total energy detail.
Figure 7.20 Total generating capacity details
2015-02-23 19 35
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Totally Ene rg y[ MW h]
2006 2007 2008 2009 201 0 2011 2012 2013 2014 2015
00.01
