1. Introduction
2
User Manual
1.1 Product Description
The Solis S6-EH1P-L Series is designed for residential hybrid systems, which can work
with batteries to optimize self-consumption. The unit can operate in both off-grid and
on-grid modes.
Figure 1.1
Front side view
Figure 1.2
Bottom side view
This manual covers the Solis S6-EH1P-L Series model listed below:
S6-EH1P3K-L-EU/BE, S6-EH1P3.6K-L-EU/BE, S6-EH1P4.6K-L-EU/BE,
S6-EH1P5K-L-EU/BE, S6-EH1P6K-L-EU

1. Introduction User Manual
3
Inverter x1 Back plate x1 Fastening screw x2
DC connector x2
AC grid terminal x1
1.2 Packaging
Please ensure that the following items are included in the packaging with your machine:
If anything is missing, please contact your local Solis distributor.
RJ45 connector x8
AC backup terminal x1 Battery Cable x2
RS485 Meter cable x1
(For Eastron Meter) Eastron Meter and CT x1
User manual x1
Manual
WiFi/GPRS Stick x1 Bluetooth Antenna x1
Connector x1
Battery Temperature Sensor
or CAN cable x1

2. Safety & Warning User Manual
4
2.1 Safety
The following types of safety instructions and general information appear in this document as
described below:
CAUTION:
“Caution” indicates a hazardous situation which if not avoided, could result
in minor or moderate injury.
WARNING:
“Warning” indicates a hazardous situation which if not avoided, could result
in death or serious injury.
DANGER:
“Danger” indicates a hazardous situation which if not avoided, will result in
death or serious injury.
NOTE:
“Note” provides tips that are valuable for the optimal operation of your
product.
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Please don’t connect PV array positive (+) or negative (-) to ground, it could
cause serious damage to the inverter.
WARNING:
Only devices in compliance with SELV (EN 69050) may be connected to the
RS485 and USB interfaces.
WARNING:
Do not touch any inner live parts until 5 minutes after disconnection
from the utility grid and the PV input.
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials
or gases.
Do not install the inverter in potentially explosive atmospheres.

2. Safety & Warning User Manual
5
CAUTION:
The PV array supplies a DC voltage when they are exposed to sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter,
do not remove cover for 5 minutes after disconnecting all power sources
(service technician only). Warranty may be voided if the cover is removed
without authorization .
CAUTION:
The surface temperature of the inverter can reach up to 75℃ (167 F).
To avoid risk of burns, do not touch the surface of the inverter while it’s
operating. Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic
source and output circuit conductors shall have that comply with isolators
the NEC Article 690, Part II.
All Solis single phase inverters feature an integrated DC switch.
CAUTION:
Risk of electric shock, do not remove cover. There is no user serviceable
parts inside, refer servicing to qualified and accredited service technicians.
NOTE:
PV module used with inverter must have an IEC 61730 Class A rating.
WARNING:
Operations below must be accomplished by licensed technician or
Solis authorized person.
WARNING:
Operator must put on the technicians’ gloves during the whole process
in case of any electrical hazards.
WARNING:
AC BACKUP Port of S6-EH1P-L Series is not allowed to connect to the grid.

2. Safety & Warning User Manual
6
2.4 Notice for Disposal
This product shall not be disposed of with household waste.
They should be segregated and brought to an appropriate collection
point to enable recycling and avoid potential impacts on the environment
and human health.
Local rules in waste management shall be respected .
WARNING:
Please refer to the specification of the battery before configuration.
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
WARNING:
The S6-EH1P-L Series does not support parallel in three phase operation
on the AC-BACKUP port.
The inverter support parallel in single phase and support generator.
3 Phase LOAD
× × ×

User Manual
3. Overview
7
3.1 Intelligent LED Indicators
There are five indicators on the S6-EH1P(3-6)K-L Inverter (Battery, Power, The Solis Series
WiFi, Ethernet and Bluetooth) which indicate the working status of the inverter.
The Bluetooth Antenna or WiFi datalogger shall be installed at the Antenna/COM port of the hybrid
inverter before local debugging.
Battery
Power
WiFi
Bluetooth
RS485
NOTE:
Battery/WiFi/Ethernet/Bluetooth indicators will automatically turn off after
1 minute. The Power indicator will remain on with lower brightness. Short
press the Power indicator can wake up all indicators.
Light Status Description
Blue
Flashing every 3s
Blue
Flashing every 1.5s
Blue
Solid ON
Yellow
Solid ON
Blue
Solid ON
Yellow
Solid ON
Red
Solid ON
OFF
OFF
OFF
Battery discharging.
Battery charging.
Idle.
Battery Warning.
Normally Operating.
Warning.
Alarm.
COM Port is using.
RS485 Port is using.
Bluetooth Port is using.
COM Port is not used.
RS485 Port is not used.
Bluetooth Port is not used.
Blue
Solid ON
Blue
Solid ON
Blue
Solid ON
Power
WiFi
RS485
Bluetooth
Battery

User Manual
8
4.1 Select a Location for the Inverter
Figure 4.1 Recommended Installation locations
To select a location for the inverter, the following criteria should be considered:
Exposure to direct sunlight may cause output power derating. It is recommended to
avoid installing the inverter in direct sunlight.
It is recommended that the inverter is installed in a cooler ambient which doesn't
exceed 104℉/40℃.
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
The mounting structure where the inverter is installed must be fireproof.
4. Installation

User Manual
4. Installation
9
To avoid overheating, always make sure the flow of air around the inverter is not
blocked. A minimum clearance of 400mm should be kept between inverters or
objects and 800mm clearance between the bottom of the machine and the ground.
Adequate ventilation must be provided.
NOTE:
Nothing should be stored on or placed against the inverter.
Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause
output power derating.
Install on a wall or strong structure capable of bearing the weight of the machine (24.18kg).
Figure 4.2 Inverter Mounting clearance
≥400mm ≥400mm
≥500mm
≥800mm
≥1200mm

User Manual
4. Installation
10
358
4.2 Mounting the Inverter
The inverter shall be mounted vertically.
The steps to mount the inverter are listed below:
1. Select the mounting height of the bracket and mark the mounting holes.
For brick walls, the position of the holes should be suitable for the expansion bolts.
WARNING:
The inverter must be mounted vertically.
Once a suitable location has be found accordingly to 4.1 using figure 4.3 mount the wall
bracket to the wall.
Dimensions of mounting bracket:
Figure 4.3 Inverter wall mounting
unit:mm
Figure 4.4 Wall Mount Bracket
2. Lift up the inverter (be careful to avoid body strain), and align the back bracket on the
inverter with the convex section of the mounting bracket. Hang the inverter on the
mounting bracket and make sure the inverter is secure (see Figure 4.4)
3-OB11*6.8
407.5
358
322
180 177 222
Φ6.8
177 117
23 Punch position

User Manual
4. Installation
11
An external ground connection is provided at the right side of inverter.
Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal.
Connect the OT terminal with ground cable to the right side of inverter. The torque is 2N.m.
4.3 PE Cable Installation
Figure 4.5 Connect the external grounding conductor
M4 Screw removed
Torque: 2N.m
Earth wire Earth wire
≤15°
Vertical Backward
Install vertically (+/- 5°) or tilted backward (≤15°).
Don't mount inverter on the tilted forward wall.
Don't mount inverter on the horizontal.

User Manual
4. Installation
12
4.4 PV Input Cable Installation
Negative terminal
Positive terminal
Before connecting inverter, please make sure the PV array open circuit
voltage is within the limit of the inverter.
Before connection, please make sure the polarity of the output voltage of
PV array matches the“DC+”and“DC-”symbols.
Please use approved DC cable for PV system.
4.0~6.0 4.0（12AWG）
(12~10AWG)
Cable type
Cross section（mm²）
Range
Industry generic PV cable
Recommended value

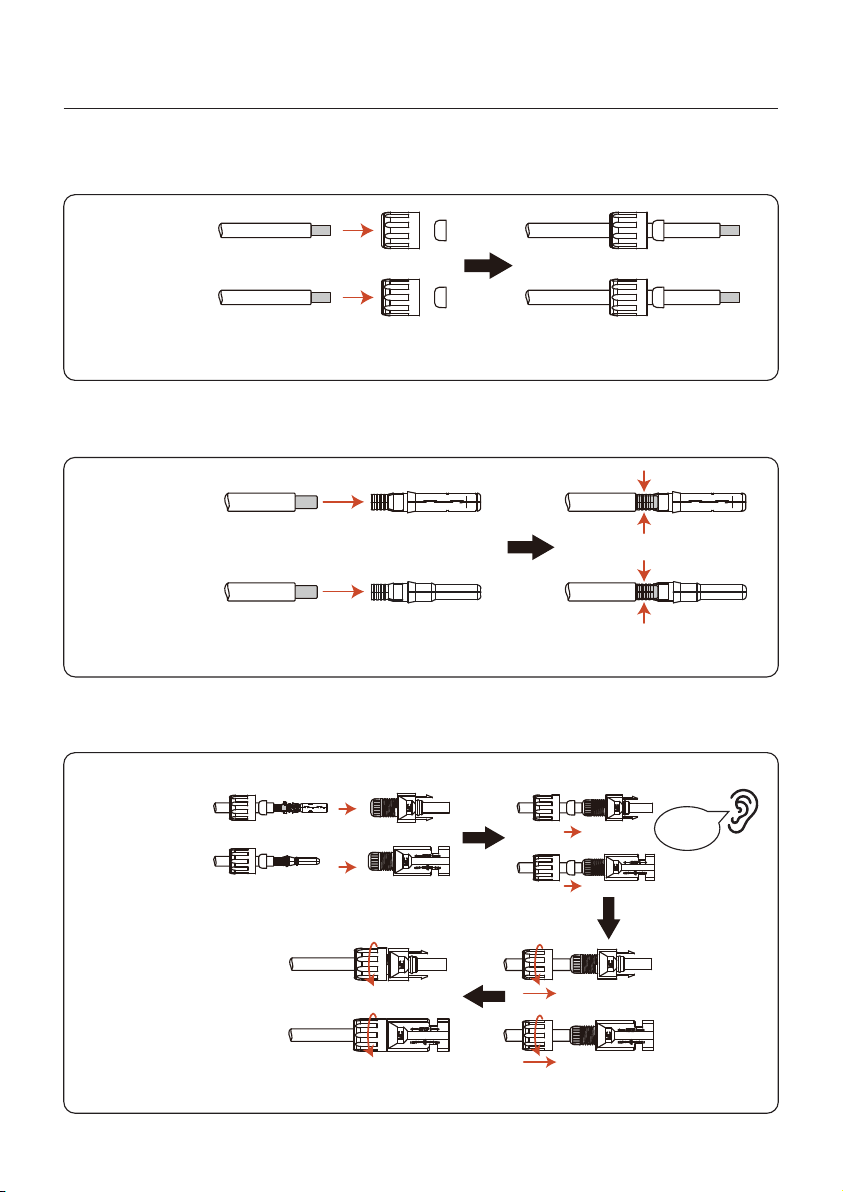

1. Select a suitable DC cable and strip the wires out by 7±0.5mm. Please refer to the table
below for specific specifications.
7±0.5mm
2. Take the DC terminal out of the accessory bag, turn the screw cap to disassemble it,
and take out the waterproof rubber ring.
Nut Waterproof collar
Figure 4.6
Figure 4.7

User Manual
4. Installation
13
Negative terminal
Positive terminal
3. Pass the stripped DC cable through the nut and waterproof rubber ring.
4. Connect the wire part of the DC cable to the metal DC terminal and crimp it with a special
DC terminal crimping tool.
Negative terminal
Positive terminal
Squeeze
5. Insert the crimped DC cable into the DC terminal firmly, then insert the waterproof rubber
ring into the DC terminal and tighten the nut.
Tighten
After you hear a "click", pull gently to check for a firm engagement.
Click
Negative terminal
Positive terminal
Figure 4.8
Figure 4.9
Figure 4.10

User Manual
4. Installation
14
6. Measure PV voltage of DC input with multimeter, verify DC input cable polarity.
7. Connect the wired DC terminal to the inverter as shown in the figure, and a slight
"click" is heard to prove the connection is correct.
+
-
CAUTION:
If DC inputs are accidently reversely connected or inverter is faulty or not
working properly, it is NOT allowed to turn off the DC switch. Otherwise it
may cause DC arc and damage the inverter or even lead to a fire disaster.
The correct actions are:
*Use a clip-on ammeter to measure the DC string current.
*If it is above 0.5A, please wait for the solar irradiance reduces until the
current decreases to below 0.5A.
*Only after the current is below 0.5A, you are allowed to turn off the DC
switches and disconnect the PV strings.
* In order to completely eliminate the possibility of failure, please disconnect
the PV strings after turning off the DC switch to aviod secondary failures due
to continuous PV energy on the next day.
Please note that any damages due to wrong operations are not covered in
the device warranty.
Figure 4.11
Figure 4.12
Click

User Manual
4. Installation
15
4.5 Battery Power Cable Installation
BAT+ BAT-
Step 6: Installing the battery cable.
NOTE:
1. The positive wiring (the angle of the limit tip is 90°) is connected to the
positive socket, and the negative wiring (the angle of the limit tip is 180°) is
connected to the negative socket;
2. When the terminal is inserted into the corresponding socket, you need
to press the circular button on the terminal lightly and pay attention to the
direction of the limit pin and the socket slot.
BAT+ BAT-
Limit buckle
Round button
Figure 4.13

User Manual
4. Installation
16
1. .Disassemble the AC connector. Strip the AC wires about 9mm
3. Crimp wires screw twisting torque 0.8+/-0.1N·m.
2. Set the parts on the cable.
Describe
Cable diameter 10~14mm
6~8mm²
9mm
Traverse cross sectional area
Exposure Length
Numerical value
There are two AC terminals and the assembly steps for both are the same.
TakeouttheACconnectorpartsfromthepackaging.
4.6 AC Cable Installation
A
Figure 4.14
Figure 4.15
Figure 4.16
Table 4.2
22mm
27mm 9mm
9mm
A: Locker
B: Body
C: Seal body
D: Claw
E: Nut
B C D E

User Manual
4. Installation
17
5. Insert Seal and Clamp Finger into socket ,then tighten the nut , torque 4+/-0.5N·m.
4. Push Housing into Body.
6. The same installation for both cable end plug and socket connectors.
7. Mating plug andsocket: Push the plug into the socket completely, then rotate the
locker according to the direction instructed by the marks on thelocker.
Figure 4.17
Figure 4.18
Figure 4.19
Click
NOTE:
Before mating the plug and socket, please double check both AC Grid and
AC Backup connectors. Do not connect the grid cables to the AC Backup
port or connect the backup load cables to the AC Grid Port.
Otherwise, it may leads to malfunction or damage.

User Manual
4. Installation
18
4.7 Communication Cable Installation
Figure 4.20
Inverter in the package is with a protective cover assembled to protect the
communication ports.
Step 1. Use Phillips screwdriver to take out the 4 screws on the cover.
Step 2. Read through the following sections of the manual and prepare the internet
cables correspondingly.
Step 3. Loose the cable gland and remove the watertight caps inside the cable gland
based on the number of the cables and keep the unused holes with watertight cap.
Step 4. Lead the cables into the holes in the cable gland. (Hole Diameter: 6mm)
Step 5. Crimp the RJ45 connectors onto the cables according to the pin definitions
described in the following sections and connect to the ports accordingly.
Step 6. Fasten the 4 screws on the cover (Torque: 1.7N.m-2 N.m)
Step 7. Reassemble the cable gland and ensure there is no bending or stretching of
the internet cables inside the cover.
4.7.1 Protective Cover for Communication Ports
NOTE:
The 4-hole fastening rings inside the cable gland
are with openings on the side.
Please separate the gap with hand and squeeze
the cables into the holes from the side openings.

User Manual
4. Installation
19
4.7.2 Communication Port Definition
Port
BMS
Meter
DRM
RS485
P-A/P-B
DO/DI
DIP Switch
Function
Table 4.3
Meter RS485 DRM DO/DI
P-A P-B BMS Reserved
Figure 4.21
Used for CAN communication between inverter and Lithium battery
BMS.
Used for RS485 communication between inverter and the smart
meter. It is necessary to realize the normal hybrid control logics.
(Optional)To realize Demand Response or Logic interface function,
this function may be required in UK and Australia.
(Optional) Used for Modbus RTU communication with 3rd party
external device or controller.
(Optional) Parallel operation communication ports (Reserved).
(Optional) Dry contact port (Reserved).
When a single inverter is running, Pin1&Pin2 are placed in the OFF
position, and when multiple inverters are paralleled, refer to the
parallel manual for DIP switch settings.
ON
1 2
DIP
