GMG 1230i User manual

California Proposition 65 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Alert Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrocution Hazard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tip-over Hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Fall Hazards. ... . . ... . . ... . . ... . . ... . . ... . . ... . .... . .... . .... . .... . . . . . 6
Collision Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Additional Safety Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Battery Safety. . . . ... . . ... . . ... . . ... . . ... . . ... . .... . .... . .... . .... . . . . . 7
Component Locations . . . . . ... . . ... . . ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Platform Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Lower Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Prestart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Functions Test . . . ... . . ... . . ... . . ... . . ... . . ... . .... . .... . .... . .... . . . . 12
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Shutdown Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Frequent and Annual Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lubrication . ... . . ... . . ... . . ... . . ... . . ... . . ... . .... . .... . .... . .... . . . . 24
Pre-Start Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Frequent Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Annual Inspection Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Lifting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1230i Serial # 312300100 - Up
1530i Serial # 315300100 - Up
1930i Serial # 319300100 - Up
2632i Serial # 326320100 - Up
2646i Serial # 326460100 - Up
3346i Serial # 333460100 - Up
4046i Serial # 340460100 - Up
4555i Serial # 345550100 - Up
Slab Scissors
81105.3
November 2023

Specifications
MODELS 1230i 1530i 1930i 2632i
Heights
Working Height* 17’ 10” (5.5 m) 21’ 4 “ (6.5 m) 25’ (7.8 m) 32’ 2” (10 m)
Plaorm Height 11’ 10” (3.6 m) 14’ 9” (4.5 m) 19’ (5.8 m) 26’ 2” (8 m)
Height Stowed
(Rails Folded)
(Plaorm Floor)
75” (1.94 m)
63” (1.6 m)
33” (.83 m)
79” (2.01 m)
67” (1.7 m)
37” (.95 m)
85” (2.16 m)
70.4” (1.79 m)
40.5” (1.03 m)
90.5” (2.29 m)
71” (1.8 m)
46” (1.17 m)
Guardrail Height 43.3” (1.1 m) 43.3” (1.1 m) 43.3” (1.1 m) 43.3” (1.1 m)
Toeboard Height 6” (15 cm) 6” (15 cm) 6” (15 cm) 6” (15 cm)
Performance
Plaorm Li Capacity 530 lbs (240 kg) 530 lbs (240 kg) 507 lbs (230 kg) 507 lbs (230 kg)
Extension Deck Capacity 220 lbs (100 kg) 220 lbs (100 kg) 250 lbs (113 kg) 250 lbs (113 kg)
Turning Radius, Inside 15” (38 cm) 15” (38 cm) 0 0
Power Source 24v, 95Ah 24v, 224 Ah 24v, 225 Ah
Drive System Entraînement Électrique Direct
Drive Speed Stowed 2.5 mph (4.02 km/h) 3.0 mph (4.8 km/h)
Drive Speed Elevated 0.5 mph (.8 km/h)
Drive Speed - Elevated Creep Mode 0.125 mph (0.16 km/h)
Plaorm Li Speed 19 22 22 28
Plaorm Lower Speed 19 22 15 29
Tires - Solid, Non-marking 9x3 (22.8 x 7.6 cm) 9x3 (22.8 x 7.6 cm 13”x4” / 32x10cm 15”x5” / 38cm x 12.7cm
Gradeability 25% 25% 45% 45%
Brakes Disques mulples
Weight, ANSI / CE 1688 lbs (766 kg) 1975 lbs (895 kg) 3210 lbs (1455 kg) 4610 lbs (2090 kg)
Drive Height Complète
Dimensions
Length Stowed
(With Ladder Removed)
57” (1.44 m)
50.5” (1.28 m)
57” (1.44 m)
50.5” (1.28 m)
71.6” (1.82 m)
65.3” (1.66 m)
96.5” (2.45 m)
89” (2.26 m)
Width 30” (.76 m) 30” (.76 m) 30” (.76 m) 31.6” (.80 m)
Wheelbase 41” (1.05 m) 41” (1.05 m) 52” (1.32 m) 73” (1.85 m)
Ground Clearance 2.5” (6.4 cm) 2.5” (6.4 cm) 2.1” (5.5 cm) 4” (10 cm)
Pothole Bars Deployed .7” (2 cm) .7” (2 cm) .78” (2 cm) .7” (2 cm)
Plaorm Length Stowed 51” (1.29 m) 51” (1.29 m) 64.5” (1.64 m) 88.5” (2.25 m)
Plaorm Width 28” (70 cm) 28” (70 cm) 29.3” (.74 m) 31.5” (.8 m)
Plaorm Length Extended 6’ 3” (1.89 m) 6’ 3” (1.89 m) 99.8” (2.55 m) 127.5” (3.24 m)
Plaorm Extension Deck Length 24” (60 cm) 24” (60 cm) 36” (.91 m) 39” (1 m)
Meets applicable requirements of: ANSI A92.20-2018
CAN/CSA-B354.6:17 (ISO 16368:2010)
EN 280:2013+A1:2015
*Working Height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options.

Specifications
MODELS 2646i 3346i 4046i 4555i
Heights
Working Height* 32’ 2” (10 m) 39’ (12 m) 46’ (14.04 m) 51’ 11” (16 m)
Plaorm Height 26’ 2” (8 m) 32’ 8” (10 m) 39’ 6” (12.04 m) 45’ 11” (14 m)
Height Stowed
(Rails Folded)
(Plaorm Floor)
88.5” (2.25 m)
66.5” (1.69 m)
46.5” (1.04 m)
98.7” (2.50 m)
78.4” (1.99 m)
54.4” (1.38 m)
104” (2.64 m)
83.75” (2.12 m)
59.75” (1.51 m)
105.25” (2.67 m)
85” (2.16 m)
60.5” (1.53 m)
Guardrail Height 43.3” (1.1 m) 43.3” (1.1 m) 43.3” (1.1 m) 43.3” (1.1 m)
Toeboard Height 6” (15 cm) 6” (15 cm) 6” (15 cm) 6” (15 cm)
Performance
Plaorm Li Capacity 992 lbs (450 kg) 771 lbs (350 kg) 771 lbs (350 kg) 770 lbs (350 kg)
Extension Deck Capacity 264 lbs (120 kg) 264 lbs (120 kg) 264 lbs (120 kg) 264 lbs (120 kg)
Turning Radius, Inside 0 0 0 0
Power Source 24v, 225 Ah
Drive System Entraînement Électrique Direct
Drive Speed Stowed 3.0 mph (4.8 km/h)
Drive Speed Elevated 0.5 mph (.8 km/h)
Drive Speed - Elevated Creep Mode 0.125 mph (0.16 km/h)
Plaorm Li Speed 39 50 65 65
Plaorm Lower Speed 34 38 50 50
Tires - Solid, Non-marking 15”x5” / 38cm x 12.7cm
Gradeability 40% 35% 30% 30%
Brakes Disques mulples
Weight, ANSI / CE 5632 lbs (2560 kg) 6450 lbs (2925 kg) 7070 lbs (3208 kg) 7865 lbs (3568 kg)
Drive Height Complète
Dimensions
Length Stowed
(With Ladder Removed)
97” (2.46 m)
91” (2.32 m)
99” (2.51 m)
91.25” (2.31 m)
99” (2.51 m)
91.25” (2.31 m)
99” (2.51 m)
91.25” (2.31 m)
Width 46” (1.17 m) 46” (1.17 m) 46” (1.17 m) 46” (1.17 m)
Wheelbase 72.8” (1.85 m) 72.8” (1.85 m) 72.8” (1.85 m) 72.8” (1.85 m)
Ground Clearance 4” (10 cm) 4” (10 cm) 4” (10 cm) 4” (10 cm)
Pothole Bars Deployed .75” (1.9 cm) .75” (1.9 cm) .75” (1.9 cm) .75” (1.9 cm)
Plaorm Length Stowed 90.9” (2.31 m) 90.9” (2.31 m) 90.9” (2.31 m) 90.9” (2.31 m)
Plaorm Width 45.2” (1.15 m) 45.2” (1.15 m) 45.2” (1.15 m) 45.2” (1.15 m)
Plaorm Length Extended 130.7” (3.32 m) 130.7” (3.32 m) 130.7” (3.32 m) 130.7” (3.32 m)
Plaorm Extension Deck Length 39” (1 m) 39” (1 m) 39” (1 m) 39” (1 m)
Meets applicable requirements of: ANSI A92.20-2018
CAN/CSA-B354.6:17 (ISO 16368:2010)
EN 280:2013+A1:2015
*Working Height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options.

Page 2
i Series --- Operator’s manual Safety
Page 2 81105 – August 2021
Slab Scissors Introduction
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the instructions and operating procedures
essential to properly and safely operate your GMG Aerial Work Platform for positioning personnel, along with their necessary tools
and materials, to overhead work locations.
The Operator’s Manual must be read and understood prior to operating your GMG Aerial Work
Platform. The user/operator should not accept operating responsibility until he/she has read and
understands the operator’s manual as well as having operated the GMG Aerial Work Platform under
supervision of an authorized, trained and qualified operator.
It is essential that the operator of the aerial work platform is not alone on the workplace during
operation.
Modifications of this machine from the original design and specifications without written permission
from GMG are strictly forbidden. A modification may compromise the safety of the machine, subjecting
operator(s) to serious injury or death.
Your GMG Aerial Work Platform has been designed, built, and tested to provide safe,
dependable service. Only authorized, trained and qualified personnel shall be allowed to
operate or service the machine.
GMG, as manufacturer, has no direct control over machine application and operation. Proper
safety practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
Global Machinery Group
Global Machinery Group, Inc.
3428 Bullock Lane
San Luis Obispo, CA 93401 USA
Phone: +1.805.303.2066
Toll Free (USA/Canada): 800.303.0499
www.goGMG.com
Global Machinery Group, Inc.
3428 Bullock Lane • San Luis Obispo • CA 93401 USA
Phone: 1-800-301-0499 • 1-805-303-2066 • FAX: 1-805-293-6211
GLOBAL MACHINERY GROUP, INC.

Page 3
i Series --- Operator’s manual Safety
81105 – August 2021 Page 3
Slab Scissors Safety
Safety
DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection,
Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating
Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in serious injury or death. For your
safety and the safety of those around you, you must operate your machine as instructed in this manual.
GMG designs aerial work platforms to safely and reliably position personnel, along with their necessary tools and materials, at
overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine
unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with self-propelled elevating work
platforms. The ANSI/SIA A92.5-2006 Manual of Responsibilities is considered a part of this machine and can be found in the manual
compartment, located at the platform control station. To ensure safe use of machine, inspections and training specified in ANSI/SIA
A92.5-2006 must be performed at designated intervals as prescribed.
California Proposition 65 Warning
This product contains chemicals known to the State of California to cause cancer and/or birth
defects or other reproductive harm.
Safety Alert Symbols
GMG manuals and decals use symbols and colors to help you recognize important safety, operation and maintenance information.
RED – Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
ORANGE – Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
YELLOW with alert symbol – Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
YELLOW without alert symbol – Indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
GREEN – Indicates operation or maintenance information.

Page 4
i Series --- Operator’s manual Safety
Page 4 81105 – August 2021
Slab Scissors Safety
Fall Protection
Operators must comply with employer, job site and governmental rules regarding the use of
personal protective equipment.
If required by your employer or job site, use personal fall protection equipment (PFPE) when
operating this machine.
All PFPE must comply with applicable governmental regulations, and must be inspected and
used in accordance with the PFPE manufacturer’s instructions.
Fall restraint must be properly attached to a designated anchorage point when driving or
operating the machine. Attach only one fall restraint to each anchorage point.
Electrocution Hazard
ELECTROCUTION HAZARD! THIS MACHINE IS NOT INSULATED!
DEATH OR SERIOUS INJURY will result from contact with or inadequate clearance from any electrically
charged conductor.
You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m) between any part of the machine, or its
load, and any electrical line or apparatus carrying over 300 Volts up to 50,000 Volts. One foot (30.5 cm)
additional clearance is required for every additional 30,000 Volts.
Observe Minimum Safe Approach Distance.
This machine is not electrically insulated and will not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines and apparatus in accordance with
applicable government regulations and the following chart:
Allow for platform movement, electrical line sway or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts energized power lines. Personnel on the ground or
in the platform must not touch or operate the machine until energized power lines are shut off.
Do not use the machine as a ground for welding.
13301
13302
13303
Minimum Save Approach Distance
Voltage Minimum Safe Approach Distance
Phase to Phase Feet Meters
0 to 300 Volts Avoid Contact
Over 300V to 50kv 10 3.1
Over 50KV to 200KV 15 4.6
Over 200KV to 350KV 20 6.1
Over 350KV to 500KV 25 7.6
Over 500KV to 750KV 35 10.7
Over 750KV to 1000KV 45 13.7

Page 5
i Series --- Operator’s manual Safety
81105 – August 2021 Page 5
Slab Scissors Safety
Tip-over Hazards
DO NOT exceed the maximum platform capacity. The weight of options and accessories will
reduce the rated platform capacity and must be factored into the total platform load. Refer to
the decals on the options.
DO NOT elevate the platform when the machine is on a surface that is soft and / or on a slope.
DO NOT depend on the tilt alarm as a level indicator. STOP if the tilt alarm sounds and the
red light illuminates when the platform is raised. Use extreme caution to lower the platform.
Move the machine to a rm, level surface.

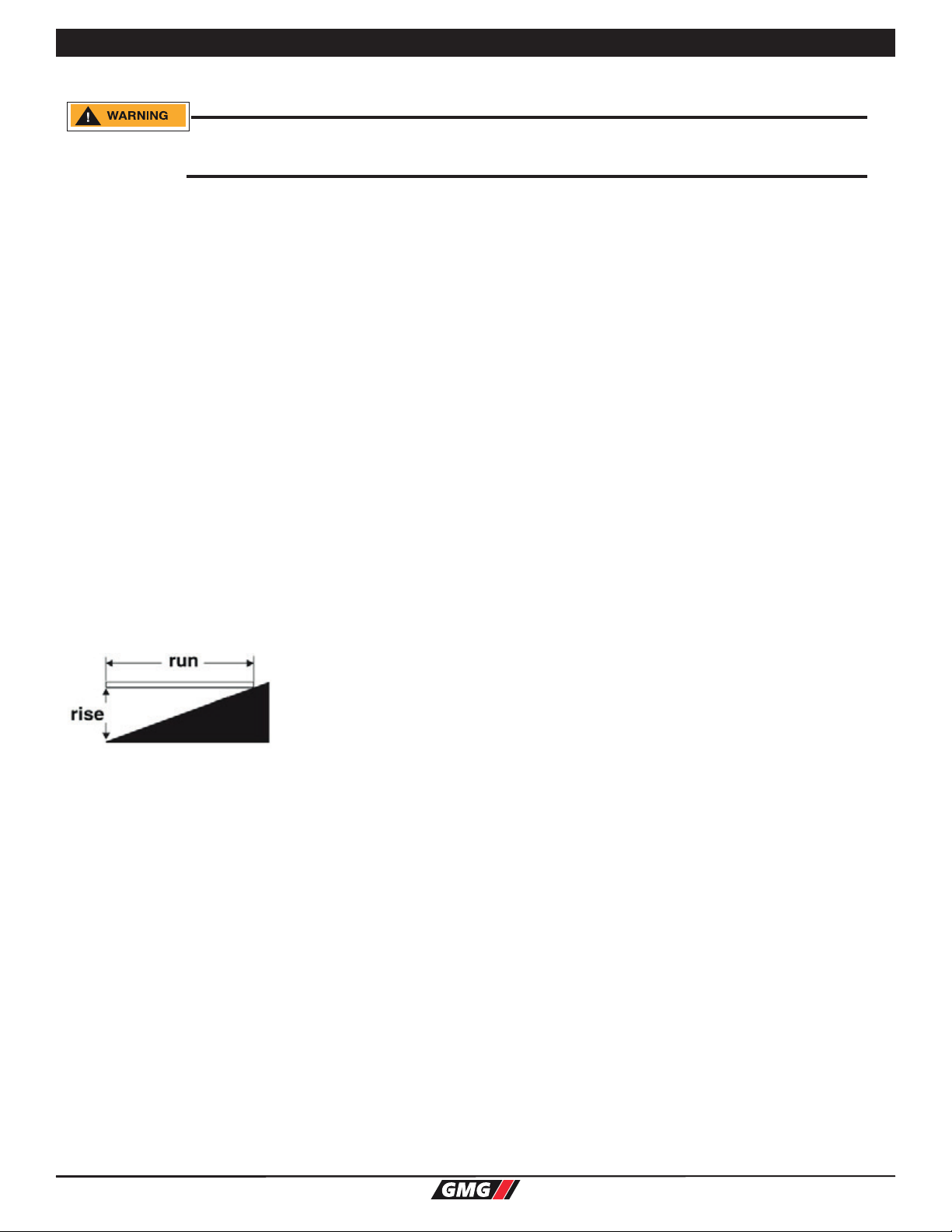

Driving: DO NOT drive the machine on a slope that exceeds the maximum uphill or downhill
slope rating. Slope rating applies to machines in the stowed position.
Driving in stowed position: use extreme care and reduce speed when driving across uneven
terrain, debris, unstable or slippery surfaces, and near holes or drop-offs.
Driving with the platform elevated: DO NOT drive on or near uneven terrain, unstable
surfaces, curbs, drop-offs or other hazardous conditions.
DO NOT push o or pull toward any object outside the platform. DO NOT push the machine
or other objects with the platform. DO NOT contact adjacent structures with the platform.
DO NOT tie the platform to adjacent structures.
DO NOT use the platform controls to free a platform that is caught, snagged or otherwise
prevented from normal motion by an adjacent structure.
For outdoor rated machines, DO NOT elevate the platform when wind speeds are in excess of
28 m.p.h. (12.5 m/s). If wind speeds exceed 28 m.p.h. (12.5 m/s) when the platform is elevated,
carefully lower the platform and discontinue operation.
DO NOT increase the surface area of the platform (i.e. cover the rails with tarp or plywood).
Increased surface area exposed to the wind will decrease machine stability.
DO NOT attach overhanging loads or use the machine as a crane. DO NOT place loads outside
the platform perimeter.
NEVER transport tools and materials unless they are firmly secured. Secure all tools and loose
materials.
NEVER alter or disable any machine components.
NEVER replace any part of the machine with items of different weight or specification.
NEVER modify or alter the work platform without written permission from GMG.
NEVER place ladders or scaffolds in the platform or against any part of the machine.
NEVER use the machine on a moving or mobile surface or vehicle.
Ensure that all tires are in good condition and lug nuts are properly torqued.
DO NOT operate the machine with the chassis trays open.
DO NOT alter or disable the limit switches or machine components that in any way affect
safety and stability.
DO NOT replace items critical to machine stability with items of different weight or
specification. DO NOT modify or alter this machine without prior written permission from
the manufacturer.
DO NOT use batteries that weigh less than the original equipment. Each battery must weigh
55 lbs/25 kg. The batteries must weigh a minimum of 110 lbs/50 kg.
DO NOT OVERLOAD
DO NOT DRIVE ON IRREGULAR OR
UNSTABLE SURFACE
DO NOT PUSH OR PULL OBJECTS
OUTSIDE PLATFORM
DO NOT ELEVATE IN WINDY
CONDITIONS
DO NOT USE AS CRANE
13304
13308
13307
13306
13305
Maximum Allowable Side Force
50 lbs (222 N) per person

Page 6
i Series --- Operator’s manual Safety
Page 6 81105 – August 2021
Slab Scissors Safety

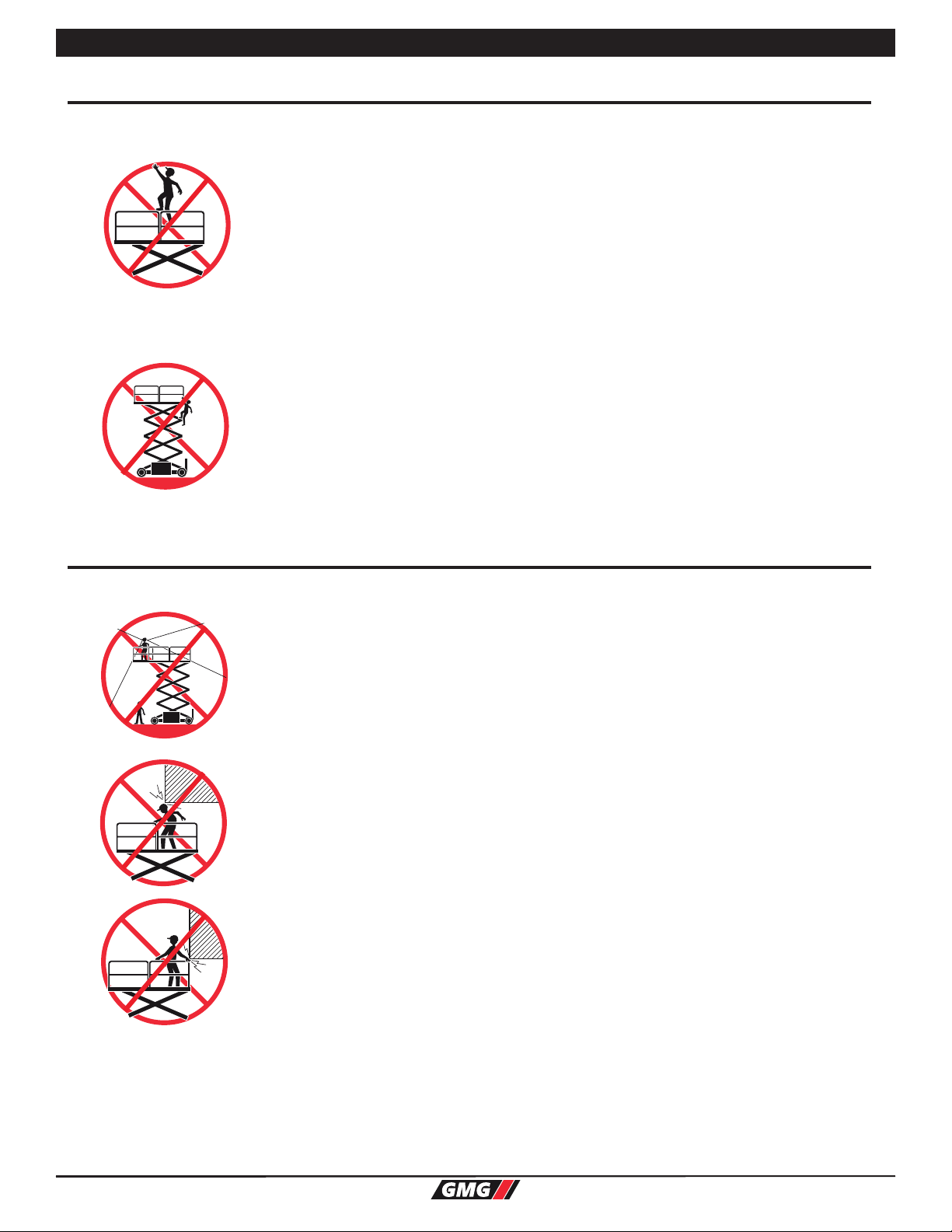

Fall Hazards
DO NOT sit, stand or climb on the platform guard rails. Maintain a firm footing on the
platform floor at all times.
DO NOT exit the platform when elevated
Keep the platform floor clear of debris.
DO NOT fasten a fall restraint lanyard to an adjacent structure.
Ensure that all gates are properly closed and secured before operating the machine.
Operators must comply with employer and job site rules and governmental regulations
regarding the use of personal protective equipment.
Collision Hazards
Check for equipment, materials or other obstructions before moving.
Check for overhead obstructions before moving.
Check for crushing hazards when holding the platform rail before moving.
Be aware of limited sight distance and blind spots when driving or operating.
Be aware of extended platform position(s) when moving the machine.
Reduce travel speed when moving the machine on slopes, when near personnel and obstacles,
or when surface conditions are wet, slippery or otherwise limiting.
DO NOT operate in the path of any crane unless the controls of the crane have been locked out
and/or precautions have been taken to prevent any possible collision.
Stunt driving and horseplay are PROHIBITTED.
Watch for personnel and obstructions below the platform when lowering the platform.
Keep hands and limbs out of scissors.
Use common sense and planning when operating the machine with the controller from the
ground. Maintain safe distances between the operator, the machine and fixed objects.
DO NOT EXIT PLATFORM WHEN
ELEVATED
DO NOT CLIMB ON RAILS
13310
13309
13313
13312
13311

Page 7
i Series --- Operator’s manual Safety
81105 – August 2021 Page 7
Slab Scissors Safety
Additional Safety Hazards
Explosion and Fire Hazards
DO NOT operate the machine in hazardous locations or locations where potentially
flammable or explosive gases or particles may be present.
Damaged Machine Hazards
Conduct a thorough prestart inspection of the machine and test all functions before each work
shift to check for damage, malfunction and unauthorized modification. Tag and remove a
damaged, malfunctioning or modified machine from service. DO NOT use a damaged,
malfunctioning or modified machine.
Routine maintenance must be performed by the operator before each work shift. Scheduled
maintenance must be performed by a qualified service technician at scheduled intervals. Tag
and remove from service any machine that has not had scheduled preventative maintenance
performed.
Check that all safety and instructional decals are in place and undamaged.
Check that the operator’s, safety and responsibilities manuals are present in the storage
container located in the platform. All manuals must be complete, undamaged and readable.
Bodily Injury Hazards
DO NOT operate the machine when there is a hydraulic fluid or air leak. Hydraulic fluid or air
under pressure can penetrate and/or burn skin.
All compartments must remain closed and secure during machine operation. Improper
contact with components under any cover will cause serious injury. Only trained maintenance
personnel should access compartments. The operator should only access a compartment when
performing prestart inspection.
Weld Line to Platform Safety (if equipped)
Read, understand and follow all warnings and instructions provided with the welding power
unit.
Do not connect weld leads or cables unless the welding power unit is turned off at the platform
controls.
DO NOT operate unless the weld cables are properly connected.
DO NOT connect the ground lead to the platform.
Battery Safety
Burn Hazards
Batteries contain acid. Always wear protective clothing and eye wear when working with
batteries.
Avoid spilling or contacting battery acid. Neutralize battery acid spills with baking soda and
water.
Explosion Hazard
Keep sparks, flame and lighted tobacco away from batteries. Batteries emit explosive gas.
Leave the battery tray open while charging to avoid gas buildup.
Electrocution Hazard
Avoid contact with electrical terminals.

Page 8
i Series --- Operator’s manual Controls & Components
Page 8 81105 – August 2021
Slab Scissors Controls & Components
Controls & Components
Component Locations
Platform
Deck Extension
Release
Maintenance
Lock
Lift Cyliinder
Chassis
Lower Control
Station Tie-Down
Lift Point
Tie-Down
Lift Point
Emergency
Lowering
Knob
Master Disconnect
Switch
Battery
Charger
Charging
Location
Manuals
Case
Platform
Controls
Guardrails
Entry Gate
Forklift
Pockets
Entry Ladder

Page 9
i Series --- Operator’s manual Controls & Components
81105 – August 2021 Page 9
Slab Scissors Controls & Components
Platform Controls
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
2
1
3
6
7
8
11
9
10
5
4
Control Description
1Function Enable Switch Squeeze the top or bottom of the enable switch and hold to enable DRIVE, LIFT,
STEER, and OUTRIGGER functions
2Steer Switch Push LEFT side of switch to steer LEFT
Push RIGHT side of switch to steer RIGHT
3Joystick
Drive Controls Forward and Reverse travel
Lift
Move toward operator to ELEVATE platform. Lift speed increas-
es proportional to the Joystick movement.
Move away from operator to LOWER platform.
4Emergency Stop Switch Push IN to stop all functions
Pull OUT to reset
5OWS Button (optional) (if equipped) press OWS button to continue to raise machine after forced stop
6High / Low Torque Button Push button for engine high torque mode
7Control Box Coil Cord Connects the control box to the machine
8Lift Function Selector Push to select LIFT function
9LED Display Indicates the state of the machine and displays codes when necesary
10 Drive Function Selector Push to select DRIVE function
11 Horn Button Press and hold to sound warning horn

Page 10
i Series --- Operator’s manual Controls & Components
Page 10 81105 – August 2021
Slab Scissors Controls & Components
Lower Controls
ALWAYS be aware of the machine’s position and of your surroundings
Control Description
1Platform / Base Selector Switch Turn the Key to the UP to operate from the Platform
Turn the Key to the DOWN to operate from the Base
2Lower / Raise Switch Push UP and hold to RAISE platform
Push DOWN and hold to LOWER the platform
3Emergency Stop Switch Push IN to stop all functions
Pull OUT to reset
4
Circuit Breaker Trips when there is excessive electrical load
Push to reset
5
Brake Release Switch Hold DOWN to release the brakes.
10A
1 2 3
4 5

Page 11
i Series --- Operator’s manual Workplace Inspecon
81105 – August 2021 Page 11
Slab Scissors Workplace Inspection
Workplace Inspection
DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection,
Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating
Instructions section.
Inspect the workplace and determine whether the workplace is suitable for safe machine operation. Do this before moving the
machine to the workplace.
Be sure the lift is the correct machine for the job.
Be aware of workplace conditions, and continue to watch for hazards while operating the machine.
Workplace Inspection
Before operating the machine, check the workplace for all possible hazards, including but not
limited to:
• drop-offs or holes, including those concealed by water, ice, mud, etc.
• sloped, unstable or slippery surfaces
• bumps, surface obstructions and debris
• overhead obstructions and electrical conductors
• other objects or equipment
• hazardous locations and atmospheres
• inadequate surface and support to withstand all load forces imposed by the machine
• wind and weather conditions
• the presence of unauthorized personnel
• other possible unsafe conditions

Page 12
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
Page 12 81105 – August 2021
Slab Scissors Operating Instructions & Function Tests
Operating Instructions & Function Tests
DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection,
Prestart Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions
section.
This section provides instructions and tests for each function of machine operation. Follow all safety rules and instructions. The
operator must conduct inspections and a Functions Test of the machine before each work shift to check that all machine systems are
working properly.
Test the machine on a firm level surface with no debris, drop-offs, potholes or overhead obstructions. Perform each step outlined in
this section.
This machine shall only be operated by trained and authorized personnel. If multiple operators use this machine, all must be trained,
qualified and authorized to use it. New operators must perform a Pre-Start Inspection and Functions Test prior to operating the
machine.
Operators must comply with all employer and job site rules and governmental regulations regarding the use of personal protective
equipment.
DO NOT use a machine that is malfunctioning. If any function does not perform as described, tag the machine and remove for repair
by a qualified service technician. After repairs are completed, a Pre-Start Inspection and Functions Test must be performed before
using the machine.
Prestart
• Perform Prestart Inspection (see page 25).
• Check Emergency Stop Switches at both the base and platform controls – turn
clockwise to reset.
Functions Test
1 Select a test area that is firm, level and free of obstruction.
2 Be sure the battery pack is connected.
At the Ground Controls
3 Set the red Emergency Stop button clockwise to the on position at both the ground
and platform controls.
4 Turn the Key Switch to ground control.
Test Emergency Stop
5 Push in the ground red Emergency Stop button to the off position.
• Result: No functions should operate.
6 Turn the red Emergency Stop button clockwise to the ON position.

Page 13
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
81105 – August 2021 Page 13
Slab Scissors Operating Instructions & Function Tests
Test Up/Down Functions
Check the area above and around the machine for obstructions and electrical power lines before
operating the machine.
A buzzer with different sound frequency is controlled by the central system. The descent alarm
sounds at 80 beeps per minute. The alarm that goes off when the machine is not level sounds
at 200 beeps per minute.
7 At the Lower Controls station, turn the Key Switch to off or platform position.
8 At the Lower Controls station, push up and hold the platform up / down switch.
• Result: No function should operate.
9 Turn the Key Switch to ground control position.
10 At the Lower Controls station, push up and hold the Platform Up switch.
• Result: The platform should raise.
11 Push down and hold the Platform Down switch.
• Result: The platform should lower to end. The descent alarm should sound while the
platform is lowering.
Test the Emergency Lowering
12 Activate the up function and raise the platform approximately 2 ft / 60 cm.
13 Pull the Emergency Lowering Knob.
• Result: The platform should lower. The descent alarm will not sound.
At the Platform Controls
14 Turn the Key Switch to platform control.
Test Emergency Stop
15 Push in the platform red Emergency Stop button to the off position.
• Result: No functions should operate.
16 Pull or turn the red Emergency Stop button clockwise to the on position.
• Result: The LED indicator light should come on.
Test the Horn
17 Push the horn button.
• Result: The horn should sound.
Knob
Machine Rear View
13318

Page 14
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
Page 14 81105 – August 2021
Slab Scissors Operating Instructions & Function Tests
Test Function Enable and Up/Down Functions
Check the area above and around the machine for obstructions and electrical power lines before
operating the machine.
18 Set the Lift/Drive Select Switch to LIFT.
19 Do not hold the Function Enable Switch on the control handle.
20 Slowly move the control handle forward/downward, then rearward/upward.
• Result: No functions should operate.
21 Press and hold the Function Enable Switch on the control handle.
22 Slowly pull the control handle rearward/upward.
• Result: The platform should raise.
23 Release the control handle.
• Result: The platform should stop raising.
24 Press and hold the Function Enable Switch. Slowly push the control handle
forward/downward.
• Result: The platform should lower. The descent alarm should sound while the
platform is lowering.
Test the Steering
Note: When performing the steer and drive function tests, stand in the platform
facing the steering end of the machine.
25 Set the Lift/Drive Select Switch to DRIVE.
26 Press and hold the Function Enable Switch on the control handle.
27 Depress the thumb rocker switch on top of the control handle in the direction
identified by the green left arrow on the control panel.
• Result: The steer wheels should turn in the direction that the green left arrow points
on the control panel.
28 Depress the thumb rocker switch in the direction identified by the yellow right arrow
on the control panel.
• Result: The steer wheels should turn in the direction that the yellow right arrow points
on the control panel.
Test Drive and Braking
29 Press and hold the Function Enable Switch on the control handle.
30 Slowly move the control handle forward/downward until the machine begins to
move, then return the handle to the center position.
• Result: The machine should move forward, in the direction of the steering wheels,
then come to an abrupt stop.
31 Press and hold the Function Enable Switch on the control handle.
32 Slowly move the control handle rearward/upward until the machine begins to move,
then return the handle to the center position.
• Result: The machine should move rearward, in the direction of the platform entry,
then come to an abrupt stop.
Note: The brakes must be able to hold the machine on any slope it is able to
climb.

Page 15
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
81105 – August 2021 Page 15
Slab Scissors Operating Instructions & Function Tests
Test Limited Drive Speed
33 Set the Li˜/D rive Select Switch to LIFT.
34 Press the Function Enable Switch. Raise the platform approximately 4.2 ˜ /1.3 m from
the ground.
35 Set the Li˜/D rive Select Switch to DRIVE.
36 Press and hold the Function Enable Switch on the control handle.
37 Slowly move the control handle to the full drive position.
• Result: °e maximum achievable drive speed with the platform raised should not
exceed 1.1 ˜ per second / 30.5 cm/s.
•If the drive speed with the platform raised exceeds 1.1 ˜ per second / 30.5 cm/s,
immediately tag and remove the machine from service.
Operating Instructions
Check the area above and around the machine for obstructions and electrical power lines before
operating the machine.
Emergency Stop
• Push in the red
Emergency Stop
button to the o˛
position at the
ground controls or
the platform controls
to stop all machine
functions.
• If any function
operates when either
red Emergency Stop
button is pushed in
,
repair the
Emergency Stop
function before
using the machine.
Emergency Lowering
If the control system fails while the platform is elevated, use the emergency lowering procedure to
safely lower the platform.
Do not climb down the scissor assembly or exit the platform.
° e Emergency Lowering System is used to lower the platform in case of power failure.
• Pull the Emergency Lowering Handle to lower the platform.
10A

Page 16
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
Page 16 81105 – August 2021
Slab Scissors Operating Instructions & Function Tests
Operation from Ground
Check the area above and around the machine for obstructions and electrical power lines before
operating the machine.
Drive and steer functions are not available from the ground controls.
1 Turn the Key Switch to ground control.
2Set the red Emergency Stop button to the on position at both the ground and platform
controls.
3 Be sure the battery pack is connected before operating the machine.
To Position Platform from Ground
Move the up/down toggle switch according to the markings on the control panel.
Operation from Platform
Check the area above and around the machine for obstructions and electrical power lines before
operating the machine.
1 Turn the Key Switch to platform control.
2Set the red Emergency Stop button to the on position at both the ground and platform
controls.
3 Be sure the battery pack is connected before operating the machine.
To Position Platform
1Set the Li˜/D rive Select Switch to LIFT.
2 Press and hold the Function Enable Switch on the control handle.
3 Pull the control handle rearward/upward to raise the platform.
4 Push the control handle forward/downward to lower the platform.
To Steer
1Set the Li˜/D rive Select Switch to DRIVE.
2 Press and hold the Function Enable Switch on the control handle.
3 Turn the steer wheels with the thumb rocker switch located on the top of the control
handle.
Control
Handle
Function
Enable
Steer
Switch
Function
Enable

Page 17
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
81105 – August 2021 Page 17
Slab Scissors Operating Instructions & Function Tests
To Drive
1Set the Li˜/D rive Select Switch to DRIVE.
2 Press and hold the Function Enable Switch on the control handle.
• Increase speed: Slowly move the control handle o° center.
• Push the control handle forward to move forward.Pull the control handle rearward to
move rearward.
• Decrease speed: Slowly move the control handle toward center.
• Stop: Return the control handle to center or release the Function Enable Switch.
Use the color-coded direction arrows on the platform controls to identify the direction the
machine will travel.
Machine travel speed is restricted when the platform is raised.
Battery condition will a° ect machine performance. Machine drive speed and function speed
will drop when the battery level indicator is ˛ ashing.
To Reduce Drive Speed
˝e drive controls can operate in two di° erent drive speed modes.
When the Drive Speed Switch is in the DOWN position and set to the Turtle icon, slow drive
speed mode is active.
When the Drive Speed Switch is in the UP position and set to the Rabbit icon, fast drive speed
mode is active.
Control
Handle
Function
Enable

Page 18
i Series --- Operator’s manual Operang Instrucons & Funcons Tests
Page 18 81105 – August 2021
Slab Scissors Operating Instructions & Function Tests
Driving On A Slope
DO NOT drive the machine on a slope with the platform elevated.
The platform must be in the fully stowed position before driving on a slope.
Determine the slope and side slope ratings for the machine and determine the slope grade.
Maximum forward/rearward slope rating, stowed position 25%.
Maximum side slope rating, stowed position 5°.
Note: Slope rating is subject to ground conditions and adequate traction.
Set the Drive Speed Switch to the DOWN (Turtle) position to engage slow speed drive mode.
To determine the slope grade
Measure the slope with a digital inclinometer OR use the following procedure.
You will need:
• Carpenter's level
•Straight piece of wood, at least 3.3 ft / 1 m long
• Tape measure
Lay the piece of wood on the slope.
At the downhill end, lay the level on the top edge of the piece of wood and lift the end until the
piece of wood is level.
While holding the piece of wood level, measure the distance from the bottom of the piece of
wood to the ground.
Divide the tape measure distance (rise) by the length of the piece of wood (run) and multiply
by 100.
Example:
Run = 12 ft / 3.6 m
Rise = 12 in / 0.3 m
12 in ÷ 12 ft = 0.083 × 100 = 8.3%
0.3 m ÷ 3.6 m = 0.083 × 100 = 8.3%
If the slope exceeds the maximum slope or side slope rating, the machine must be winched or
transported up or down the slope. See Transport and Lifting section.
13323
This manual suits for next models
7
Table of contents
Other GMG Scissor Lift manuals
Popular Scissor Lift manuals by other brands

XLT Systems
XLT Systems SC60 installation instructions

ALMAC
ALMAC MULTI-LOADER 2.5 TRANSLATION OF ORIGINAL INSTRUCTIONS

Vestil
Vestil WL-100 Operation & maintenance manual

Sinoboom
Sinoboom GTJZ1330SE Operation manual

JLG
JLG R1532i Operation and safety manual

Stratus
Stratus SAE-UT12000 Installation, operation & maintenance instructions

Terex
Terex Genie GS-1530/32 Operator's manual

Autoquip
Autoquip American Lifts P-25-005 manual

Autoquip
Autoquip PLTC-6050 Installation, operation and service manual

Oshkosh Corporation
Oshkosh Corporation JLG R2632 Operation and safety manual

Kleton
Kleton MJ522 instruction manual

Wesco
Wesco LDT-3080 Operating instructions and parts manual
