GNX Partner User manual

PARTNER – PATRIOT
PARTNER 3 – 4 WHEELS
USER’S MANUAL
PARTNER + PATRIOT ELECTRIC MOBILITY SCOOTER

WARNING
Read the User’s Manual carefully before operating the Proudrider.
If you do not fully understand any part of this Manual,
Please contact your dealer or any of our Service Center.
Read this manual step by step, as injury or damage may occur from misuse!
WARNING
Electromagnetic Interference (“EMI”) can cause powered vehicles to behave
erratically, which could be dangerous to the user.
For your safety and protection, it is IMPERATIVE that you take time to read
Chapter 6 (“EMI WARNING”) before operating the Proudrider.
Serial Number and Manufacturer’s data are fixed at the front area, on the
plastic Mud Guard cover on the metal Label of the Proudrider.
WARRANTY
DISTRIBUTIONS GNX INC. strives continuously to improve its products, their
quality and reliability in an incessant effort to ensure its customers’
satisfaction as well as its place on the market.
Warranty for the Proudrider is subject to your local distributor's warranty.
2

CONTENTS
CHAPTER 1 – OVER VIEW OF THE PROUDRIDER – MAIN FEATURES 4
1.1 SAFETY INSTRUCTIONS 5
1.2 GENERAL DESCRIPTION OF THE PROUDRIDER 7
1.3 TECHNICAL SPECIFICATIONS 10
CHAPTER 2 - ADJUSTMENT & OPERATING INSTRUCTIONS 12
CHAPTER 3 - MAINTENANCE 21
CHAPTER 4 – CHARGING 23
CHAPTER 6 - EMI WARNING 28
3

CHAPTER 1 – OVER VIEW OF THE PROUDRIDER – MAIN FEATURES
Congratulations on choosing the Proudrider as your electrically powered Scooter.
The Proudrider is a scooter for Elderly and Disabled persons, Fun and Sport.
Scooter classification: Class C with according to EN12184.
The Proudrider is designed to a Maximum occupant mass of 160 Kg (352lbs).
The Proudrider is an outdoor scooter designed to work at normal environment
conditions from very cold areas of (-30ºC, -22ºF) and up to very hot areas up to
(+45ºC, +113ºF).
The Proudrider will operate in light splashing rain, but it is not recommended to
use the Proudrider at heavy rain or snow conditions for long period.
The Proudrider is easy to operate. The relatively large wheels enable driving on
unpaved roads, over rough terrain and to overcome obstacles as high as 5”
(12 cm).
If cases that driving on grass or more stability is needed, the Proudrider can be
attached with rear wide tires, that allow also driving in Golf fields.
Pressure inflating of the tires can found in the technical specification table.
The Proudrider can climb slopes up to 21% (11.85º).
The braking system stops the Proudrider smoothly and a short distance after the
Operating Lever is released.
The Proudrider is equipped with both Front and Rear Shock Absorbers to give
the user the most comfort and soft driving, even when using the vehicle at terrain
roads.
A standard hand brake is also provided for backup.
The Seat is spacious, comfortable and can be rotated for easy access (standard
Seats) and adjusted forward/reverse up/down for most fitness to the user.
All controls are conveniently located on the tiller and handlebar and are simple to
operate.
Under normal conditions the Proudrider can travel approximately 40 km (26.7
miles) before the batteries require recharge.
After reading through all this manual, before start using the Proudrider, do a
visual check through the all parts of the vehicle, to make sure that no external
damage has been occur to the vehicle while transportation. In any case you are
not sure call your dealer and ask for an explanation.
The Proudrider is developed to use AGM or gel batteries only.
4

1.1 SAFETY INSTRUCTIONS
1. Please note and strictly adhere to the following Safety Instructions. Additional
Warnings and Notices are printed in this User’s Manual; it is imperative that
you read carefully all chapters of this Manual before operating the Proudrider.It
is also advisable to refresh your memory by re-reading this Manual periodically.
2. Get acquainted with the Proudrider and its operational features before driving
it.
3. Drive slowly (Place Speed Selector in position “1/2”) until you get used to the
Proudrider, to its various functions, safety features, and to its braking
capabilities and limitations.
4. Watch carefully for pedestrians and drive your Proudrider accordingly. In
crowded areas always drive with the Speed Selector at Low Speed.
5. Drive only where permitted according to all applicable local laws and
ordinances.
6. Partner III TOURING or PATRIOT with wide tires is 90 cm (36") width. Pay
special attention not to hit persons or any objects around the vehicle.
7. Never remove any of the Proudrider safety parts like Fenders, Plastic
Covers or Emergency Brake lever.
8. Never remove any of the Warnings Labels. If any of the Warning labels is
removed, got wear , painted etc. ask your dealer to supply you a new labels.
9. Never put your hands, fingers , legs into any moving parts or under any
protection cover , since moving parts are under covers and heated surfaces as
well .
10. Do not release the Manual or Electrical Release Lever of the Electromagnetic
Brake when the Proudrider is on a slope.
11. Never load the Proudrider total loads (User weight and all other loads
combined) more than 160Kg (352lbs).
12. The load in the Rear Basket should not exceed 20kg (44 lbs).
13. Never inflate the Proudrider tires more than recommended on the tires by the
manufacturer.
14. The Proudrider is designed and built to carry ONE person only on the Single
Seat model.
15. Never operate it with an additional person on board, not even a child.
16. Do not change the Speed Selector position while driving.
17. Never use the Proudrider for climbing up or riding down stairs.
18. If for any reason the Proudrider does not stop when you release the Operating
Lever, or stopped after longer distance than regular or higher than 3 meters
(level surface) , immediately use the Hand Brake to stop the Proudrider and
turn the Main Key Switch to “OFF”. Contact your dealer immediately.
19. Never use a hose for cleaning. This may severely damage the power and
electronic components. Use only a damp cloth and mild detergent.
20. Do not use the Proudrider neither at heavy rain or extreme humidity conditions
at temperatures below -30ºC (-22ºF) or above +45ºC (+113ºF).
5

21. Never try to go an obstacle that is more than the maximum recommended
slope angle and curb climbing in the specification sheet.
22. The seat weight is 15 Kg (33lbs). Each battery weight 20 Kg (44lbs) and more.
Be careful when lifting the seat and the batteries. See instruction for lifting in
Chapter 3: Maintenance and Chapter 5: Repair and troubleshooting. Keep
lifting using your Knees/legs and not loading your Back.
23. When adjusting/folding the seat back, armrest, seat sliders (forward / reverse),
tiller distance and as well when squeezing the speed lever or hand brake,
always be careful that your hands and fingers will not be trapped between any
of the adjusting parts .
24. If the WARNING Led start flashes while driving, your motor exceeded too high
temperature; you should stop the Proudrider and let the motor cool for a while.
25. If the Proudrider is involved in any kind of an accidents that part are damaged,
it is necessary to check the vehicle by qualified technician before go on using
it.
26. Batteries contain lead and acid, and should be disposed only to a proper
disposal.
27. When driving always make sure, that the backrest is in most upright position.
28. When climbing an Obstacle drive always so that the Proudrider Front is toward
the obstacle.
29. Beware from trapping your fingers in the tiller mechanism, when adjusting the
tiller – Forward / Reverse.
30. Use Lead Acid gel / dry batteries only.
WARNING !!!
•Special care must be taken to prevent children from operating the Proudrider.
•Always drive carefully, adjust the speed according the limitation of the road.
•Instability problem can arise when performing turns at high speed. Before making
sharp turns, reduce the Proudrider speed to minimum to prevent side roll-over.
•The Proudrider is able to go up slope higher than the recommended safe slope.
Do not drive on slopes you are not sure about their angle. However drive very
slowly and prevent side driving on such slopes.
•Never disengaged manually or electrically the electromagnetic parking brake
when the vehicle is on a slope.
•The lights of the Proudrider should be on when visibility is restricted, either by
day or by night.
•Since that your seat upholstery is Fire resistant, do not cover or replace with
other upholstery than an original one.
•When removing the Batteries cover be careful from hot parts .The Motor,
Transaxle, EMB, Electronic cards and Electronic Box might be warmed, Do not
touch them before you make sure about their temperature.
•Pay attention that your fingers will not be pressed between the squeeze or Brake
lever and the Rubber Grip.
•The seat weight is 15 Kg (33lbs). Keep lifting the seat with your Knees/legs and
not loading your Back. Hold the Seat in your two hands – one hand on the
6

backrest and a second hand at the front lower part of the seat and lift the seat up
from its pivot.
1.2 GENERAL DESCRIPTION OF PROUDRIDER
Note: The numbers in parentheses refer to the parts illustrated
on Figure 1+2+3.
Figure 1: PARTNER IV
Figure 2: PARTNER III
3.4
3
3.3
7

Handlebars (1) Your Proudrider is delivered to you with right-
hand controls.
(Left-hands controls can be setup by your
dealer).
Serial No. (1.2) Serial Number and Manufacturer’s data are fixed
near the Charging Fuse (2.1C).
Operating lever (1.3) Use to control the Proudrider speed. Standard is
right hand (optional left hand).
Charging Socket (1.4) The socket is used to connect the charger plug
for batteries charging. Right hand side of the
Handlebar.
Handlebars Adjusting Lever
(1.5) The Handlebar of the Proudrider is adjustable Forward and Reverse by releasing the Adjusting
Lever.
Buzzer (1.6)
Front Basket (1.7)
For carrying parcels and personal effects.
Maximum load 5 kg (11 lbs).
Headlight and Blinkers (1.8) (A) Road light for dark hours
(B) Blink light for turnings mark
Electric Button to release the
Electromagnetic Brake (1.9) Located on the Handlebar of the Proudrider, the Electromagnetic Brake Release button allows
free movement of the Proudrider.
To engage just push the button.
To release the brake just leave the button.
Battery Cover (2) Protect the power unit and electronics.
Fuses (2.1A, 2.1C) 2.1 A -Main fuses 70A – Semi Automatic
2.2C –Supply fuse -3A – Semi Automatic
(at the electronics box side)
2.1 C – Charge fuse 15A–Semi Automatic
Manual Release of
electromagnetic brake (2.2) The lever is at the rear area of the Breeze in the front of the right wheel. Manual release lever
allow you to push or pull the Proudrider
manually. Push / Pull the lever as shown in the
label: Release, Engaged. When
the lever is in released position the Proudrider
can not be operated.
Note: Do not release the lever when the
Proudrider is on slope.
Seat (3) The Proudrider Seat is equipped with folding
armrests (3.4) to allow convenient access to the
Seat. The Seat itself can be rotated to allow
8

easy access.
Seat Forward / Reverse Lever
(3.1) The Lever is used to change the seat position Forward and Reverse , to fit the driver mostly.
Seat Rotation Lever (3.2) The Lever is used to swivel the Seat 45 and 90
degrees in either direction, to ease the driver's
access to the Seat.
Seat Height adjust The Seat Height can be Adjusted Up / Down to
fit the user Height. This adjustment can be made
by a technician.
For adjusting the seat height , You need to
remove the seat and the batteries cover , and
than remove the screw that secure the seat pin
and to reassemble it at another hole as desired,
than re-secure the screw and nut.
Rear Basket (3.3)
For carrying parcels and personal effects.
Maximum load 20 kg (44 lbs).
Hand Rest (3.4) Use for comfort entrance, Folded.
Floor (4) Carpet covered. Possible to remove for
cleaning.

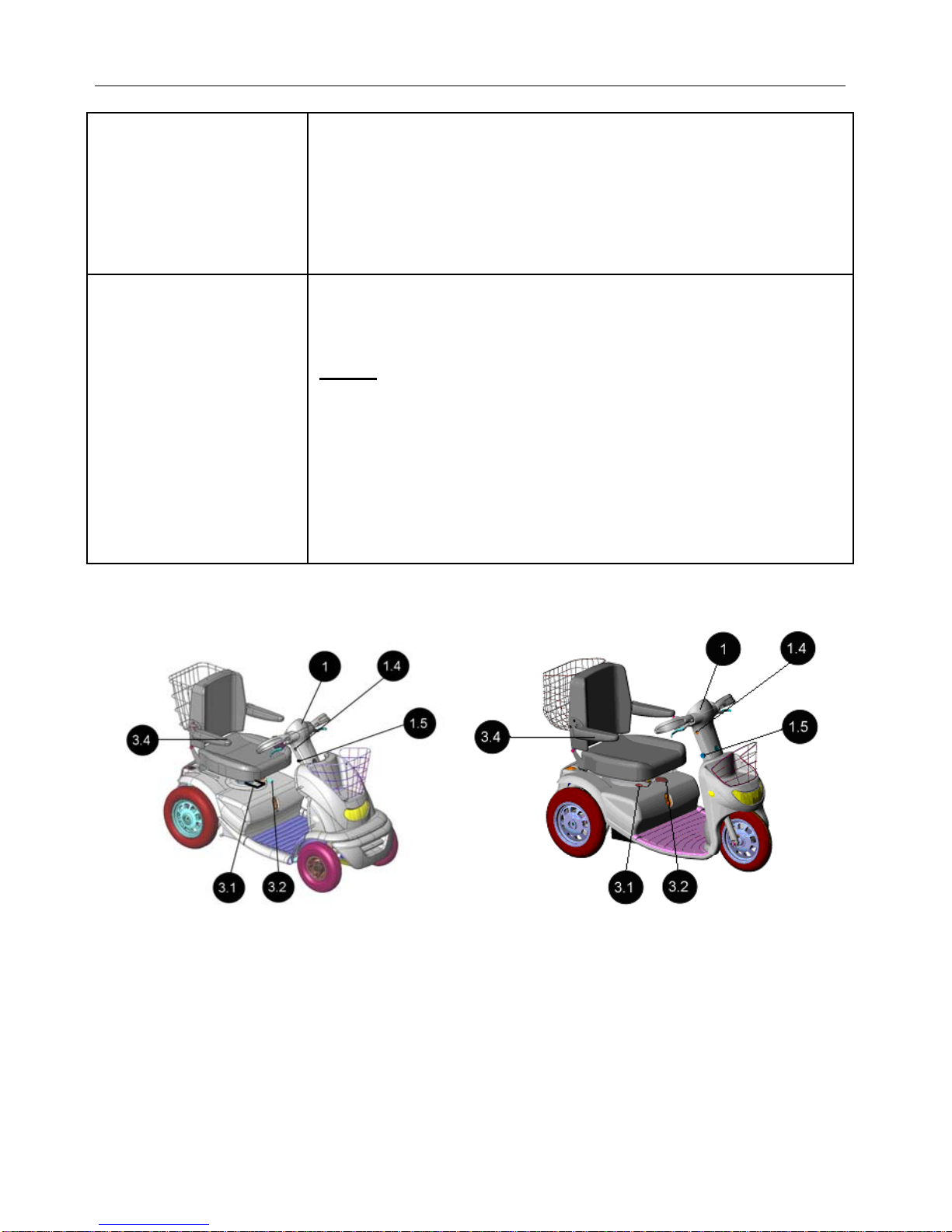

Figure 3
9

1.3 TECHNICAL SPECIFICATIONS
MODEL PARTNER IV PARTNER III
Units Metric USA Metric USA
Length without basket
Length with basket
Length with turned handlebr.
Dimensions
*
Length with golf carrier open /
fold
155 cm
170 cm
190/165
cm
60.6” 145 cm
160 cm
140 cm
57"
Width standard PARTNER
Width Wide seat PARTNER
Width wide PATRIOT
67 cm
90 cm
90 cm
26.4”
36"
36"
67 cm
90 cm
90 cm
26.4”
36"
36"
Folded Height (for transport:
folded handlebar w/o seat ) ~90 cm 35.4” ~90 cm 35.4”
Ground clearance 12 cm 5” 12 cm 5”
Seat Height 38-50cm 15-19” 38-50cm 15-19”
Weights * Total, without batteries 111 kg 244 lbs 104 kg 228 lbs
Total, with batteries 155 kg 341 lbs 148 kg 325 lbs
Max. User Weight
Max. Weight in front basket
Maximum Weight in rear
basket
Maximum Total load (including
front and rear basket load)
160 kg
5 kg
20 kg
160 kg
352 lbs
11 lbs
44 lbs
352 lbs
160 kg 352 lbs
5 kg
20 kg
160 kg
11 lbs
4
4 lbs
352 lbs
Batteries weight 2x20kg 2x44 lbs 2x20kg 2x44 lbs
Seat Weight 15 Kg 33 lbs 15 Kg 33 lbs
Speed ** Forward
(Speed selector in 1 pos.)
(Speed selector in 1/2 pos)
10 km/h
6.2 mph 10 km/h 6.2 mph
5 km/h 3.2 mph 5 km/h 3.2 mph
Reverse 5 km/h 3.2 mph 5 km/h 3.2 mph
Climbing
ability Maximum slope angle 21% 11.85º 21% 11.85º
Obstacle climbing ability 12 cm 5” 12 cm 5”
Tires Front tire size 4.10/3.50-6" 3-10”
Pneumatic Rear tires size "3.5-10 "3.5-10
Golf wide tires 16 x 7.5 - 8"
Pressure of front tires : 1.3 bars 20 psi 2.3 bars 35 psi
Pressure of rear tires :
Pressure or rear Golf tires: 2.3 bars 1.3 bars 35 psi 20 psi 2.3 bars 35 psi 1.3 bars 20 psi
Batteries Batteries type
Dimensions l x b x h Lead Acid Gel / dry 75 Ah , 2x12 V
*** 280x175x 230mm
Travel
Distance Fully charged batteries, level
surface, driver 80 kg ( 176 lbs)
2
6.7
miles 40 km
2
6.7
miles
40 km
Charger *** For charging Lead Acid Battery 24VDC, Max. 8A
Options 1. Left/Twist/Foot operation 4. Golf wheels / Carrier
2. Rear large / close basket
3. Rear adaptor / Rear hook
5. Canopy / Foot support / Crutch holder
10

Remarks :
All technical specifications are subject to change without prior notice.
All dimensions are in round figures.
•* Dimensions and weight do not include PROUDRIDER Canopy.
•** The maximum speed can be adjusted by the manufacturer to allow
for lower or higher maximum speed (i.e., max. 12 km/h, 8 mph or max
15 km/h - 10mph). The maximum speed at every country is limited
according local restrictions.
•*** Deep cycle batteries. Consult your dealer for other type and sizes.
For Using another type of batteries and / or charger ask your dealer /
supplier.
•**** A Maintenance Manual is available for trained technicians.
11

CHAPTER 2 - ADJUSTMENT & OPERATING INSTRUCTIONS
(Reference numbers refer to the figures #4 and #5)
Adjusting the
Handlebars (1) Adjust height/ distance of handlebars as follows:
•Release the Handlebars Adjusting Lever
(1.5), which secures the handlebars in
place, by pulling the Knob outward.
•Release the Knob and insure handlebar
lock.
Seating into the
PROUDRIDER Before driving the PROUDRIDER make sure that
the Charging Plug is disconnected from the
Charging Socket (1.4).
Note: While the Charging Plug is inserted in
the Charging Socket, the Breeze cannot be
operated.
Lift the Lever (3.2) upward, rotate the Seat and
raise the Armrest (3.4) to give you easy access to
the Seat.
Adjust the seat Forward Reverse using
the Lever (3.1)
Figure 4: PARTNER IV figure 5: PARTNER III
12

(Numbers in the table refers to figure no.6)
Key Switch  The Proudrider has a Main Key Switch (1.17) - located
on the backside of the Tiller Box (1).
The Main Key Switch has two positions:
 “OFF” – The Proudrider cannot be driven and the
Electromagnetic Brake is locked.
 “ON” - Power is supplied to the Proudrider. The
Electromagnetic Brake releases automatically when the
Operating Lever is squeezed.
To operate the Proudrider, insert the key into the Main Key
Switch and turn it to “ON” (clockwise). The switch will
remain in this position and the green (5.2) light will be lit.
Remark : Key Switch is used for operating the Proudrider ,
but not for locking .
Automatic Shut Off When Key Switch is at “ON” position, after a few minutes
(about 20 minutes) without using the Operating Lever, the
control system will be shut off automatically to save battery
energy.
In such cases, to restart control system, turn Main Key
Switch “OFF” and “ON” again.
The Battery Status Indicator (5.1) located on top of the
Tiller Box shows you the remaining capacity of the
batteries. Like in cars the Batteries indicator is not absolute
accurate, but will help you from running out of fuel. The
best way to use the battery indicator is to learn it's behavior
to the change of the battery capacity. The Batteries
indicator display the capacity after about 1 second, but after
1 minute, the accuracy of the reading is much better.
When the indicator shows that mid-half capacity remains,
recharge batteries as soon as possible.
When the indicator points that to first or second segment
on the left you should get to immediate charging, it is
possible to drive only a short distance (1-4 km on level
surface).
Battery Status
Indicator
The accuracy of the battery indicator reading depends also
on the type and age of the batteries.
Fault Indicator The Battery Status Indicator (5.1) is used also as a Fault
indication.
When the Leds are flashing, the number of lit Leds are the
code of the fault . ( See Maintenance Manual for code
definition).
13

Forward/Reverse
Selector The Forward/Reverse Selector (1.10) is located on the handlebar. Select the desired direction (as marked). In
reverse mode, a warning buzzer sounds automatically (in
certain models only and subject to local ordinances).
Warning: Do not change Selector position while the
Proudrider is in motion.
Adjusting the Hand
Brake (1.12) The hand brake cable mechanism can be adjusted by an authorized serviceman, dealer or by any professional
authorized to adjust hand brakes mounted on bicycles or
motorcycles.
The Hand Brake is part of your safety system. DO NOT
adjust the Hand Brake by yourself - get professional
assistance!
Figure 6
14

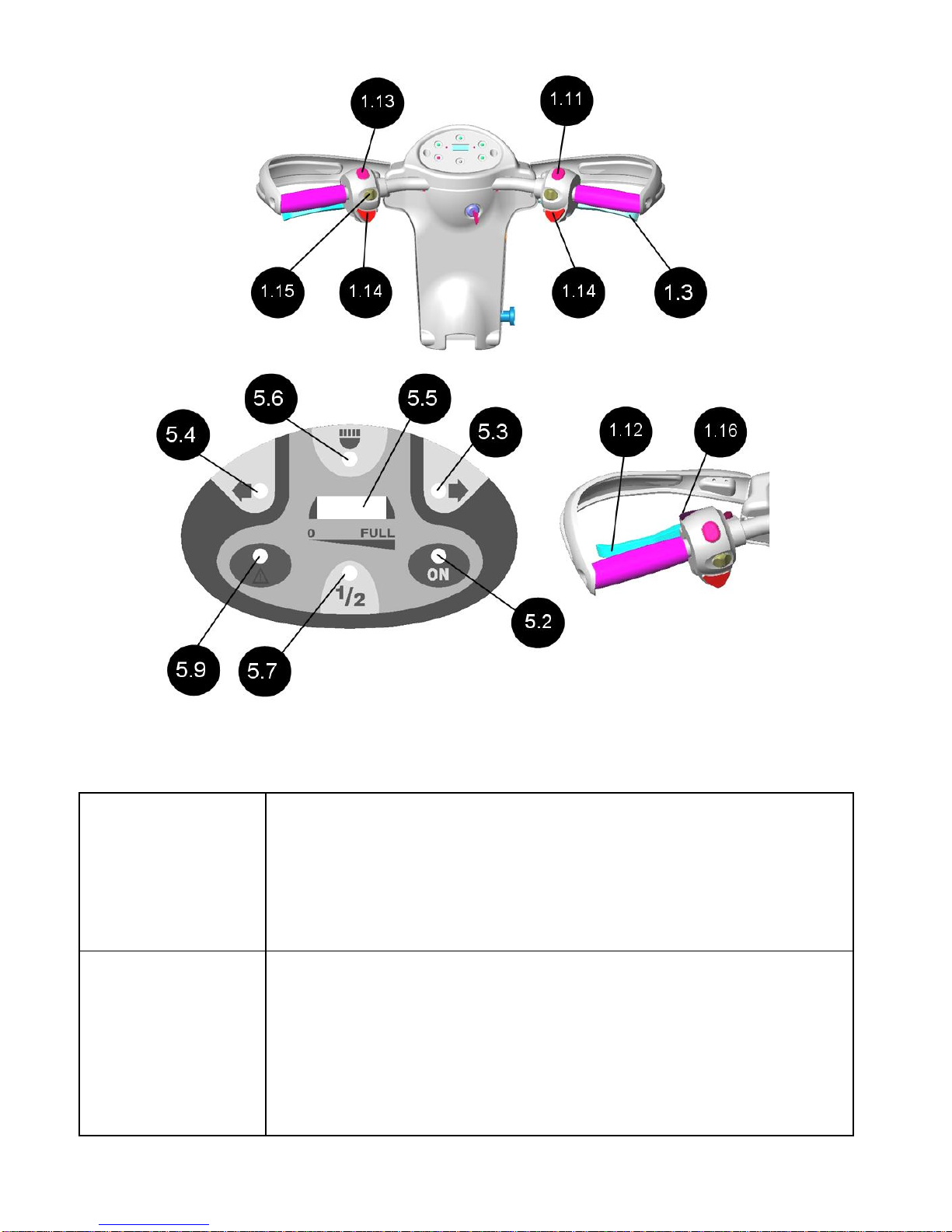

(Numbers in the table refers to figure no.7)
Speed Range Selector The Speed Range Selector (1.11) is located on
the handlebar. It has two positions:
•Mark “1/2”: Low speed –up to 5
km/h(3.2 mph).
•Mark “1”: High speed – 10 km/h (6.5 mph).
Do not shift the selector while the Proudrider is
in motion.
Notes:
1. When driving the Proudrider inside a
building or in a crowded area, use only
position “1/2” (Low speed).
2. When Low speed - position “1/2” is used ,
the Led (7) will lit.
3. The max speeds 12 and 15 km/h in related
models .
To start driving, squeeze the Operating
Lever(1.3) gently until you reach the desired
speed.
The speed is directly proportional to the
deflection of this Lever .
To stop - release the Operating Lever (1.3).
The Proudrider will stop gradually.
Additionally, emergency braking is possible
using the Manual Hand Brake (1.12). Squeeze
Hand Brake (Red).
Operating Lever and
Manual Hand Brake
Signaling Before turning, shift the “Turn Signal Switch”
(1.15), on the Handlebar to the desired direction
- left for left, right for right.
To stop the signal lights just Push the switch
knob forward. This will stop the blinking lights.
While blinkers light are activated, the Right (5.3)
/ Left(5.4) Leds signing will operate respectively.
A warning buzzer also sounds (in certain
models only and subject to local ordinances).
15

Push one of the 2 Buttons (1.14) activates the
buzzer.
Horn/Buzzer (in certain
models only) The buzzer sounds automatically under the
following conditions (subject to change where
prohibited by law):
1. When reversing.
2. When operating the “Turn Signal Switch”
(Right or Left).
Remark: It is possible to change the Buzzer
Functioning by changing a Dip Switch in the
front Board .This have to be made by a trained
technician.
Headlight Switch Turn on the Headlight with Light Switch (1.13).
This switch activates both the Headlight and the
Rear Lights.
When Lights are activated the Light Led (5.6) is
lit.
Hazard Warning The Hazard Button (1.16) operates all flashing
lights on the Proudrider. Pushing the button
once turns the lights ON.
A second push turns them OFF.
When Hazard is activated all signaling Leds
(5.3+5.4+5.6) are Flashing.
Charge Inhibit / Motor
overheated Condition
Indicator (5.9)
When the Vehicle is being charged it is
inhibited. In this condition the Inhibit Led (5.6) lit
and no driving can be done.
Also when the motor is overheated the Led (5.6)
will blink. At this condition it is recommended to
stop the Proudrider and let the motor cool for a
while.
16

Figure 7
Parking After stopping, turn the Main Key Switch to OFF and
remove the key. The ON lights will turn OFF. The
Electromagnetic Brake is engaged (locked).
Note: The Electromagnetic Brake is automatically
locked whenever the Operating Lever is released
and after the Proudrider stops completely.
Safe driving
When driving on Ramp , Steep Curbs , Step and turns
drive the Proudrider very slowly and carefully , even
consider changing the speed switch (1.11) to “1/2”
position : Low speed .
When going up or down a step always drive the
Proudrider so that the wheels will get in perpendicular
direction to the step and the rear wheels wheel climb or
17

go down together.
Never try to go on an obstacle that is more than the
maximum recommended slope angle and curb climbing
is in the specification sheet.
Always drive carefully , adjust the speed according
the limitation of the road.
Before making sharp turns , reduce the Proudrider
speed to minimum to prevent side roll-over.

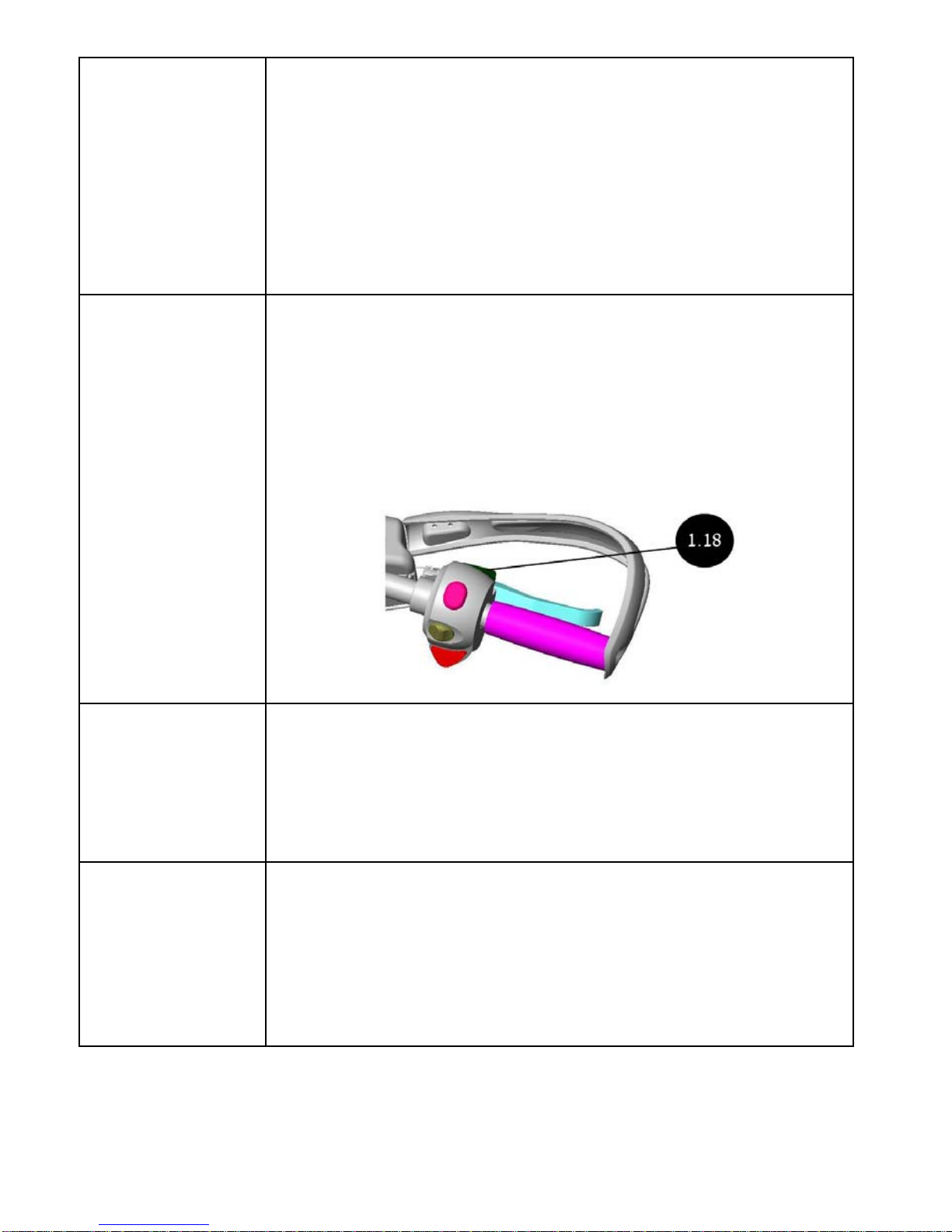

Electric Button
to release the
Electromagnetic
Brake (1.18)
See figure
Located on the Handlebar of the Proudrider, the
Electromagnetic Brake Release button allows free
movement of the Proudrider. To release, simply push
the button. To engage brake, Just release the button.
The Button will operate only when the Key Switch is at
position.
Climbing an
Obstacle To climb an Obstacle drive the Proudrider forward, toward the Obstacle.
Drive until that the front wheel is touching the obstacle
and than squeeze the lever speed , keeping the
direction .
Driving on
slopes and
Turns
Before making sharp turns, and especially on slopes,
reduce the Proudrider speed to minimum to prevent
side roll-over.
The Proudrider is able to go up slope higher than the
recommended safe slope. Do not drive on slopes you
are not sure about their angle. However drive very
slowly and prevent side driving on
18

Pre-use Now after learning through all the operating instructions,
before starting to use the Proudrider, do a visual check
through the all the parts of the vehicle, to make sure
that no external damage has been occur to the vehicle
while transportation. In any case you are not sure call
your dealer and ask for an explanation.
Controller
Programming Several parameters of the Proudrider Controller can be programmed with a special Programmer.
Programming should be done by trained authorized
technician only. Wrong programming can cause
abnormal operation of the Proudrider ,Harm persons
and Injury.
Performance
check It is very much recommended that when receiving as new or from another user or after a period of not using
the Proudrider a performance check will be made as
follows:
1. Switch on the main switch.
2. See that on the display panel – the battery indicator
is lit and the Ready/ON led is lit as well.
3. Squeeze the speed lever slowly and make sure that
the Proudrider is traveling with correspondence to the
squeezing on the lever.
4. Release the lever and make sure that the Proudrider
is stopping softly and that you hear a click coming
from the EMB engaging.
5. Make a check of all the buttons functions on the
handlebar.
6. Switch off the main key switch. Your Proudrider is
now ready to drive.
Pre-use
measures The user should know his weight and all other loads is lower than the maximum of 160 Kg (352lbs).
If not sure it should be measured.
19

Safety Belt
Assembling
(option)
If a safety belt is needed.
Secure a standard car Safety belt to the seat armrest
securing bolts (See 3.5 on Figure 6 ).
To transport the Proudrider in a motor vehicule , the
Proudrider has to be secured while traveling .
The Foot rest of the Proudrider should be tie down (6)
to the motor vehicle floor with a suitable restrain belts
and tight systems.
The Rear part of the Proudrider should be tie down (7)
as at the 2 Yellow Marks at the rear part of the
Proudrider in the lower part of the power unit .
The tie/restrain system should be with similar
components and securing ,like the ones used in
standard cars fasten belt.
Attaching the
Proudrider in
motor vehicle
for
transportation
Transportation To reduce the height of the Proudrider while
transporting it , The seat can be removed as explained
in chapter 3 : maintenance ,
And as well the Tiller can be folded to horizontal
position .
Figure 8
Shock
Absorbers
Adjust
It is possible to adjust the Shock Absorbers according to
the User Weight. Adjusting the shock absorber can be
done by a technician only
20
