Godex EZ-2 User manual

0
P/N. 920-010210-00
Edition 0
April 02
EZ-2/4 Manual
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

1
FCC COMPLIANCE STATEMENT
FOR AMERICAN USERS
Thisequipment hasbeen tested and found to complywith the limitsfora CLASS A digital device, pursuant to
Part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful
interference when the equipment isoperated in a commercial environment. This equipment generates, uses,
and can radiate radio frequencyenergyand, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. Operation ofthisequipment in a residential area islikely
to cause harmful interference in which case the userwill be required to correct the interference at hisown
expense.
EMS AND EMI COMPLIANCE STATEMENT
FOR EUROPEAN USERS
Thisequipment has been tested and passed with the requirements relating to electromagnetic compatibility
based on the standardsEN50081-1 (EN55022 CLASS B)and EN50082-1 (IEC Teil 2,3,4). The equipment also
tested and passed in accordance with the European Standard EN55022 forthe both Radiated and Conducted
emissionslimits.
Specifications are subject to change without notice.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

2
User s Manual
Bezeichnung
(Type Designation) :NW66-1355000UA ,AD-1354000AV ,NW66-1354000UA
Nennspannung
(Rated Voltage) :AC 230V, 50Hz
Nennausgangsspannung
(Rated Output Voltage) :AC 13.5V
Nennausgangsstrom
(Rated Output Current) :4A
Nennausgangsleistung
(Rated Output Power) :54VA
Schutzklasse
(Protection Class) :II
Kennzeichnung
(Characteristics) :Fail-Safe
1. Bitte lesen Sie diese Hinweise sorgfaltig durch.
2. DiesesGerät ist vor Feuchtigkeit zu schützen.
3. Die Belüftungsöffnungendienen zurLuftzirkulation,die dasGerätvor
Überheitzung schützen.
Sorgen sie dafür, daßdiese Öffnungen nicht adgedeckt werden.
4. Durch dieBelüftungsöffnungen dürfen niemals Gegenstände oderFlüssigkeiten in das Gerä
t
Gelangen.
5. DiesesGerätkann bis zueinerUmgebungstemperatur von maximal 25 Cbetrieben werden.
6. Die Ausgangswerte dürfen nicht die auf demTypenschild angegebenen Werteüberschreiten.
7. Die Steckdose mußsich nahe demGerät befinden und leicht zugänglich sein.
8. NurzurVerwendung in trockenen Räumen.
9. Eine beschädigte Anschlußleitung kann nicht erstzt werden.
Der Transformator darfnicht mehr betrieben werden.
10. DerAusgangsstromkreis mußnach den gültigen lnstallationsvorschriften installiert und
geschützt sein.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

3
GETTING TO KNOW THE PRINTER........................................................................................................................ 4
1. ABOUT THE PRINTER.................................................................................................................................................. 4
1-1. Introduction........................................................................................................................................................ 4
1-2. General Specifications ....................................................................................................................................... 4
1-3. About the QLABEL-II labeling Software .......................................................................................................... 4
1-4. About the EZ-2/4Windows drivers ................................................................................................................... 4
1-5. Contents of Package........................................................................................................................................... 5
1-6. Printer Parts........................................................................................................................................................ 5
1-7. Communication Ports Specification................................................................................................................... 6
2. SETTINGUP THE PRINTER ........................................................................................................................................... 7
2-1. Connecting the EZ-2/4 Printer to a PowerOutlet............................................................................................... 7
2-2. Connecting the EZ-2/4 Printer to a PC............................................................................................................... 7
2-3. Loadingthe EZ-2/4 Printerwith Labels............................................................................................................. 7
2-4. Testing the EZ-2/4 Printer.................................................................................................................................. 8
3. MAINTENANCE AND ADJUSTMENTS ........................................................................................................................... 8
3-1. Replacing the Label Roll.................................................................................................................................... 8
3-2. Howto cleanthe EZ-2/4printer head ................................................................................................................ 9
3-3. Howto clear a label jamin the EZ-2/4 Printer................................................................................................... 9
3-4. Label gapsensor adjustment .............................................................................................................................. 9
4. SOFTWARE COMMAND............................................................................................................................................. 11
4.1Introduction....................................................................................................................................................... 11
4.2Commanddescription........................................................................................................................................ 13
4-3. Examples.......................................................................................................................................................... 19
APPENDIX .................................................................................................................................................................... 21
A. PRINTER FONT......................................................................................................................................................... 21
B. TROUBLESHOOTING................................................................................................................................................. 22
C. TECHNICAL SPECIFICATION ..................................................................................................................................... 23
D. COMMUNICATION PORTS SPECIFICATION ................................................................................................................ 23
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

4
Getting to Knowthe Printer
1. About the Printer
1-1. Introduction
The label printer is available in two models EZ-2 and EZ-4 the onlydifference between the two models isthe
print width. This compact printer will enable you to automate a lot oftasks currentlyhandwritten saving time
and giving a more professional image.
The EZ2/4 isthe easiestway to produce high quality labels for a wide varietyof applications, the printerworks
with direct thermal labels eliminating the need for costlyink, toner and ribbons.
With the powerfull QLABEL-II software provided with everyprinter you can easilyproduce the following:
AddressLabels Barcode Labels Diskette Labels
File Labels Shelf Labels Shipping Labels
….. and manymore.
1-2. General Specifications
EZ-2 EZ-4
Print method Direct thermal
Max. paper width 2.36" (60 mm) 4.64" (118 mm)
Max. printing width 2.20" (56 mm) 4.09" (104 mm)
Max. print speed 2" per second (50.8 mm/Sec)
Dot density 203 dots perinch (8 dots permm)
Power requirement AC 13.5V ~ 16.0V; 3A~ 5A.
DC 18.0V ~ 24.0V; 3A ~ 5A AC 13.5V~ 16.0V; 4A ~ 5A. DC 18.0V ~ 24.0V; 4A ~ 5A
Sensor type Labelgap-sizing detector.
Print head life 50Kmetersprinting distance when applyon Thermal Labels
Dimension 144 Wx 215 H x 127 D mm ---
With internal
label roll
144 Wx215 Hx320 Dmm---
With external
label roll
198 W x 215 H x127 D mm ---With
internal label roll
198 Wx 215 H x320 D mm ---With
external label roll
Working Environment
Operating Temperature: 40oF to 104oF (5oC to 40oC)
Storage Temperature: -40oto 140oF (-40oC to 60oC)
Humidity: 10% to 90% non condensing, free air
Specifications are subject to change without notice.
1-3. About the QLABEL-II labeling Software
Every EZ-2/4 label printer issupplied with fully featured labeling software for windows 95, 98 and NT.Features
include the following:
Ø Windows software
Ø Easyto use no programming experience required
Ø True WYSIWYG (What you see iswhat you get)
Ø Sequential Numbering
Ø Bar codessupported: EAN 8 (add on 2 of5), EAN13 (add on 2 of5),
Code 39, Code93, Codabar, Code 128, EAN 128, UPC A, UPC E
Interleaved 2 of5.
Ø 2 DimensionalBar Codessupported: PDF 417, Maxicode.
Ø Postnet code &Royal Mail code supported.
Ø Variable data, Prompt at print time
Ø Import information froma Database using ODBC link
Ø Adjust print speed and darknessfromthe software
1-4. About the EZ-2/4 Windowsdrivers
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

5
A complete set of windows driversforwindows 3.1,95,98 and NT4.01
The EZ-2/4 drives will help you to print fromyour existing Windows applications.
1-5. Contents of Package
Fig. 1.5.1
Please check the contentsof the packet as attached.
1-6. Printer Parts
Using the following diagramto familiarize yourself with the featuresand componentsof the EZ-2/4printer (see
figure 1.6.1).
Fig. 1.6.1
Item Parts Description
1. Top cover Used to protect the printer head.
2. Label tear line Used to tearoffprinted labels.
3. Linerpaperoutput
Used to strip out the label fromthe liner paper. Linerpaperwill be stripped out
through thiswindow.
4. Powerlight Used to indicate power condition. When poweron, the light isgreen or red.
5 Feed button Used for manuallyfeeding out labels oradjusting labelposition.
6 Rear cover Used to protect the roller and labels.
7 Lock switch Used to lock the rearcover.
8 Printer mechanism The engine of the printer.
9 Label guide Label guide
10 Label spindle hole Used to locate the label roller in position
11 Stands for big roll oflabel The big label roll holder stands
12 Parallel printerconnector The printerport connector
13 Serial interface connector Connect with host serial port
14 Powerjack Connect the power cord to the unit
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

6
Item Parts Description
15 Powerswitch Turn printer power on/off
16 Print head release level To release label oradjust the label position.
17 Platen Roller Used to feed out paper
1-7. Communication Ports Specification
Parallel Port
Handshake : DSTB to printer and BUSYto host.
Interface cable : DB25 Male (IBM-PC)36 position parallel printer cable.
Pin out : PIN NO. FUNCTION TRANSMITTER
1 Strobe host
2-9 Data 0-7 host
10 N/C printer
11 Busy printer
12 Paper empty printer
13 Select printer
14-16 N/C
17 ChassisGround
18 N/C
19-30 Signal Ground
31 N/C host
32 Fault printer
33 Signal ground
34-36 N/C
Serial Port
Serial port is set at the factorywith 9600 baud-rate, no parity, 8 data bits, and 1 stop bit and usesXON/XOFF
protocol aswell as RTS/CTS.
The connector is RS-232 DB9 female. The pin assignmentsare listed below.
PIN NO.
1 2 3 4 5 6 7 8 9
NAME +5 V TXD RXD DSR GND DTR N/C DTR N/C
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

7
2. Setting up the Printer
2-1. Connectingthe EZ-2/4 Printer to a PowerOutlet.
1. Plug the power cord into a power outlet.
2. Plug the AC adaptercable into the power jackat the rearofthe printer
3. Turn the printer on bypressing the powerswitch.
4. The LED on the printer will turn red.
5. Proceed to 2-2 Loading your printer with Labels.
2-2. Connectingthe EZ-2/4 Printer to a PC
1. Be sure the printerispowered off.
2. Plug the power adapter into the printer power jack.
3. Connect the printer to the parallel interface on the PC (with the cable provided)
4. Power on. The LED light will be red (no label) or green.
2-3. Loading the EZ-2/4 PrinterwithLabels
Loading small-size label roll
1. Power on.

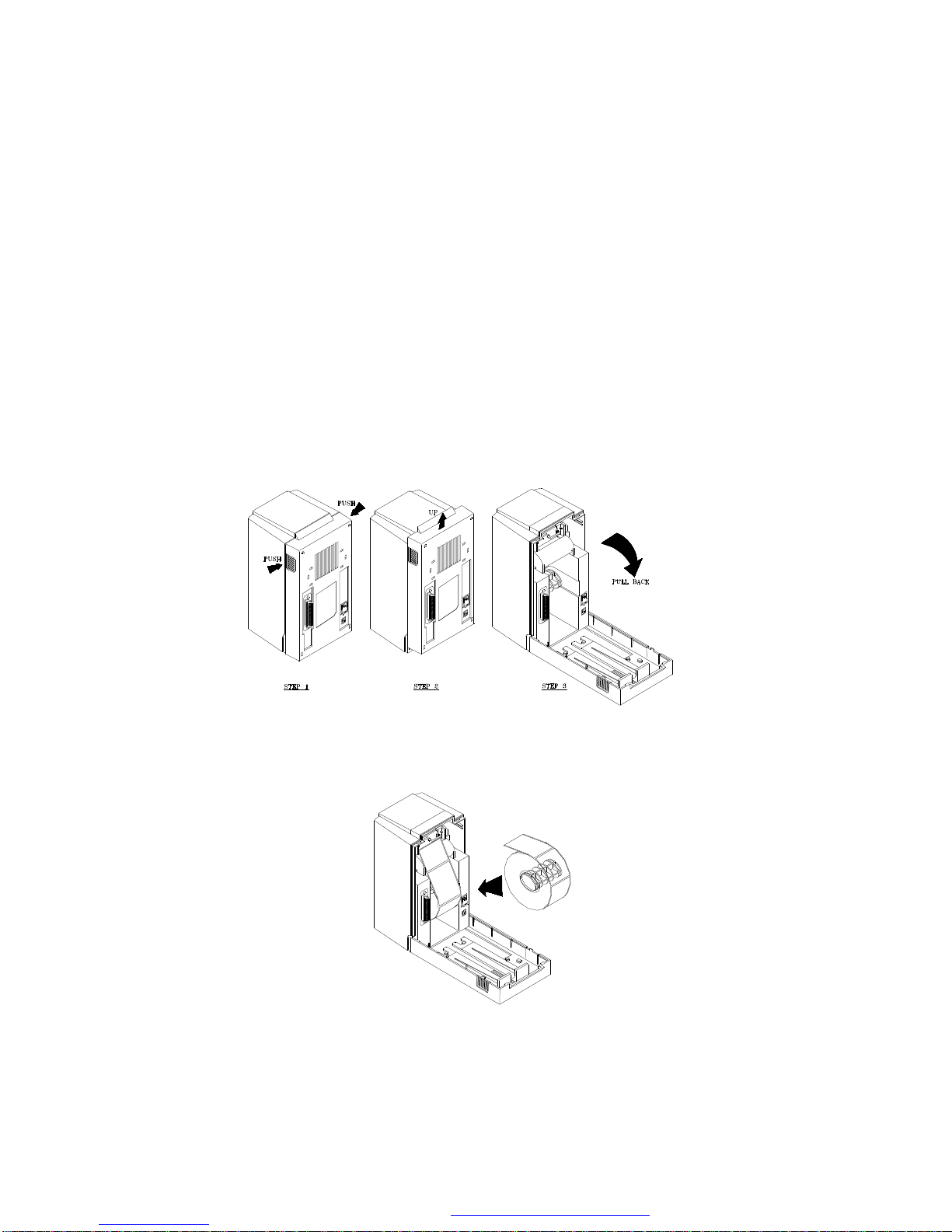

2. Pressthe two lock switches(part 6) and liftup a little to open the rear cover (see figure
2.3.1).
Fig. 2.3.1
3. Insert a small-size label roll onto the core shaft (see figure 2.3.2).
4. Place the roll into the groove.
5. Insert the edge oflabels into the label guide, until the edge isblocked bythe printhead.
6. Pressfeed button to drive the label (under the printhead) into the printer.
Fig. 2.3.2
Loading large-size label roll
1. Power on.
2. Pressthe two lock switches(part 6) and liftup a little to open the rear cover. (See figure
2.3.1)
3. Remove the label roll stands. Verticallyplace the two standsalong the left and right sides
Of the rearcover.

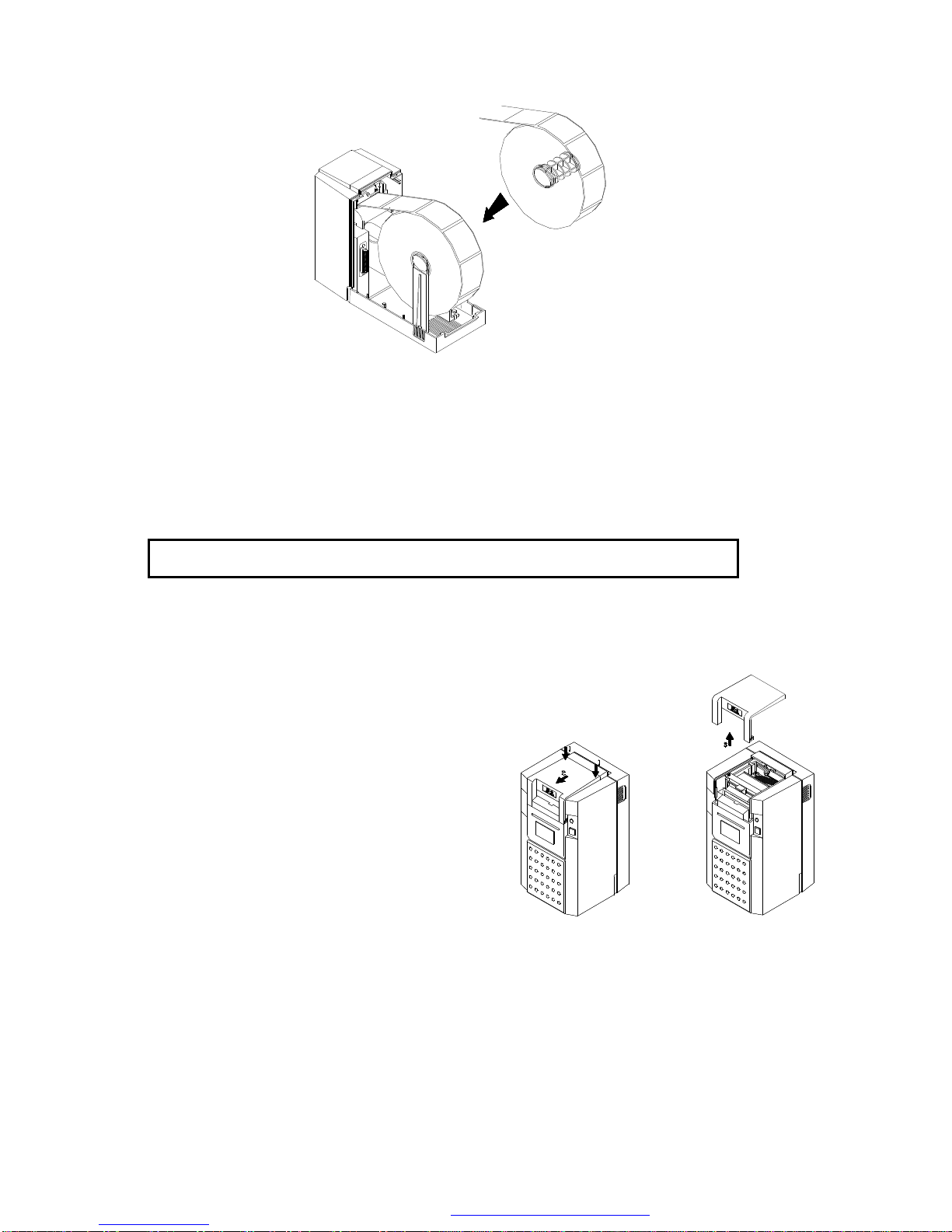

4. Place the large-size label roll on the stands(see figure 2.3.3).
5. Insert the edge oflabels into the label guide, until0l the edge is blocked bythe printhead.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

8
6. Pressfeed button to drive the label (under the printhead) into the printer.
Fig. 2.3.3
2-4. Testing theEZ-2/4Printer
The self-test function helps you checkifthe printer works normally.
To start the self-test function; please follow these steps.
1. Load the label.(As described in 2-3)
2. Power the Printer OFF (Wait 2 seconds)
3. Hold down the feed keyand Power the Printer ON.
4. Release the feed button. Wait a fewseconds, the printer will print the self-test.
Note: To Disable the Self-test, please power off the printer at least2 seconds,
than power on again.
3. Maintenance and Adjustments
3-1. Replacingthe Label Roll
A. EZ-2
11. Face the front side of the printer. Place your
thumbs on the top cover and the other fingerson
the left and right sidesof the printer.
12. Gently
pressdownthe top coverwith your thumbs,
and pull it toward you to remove the top cover.
(See figure 3.1.1)
fig. 3.1.1
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

9
B. EZ-4
13. Press and lift up the two lockswitches
(part 7) to open the rear cover .
14.
Liftthe print head release level, and then
you can drawout or adjust the label roll
(see figure 3.1.2).
fig. 3.1.2
3-2. Howtocleanthe EZ-2/4 printerhead
1. Remove the top cover.
2. Press your pointing fingeron “A”, move out the two plastic
fastenersfromthe retainer, and you can take out the retain
er
and the print head unit. (see figure 3.2.1)
3. Use soft cloth soaked in isopropyl alcohol, to rub off caught
labelsand cleans the surface. Reinstall the fastenersand
retainer.
fig. 3.2.1
3-3. Howtoclear a label jam in the EZ-2/4 Printer
1. Power offthe printer.
2. Remove the top cover and backcover.
3. Remove label roll.
4. Close the two label guides the wayas figure 3.3.1(1).
5. Make apart the two retaining clips fromthe assembly, bygentlypressing the clipsthe direction asfigure
3.3.1(2), and afterward by lifting thema little.
6. Lift the guide board the direction as figure 3.3.1(3).
7. Clean, with alcoholiccloth, the labeljamon the bottomofthe assembly.
8. Reassemble the printer
Fig. 3.3.1
3-4. Label gap sensor adjustment
Due to different quality labelsavailable it maybe necessary to makean adjustment to the label gap sensorfor
detecting the label gap. Anyadjustment must be made in well light room.
1. Remove top cover.
2. The top view shows the circuit board asindicated on figure 3.4.1.The Variable Resistor(VR)can be
adjusted the wayseither counter-clockwise forlowertransmit power (lesssensitivity) or clockwise for
highertransmit power(higher sensitivity). Each slight adjustment ofthe VR hasto be verified bypressing
the feed button at least 7 times.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

10
less
sensitivity
higher
sensitivity
Fig. 3.4.1
Thermal Plain paper
1. Load the paperunderthe sensor. Watch the feed LED (poweron LED) and it mayturn red or green. If
green, go straight to step 3.
2. Adjust the VR slowlyand pressthe paper feed button successfully(at least 7 times), until the LED light
turns green.
3. Remove the paper fromthe sensor, and press the feed button. If LED turnsred, the adjustment is done.
Otherwise, reverse the adjusting direction slowlyuntil the LED light turnsred, then repeat step 1.
Thermal Labels
1. Remove the sticker fromthe liner. Load the liner paperunderthe sensor.
2. Slowlyadjustthe Variable resistorand pressthe paperfeed switchsuccessively (at least 7times), until the
LED light turnsred.
3. Put the labelpaper (with labels on the liner)underthe sensor, then pressfeed button a fewtimes. If the
LEDlight turns green, you have finished the adjustment. Ifthe LED light isred, repeat step 2and 3until the
LED light turnsgreen.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

11
4. Software Command
4.1 Introduction
There are four basic types of software commands.
l One-byte onlycontrol codes, see table 3.1
l Set up commands, see table 3.2
l Label formatting commands, see table 3.3
l Buffermode commands, see table 3.4
The commands are expanded fromEsc code (decimal 27).
The commands operate in two modes.
l In the line mode, the printer actson the command received immediately. After power on, the printer is in
the line mode.
l In the buffer mode, the printer stores the lines ofcommandsfora label into the printerbuffer, then prints
multiple copiesof the label without pause. Onlythe label formatting commandscan be stored into the
printerbuffer.
Sign Function Description
♀FF (decimal 12) Formfeed
↵CR (decimal13) Carriage Return. This code moves the label to the next line and turnreverse
printing
off.
LF (decimal10) Line feed Table 3.1 one-byte control codes
Function Description Page
Esc Dn Set print darkness level. 13
Esc In Select one of9 countrycode charactersets. 13
Esc ?n Select one of9 barcode types 13
Esc Mnn Set left margin. 13
Esc Nnn Set the form feed length (01 to 25 mm) forplain thermal paperprinting. 13
Esc On Adjust the stop position ofthe label when in strip operation. 13
Esc ON Disable peeler mode. 13
Esc Qnnn Set stop position count (for Label and Blackmark paper) 14
Esc qnnn Set stop position count (for Label paper only) 15
Esc an Set start position. This command isapplied for micro-position adjustment. 15
Esc fnn Forward the paper. 15
Esc Rnn Backup the paper. 15
Esc Sn Set print speed. 15
Esc Xn Set the bar code X dimension 17
Esc xnw Adjust the narrow bar to wide barratio. 17
Esc Fn Select see through sensoror reflect sensor. 17
Esc C Cutting paper. 17
Table 3.2 Setup commands
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

12
Function Description Page
EscAhv Set size of ASCII characterorbar code. 17
EscA0n Set size of ASCII text. 17
EscV Turn on reverse printing. 17
Escv Turn offreverse printing .CR also turns off reverse printing. 17
Esc{xxx..} Treat xx between {xxx..} as barcode and prints human readable characters. 17
Esc ¦xxx..} Treat xx between lxxx..}asbar code and suppresseshuman readable characters. 17
EscGnnxx.. Graphics command. 17
EscLxxx Graphics command (onlyEZ/4). 17
Table 3.3 Format commands
Function Description Page
EscB Begin to store data in buffer (buffer size is 30K). 18
EscE Flag end of data to be stored in the buffer. 18
EscPnn Set the quantityof labels to print, up to a maximumof99. 18
Escpnnn Set the quantityof labels to print fromat least 100 to 999. 18
EscP00 Allows repeat printing of the same label bypressing the feed button. 18
Table 3.4 Buffer Mode Commands
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

13
4.2 Command description
Set up commands
The setup commandsmust be sent before the buffermode commandsor label formatting commands.
1. Esc Dn
Function : Set the print darknesslevel.
Parameter : n = 0 ~ 7 (5 isdefault value)
2. Esc In
Function : Select countrycode characterSets.
Parameter : n CountryCode Character Set
0 USASCII (8 bits) 256 characters
1 British (7 bits) 128 characters
2 German (7 bits)128 characters
3 French (7 bits)128 characters
4 Italian (7 bits) 128 characters
5 Danish (7 bits)128 characters
6 Spanish (7 bits) 128 characters
7 Swedish (7 bits) 128 characters
8 Swiss (7 bits) 128 characters
3. Esc ?n
Function : Select Bar code type.
Parameter : n Format
1 Code 128B/C
2 Interleaved 2 of5
3 Code 39 (default)
9 Code 93
K Codabar
U UPC A/E, UPC A/E + add on 2/5 (forEZ-4)
E EAN 8/13, EAN 8/13 + add on 2/5 (for EZ-4)
4. Esc Mnn
Function : Left Margin.
Parameter : nn = 01~99 millimeters(default value is03 mm)
5. Esc Nnn
Function : Setting form feed length for plain paper.
Parameter : nn = 01~25 millimeters
6. Esc On
Function : Extra Feed. (Set printerEZ-2S/EZ-4S on peelermode)
Parameter : If gap = 2 mm Ifgap = 3 mm
n = 1 8 mm n = 1 7 mm
n = 2 7 mm n = 2 6 mm
n = 3 6 mm n = 3 5 mm
n = 4 5 mm n = 4 4 mm
n = 5 4 mm n = 5 3 mm
n = 6 3 mm n = 6 2 mm
n = 7 2 mm n = 7 1 mm
Thiscommand must followEsc Qnnn or Esc qnnn.
7. Esc ON
Function : Disable peelermode. (EZ-2S/ EZ-4S)
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

14
8. Esc Qnnn
Function : Set Top-of-formlength for label paper or black-mark paper
Parameter : nnn = Q value
LABEL PAPER:
Label Height Q Value Label Height Q Value
6 mm Q=004 28 mm Q=160
7 mm Q=048 29 mm Q=152
8 mm Q=004 30 mm Q=144
9 mm Q=024 31 mm Q=136
10 mm Q=064 32 mm Q=128
11 mm Q=032 33 mm Q=120
12 mm Q=004 34 mm Q=112
13 mm Q=072 35 mm Q=104
14 mm Q=048 36 mm Q=096
15 mm Q=024 37 mm Q=088
16 mm Q=004 38 mm Q=080
17 mm Q=112 39 mm Q=072
18 mm Q=096 40 mm Q=064
19 mm Q=080 41 mm Q=056
20 mm Q=064 42 mm Q=048
21 mm Q=048 43 mm Q=040
22 mm Q=032 44 mm Q=032
23 mm Q=016 45 mm Q=024
24 mm Q=004 46 mm Q=016
25 mm Q=184 47 mm Q=008
26 mm Q=176 48 mm Q=004
27 mm Q=168 >=49 mm Q=384

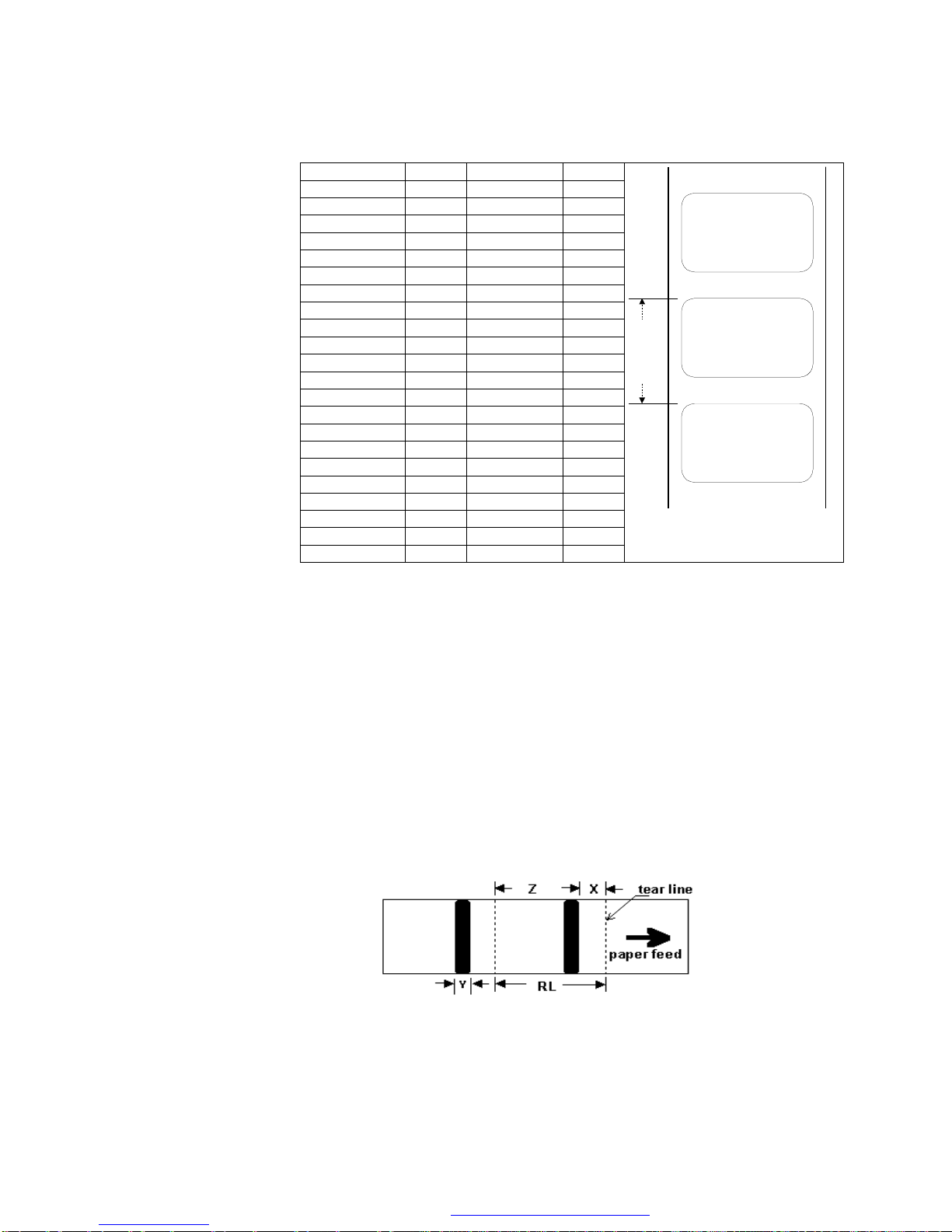

Label height
BLACK-MARK PAPER:
The width of black strip ofthe black markpapermust be greater than 4 mm.
The description ofthe symbolson the drawings--
Z = distance between tearline and the edge ofblackstrip against paper feed direction (in mm).
X= distance between tear line and the edge ofblackstrip frompaper feed direction (in mm)
Y= width ofblackstrip (in mm)
RL= distance between two tear lines (your label size length in mm)
Formula A:Q=(46-X-(INT((46-X)/RL)*RL))*8
Use for X< 46 mm and tear line is outside of black strip
INT: integer ; if Q <= 0, set Q=004
Example:
RL= 26 mmand X= 6 mm
Q=(46-6-(INT((46-6)/26)*26)*8
Q=(46-6-(INT((40/26)*26)*8
Q=(46-6-(1*26))*8
Q=(46-6-26)*8
Q=14*8
Q=112
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

15

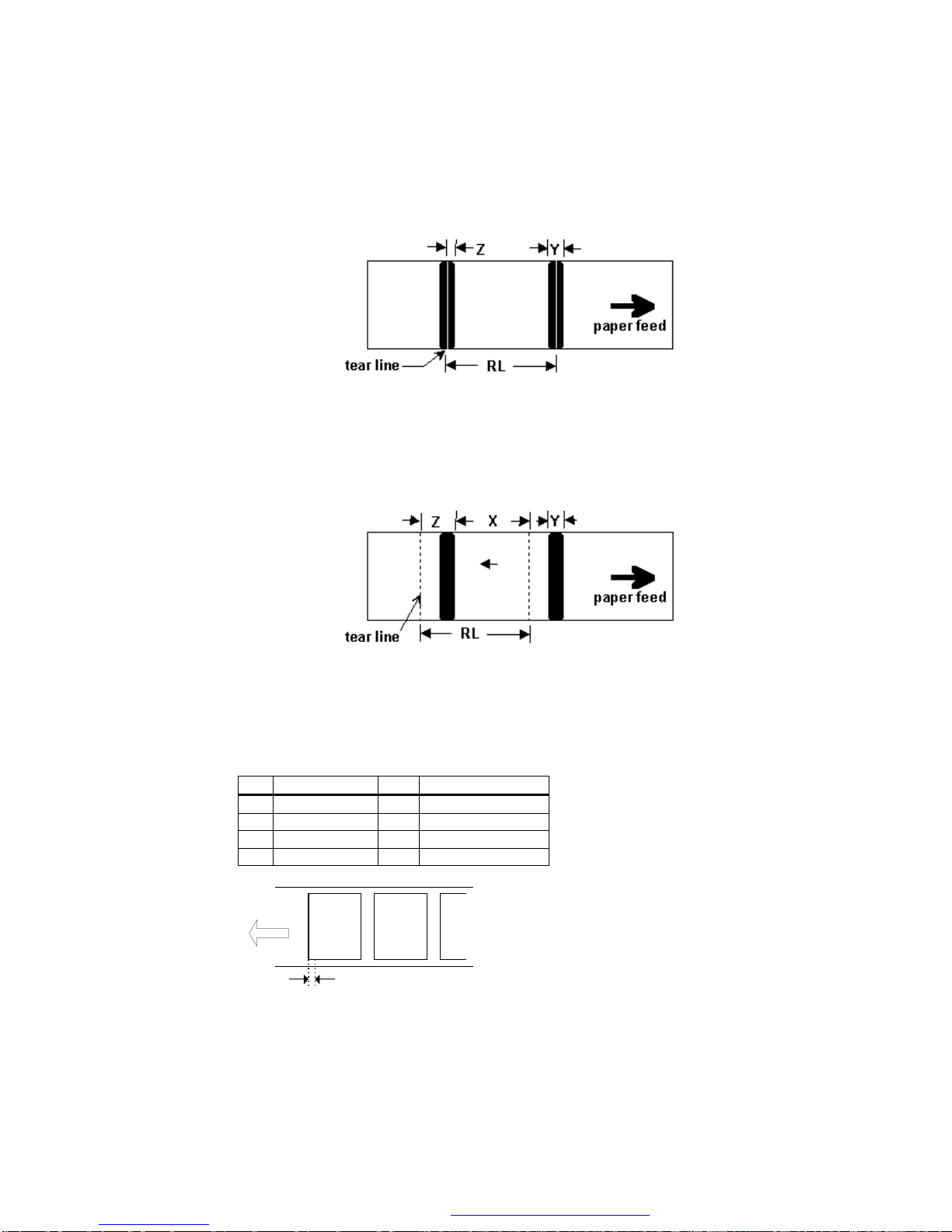

Formula B :Q= (46+Z-(INT((46-Y+Z)/RL)*RL))*8
Use for tearline is inside ofblackstrip or X> 46 mm
Example (1)tear line is inside of black strip
RL=26 mm , Z= 4 mm and Y= 6 mm
Q=(46+4-(INT((46-6+4)/26)*26))*8
Q=(46+4-(INT(44/26)*26))*8
Q=(46+4-(1*26))*8
Q=(46+4-26)*8
Q=24*8
Q=192
Example (2) X> 46 mm
RL=60 mm, Z= 7 mmand Y= 4 mm(X=53mm>46mm)
Q=(46+7-(INT((46-4+7)/60)*60))*8
Q=(46+7-(INT((49)/60)*60))8*
Q=(46+7-(0*60))*8
Q=(46+7-0)*8
Q=53*8
Q=424
9. Esc qnnn
Function : Set Top-of-formlength in millimeters.(Included label gap)
Parameter : nnn = label height
Example : ←q027 (Label length is 25 mm, label gap is2 mm, so control code is 027.)
10. Esc an
Function : Micro position adjustment.
Parameter : n = 0~7
nValue (dot) nValue (dot)
0 0 4 8
1 2 5 10
2 4 6 12
3 6 7 14
Example : ←a3 (Printing start position will be 6 dots fromedge oflabel)
LABEL
PAPER
OUT
edge of label printing start position
6 dots
11. Esc fnn
Function : Forward label.
Parameter : nn = 01~29 millimeters(The distance fromprint head line to label tear bar is 24 mm.)
12. Esc Rnn
Function : Back up label.
Parameter : nn = 01~29 millimeters
13. Esc Sn
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

16
Function : Set print speed.
Parameter : n=0;1 inch persecond
n=1 ;2 inchesper second
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

17
14. Esc Xn
Function : Barcode Xdimension (width). Use for Code 128 B/C, UPC A/E and EAN 8/13.
Parameter : n = 2 ~ 4 (2 isdefault value)
n = 2 2 dot Xdimension(default)
n = 3 3 dot Xdimension
n =4 4 dot Xdimension
15. Esc xnw
Function : Narrowbarto wide bar ratio. Use for Code 39, Code 93, Codabarand I2 of 5.
Parameter : n (narrow)= 2 ~ 4
w (wide) = 4 ~ 12
16. Esc Fn
Function : Select see through sensor orreflect sensor
Parameter : n=0 select see through sensor (default)
n=1 select reflect sensor
17. Esc C
Function : Cutting paper
Parameter : none

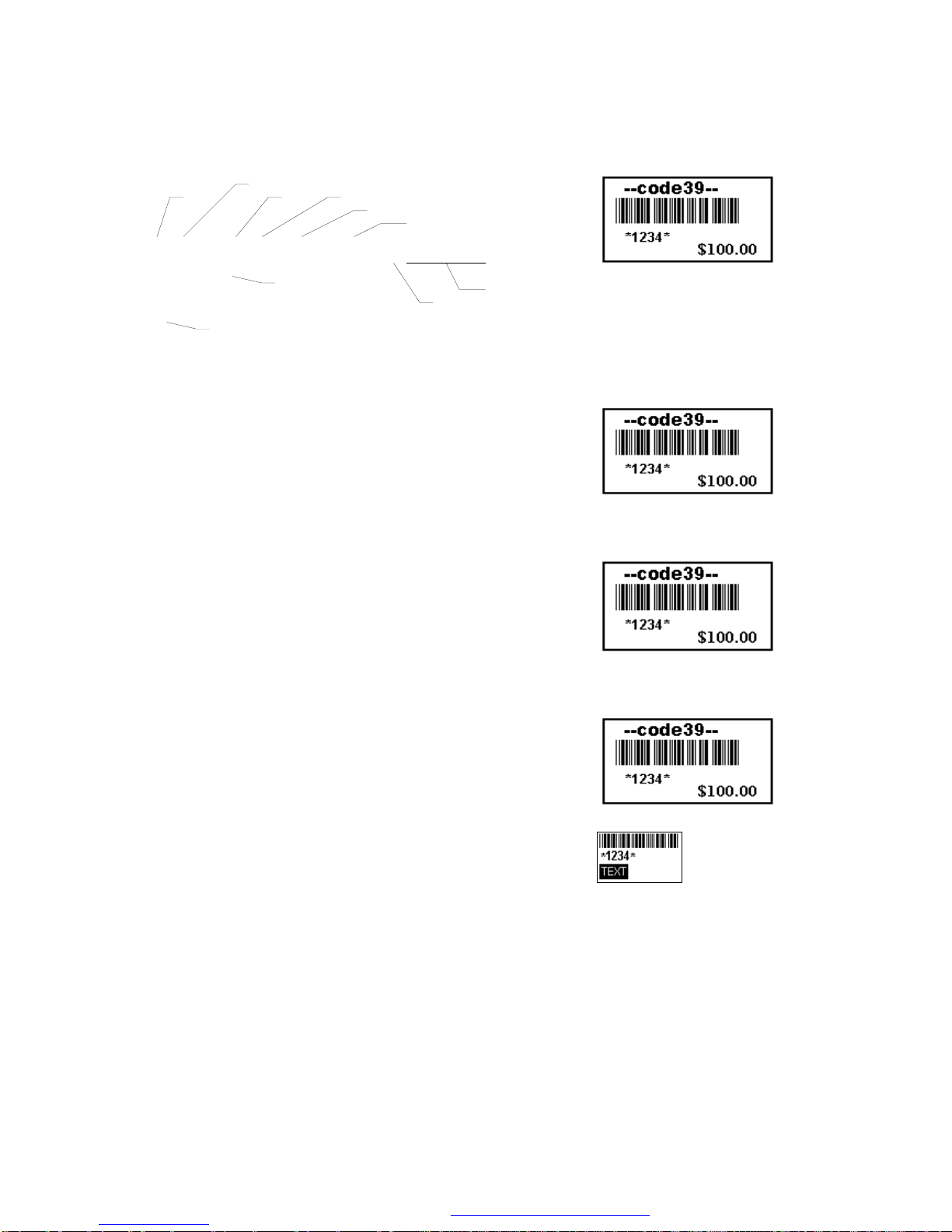

Label formatting Command
1. Esc Ahv
Function : Set size of ASCII characterorbar code; default size : A11(16x26 dot)
Parameter : h (horizontal expansion) = 1 ~ 4 (1 isdefault)
v (vertical expansion) = 1 ~ 8 (1 isdefault)
2. Esc A0n
Function : Set size of ASCII text.
Parameter : n = 0 ~ 4
nSize
0 1 xVertical expansion (8x10 dot)
1 1 xVertical expansion bolded
2 2 xVertical expansion bolded
3 3 xVertical expansion bolded
4 2 xVertical 2x horizontal expansion
3. Esc V
Function : Turn on text highlight printing. Normal Highlight
Parameter : none TEXT
4. Esc v
Function : Turn offtext highlight printing
Parameter : none
5. Esc {XXX...}
Function : Barcode with human readable.
Parameter : xxx…= barcode data
6. Esc XXX...}
Function : Barcode without human readable.
Parameter : xxx…= barcode data
7. Esc Gnnxxx
Function : Graphics command.
Parameter : nn = number ofgraphicbytes. The maximumof EZ-2 is 55, the maximumofEZ-4 is 98.
Use with the Esc Mnn command (Esc Maa+Esc Gbbxxx….)
EZ-2: aa+bb<=56, EZ-4: aa+bb<=99
xx..= the data represent one line ofgraphicpattern, each xis8 bits binarydata (1= black, 0=
white)
Example : ←G10AAAAAAAAAA ("A" ASCII code is 0X41 binary01000001)
←G10AAAAAAAAAA
←G10AAAAAAAAAA
Print result :
3 dots = 0.375mm
8. Esc Lxxx
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

18
Function : Graphics command (onlyEZ/4).
Parameter : xx.= the data represent one line ofgraphic pattern, each xis8 bitsbinarydata (1= black, 0=
white); always 104 bytes.
Example :
LAAAAA........AAA
LAAAAA........AAA
LAAAAA........AAA
LAAAAA........AAA
104 BYTES
Buffer mode Command
The buffer mode startswhen the printerreceivesthe buffer mode begin command EscB. In the buffermode
the printer stores the lines ofcommands for alabel into the printer buffer,then prints multiple copies of the label
without pause. Onlythe labelformatting commandscan be stored into the printer buffer.
1. Esc B
Function : Begin to Store data in buffer.
2. Esc E
Function : Ending of buffer mode.
3. Esc Pnn
Function : Set the quantityof labels to print. Do not send a CR/LF at the end ofthe command.
Parameter : nn = 01~99
4. Esc pnnn
Function : Set the quantityof labels to print. Be sure to send a CR/LF at the end of the command.
Parameter : nn = 100~999
5. Esc P00
Function : Allow repeat printing of the samelabel bypressing the feed
button. Ifyou use strip function, this
command can re-print the same label byremoving the loose label detected bythe sensor.
Example : ←B←S2←D5←Q128←?3←M18←A12—TEST↵
←{1234}↵
←M28$100.00↵
←E←P00
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

19
4-3. Examples
1. Using label paper
DOScommand: COPY TEST1.DATPRN
←Q176 ←S2←D5←?3←A12←M18--code39-- ↵
←{1234} ↵
←M28$100.00 ↵
label page size
speed darkness
barcode (code 39)
text or barcode size
left margin
data
Esc
Carriage Return
form feed
2. Using buffer mode
DOScommand: COPY TEST2.DATPRN
←B←D5←S2←Q176←?3 ←M18←A12-- code39 -- ↵
←{1234} ↵
←M28$100.00 ↵
←E←P10
3. Using cutter with plain paper
DOScommand: COPY TEST3.DATPRN
←N10←?3←M18←A12—code39 -- ↵
←{1234} ↵
←M28$100.00 ↵
♀
←C
4. Using peeler
DOScommand: COPY TEST4.DATPRN
←B←S2←D5←Q176←O3←?3←M18←A12-- code39 -- ↵
←{1234} ↵
←M28$100.00 ↵
←E←P10
5. Texthighlight with plain paper
←N15←S2←D5←?3←M18←{1234} ↵
←V←M18TEXT←v ↵
♀
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com
