1. Commands
1-1. EZPL
The EZPL (EZ Programming Language) isa high-level label definition and printercontrol language.
The features are:
1. The data fields are stored and processed until the printing instruction is received.
2. All the data can be rotated.
3. Images can be downloaded and stored.
There are three basictypesof commands:
• Setup
• Control
• Label format
Setup commands
Contain the printer control instructions, configurationinstructionsand image downloading instructions.
Description Command Page
1. Printing mode ^Ax 3
2. Stop position setting ^Ex 3
3. Setting Print darkness ^Hx 3
4. Number of pages printed ^Px 4
5. Label length ^Qx,y(,z±) 4
6. Speed setting ^Sx 4
7. Number of copies per label ^Cx 4
8. Rowcolumn adjustment ^Rx 4
9. Label format begin sign ^L 4
10. Stripper sensor ^Ox 5
11. Download label format ^Fname 5
12. Recall label format ^Kname 5
13. Label width setting ^Wxx 5
14. Number of labelspercut ^Dx 5
15. Serial Port translation setting ^Yp1.p2,p3,p4 5
16. Set the forward length ^Mx 6
17. Set the backward length ^Bx 6
Control commands
Cause the printer to take action immediately, such as cleaning memory, feeding label.
Description Command Page
1. Graphic download memory ~Ea, name, length 6
2. Bit-Mapped font download ~Jn 6
3. Graphic mode ~G 6
4. Print last label ~Px 6
5. Print version message ~V 6
6. Date / Time setting ~Dm,d,y,h,I,s 6
7. Reset printer ~Z 7
8. Printerhead testing ~T 7
9. Clear all ~MDEL 7
10. Clear memory ~MDELx,name 7
11. Rotate printing ~Rx 7
12. Print the available space and data name in the memory ~Xn 7
13. Acknowledge form RS-232 ~Kn 7
14. Row Offset Adjustment ~Q n 7
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

3
Labelformatting commands
Define field data, such as Line, Rectangle, Barcode, Text and image.
Description Command Page
1. Define date layout Daa|bb|cc 8
2. Serialnumber setting Cx,ys,±value,prompt 8
3. Terminate label formatting mode and print label E 8
4. Graphic command Gwxxx 8
5. Line command La,x, y, x1, y1 9
6. Rectangle Rx, y, x1,y1, lrw, ubw 9
7. Table Hx,y,row_count,col_count,row_width,col_width,line_wi
dth 9
8. Define time layout formatting Th|m|s 9
9. Graphics Yx, y, name 9
10. Text At, x, y, x_mul, y_mul, gap, rotation, data 10
11. Barcode Bt,x,y,narrow,wide,height,rotation,readable,data 10
12. PDG 417 Px,y,w,h,r,c,ec,len 11
13. Maxicode
Mx,y,sno, nos, mode, ccode, zip, class, rotation,
message 11
14. Define variable field Vxx, length, prompt 11
15. Pattern command Qx, y, width, height 11
16. Downloading character sets to memory Vt, x, y, x_mul, y_mul, gap, rotation, data 11
1-2. Language Description
Rules and syntax
EZPL commandshave parameter stringsassociated with them;
• The commands begin with a letteras ID for each function.
• The comma (,)is the delimiterto separate each parameter.
• The CR [Carriage Return: decimal (13), hex (oD) signifies the end of everycommand.
• Control and Setup commandsuse the tilde (~)and caret (^)prefix.
• Label Formatting commandshave no prefix.
Example: “~Ea,name,length “. ”E”is an image download command, and (a,name,length)are three parameters.
Setup commands
1. Printing mode
Syntax : ^Ax
Parameter : x = D or T
Description : x= D , Direct thermal mode
x= T , Thermal transfer mode
2. Stop position setting
Syntax : ^Ex
Parameter : X = 0~40 (unit : mm)
Description : Feed paperto desired stop position.
3. Setting Print darkness
Syntax : ^Hx
Parameter : X = 00 ~ 19
Description : Set printing darkness.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

4
4. Numberof pagesprinted
Syntax : ^Px
Parameter : x = 1 ~ 32767
Description : Set how manylabelsto print; and it will initiate the program.
5. Label length
Syntax :
^Qx,y(,z±)

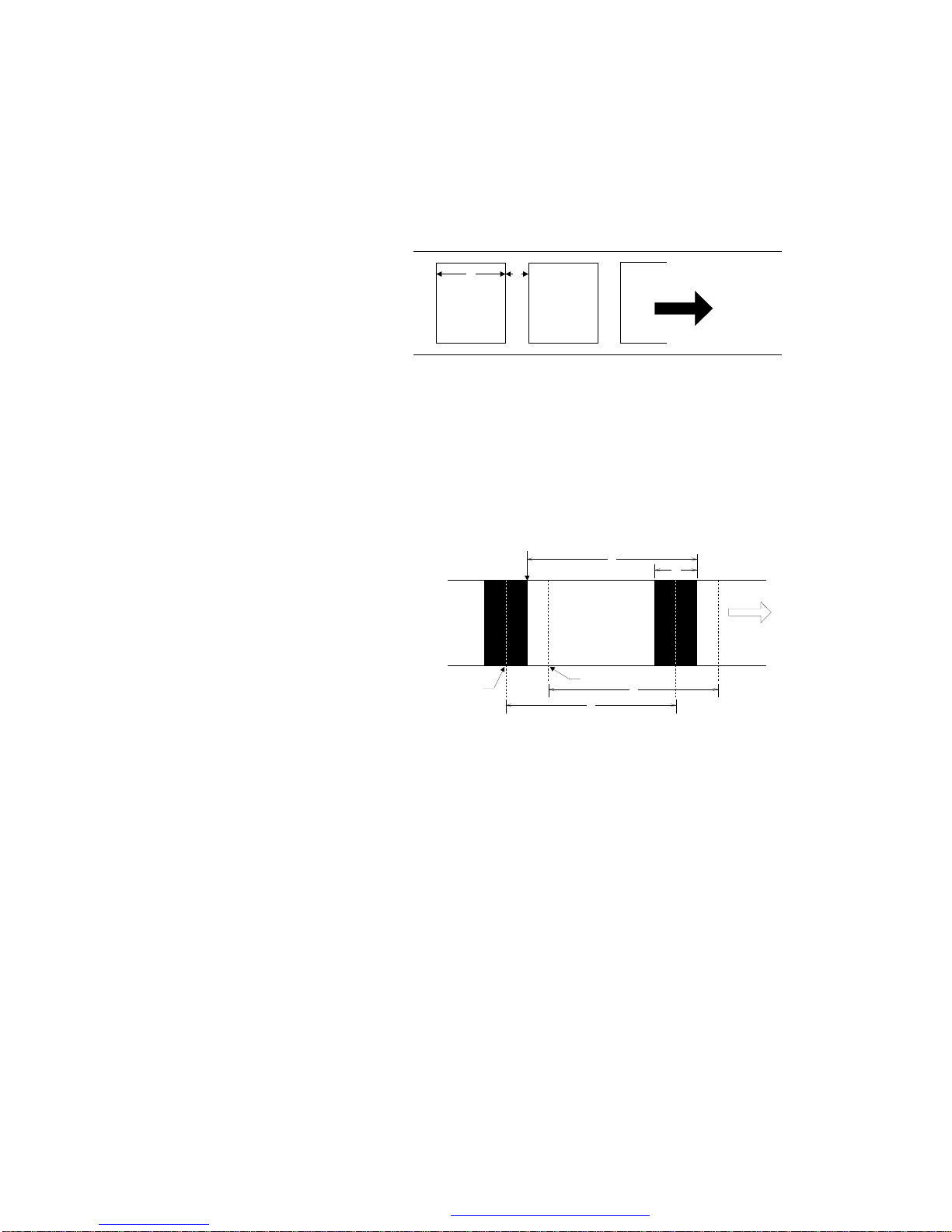

Die cut label (See fig. 1)
x = Label length (unit : mm)
y= Gap length (mm)
Parameter : EX.
^Q25,3
(x=25,y=3) mm paper feed
direction
x
y
Plain paper:
x = Label length (unit : mm)
y= 0 (constant)
z= Feed paper length (unit : mm)
Black mark label:
x = Label length (unit : mm)
y= Blackmark width (mm)
z= Blackline to top of form position.
z+ : When the position is outside the blackmark.
z- : When the position is within the blackmark.
EX.
^Q25,4,3+
(x=25, y=4, z=3+) mm
^Q25,4,3-
(x=25, y=4, z=3-) mm
y
paper feed
direction
x
^Qx,y,z+
^Q,x,y,0+
^Q,x,y,z-
x
x
Description : Set label size (length, gap length, [plain paper feed length])
6. Speed setting
Syntax : ^Sx
Parameter : x=1 to 6 (inch/sec)
Description : Set printing speed
7. Numberof copies per label
Syntax : ^Cx
Parameter : X = 0 ~ 32767
Description : Number of copiesof the same label.
8. Row column adjustment
Syntax : ^Rx
Parameter : x = 0 ~ 399 dots
Response : None
Description : Set left margin
9. Label format begin sign
Syntax : ^L
Parameter : None
Descripton : Set label begin sign
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

5
10. Stripper sensor
Syntax : ^Ox
Parameter : x = 0 , stripper disable.
x = 1 , stripper enable
Description : Enable ordisable the stripper sensor. When you use this command, it should be matched
with^Ex. (refer page 16)
11. Download label format
Syntax : ^Fname
data
Parameter : Name = name of label format (up to 20 characters)
Data = the data containing the label formatting command for this stored format
Description : Download label format into memory. Afterthe download is finished, the printer will beep once
(refer page 19). ^Fname
:
:
^L
:
:
E
Control/Setup command
Label format command
data
Same name inspection : If you use the same file name, the printerwill print”REPEAT FILE
NAME”, and the download will be not be accepted.
12. Recall label format
Syntax : ^Kname
Parameter : Name = name of recall label format (up tp 20 characters)
Description : Recall label format from external format (referpage 19)
^Kname
:
:
E
:
:
~Px
data
Control/Setup command [option]
13. Label width setting
Syntax : ^Wxx
Parameter : x=label width (mm)
Description : Label width setting
14. Numberof labels per cut
Syntax : ^Dx
Parameter : X = 0 , disable cutting.
X = 1 ~ 32767 , numberof label percut.
Description : Number of labels per cut (referpage 16)
15. Serial Port translation setting
Syntax : ^Yp1.p2,p3,p4
Parameter : p1 : Baud Rate (48 or96 or 19 or 38); 48=4800bps; 96=9600bps; 19=19200bps;
38=38400bps
p2 : Parity(N, O, E) ; N=none parity; O=odd parity; E=even parity
p3 : Numberof data bits(7 or8)
p4 : Numberof stop bits(1 or 2)
Description : SerialPort translation setting
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

6
16. Set the forward length
Syntax : ^Mx
Parameter : x = forward length (mm)
Description : Set the forward length of the paper
17. Set the backward length
Syntax : ^Bx
Parameter : x = backward length (mm)
Description : Set the backward length of the paper
CONTROL COMMAND
1. Graphic download memory
Syntax : ~Ea, name, length
Parameters : a = Por p : PCX file
a = B or b : BMP file
name : Name of image (up to 20 character)
length : Length of image (bytes), maximum 512K byte.
Description : Download monochrome image onto memory. Printer will beep 1 time after completely
downloaded. If you use the same file name, the printerwill show”REPEAT FILE NAME”, and
the download will be not be accepted (refer page18).
2. Bit-Mapped font download
Syntax : ~Jn
Parameters : n = character; From a ~ zorA ~Z; at least up to 26 characters.
Description : The command used for font loading isusuallygenerated byQlabel-III label creation
software. The printerwill beep once after downloaded. If you use the same file name, the
printer will show ”REPEAT FILE NAME”, and the download will be not being accepted. The
downloaded font are compatible with the HP Laser Jet II Plus(PCL-4).
Download the “HVR0OE1A.SFP”text file to external memorycard. Use “A”to do the
character code name.
Example :
~JA ; Define Aas HVR0OE1A.SFP
COPY HVR0OE1A.SFP PRN/B ; Send the orderwith the DOS mode
3. Graphic mode
Syntax : ~G
Parameter : None
Decription : Printer isin the image-receiving mode. Image data isdirectlysent from host to the printing
buffer (refer page 17)
4. Print last label
Syntax : ~Px
Parameter : x = 1 ~ 32767
Description : This command will repeatedlyprint the indicated copies of the last label format.
5. Print version message
Syntax : ~V
Parameter : None
Description : Print firmware version.
6. Date/Time setting
Syntax : ~Dm,d,y,h,I,s
Parameter : m =Month (01 to 12)
d = Date (01 to 31)
y= Year (last two digits of year)
h = Hour (00 to 23)
i = Minutes (00 to 59)
s = Seconds (00 to 59)
Description : Set real time clock.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

7
7. Reset printer
Syntax : ~Z
Parameter : None
Description : Reset the printer, the LED will flash once.
8. Printerhead testing
Syntax : ~T
Parameter : None
Description : Print a pattern forthe user to determine if the print head is damaged (referpage19)
9. Clear all
Syntax : ~MDEL
Parameter : none
Description : Clear all in the memory(not include Asia font)
10. Clear memory
Syntax : ~MDELx,name
Parameter : x = type
G, graphic
F, label form
E, Bit-Mapped font (not included Asia font)
name: The name of the graphic, formand Bit-Mapped font
Description : Able to delete individual files or erase entire flash memory.
Example : ~MDELG,Bus ; the graphic “Bus”will be deleted
11. Rotate printing
Syntax : ~Rx
Parameter : x = label width; from 1 to 104 (mm)
Description : Rotate the label format 180-degrees when printing (refer page 18). To return to the original
print direction, set the x value greaterthan 104 (ie. ~R105).
12. .Print the available space and data name in the memory
Syntax : ~Xn
Parameter : n = 1, print label format names and available space in memory.
n = 2, print graphic names and available space in memory.
n = 3, print Bit-Mapped font names and available space in memory.
n = 4, print the name of the label formats, graphics, fonts, and available space in memory.
n = 5, print Asia font names and available space in memory
n = 6, displaythe total printed length on the LCD
Description : Print the available space in the memorycard (unit: bytes)
13. Acknowledge from RS-232
Syntax : ~Kn
Pararmeter : n = 0, disable.
n = 1, enable.
Return value : Y8
Description : Acknowledge a “Y(0D0A)”from RS-232 backto host each printing label.
14. Row Offset Adjustment
Syntax : ~Q n
Pararmeter : n=-36 ~ +36
Return value : none
Description : If the printing doed not appear in the same place on everylabel, thiscommand instructsthe
printer to print label formats +n increments above the position the format specifies, and –n
decrementsbelowthe position the format specifies.
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

8
Labelformatting commands
1. Define date layout
Syntax : Daa|bb|cc
Parameter : aa = Year
y2 : Year with two digits (such as 97)
y4 : Year with fourdigits (such as1997)
bb = Month
me : Month in letters (JAN, FEB, .... )
mn : Month in numeric (01, 02, .... )
cc = 2 digitsday
|= Separator, can be anyASCII characterbetween decimal 32 to 63.
Description : Define the date layout for print out (referpage 14)
2. Serial number setting
Syntax :
Cx,ys,±value,prompt
Parameter : x: 0 to 9(up to10group), maximum combination up to 3 groups.
y: select the decimal
y= none, Decimal (0~9)
y= A, Hexadecimal (0~9,A~F)
y= C, 0~9, A~Z
s: start value of serial variable (up to 13-digit)
±value: inc. / dec. value of serial variable (up to 12-digit)
prompt: prompt of serial variable (up to 20 characters)
Description : Set the serial number (refer page 17)
Example : ^Q50,0,0
^W100
^S6
^H10
^E12
^P5
^L
C0,000,+1,AA
C1,AEE,+1,BB
C2,CZYY,+1,CC
AC,5,5,1,1,1,0,^C0^C1^C2
E
Printing result:
000EEZYY
001EFZYZ
002F0ZZ0
003F1ZZ1
004F2ZZ2
3. Terminate label formatting mode and print label
Syntax : E
Parameter : None
Description : End of formatting command; printerwill print label after receiving thiscommand.
4. Graphic command
Syntax : Gwxxx
Parameter : wxxx...
w : byte number of image data (xxx...)
Description : Thiscommand isa sub-command of ~GIt is sent bybinarydata. Wis the digits number byte of
image data (referpage 17). Forexample, if the image file is50 bytes, the command is G2xxx. (2:
ASCII is 50 decimal)
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

9
5. Line command
Syntax : La,x, y, x1, y1
Parameter : a = o, overwrite line
a = e, exclusive orline
x: left-up; per horizontal(Hori.)pos. (dot; 1mm=
8dots)
y: left-upper vertical (Vert.) pos. (dots)
x1: right-bottom Hori. Pos. (dots)
y1: right-bottom Vert. Pos. (dots)
Description : Define a line to renderin the label(refer page15)
** The diagonal line drawis not available **
6. Rectangle
Syntax : Rx, y, x1,y1, lrw, ubw
Parameter : x: left-upper Hori .pos. (dots)
y: left-upper Vert. Pos. (dots)
x1 : right-bottom Hori. Pos. (dots)
y1 : right-bottom Vert. Pos. (dots)
lrw : thicknessof left, right border(dots)
ubw : thickness of upper bottomborder
(dots)
(x,y)
lrm
ubw
(x1,y1)
Description : Draw a rectangle in the label (refer page 15)
7. Table
Syntax : Hx,y,row_count,col_count,row_width,col_width,line_width
Parameter : x: left-upper Hori .pos. (dots)
y: left-upper Vert. Pos. (dots)
row_count : numbe of rows
col_count : number of columns
row_width : row width
col_width : column width
line_width : line width
Description : Draw a table in the label.
Example : H20,20,2,3,30,20,10
8. Define time layout formatting
Syntax : Th|m|s
Parameter : h = Hour format ( 2 digits, 00 ~ 23)
m = Minute format ( 2 digits, 00 ~ 59)
s= Second format (2 digits, 00 ~ 59)
|= Separator (It can be anyseparator between dec. 32 to 63 of ASCII).
Descripton : Define the time layout forinternal real-time clock(refer page 14)
9. Graphics
Syntax : Yx, y, name
Parameter : x: Hori. Pos. of left-upper of graphics (dots)
y: Vert. Pos. of left-upper of graphics (dots)
name : Name of graphics download
Description : Thiscommand isprint a graphicthat hasbeen previouslystored in printermemory(refer page
18)
Example:
Agraphic in printer named “Graphic1”,
command Y20,40,Graphic1 ↵will put
this graphicinto label at position
(20,40).
(20,40)
x
y
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

10
10. Text
Syntax : At, x, y, x_mul, y_mul, gap, rotation, data
Parameter : t :Font(A~H for Code page 850; I forASCII)
Font Points Font style
A 6 CG Triumvirate
B 8 CG Triumvirate
C 10 CG Triumvirate
D 12 CG Triumvirate
E 14 CG Triumvirate
F 18 CG Triumvirate
G 24 CG Triumvirate
H 30 CG Triumvirate
I 16x26 dotsfor US ASCII 8 bit
t = Zn Asia font from 1 to 4
x : Horiof left-bottom position of text (unit : dot, 1 mm= 8 dots)
y: Vert of left-bottom position of text (unit : dot, 1 mm = 8 dots)
x_mul : Horizontally magnified up to 8 times as large
y_mul : Verticallymagnified up to 8 timesas large
gap : Distance of the character(unit : dot, 1 mm = 8 dots)
rotation : The rotation of ASCII text from0 to 3, the Asian text rotation form 0 to 7
0)0°1) 90°2)180°3)270°4) 0°5)90°6)180°7)270°
data : Data string (up to 239 characters).
1. Constant
2. Date information (^D)
3. Time information (^T)
4. Serial variable (^Cx)
5. Variable data (^Vxx)
Description : Printsan ASCII or ASIA text string (referpage14). The ASCII text oriented form left to right, the
Asian text from left to right ortop to bottom.
6. Barcode
Syntax : Bt,x,y,narrow,wide,height,rotation,readable,data
Parameter : t : bar-code type
A Code 39 L UPC E - Add ON 2
A2 Code 39 with checkdigit M UPC E - Add ON 5
B EAN 8 N I 2 of 5
C EAN 8 - Add ON 2 N2 I 2 of 5 with checkdigit
D EAN 8 - Add ON 5 O Codabar
E EAN 13 P Code 93
F EAN 13 –Add ON 2 Q Code 128 (auto subset A/B/C)
G EAN 13 –Add ON 5 Q2 Code 128 (subset A/B/C)
H UPC A R UCC 128
I UPC A - Add ON 2 S Post NET
J UPC A - Add ON 5 T DUN 14 ONLY90
K UPC E U EAN 128
V RPS 128
x : Hori. of left-bottom pos. of barcode (unit: dot, 1 mm = 8 dots)
y: Vert. Of left-bottom pos. of barcode (unit: dot, 1 mm = 8 dots)
narrow (xdimension): narrowbar from 1 ~ 10 dots (0.125 ~ 1.25 mm)
** DUN 14 narrow setting from 5 ~ 8 dots; UPC/EAN narrowsetting from2 ~ 4 dots**
wide : wide bar from 2 ~ 30 dots(0.25 ~ 0.5 mm) ; **CODE39, 93, CODABAR & I 2 of 5**
height : height of barcode from 24 ~ 1200 dots.
rotation : rotation of barcode (0 ~ 3)
0)0°1) 90°2)180°3)270°
readable : 0- label off, 1- label on
data : bar-code data.
1. Constant
2. Date information (^D)
3. Time information (^T)
4. Serial variable (^Cx)
5. Variable data (^Vxx)
Description : Used to print standard barcodes (refer page 14)
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

11
6. PDF 417
Syntax : Px,y,w,h,r,c,ec,len
Data
Parameters : x: Hori. of left-bottom pos. of barcode (unit : dots)
y: Vert. of left-bottom pos. of barcode (unit : dots)
w : Width (xdimension) of the narrowest element (bar orspace) in the barcode.
h : Height (ydimension) of each barcode row in the symbol.
r : number of barcode rows, from3 to 90. If you keyin 0, printer will count all the rows.
c: number of barcode columns, from 1 ~ 30. If you keyin 0, printer will count the all columns.
ec: errorcorrection level: 0 ~ 8.
len :number of encoded data bytes, including carriage returns ↵and line feed.
Data : data to be encoded(the length of the data isequal to len; up to 1024 characters)
Description : Print a 2 dimensional PDF417 code (refer page15)
7. Maxicode
Syntax : Mx, y, sno, nos, mode, ccode, zip, class, rotation, message
Parameter : x: Hori. of left-bottom pos. of barcode (unit: dots).
y: Vert. of left-bottom pos. of barcode (unit: dots).
sno : symbol number, in set of symbols 1 ~ 8.
nos : numberof symbols in set of symbols 1 ~ 8 sets.
mode : mode of maxicode 2, 3, 4 or6.
Ccode : 3 digits country code.
zip : postal code
9 digits forUSstyle postal code. If there isa 5 digits zip code, 4 zerosmust be padded
6 digits alphanumeric zip code for non-US style postal code.
class: service class, 3 digits numeric.
rotation : rotation of barcode (0 : 0°).
message : 1 ~ 84 characters.
Description : Print a 2 dimensional Maxicode (referpage15)
8. Define variable field
Syntax : Vxx, length, prompt
Parameters : xx = from 00 ~ 29
length = numberof characters (up to 98characters).
prompt = prompt of variable (maximum up to 20 characters)
Description : User defined variable field setting (refer page19 )
9. Pattern command
Syntax : Qx, y, width, height
Data...
Parameters : x= Hori. of left-bottom pos. (unit : dots).
y= Vert. of left-bottom pos. (unit : dots).
width = width of graphic (unit : byte)
height = height of graphic (unit : dots)
(data length = width xheight)
Description :
4
20
1 2 3 4
5 6 7 8
77 78 79 80
Data send out
1 2 3 4 ......77 78 79 80
width = 4 ; height = 20
(data length : 4x20 = 80)
(refer page18)
10. Downloading charactersetsto memory
Syntax : Vt, x, y, x_mul, y_mul, gap, rotation, data
Parameter : t: arbitraryname of font; from a ~ z(or A~ Z)
Description Download Bit-Mapped font to memory. All the parametersare the same asthe text command
Example : VA,5,10,1,1,1,0,data ;The arbitraryname of font “A”
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

12
1-3. Barcode
CODE SAMPLE CODE SAMPLE
Code 39 UPC E
Add on 2
EAN 8 UPC E
Add on 5
EAN 8
Add on 2
I 2 of 5
EAN 8
Add on 5
CODABAR
EAN 13 Code 93
EAN 13
Add on 2
Code 128
EAN 13
Add on 5
EAN 128
UPC A MAXICODE
UPC A
Add on 2
PDF 417
UPC A
Add on 5 UPC E
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

13

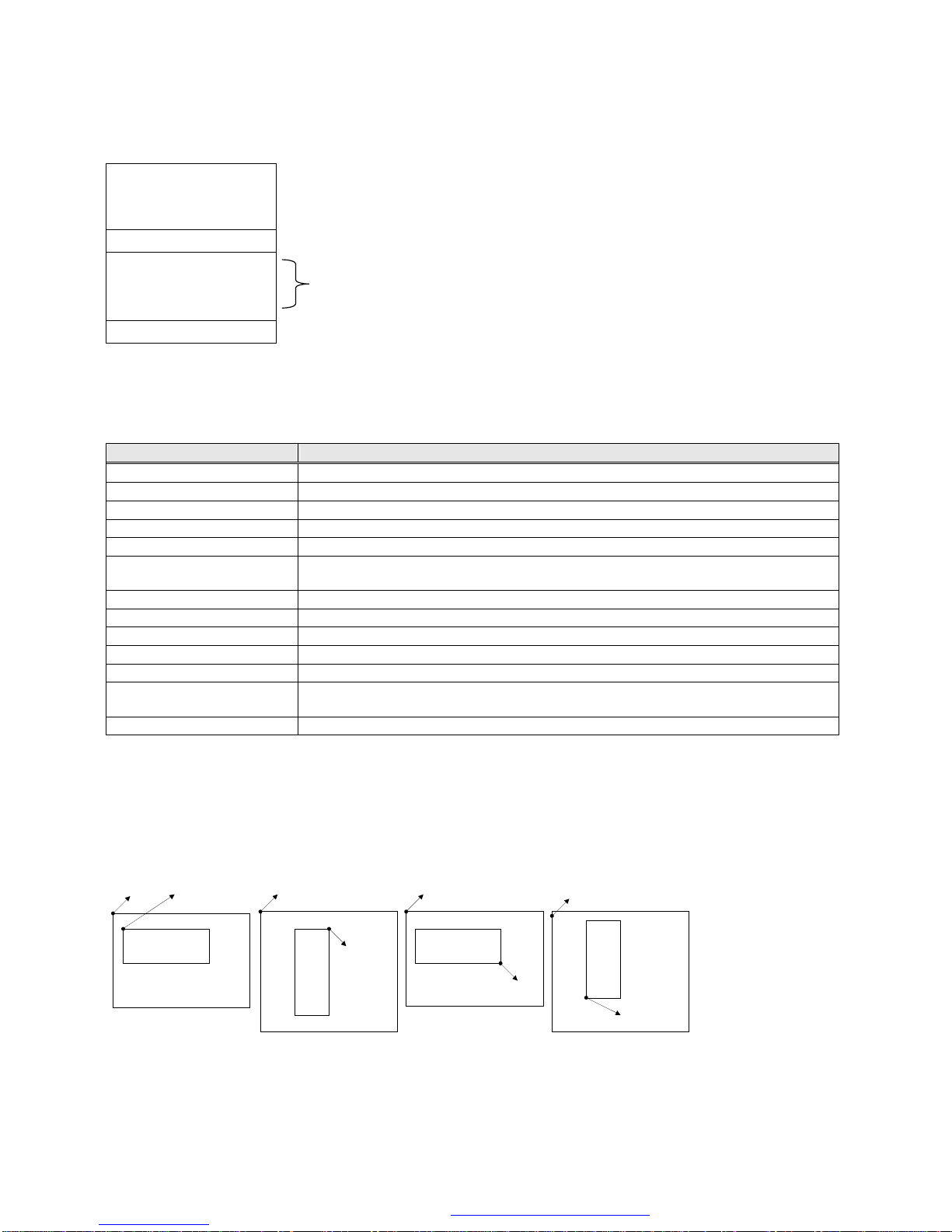

2. Examples
Howto constructalabel using EZ-Series command
To create a label, it must be an order command combination.
Control command
And
Setup up command
^L ^L isprecedent forthe beginning of label format
Label format command Label format command must be included
between the ^L and Ecommand
E E is ending of label format
** Control or setup commandsto be used in the label command area will be ineffective.
Example:
The following program example isprinting a label with EAN8. Program isa text file. No matter what language you
use in programming, simplysend out the text file of the contentsand you can control what the EZ-Seriesprints.
Save the following contents (command file named: EX1.TXT).
Programcommand Description
^Q25,3 Setting up the height 25mm, gap 3mm
^W32 Setting up the width 32mm
^H10 Setting up the darkness 10
^S6 Setting up the speed 6 inchespersecond
^P1 Setting up the numberof printing 1
^E10 Setting up the paper advance length to 10 mm from the print head after printing.
The label will move back10 mm when the next label is printed.
^C1 Setting up the numberof copies (start value is 1)
^O0 Setting up the auto stripper function to be turned OFF
^R0 Setting up the left margin 0 dot
^D0 Turning the cutting function off
^L The label content of start symbol
BB,42,39,2,5,100,0,1,12345
67 Select EAN8 label, data content is 1234567(See Charapter 2 section 2)
E Label content of stop symbol
The label can be created bythe following MS-DOS command:
C:\>COPY EX1.TXT PRN↵
To send the label to serial port bythe following MS-DOS command:
C:\>MODE COM1 96,N,8,1
C:\>TYPE EX1.TXT >>COM1
Setting thexand yvalues:
abcd
(x,y)
(0,0)
abcd
(x,y)
(0,0) (0,0) (0,0)
abcd
(x,y)
abcd
(x,y)
0°
90°
180°
270°
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

14
1. Text Example Result Rotate printing Result
^Q50,0,2 PRINTER
^W50 AUG/27/00
^S6 08:39:36
^H10
^R10
~D8,27,00,8,39,36
^L
AC,10,10,1,1,1,0,PRINTER
AC,10,50,1,1,1,0,^D
AC,10,100,1,1,1,0,^T
E
^Q50,0,0
^W50
^S6
^H10
^L
AC,100,30,1,1,1,0,ROTATION 0
AC,40,20,1,1,1,1,ROTATION 90
AC,260,150,1,1,1,2,ROTATION
180
AC,290,200,1,1,1,3,ROTATION
270
E
ROTATION 0
ROTATION 90
ROTATION 180
ROTATION 270
Adjusting the character
spacing Result Asia Font Result
^Q30,0,0
^W50
^S6
^H10
PR I N T E R
^L PRINTER
AC,10,10,1,1,10,0,PRINTER
AC,10,100,1,1,1,0,PRINTER
E
^L
AZ,100,12,1,1,0,4,中文
AZ,220,50,1,1,0,5,中文
AZ,75,83,1,1,0,6,中文
AZ,121,144,1,1,0,7,中文
E
l The data output isa default setting and user can change it with~D command (refer page8).
l The time output format is a default setting and usercan change it with T command.

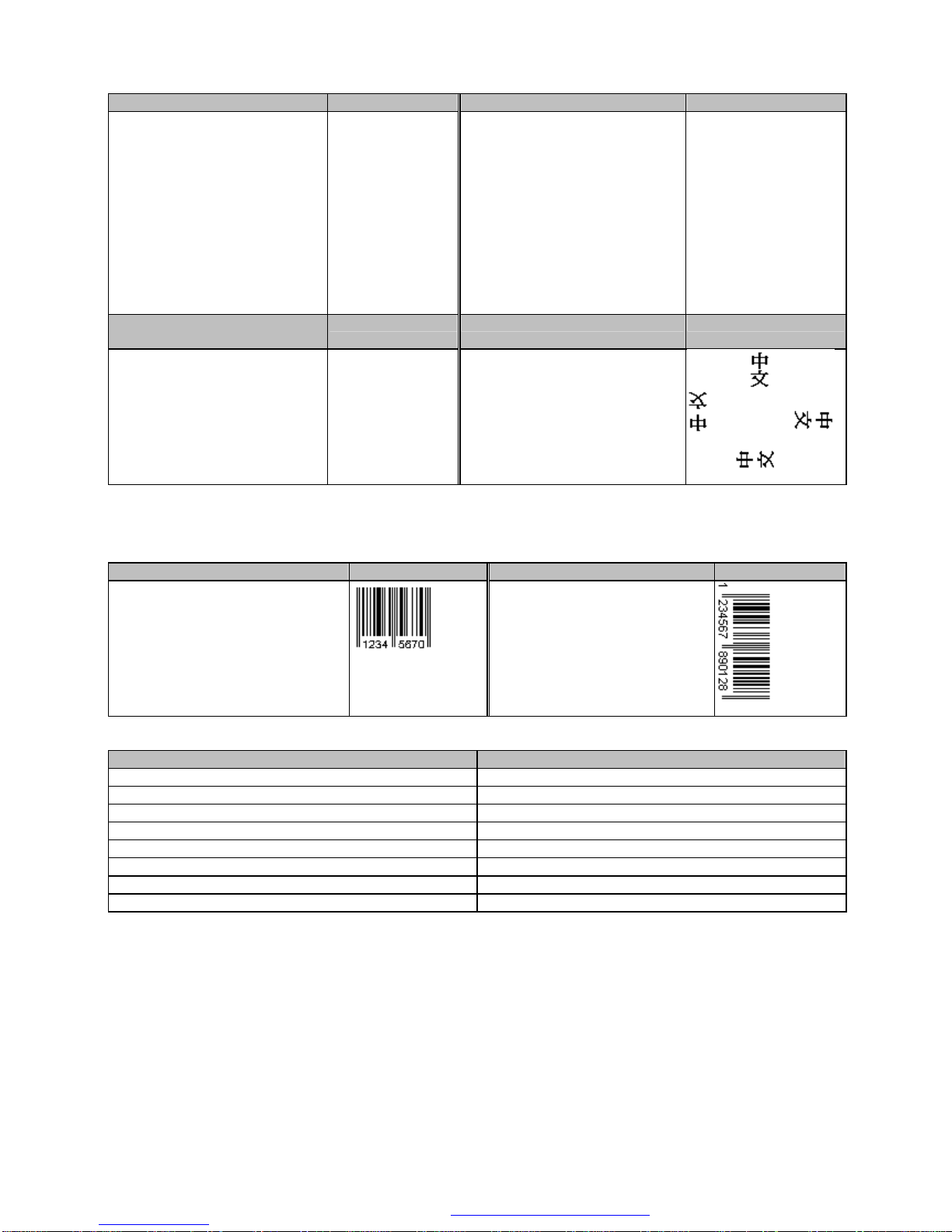

2. Barcode Example Result Rotation of barcode Result
^H10
^S6
^Q30,0,2
^W60
^L
BB,20,100,3,3,100,0,1,1234567
E
^H10
^S6
^W25
^Q30,0,2
^L
BE,100,20,2,4,80,1,1,123456789
012
E
3. RTC Setting
Change the date formatting Result
Dy4-me-dd 2000-MAY-29
Dy4/mn/dd 2000/05/29
Dmn|dd|y4 05|29|2000
Dy4 2000
Dme MAY
Ddd 09
Dy4,me 2000-MAY
Dme-dd MAY-29
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

15
4. Line printing
Example Description Result
^Q50,3
^W100
^E32
^H7
^P1
^S6
^L
LO,212,45,311,53
LO,244,11,252,128
LE,34,43,149,51
LE,72,8,80,121
E
; Darkness= 6
; Speed = 2 inch/second
; Label height = 50mm, gap = 2 mm
; Label width = 60mm
; (x,y)=(10,10), (x1,y1)=(60,200)
; (x,y)=(100,10), (x1,y1)=(400,200)

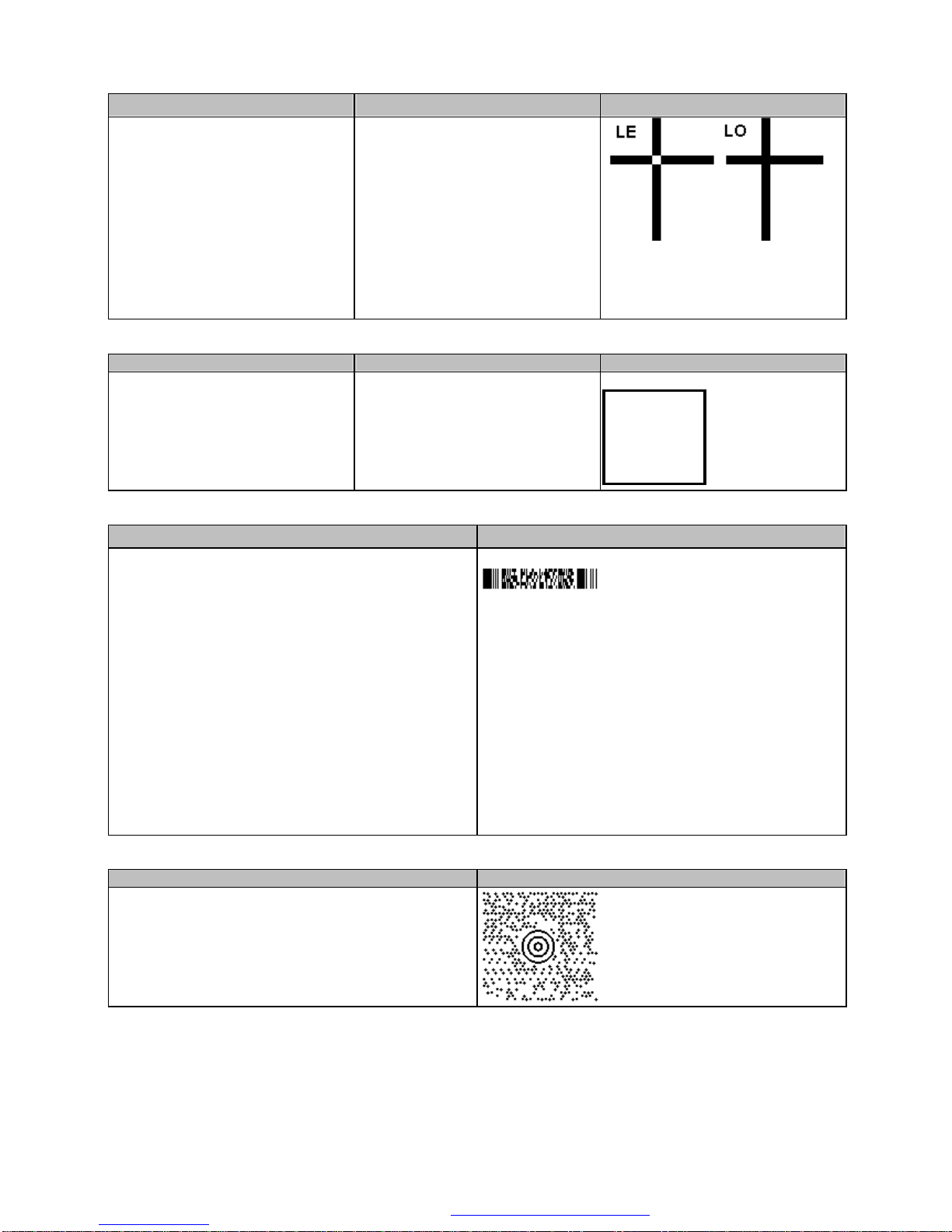

5. Rectangle printing
Example Descripton Result
^H10
^S6
^Q50,2
^W70
^L
R20,20,120,120,8,8
E
; Darkness = 4
; Speed = 2 inch/second
; Label height = 50mm, gap = 2 mm
; Label width= 70mm
; (x,y) = (20,20),
(x1,y1) = (120,120)
lrw= 8 dots, ubw = 8 dots
6. PDF417
Example Result
^Q50,0,3
^W70
^S6
^H10
^L
P30,20,3,3,3,3,1,100
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
12345678
E
7. Maxicode Example Result
^Q50,0,0
^W70
^S6
^H10
^L
M30,20,1,1,2,840,068107317,8,0,123456
E
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

16

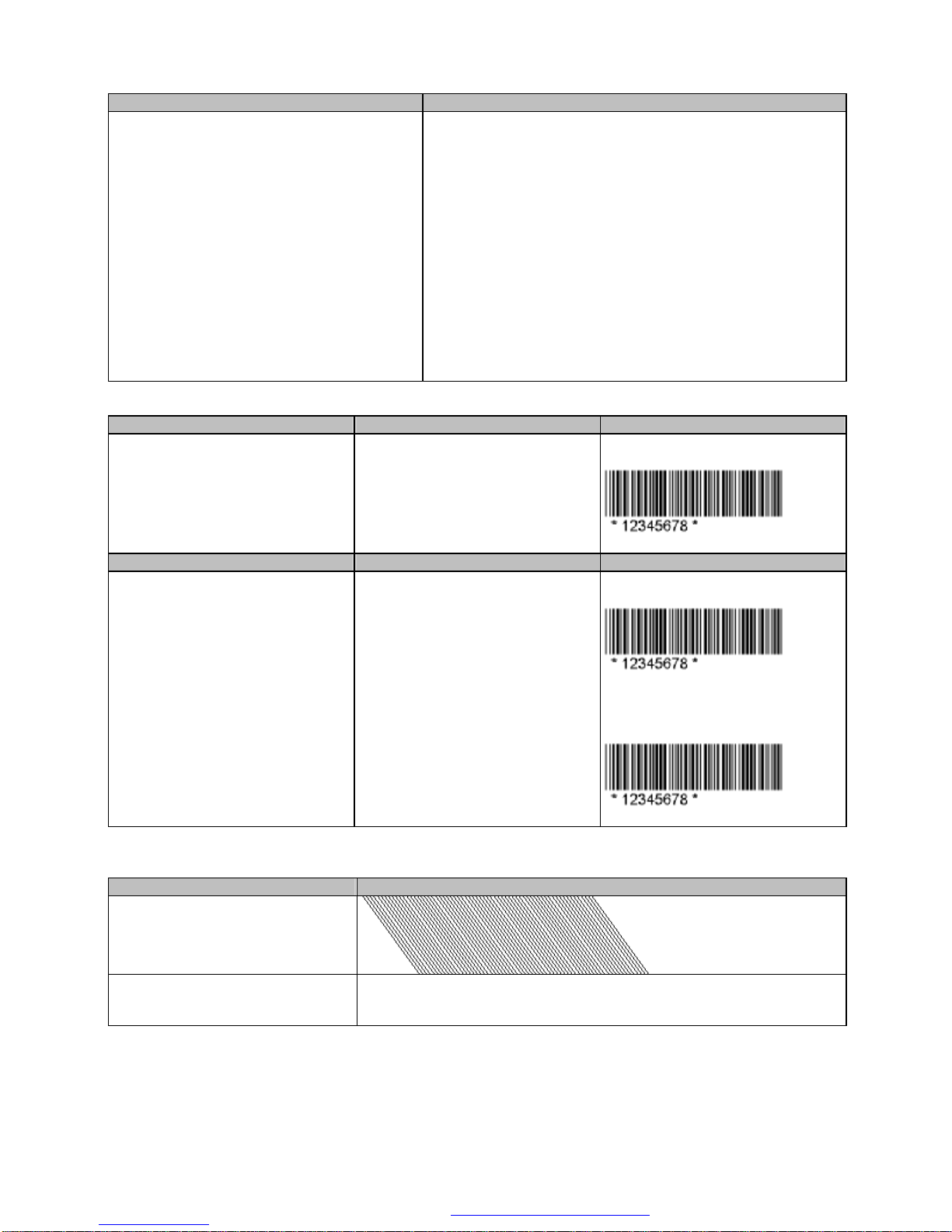

8. Stripper setting Example Result
^Q50,2 ; Label height= 50mm, gap=2mm
^W50 ; Label width= 50mm
^S6 ; Speed =2 inch/second
^O1 ; Stripper enable
^E10 ; Set stop position to 10 mm
^P1 ; Printing one label
^H10 ; Darkness = 5
^L ; Label format begin sign
AD,20,20,1,1,3,0,StripperFunction
E ; Label format end and begin print
9. Cutter setting
Example Description Result
^Q20,0,0
^H5
^S2
^P10
^D2
^C1
^L
R10,10,120,90,2,2
C0,001,+1,A1
AC,20,30,1,1,1,0,a^C0
E
;plain paperlength:20mm
feed label length :0mm
;print 10 labels
;2 labelspercut
a001
a002
a003
a004
a005
a006
a007
a008
a009
a010
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

17

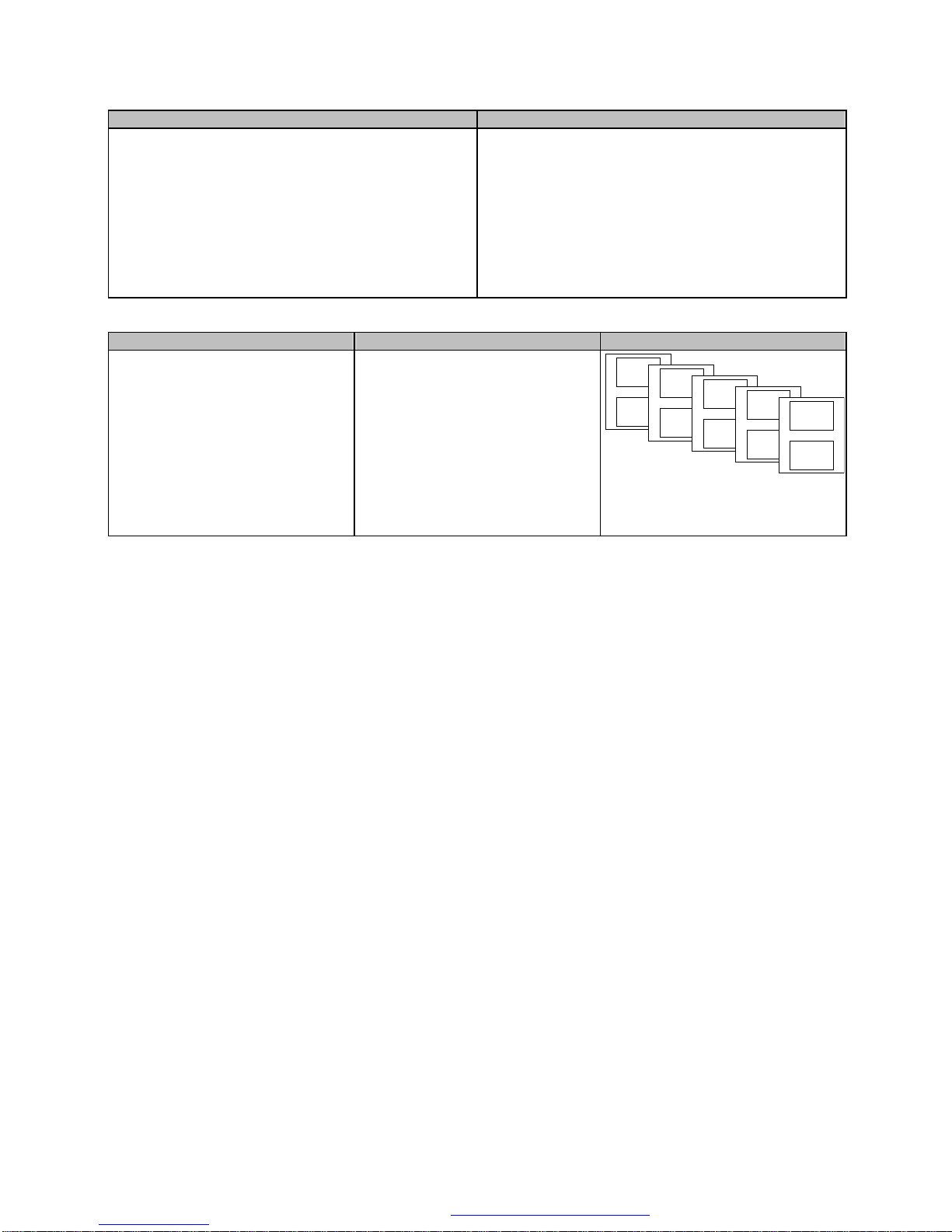

10. Serial number TEXT
Example 1 Result Example 2 Result
^Q10,0,0 0000 ~P10 0018
^W30 0002 0020
^S6 0004 0022
^H10 0006 0024
^P10 0008 0026
^L 0010 0028
C0,0000,+2,A1 0012 0030
AB,10,10,1,1,2,0,^C0 0014 0032
E 0016
If you want to continue printing 10
more serial numbersstarting from
0018, enterthe command “~P10”.
With thiscommand you do not have
to re-enterall the prior
specifications. 0034
0018 0036
Example 3 Result Example 4 Result
^Q10,0,0 0000 ^Q10,0,0 abc0000def
^W30 0000 ^W30 abc0002def
^S6 0002 ^S6 abc0004def
^H10 0002 ^H10 abc0006def
^P4 0004 ^P8 abc0008def
^C2 0004 ^L abc0010def
^L 0006 C0,0000,+2,A1 abc0012def
C0,0000,+2,A1 0006 AB,10,10,1,1,2,0,abc^C0def abc0014def
AB,10,10,1,1,2,0,^C0 E
E
Barcode
Barcode with serial number Result
^H10
^S6
^Q20,0,2
^W50
^P10
^L
C0,000,-1,A3
BE,20,100,3,3,100,0,1,111111^C0111
E
11. Graphic driver format Example Description
^Q20,2
^W50
^R20 ; Left margin = 20 dots
~G
For thisexample, ASCII “(“characteris 40
decimal (=40 bytes). Total 14 lines, so the
graphics height is1.75mm (14 dots)
Result
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
G(AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
E
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

18
12. Pattern command setting
Example Result
^Q,20,0,0
^W40
^S6
^D5
^L
Q40,10,2,8
GGGGGGGGGGGGGGGG
E
Length: 2x8=16
Description
HEIGHT = 8 DOTS
0100011101000111
0100011101000111
0100011101000111
0100011101000111
0100011101000111
0100011101000111
0100011101000111
0100011101000111
1BYTE
WIDTH = 2BYTES
1BYTE
G: 01000111 (binary)
8dots
2mm

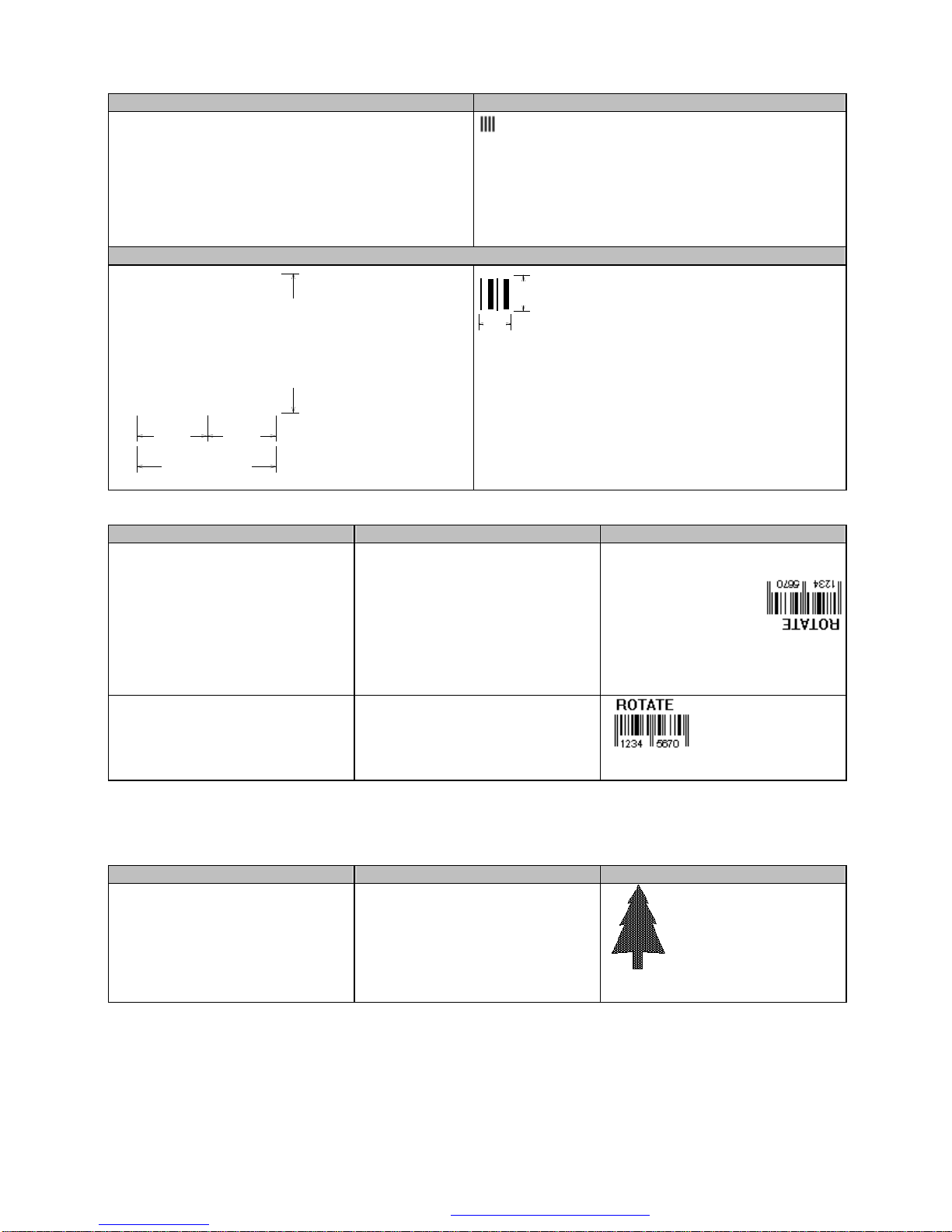

13. Rotate label format for printing
Example Description Result
^Q40,2
^W50
^S6
^H10
~R50
^L
AC,35,11,1,1,1,0,ROTATE
BB,20,45,2,5,50,0,1,1234567
E
; Label size is 40 mm(h) x50 mm(w);
2 mm gap
; Rotate the label format 180∘for
printing
~R105
^L
AC,20,10,1,1,1,0,ROTATE
BB,20,45,2,5,50,0,1,1234567
E
; Disable the rotate function
14. Download graphic to printer s memory
Following the belowstepsto download graphic to printer.
1. Be prepared a graphicfile (file name: TREE.PCX, file size: 922 bytes).
2. Be prepared two text files(TEST1.TXTand TEST2.TXT, see the following contents).
TEST1.TXT TEST2.TXT PrintResult
~EP,TREE,922 ^Q30,0,0
^W50
^S2
^H5
^L
Y30,50,TREE
E
1. In DOSmode, running the following commands.
COPYTEST1.TXT PRN↵
COPYTREE.PCX PRN/B↵
COPYTEST2.TXT PRN↵
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com

19
15. Download label and variable settings
Example Description
^Ftest
^Q50,0,15
^W70
^H10
^S6
^E12
^L
; Download labelto memorycard and the label name is “test”.
C0,0000,+1,serial no. ; Setting serial numberis C0
V00,10,name
V01,8,barcode
V02,6,price
; Setting three variablesV00, V01, V02
AE,108,306,1,1,1,0,$^V02
AC,39,27,1,1,1,0,S/N.^C0
AD,126,78,1,1,1,0,^V00
BA,108,135,2,5,100,0,1,^V01
E
16. Recall label format from memory
Example 1 Description Result
^Ktest
0000 Recall label format without changing the label format
Book C0 = 0000
12345678 V00 = book
200.00 V01 = 12345678
E V02 = 200.00
~P1
S/N.0000
book
$200.00
Example 2 Description Result
^Ktest
1111
Pencil
12345678
100.00
E
Recall label format and change label
format
C0 = 1111
V00 = pencil
V01 = 12345678
V02 = 100.00
^Q35,0,0 Changing the size
^S6 Changing speed to 6”/sec
^H10 Changing darkness to 10
~P2 Printing the last label twice
S/N.1111
Pencil
$100.00
S/N.1112
Pencil
$100.00
Each time you change variable data or label format, repeat to send command from ^Kname to~Px.
17. Print head test& Version list
Example Result
~T
~V # # # EZ-4206 # # #
# # # VER. X.XX # # #
PDF created with FinePrint pdfFactorytrial version http://www.fineprint.com
