Owner’s Manual
Model GR595
Golden Technologies - 401 Bridge Street - Old Forge, PA - Tel: [phone] - Fax: [phone] - www.goldentech.com

2
Thank you for purchasing your Golden Eagle Scooter. We are honored you have chosen
Golden Technologies for your mobility needs.
Golden Eagle Model GR595
Standard Packing List:
1 Owner’s Manual
1 Front Basket
2 Mirrors (Screw in style)
1 Seat Assembly
1 Safety Flag
2 Keys
1 Battery Charger
1 Cell Phone Holder
1 Rear Storage Compartment
DISCLAIMER
We ask that you read this manual completely before operating your new Golden
Eagle. Golden Technologies, Inc. is not and cannot be held responsible for any damage or
injury incurred due to improper or unsafe use of the Golden Eagle scooter. Golden
Technologies, Inc. specifically disclaims responsibility for any bodily injury or property
damage that may occur during any use that does not comply with applicable federal,
state, or local laws or ordinances.

3
Intended Use: The intended use of the Golden Eagle is to provide mobility
to persons limited to a seated position that are capable of operating an
electric scooter.
CONTENTS
I. INTRODUCTION.…………………………………………………………………………... 4-6
Features and Benefits………………………………………………………………………….. 5
Accessories for the Golden Eagle Scooter...……………………………………………….. 6
II. SAFETY.……………………………………………………………………………………. 7-11
III. EMI/RFI..………………………………………………………………………………….... 12
IV. YOUR GOLDEN EAGLE......…………………………………………………………….. 13
Specifications..…………………………………………………………………………….. 14-15
V. OPERATION....……………………………………………………………………………… 16
Control Panel……………………………………………………………………………….. 16-17
Control Options.......………………………………………………………………………..... 17
Seating……………………………………………………………………………………….. 18-19
Freewheel Mode.……………………………………………………………………………….. 20
VI. RIDING YOUR GOLDEN EAGLE Scooter......…………………………………........ 21
Mounting.………………………………………………………………………..................... 21
Basic Driving.…………………………………………………………………………………... 22
Steering in Tight Spots…………………………………………………………………… 23-24
VII. DISASSEMBLY……………………………………………………………………….. 25-26
VIII. ASSEMBLY…………………………………………………………………………… 27-28
IX. TRANSPORTING YOUR GOLDEN EAGLE…………………………………………… 29
X. CARE AND MAINTENANCE.…………………………………………………………….. 30
Routine Maintenance..……………………………………………………………………….. 30
Cleaning Your GOLDEN EAGLE....………………………………………………………… 30
Batteries and Charging.……………………………………………………………………… 31
If Your GOLDEN EAGLE Does Not Operate.......……………………………………….. 32
Proper Tire Inflation.......................................................................................... 33
Diagnostics…………………………………………………………………………………. 33-34
XI. WARRANTY…………………………………………………………………………….. 35-36
Warranty/Registration Card..………………………………………………………………. 37

4
I. INTRODUCTION
Congratulations on the purchase of your new Golden Eagle scooter. The Golden Eagle
combines cutting edge technology with attractive designs that are also highly functional
in today’s world. We at Golden Technologies, Inc. know that you have chosen a scooter
that will give you years of dependable operation and also will enhance the quality of your
life by providing you with the mobility to experience an active daily lifestyle.
Even though your new Golden Eagle is both user-friendly and designed for maximum
maneuverability in even the tightest spaces, we ask that you please read, understand
and follow all of the instructions and suggestions in this manual before you operate your
Golden Eagle for the first time. The safe use of your new scooter is very important to us.
If you feel that you do not understand the instructions and suggestions presented in this
owner’s manual, or if, for any reason, you do not feel capable of performing the activities
necessary to assemble, disassemble, operate, or maintain your Golden Eagle, please
contact your local Golden Technologies, Inc. provider or call Golden Technologies, Inc.
Technical Support Services at [phone].
Golden Technologies, Inc. cannot be held responsible for personal injury or property
damage resulting from the unsafe or the improper use of any of our personal mobility
products. Also, Golden Technologies, Inc. cannot be held responsible for personal injury
or property damage resulting from attempts to follow instructions, suggestions, and
guidelines presented in this owner’s manual.
Our Research and Development Department, our Quality Control Department, and our
Engineering Department have used the latest product specifications and the latest
product design information to manufacture your Golden Eagle. Golden Technologies, Inc.
reserves the right to implement changes into our product lines when those changes
become desirable or necessary. If changes are implemented into our product line, there
may be minor differences between the product you purchased and the illustrations and
instructions in this owner’s manual.
Please fill out and mail the enclosed warranty registration card. Registration is also
available @ www.goldentech.com. We at Golden Technologies, Inc. would appreciate
hearing about the dependability of your Golden Eagle and about the convenience of
mobility it has provided for you. We would also appreciate hearing about the service you
received from your local Golden Technologies, Inc. provider or representative.
Golden Technologies, Inc. Phone: [phone]
401 Bridge Street Fax: [phone]
Old Forge, PA 18518 Toll free: [phone]
For more information about our products and services or to send us your comments,
please visit our website at www.goldentech.com

5
I. INTRODUCTION
FEATURES AND BENEFITS
Your Golden Eagle scooter has been designed with your comfort in mind. It has also been
designed to be a safe method of transportation when safety and operating instructions
are followed. Please review the features and benefits of certain components of the Golden
Eagle scooter below.

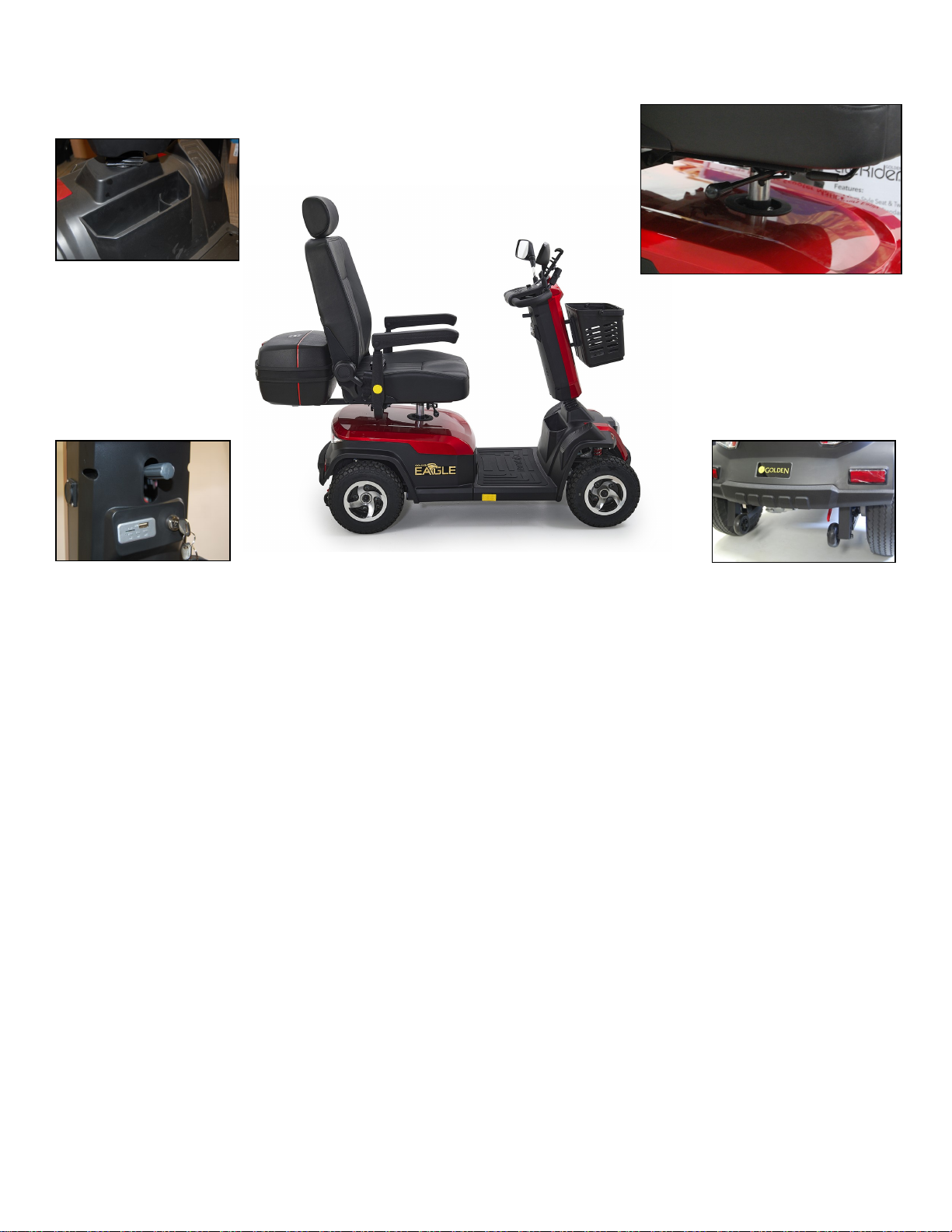

Figure 1. Golden Eagle (Model: GR595) Features
Floor Mat:
The Golden Eagle comes standard with
a removable non-slip rubber floor mat.
Control Panel:
Easy to read LCD screen with
speedometer, odometer, and
battery gauge. Control from top
to bottom: Oversized speed
control knob, head light switch,
horn button, left and right turn
signals, and flasher switch.
Delta Tiller Handle:
Offers rubber coated
hand rests for comfort
and dual throttle
control levers for easy
right or left hand use.
Also, dual mirrors and
a cell phone holder are
standard features.
Storage:
The Golden Eagle
scooter comes
standard with a
removable plastic
storage basket
and a rear storage
compartment.
Tiller:
Easy to use handle
offers multiple
adjustments to find
your most comfortable
driving position.
Convenient side
mounted charger port,
USB port, and con-
trols for ease of
music selection.
Captain’s
Highback Seat:
The seat features
angle and width
adjustable arm-
rests, and a slide
seat to find the
most comfortable
position as well as
to make transfers
easier.
Easy Access
Batteries:
Located under the
seat, the batteries
can be accessed by
simply removing the
battery cover.
Pneumatic Tires:
The Golden Eagle comes standard with
air filled tires to provide the smoothest
ride available.
Bumpers:
The Golden Eagle scooter comes standard
with padded front and rear bumpers
designed to protect the front and rear
shrouds from scratches and cracks.
Lights:
Headlights
(and taillights):
A standard feature,
the headlights,
taillights, and turn
signal indicators
feature bright,
long-lasting LED
bulbs.

6
I. INTRODUCTION
ACCESSORIES FOR THE GOLDEN EAGLE SCOOTER:
A variety of accessories are available for your Golden Eagle scooter. Please contact your
Authorized Golden Technologies Provider for more information or to order.
• Cane Holder Tube
• Quad Cane Holder
• Walker Holder
• Oxygen Tank Holder
• Cup Holder
• Travel Case
• Forearm Crutch Holder
• Safety Flag
• Scooter Cover
• Rear Basket
• Seat Belt
• Cell Phone Holder
• Storage Compartment
*Some accessories require a mounting bracket or mounting clips. Please check with your
provider to find out if the accessory you would like to order requires a mounting bracket
or mounting clips.
Safety Guidelines
The symbols below are used in the owner's manual and/or on the product to identify warnings
and to notify you of important safety information. Make sure you read and understand them
completely.
WARNING! Indicate(s) a hazardous situation which, if not avoided, could result in death
or serious injury. This icon is represented as a black symbol on a yellow triangle with a
black border.
MANDATORY! Failure to perform mandatory actions can cause personal injury and/or
equipment damage. This icon is represented as a white symbol on a blue dot witha white
border.
PROHIBITED! Indicate(s) an action(s) that should not be performed under any
circumstance. Failure to adhere can cause personal injury and/or equipment damage.
This icon is represented as a black symbol with a red circle and red slash.
Safety Symbols
The symbols below identify warnings, mandatory actions, and prohibited actions. They can be
found in the owner’s manual and/or on the product. Make sure you understand all safety labels
before operating the product. Do not remove safety labels from the product.
Read and follow the Explosive conditions exist! Indoor use only!
owner’s manual!
Use only AGM or
Gel-Cell batteries! Avoid transmitters! Hot surface!
Pinch/Crush Hazard! Do not place into trash! Electrical hazard!
Corrosive chemicals Recycle Do not use personal
inside battery! electronic devices!

7
II. SAFETY
Your Golden Eagle is a battery-operated personal mobility vehicle. Please exercise
caution and consideration when you are operating it. Driving your Golden Eagle carefully
and thoughtfully will help ensure your personal safety and the safety of other people.
MANDATORY! Read completely and understand this owner’s manual before
assembling, operating, transporting, or disassembling your Golden Eagle scooter.
Before learning to operate your Golden Eagle, have your authorized Golden
Technologies, Inc. provider determine if it is advisable for you to practice getting on and
off your Golden Eagle and operating it in the presence of an attendant.
BEFORE GETTING ON YOUR GOLDEN EAGLE
• Check to be certain that the power is turned off. See section V. "Operation" in this
manual. This will eliminate the possibility of accidentally activating the paddle controls
and causing injury to yourself and/or others.
• Check to be certain that your Golden Eagle’s freewheel lever is in the engaged position.
See section V. “Operation” in this manual.
• Flip up the armrest(s).
When getting on or off your Golden Eagle, keep your weight toward
the middle of the deck. Putting most or all of your weight on the edge of the deck
may cause an unstable condition.
GETTING ON YOUR GOLDEN EAGLE
• Position the seat for safe and easy mounting. Ensure that the seat is facing forward.
See Section V. "Operation."
• Return tiller to full upright position if necessary.
• Carefully place one foot on the approximate center of the deck and seat yourself
comfortably and securely on the seat.
• Flip down the armrest(s).
GETTING OFF YOUR GOLDEN EAGLE
• Make certain that the power is turned off and the key is removed.
• Return tiller to full upright position
• Flip up the armrest(s).
• Carefully place one foot on the ground, transfer your weight to that leg, and slowly
come to a standing position.
• Step away from the scooter.
MAXIMUM WEIGHT
Your Golden Eagle has been rated to a maximum payload (operator and anything else
being carried onboard) of 500 pounds. Exceeding the maximum weight rating will void
the warranty.
Exceeding the maximum weight rating may result in injury to
yourself and/or others.

8
II. SAFETY
DRIVING ON INCLINES
• For maximum stability, lean forward in your Golden Eagle’s seat while proceeding up
ramps, inclines, curbs, or any low rise. See figure 2.
• Drive with caution when attempting to negotiate any incline, even handicap access
ramps.
• Always climb or descend an incline by driving straight up or straight down the face of
the slope. See figure 2.
• Do not traverse or drive across the face of an incline in any direction. See figure 3.
• Do not attempt to negotiate an incline that is covered with snow, ice, salt, cut or wet
grass, leaves, or any other potentially hazardous material.
• Do not drive your scooter in reverse down an incline.
• Try to keep your Golden Eagle moving when climbing an incline. If you do come to a
stop, restart and accelerate slowly and carefully.
• Do not try to descend or climb a slope whose gradient is greater than recommended.
*Golden Eagle maximum recommended incline is 7.5°
Figure 2. Going Up an Incline Figure 3. Traversing an Incline
If, while you are driving down a slope, your scooter starts to move
faster than you feel is safe, release the throttle control lever and allow your Golden
Eagle to come to a stop. When you feel that you again have control of your scooter,
push the throttle control lever forward and continue safely down the remainder of
the slope.
DRIVING DOWN A DECLINE
• Lower speed setting
• Whenever it is safely possible, drive forward down any ramp, low rise, or incline.
Golden Technologies, Inc. does not recommend that you drive your scooter in reverse
down any incline, ramp, curb, or low rise. Backing down any slope may create a very
hazardous situation. If it is necessary to back down a slope follow one of two procedures.

9
II. SAFETY
When using either of the following procedures to back down a slope,
Golden Technologies, Inc. strongly advises that you have the assistance of another
person.
Procedure 1 - Under Power
1. Set the key switch to the “Off” position. See section V. “Operation.”
2. Dismount your Golden Eagle.
3. Set the key switch to the “On” position. See section V. “Operation.”
4. While standing alongside your scooter, carefully operate the controls at the lowest
speed setting. See section V. “Operation.”
5. Slowly and carefully back your scooter down the incline.
6. Carefully remount your Golden Eagle and resume normal operation.
When your scooter is in freewheel mode, the park brake is released.
If the batteries are dead, the motor braking system will not work. The weight of the
scooter on a slope may cause you to lose control of the scooter. If you do not feel
capable of manually controlling your scooter down the slope, request assistance or
do not attempt to use this procedure.
Procedure 2 - Emergency (No Power)
1. Set the key switch to the “Off” position. See section V. “Operation.”
2. Dismount your Golden Eagle.
3. Set the freewheel lever to “Disengaged.”
4. While standing alongside the scooter, carefully manually maneuver it down the slope.
5. When you have reached a level surface at the bottom of the slope, position the
freewheel lever in the engaged position. See figure 11 on page 20.
6. To restore power, set the key switch to the “On” position. See section V. “Operation.”
Motor Braking System
Your scooter is equipped with a system that uses the motor to aid in braking. This motor
brake system is designed to work when the key is in either the on position or the off
position.
When the key switch is in the on position, the freewheel is in the engaged position, and
the scooter is under power, the motor will help slow down the scooter as soon as you
take your hand off of the throttle lever.
When the key switch is in the off position and the freewheel lever is in the disengaged
position, the motor brake system will keep you from pushing the scooter too fast (i.e.
down a slope).
You may notice this when pushing the scooter. The scooter will move freely until you
reach a certain speed. You will then encounter some resistance as the motor brake
system is activated.

10
II. SAFETY
MEDICATION
Always check with your physician to determine if any of the medications you are taking
may affect your judgment and/or your ability to operate your Golden Eagle. Also check
with your physician concerning your physical ability to operate a scooter.
Do not connect or allow anyone except an authorized Golden
Technologies, Inc. provider to connect any electrical or mechanical device to your
Golden Eagle. Unauthorized accessories will void the warranty and may cause
injury.
Please remember that while on your Golden Eagle, you are a motorized
pedestrian. You must observe and obey all pedestrian rules and regulations for the locale
in which you are riding.
Please use your Golden Eagle scooter often and allow it to expand the horizons of your
daily life. The more mobility your Golden Eagle brings to you, the happier you will be,
and the more satisfied we at Golden Technologies, Inc. will be! But as with all things,
especially motor operated vehicles, observing a few rules and safety considerations will
help ensure safe scooter operation. So please follow the rules below.
RULES FOR USE AND OTHER SAFETY CONSIDERATIONS
Read completely and understand this owner's manual before
assembling, operating, transporting, or disassembling your Golden Eagle.
• Always operate your Golden Eagle with thought, care, and safety.
• Do not attempt to use your Golden Eagle on an escalator. Always use an elevator.
• Do not carry passengers under any circumstances.
• Do not mount or dismount your Golden Eagle unless the brake is engaged.
• Always make sure that the key switch is set to "Off" before mounting or dismounting
your scooter.
• Do not back your Golden Eagle down an incline or across an uneven surface.
• Do not turn your scooter suddenly at full speed.
• Always make sure the seat is locked in the forward position before operating your
Golden Eagle.
• Always come to a full stop before changing direction from forward to reverse or from
reverse to forward.
• Do not operate your Golden Eagle where you could not safely or legally walk.
• Do not climb ramps or curbs that exceed your scooter's capacity.
• Always approach curbs and inclines straight on.
• Always be aware of and careful near mechanical pinch points especially when
assembling and disassembling your scooter.
• Never sit on your Golden Eagle when it is being transported.
• Always fasten down your Golden Eagle securely with an approved tie-down system
while transporting your scooter.
• Always tie down or remove the seat during outside transport.
• Never operate your scooter if it is not functioning properly.

11
II. SAFETY
RULES FOR USE AND OTHER SAFETY CONSIDERATIONS –continued
• Always use caution when driving on soft or uneven surfaces such as grass or gravel.
Also use caution on decks where there is no railing.
• Never drive on the roadway, except when you must cross the street.
• Always cross streets at intersections and use crosswalks or the most direct route,
making sure that your path is clear and that you are visible to motor traffic.
• Never drive your Golden Eagle up or down a step or curb that is higher than the
ground clearance listed on the specifications chart (see pages 14-15).
• Never back up or down a step or curb.
• Do not drive your Golden Eagle in icy or salted conditions.
• Never operate your Golden Eagle while you are under the influence of alcohol.
• Do not operate or store your Golden Eagle where it will be exposed to rain, snow, mist,
and below freezing temperatures.
• Always keep your tires properly inflated.
Do not place hot liquids into the bottle holder. The hot liquid could spill
while operating the scooter, causing you to get burned.
Use caution when driving your Golden Eagle scooter on rough or
uneven terrain, soft dirt, deep grass, and/or loose gravel.
Over-inflated tires pose a risk of bursting and can cause serious
injury. Under-inflated tires will cause significant loss of operational range and will
also cause the motor control board to overheat.
Should you encounter a problem with the operation of your
mobility device such as a mechanical or electrical problem immediately stop using
the product. Disconnect the batteries then contact the provider from whom you
purchased your mobility device for evaluation of the problem and repair if needed.

12
III. EMI/RFI
The rapid development of electronics, especially in the area of communications, has
saturated our environment with electromagnetic (radio) waves that are emitted by
television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham
radios), wireless computer links, microwave transmitters, paging transmitters, etc. These
electromagnetic (EM) waves are invisible and increase in strength the closer one gets to
the source of transmission. When these energy waves act upon electrical devices and
cause them to malfunction or to function in an erratic or uncontrolled manner, they are
referred to as Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI).
EMI/RFI AND YOUR GOLDEN EAGLE
All electrically powered vehicles, including scooters are susceptible to Electromagnetic
Interference/Radio Frequency Interference (EMI/RFI). This interference could result in
abnormal, unintended movement of your Golden Eagle.
Unintended movement or brake release could cause an accident or
injury.
The FDA has determined that each make and model of scooter can resist EMI/RFI to a
certain level. The higher the level of resistance, the greater the degree of protection from
EMI/RFI—measured in volts per meter (V/m). The FDA has also determined that current
technology is capable of providing 20 V/m of resistance to EMI/RFI, which would provide
useful protection against common sources of interference. This product has been tested
and has passed an immunity level of 20 V/m.
EMI/RFI RECOMMENDATIONS
PROHIBITED! Do not turn on or use hand-held personal electronic
communication devices such as cellular phones, walkie-talkies, and CB
radios while your scooter is turned on.
• Be aware of any nearby transmitters (radio, television, microwave, etc.) on your
intended route and avoid operating your scooter close to any of those transmitters.
• Turn off the power if your Golden Eagle is going to be in a stationary position for any
length of time.
• Be aware that adding accessories or components or modifying your scooter may make it
more susceptible to EMI/RFI.
• If unintended movement or park brake release occurs, turn your scooter off as soon as
it is safe to do so.
• Report all incidents of unintended movement or park brake failure to Golden
Technologies, Inc. Technical Service at [phone].
Turn off your scooter as soon as it is safely possible if unintended or
uncontrollable motion occurs or if unintended park brake release occurs.

13
IV. YOUR GOLDEN EAGLE
Figure 4. Your Golden Eagle (Model GR595)
FOR YOUR RECORDS
Please fill in your Golden Eagle’s information below. This information will be useful in the
event that you ever need to contact Golden Technologies, Inc. concerning your scooter.
Model ________________ Serial Number__________________________________________
Date of Purchase __________________
Provider Name__________________________________________________________________
Company_______________________________________________________________________
Address________________________________________________________________________
City ____________________________________ State________ Zip______________________
Please remember to fill in and return your warranty registration card in the back of this
manual.
Freewheel Lever
Seat Rotation Lever
&
Seat Slide Lever
Bottle Holder
Armrest
Seat Assembly
Control
Panel
Front Basket
Battery Cover
Tiller
Tiller Handle
Hand
Grip
Seat
Slide
Mirror
Seat Rotation

14
IV. YOUR GOLDEN EAGLE
Specification GR595
Medicare Code Not Coded
Weight capacity 500 lbs.
Drive Wheels Rear
Maximum speed 8 mph
Operating Range 132 miles
Ground Clearance to Center Deck 5”
Ground Clearance to Transaxle/Motor 3.5”
Turning Radius 69”
Type Batteries 2-NF22 or 2-75 AH
Colors Red
Freewheel Mode Yes
Electronic Speed Control Yes
Electro-Mechanical Brakes Yes
Mechanical Hand Brake No
Charger Off-board
Controller 140 Amp
Dimensions:
Length 56.5”
Width 27”
Height (ground to top of back of seat) 49” – 50”
Height (ground to top of back of headrest) 57” – 62.5”
Ground to Top of Seat 27” – 28”
Ground to Top of Deck 5.75”
Deck to Top of Seat 18.75” – 19.75”
Number of Seat Height Positions 2
Size of Increments 1”
Front axle to Rear axle 40”
Weight of Unit: (assembled) 300 lbs.
Base 239 lbs.
Seat with Arms 49.5 lbs.
Batteries 37 lbs./ea. (NF22)
52 lbs./ea. (75AH)

15
IV. YOUR GOLDEN EAGLE
* Notes:
1. Battery range at 200 lbs., and will vary due to rider weight, drive surface, terrain,
and battery type.
2. Electronics warranty excludes batteries.
3. Inflate tires to 35 psi.
Literature is current at the time of printing. Golden Technologies reserves the right to
make changes to the product or literature at any time.
Specification GR595
Tires: Pneumatic
Front 313”
Rear 313”
Rear Anti-Tip Wheels 3”
Standard Seat: Captain’s Highback
Slide Seat Standard
Back Height (no headrest) 23.75”
Back Height (with headrest) 30.75” – 36.25”
Width x Depth 20" x 18”
Color Black
Warranty:
Frame Five Years
Drive Train 2 Year
Electronics 22 Year
Batteries 1 Year

16
V. OPERATION
Figure 5. Delta Tiller Control Panel with LCD Display
CONTROL PANEL
Speed Adjustment Dial
• The speed adjustment dial allows you to pre-select the maximum top speed of your
Golden Eagle. See figure 5.
• Turn the dial counterclockwise to operate your scooter at the lowest speed level.
• Turn the dial clockwise to increase the operational speed of your scooter.
• We recommend that you select a speed setting at which you feel comfortable, safe, and
in control of your Golden Eagle.
Key Switch
This switch turns the power on and off to your Golden Eagle. See figure 6.
• Insert the key into the key switch.
• Turn the key 90 degrees clockwise to turn on your scoot-
er's power. The LCD (Liquid Crystal Display) display will
light up indicating that power is on.
• Turn the key back to the vertical position to turn off your
scooter's power.
Always make certain that the key is re-
moved from the key switch before getting on or off your
Golden Eagle or before lowering the tiller completely.
Horn Button
Press this button to sound the horn. See figure 5.
DC Battery Voltage Meter
This meter (see figure 5) shows the amount of voltage in your Golden Eagle’s batteries.
• Full bars indicates a full charge on the batteries.
• Lesser bars indicates a diminished charge left on the batteries.
• One bar indicates that the batteries have a minimal charge remaining.
See section X. “Care and Maintenance” for instruction concerning charging the batteries.
Horn
Right Turn
Signal
Speed
Adjustment
Flashers
(Hazard)
Battery Meter
Head Light
Left Turn
Signal
Throttle Lever Throttle Lever
Odometer
Speedometer
&
Fault Codes
Figure 6. Key Switch

17
V. OPERATION
USB Charging Port and Bluetooth
Connect the device to be charged to the USB port. See figure 7.
How to connect your Bluetooth?
1. Open Bluetooth on your Phone. Figure 7. USB and Bluetooth
2. Search and find equipment named “Golden”.
3. Select “Golden” to connect it with your phone. Now you can use your phone .
USB Disclaimer: The supplied USB charging port is only intended to be used with
appropriate smart devices such as phones or tablets. Please refer to device
manufacturer’s charging requirements before using. Golden Technologies excludes
liability for any damages or data loss regarding the charging device on a computer or
other electronic device connected to the USB port.
Delta Tiller Throttle Control Lever
The Delta Tiller enables you to use only one hand (either the right or left) to operate both
the speed and the direction of the Golden Eagle. This self-centering lever system controls
your Golden Eagle’s speed (up to the maximum speed set by the speed adjustment dial)
and its forward and reverse direction. See figure 5.
To drive forward use either of the following:
• Use your right hand fingers to pull back on the right side of the throttle control lever.
• Use your left thumb to push the left side of the throttle control lever.
Always bring your Golden Eagle to a full stop before changing direction
from forward to reverse, or from reverse to forward.
To drive in reverse use either of the following:
• Use your left hand fingers to pull back on the left side of the throttle control lever.
• Use your right thumb to push the right side of the throttle control lever.
When the throttle control lever is completely released, it automatically returns to the
center “stop” position and engages your scooter’s brakes, bringing you to a complete
stop. You will hear a “click” when the park brake engages.
Control Options
Golden Technologies, Inc. has made provision for the individual needs and abilities of the
operators of the Golden Eagle.
Your authorized Golden Technologies, Inc. provider can reverse the throttle control lever
controls so that when you pull on the left side of the lever, your scooter will move in the
forward direction, and when you pull on the right side of the lever your scooter will move
in the reverse direction.
DELTA TILLER ADJUSTMENT
The tiller on your Golden Eagle scooter employs a handle to provide you with infinite till-
er angle settings. To set the tiller to your liking, follow these directions.
1. Use one hand to grasp the tiller handle.
2. Use your other hand to grasp and push up the tiller adjustment lever.
3. Move the tiller forward or back into your desired position.
4. Release the adjustment lever to lock the tiller in place.

18
V. OPERATION
SEATING
Flip-up Armrests
Pull up on the end of either armrest to flip it up for easy transfer on or off your Golden
Eagle. See figure 8.
Do not push with excess force on the arm or use the arm rest as a
aide to support your weight while trying to transfer out of the scooter.
Armrest Angle
To increase the armrest angle, turn the armrest angle screw clockwise.
To decrease the armrest angle, turn the armrest angle screw counterclockwise.
Headrest Height
Press the button in to adjust the height of the headrest.
Backrest Angle
Lift the handle on the left-side of the seat to adjust the angle of the seat back.
Note: The backrest can be folded down to minimize chair height during transport.
Lifting the backrest angle handle will cause the seat back to quickly
fold down. Make sure your are clear of the seat back or hold the seat back with
your opposite hand while making the seat back angle adjustment.
Seat Slide Lever
1.Lift the lever and while holding the lever slide the seat to a comfortable position.
2.Release the lever to lock the seat in place.
Note: The lever is located on the right-side of the seat towards the front of the seat.
Figure 8. Seating Comfort Adjustments
Backrest Angle Handle
Armrest Angle
Adjustment Screw
Headrest Button
Seat Rotation Lever Seat Slide Lever

19
V. OPERATION
Figure 9: Seat Rotation Adjustment
Seat Rotation Lever
The seat can be rotated through 360° and locked at any 45° position.
1. Push forward on the seat rotation lever and rotate the seat to the desired position. See
figure 9.
2. Release the handle to lock the seat at any 45° position.
Figure 10 Figure 11: Seat Post Nut and Bolt
Seat Height Adjustment
To adjust the seat height:
1. Fold the seat back down, grip the seat on opposite sides and, with a firm grip; pull the
seat straight up and off of the seat pedestal. See Figure 10.
2. Remove the nut and bolt that holds the seat post in the seat pedestal. See Figure 11.
3. Position the seat post at the desired height while aligning the holes in the seat post
and the seat pedestal.
4. Reinstall the nut and bolt.
5. Place the seat back onto the seat post, and push down to lock the seat.
Make sure the seat is securely locked into place before operating
the scooter.
Seat Rotation Lever Seat Slide
Lever

20
V. OPERATION
Never sit on your Golden Eagle in freewheel mode.
Never disengage the park brake while you are operating your Golden
Eagle.
Always make certain that your scooter park brake is engaged before
inserting the key into the key switch and turning it to the on position.
FREEWHEEL MODE
Your Golden Eagle is equipped with a freewheel lever that can set your scooter in or out
of freewheel mode.
Figure 12: Freewheel Lever
To disengage the park brake and put your scooter in freewheel mode:
Pull the freewheel lever up towards the letter N (Neutral Position). See figure 12.
To engage the brake and take your scooter out of freewheel mode:
Push the freewheel lever down towards the letter D (Drive Position). See figure 12.
Pushing the scooter too quickly in freewheel will cause the motor to act as
a generator causing the scooter to become difficult to push. Freewheel slowly.
N
D
