Gomax CV-305VS User manual

3G/HD/SD-SDI to HDMI,VGA & Audio
Scaler Converter with Local Loopout
User Manual
rev: 131219
Made in Taiwan
C
CV V- -3 30 05 5V VS S

The CV-305VS 3G/HD/SD-SDI to HDMI, VGA & Audio Scaler Converter with local loopout has
been tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the CV-305VS should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.....................................................................................................................1
FEATURES..............................................................................................................................1
PACKAGE CONTENTS........................................................................................................1
SPECIFICATIONS...................................................................................................................2
PANEL DESCRIPTION...........................................................................................................3
CONNECTION DIAGRAM ......................................................................................................4
OSD MENU .............................................................................................................................5
OPERATION APPROACH......................................................................................................6
LIMITED WARRANTY...........................................................................................................10

1
INTRODUCTION
The CV-305VS 3G/HD/SD-SDI to HDMI, VGA & Audio Scaler Converter with local loopout
offers a cost effective way for converting 3G/HD/SD-SDI signal to digital HDMI, analog PC
video(VGA) or component video(YPbPr) through an adapter with analog audio. The conversion
guarantees no loss transformation for video. The CV-305VS also provides one low jitter for SDI
local loopout.
The CV-305VS provides a compliant format from 3G/HD/SD-SDI signal to HDMI/VGA. It
converts the 3G/HD/SD-SDI to HDMI/VGA with audio.
FEATURES
IR remote control
Remote control via Mini-USB
OSD control interface
SDI loop-out available
Input bandwidth 2.970Gpbs
Output maximum pixel rate : 165MHz
Output video resolutions support multiple VESA standards
Deinterlacer supported
Supports nosie reduction and video enhancement features
Over / under scanning adjustable
Video H/V mirror supported
Active video area adjustment supported
USB firmware upgradable for expanding compatibility
Wall-mount housing design for easy installation
PACKAGE CONTENTS
1x CV-305VS
1x 5V/2A power supply unit
1x User Manual
1x Installation software CD

2
SPECIFICATIONS
Model Name
CV-305VS
Technical
Role of usage
SDI to HDMI & VGA Converter
SDI standards
SD-SDI, HD-SDI & 3G-SDI
Input Video bandwidth
2.970Gpbs, 2.970/1.001Gbps
Input Video support
[3G] 1080p @50/59.94/60Hz (4:2:2)
[HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz
[SD] NTSC @59.94Hz, PAL @50Hz
Output Video
Maximum Pixel Rate
165MHz
Audio support
PCM (48KHz)
ESD protection
[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact
discharge]
[2] Core chipset —±2kV
PCB stack-up
4-layer board [impedance control —differential 100; single 50]
Firmware update
Feasible via USB Port
CEC Channel
N/A
Input
1x BNC [SDI]
Output
1x HDMI + 1x VGA + 1x BNC [SDI loop-out] + 1x AUDIO OUT
BNC connector
3G 75Ω inter-locked socket
HDMI connector
Type A [19-pin female]
VGA connector
HD-15 [15-pin D-sub female]
USB connector
Mini B
Mechanical
CV-305VS
Housing
Metal enclosure
Dimensions
[L x D x H]
Model
101 x 82 x 26mm [3.9” x 3.3” x 1.0”]
Package
175 x 128 x 134mm [6.9” x 5” x 5.3”]
Carton
662 x 366 x 290mm [2’2” x 1’2” x 1’]
Weight
Model
280g [9.8oz]
Package
729g [1.6 lbs]
Power supply
5V2A DC
Power consumption
5 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]

3

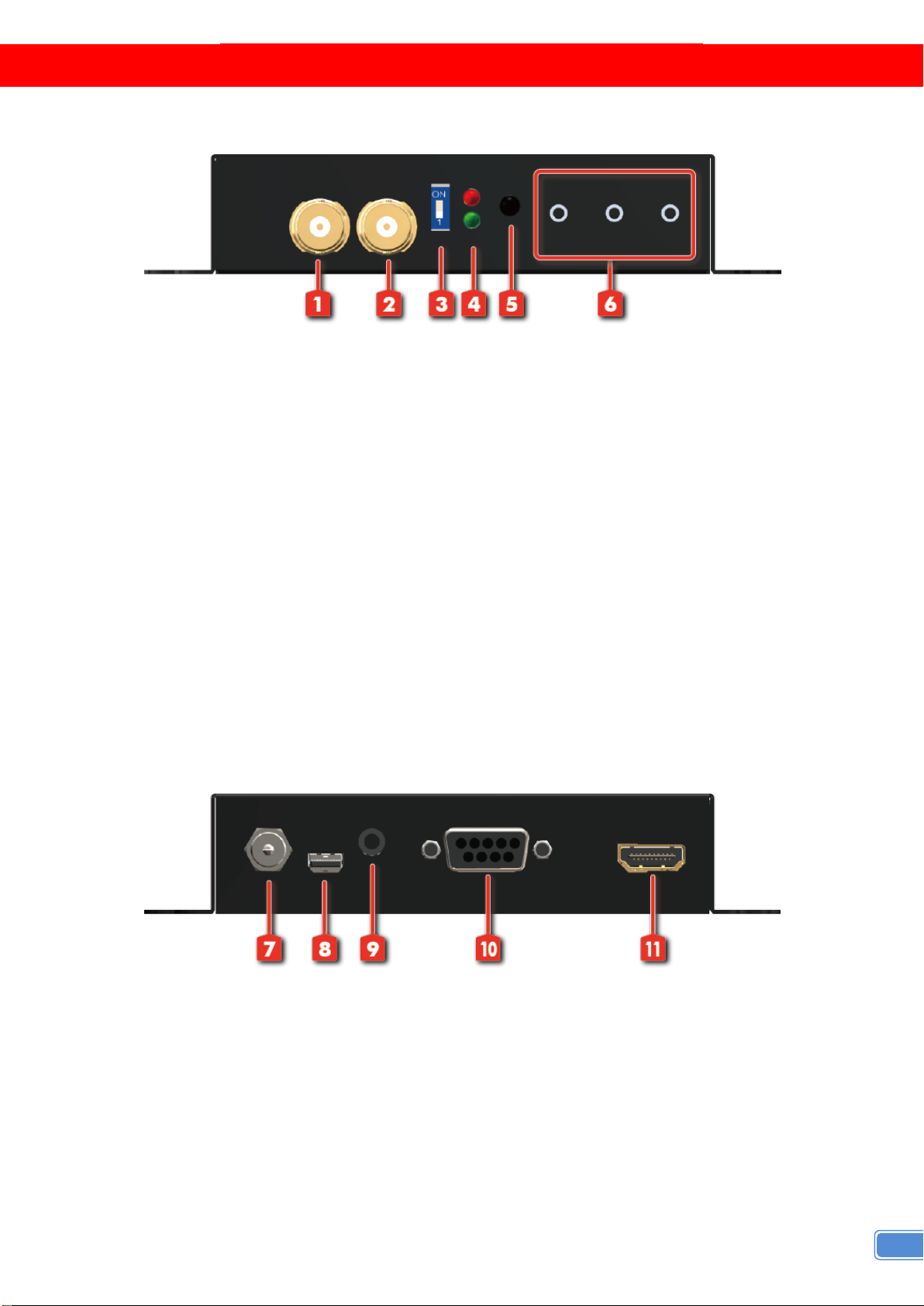

PANEL DESCRIPTION
Front Panel
1. SDI INPUT: 3G/HD/SD-SDI Input
2. SDI LOCAL LOOPOUT: 3G/HD/SD-SDI local loopout
3. DIP SWITCH: For firmware update
ON []: firmware update mode
OFF []: normal mode
4. LED INDICATOR:
[green]: signal indicator LED
[red]: power indicator LED.
5. IR SENSOR: IR sensor for receiving the IR commands from IR remote
6. PUSH BUTTON
[LEFT]: Down Button
[MID]: Up Botton
[RIGHT]: Menu/Enter Button
Rear Panel
7. +5V DC: Interlocking power jack for 5V DC power supply unit
8. Mini USB: F/W update & control port
9. AUDIO OUT: connect to analog audio speaker
10. VGAOUT: VGA output to a monitor
11. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.

4

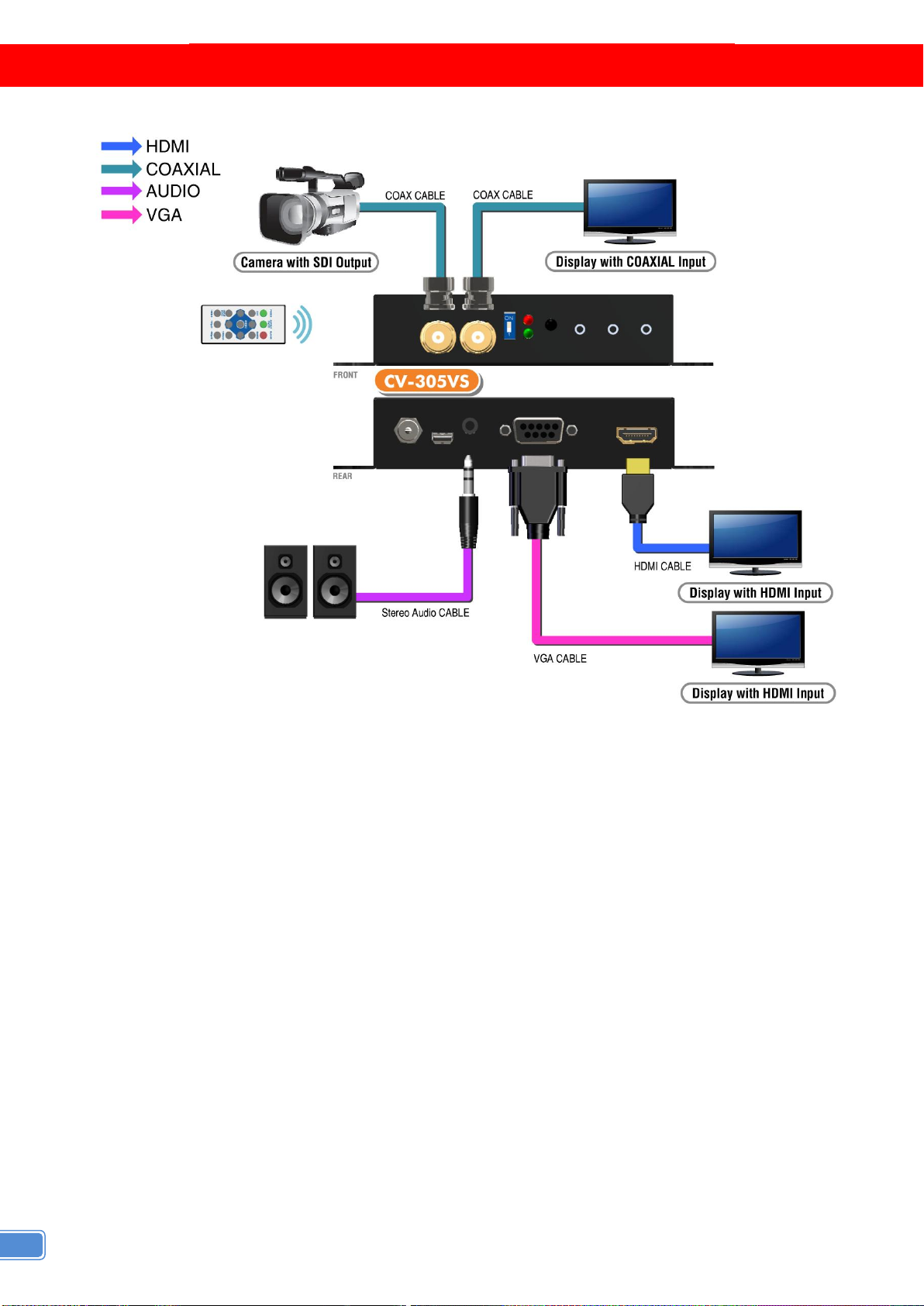

CONNECTION DIAGRAM

5
OSD MENU
1.Output Setup
Out Res.
Output Mode
RGB, YCbCr444,
YCbCr422
Default Pattern
Disable, White, Cross,
Hatch, Color, Gray,
Windows, H-Ramp,
W-HRamp, W-VRamp,
Diagonal
2.Image
Contrast
0~255 of Contrast Level
Brightness
0~255 of Brightness Level
Saturation
0~255 of Saturation Level
Hue
0~255 of Hue Level
B/W Extension
Off, On
Color Tone
Off, Skin, Green
Edge Enhance
Typ, Mid, Max, Off
Sharpness
0~127 of Sharpness Level
3.Adjustment
Under/Over Scan
-50%~50% of Scan Level
Aspect Ratio
16:9, 4:3
H-Mirror
Off, On
V-Mirror
Off, On
H-Shift
-100~100 of H-Shift Level
V-Shift
-50~50 of V-Shift Level
4. System
Input Res. Info
Firmware Version
Factory Reset

6
OPERATION APPROACH
Method A: Push-in Button
Method B: IR Remote Control
Button
Function
FREEZE
Freeze video
ASPECT RATIO
Aspect ratio change
BLANK
Blank video
EXIT
Exit OSD
ENTER
Enter key
UP
Up key
LEFT
Left key
RIGHT
Right key
DOWN
Down key
MENU
Menu on
INPUT INFO
Source resolution information
1080p60
Select 1080p60 output resolution
1080i60
Select 1080i60 output resolution
720p60
Select 720p60 output resolution
480p60
Select 480p60 output resolution
Down
Up
Menu/Enter

7

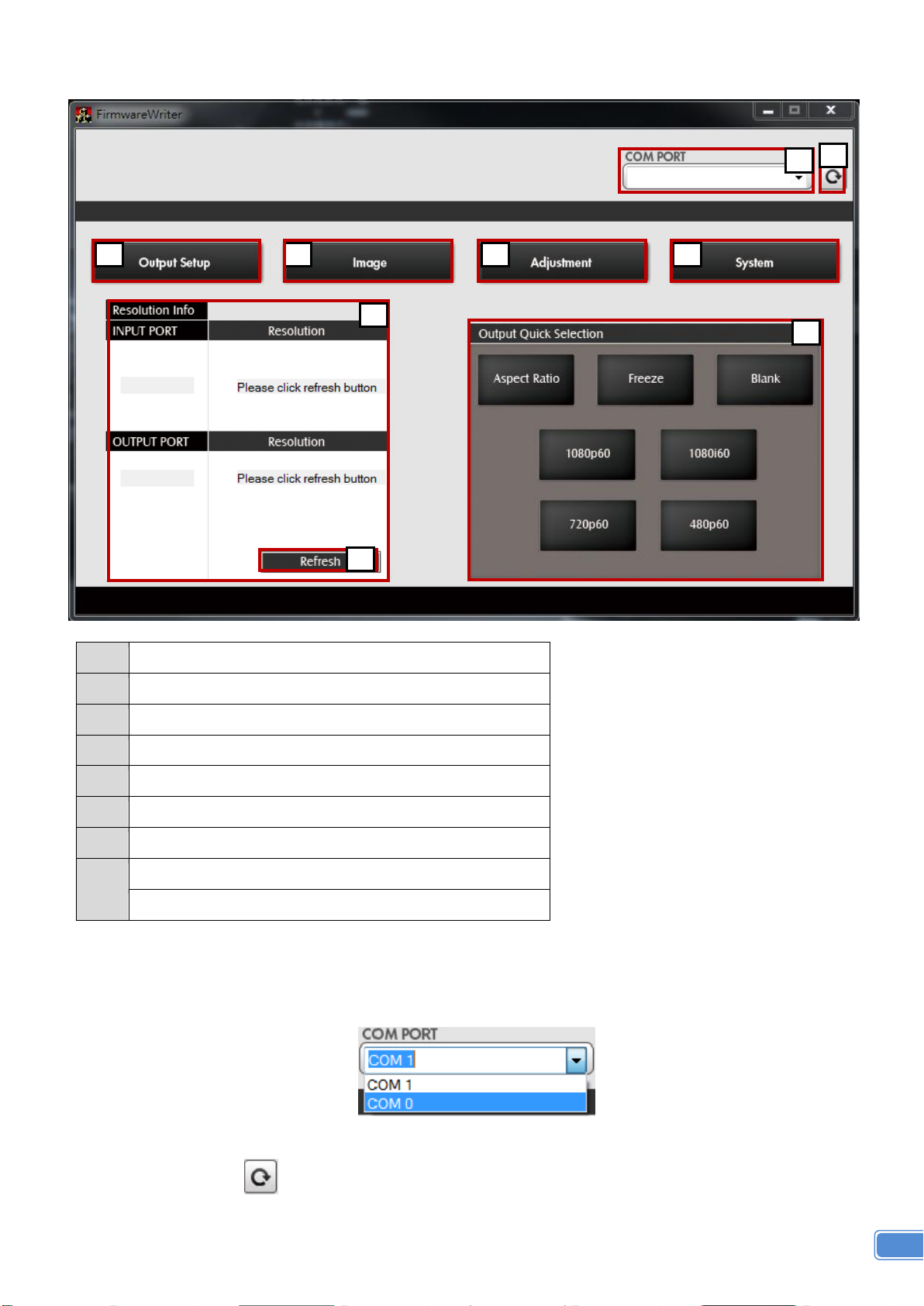

Method C: IR Remote Control through Mini-USB port
1
COM Port Selection
2
COM Port Detection Button
3
Output Setup Button
4
Image Button
5
Adjustment Button
6
System Button
7
Input / Output Resolution Info
8
Refresh Input / Output Resolution Info Button
9
Output Quick Selection Button
1. COM Port Selection
Please select the application COM PORT
2. COM Port Detection Button
Click this button to detect the COM PORT
9
6
5
4
3
1
2
8
7

8
3. Output Setup Button
4. Image Button
5. Adjustment Button

9
6. System Button
1) In-Sync Info:
To view the current input resolution
2) Factory Reset Button
3) Firmware Update Button
The steps of firmware update:
a) Unplug Mini-USB connector from device
b) Set the Dip Switch to ON []
c) Connect the device to PC via USB to mini-USB cable
d) Click the FW Update button on software
e) Click “Load File” button to select the FW file
f) Click “Burn”button to start the FW update process
g) Unplug Mini-USB connector from device
h) Set the Dip Switch to OFF []
i) Completed FW update process
7. I/O Port and Resolution Info
To display the information about the I/O Port and the applied Resolution
8. Refresh Button
To refresh the status of the converter
9. Output Quick Selection Button
Common functions for quick setting

10
LIMITED WARRANTY
The SELLER warrants the CV-305VS 3G/HD/SD-SDI to HDMI, VGA & Audio Scaler
Converter with local loopout to be free from defects in the material and workmanship for 1 year
from the date of purchase from the SELLER or an authorized dealer. Should this product fail to
be in good working order within 1 year warranty period, The SELLER, at its option, repair or
replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the
day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the
unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day
warranty and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained in
this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding
the CV-305VS features and specifications is subject to change without further notice.
