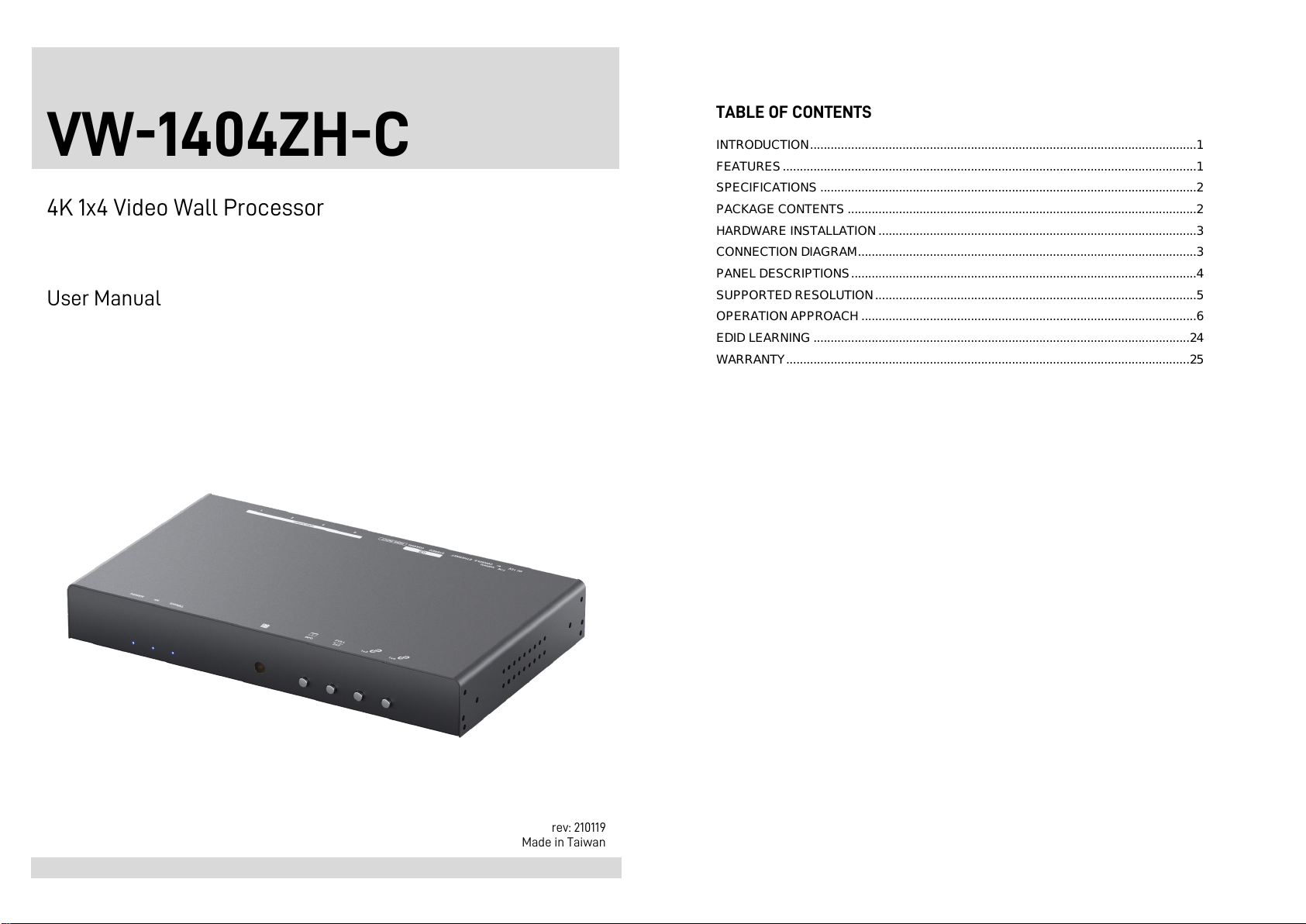

Gomax VW-1404ZH-C User manual

VW-1404ZH-C
4K 1x4 Video Wall Processor
User Manual
rev: 210119
Made in Taiwan
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
SPECIFICATIONS ..............................................................................................................2
PACKAGE CONTENTS ......................................................................................................2
HARDWARE INSTALLATION.............................................................................................3
CONNECTION DIAGRAM...................................................................................................3
PANEL DESCRIPTIONS.....................................................................................................4
SUPPORTED RESOLUTION..............................................................................................5
OPERATION APPROACH ..................................................................................................6
EDID LEARNING ..............................................................................................................24
WARRANTY......................................................................................................................25

-1-
INTRODUCTION
The VW-1404ZH-C 4K 1x4 Video Wall Processor is a powerful, cost effective, and fully real time
data/video processor for multiple flat panel displays or projectors. Virtually any setups for the display
layout can be possible by the control software. The VW-1404ZH-C allows user to input HDMI up to
3840x2160/4096x2160@60Hz 4:4:4. And the embedded scaler converts signals from HDMI source to
match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output
settings up to WUXGA (1920x1200). The VW-1404ZH-C sends the resulting processed video thru HDMI
interface to the connected monitors/projectors based on the setup display layout. The layout can be
readily modified to fit your applications in digital signage, broadcasting, education and surveillance
systems and optimize visual effects.
FEATURES
Four HDMI outputs from 640x480 to 1920x1200
Supports HDMI input from 640x480 to 3840x2160/4096x2160@60 (YUV 4:4:4), in progressive mode
HDCP compliant
HDMI 2.0a compliant
Image parameters and layouts are automatically saved in flash memory of the device and can be
recalled for later use
Firmware upgradable for new features and technology enhancements
The video wall processor can control by USB, push button, Ethernet, IR remote control, Control 4
and cloud control*
Resize, position, zoom for each HDMI output video
User-selectable output settings, up to 1920x1200
Supports CEC (Power on/off)
Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode
Supports independent input rotation at the resolution up to 1080p
3840x2160@60 (YUV 4:4:4) can be divided and displayed onto four 1080p60 TV (2x2 layout only)
Supports individual propagation delay on each display to have the best visual perception
HDMI/Stereo output support 2 channel PCM audio; S/PDIF output supports Digital 2 channel audio
Supports 4K60 4:4:4 input to 4 outputs with pixel-to-pixel 1080p60 4:4:4 mapping
Overcomes frame tearing on a panel basis for each output
!
*Cloud support is thru an encrypted communication to provide the best private protection when
using VW-1404ZH-C.
*VW-1404ZH-C does NOT support de-interlacing.
-2-
SPECIFICATIONS
Model Name
VW-1404ZH-C
Technical
Role of usage
Video Wall Processor
HDCP compliance
Yes
Video bandwidth
Input –Single link 600MHz [18Gbps]
Output –Single-link 225MHz [6.75Gbps]
Video support
Input –3840x2160/4096x2160@60 (4:2:2 8bits) /
3840x2160/4096x2160@60 (4:4:4 8bits)
Output –1920x1080@60 / 1920x1200@60
Video Format Support
HDMI
Audio support
Yes
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact discharge]
Input
1x HDMI + 1x USB + 1xRJ45
Output
4x HDMI + 1x 3.5mm phone jack + 1x coaxial
Control
IR remote control / Ethernet / USB (virtual) /
Front Panel / Control 4 / Cloud Control / APP
Input TMDS signal
1.2 Volts [peak-to-peak]
HDMI connector
Type A [19-pin female]
Micro-USB connector
Type A
RJ-45 connector
WE/SS 8P8C
Mechanical
Enclosure
Metal case
Dimensions
[L x W x H]
Model
290 x 107 x 40mm[11.4" x 4.2" x 1.5" ]
Package
376 x 240 x 112mm [1'2" x 9.4" x 4.4"]
Carton
590 x 510 x 405mm [1'9" x 1'7" x 1'3"]
Weight
Model
1274g[2.8 lbs]
Package
2735g[6 lbs]
Fixedness
1U rack-mount with ears and Wall hanging holes
Power supply
12V DC
Power consumption
12 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
PACKAGE CONTENTS
1x VW-1404ZH-C
1x 1U rack-mounting ear set
1x 12V power supply
1x IR Remote control (15 keys)
4x HDMI Cable (Male to Male)
1x User Manual

-3-
1x Installation software CD HARDWARE INSTALLATION
VW-1404ZH-C as master
1. Connect the sources to HDMI / DisplayPort Input of the VW-1404ZH-C.
2. Connect all displays to HDMI Outputs of the VW-1404ZH-C.
3. Connect the +12V DC power supply to the VW-1404ZH-C.
CONNECTION DIAGRAM
-4-
PANEL DESCRIPTIONS
1. LED indicator:
PWR –Power indicator LED
4K –If source resolution is 4K, the LED indicator will shine
Source –Source signal indicator LED
2. IR SENSOR: IR sensor for receiving the IR commands from IR remote
3. Control buttons:
Button 1 –In/Out resolution and IP address information
Button 2 –Fast switch to 1x1 and 2x2
Button 3 –Fast switch to 1x3, +90° and -90°
Button 4 –Fast switch to 1x4, +90° and -90°
4. Power Switch: Power ON/OFF switch
5. +12V DC: 12V DC power jack
6. Dip Switch: reserved
7. USB virtual COM
8. Ethernet: Ethernet control port
9. Stereo audio output (3.5mm)
10. S/PDIF audio output (Coaxial)
11. HDMI Input
12. HDMI Output 1-4

-5-

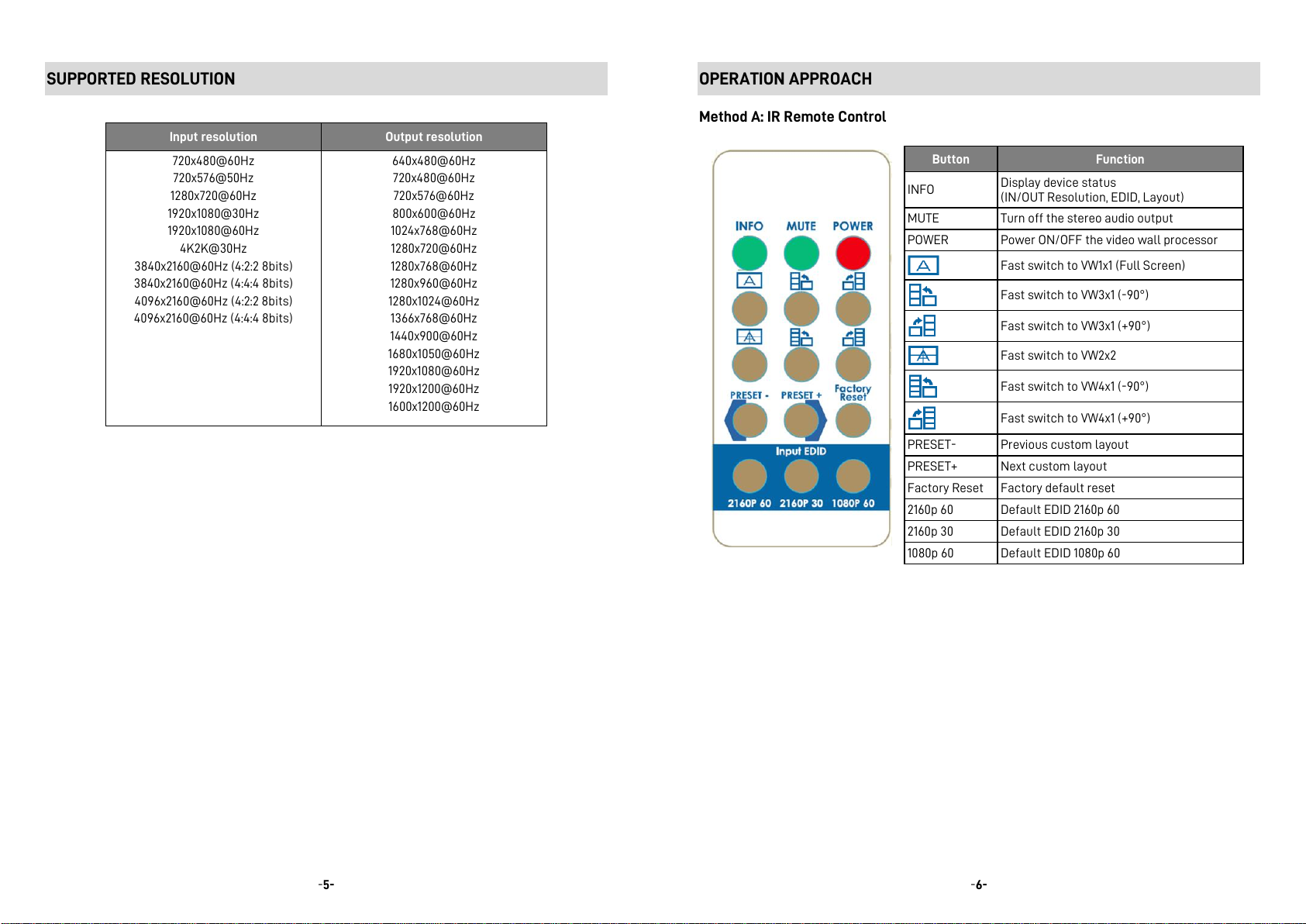

SUPPORTED RESOLUTION
Input resolution
Output resolution
720x480@60Hz
720x576@50Hz
1280x720@60Hz
1920x1080@30Hz
1920x1080@60Hz
4K2K@30Hz
3840x2160@60Hz (4:2:2 8bits)
3840x2160@60Hz (4:4:4 8bits)
4096x2160@60Hz (4:2:2 8bits)
4096x2160@60Hz (4:4:4 8bits)
640x480@60Hz
720x480@60Hz
720x576@60Hz
800x600@60Hz
1024x768@60Hz
1280x720@60Hz
1280x768@60Hz
1280x960@60Hz
1280x1024@60Hz
1366x768@60Hz
1440x900@60Hz
1680x1050@60Hz
1920x1080@60Hz
1920x1200@60Hz
1600x1200@60Hz
-6-
OPERATION APPROACH
Method A: IR Remote Control
Button
Function
INFO
Display device status
(IN/OUT Resolution, EDID, Layout)
MUTE
Turn off the stereo audio output
POWER
Power ON/OFF the video wall processor
Fast switch to VW1x1 (Full Screen)
Fast switch to VW3x1 (-90°)
Fast switch to VW3x1 (+90°)
Fast switch to VW2x2
Fast switch to VW4x1 (-90°)
Fast switch to VW4x1 (+90°)
PRESET-
Previous custom layout
PRESET+
Next custom layout
Factory Reset
Factory default reset
2160p 60
Default EDID 2160p 60
2160p 30
Default EDID 2160p 30
1080p 60
Default EDID 1080p 60

-7-

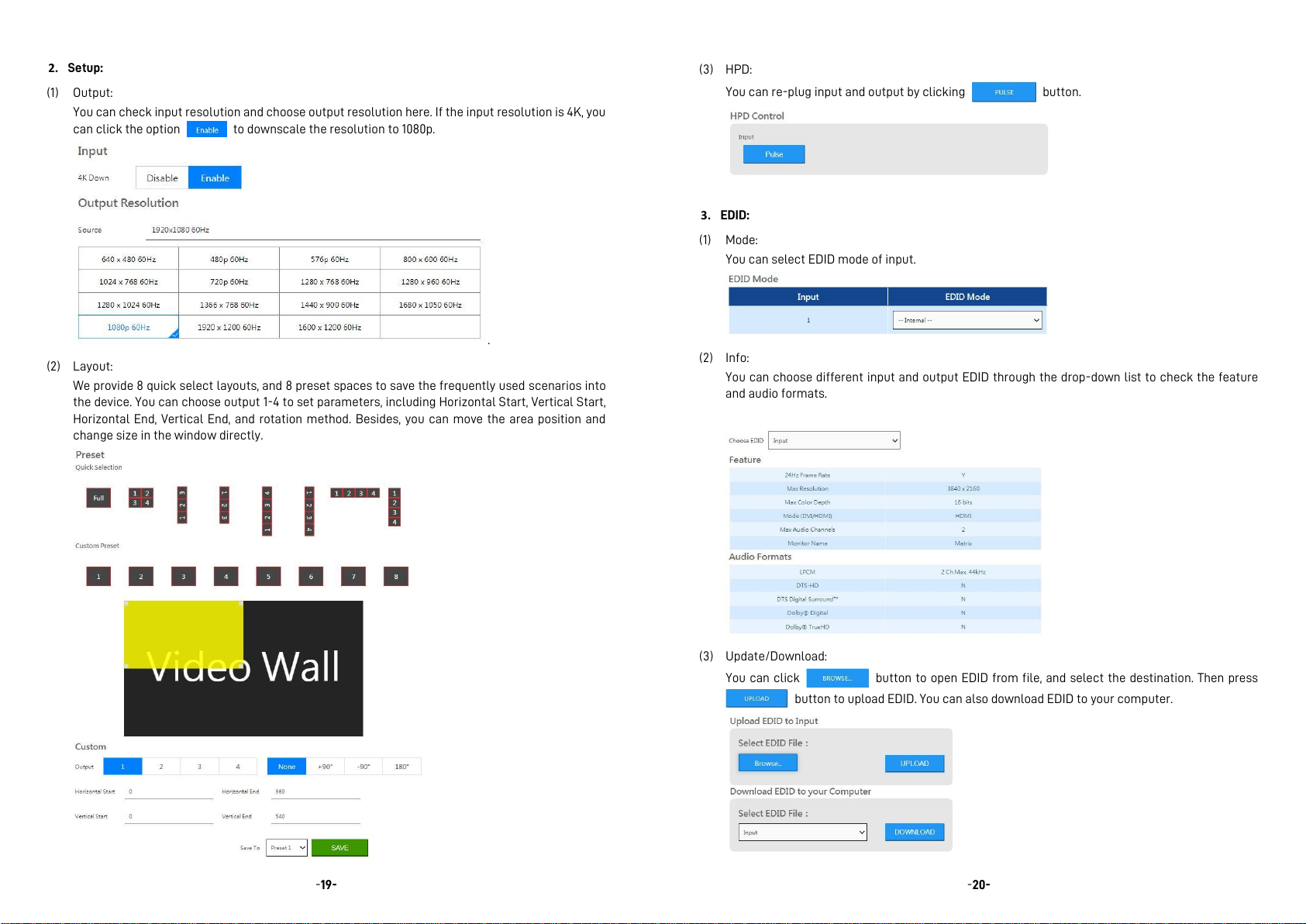

Method B: Software Operation
System Requirement and Precautions
1. Whenever power off VW-1404ZH-C, please stay unpowered at least 5 to 10 seconds to allow power
capacitors to discharge.
2. The VW-1404ZH-C provides software control program which runs under Microsoft Windows 7, 8.1, 10
through the interface of USB virtual com control.
3. Before you click on the icon of the software, make sure you have secured the connection between
your computer USB port and the VW-1404ZH-C.
Start the software control program
Executing the control software, the following dialog will pop up. It has two ways to control the VW-
1404ZH-C device (under Microsoft Windows 7, please run as administrator).
1. USB Connection: Use USB to connect the port on device and computer. Select correct virtual COM
port and click button.
2. Ethernet Connection: Enter the device IP address and click button.
After the software control setting is accomplished, it will enter directly to the control interface.
1
2
3
4
5
6
-8-
Control Interface
1. Connection Status:
Show the connect information and status. When you successfully connect to the device, the graph
of the power and connection way will change from blue to yellow. If you use USB control Mode to
connect device, the graph is . For IP control, the graph of Ethernet is .
2. Basic Setup:
(1) Video Resolution:
You can check input resolution and choose output resolution by using drop-down list. If the input
resolution is 4K, you can click the option downscale the resolution to 1080p.
(2) Video Wall Array:
This function is not available when the input resolution is 4K2K@60Hz
You can select different display modes, including 1x1, 2x2, and 2x2(Rotated).
(3) Video Adjustment:
Zoom In/Out, Horizontal Shift, Vertical Shift functions only support 2x2 mode
You can change the video size or move the video of each screen uniformly. In addition, you can also
use the Screen Power function to turn on or turn off TVs.
(4) Clear and Save:
If you want to clear the previous settings, you can click button to restore the screens to
default mode. Besides, we also provide 4 preset spaces to save the frequently used scenarios into
the device.
1
2
3
4

-9-

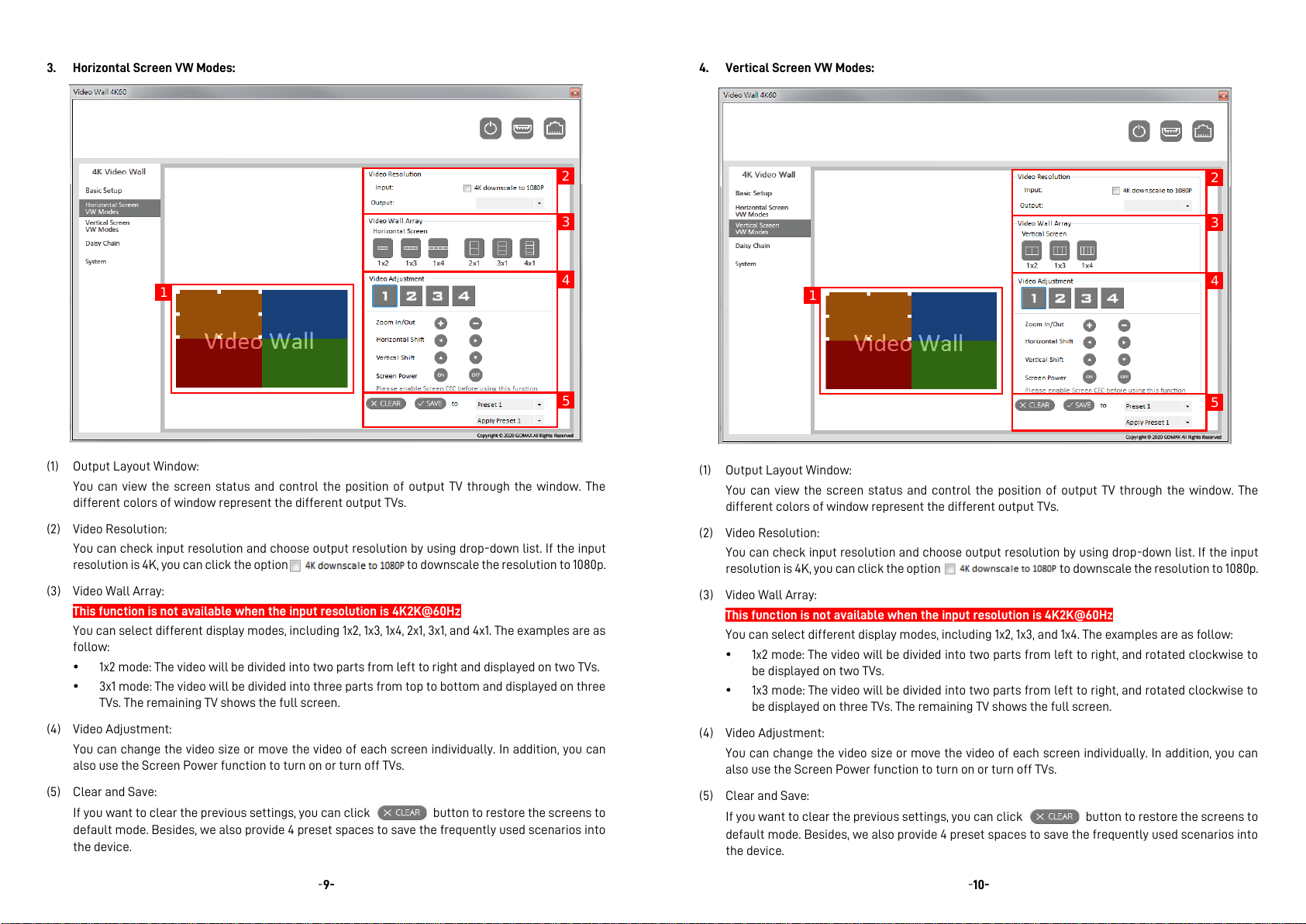

3. Horizontal Screen VW Modes:
(1) Output Layout Window:
You can view the screen status and control the position of output TV through the window. The
different colors of window represent the different output TVs.
(2) Video Resolution:
You can check input resolution and choose output resolution by using drop-down list. If the input
resolution is 4K, you can click the option to downscale the resolution to 1080p.
(3) Video Wall Array:
This function is not available when the input resolution is 4K2K@60Hz
You can select different display modes, including 1x2, 1x3, 1x4, 2x1, 3x1, and 4x1. The examples are as
follow:
1x2 mode: The video will be divided into two parts from left to right and displayed on two TVs.
3x1 mode: The video will be divided into three parts from top to bottom and displayed on three
TVs. The remaining TV shows the full screen.
(4) Video Adjustment:
You can change the video size or move the video of each screen individually. In addition, you can
also use the Screen Power function to turn on or turn off TVs.
(5) Clear and Save:
If you want to clear the previous settings, you can click button to restore the screens to
default mode. Besides, we also provide 4 preset spaces to save the frequently used scenarios into
the device.
1
2
3
4
5
-10-
4. Vertical Screen VW Modes:
(1) Output Layout Window:
You can view the screen status and control the position of output TV through the window. The
different colors of window represent the different output TVs.
(2) Video Resolution:
You can check input resolution and choose output resolution by using drop-down list. If the input
resolution is 4K, you can click the option to downscale the resolution to 1080p.
(3) Video Wall Array:
This function is not available when the input resolution is 4K2K@60Hz
You can select different display modes, including 1x2, 1x3, and 1x4. The examples are as follow:
1x2 mode: The video will be divided into two parts from left to right, and rotated clockwise to
be displayed on two TVs.
1x3 mode: The video will be divided into two parts from left to right, and rotated clockwise to
be displayed on three TVs. The remaining TV shows the full screen.
(4) Video Adjustment:
You can change the video size or move the video of each screen individually. In addition, you can
also use the Screen Power function to turn on or turn off TVs.
(5) Clear and Save:
If you want to clear the previous settings, you can click button to restore the screens to
default mode. Besides, we also provide 4 preset spaces to save the frequently used scenarios into
the device.
1
2
3
4
5

-11-
5. Daisy Chain:
(1) Output Layout Window:
You can select the area by double left click of your mouse to adjust in the window. Then you can
move the area position and change size directly. The different colors of window represent the
different output TVs.
(2) Focus coordinate:
You can set the coordinates and size of the selected area, and click button after
completing the settings.
H Start / V start: Set the starting pixel value of the area.
Width / Height: Set the width and height value of the area.
(3) Multi Video Wall:
Unit: Video amount setting. Up to 4 units.
Layout: Select video wall layouts. Max up to 4x4.
Focus: Select the area you want to set.
Show coordinate: Select the display coordinate modes. We provide 4 coordinate display modes,
including No, Only focus, Only focus group, and All.
(4) Delay Control:
Each delay value should be the multiple of 8. You can apply your current settings to the output by
clicking button or you can save it by clicking button.
1
2
3
4
5
-12-
(5) Video Resolution:
If you have clicked the option to downscale the resolution to 1080p in other
modes, please select 1920x1080 output resolution. If you haven’t clicked, please select 3840x2160
output resolution. After completing the settings, you can click button to save all settings
with the current selected focus area.
6. System:
(1) Network:
You can use the Ethernet to control software program. First,
you should click button to read the Ethernet setting
from device and manually set to device or click
option to automatically get the IP address. After the step of IP
configuration, please restart the machine.
(2) Cloud Setting:
First, click the first button to get an “association
code”. The device can use this code to pair with cloud server.
After a successful pairing, you can click button to
reset cloud. Then, click the second button to get a
string of codes to confirm if the paired device is correct.
1
2
3
4

-13-
(3) Learn EDID (Extended Display Identification Data):
Learn EDID from default: Select default EDID (1-5 default EDID), then click button to
learn default EDID.
Learn EDID from display: Select the output, then click button to learn display EDID.
Learn EDID from file: Click button to select the EDID file and write it into input.
(4) System:
FACTORY RESET: Click button to do factory default reset. This default reset
process will take about 5 seconds. After pop-up a dialog indicates complete, please restart this
machine.
FIRMWARE VERSION: Read the software and firmware version.
FIRMWARE UPDATE:
I. Use CAT 5/5e/6 cable to connect the device's Ethernet port and router.
II. Set up the computer and device in the same domain.
III. Click button, then the update tool will pop up.
IV. Click button to load firmware.
V. Click button to start burning firmware.
VI. After the firmware is burned, the device will automatically restart and complete the
firmware update.
-14-
Method C: Cloud Control (Eagleyes) through Ethernet Port
Create Account
The first time to use the Eagleyes service, please create a new account.
1. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”.
2. The Registration page will pop up and please fill in your email and password information to create
your private account.

-15-

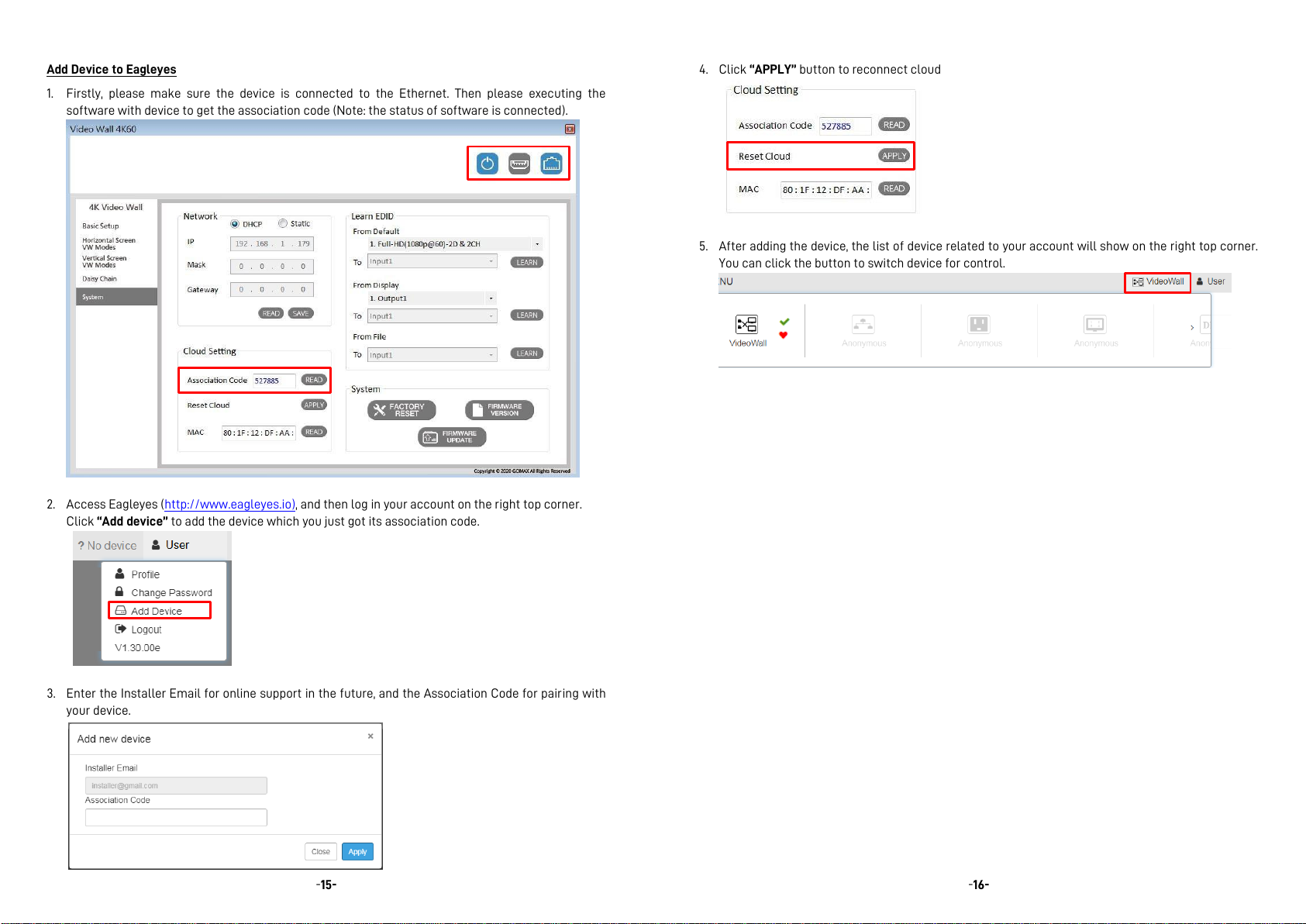

Add Device to Eagleyes
1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the
software with device to get the association code (Note: the status of software is connected).
2. Access Eagleyes (http://www.eagleyes.io), and then log in your account on the right top corner.
Click “Add device” to add the device which you just got its association code.
3. Enter the Installer Email for online support in the future, and the Association Code for pairing with
your device.
-16-
4. Click “APPLY” button to reconnect cloud
5. After adding the device, the list of device related to your account will show on the right top corner.
You can click the button to switch device for control.

-17-
Method D: Web Control through Ethernet Port
Login
1. Firstly, please make sure the device is connected to the Ethernet. Then, please executing the
software with the device, and confirm that the software is connected.
2. Click "READ" to get the IP address, then browse it.
3. Enter the password “admin” to login.
-18-
Control Interface
1. Main:
(1) Audio:
You can unmute or mute all output audio.
(2) Status:
You can check input and output status here.
1
2
3
4
5
6

-19-
2. Setup:
(1) Output:
You can check input resolution and choose output resolution here. If the input resolution is 4K, you
can click the option to downscale the resolution to 1080p.
.
(2) Layout:
We provide 8 quick select layouts, and 8 preset spaces to save the frequently used scenarios into
the device. You can choose output 1-4 to set parameters, including Horizontal Start, Vertical Start,
Horizontal End, Vertical End, and rotation method. Besides, you can move the area position and
change size in the window directly.
-20-
(3) HPD:
You can re-plug input and output by clicking button.
3. EDID:
(1) Mode:
You can select EDID mode of input.
(2) Info:
You can choose different input and output EDID through the drop-down list to check the feature
and audio formats.
(3) Update/Download:
You can click button to open EDID from file, and select the destination. Then press
button to upload EDID. You can also download EDID to your computer.

-21-
4. Network:
IP Settings: Set the Ethernet for the device and check relevant information here.
Web Login Settings: Set new password for Administrator account.
5. System:
In this function, user can read the firmware version here. In addition, you can click
button to do factory default reset or click button to reboot the device.
6. Power:
Power Off / Unit powered on: The device is powered on. Click button to turn
off the power
Power On / In standby mode: The device is in standby mode. Click button to
turn on the power.
-22-
Method E: APP Control through Ethernet Port
Download the APP
The first time to use the video wall APP, please search for “Video Wall” in Google Play Store or “Video-
Wall” in App Store and download the App.
Android: https://play.google.com/store/apps/details?id=com.gomax.gomax_vw_1404
iOS: https://apps.apple.com/app/id1515468591
Add Device to APP
1. Firstly, please make sure the device is connected to the Ethernet. Then, please executing the
software with the device, and confirm that the software is connected.
2. Click "READ" to get the IP address.

-23-
3. Check your phone and device in the same domain. Then open the App, enter the “IP address” and
click button. Users can also click “SCAN” to choose device.
4. After adding the device, the message "Connect to device successfully" will pop up. Then you can
start using the APP to control the device.
-24-
EDID LEARNING
The EDID learning function is only necessary whenever you encounter any display on the HDMI
output port that cannot play audio and video properly. Because the HDMI sources and displays may have
various level of capability in playing audio and video, the general principle is that the source will output
the lowest standards in terms of audio format and video resolutions to be commonly acceptable among
all HDMI displays. In this case, a 720p stereo HDMI signal output would be probably the safest choice.
Nevertheless, the user can force the matrix to learn the EDID of the lowest capable HDMI display among
others to make sure all displays are capable to play the HDMI signals normally.
The method on doing EDID learning please refer to the software operation section.
There are five embedded default EDIDs as below,
1. Full-HD(1080p@60)-24bit 2D & 2ch
2. HD(1080i 720p@60)-24bit 2D & 2ch
3. 4K2K@60-24bit 2D & 2ch
4. 4K2K@30-3D-PCM2CH
5. 4K2K@60-420-3D-PCM2CH(2ch)

-25-
WARRANTY
The SELLER warrants the VW-1404ZH-C 4K 1x4 Video Wall Processor free from defects in the
material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its
option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modifications including static discharge and power surge. This warranty is
offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty
seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume
the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return
authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty
and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the VW-1404ZH-C features and specifications is
subject to change without further notice.
