Gomax CV-503ZKM User manual

HDMI 2.0 & 12G SDI to
12G/6G/3G/HD/SDI Converter with
Audio Embedder
User Manual
rev: 160726
Made in Taiwan
CV-503ZKM
The CV-503ZKM HDMI 2.0 & 12G SDI to 12G/6G/3G/HD/SD-SDI Converter with Audio
Embedder has been tested for conformance to safety regulations and requirements, and has been
certified for international use. However, like all electronic equipment, the CV-503ZKMshould be
used with care. Please read and follow the safety instructions to protect yourself from possible injury
and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION................................................................................................................ 1
FEATURES........................................................................................................................ 1
PACKAGE CONTENTS................................................................................................... 1
SPECIFICATIONS.............................................................................................................. 2
PANEL DESCRIPTION ...................................................................................................... 3
CONNECTION DIAGRAM.................................................................................................. 4
SUPPORTED SDI RESOLUTIONS.................................................................................... 6
LIMITED WARRANTY........................................................................................................ 7
REFERENCE ..................................................................................................................... 8

1
* The 4K2K supports 3840x2160 and 4096x2160
** NOT supporting square division mapping

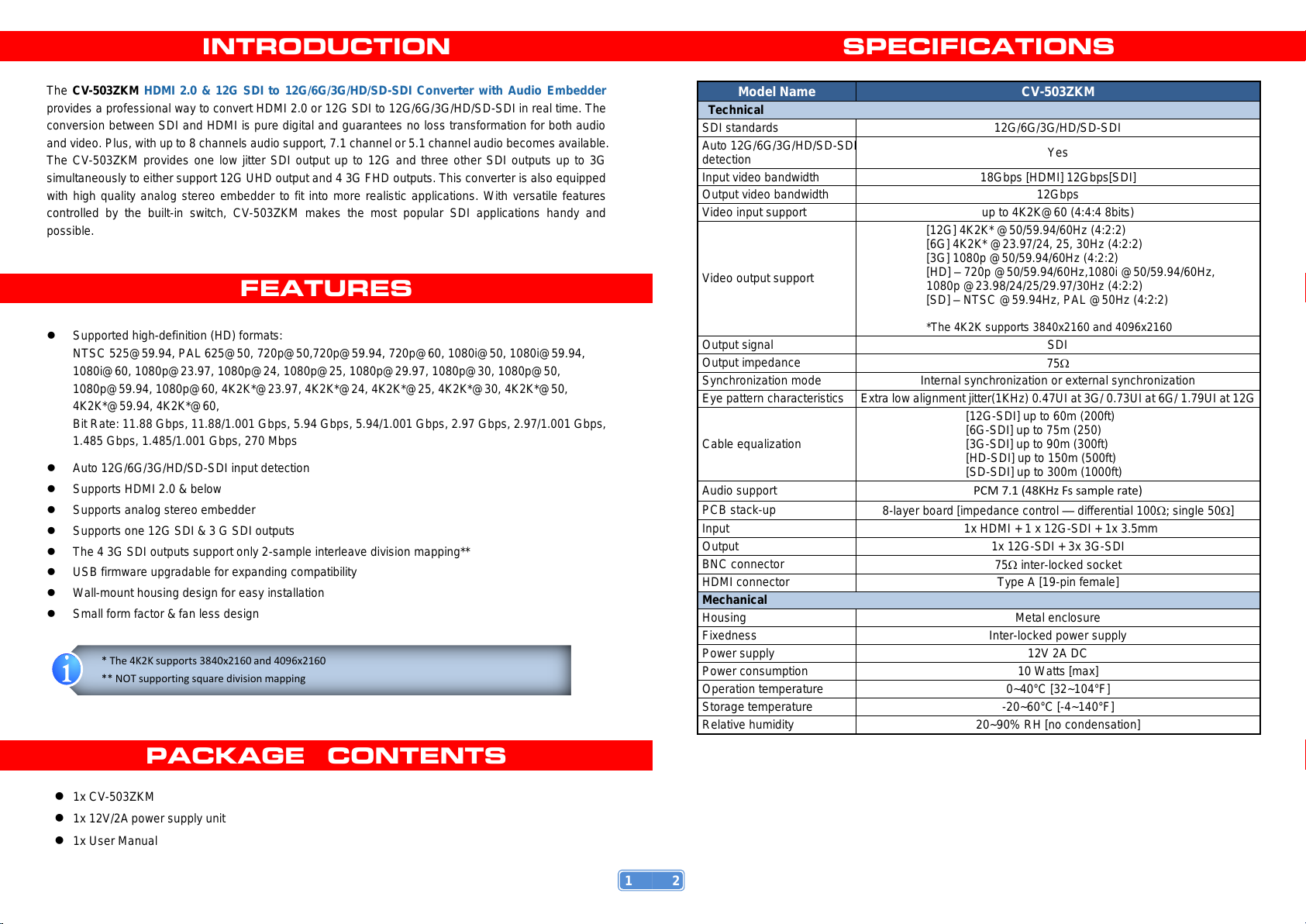

INTRODUCTION
The CV-503ZKMHDMI 2.0 & 12G SDI to 12G/6G/3G/HD/SD-SDI Converter with Audio Embedder
provides a professional way to convert HDMI 2.0 or 12G SDI to 12G/6G/3G/HD/SD-SDI in real time. The
conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio
and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available.
The CV-503ZKM provides one low jitter SDI output up to 12G and three other SDI outputs up to 3G
simultaneously to either support 12G UHD output and 4 3G FHD outputs. This converter is also equipped
with high quality analog stereo embedder to fit into more realistic applications. With versatile features
controlled by the built-in switch, CV-503ZKM makes the most popular SDI applications handy and
possible.
FEATURES
Supported high-definition (HD) formats:
NTSC 525@59.94, PAL 625@50, 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94,
1080i@60, 1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50,
1080p@59.94, 1080p@60, 4K2K*@23.97, 4K2K*@24, 4K2K*@25, 4K2K*@30, 4K2K*@50,
4K2K*@59.94, 4K2K*@60,
Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps,
1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
Auto 12G/6G/3G/HD/SD-SDI input detection
Supports HDMI 2.0 & below
Supports analog stereo embedder
Supports one 12G SDI & 3 G SDI outputs
The 4 3G SDI outputs support only 2-sample interleave division mapping**
USB firmware upgradable for expanding compatibility
Wall-mount housing design for easy installation
Small form factor & fan less design
PACKAGE CONTENTS
1x CV-503ZKM
1x 12V/2A power supply unit
1x User Manual
2
SPECIFICATIONS
Model Name
CV-503ZKM
Technical
SDI standards
12G/6G/3G/HD/SD-SDI
Auto 12G/6G/3G/HD/SD-SDI
detection
Yes
Input video bandwidth
18Gbps [HDMI] 12Gbps[SDI]
Output video bandwidth
12Gbps
Video input support
up to 4K2K@60 (4:4:4 8bits)
Video output support
[12G] 4K2K* @50/59.94/60Hz (4:2:2)
[6G] 4K2K* @23.97/24, 25, 30Hz (4:2:2)
[3G] 1080p @50/59.94/60Hz (4:2:2)
[HD] –720p @50/59.94/60Hz,1080i @50/59.94/60Hz,
1080p @23.98/24/25/29.97/30Hz (4:2:2)
[SD] –NTSC @59.94Hz, PAL @50Hz (4:2:2)
*The 4K2K supports 3840x2160 and 4096x2160
Output signal
SDI
Output impedance
75
Synchronization mode
Internal synchronization or external synchronization
Eye pattern characteristics
Extra low alignment jitter(1KHz) 0.47UI at 3G/ 0.73UI at 6G/ 1.79UI at 12G
Cable equalization
[12G-SDI] up to 60m (200ft)
[6G-SDI] up to 75m (250)
[3G-SDI] up to 90m (300ft)
[HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Audio support
PCM 7.1 (48KHz Fs sample rate)
PCB stack-up
8-layer board [impedance control —differential 100; single 50]
Input
1x HDMI + 1 x 12G-SDI + 1x 3.5mm
Output
1x 12G-SDI + 3x 3G-SDI
BNC connector
75inter-locked socket
HDMI connector
Type A [19-pin female]
Mechanical
Housing
Metal enclosure
Fixedness
Inter-locked power supply
Power supply
12V 2A DC
Power consumption
10 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3

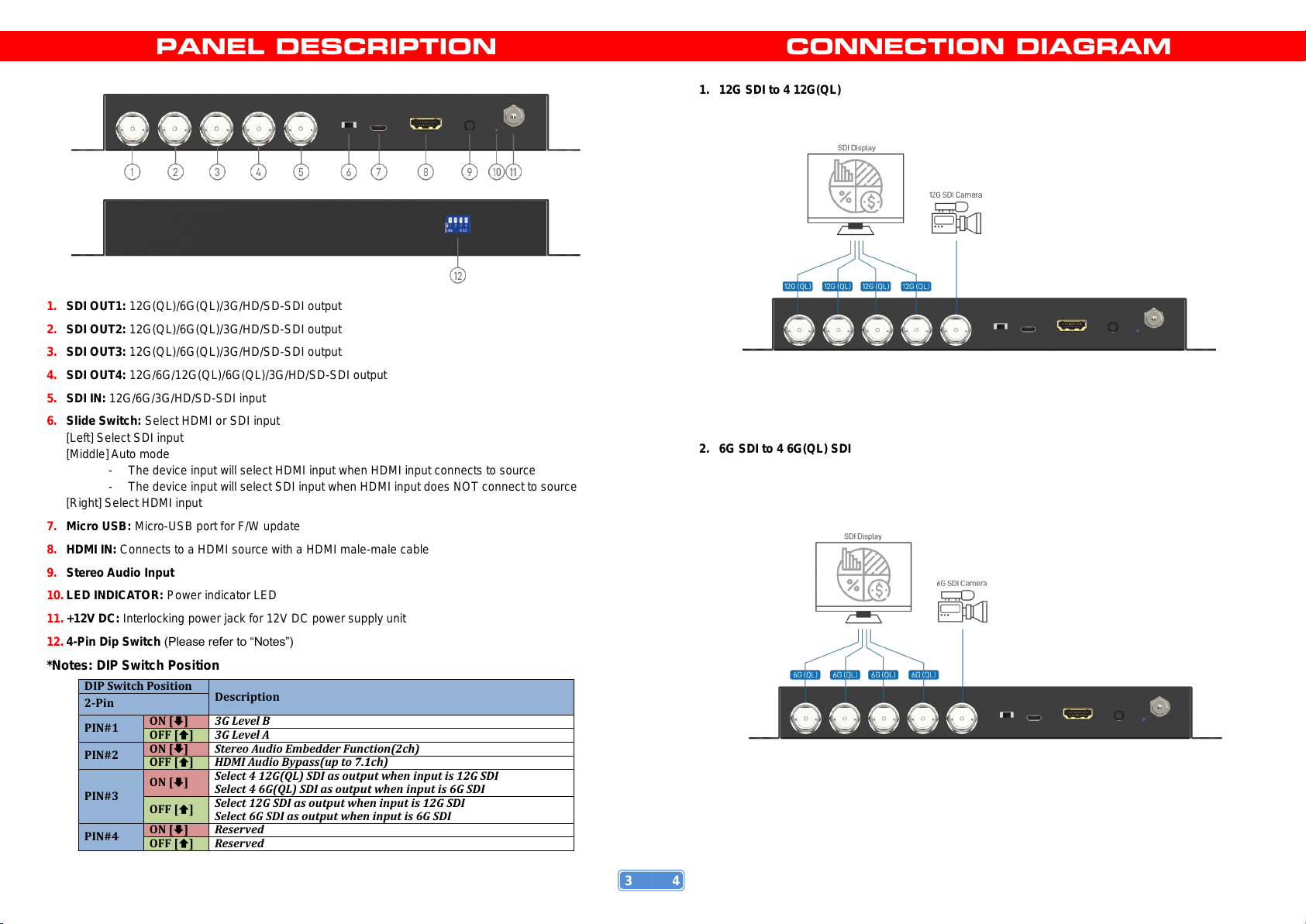

PANEL DESCRIPTION
1. SDI OUT1: 12G(QL)/6G(QL)/3G/HD/SD-SDI output
2. SDI OUT2: 12G(QL)/6G(QL)/3G/HD/SD-SDI output
3. SDI OUT3: 12G(QL)/6G(QL)/3G/HD/SD-SDI output
4. SDI OUT4: 12G/6G/12G(QL)/6G(QL)/3G/HD/SD-SDI output
5. SDI IN: 12G/6G/3G/HD/SD-SDI input
6. Slide Switch: Select HDMI or SDI input
[Left] Select SDI input
[Middle] Auto mode
- The device input will select HDMI input when HDMI input connects to source
- The device input will select SDI input when HDMI input does NOT connect to source
[Right] Select HDMI input
7. Micro USB: Micro-USB port for F/W update
8. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
9. Stereo Audio Input
10. LED INDICATOR: Power indicator LED
11. +12V DC: Interlocking power jack for 12V DC power supply unit
12. 4-Pin Dip Switch (Please refer to “Notes”)
*Notes: DIP Switch Position
DIP Switch Position
Description
2-Pin
PIN#1
ON []
3G Level B
OFF []
3G Level A
PIN#2
ON []
Stereo Audio Embedder Function(2ch)
OFF []
HDMI Audio Bypass(up to 7.1ch)
PIN#3
ON []
Select 4 12G(QL) SDI as output when input is 12G SDI
Select 4 6G(QL) SDI as output when input is 6G SDI
OFF []
Select 12G SDI as output when input is 12G SDI
Select 6G SDI as output when input is 6G SDI
PIN#4
ON []
Reserved
OFF []
Reserved
4
CONNECTION DIAGRAM
1. 12G SDI to 4 12G(QL)
2. 6G SDI to 4 6G(QL) SDI

5

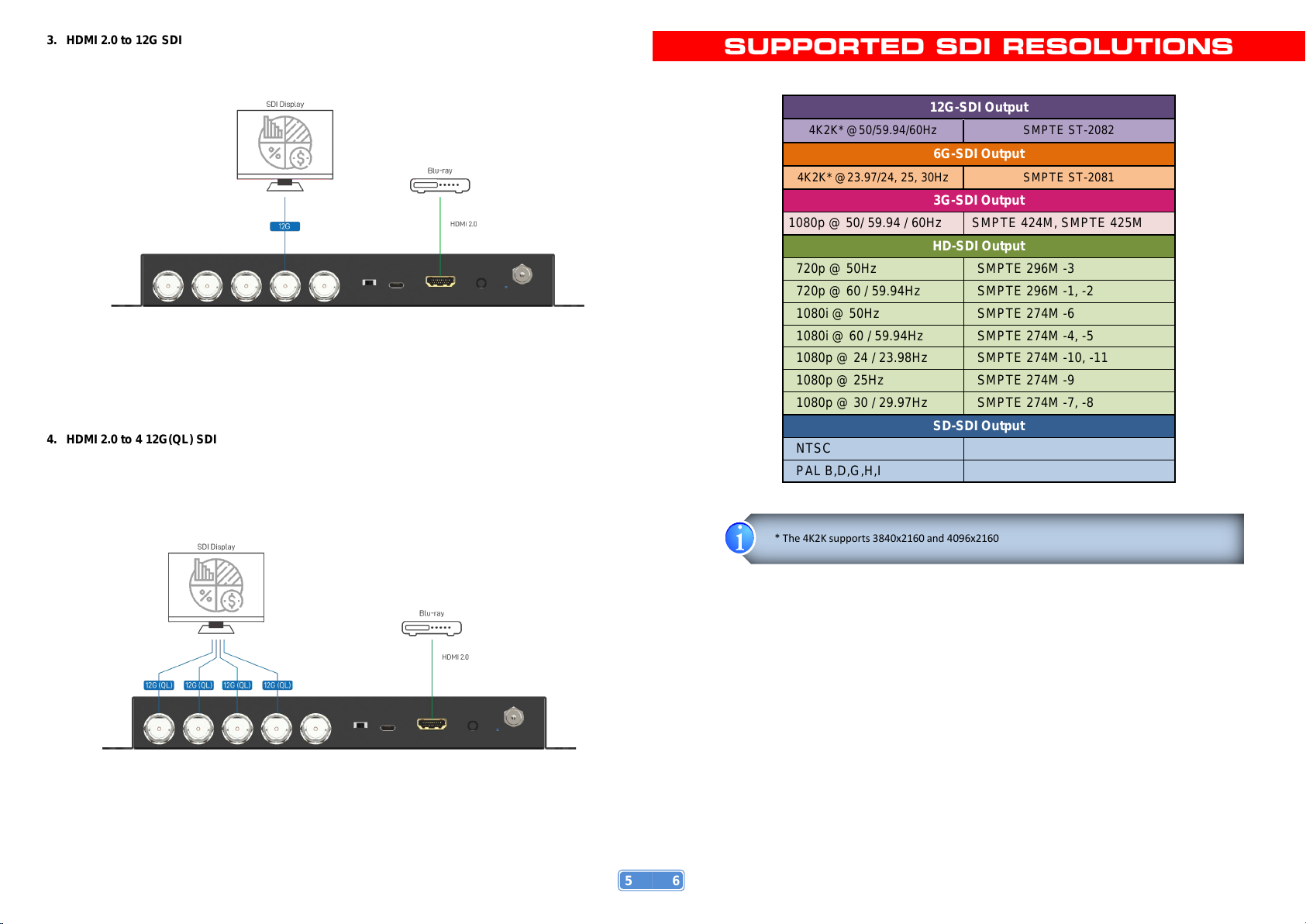

3. HDMI 2.0 to 12G SDI
4. HDMI 2.0 to 4 12G(QL) SDI
6
* The 4K2K supports 3840x2160 and 4096x2160
SUPPORTED SDI RESOLUTIONS
12G-SDI Output
4K2K* @50/59.94/60Hz
SMPTE ST-2082
6G-SDI Output
4K2K* @23.97/24, 25, 30Hz
SMPTE ST-2081
3G-SDI Output
1080p @ 50/ 59.94 / 60Hz
SMPTE 424M, SMPTE 425M
HD-SDI Output
720p @ 50Hz
SMPTE 296M -3
720p @ 60 / 59.94Hz
SMPTE 296M -1, -2
1080i @ 50Hz
SMPTE 274M -6
1080i @ 60 / 59.94Hz
SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz
SMPTE 274M -10, -11
1080p @ 25Hz
SMPTE 274M -9
1080p @ 30 / 29.97Hz
SMPTE 274M -7, -8
SD-SDI Output
NTSC
PAL B,D,G,H,I

7
LIMITED WARRANTY
The SELLER warrants the CV-503ZKM HDMI2.0 & 12G SDI to 12G/6G/3G/HD/SD-SDI
Converter with Audio Embedder to be free from defects in the material and workmanship for 1 year
from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be
free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the CV-503ZKM features and specifications is
subject to change without further notice.
8
