GoPowerBike Plug Runner S901 User manual

RUNNER
ELECTRIC SCOOTER INSTRUCTIONS MANUAL

TABLE OF CONTENTS

Unfolding Your Runner Scooter
1. First push up the latch, releasing the safety
bar.
2. Then, unfold the stem of the scooter until the
safety bar clips into place. Give the stem an
extra push to ensure the safety bar is locked
into place.
3. Finally, unscrew the handlebar folders, open
them up and screw them back into place.
Also ensure the latch on the stem is
tightened after adjusting it to the correct
height.
4. Bear in mind that the scooter is still new and
the joints can be a bit stiff. If you’re
struggling, please do not force ant pieces.
Use bicycle grease or a similar solution, to
help loosen screws or any tight hinges.
Getting Started Guide
2

3

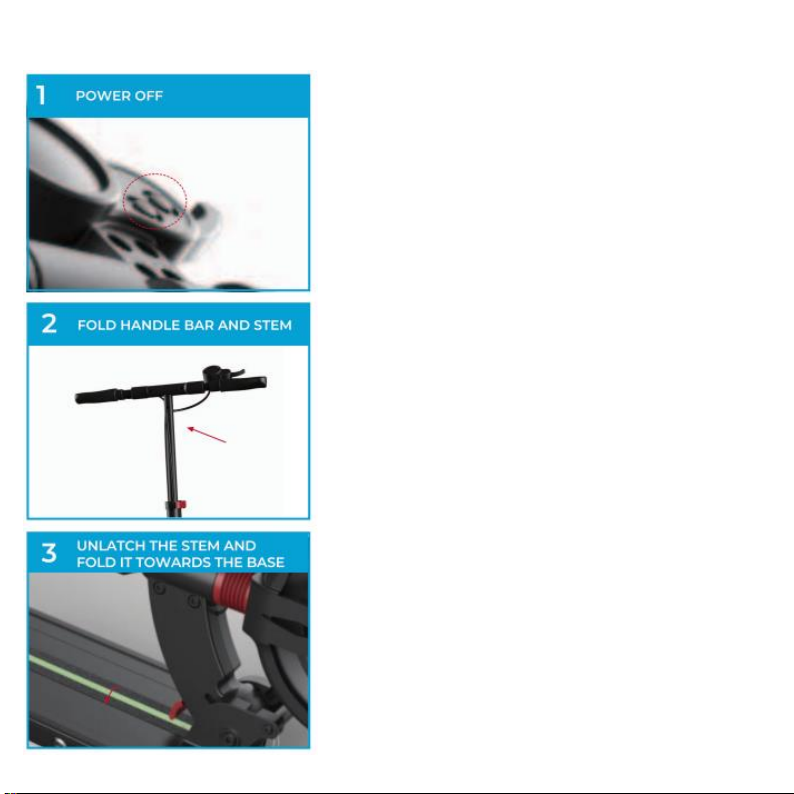

Folding Your Runner Scooter
1. Always ensure that your scooter is turned off
before folding. Turning off before folding
ensures your scooter will not accelerate
when being folded or stored.
2. Unlatch the stem and slide it down until the
handlebar reaches the folding latch, then
tighten the latch. Unscrew the handlebar
folders to fold the handlebar.
3. Release the folding latch by pushing forward
slightly on the handlebars and pushing the
latch down with your foot simultaneously,
and slowly lower the stem towards the base
of the scooter, until the safety bar clicks into
place.

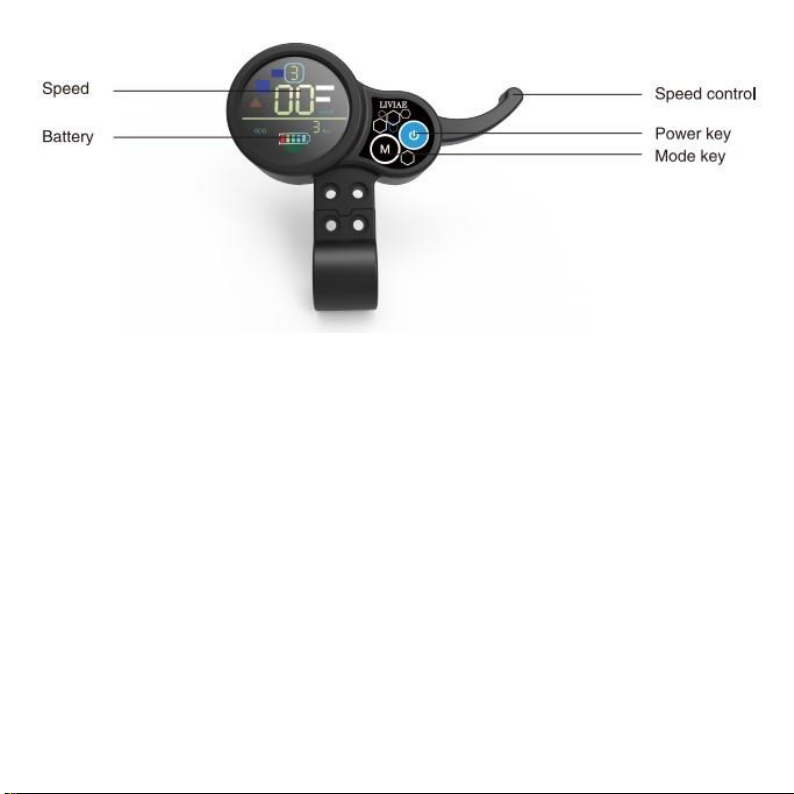

Power On and Off
To turn on the scooter, press the power button, shown above, for 3 seconds,
and the LED screen will turn on. To turn the scooter off, press the power
button again for 3 seconds.
Your scooter will automatically turn off if left idle for 90 seconds.
Speed Control
When your scooter is switched on, you will find 3 speed gears (1, 2, 3) that can
be changed by pressing the “Mode” (“M”) button.
Grade 1: 25KM/H (15 MPH)
Grade 2: 35KM/H (22 MPH)
Grade 3: 40+KM/H (25+ MPH) 4

Lights
To turn the scooter lights on or off, press and hold the “M” button for 3
seconds
Power Indication
The LED display shows the approximate charge level of your battery. For a
more detailed amount of charge remaining, refer to the voltage meter.
For proper preservation of your battery health, we do not recommend
regularly draining the battery below a 20% charge.
Mileage
When your scooter is powered on, the odometer will show the total distance
travelled. To switch between total distance travelled and trip distance, simply
click the power button once.
5

6
Battery Overview
Your scooter is powered by a lithium ion battery, a high-quality battery for
ultimate performance. In order to get the most out of your battery, charge is
fully before the first use.
Features of Your Lithium Battery
Balanced Charging Protection
Each battery is equipped with automatic balancing internal cell voltage protection,
protecting your battery and the voltage current being used at all times.
Overcharging Protection
The battery is equipped with an automatic disabling feature where the battery will stop
charging when it reaches 100%, even if the charger remains inside the scooter.
Temperature Protection
It is very important to keep your battery stored or charging in temperatures of 15-30°C to
ensure it remains safe.
Over-Current Protection
Only chargers with up to a certain voltage can be used to charge this scooter. Anything too
high will not charge the battery, protecting the life-cycle of the battery.
Over-Discharging Protection
When discharging your battery, the output power will automatically stop if the voltage falls
too low to protect the health of the battery.
Short-Circuit Protection
If a short circuit occurs, the battery will automatically stop output to protect itself

7
Charging
1. Plug the charger into an AC power outlet first, then connect the other end
to your scooter’s charging port.
2. As a safety recommendation, do not leave the scooter charging for more
than 10 hours.
3. Ensure the room’s temperature is between 15-30°C for ultimate battery
protection.
4. Charge time: approx. 6 hours
Battery Capacity
48V, 13.2aH

8
Learning to Ride
1. Use the necessary protective equipment while riding your scooter. Please
note helmets are mandatory in some Canadian provinces. Always check
local laws prior to riding your scooter.
2. It is strongly recommended to avoid riding on wet surfaces, unpaved
roads, ice, or snow, as this may result in injury.
3. The use of any electric scooter, or other Plug product, under the influence
of alcohol, drugs, or other judgment-impairing substances is strictly
prohibited and is illegal in select provinces.
4. Respect all local laws with your electric scooter (such as stopping at red
lights, respecting cars, and driving within the speed limit).
5. Sidewalks are strictly forbidden to ride on at all times
IMPORTANT
Please ensure you read and are aware of the local laws and regulation before
riding your scooter. Plug is not responsible for any misuse, negligence or fines
resulting in your use of your scooter.
