GPI G20-012PX User manual

20 GPM (76 L/min)
12V (dc)
Fuel Transfer Pump
Models G20-012PX, G20-012MD, G20-012AD
(PATENT-PENDING)
Product Owner’s Manual
922138-01 Rev A09/2019

SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE /
REPAIR
GETTING STARTED
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
BEFORE YOU BEGIN
Fueling Requirements
• This fuel pump is designed, tested and approved for use with gasoline
blends (up to E15), diesel fuel blends (up to B20) and kerosene.
Please take all due precautions when handling these flammable liquids.
• Do not use this pump for dispensing any fluids other than those for
which it was designed. To do so may damage the pumps components
and will void the warranty.
Power Source Requirements
• This manual covers 12V (dc) electric gear pump models G20-012PX,
G20-012MD, and G20-012AD
• Do not attempt connection of any pump to a 24V (dc), 115V (ac) or
230V (ac) power source.
Tools Needed
• Adjustable Wrench, Pipe Wrench, Pliers, Utility Knife, Wire Crimper/
Stripper, and Metric Hex Wrenches (Hex Key) (4 & 5 mm - Included)
UNPACKING
Contents
• (1) 12V (dc) Fuel Transfer Pump
• (1) Lockable Nozzle Holder
• (1) 90-Degree Modular Fitting and hardware kit & (1) thread tape
• (1) 18 ft. (5.5 m) Power Cord (Attached on models G20-012MD &
G20-012AD only)
• (1) Automatic Diesel Shut-off Nozzle (Model G20-012AD only) or
Manual Diesel Shut-off Nozzle (Model G20-012MD only)
• (1) 14 ft. (4.2 m) Dispensing Hose (Models G20-012MD &
G20-012AD only)
• (1) 15 in. (38 cm) to 40 in. (101 cm) Adjustable Suction Pipe
(Models G20-012MD & G20-012AD only)
Inspect
• After unpacking the unit, inspect carefully for any damage that may
have occurred during transit. Check for loose, missing or damaged
parts. Shipping damage claims must be filed with carrier.
• Review General Safety Instructions and all Caution, Warning, and
Danger statements as shown.
3

4
MAINTENANCE /
REPAIR TROUBLESHOOTING OPERATION GETTING STARTED
ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS
GENERAL SAFETY INSTRUCTIONS
IMPORTANT: It is your responsibility to:
• Know and follow applicable national, state and local safety codes
pertaining to installing and operating electrical equipment for use with
flammable liquids.
• Know and follow all safety precautions when handling petroleum fuels.
• Ensure that all equipment operators have access to adequate
instructions concerning safe operating and maintenance procedures.
Observe all safety precautions concerning safe handling of petroleum fuels.
To ensure safe operation, all fuel transfer systems must
be properly grounded. Proper grounding means a
continuous metal-to-metal contact from one component to the next, including
tank, tank mount, pump, meter, filter, hose and nozzle. Care should be taken to
ensure proper grounding during initial installation and after any service or repair
procedures. For your safety, please take a moment to review the warnings
below.
To prevent physical injury or property damage, observe
precautions against fire or explosion when dispensing
fuel. Do not operate the system in the presence
of any source of ignition including running or hot engines, lighted tobacco
products, gas or electric heaters, or any type of electronic device. A spark can
ignite fuel vapors.
Observe precautions against electrical shock when
operating the system. Serious or fatal
shock can result from operating electrical equipment in damp
or wet locations.
Inspect external pump wiring regularly to
make sure it is correctly attached to the battery. To avoid
electrical shock, use extra care when connecting the
pump to power.
Avoid prolonged skin contact with petroleum fuels. Use
protective goggles, gloves and aprons in case of
splashing or spills. Change saturated clothing and wash skin promptly with
soap and water.
Observe precautions against electrical shock when
servicing the pump. Always disconnect power before
repairing or servicing. Never apply electrical power
to the system when any of the coverplates are removed.
If using solvent to clean pump components
or tank, observe the solvent manufacturer’s
recommendations for safe use and disposal.

5
GETTING STARTED ASSEMBLY /
INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE /
REPAIR
SAFETY /
SPECIFICATIONS
SPECIFICATIONS
G20-012PX G20-012MD G20-012AD
Housing
Material Aluminum
Pump Rate 20 GPM (76 L/min)
Duty Cycle Intermittent, 30 minute ON, 30 minute OFF
Suction Lift Up to 9 ft. (2.7 m)
Operating
Temperature -22 °F to 131 °F (-30 °C to 55 °C)
Max. Surface
Temperature 320 °F (160 °C)
Operating
Pressure 12 PSI (0.82 bar)
Input 12V (dc)
Current Draw 34 amps
Motor 2000 RPM, .38 hp
Motor Approval cULus Listed, Class I Div 1,
IECEx/ATEX Zone 1 cULus Listed, Class I Div 2
Motor
Protection 40 amp circuit breaker
Cord N/A 18 ft. (5.5 m) of 12 ga.
Fuse 40 amp
Inlet 1 in. NPT
Outlet 1 in. NPT
Hose Type N/A Buna-N Electrically Conductive
Discharge Hose with Static Wire
Hose Size N/A 1 in. x 14 ft. (4.2 m)
Nozzle N/A 1 in. Manual
Diesel 1 in. Auto Diesel

MAINTENANCE /
REPAIR TROUBLESHOOTING OPERATION GETTING STARTED
6
ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS
Figure 1
SPECIFICATIONS (CONTINUED)
G20-012PX, G20-012MD, G20-012AD
Dimensions
A. Pump Assy Width 9.20 in. (23.36 cm)
B. Pump Assy Height 9.24 in. (23.46 cm)
C. Pump Assy Depth 11.62 in. (29.51 cm)
B
A
C

7
GETTING STARTED OPERATION TROUBLESHOOTING MAINTENANCE /
REPAIR
SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION
SPECIFICATIONS (CONTINUED)
SAFETY TESTING APPROVALS
The G20-012PX has been tested for compliance to the standards issues by
Underwriters Laboratories, IECEx, and ATEX.
Mfg.
Date
B
162235-01B
G20-012PX
F
Ex db IIA T4 Gb
IECEx UL 19.0027X
REFER TO MANUAL FOR WIRING INSTRUCTIONS
30 ON / 30 MIN. OFF DUTY
-30ºC<Tamb<+55ºC
98ºC RISE
34 AMPS12 VDC 2000 RPM 0.38 HP
2809
ELECTRIC MOTOR FOR
HAZARDOUS LOCATIONS
CLASS I, GROUP D
5252 E 36TH ST N
WICHITA, KS 67220
OP. TEMP.
CODE T3C
OP. TEMP.
CODE T4
DEMKO 19 ATEX 2113X
II 2 G Ex db IIA T4 Gb
UL 674 (Edition 5): Electric motors and generators for use in hazardous
(classified) locations.
IEC Information
Marking string:
Mfg.
Date
B
162235-01B
G20-012PX
F
Ex db IIA T4 Gb
IECEx UL 19.0027X
REFER TO MANUAL FOR WIRING INSTRUCTIONS
30 ON / 30 MIN. OFF DUTY
-30ºC<Tamb<+55ºC
98ºC RISE
34 AMPS12 VDC 2000 RPM 0.38 HP
2809
ELECTRIC MOTOR FOR
HAZARDOUS LOCATIONS
CLASS I, GROUP D
5252 E 36TH ST N
WICHITA, KS 67220
OP. TEMP.
CODE T3C
OP. TEMP.
CODE T4
DEMKO 19 ATEX 2113X
II 2 G Ex db IIA T4 Gb
Standards used:
IEC 60079-0 (Edition 6.0): Explosive Atmospheres – Part 0: Equipment -
General requirements.
IEC 60079-1 (Edition 7.0): Explosive Atmospheres – Part 1: Equipment
protected by flameproof enclosures “d”.
IECEx specific conditions of use:
1. Flameproof joints are not intended to be repaired.
2. The special fasteners used as securing bolts for the end bell are made
of Class 10.9 type fasteners. The special fasteners used for electrical
cover plate attachment are made of Class A2-70 type fasteners.
ATEX Information
Marking string:
Mfg.
Date
B
162235-01B
G20-012PX
F
Ex db IIA T4 Gb
IECEx UL 19.0027X
REFER TO MANUAL FOR WIRING INSTRUCTIONS
30 ON / 30 MIN. OFF DUTY
-30ºC<Tamb<+55ºC
98ºC RISE
34 AMPS12 VDC 2000 RPM 0.38 HP
2809
ELECTRIC MOTOR FOR
HAZARDOUS LOCATIONS
CLASS I, GROUP D
5252 E 36TH ST N
WICHITA, KS 67220
OP. TEMP.
CODE T3C
OP. TEMP.
CODE T4
DEMKO 19 ATEX 2113X
II 2 G Ex db IIA T4 Gb
Mfg.
Date
B
162235-01B
G20-012PX
F
Ex db IIA T4 Gb
IECEx UL 19.0027X
REFER TO MANUAL FOR WIRING INSTRUCTIONS
30 ON / 30 MIN. OFF DUTY
-30ºC<Tamb<+55ºC
98ºC RISE
34 AMPS12 VDC 2000 RPM 0.38 HP
2809
ELECTRIC MOTOR FOR
HAZARDOUS LOCATIONS
CLASS I, GROUP D
5252 E 36TH ST N
WICHITA, KS 67220
OP. TEMP.
CODE T3C
OP. TEMP.
CODE T4
DEMKO 19 ATEX 2113X
II 2 G Ex db IIA T4 Gb
Standards used:
EN 60079-0: 2011
EN 60079-1: 2014
ATEX specific conditions of use:
1. Flameproof joints are not intended to be repaired.
2. The special fasteners used as securing bolts for the end bell are made
of Class 10.9 type fasteners. The special fasteners used for electrical
cover plate attachment are made of Class A2-70 type fasteners.

NOTES
MAINTENANCE /
REPAIR TROUBLESHOOTING OPERATION ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
8

9
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE /
REPAIR
INSTALLATION INSTRUCTIONS
Coverplates protect the operator from moving parts.
Never operate the pump without coverplates in place.
Never apply electric power to the pump without coverplates in place. Always
disconnect power before repairing or servicing.
Mechanical Connections
NOTE: All threaded fuel connections must be sealed with thread tape or a
pipe thread sealing compound approved for use with petroleum fuels and
tightened securely to prevent leakage.
NOTE: This pump must be mounted on a vented tank.
NOTE: This pump is designed to mount directly to a standard 2 in. male
pump tank mount adapter (included).
NOTE: This pump is designed to self-prime with dry gears.
If you require a greater initial prime height, coat the gears with fluid by
removing the outlet fitting on the top of the pump and pour a small quantity
of motor oil into the gear cavity. Replace and try again. A foot valve with
pressure relief may be needed to maintain prime.
Install Tank Adapter and Suction Pipe
1. Wrap lower threaded end of the tank adapter with three or four turns of
thread tape (see Figure 2). Using a wrench, tighten the adapter snugly into
the fuel tank.
NOTE: For Aluminum Tank Installation - To prevent thread galling of
aluminum fittings, always prepare the threads for assembly using an
anti-seize compound such as Loctite®567™, Hernon®Dripstop®940 or
equivalent.
2. Using pliers, remove the plastic plug from inlet port on bottom of pump.
Place the spin collar gasket into the inlet fitting on the bottom of the
pump.
3. Wrap the threaded end of suction pipe with three or four turns of thread
tape (see Figure 3). Thread the suction pipe into the inlet port on the
bottom of the pump and hand tighten until snug.
NOTE: If your tank is 15” - 24” deep, do not use the included suction pipe
extension; if your tank is 24” - 40” deep, attach the suction pipe extension
(see Figure 4).

MAINTENANCE /
REPAIR TROUBLESHOOTING SAFETY /
SPECIFICATIONS GETTING STARTED
10
OPERATION ASSEMBLY /
INSTALLATION
Figure 3Figure 2
Install Pump on Tank
1. Clean the tank interior of all dirt and foreign material.
2. Place the pump with suction pipe installed on the tank fitting and tighten
securely. Make sure the pump’s spin collar is not cross-threaded.
Install Nozzle Cover
1. Using a 4mm Hex wrench, install nozzle cover using (1) M6-1.0 x
14mm BHCS in lower hole (see Figure 5).
NOTE: For model G20-012PX only, DO NOT install nozzle cover until after
wiring is completed.
Install 1 in. NPT Outlet Adapter
1. Remove plastic plug from outlet port of pump.
2. Install #222 O-ring into outlet port. Make sure O-ring is seated properly.
3. Using a 5mm Hex wrench, install the (4) M6-1.0 x 20mm SHCS
into the 1 in. NPT outlet adapter in desired direction on outlet port
(see Figure 5).
Figure 4
15” - 24” Telescoping Suction Pipe
24” - 40” Extension Pipe
INSTALLATION INSTRUCTIONS (CONTINUED)

11
GETTING STARTED SAFETY /
SPECIFICATIONS OPERATION MAINTENANCE /
REPAIR
TROUBLESHOOTING
ASSEMBLY /
INSTALLATION

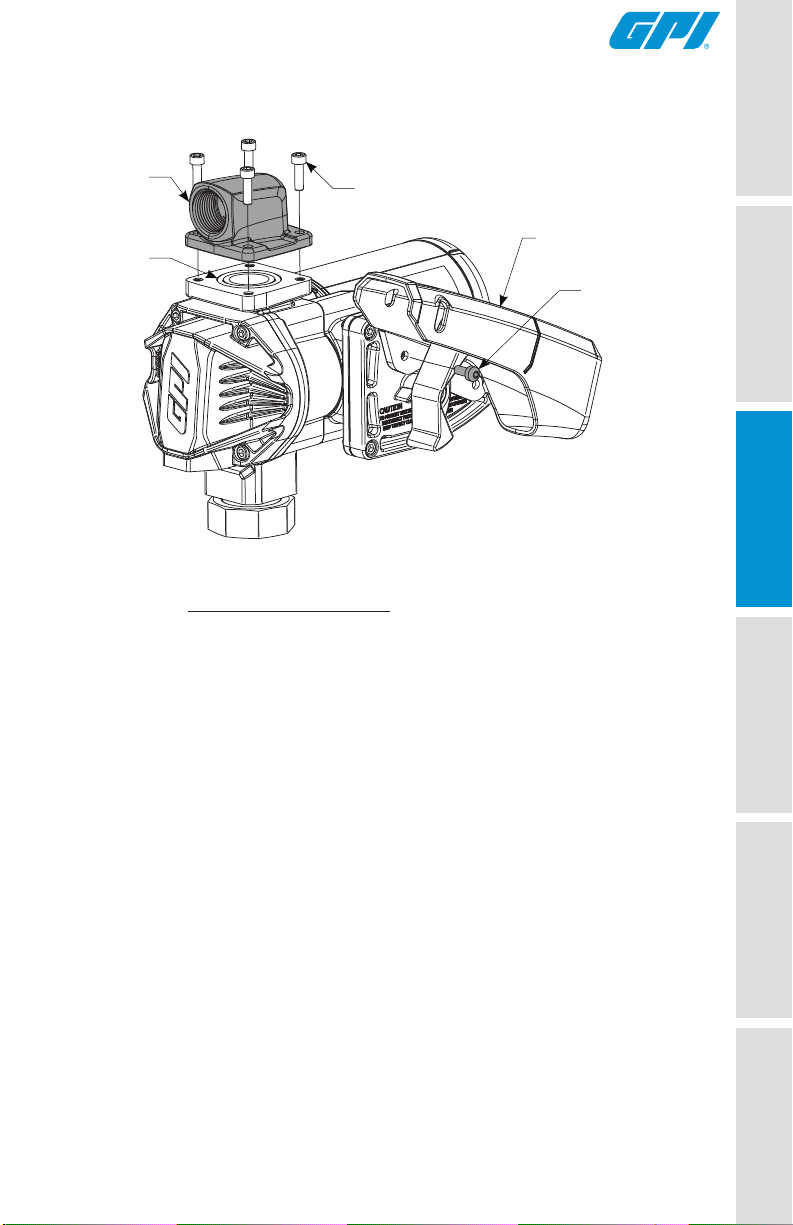

Figure 5
INSTALLATION INSTRUCTIONS (CONTINUED)
Install Hose and Nozzle
1. Wrap one end of the dispensing hose with three to four turns of thread
tape and thread into outlet port. Tighten securely using an adjustable
wrench.
2. Wrap opposite end of hose with three or four turns of thread tape
and thread into nozzle. Tighten securely using an adjustable wrench.
3. Place the nozzle into the nozzle holder on the end of the pump motor
housing. Note that the nozzle cannot be placed in the holder unless
the pump switch is OFF (see Figure 9).
Outlet
Adapter M6-1.0 x 20mm
SHCS
M6-1.0 x 14mm
BHCS
Nozzle Cover
#222
O-ring

12
MAINTENANCE /
REPAIR TROUBLESHOOTING SAFETY /
SPECIFICATIONS GETTING STARTEDOPERATION ASSEMBLY /
INSTALLATION
INSTALLATION INSTRUCTIONS (CONTINUED)
Installation of G20-012PX Model
For DIV 1 (UL)
If the pump is to be installed in a Hazardous (Classified)
location, it must be installed by a licensed electrician and
conform to National Fire Protection Association (NFPA) codes 30 and 70. You as
the owner, are responsible for seeing that the installation and operation of your
pump complies with NFPA codes as well as any applicable state and local
codes. Rigid conduit must be used to install wiring. Note that the lead wires are
factory-sealed isolating the motor from the junction box.
Failure to follow these wiring instructions may result in death or serious injury
from shock, fire or explosion.
For Zone 1 or 2 (IECEx/ATEX)
Use a suitable Exd cable gland during Zone 1 or 2 installations. Conductors
used for line voltage must have insulated rated at 105 °C or above.
Installation of G20-012AD and G20-012MD Models
NOTE: This pump is pre-wired for installation in CLASS I, DIVISION 2
locations such as portable fuel tanks, trailers, etc. Connection method to a
battery will depend upon the application.
Installation Replacement Power Cord (DIV 2 ONLY)
For installation in unclassified areas, the supplied power cord, fuse and
strain relief grip may be used.
NOTE: These components have not been evaluated as part of the UL
Listed Equipment and are not intended for use in a Hazardous (Classified)
Location.
To install the power cord, remove the (4) M6-1.0 x 20mm SHCS and
electrical coverplate (see Figure 7).
If necessary, trim the power cord to the desired length. Strip 3 to 4 inches
(7.5 to 10 cm) of outer insulation from the power cord end. Then strip 1/2
inch (1.3 cm) of insulation from the power cord wires.
Slide the strain relief grip onto the power cord so that the threaded end of
the strain relief grip faces the stripped power wires (see Figure 6).
Insert the power cord through the 1/2 inch NPT connection on the back
of the pump (see Figure 7). Using wire nuts, connect the black wire to
the black wire and the red wire to the red in the pump’s electrical cavity.
Position the wires inside the electrical cavity and tighten the strain relief grip
securely. Make sure surfaces are clean. Reinstall the electrical coverplate
and switch lever, and tighten securely.

13
GETTING STARTED SAFETY /
SPECIFICATIONS OPERATION MAINTENANCE /
REPAIR
TROUBLESHOOTING
ASSEMBLY /
INSTALLATION
Figure 6
Figure 7
INSTALLATION INSTRUCTIONS (CONTINUED)
Install Ground Wire
A grounding connection is provided. It is identified as a green colored
binding head screw in the electrical cavity (see Figure 7): an external
ground can be used instead. When using the external ground for the
G20-012PX (Zone 1 or 2), the installer must use a ground wire with a
minimum cross-sectional area of 4mm2. To use external ground, remove
green ground screw from electrical cavity and install in location shown
(see Figure 7a).
Figure 7a
(Only for G20-012AD and G20-012 MD models)
Black Wires
Green Ground
Screw
Strain Relief
M6 x 20mm
SHCS
M6 x 14mm
BHCS
Power Cord
Red Wires
External Ground
Screw Location

TROUBLESHOOTING SAFETY /
SPECIFICATIONS GETTING STARTED
14
MAINTENANCE /
REPAIR
Figure 8
(+)
(-)
Fuse Assembly
Black Wire
Wire Connector
Red
Wire
Battery
INSTALLATION INSTRUCTIONS (CONTINUED)
Connect to a Power Source
NOTE: Please consult the Owner’s Manual for your vehicle before
proceeding.
IMPORTANT: The pump is designed for use with a 12 V (dc) power
source. Do not attempt connection of any pump to a 24 V (dc), 115 V (ac) or
230 V (ac) power source.
Do not attempt to power the pump from vehicle wiring
smaller than 12 gauge, such as the cigarette lighter wire,
as these thin wires could overheat and
cause a fire.
IMPORTANT: Verify switch is in OFF position (see Figure 9), then route
the electrical wires to the source of the vehicle power system. Be sure to
support the wires as necessary and protect them from sharp edges, heat or
anything that could damage the wires.
1. If the power cord provided is too long, cut to desired length. Using a
utility knife, carefully strip 3 to 4 inches of outer insulation from end of
power cord. DO NOT CUT INSULATION OF INNER WIRES. Next,
using wire strippers, remove 1/4 in. of insulation from the black and red
power cord wires.
2. First disconnect vehicle wiring from the negative ground terminal of
the battery, and then connect as follows: Using wire strippers, carefully
strip 1/4 in. of insulation from both ends of the fuse assembly wire.
3. Insert one end of the fuse assembly wire into a wire connector
(included) and crimp. Insert the red power cord wire into the other
end of the wire connector and crimp. Make sure the fuse assembly is
positioned outside of hazardous areas and as close to the battery as
possible (see Figure 8).
4. Using wire crimpers, attach a terminal post ring (not included) to the
other end of the fuse assembly and a terminal post ring to the end of
the black power cord wire.
5. Connect the red wire/fuse assembly to the positive side of the battery
(see Figure 8).
6. Connect the black power cord wire to the negative side of the battery.
NOTE: Connecting directly to the battery terminal or the end of the battery
cable is recommended.
OPERATION ASSEMBLY /
INSTALLATION

GETTING STARTED SAFETY /
SPECIFICATIONS
15
MAINTENANCE /
REPAIR
ASSEMBLY /
INSTALLATION TROUBLESHOOTING
OPERATION
IMPORTANT: Always follow safety precautions when operating this
equipment. Review the Safety Instructions.
To prevent physical injury or property damage, observe
precautions against fire or explosion when dispensing
fuel. Do not operate the system in the presence
of any source of ignition including running or hot engines, lighted tobacco
products, gas or electric heaters, or any type of electronic device. A spark can
ignite fuel vapors.
Before each use, repair leaks around seals or
connections. Make sure hoses are in good condition and
connections are tight.
NOTE: Make sure the work area is dry.
Make sure the pump is properly grounded. Repair any
corroded or damaged wiring before use.
NOTE: Ensure the tank contains enough fuel.
IMPORTANT: Make sure the fuel is not contaminated with debris. Tighten
loose tank lids regularly.
Dispensing Fuel
1. Remove the nozzle from holder and insert into receiving tank. Turn the
pump on by pushing the switch lever up. Squeeze the handle to start
fuel flow. When done, release the nozzle handle, turn the pump off, and
return the nozzle to its holder.
IMPORTANT: This pump is designed to be self-priming. If fuel is not
delivered within 15 to 20 seconds, turn the pump off and refer to priming
information in the Troubleshooting Section.
An automatic bypass valve prevents pressure
build up when the pump is on with the nozzle closed. To
avoid pump damage, do not run the pump more than
10 minutes with the nozzle closed. Leaving the pump on with the nozzle closed
for more than 10 minutes can damage the pump components and will void the
warranty.
Never leave the pump running without fluid.
Dry running can damage the pump components, and will
void the warranty.
IMPORTANT: This is an intermittent duty pump, after running the pump
for a maximum of 30 minutes, allow it to cool for 30 minutes.
OPERATION

MAINTENANCE /
REPAIR OPERATION ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
16
TROUBLESHOOTING
OPERATION (CONTINUED)
Motor Protector
NOTE: This pump is equipped with a motor protective device that also
serves as the ON/OFF switch. The motor protective device is not intended
to provide branch protection.
1. If motor is overloaded, the protective device trips and opens the circuit.
This feature protects the motor from damage and must be
reset manually.
2. To reset, turn switch lever OFF and then back ON (see Figures 9
and 10).
3. If the protective device trips again quickly, disconnect from power
source before attempting to troubleshoot the problem. Follow the
instructions provided in the Troubleshooting section of this manual.
4. Make sure the switch lever is OFF before restoring power.
5. Turn switch lever ON and restart.
Figure 9
Figure 10
OFF
position
ON position

17
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATION
Symptom Possible Cause(s) Corrective Action
Motor does not run 1. Fuse blown 1. Inspect fuse in fuse holder on
power cord. If blown, replace
2. Switch defective 2. Remove switch coverplate
and inspect switch. Replace,
if necessary
3. Switch or electrical
connections are faulty
3. Inspect for damaged fuse,
defective wiring or switch or
improper electrical connections.
Replace as needed and
reinstall
4. Circuit breaker tripped 4. Turn power off at source.
Inspect the pump thoroughly;
clean or repair. Reset circuit
breaker by turning the power
switch off then back on
5. Motor damaged 5. Replace pump
Motor runs but
does not pump
1. Motor running backwards
due to incorrect polarity
1. Connect red wire to positive
(+) ungrounded side of
battery. Motorshaft should turn
clockwise
2. Poor connections
or low voltage
2. Make sure electrical
connections are secure. Check
battery voltage
3. Fuel level low 3. Fill tank
4. Strainer clogged or
defective
4. Remove pump coverplate.
Remove and clean strainer.
Install again
5. System air leak 5. Tighten all pump fittings and
connections. Inspect suction
pipe for leaks or damage
6. Suction pipe clogged,
damaged or missing
6. Remove pump from tank.
Inspect suction pipe. Clean
or replace, as necessary
7. Gear coverplate or O-ring
damaged
7. Remove and inspect the
coverplate and O-ring.
Replace, as necessary. (see
Maintenance/Repair section)
8. Bypass poppet
O-ring worn or missing
8. Inspect O-ring (see
Maintenance/Repair section).
Replace, if necessary
9. Bypass poppet binding
or damaged
9. Remove the bypass poppet,
spring, and O-ring. Clean
cavity. Inspect and replace
components, if needed
TROUBLESHOOTING
MAINTENANCE /
REPAIR
TROUBLESHOOTING

18
TROUBLESHOOTING (CONTINUED)
MAINTENANCE /
REPAIR OPERATION ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
TROUBLESHOOTING
Symptom Possible Cause(s) Corrective Action
Low flow rate 1. Strainer partially clogged 1. Remove the strainer
coverplate. Remove
and clean the strainer.
Install again
2. Poor connections
or low voltage
2. Make sure electrical
connections are secure.
Also check battery voltage
3. Fuel tank empty 3. Fill tank
4. Suction pipe clogged
or damaged
4. Remove pump from tank.
Inspect suction pipe. Clean
or replace, as necessary
5. System air leak 5. Tighten all pump fittings and
connections. Inspect suction
pipe for leaks or damage.
Replace, as necessary
6. Using off-the-shelf
automatic nozzle
6. Factory-supplied automatic
nozzle is recommended
Motor stalls when
operating in bypass
mode
1. Motor protector activated 1. Turn off switch. Allow motor
to cool, then turn on switch
2. Wiring defective 2. Use Wiring instructions in the
Installation Section to ensure
proper connections
3. Bypass poppet binding
or damaged
3. Using instructions in the
Repair Section, remove the
bypass poppet, spring and
O-ring. Clean cavity. Inspect
components and replace,
as necessary
4. Motor damaged 4. Replace pump

19
TROUBLESHOOTING (CONTINUED)
Symptom Possible Cause(s) Corrective Action
Switch fails to operate
motor
1. Switch or electrical
connections faulty
1. Inspect for blown fuse,
defective wiring or switch,
or improper electrical
connections. Refer to Switch
Replacement instructions in
the Repair Section
2. Motor protector activated 2. Turn off switch. Allow motor
to cool, then turn on switch
3. Motor damaged 3. Replace pump
Overheating of motor 1. Duty cycle too long 1. Pump operation should not
exceed the standard duty
cycle of 30 minutes ON, and
30 minutes OFF. Allow the
pump to cool for 30 minutes
2. Running too long in
bypass mode
2. Limit bypass operation to
10 minutes
3. Strainer clogged 3. Remove strainer coverplate.
Remove and clean strainer.
Install again
4. Suction pipe clogged
or damaged
4. Remove pump from tank.
Inspect suction pipe. Clean or
replace, as necessary
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATION MAINTENANCE /
REPAIR
TROUBLESHOOTING

TROUBLESHOOTING OPERATION ASSEMBLY /
INSTALLATION
SAFETY /
SPECIFICATIONS GETTING STARTED
20
MAINTENANCE
NOTE: This pump is designed for minimum maintenance. The motor
bearings are self-lubricating. Inspect the pump and components regularly
for fuel leaks and make sure the hose and power cord are in good condition.
Keep the pump exterior clean to help identify leaks.
IMPORTANT: Do not use this pump for water, chemicals or herbicides.
Dispensing any fluid other than those listed in this manual (see BEFORE
YOU BEGIN: Fueling Requirements at front of manual) may damage the
pump. Use of the pump with unauthorized fluids will void the warranty.
Clean or Replace Strainer
1. Turn the pump off and disconnect from power. Using 5mm hex wrench,
remove the coverplate, O-ring, and inlet strainer and inspect for
damage or clogs (see Figure 11). Clean the strainer with a soft-bristled
brush and solvent. If the strainer is very dirty, compressed air may be
used. If damaged, replace the strainer.
2. Clean the coverplate and O-ring. Coat the O-ring lightly with grease.
Reinstall the strainer, O-ring and coverplate. Ensure the O-ring is
properly seated and tighten securely.
MAINTENANCE /
REPAIR
Figure 11
Strainer
Coverplate O-ring
Coverplate

21
GETTING STARTED SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATION TROUBLESHOOTING
REPAIR
IMPORTANT: Carefully inspect all parts for wear or damage. Replace
components, as necessary. The Illustrated Parts List gives information
on replacement parts and kits. Review the Safety Instructions before
proceeding.
Observe precautions against electrical shock when
servicing the pump. Always disconnect power before
repairing or servicing. Never apply electrical power
to the system when any of the coverplates are removed.
Avoid prolonged skin contact with petroleum fuels. Use
protective goggles, gloves and aprons in case of
splashing or spills. Change saturated clothing and wash skin promptly with
soap and water.
Service O-rings
NOTE: A Wet Seal Kit contains all seals for your pump and should be
on hand when performing repairs. Old seals may then be replaced with
new seals.
1. In general, when inspecting O-rings, look for breaks, wear, and signs
of deterioration, such as swelling.
2. Replace, as necessary.
3. Before seating, coat O-rings with light grease.
MAINTENANCE /
REPAIR
