Graco ProMix PD2K Owner's manual

Repair-Parts
ProMix® PD2K Electronic
Proportioner 3A2800B
EN
Positive displacement proportioning of 2-component materials helps reduce waste. Manual system with
Advanced Display Module. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Seepage3for model part numbers and
approvals information.
PROVEN QUALITY. LEADING TECHNOLOGY.

Contents
Models............................................................... 3
Related Manuals ................................................ 5
Warnings ........................................................... 6
Important Isocyanate (ISO) Information................ 9
Troubleshooting.................................................. 11
System Troubleshooting............................... 11
Error Code Troubleshooting.......................... 12
Booth Control Troubleshooting...................... 22
Power Barrier Board Troubleshooting............ 23
Isolation Board Troubleshooting.................... 24
Enhanced Fluid Control Module
Troubleshooting.............................. 25
Pump Module Troubleshooting ..................... 26
Advanced Display Module
Troubleshooting.............................. 27
Notes ................................................................ 28
Electrical Schematics.......................................... 29
Optional Cables and Modules ....................... 35
Repair................................................................ 36
Before Servicing .......................................... 36
Pressure Relief Procedure............................ 37
Repairing the Advanced Display Module
(ADM)............................................ 38
Servicing the Control Box ............................. 39
Servicing the Fluid Section ........................... 48
Parts.................................................................. 52
Proportioner Parts........................................ 52
Control Box Parts......................................... 55
Solenoid Manifold Parts................................ 58
Technical Data ................................................... 59
Graco Standard Warranty.................................... 60
23A2800B

Models
Models
See Figs. 1–7 for component identification labels, including approval information and certification.
Part No. Series Maximum Air Working
Pressure
Maximum Fluid Working
Pressure
Location of PD2K and
Electrical Control Box
(ECB) Labels
MC1000 A100 psi (0.7 MPa, 7.0 bar) 300 psi (2.068 MPa,
20.68 bar)
MC2000 A100 psi (0.7 MPa, 7.0 bar) 1500 psi (10.34 MPa,
103.4 bar)
0359 II 2 G
Figure 1 Model MC1000 (Low Pressure) Identification Label
Figure 2 24M672 Control Box Identification Label
Continued on the next page.
3A2800B 3

Models
Figure 3 Model MC2000 (High Pressure) Identification Label
Figure 4 Non-Intrinsically Safe Color Change Control (Accessory) Identification Label
Figure 5 Intrinsically Safe Color Change Control (Accessory) Identification Label
Figure 6 Booth Control Identification Label
Figure 7 Pump Expansion Kit (Accessory) Identification Label
43A2800B

Related Manuals
Related Manuals
Manual No. Description
332457 PD2K Proportioner Installation
Manual, Manual Systems
332562 PD2K Proportioner Operation
Manual, Manual Systems
3A2801 Mix Module Instructions-Parts
Manual
332339 Pump Repair-Parts Manual
Manual No. Description
332454 Color Change Valve Repair-Parts
Manual
332455 Color Change Kits
Instructions-Parts Manual
332456 3rd and 4th Pump Kits
Instructions-Parts Manual
3A2800B 5

Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific
risks. When these symbols appear in the body of this manual or on warning labels, refer backtothese
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
•Grounda
ll equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless
they are antistatic or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock, Do not use
equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can
cause electric shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before
servicing or installing equipment.
• Connect only to grounded power source.
•Alle
lectrical wiring must be done by a qualified electrician and comply with all local codes
and regulations.
63A2800B

Warnings
WARNING
INTRINSIC SAFETY
Intrinsically safe equipment that is installed improperly or connected to non-intrinsically safe
equipment will create a hazardous condition and can cause fire, explosion, or electric shock.
Follow local regulations and the following safety requirements.
•Besureyouri
nstallation complies with national, state, and local codes for the installation of
electrical apparatus in a Class I, Group D, Division 1 (North America) or Class I, Zones 1
and 2 (Europe) Hazardous Location, including all of the local safety fire codes (for example,
NFPA 33, NEC 500 and 516, OSHA 1910.107, etc.).
• To help prevent fire and explosion:
• Do not install equipment approved only for a non-hazardous location in a hazardous
location. See model ID label for the intrinsic safety rating of your model.
• Do not substitute system components as this may impair intrinsic safety.
• Equipment that comes in contact with the intrinsically safe terminals must be rated for Intrinsic
Safety. This includes DC voltage meters, ohmmeters, cables, and connections. Remove the
unit from the hazardous area when troubleshooting.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation.Get immediate surgical
treatment.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Do not point gun at anyone or at any part of the body.
•Donotp
ut your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before
cleaning, checking, or servicing equipment.
•Tight
en all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
•Pre
ssurized equipment can start without warning. Before checking, moving, or servicing
equipment, follow the Pressure Relief Procedure and disconnect all power sources.
3A2800B 7

Warnings
WARNING
TOXIC FLUID OR FUMES
Toxic fluids or fumes can cause serious injury or death if splashed in the eyesoronskin,
inhaled, or swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
• Always wear chemically impermeable gloves when spraying, dispensing, or cleaning
equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
•Protectiv
e eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See Technical Data in all equipment manuals.
•Useflui
ds and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
•Check
equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Make sure all equipment is rated and approved for the environment in which youareusingit.
•Usee
quipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
•Kee
p children and animals away from work area.
• Comply with all applicable safety regulations.
83A2800B

Important Isocyanate (ISO) Information
Important Isocyanate (ISO) Information
Isocyanates (ISO) are catalysts used in two
component materials.
Isocyanate Conditions
Spraying or dispensing materials containing
isocyanates creates potentially harmful mists,
vapors, and atomized particulates.
Read material manufacturer’s warnings and
material MSDS to know specific hazards and
precautions related to isocyanates.
Prevent inhalation of isocyanate mists, vapors,
and atomized particulates by providing sufficient
ventilation in the work area. If sufficient ventilation
is not available, a supplied-air respirator is required
for everyone in the work area.
To prevent contact with isocyanates, appropriate
personal protective equipment, including
chemically impermeable gloves, boots, aprons,
and goggles, is also required for everyone in the
work area.
Material Self-ignition
Some materials may become self-igniting if applied
too thick. Read material manufacturer’s warnings
and material MSDS.
Keep Components A and B Separate
Cross-contamination can result in cured
material in fluid lines which could cause serious
injury or damage equipment. To prevent
cross-contamination:
•Never interchange component A and component
B wetted parts.
• Never use solvent on one side if it has been
contaminated from the other side.
Moisture Sensitivity of Isocyanates
Exposure to moisture (such as humidity) will cause
ISO to partially cure; forming small, hard, abrasive
crystals, which become suspended in the fluid.
Eventually a film will form on the surface and the ISO
will begin to gel, increasing in viscosity.
NOTICE
Partially cured ISO will reduce performance and
the life of all wetted parts.
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere.
Never store ISO in an open container.
• Keep the ISO pump wet cup or reservoir (if
installed) filled with appropriate lubricant. The
lubricant creates a barrier between the ISO and
the atmosphere.
• Use only moisture-proof hoses compatible with
ISO.
• Never use reclaimed solvents, which may
contain moisture. Always keep solvent
containers closed when not in use.
• Always lubricate threaded parts with an
appropriate lubricant when reassembling.
NOTE: The amount of film formation and rate of
crystallization varies depending on the blend of ISO,
the humidity, and the temperature.
3A2800B 9

Important Isocyanate (ISO) Information
Changing Materials
NOTICE
Changing the material types used in your
equipment requires special attention to avoid
equipment damage and downtime.
• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.
• Always clean the fluid inlet strainers after
flushing.
•Checkwith
your material manufacturer for
chemical compatibility.
• When changing between epoxies and urethanes
or polyureas, disassemble and clean all fluid
components and change hoses. Epoxies often
have amines on the B (hardener) side. Polyureas
often haveaminesontheA(resin)side.
10 3A2800B

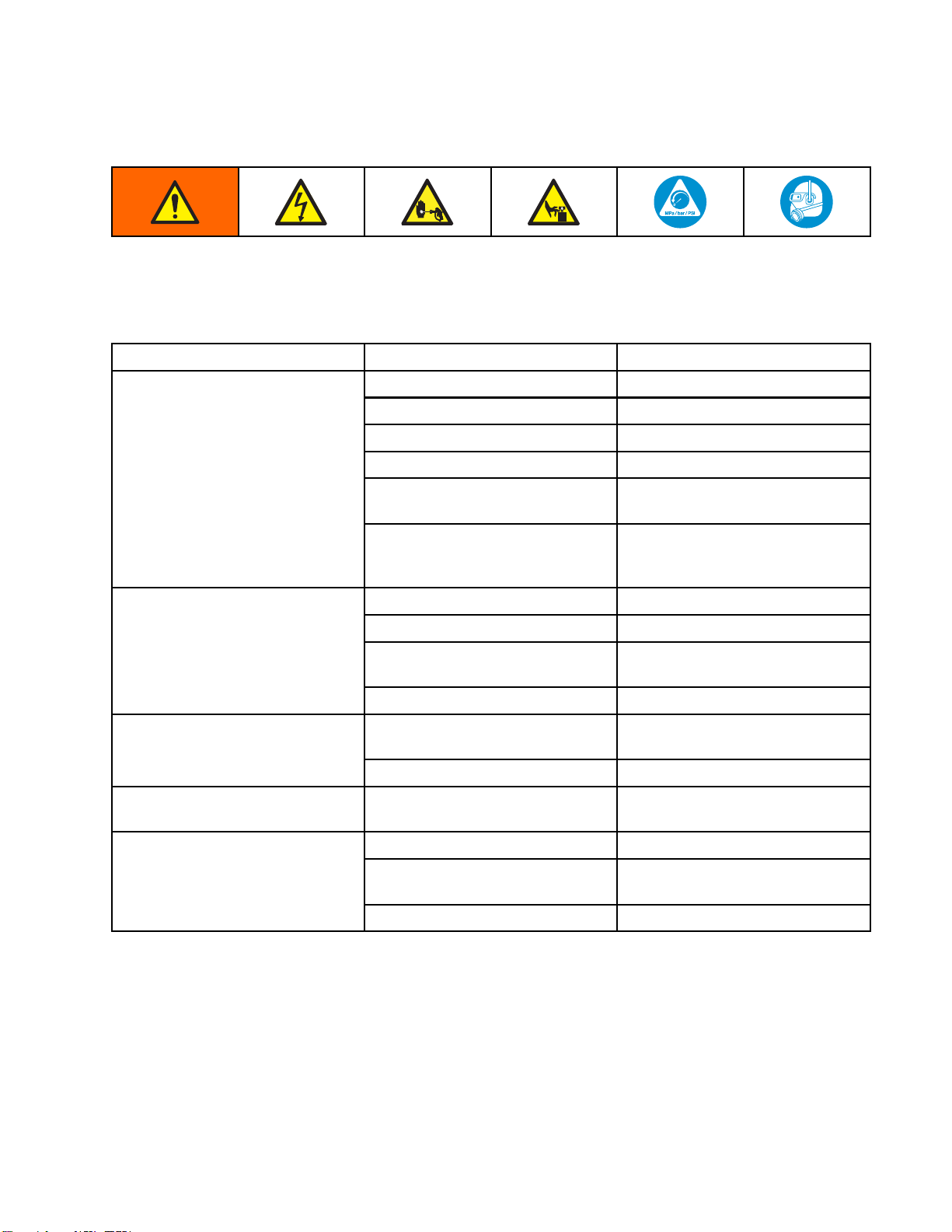

Troubleshooting
Troubleshooting
NOTE: Check all possible remedies before disassembling the system.
System Troubleshooting
Problem Cause Solution
Inadequate power supply. See Technical Data, page 59.
Power switch is off. Turn switch on.
Main power is shut off. Turn main power switch on.
Exhausted fluid supply. Refill and reprime pump.
Clogged fluid outlet line, valves,
etc.
Clear.
Unit will not operate.
Fluid dried on piston rod. Disassemble and clean pump.
See pump manual. In future, stop
pump at bottom of stroke.
Inadequate power supply. See Technical Data, page 59.
Exhausted fluid supply. Refill and reprime pump.
Clogged fluid outlet line, valves,
etc.
Clear.
Pump output low on both strokes.
Worn piston packings. Replace. See pump manual.
Held open or worn dosing valves. Check and repair. See valve
manual.
Pump output low on only one
stroke.
Worn piston packing. Replace. See pump manual.
No output. Improperly installed dosing valves. Check solenoid connections to
valves. See pump manual.
Exhausted fluid supply. Refill and reprime pump.
Held open or worn dosing valves. Check and repair. See pump
manual.
Pump operates erratically.
Worn piston packing. Replace. See pump manual.
3A2800B 11

Troubleshooting
Error Code Troubleshooting
System errors alert you of a problem and help
prevent off-ratio spraying. There are three types:
Advisory, Deviation, and Alarm.
An Advisory records an event in the system, and will
clear itself after 60 seconds.
ADeviation records an error in the system but does
not shut down the equipment. The deviation must be
acknowledged by the user.
If an Alarm occurs, operation stops.
If any of the three types occur:
•Alarm buzzer sounds (unless in silent mode).
•Alarm popup screen shows the active alarm code.
•Status bar on the Advanced Display Module shows
theactivealarmcode.
•Alarm is saved in the date/time stamped log.
NOTE: When an error occurs be sure to determine
the code before resetting it. If you forget which code
occurred, the Errors screen displays the 200 most
recent errors, with date, time, and description.
NOTE: In some error codes listed below, a # symbol
is shown as the last digit. This symbol represents the
applicable pump number, which can vary. The unit’s
display will show the applicable pump number as the
last digit in the code.
Code Type Description Problem Cause Solution
B9A0 AdvisoryVolume
RolloverA
Current
Batch counter for
material A rolled over.
The totalizer has
reached maximum
capable value and
started over at zero.
n/a
B9AX Advisory Volume
Rollover A
Lifetime
Grand total counter for
material A rolled over.
The totalizer has
reached maximum
capable value and
started over at zero.
n/a
B9B0 Advisory Volume
Rollover B
Current
Batch counter for
material B rolled over.
The totalizer has
reached maximum
capable value and
started over at zero.
n/a
B9BX Advisory Volume
Rollover B
Lifetime
Grand total counter for
material B rolled over.
The totalizer has
reached maximum
capable value and
started over at zero.
n/a
B9D# Advisory Volume
Rollover
Pump #
Grand total counter for
pump#rolledover.
The totalizer has
reached maximum
capable value and
started over at zero.
n/a
123A2800B

Troubleshooting
Code Type Description Problem Cause Solution
B9S0 Advisory Volume
Rollover
Solvent
Current
Batch counter for
material S rolled over.
The totalizer has
reached maximum
capable value and
started over at zero.
n/a
B9SX Advisory Volume
Rollover
Solvent
Lifetime
Grand total counter for
material S rolled over.
The totalizer has
reached maximum
capable valueand
started over at zero.
n/a
CAC# Alarm Comm.
Error Color
Change #
System does not see
the Color Change
Module #.
This communication
error indicates that
the network has lost
communication with
the Color Change
Module #.
Check CAN cable
connections to
the Color Change
Module # and any
interconnected
modules.
CA0X Alarm Comm.
Error ADM
System does not see
the Advanced Display
Module.
This communication
error indicates that
the Network has lost
communication with
the Advanced Display
Module.
Check CAN cable
connecting ADM to the
EFCM.
CADX Alarm Comm.
Error Fluid
Module
System does not
see the Enhanced
Fluid Control Module
(EFCM).
This communication
error indicates that
the Network has lost
communication with
the EFCM.
Check CAN cables
connecting ADM to
the EFCM. Replace
Cable or EFCM as
necessary.
CANX Advisory Comm.
Error Booth
Control
System does not see
the Booth Control (and
manual system).
This communication
error indicates that
the Network has lost
communication with
the Booth Control
module.
Check CAN cables
connecting booth
control to the Isolation
board. Check Isolation
board power. Replace
cable, booth control,
Isolation board or
Barrier board as
necessary.
CDC#Alarm Duplicate
Color
Change #
System sees two or
more identical Color
Change Modules.
More than one Color
Change Module is
connected in the
system with the same
address.
Check the system and
remove the extra color
change module.
3A2800B 13

Troubleshooting
Code Type Description Problem Cause Solution
CDDX Alarm Duplicate
Fluid
Module
System sees twoor
more identical Fluid
Control Modules.
More than one Fluid
Control Module is
connected in the
system.
Check the system and
remove the extra fluid
control module.
CDNX Alarm Duplicate
Booth
Control
System sees two or
more identical Booth
Control Modules.
More than one Booth
Control Module is
connected in the
system.
Check the system
and remove the extra
booth control module.
System has a leak
or open valve that is
allowing unrestricted
flow.
Inspect system for
leaks.
Pump is cavitating,
cycling without
restriction.
Verify pump is being
supplied material.
DA0# Alarm Exceeded
Max Flow
Pump #
Pump was driven to
its maximum allowed
speed.
Viscosity of material is
too thin for nozzle size.
Reduce nozzle size
to create more
restriction. Reduce
paint pressure to lower
the flow rate.
No material in the
pump or line.
Make sure the pump
and down stream color
line are loaded with
material.
DE0# Alarm Leak Pump
#
This is a manual stall
test failure when the
pump cannot build
pressure to the target
“Stall Test Pressure.”
Will fault after 30
seconds.
Leak in the system. Determine if leak is
external or internal
by visually inspecting
the system for fluid
leakage. Fix all loose
or worn hoses, fittings,
and seals. Inspect
all valve seats and
needles for wear, and
replace worn piston or
throat seals.
DF0#Alarm No Stall Up
Pump#
Pump stall test failed;
pump did not stall on
the up stroke.
Valve failure, seal
failure, worn rod or
cylinder.
Replace inlet and
outlet valve and
seal for up stroke.
Replace piston and
throat seals. Replace
rod and cylinder as
necessary.
143A2800B

Troubleshooting
Code Type Description Problem Cause Solution
DG0# Alarm No Stall
Down
Pump #
Pump stall test failed;
pump did not stall on
the down stroke.
Valve failure,seal
failure, worn rod or
cylinder.
Replace inlet and
outlet valve and seal
for down stroke.
Replace piston and
throat seals. Replace
rod and cylinder as
necessary.
DH0# Alarm No Stall
Pump #
Pump stall test failed;
pump did not stall on
either the up or down
stroke.
Valve failure, seal
failure, worn rod or
cylinder.
Replace inlet and
outlet valve and seal
for up and down
strokes. Replace
piston and throat
seals. Replace
rod and cylinder as
necessary.
DK0# Alarm Position
Pump #
Thepumpwas
detected to be out
of position.
Re-enable pump
power to reset pump.
EAUX Advisory USB Busy USB drive has been
inserted, download is
in progress.
Indicates USB port
is uploading or
downloading data.
Wait for USB Idle.
EB00 Record Stop
Button
Pressed
Recordofastopbutton
press.
Indicates system stop
key on ADM was
pressed.
n/a
EBH# Record Home
Complete
Pump #
Record of pump
homing complete.
An indication on the
display that the pump
completed the home
function
No action required.
EBUX Record USB
drive was
removed.
USB drive was
removed while
downloading or
uploading.
Downloading/uploading
data on USB was
interrupted by the USB
device being removed.
Replace the USB
device and begin
process again.
EC00 Record Setup
Value(s)
Changed
Record of changing
setup variables.
Indicates date and time
when setup values
were changed.
n/a
Pump dose valves did
not actuate.
Verify air pressure
to solenoid valves.
Verify the valves are
actuating.
Motor could not drive
pumps and linear
actuator.
Verify motor is driving
the pump.
EF0# Alarm Timeout
Startup
Pump #
Pump tried but was not
able to move to the
home position within
a specified amount of
time.
Pump stroke length
is shortened by
mechanical system
tolerance.
Verify correct
assembly of linear
actuator and pump
piston rods. See pump
manual.
3A2800B 15

Troubleshooting
Code Type Description Problem Cause Solution
Pump dose valves did
not actuate.
Visually inspect valves
to ensure they are
operating properly;
verify they have air
pressure above 85 psi
(0.6 MPa, 6.0 bar).
EF1# Alarm Timeout
Shutdown
Pump #
Pump tried but was not
able to move to the
park position within a
specified amount of
time.
Pump is filled with
thick paint and could
not drive piston to
end of stroke. Motor
or drive is worn or
damaged.
Observe motor and
drive assembly to
verify that the motor is
generating force.
EL00 Record System
Power On
Record of power cycle
(ON).
Indicates date and
time when system was
started.
n/a
EM00 Record System
Power Off
Record of power cycle
(OFF).
Indicates date and
time when system was
turned off.
n/a
EMIX Advisory Pump Off The pumps are not
powered and are
unable to move.
Pump power was
turned off or an error
occurred.
Start pumps by
pressing pump start
key on Advanced
Display module,
or hold down the
Standby key on the
booth control for 1-2
seconds..
EQU0 Advisory USB Idle USB download
process completed,
drive may be removed.
Data transfer is
completedtotheUSB
device.
Remove USB device
from ADM.
EQU1 Record USB Sys.
Settings
Downloaded
Settings were
downloaded to USB
drive.
User installed USB
device in ADM USB
port.
n/a
EQU2 Record USB Sys.
Settings
Uploaded
Settings were
uploaded from USB
drive.
User installed USB
device in ADM USB
port.
n/a
16 3A2800B

Troubleshooting
Code Type Description Problem Cause Solution
EQU3 Record USB
Custom
Lang.
Downloaded
Custom Language was
downloaded to USB
drive.
User installedUSB
device in ADM USB
port.
n/a
EQU4 Record USB
Custom
Lang.
Uploaded
Custom Language was
uploaded from USB
drive.
User installed USB
device in ADM USB
port.
n/a
EQU5 Record USB Logs
Downloaded
Data logs were
downloaded to USB
drive.
User installed USB
device in ADM USB
port.
n/a
ES00 Advisory Factory
Defaults
Record of defaults
being loaded.
n/a
EVUX Advisory USB
Disabled
USB drive has been
inserted, downloading
is disabled.
Configuration of
system is blocking
data transfer.
Change configuration
to enable USB
download function.
There is a restriction
on the outlet side of the
pump or color stack.
Make surethereare
no restrictions in the
color stack and that
the dumpvalveis
actuating.
F1F# Alarm Flow Low
Fill Pump #
There has been no/low
flow during a fill pump
operation.
Thick viscosity
paint requires more
pressure to pump.
Increase non-mix
pressure if necessary
to create flow during
the fill function.
F1S# Alarm Flow Low
Purge
Pump #
There has been no/low
flow during a purge
pump operation.
Restriction in the outlet
side of the pump or
color stack resulting in
the solvent flow being
too low.
Make sure there are
no restrictions in the
system. Increase
non-mix pressure if
necessary to create
flow during the purge
function.
F6F# Alarm Press.
Sens.
Removed
Inlet #
Inlet pressure
transducer has been
disconnected when the
system is expecting
one.
Disconnected
transducer.
Verify transducer
is connected
properly. Replace if
reconnecting does not
eliminate the alarm.
F7D# Alarm Flow
Detected
Pump #
The pump flow
exceeded 20 cc/min
flow coming into Idle
mode.
There is a leak in the
system or the gun was
open when the system
went into Idle mode.
Verify there are no
leaks in the system.
Make sure the air flow
switch is actuating
properly. Do not
trigger the gun without
atomizing air.
3A2800B 17

Troubleshooting
Code Type Description Problem Cause Solution
Air flow switch is stuck
in flow position.
Clean or replace
switch.
Leak downstream in
air line or fitting.
Check for leaks and
tighten fittings.
F7P1 Alarm Flow
Detected
Air Gun
The air flow switch is
indicating unexpected
atomizing air flow.
Air supply pressure
fluctuation.
Eliminate pressure
fluctuations.
Solvent flow switch is
stuck in flow position.
Clean or replace
switch.
F7S1 Alarm Flow
Detected
Solvent
Gun
The solvent flow
switch is indicating
unexpected solvent
flow. There is a leak through
the solvent cutoff
valve.
Check for leaks and
repair valve.
F8D1 Alarm Flow Not
Detected
No Flow while mixing. Restriction in the outlet
side of the pump or
color stack.
Make sure there are
no restrictions in the
system.
F9D# Alarm Flow
Unstable
Pump #
The pump flow rate
did not stabilize while
entering Idle mode.
Potential leak in the
system.
Check thesystemfor
leaks and run manual
stall test.
MMUX Advisory Maint. USB
Logs Full
USB memory is >90%
full.
Configuration
parameter on system
is enabled to generate
this advisory.
Complete download to
ensure no data is lost.
P1F# Alarm Pressure
Low Inlet
Pump #
The inlet pressure on
pump # is less than
the user-entered alarm
limit.
Increase inlet
pressure.
P2F# Deviation Pressure
Low Inlet
Pump #
The inlet pressure on
pump # is less than the
user-entered deviation
limit.
Increase inlet
pressure.
P3D#Deviation Pressure
High Outlet
Pump #
The outlet pressure
on pump # is greater
than the user entered
deviation limit.
Relieve system
pressure.
P3F# Deviation Pressure
High Inlet
Pump #
The inlet pressure
on pump # is greater
than the user-entered
deviation limit.
Decrease inlet
pressure.
P4D# Alarm Pressure
High Outlet
Pump #
The outlet pressure on
pump # is greater than
the user entered alarm
limit.
Relieve system
pressure.
P4F# Alarm Pressure
High Inlet
Pump #
The inlet pressure on
pump # is greater than
the user-entered alarm
limit.
Decrease inlet
pressure.
18 3A2800B

Troubleshooting
Code Type Description Problem Cause Solution
P6D# Alarm Press.
Sens.
Removed
Outlet #
Outlet pressure
transducer has been
disconnected when the
system is expecting
one.
Disconnected
transducer.
Verify transducer
is connected
properly. Replace if
reconnecting does not
eliminate thealarm.
P9D# Alarm Press.
Sens.
Failed
Outlet #
Outlet pressure
transducer has failed.
Outlet pressure
transducer has failed
orthepressureis
above the readable
range.
Relieve system
pressure. Verify
connections, or
replace if reconnecting
does not eliminate the
alarm.
P9F# Alarm Press.
Sens.
Failed Inlet
#
Inlet pressure
transducer has failed.
Inlet pressure
transducer has failed
orthepressureis
above the readable
range.
Relieve system
pressure. Verify
connections, or
replace if reconnecting
does not eliminate the
alarm.
There is a leak on the
Bside.
Check the system
for internal and
external leaks on
all color manifolds and
plumbing.
QADX Alarm Differential
Pressure A
Over B
Low Differential
Pressure
The B side pump is
cavitating.
Check paint supply on
the B side, increase
paint supply pressure.
There is a leak on the
Aside.
Check the system
for internal and
external leaks on
all color manifolds and
plumbing.
QBDX Alarm Differential
Pressure B
Over A
High Differential
Pressure
The A side pump is
cavitating.
Check paint supply on
the A side, increase
paint supply pressure.
Purge process was not
completed.
Make sure purge
process is completed.
QPD1Deviation Potlife
Expired
Potlife time has expired
before moving the
required amount
of material (potlife
volume) through the
mixed material line.
Solvent supply shut off
or empty.
Verify solvent supply
is available and on,
supply valves are
open.
3A2800B 19

Troubleshooting
Code Type Description Problem Cause Solution
SAD1 Alarm Atomizing
Solvent
AFS is active while
solvent, diluted
material, or an
unknown material
is in the gun.
Atomizing air supply
was not shut off before
purging or filling spray
gun.
Make sure atomizing
air is shut off before
purging or filling the
spray gun. Use an
AA cutoff valve on the
atomizing air supply.
Mix manifold not set to
spray position.
Set manifold to spray.
Spray gun wasnot
triggered.
Allow flow through gun
during fill process until
the fill complete LED
stops flashing.
SND1 Alarm Mix Fill
Incomplete
The system timed out
before completing the
mix fill cycletoload
the gun with mixed
material.
Restrictions in mixer,
manifold, or spray gun.
Fix restrictions.
Solvent flow switch not
working.
Replace switch.
Solvent flow is too low
to actuate the solvent
switch.
Increase solvent
pressure to drive a
high purge flow rate
Gun is not triggered. Operator must
continue flushing
for configured time,
until the booth control
indicates purge is
completed.
SPD1 Alarm Gun Purge
Incomplete
The system timed out
without reaching the
user-specified volume
of solvent for a purge.
Mix manifold was not
set to flush position,
blocking solvent flow
to the spray gun.
Set manifold to flush
position.
WSUX Advisory USB
Config. Err.
USB configuration
file does not match
expected, checked on
startup.
A software update
was not completed
successfully.
Reinstall software.
WX00 Alarm Software
Errors
An unexpected
software error has
occurred.
Call Graco Technical
Support.
WXUD Advisory USB
Download
Err.
An error occurred while
downloading to the usb
drive.
User installed USB
device in ADM USB
port.
Repeat process.
WXUU Advisory USB
Upload Err.
An error occurred while
uploading from the usb
drive.
User installed USB
device in ADM USB
port.
Repeat process.
20 3A2800B
