Graco AirPro EFX Parts list manual

Instructions/Parts
AirPro™EFX Automatic
Spray Gun 313869K
EN
Conventional, HVLP, HiTEch, and LVMP automatic guns for small component finishing
applications. For professional use only.
100 psi (0.7 MPa, 7 bar) Maximum Working Fluid Pressure
100 psi (0.7 MPa, 7 bar) Maximum Working Air Pressure
See page 3 for model information.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
TI14428A
Guns with manifold
TI14427A
Guns without manifold
II 2 G c IIB T6

2313869K
Contents
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Selection Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Gun Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Proper Needle/Nozzle Selection . . . . . . . . . . . . . 8
Models With Manifolds . . . . . . . . . . . . . . . . . . . . 9
Models Without Manifolds . . . . . . . . . . . . . . . . . 10
Air Caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sample Pattern Sizes and Shapes . . . . . . . . . . 11

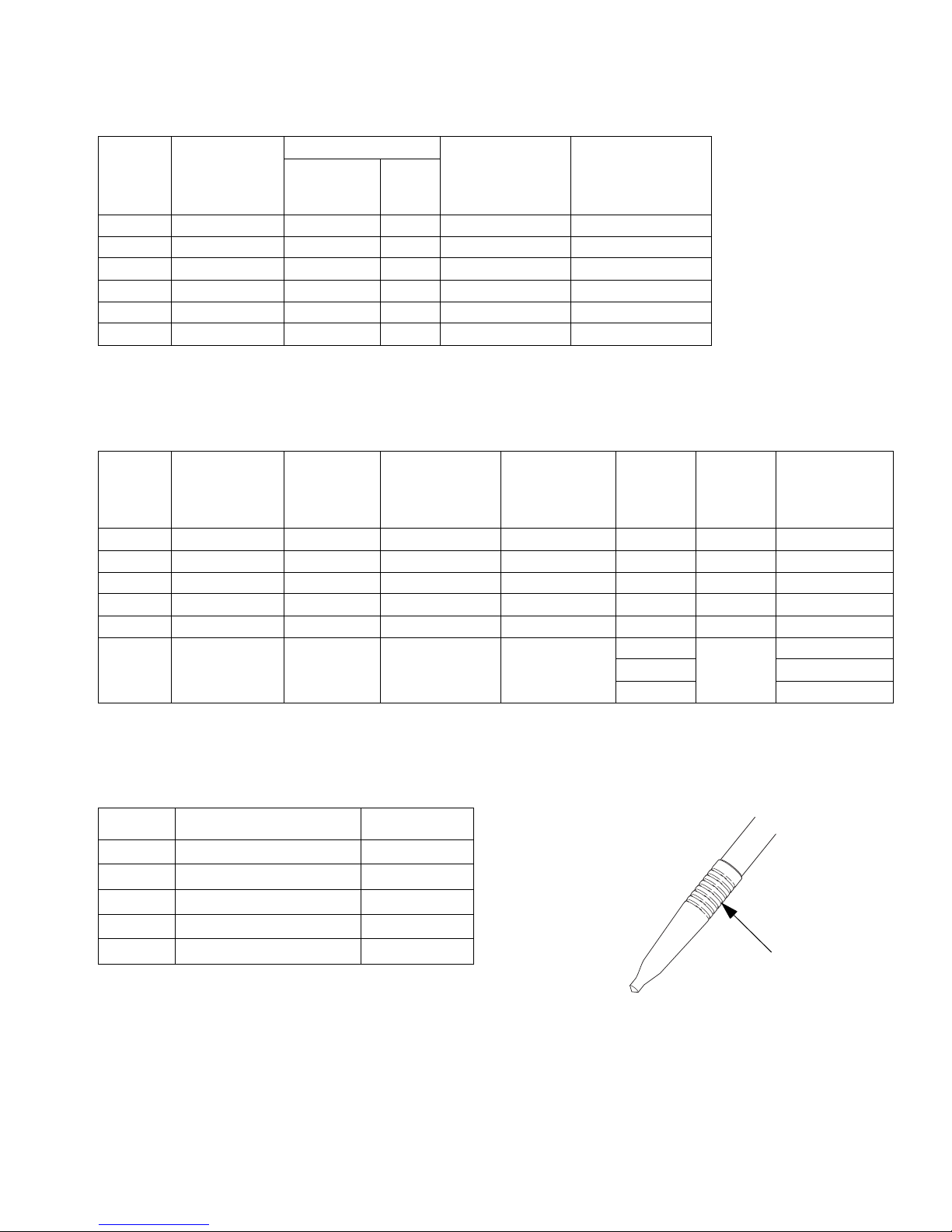

Needle Assembly Identification . . . . . . . . . . . . . 11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

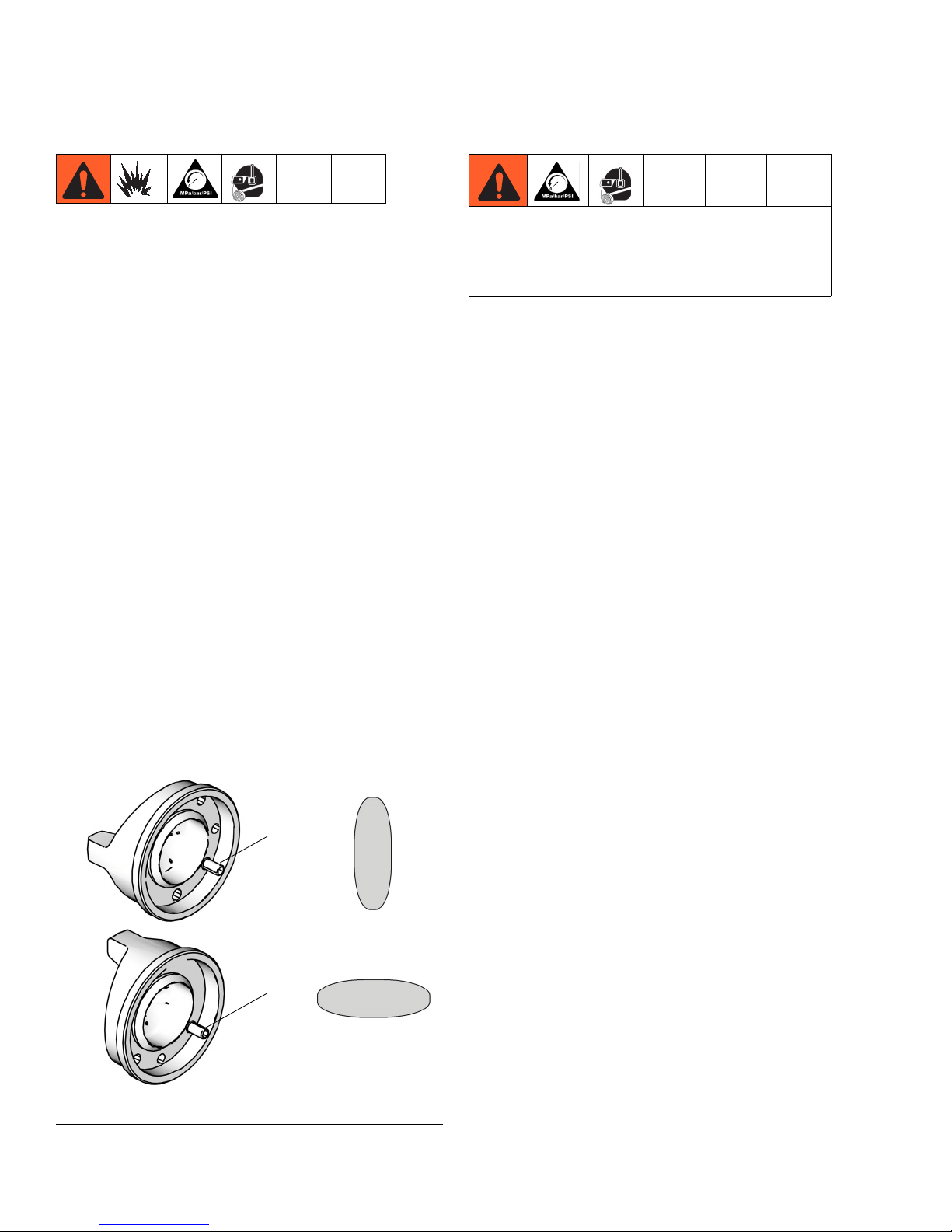

Ventilate Spray Booth . . . . . . . . . . . . . . . . . . . . 12
Configure Gun and Manifold . . . . . . . . . . . . . . . 12
Ground System . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mount Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

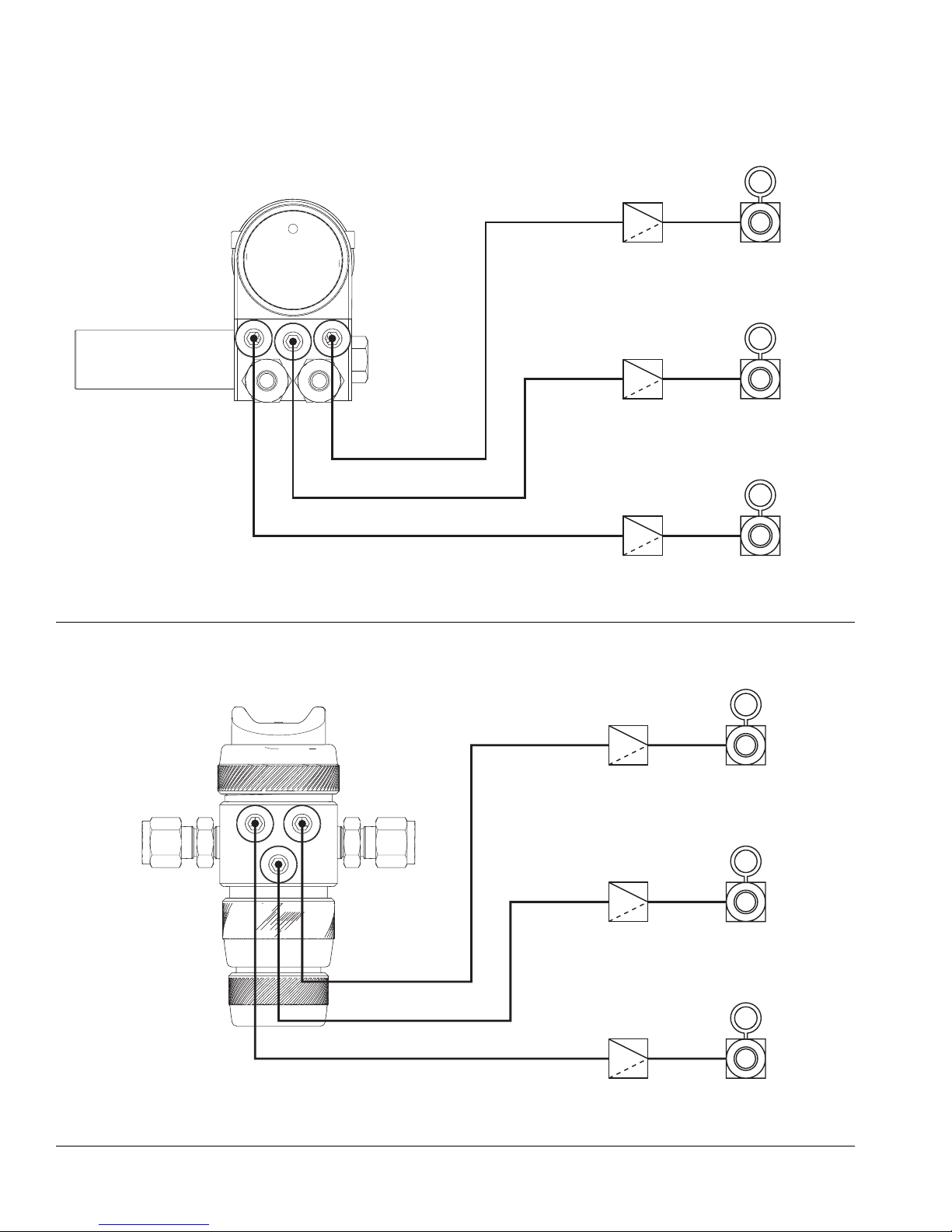

Connect Air Line . . . . . . . . . . . . . . . . . . . . . . . . 15
Connect Fluid Hose . . . . . . . . . . . . . . . . . . . . . 17
Flush Spray Gun . . . . . . . . . . . . . . . . . . . . . . . . 18
Position Air Cap . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjust Spray Pattern . . . . . . . . . . . . . . . . . . . . . 18
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pressure Relief Procedure . . . . . . . . . . . . . . . . 20

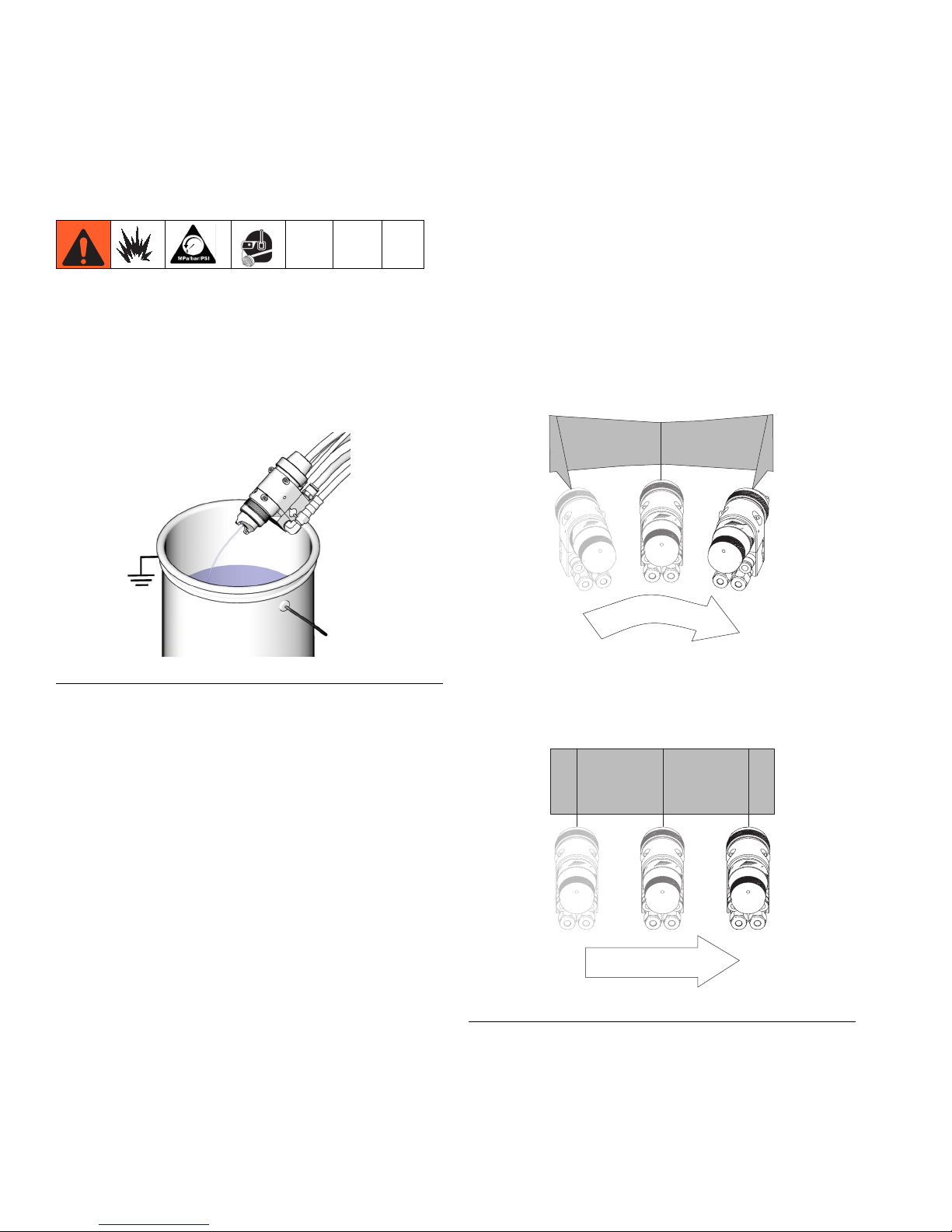

Apply Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Daily Gun Care . . . . . . . . . . . . . . . . . . . . . . . . . 21
General System Maintenance . . . . . . . . . . . . . . 22
Clean and Flush Gun . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Repair Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Mounting Hole Layouts . . . . . . . . . . . . . . . . . . . . . 34
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Air Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Spray Pattern Test Report . . . . . . . . . . . . . . . . . 39
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 40
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 40

Models
313869K 3
Models
* Needle tip and nozzle exit constructed from tungsten carbide.
** Models with manifold have fully stainless steel fluid passages.
Spray Type
Orifice Size
in. (mm)
Models with Manifold** Models without Manifold
Gun Part No. Series Gun Part No. Series
Conventional 0.028 (0.7) 24B857 C 24B877 C
Conventional 0.035 (0.9) 24B858 C 24B878 C
Conventional 0.039 (1.0) 24M390* A 24M392* A
Conventional 0.043 (1.1) 24B859 C 24B879 C
Conventional 0.051 (1.3) 24B860 C 24B880 C
Conventional 0.059 (1.5) 24B861* C ----- C
HVLP 0.020 (0.5) 24B862 C----- C
HVLP 0.028 (0.7) 24B863 C24B881 C
HVLP 0.043 (1.1) 24B864 C24B882 C
HVLP 0.051 (1.3) 24B865 C24B883 C
HiTEch 0.028 (0.7) 24B866 C 24B884 C
HiTEch 0.039 (1.0) 24B867* C 24B885* C
HiTEch 0.059 (1.5) 24B868* C 24B886* C
LVMP 0.020 (0.5) 24B869 C24B887 C
LVMP 0.028 (0.7) 24B870 C24B888 C
LVMP 0.035 (0.9) 24B871 C24B889 C
LVMP 0.039 (1.0) 24M391* A24M393* A
LVMP 0.039 (1.0) 24P993 A24P995 A
LVMP 0.043 (1.1) 24B872 C24B890 C
LVMP 0.051 (1.3) 24B873 C24B891 C
LVMP 0.051 (1.3) 24P994 A24P996 A
LVMP 0.059 (1.5) 24B874* C----- C
Air Brush 0.028 (0.7) 24B875 C 24B892 C
Gun without needle,
nozzle, or air cap N/A 24B876 C24B893 C

Warnings
4313869K
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equip-
ment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer
to procedure-specific risks. When these symbols appear in the body of this manual or on warning
labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered
in this section may appear throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or
explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric
lamps, and plastic drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when
flammable fumes are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not
use equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.

Warnings
313869K 5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest
rated system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See
Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s
warnings. For complete information about your material, request MSDS from dis-
tributor or retailer.
• Do not leave the work area while equipment is energized or under pressure. Turn
off all equipment and follow the Pressure Relief Procedure when equipment is
not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately
with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and
hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the
eyes or on skin and cause serious injury.
• Follow the Pressure Relief Procedure when you stop spraying and before clean-
ing, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts imme-
diately.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can
cause serious chemical reaction and equipment rupture. Failure to follow this warning
can result in death, serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocar-
bon solvents or fluids containing such solvents.
• Many other fluids may contain chemicals that can react with aluminum. Contact
your material supplier for compatibility.
WARNING

Warnings
6313869K
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on
skin, inhaled, or swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to appli-
cable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when
in the operating area of the equipment to help protect you from serious injury, includ-
ing eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment
includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and sol-
vent manufacturer.
WARNING

Warnings
313869K 7

Selection Charts
8313869K
Selection Charts
TERMS
Light Fluid: Up to 18 seconds with No. 2 Zahn
cup (20 centipoise)
Medium Fluid:19 to 28 seconds with No. 2
Zahn cup (20-64 centipoise)
Heavy Fluid: Greater than 28 seconds with
No. 2 Zahn cup (greater than 64 centipoise) --
2.8 Volatile Organic Compounds, High-solid
Polyurethanes, Heavy Waterborne Enamels
Gun Selection
HVLP Guns
An HVLP gun is a high transfer efficiency gun
that limits the air pressure at the air cap to
10 psi (0.07 MPa, 0.7 bar) maximum. In some
areas, an HVLP gun is required for compliance
with environmental standards. See the Air Cap
chart, page 11, for maximum inlet pressure.
LVMP Guns
An LVMP gun is a high transfer efficiency gun
that has been tested to have a transfer effi-
ciency greater than or equal to HVLP guns. In
addition, the LVMP air cap consumes much
less air than the HVLP air cap. Graco LVMP
guns have no restrictions on air cap pressures.
Conventional Guns
A conventional gun has excellent atomization
and high production rates typically with some
reduction in transfer efficiency.
HiTEch Guns
A HiTEch gun is a high transfer efficiency gun
with excellent atomization. Graco HiTEch guns
have no restrictions on air cap pressures.
Proper Needle/Nozzle Selection
The spray gun's needle/nozzle kits range in
size to provide different fluid flow rates. As a
general guideline, use the fluid nozzle that will
give the required flow with the needle fully trig-
gered at a fluid pressure of 5–20 psi
(0.035–0.14 MPa, 0.35–1.4 bar).
• For low flow rates or light viscosity fluid,
select the smaller nozzle sizes.
• For high flow rates or high viscosity fluid,
select the larger nozzle sizes.
• For abrasive fluids, the gun models with
tungsten carbide needle tip and nozzle are
recommended.
Orifice Size
Viscosity
Flow
in. mm oz/min cc/min
0.020 0.5 light 0.2-1.7 5-50
0.028 0.7 light 0.3-3.4 10-100
0.035 0.9 light-medium 0.5-5.1 15-150
0.039 1.0 light-medium 0.7-6.8 20-200
0.043 1.1 light-medium 0.8-8.5 25-250
0.051 1.3 medium 1.2-11.8 35-350
0.059 1.5 medium 1.5-15.2 45-450

Selection Charts
313869K 9
Models With Manifolds
Gun
Assembly
Part No. Type
Includes: Orifice Size
Construction
of Needle Tip/
Nozzle Exit
Fluid
Adjustment
Knob
Construction
of Fluid
Fitting
Needle/
Nozzle Kit
Part No.
Air Cap
with Pin
Part No. in. mm
24B857
Conven-
tional 24D177 24C182 0.028 0.7 Stainless Steel Indexing Plastic
24B858
Conven-
tional 24C198 24C182 0.035 0.9 Stainless Steel Indexing Plastic
24M390
Conven-
tional 24C221 24C182 0.039 1.0 Carbide Indexing Plastic
24B859
Conven-
tional 24C199 24C182 0.043 1.1 Stainless Steel Indexing Plastic
24B860
Conven-
tional 24C200 24C182 0.051 1.3 Stainless Steel Indexing Plastic
24B861
Conven-
tional 24D178 24C182 0.059 1.5 Carbide Indexing Plastic
24B862 HVLP 24D302 24C183 0.020 0.5 Stainless Steel Indexing Plastic
24B863 HVLP 24D179 24C183 0.028 0.7 Stainless Steel Indexing Plastic
24B864 HVLP 24D305 24C183 0.043 1.1 Stainless Steel Indexing Plastic
24B865 HVLP 24D306 24C183 0.051 1.3 Stainless Steel Indexing Plastic
24B866 HiTEch 24D303 24D703 0.028 0.7 Stainless Steel Ultra Precision Stainless Steel
24B867 HiTEch 24C221 24D703 0.039 1.0 Carbide Ultra Precision Stainless Steel
24B868 HiTEch 24C201 24D704 0.059 1.5 Carbide Ultra Precision Stainless Steel
24B869 LVMP 24D277 24C184 0.020 0.5 Stainless Steel Ultra Precision Plastic
24B870 LVMP 24D278 24C184 0.028 0.7 Stainless Steel Ultra Precision Plastic
24B871 LVMP 24D279 24C184 0.035 0.9 Stainless Steel Ultra Precision Plastic
24M391 LVMP 24C221 24C184 0.039 1.0 Carbide Ultra Precision Plastic
24P993 LVMP 24R001 24C184 0.039 1.0 Stainless Steel Ultra Precision Plastic
24B872 LVMP 24D280 24C184 0.043 1.1 Stainless Steel Ultra Precision Plastic
24B873 LVMP 24D281 24C184 0.051 1.3 Stainless Steel Ultra Precision Plastic
24P994 LVMP 24R002 24C184 0.051 1.3 Stainless Steel Ultra Precision Plastic
24B874 LVMP 24D284 24C184 0.059 1.5 Carbide Ultra Precision Plastic
24B875 Air Brush 24C197 24D705 0.028 0.7 Stainless Steel Indexing Plastic
24B876 N/A N/A N/A N/A N/A N/A Indexing Plastic

Selection Charts
10 313869K
Models Without Manifolds
Gun
Assembly
Part No. Type
Includes: Orifice Size
Construction
of Needle Tip/
Nozzle Exit
Fluid
Adjustment
Knob
Construction
of Fluid
Fitting
Needle/
Nozzle Kit
Part No.
Air Cap
with Pin
Part No. in. mm
24B877
Conven-
tional 24D177 24C182 0.028 0.7 Stainless Steel Lock Ring Plastic
24B878
Conven-
tional 24C198 24C182 0.035 0.9 Stainless Steel Lock Ring Plastic
24M392
Conven-
tional 24C221 24C182 0.039 1.0 Carbide Lock Ring Plastic
24B879
Conven-
tional 24C199 24C182 0.043 1.1 Stainless Steel Lock Ring Plastic
24B880
Conven-
tional 24C200 24C182 0.051 1.3 Stainless Steel Lock Ring Plastic
24B881 HVLP 24D179 24C183 0.028 0.7 Stainless Steel Indexing Plastic
24B882 HVLP 24D305 24C183 0.043 1.1 Stainless Steel Indexing Plastic
24B883 HVLP 24D306 24C183 0.051 1.3 Stainless Steel Indexing Plastic
24B884 HiTEch 24D303 24D703 0.028 0.7 Stainless Steel Ultra Precision Stainless Steel
24B885 HiTEch 24C221 24D703 0.039 1.0 Carbide Ultra Precision Stainless Steel
24B886 HiTEch 24C201 24D704 0.059 1.5 Carbide Ultra Precision Stainless Steel
24B887 LVMP 24D277 24C184 0.020 0.5 Stainless Steel Indexing Plastic
24B888 LVMP 24D278 24C184 0.028 0.7 Stainless Steel Indexing Plastic
24B889 LVMP 24D279 24C184 0.035 0.9 Stainless Steel Indexing Plastic
24M393 LVMP 24C221 24C184 0.039 1.0 Carbide Indexing Plastic
24P995 LVMP 24R001 24C184 0.039 1.0 Stainless Steel Indexing Plastic
24B890 LVMP 24D280 24C184 0.043 1.1 Stainless Steel Indexing Plastic
24B891 LVMP 24D281 24C184 0.051 1.3 Stainless Steel Indexing Plastic
24P996 LVMP 24R002 24C184 0.051 1.3 Stainless Steel Indexing Plastic
24B892 Air Brush 24C197 24D705 0.028 0.7 Stainless Steel Indexing Plastic
24B893 N/A N/A N/A N/A N/A NA Indexing Plastic

Selection Charts
313869K 11
Air Caps
* Maximum compliant HVLP inlet pressure.
Sample Pattern Sizes and Shapes
* Fluid viscosity for these samples was 30 centipoise.
Needle Assembly Identification
Air Cap
Part No. Type
Nozzle Orifice Recommended
Gun/Manifold
Inlet Pressure
psi (MPa, bar) Air Cap Colorin. mm.
24C182 Conventional 0.028-0.059 0.7-1.5 43 (0.3, 3.0) Blue-Grey
24C183 HVLP 0.020-0.051 0.5-1.3 15 (0.1, 1.0)* Pewter
24D703 HiTEch 0.028-0.039 0.7-1.0 29 (0.2, 2.0) Black
24D704 HiTEch 0.059 1.5 29 (0.2, 2.0) Black
24C184 LVMP 0.020-0.059 0.5-1.5 43 (0.3, 3.0) Brown
24D705 Air Brush 0.028 0.7 29 (0.2, 2.0) Clear
Air Cap
Part No. Type
Nozzle
Orifice
in. (mm)
Recommended
Gun/Manifold
Inlet Pressure
psi (MPa, bar)
Fluid* Flow
Rate
oz/min (cc/min)
Spray
Distance
in (cm)
Pattern
Shape
Pattern Size*
in. (mm)
24C182 Conventional 0.028 (0.7) 43 (0.3, 3.0) 2.7 (80) 6 (15) Taper 1.0-6.0 (25-152)
24C183 HVLP 0.028 (0.7) 15 (0.1, 1.0) 2.7 (80) 6 (15) Straight 1.0-6.5 (25-165)
24D703 HiTEch 0.028 (0.7) 29 (0.2, 2.0) 2.7 (80) 6 (15) Straight 1.0-6.5 (25-165)
24D704 HiTEch 0.059 (1.5) 29 (0.2, 2.0) 2.7 (80) 6 (15) Straight 1.0-6.5 (25-165)
24C184 LVMP 0.028 (0.7) 43 (0.3, 3.0) 2.7 (80) 6 (15) Straight 1.0-6.5 (25-165)
24D705 Air Brush 0.028 (0.7) 29 (0.2, 2.0) 1.0 (30)
2 (5)
Round
0.5 (13)
4 (10) 0.6 (15)
6 (15) 0.7 (19)
Part Needle Assembly Size # of Grooves
24C190 0.5 mm 1
24C191 0.7 mm 2
24C192 0.9 mm 3
24C193 1.1 mm 4
24C194 1.3 mm 5 Grooves
ti14043a

Installation
12 313869K
Installation
This spray gun can spray most coatings or fin-
ishes currently being used for small compo-
nent plastic, wood and metal finishing
applications, while easily operating from paint
delivery systems, such as pressure pots or
remote pumps for production line operation.
The air regulator must have a minimum air flow
capacity of 30 scfm at 100 psi (0.7 MPa,
7.0 bar) air pressure.
Ventilate Spray Booth
To prevent hazardous concentrations of toxic
and/or flammable vapors, spray only in a prop-
erly ventilated spray booth. Do not operate the
spray gun unless ventilation fans are
operating.
• Check and follow all national, state, and
local codes regarding air exhaust velocity
requirements.
• Check and follow all local safety and fire
codes.
Configure Gun and Manifold
Guns with Manifold
See F IG . 1. The gun is shipped with a fluid plug
(25). To use the gun in a circulating system, do
not install the plug. In a non-circulating system,
install the plug as shown to minimize flush
time.
1. Connect the fluid supply line to one fluid
port fitting and the fluid return line to the
other. The manifold fluid ports are
reversible.
2. Install the gun on the manifold, using the
two screws. Torque the screws evenly to
50 in-lb (5.6 N•m).

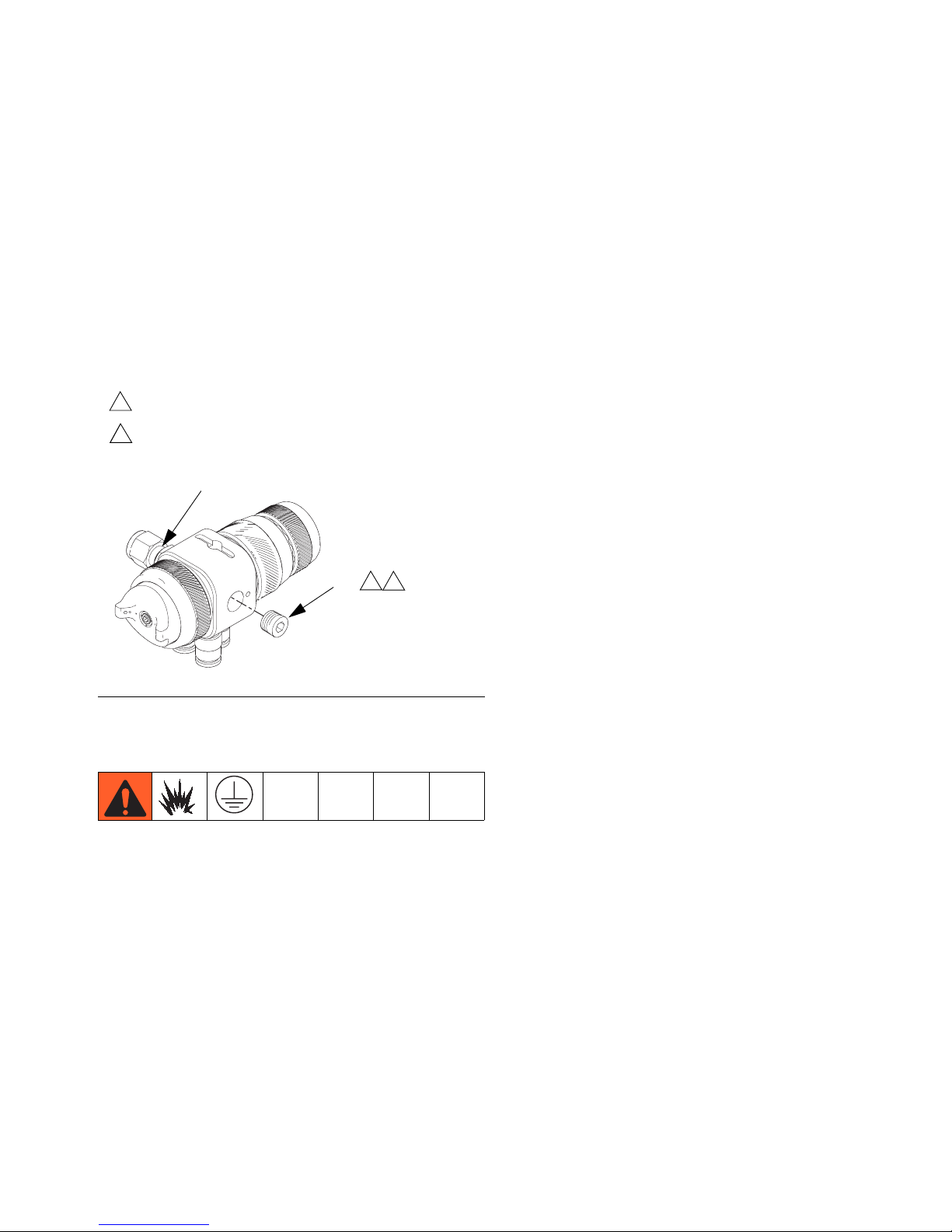

F IG . 1: Guns with Manifold
Do not install when used in circulating systems.
1
1
25
TI14429A

Installation
313869K 13
Guns without Manifold
The gun is shipped ready for use in a circulat-
ing system, with a fitting installed in each fluid
port. Connect the fluid supply line to one fluid
inlet fitting (15) and the fluid return line to the
other.
To use the gun in a non-circulating system,
remove one fitting and replace with plug (33,
shipped loose). Use the 3/16 allen wrench
supplied to tighten the plug.
Ground System
The following grounding instructions are mini-
mum requirements for a system. Your system
may include other equipment or objects that
must be grounded. Check your local electrical
code for detailed grounding instructions for
your area and type of equipment. Your system
must be connected to a true earth ground.
Pump/Fluid Supply
Ground the pump by connecting a ground wire
and clamp between the fluid supply and a true
earth ground as instructed in your separate
pump instruction manual.
Air Compressors and Hydraulic Power
Supplies
Ground the air compressors and hydraulic
power supplies according to the manufacturer
recommendations.
Spray Gun
Ground the spray gun by mounting the mani-
fold to a properly grounded reciprocator, robot,
or stationary mount. Check the electrical resis-
tance between the manifold and a true earth
ground. Resistance must not exceed
1 megohm.
Fluid Supply Container
Ground the fluid supply container according to
local code.
Object Being Sprayed
Ground the object that is being sprayed
according to local code.
Solvent Pails
Ground all solvent pails that are used when
flushing according to local code. Use only con-
ductive metal pails placed on a grounded sur-
face. Do not place the pail on a non-conductive
surface, such as paper or cardboard, which
interrupts the grounding continuity.
F IG . 2: Guns without Manifold
Install for use in a non-circulating system.
1
1
Use fitting (15) for use in a circulating system.
2
2
TI14430A
15
33

Installation
14 313869K
Mount Gun
Reciprocating Arm Rod Mount
To mount the gun on a reciprocating arm rod
[0.75 in. (19 mm) diameter maximum], insert
the bar (A) through the hole in the manifold as
shown in F IG . 3.
NOTE: Use the 1/8 in. alignment slot (P) to
assist in orienting the gun.
Secure the gun to the bar by tightening the
mounting screw (B).
Stationary Support
To mount the gun on a stationary support,
refer to F IG . 4 and to the correct mounting hole
layout for your gun, page 34 - 35.
1. Align the gun or manifold with the align-
ment pins. Locate alignment slot and holes
per the mounting hole layout.
2. Secure the gun to the support with two M8
x 1.25 capscrews (C). The screws must be
long enough to engage the threaded holes
to a depth of 1/4 in. (6 mm).

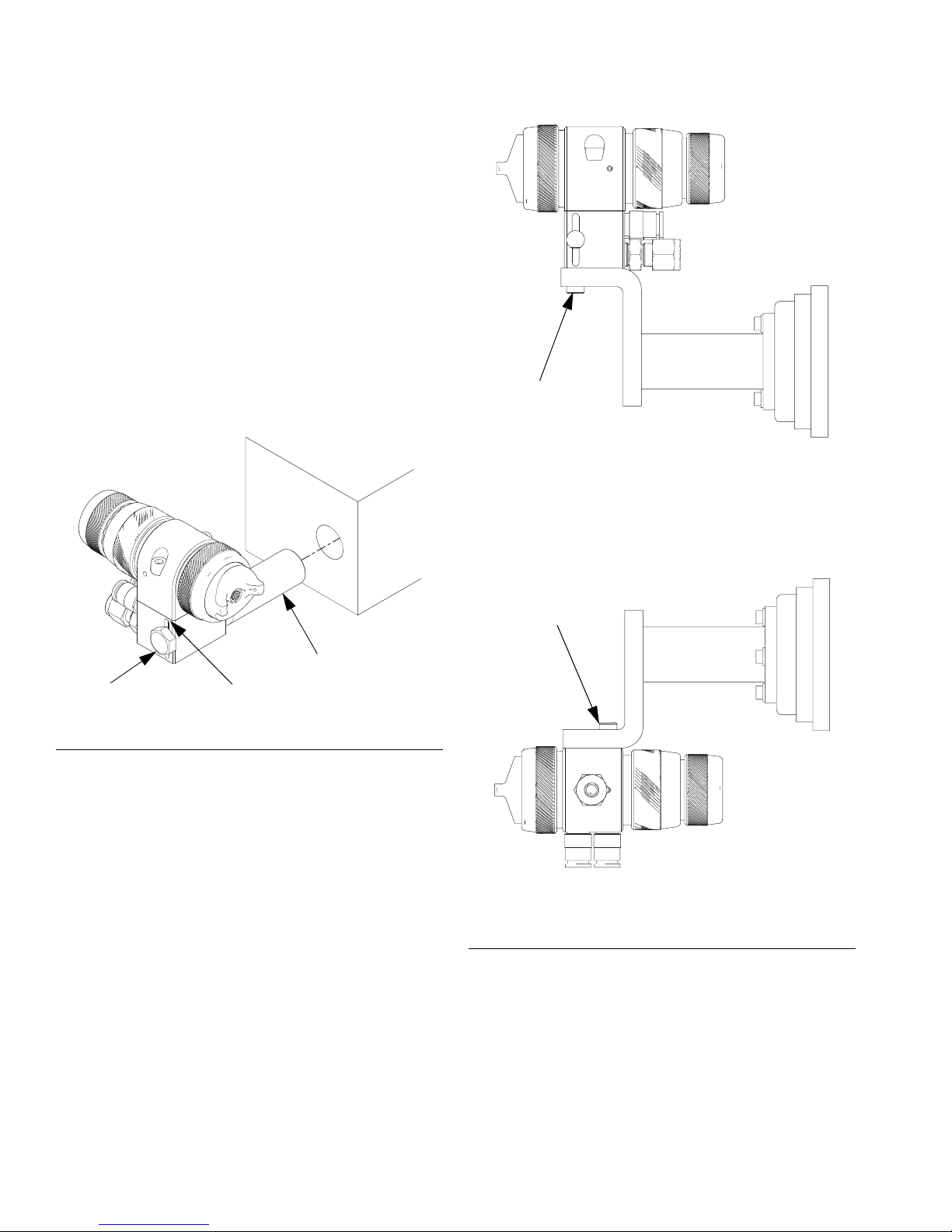

F IG . 3: Reciprocating Arm Mount
BP
A
TI14433A
F IG . 4: Stationary Support Mount
C
TI14434A
TI14435A
Guns without manifold
Guns with manifold
C

Setup
313869K 15
Setup
Connect Air Line
NOTE:
• If your regulated air source does not
have a filter, install an air filter (G) on
each air line to ensure a dry, clean air
supply to the gun. Dirt and moisture can
ruin the appearance of your finished
workpiece. See F IG . 5.
• You must install a separate air pressure
regulator (F) on the CYL, FAN, and
ATOM air lines to control air pressure to
the gun. See F IG . 6 and F IG . 7.
• Install a bleed type air shutoff valve (E)
on each gun air supply line, down-
stream of the gun air regulator, to shut
off air to the gun.
1. The gun cylinder, fan, and atomization air
must be supplied and regulated separately.
To regulate air remotely, use solenoids
(see F IG . 6 and F IG . 7).
NOTE: The three air inlet fittings accept 6 mm
OD tubing.
2. Connect each air hose (D) to a regulated
air supply line (H).

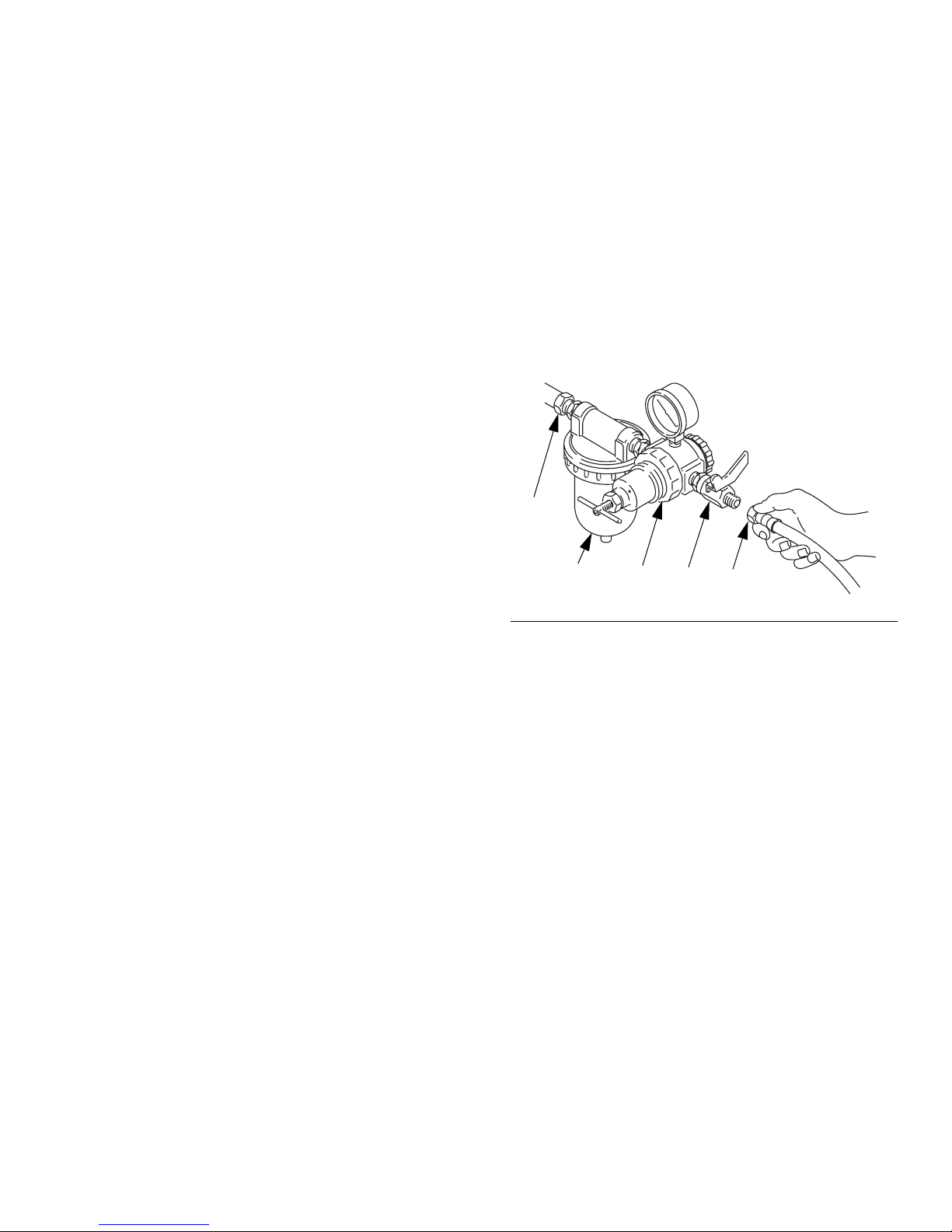

F IG . 5: Connect Air Line
ti01990a
H
GFED

Setup
16 313869K
F IG . 6: Remote Air Regulation using Solenoid (Guns with Manifold)
TI14444A
FAN AIR
CYLINDER AIR
ATOMIZING AIR
2-way solenoid
valve
3-way solenoid
valve
2-way solenoid
valve
Air regulator
F IG . 7: Remote Air Regulation using Solenoid (Guns without Manifold)
TI14445A
ATOMIZING AIR
CYLINDER AIR
FAN AIR
2-way solenoid
valve
3-way solenoid
valve
2-way solenoid
valve

Setup
313869K 17

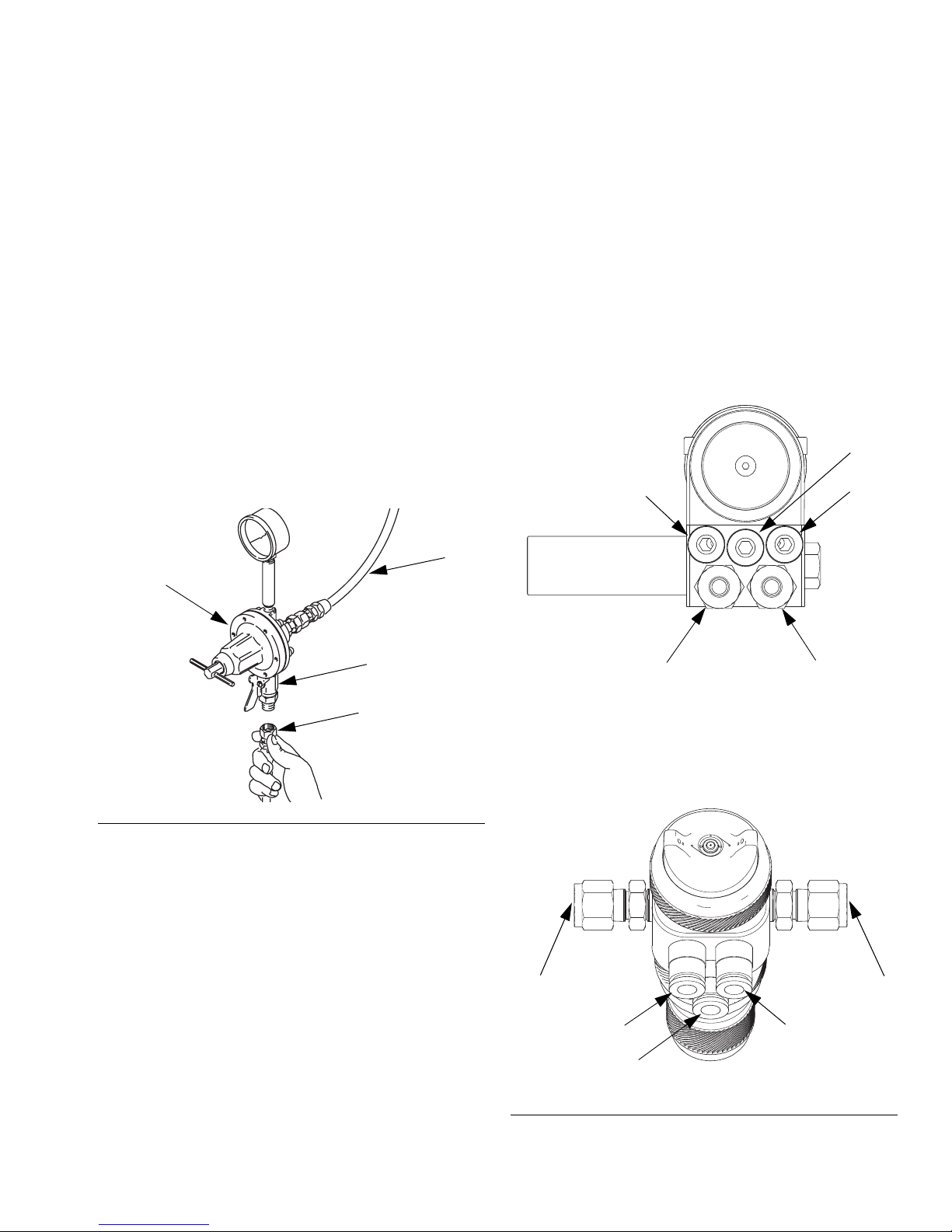

Connect Fluid Hose
NOTE:
• Before connecting the fluid line, blow it
out with air and flush it with solvent. Use
solvent that is compatible with the fluid
to be sprayed.
• Install a fluid regulator (L) on the fluid
line to control fluid pressure to the gun.
See F IG . 8.
• Install a fluid shutoff valve (M) to shut
off the fluid supply to the gun.
• Filter the fluid line of coarse particles
and sediment to avoid clogging the fluid
nozzle and causing finishing defects.
Inline fluid filter 24B707 is available.
1. Connect the fluid supply hose (J) to the gun
fluid inlet (S), 6 mm OD tube fitting. See
F IG . 9.
2. Connect the other end of the fluid hose (J)
to a regulated fluid supply outlet (M).
3. In a circulating system, connect a
grounded fluid return hose to the gun fluid
outlet (T). See F
IG . 9.
In a non-circulating system, remove the
gun fluid outlet fitting (T) and plug the outlet
port with the pipe plug (33) supplied for
guns without manifold. Guns with manifold
use plug 24C211 (25, see page 12).
F IG . 8: Connect Fluid Hose.
M
L
K
J
ti7016a
F IG . 9: Air and Fluid Ports
KEY
N Cylinder Air Inlet: accepts 6 mm OD tubing
P Atomization Air Inlet: 6 mm OD tubing
R Fan Air Inlet: 6 mm OD tubing
S Fluid Inlet: 6 mm OD tubing
T Fluid Outlet (circulating gun only): 6 mm OD tubing
N
S (or T)
T (or S)
PR
N
S (or T)T (or S)
RP
Without Manifold
With Manifold
TI14437A
TI14436A

Setup
18 313869K
Flush Spray Gun
Before running any paint through the spray
gun:
1. Flush the gun with a solvent that is compat-
ible with the fluid to be sprayed, using the
lowest possible fluid pressure and a
grounded metal container. See Clean and
Flush Gun, page 22.
2. Perform Pressure Relief Procedure,
page 20.
Position Air Cap
Air caps are factory-set with the alignment pin
(A) set to a vertical spray pattern. To change
the air cap to a horizontal spray pattern, use a
1/16 in. hex wrench to unscrew the alignment
pin (A) and relocate it to the horizontal spray
pattern hole. When relocating the pin use low
strength thread locker. Torque to 1.5-2.5 in-lb
(0.2-0.3 N•m). Do not overtighten . Refer to
F IG . 10.
Adjust Spray Pattern
Use the fluid pressure regulator to adjust the
spray gun fluid flow. All models are equipped
with a fluid control knob to make precise fluid
flow adjustments.
Follow these steps to establish the correct fluid
flow and air flow:
1. To achieve desired flow, adjust the fluid
flow using the fluid pressure regulator (L)
installed in the gun fluid line. Typical indus-
trial flow rates will vary with regulator pres-
sures from 5 to 30 psi (34 to 210 kPa,
0.3 to 2.1 bar). If the fluid pressure is too
low at the desired flow rate, install a smaller
nozzle. If the fluid pressure is too high,
install a larger nozzle.
For spray guns equipped with the fluid con-
trol knob, you can make flow rate changes
at the spray gun. Rotate the fluid control
knob clockwise to reduce the flow.
F IG . 10: Position Air Cap
Vertical Pattern
Horizontal Pattern
ti8171a
ti8170a
A
ti8172a
A
Do not exceed 100 psi (0.7 MPa, 7 bar)
maximum fluid and air pressure. Higher
pressures can cause parts to rupture and
result in serious injury.

Setup
313869K 19
NOTE: A larger fluid nozzle at a reduced fluid
pressure will maintain the same flow rate, but
the fluid stream (velocity) will slow down.
When air is applied, the lower velocity allows
the air to act on the fluid longer, which
improves atomization.
2. Using the air pressure regulator (F), set the
fan and atomizing air supply pressure per
Table 1. Use these suggested settings as a
starting point.
NOTE: HVLP Gun Limits
HVLP Guns: local laws may limit the maximum
pressure to 10 psi (70 kPa, 0.7 bar) at the air
cap for compliance. See the table on page 11
for maximum HVLP manifold inlet pressures.
To measure pressure at the air cap, use the
appropriate HVLP Pressure Verification Kit.
3. Test the spray pattern atomization while
keeping the gun a consistent distance,
about 6 to 8 inches (150 to 200 mm), from
the test piece.
Check the atomization quality. Increase the
gun atomizing air supply pressure with the
air pressure regulator in 5 psi (34 kPa, 0.3
bar) increments until you obtain the desired
atomization.
NOTE: For the best transfer efficiency, use the
lowest setting needed to achieve desired finish
quality.
4. If the spray pattern is too wide or split,
reduce the fan air pressure.
NOTE: Reducing the fan air pressure to 0 psi
(or fully closing the fan adjustment valve) will
produce a round pattern.
To further control the spray pattern, use an
alternate air cap. For a list of available air
caps, see page 11.

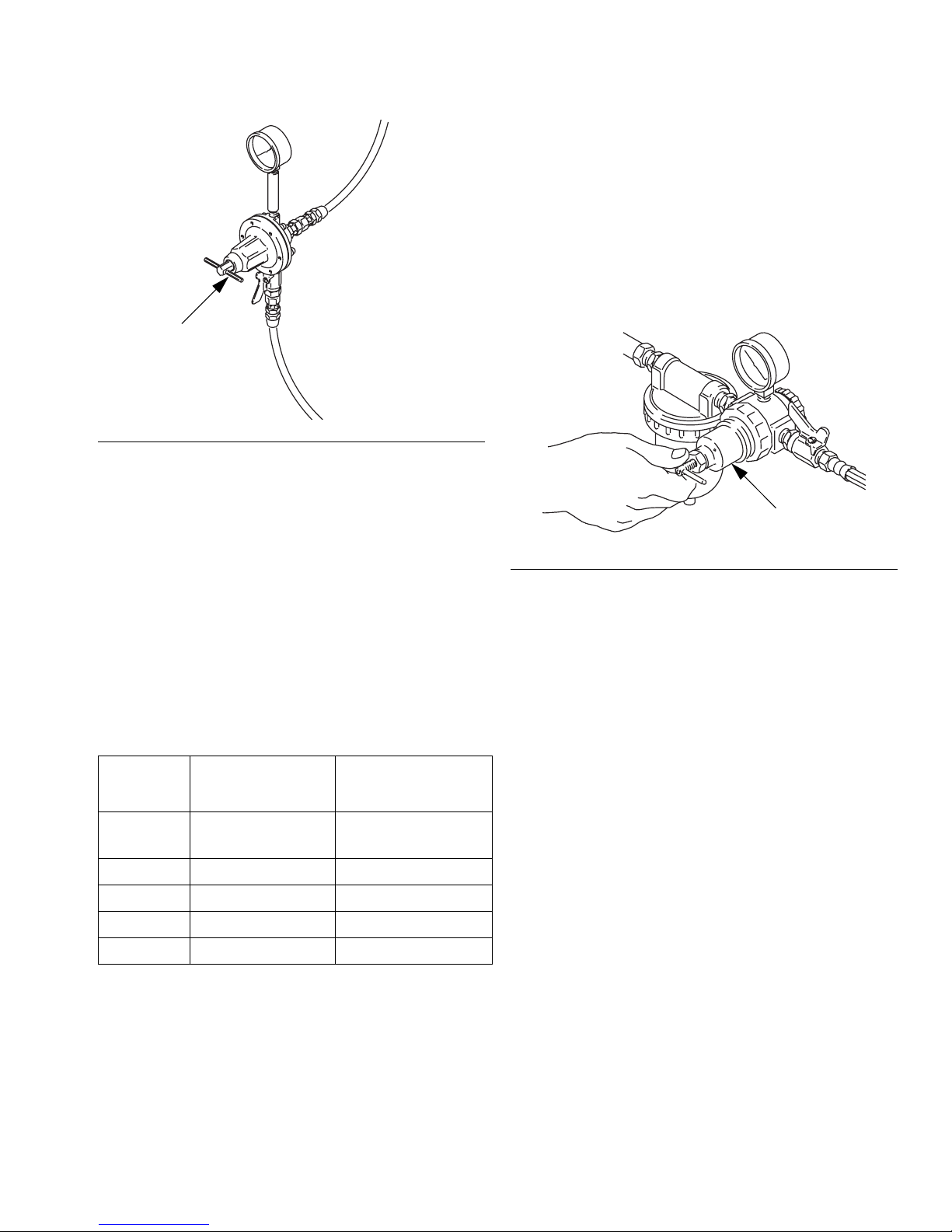

F IG . 11: Fluid Pressure Regulator
Table 1: Suggested Starting Settings
Spray
Type
Fan Air
psi (MPa, bar)
Atomizing Air
psi (MPa, bar)
Conven-
tional 43 (0.3, 3.0) 43 (0.3, 3.0)
HVLP 15 (0.1, 1.0) 15 (0.1, 1.0)
HiTEch 29 (0.2, 2.0) 29 (0.2, 2.0)
LVMP 43 (0.3, 3.0) 43 (0.3, 3.0)
Air Brush NA 29 (0.2, 2.0)
L
ti7019a
F IG . 12: Air Pressure Regulator
F
ti01997

Operation
20 313869K
Operation
Pressure Relief Procedure
1. Turn off all bleed type air valves and all
other air and fluid supplies to the gun.
2. Trigger the gun into a grounded metal
waste container to relieve fluid pressure.
Apply Fluid
The gun does not have an air shutoff. The air
should be activated before the fluid to ensure
full atomization of fluid and prevent buildup on
the air cap.
Adjust the system control device, if it is auto-
matic, so the gun starts spraying just before
meeting the part and stops as soon as the part
has passed.
To achieve best results when applying fluid:
• Keep gun perpendicular and 6 to 8 in.
(150 to 200 mm) from object being
sprayed.
• Use smooth, parallel strokes across sur-
face to be sprayed with 50% overlap.
F IG . 13: Pressure Relief
ti8174a
F IG . 14: Correct Spray Method
Correct
Incorrect
TI14439A
TI14438A
