Instructions/Parts
NXT®Air Motor 312796S
EN
For use with high performance finishing and coating pumps in hazardous or
non-hazardous locations. For professional use only.
Models M02xxx, M04xxx, M07xxx, M12xxx, M18xxx, and M34xxx
100 psi (0.7 MPA, 7.0 bar) Maximum Working Pressure
See page 3 for model information.
Important Safety Instructions
Read all warnings and instructions in this
manual. For complete warnings and
instructions see your pump or package
manual. Hazard symbols refer to specific
procedure risks. Save all instructions.
ti11838a

Related Manuals
2312796S
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Component Identification . . . . . . . . . . . . . . . . . . . . 6
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Preventive Maintenance Schedule . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 9

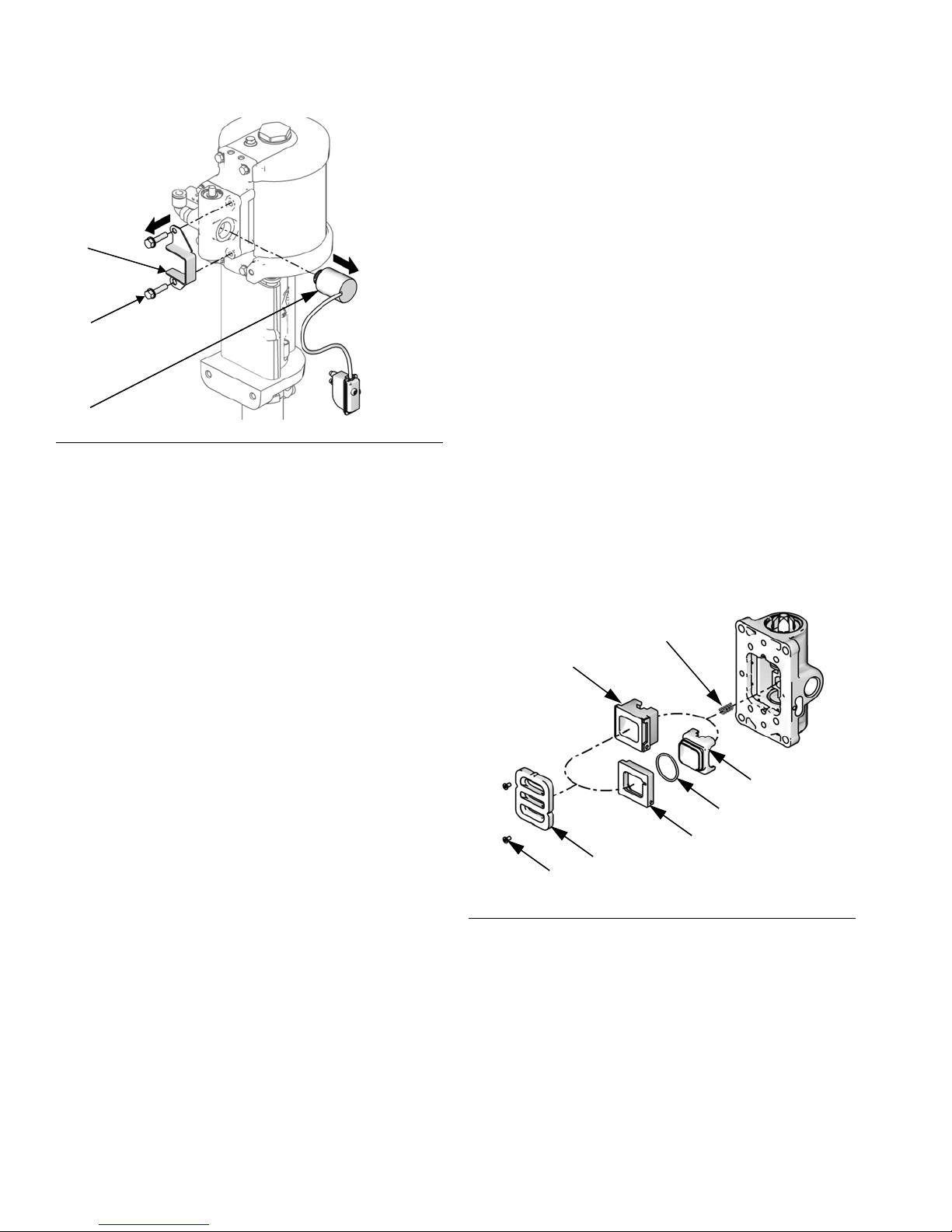

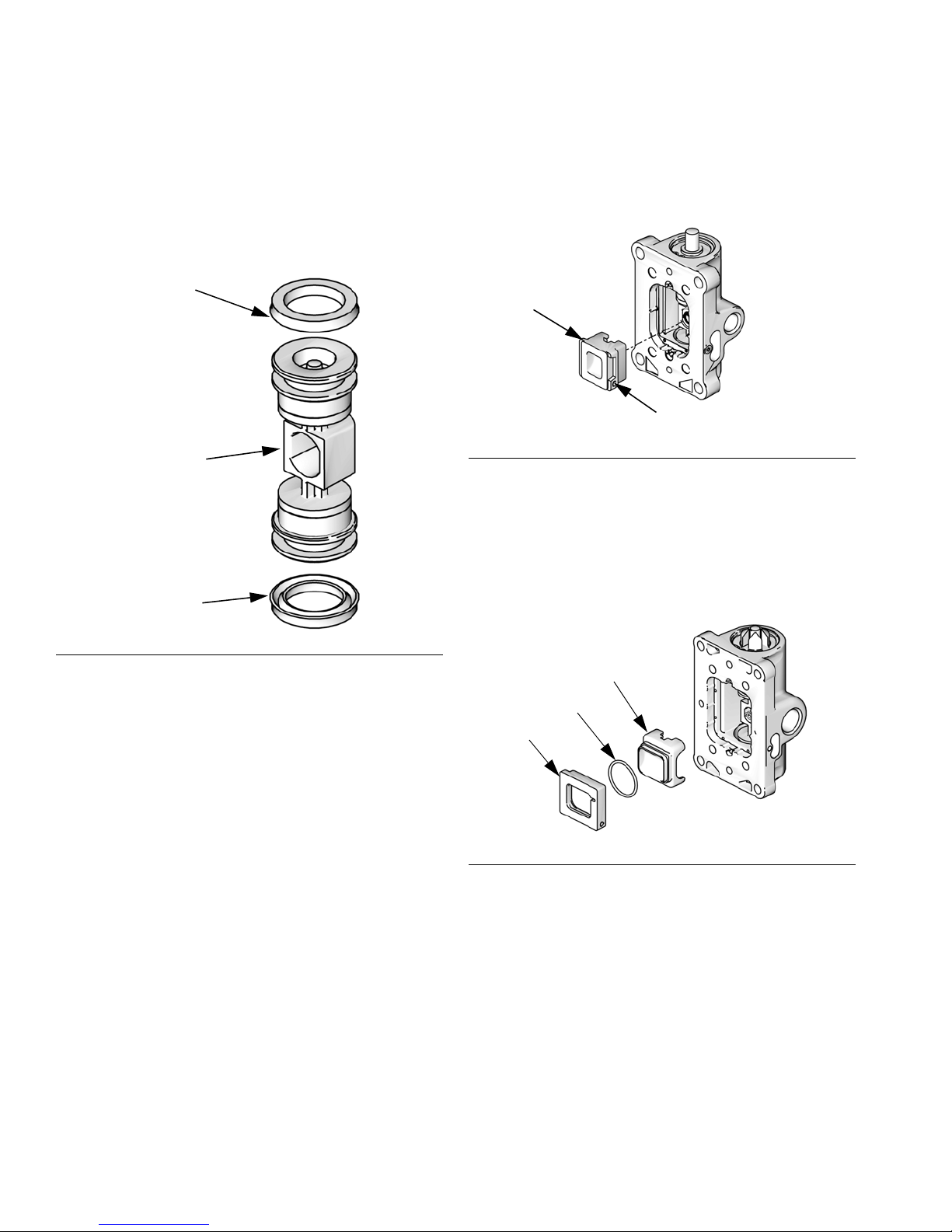

Repair Air Valve . . . . . . . . . . . . . . . . . . . . . . . . . 9
Replace Pilot Valves . . . . . . . . . . . . . . . . . . . . . 13

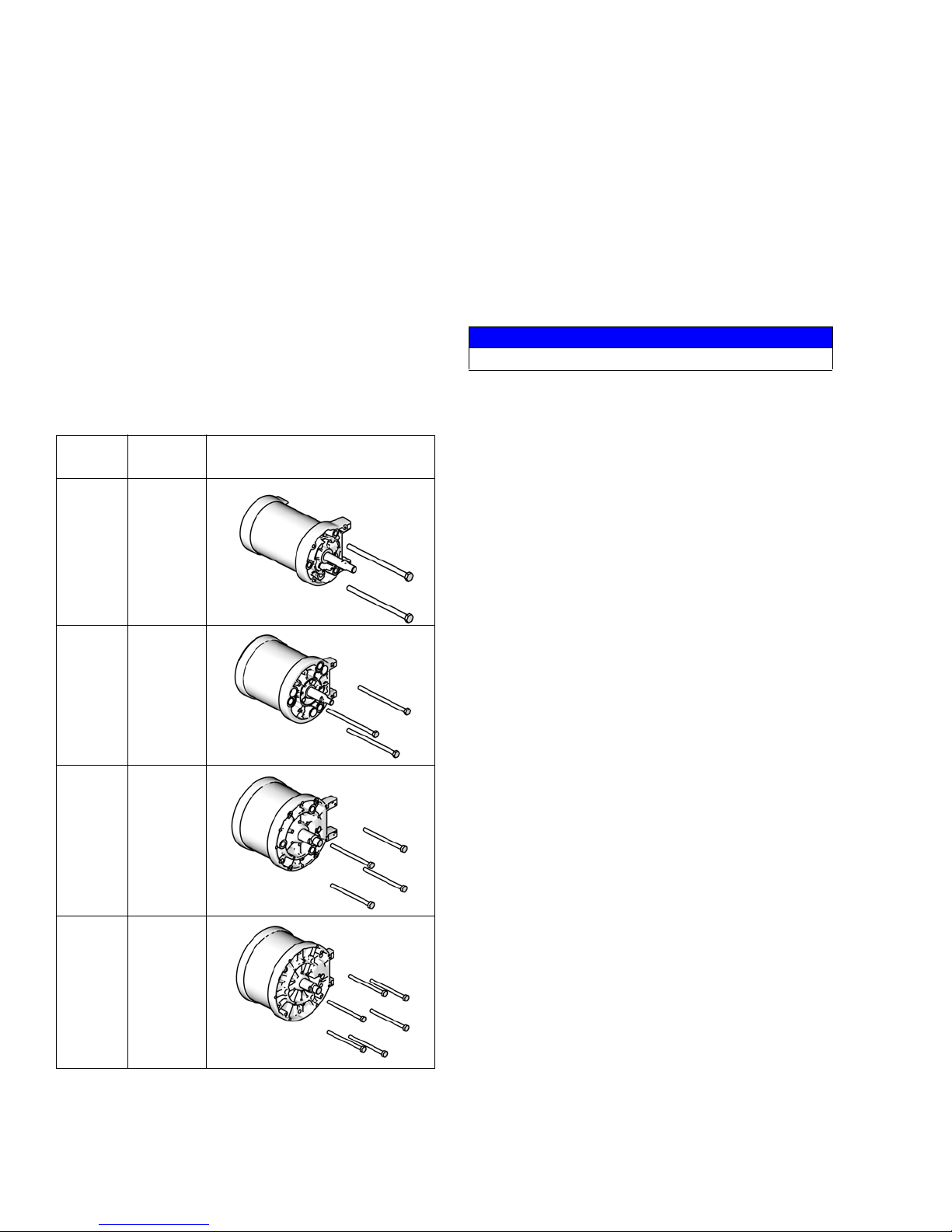

Repair Air Motor . . . . . . . . . . . . . . . . . . . . . . . . 13
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Air Motor Parts — All Models . . . . . . . . . . . . . . . . 17
Air Valve Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Kits and Accessories . . . . . . . . . . . . . . . . . . . . . . 21
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Mounting Hole Diagrams . . . . . . . . . . . . . . . . . . . 23
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 26
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 26
Related Manuals
Manual Description
312792 Merkur Displacement Pump
312793 Merkur Bellows Displacement Pump
312794 Merkur Pump Assembly
312795 Merkur Bellows Pump Assembly
312797 Merkur Spray Packages, AA and Airless,
Ambient
312798 Merkur Electrostatic Spray Packages
312799 Merkur Bellows Spray Packages, AA
and Airless
313255 Merkur Heated Spray Packages

Warnings
312796S 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are
present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system com-
ponent. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufac-
turer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a
cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
WARNING
WARNINGWARNING
WARNING

Warnings
4312796S
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes,
burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing protection
WARNING
WARNINGWARNING
WARNING

Models
312796S 5
Models
Check your motor’s identification plate (ID) for the 6-digit part number of your
motor. Use the following matrix to define the construction of your motor. For
example, motor part number M04LT0 represents an air motor (M), with 400
cc displacement, a 3.5 in. piston diameter and a 2.5 in. stroke (04), low noise
exhaust (L), and DataTrak™monitoring with runaway protection (T). The last
digit (0) is unassigned.
* Uses a smaller muffler. Limited use.
ti12922a
ID
M04 L T 0
First Digit
Second and Third Digits
(displacement, piston
diameter x stroke)
Fourth Digit
(Exhaust Type)
Fifth Digit
(Data Monitoring) Sixth Digit
M
(Air Motor)
02 200 cc, 2.5 in x 2.5 in. F* Flush pump
(limited use)
NNone (Compatible with
DataTrak with Cycle Count)
0
(not
assigned)
04 400 cc, 3.5 in. x 2.5 in. LLow noise TCompatible with DataTrak
with Runaway Protection
07 700 cc, 4.5 in. x 2.5 in. PPark - Vent valve to be
parked in down position
(compatible with DataTrak
with Cycle Count)
12 1200 cc, 6.0 in. x 2.5 in. H200 cc Motor Compatible
with Linear Sensor
18 1800 cc, 7.5 in. x 2.5 in.
34 3400 cc, 7.5 in. x 4.75 in.
Do not operate the air motor without a plumbed
exhaust line or muffler installed.
Air
Motor
Part No. Series
Displacement
(cc)
Stroke
(in.)
Piston
Diameter,
in. (mm)
Low
Noise
Linear
Sensor
Compatible
DataTrak
Cycle Count
Compatible
DataTrak with
Runaway
Protection
Compatible
Park
(Lowers to
down
position)
M02LN0 C 200 2.5 2.5 (63) 
M02LH0 A 200 2.5 2.5 (63)  
M02LT0 A 200 2.5 2.5 (63) 
M04LN0 D 400 2.5 3.5 (89)  
M04LT0 D 400 2.5 3.5 (89)   
M07LN0 D 700 2.5 4.5 (114)  
M07LT0 D 700 2.5 4.5 (114)   
M12FN0 D 1200 2.5 6.0 (152) 
M12LN0 D 1200 2.5 6.0 (152)  
M12LT0 D 1200 2.5 6.0 (152)   
M12LP0 D 1200 2.5 6.0 (152)   
M18LN0 D 1800 2.5 7.5 (191)  
M18LT0 D 1800 2.5 7.5 (191)   
M34LN0 A 3400 4.75 7.5 (191) 

Component Identification
6312796S
Component Identification
Key:
A Air valve
B Air inlet, 1/4 in. npt(f) for M02xxx and M04xxx models,
1/2 in. npt(f) for M07xxx, M12xxx, and M18xxx models
C Muffler (M18xxx models have a second muffler, see inset.
Model M12Fxx has smaller mufflers; not shown.)
D Pilot valve
E Manifold
F Solenoid release button (for DataTrak models with
runaway protection)
G Ground screw
H Solenoid bracket (for DataTrak models with runaway
protection)
J Solenoid (for DataTrak models with runaway protection)
K Reed switch (DataTrak models)
FIG. 1: NXT Air Motor components
A
B
C
D
F
G
H
J
K
ti12645a
E
Model M04LT0 shown
M18xxx models have
two mufflers (C).

Component Identification
312796S 7
Grounding
See FIG. 2. Verify that the ground screw (GS) is attached
and tightened securely to the air motor. Connect the
other end of the ground wire (U) to a true earth ground.
Accessories
Bleed-type master air valve
• Required in your system to relieve air trapped
between it and the air motor when the valve is
closed.
• Be sure the valve is easily accessible from the pump
and located downstream from the air regulator.
Air regulator
Adjusts air pressure to the motor and fluid outlet pres-
sure of pump. Locate it close to the pump. Install a
gauge to read air pressure.
Air filter
Removes harmful dirt and moisture from compressed
air supply.
FIG. 2: Ground wire
GS Uti12914a
Trapped air can cause the pump to cycle unexpectedly,
which could result in serious injury from splashing or
moving parts.

Troubleshooting
8312796S
Troubleshooting
Relieve the pressure before checking or servicing
the equipment.
NOTICE
Check all possible problems and causes before dis-
assembling the pump.
Problem Cause Solution
Air motor will not run. DataTrak solenoid engaged (DataTrak
models with runaway protection).
Push solenoid release button (118).
Remove solenoid and manually
move pin.
Damaged air valve (17). Replace or service air valve (17).
See page 9.
Damaged pilot valve (19). Replace pilot valves (19). See page
13.
Air continuously exhausting
around air motor piston rod.
Damaged u-cups (3, 43). Replace piston rod u-cups (3, 43).
See page 13.
Air continuously exhausting from
muffler.
Damaged air valve plate (105) or cup
(112).
Replace or service air valve (17).
See page 9.
Air motor “bounces” at top of
stroke.
Damaged bottom pilot valve. Replace bottom pilot valve (19). See
page 13.
Air motor “bounces” at bottom of
stroke.
Damaged top pilot valve. Replace top pilot valve (19). See
page 13.
Icing inside motor. Air motor operating at high pressure
or high cycle rate.
Reduce pressure, cycle rate, or duty
cycle of motor.
Reduce dew point of compressed air
in moisture coalescing filter.

Repair
312796S 9
Repair
Preventive Maintenance
Schedule
The operating conditions of your system determine how
often maintenance is required. Establish a preventive
maintenance schedule by recording when and what kind
of maintenance is needed, and then determine a regular
schedule for checking your system.
Pressure Relief Procedure
1. Engage the trigger lock.
2. Close the bleed-type master valve.
3. Disengage the trigger lock.
4. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger the gun to relieve pressure.
5. Engage the trigger lock.
6. Open all fluid drain valves in the system, having a
waste container ready to catch drainage. Leave
drain valve(s) open until you are ready to spray
again.
7. If you suspect the spray tip or hose is clogged or
that pressure has not been fully relieved after follow-
ing the steps above, VERY SLOWLY loosen tip
guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Clear
hose or tip obstruction.
Repair Air Valve
Replace Complete Air Valve
1. Stop the pump at the middle of its stroke. Relieve
the pressure. See procedure at left.
2. Disconnect the air line to the motor.
3. For motors with DataTrak: Remove screw (32) to
disconnect the reed switch (31) from the air valve
(17).
4. For motors with DataTrak: If equipped with a run-
away protection solenoid, remove two screws (18)
and the solenoid bracket (26). Pull the solenoid (25)
out of the air valve.
• Trapped air can cause the pump to cycle unexpect-
edly, which could result in serious injury from skin
injection or moving parts.
• Do not lift or move motor while pressurized.
FIG. 3: Reed switch assembly & air line removal
ti12727a
31
32
air
line

Repair
10 312796S
5. Remove screws (18). Remove the air valve (17) and
gasket (16*).
6. To repair the air valve, go to Disassemble the Air
Valve, step 1 at right. To install a replacement air
valve, continue with step 7.
7. Align the new air valve gasket (16*) on the mani-
fold, then attach the air valve (17).
8. For motors with DataTrak: If equipped with a run-
away protection solenoid, remember to reattach the
solenoid bracket and the solenoid.
9. For motors with DataTrak: Use screw to attach the
reed switch assembly to the new air valve. Be sure
the sensor cables are connected properly (see
pump or package manual).
10. Reconnect the air line to the motor.
Replace Seals or Rebuild Air Valve
Air Valve Seal Kits are available. See page 21 to order
the correct kit for your pump. Parts are marked †.
Air Valve Repair Kits are available. See page 21 to order
the correct kit for your pump. Parts are marked .
Air Valve End Cap Kits are available. See page 21 to
order the correct kit for your pump. Parts are marked .
Disassemble the Air Valve
1. Perform steps 1-5 under Replace Complete Air
Valve, page 9.
2. See FIG. 5. Use a 2 mm or 5/64 hex key to remove
two screws (109†). Remove the valve plate
(105).
3. M02xxx and M04xxx Motors: Remove the cup
(112) and spring (111).
M07xxx, M12xxx, and M18xxx Motors: Remove
the two-piece cup assembly (112a, b, and c), and
spring (111).
4. Remove the snap ring (110) from each end. Use
the piston to push the end caps (107, 117) out of
the ends. Remove end cap o-rings (106†,
119†).
5. Remove the piston (102). Remove the u-cup seals
(108†) from each end and the detent assembly
(103) and detent cam (104) from the center.
FIG. 4: Solenoid removal
ti12728a
Use a
10 mm hex
26
25
FIG. 5: Air plate removal
109†
105
112
111
ti12751a
112c
112b
112a

Repair
312796S 11
FIG. 6: Air valve assembly
118 
117
106†
110
25
110
107
107
109†
105
112
111
103
102
ti11840a
26
101
104
32
31
110
1
1
1
1
1
1
1
1
Apply lubricant.
106†
106†
108†
108 †
DataTrak
Models with
Runaway
Protection
119 †
Two-Piece Cup for M07xxx,
M12xxx, and M18xxx Motors
112c
1
112b
1
112a

Repair
12 312796S
Reassemble the Air Valve
1. Lubricate detent cam (104) and install into hous-
ing.
2. Lubricate the u-cups (108†) and install on the pis-
ton (102) with lips facing toward the center of the
piston.
3. Lubricate both ends of the piston (102) and install
it in the housing.
4. Lubricate and install the detent assembly (103)
into the piston.
5. Standard models (No DataTrak or DataTrak with
cycle count only): Lubricate new o-rings (106†)
and install on the end caps (107). Install the end
caps into the housing.
DataTrak models with runaway protection sole-
noid: Lubricate and install new o-ring (106†) on
bottom end cap (107). Lubricate and install new
o-ring (119†) and runaway reset button (118) on
top end cap (117). Install the end caps (107,
117) into the housing.
6. Install a snap ring (110) on each end to hold end
caps in place.
7. Install the spring (111).
8. M02xxx and M04xxx Motors: Lubricate and install
the air valve cup (112). Align the small round mag-
net with the air inlet.
M07xxx, M12xxx, and M18xxx Motors: Lubricate
and install the cup o-ring (112b) on the cup body
(112a), then assemble the cup body to the cup
base (112c). Lubricate and install the cup assem-
bly. Align the small round magnet with the air inlet.
9. Install the valve plate (105). Tighten the screws
(109†) to hold it in place.
FIG. 7: Air valve u-cup installation
Lips face down
Lips face up
108†
108†
102
ti12754a
FIG. 8: Cup installation
FIG. 9: Two-piece cup installation
Magnet
112
ti12752a
112c
112b
112a
ti12752b

Repair
312796S 13
Replace Pilot Valves
1. Stop the pump at the middle of its stroke. Relieve
the pressure. See page 9.
2. Disconnect the air line to the motor.
3. Remove the tie rod shield (TS). Slide the drip shield
(DS) down on the tie rods.
4. Use a 10 mm socket wrench to remove the old pilot
valves (19) from the top and bottom covers.
5. Lubricate and install the new pilot valves (19).
Torque to 95-105 in-lb (11-12 N•m).
Repair Air Motor
NOTE: Air Motor Seal Kits are available. See page 21
for the correct kit for your motor. Parts included in the kit
are marked with an asterisk (*). For best results, use all
the parts in the kit.

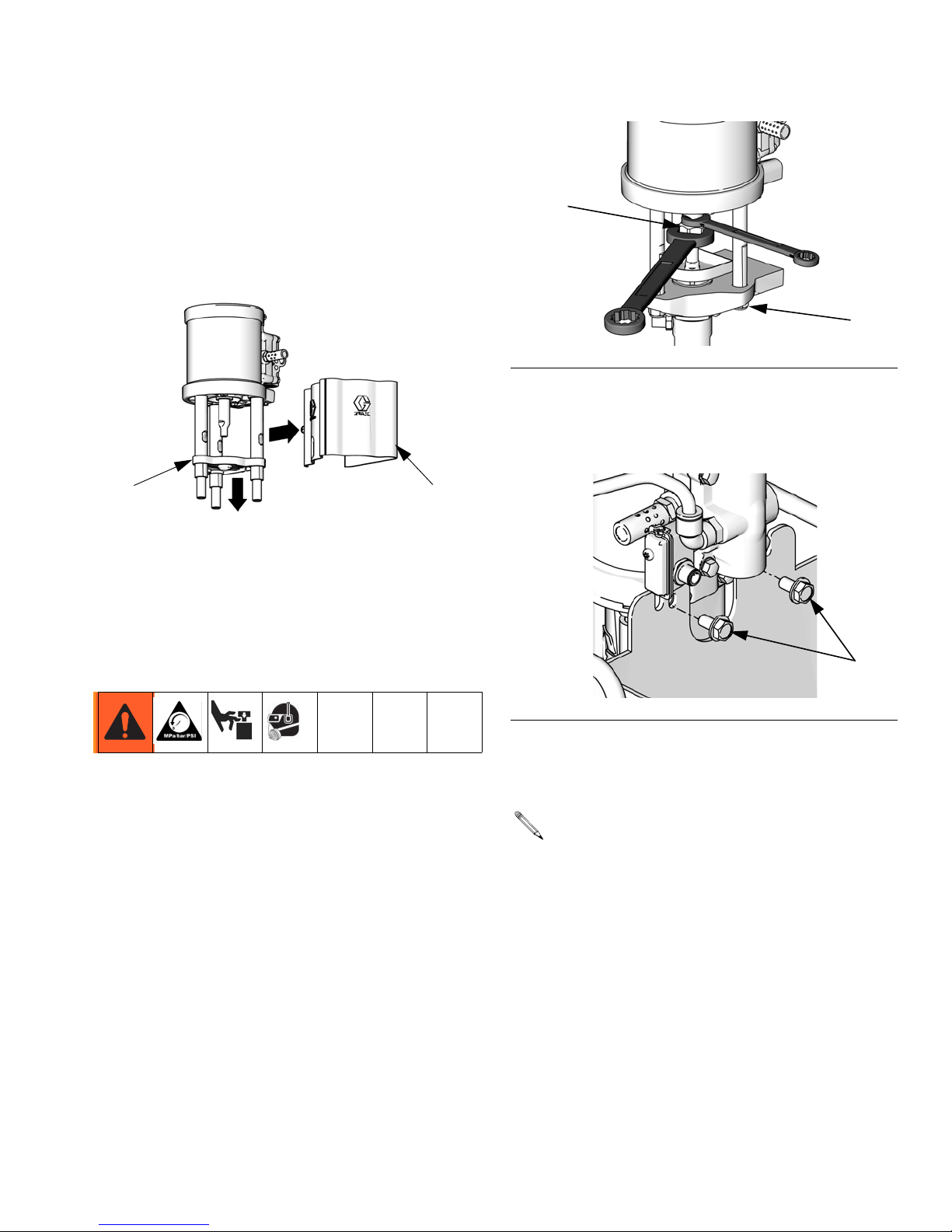

Disconnect the Air Motor
1. Flush the pump, if possible. (See package manual)
Relieve the pressure. (See page 9.)
2. Disconnect the air and fluid hoses, the ground wire,
and the tie rod shield.
3. Hold the flats of the air motor piston rod with a
wrench. Use another wrench to loosen the coupling
nut (CN).
4. Remove the tie rod nuts (TN).
5. Use a socket to remove the mounting screws (MS).
6. Lift up on the air motor to remove it. The tie rods and
drip shield will remain attached.
TSDS ti12916a
FIG. 10: Coupling nut removal
FIG. 11: Air motor removal
Cart Mount: Remove the two screws on the arms
and tip back or remove the air control panel for eas-
ier removal of the air motor.
CN
TN
ti12815a
MS
ti12818a

Repair
14 312796S
Disassemble the Air Motor
1. For motors with DataTrak: Remove screw to dis-
connect the reed switch from the air valve. See FIG.
3, page 9.
2. Use a 10 mm socket wrench to remove four screws
(18). Remove the air valve (17) and gasket (16*).
3. Remove the muffler(s).
4. Remove four screws (18) and remove the manifold
(15*) and two gaskets (14*).
5. Use a 10 mm socket wrench to remove the pilot
valves (19) from the top and bottom cover.
6. Remove the tie bolts.
7. Remove the top cover. Remove the o-ring (9*).
8. Remove the shield (12) from around the cylinder.
Remove the cylinder (11).
9. Depending on your displacement pump model, you
may need to remove an adapter from the bottom of
the piston assembly.
10. Slide the piston assembly (5) straight up off the bot-
tom cover.
11. Remove o-ring (8*) from around the piston.
12. Remove u-cup seals (3*, 43*), and o-ring (9*) from
the bottom cover.
Reassemble the Air Motor
NOTE: For easier reassembly, start with the top cover
(13) turned over on the workbench and assemble the air
motor upside-down.
1. Lubricate and install the o-ring (9*) on the top cover
(13).
2. M07xxx, M12xxx, and M18xxx only: Install the
upper bumper (29) on the top cover (13).
3. Lubricate the inside of the cylinder (11). Lower the
cylinder (11) onto the top cover (13).
4. Lubricate and install the o-ring (8*) around the pis-
ton (5).
5. Slide the piston assembly (5) down into the cylinder
(11). Be sure the o-ring (9*) stays in place.
6. Install the shield (12) around the cylinder (11) and in
the groove on the top cover (13).
Model
Tie Bolt
Hex Size
M02xxx 13 mm
M04xxx 13 mm
M07xxx
and
M12xxx
17 mm
M18xxx
and
M34xxx
17 mm
ti12747a
ti12748a
ti12749a
ti12750a
NOTICE
Do not attempt to take apart the piston assembly (5).

Repair
312796S 15
7. See FIG. 12. Lubricate and install new u-cup seal
with flange (43*) in the bottom of the bearing in the
bottom cover (1). The u-cup must face up and the
flange must face down. Lubricate and install new
u-cup seal (3*) in the top of the bearing. Lips must
face up.
8. Lubricate and install the o-ring (9*) on the bottom
cover (1).
9. M07xxx, M12xxx, and M18xxx only: Install the pis-
ton bumper (28) on the bottom cover (1).
10. See FIG. 13. Carefully place the bottom cover (1) on
the cylinder (11), sliding the rod through the bear-
ing. The manifold surfaces of the top and bottom
covers must align. Be sure the shield (12) is in the
groove on both the top and bottom covers.
11. Install the tie bolts (10) hand tight.
12. Install two gaskets (14*) on the manifold (15). Install
the manifold (15). Torque bolts to 95-105 in-lb
(10.7-11.9 N•m).
13. Align the air valve gasket (16*) on the manifold,
then attach the air valve.
14. Tighten the tie bolts (10) halfway. Work in a criss-
cross pattern. Check that the shield remains in the
grooves on both covers. Continue tightening the
bolts in pattern to the torque specified in the follow-
ing table.
15. Lubricate and install pilot valves (19) in top and bot-
tom cover. Torque to 95-105 in-lb (11-12 N•m).
16. Reinstall muffler(s).

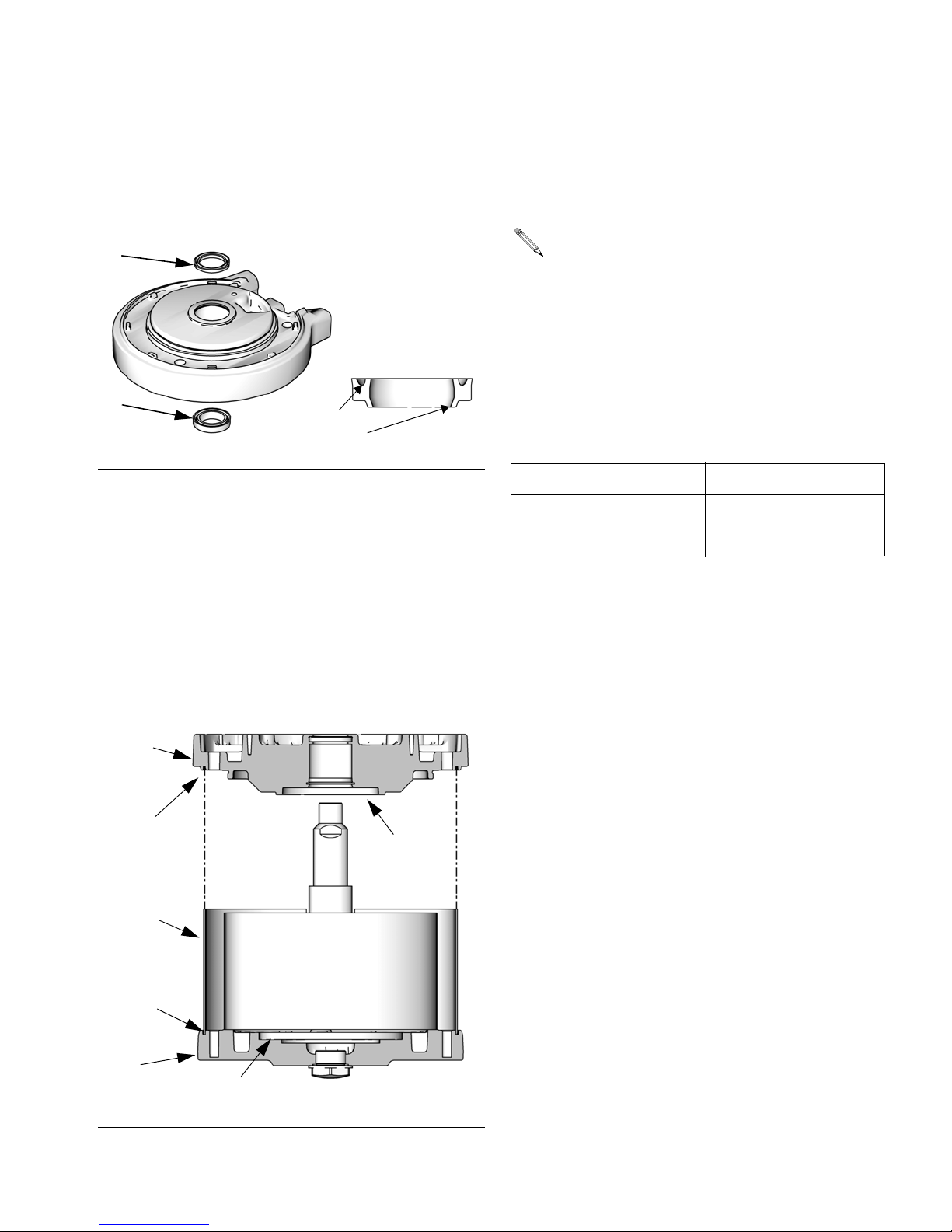

FIG. 12: Air motor u-cup installation
FIG. 13: Align shield in grooves on covers
3*
43*
ti12755a
U-cup faces up.
Flange faces down.
Lips face up
groove
groove
28
29
1
12
13
ti14544a
The manifold is reversible for ease of placement of
muffler or remote exhaust.
Air Motor Torque
M02xxx–M04xxx 11-13 ft-lb (15-18 N•m)
M07xxx–M34xxx 25-30 ft-lb (34-40 N•m)

Parts
16 312796S
Parts
19
13
12
11
17
20
14*
9*
9*
43*
3*
8*
515 18
19
10
22
31
2625
16* 
2
2
2
2
2
2
2
Apply lubricant.
Torque varies by motor size.
M02xxx-M04xxx: 11-13 ft-lb (15-18 N•m
)
M07xxx-M34xxx: 25-30 ft-lb (34-40 N•m)
1
29
ti11900a
28
34
1
2
30
1
39
2
40
42
3
U-cup faces up. Flange (bottom seal only)
faces down. See FIG. 12, page 15.
3
3

Air Motor Parts — All Models
312796S 17
Air Motor Parts — All Models
Ref. Description Qty M02xxx M04xxx M07xxx M12xxx M18xxx M34xxx
1 COVER, lower, assembly (includes
3, 9, 19, 22, 28, and 43)
1 24A541 24A545 24C398 24A549 24A553 24A553
3* U-CUP 2 Not sold separately. See Air Motor Seal Kit (page 21) or
Lower Cover Assembly (1, this table)
5 PISTON, motor, assembly 1 24A542 24A546 24C399 24A550 24A554 16G515
8* O-RING, piston 1 Not sold separately. See Air Motor Seal Kit (page 21) or
Piston Assembly (5, this table)
9* O-RING, cover 2 Not sold separately. See Air Motor Seal Kit (page 21) or
Lower Cover Assembly (1, this table) or
Upper Cover Assembly (13, this table)
10 BOLT, tie, hex head
M02xxx 2 15M314 ----- ----- ----- ----- -----
M04xxx 3 ----- 15M314 ----- ----- ----- -----
M07xxx 4 ----- ---- 15M316 ----- ----- -----
M12xxx 4 ----- ----- ----- 15M316 ----- -----
M18xxx 6 ----- ----- ----- ----- 15M316 -----
M34xxx 6 ----- ---- ----- ---- ----- 15M315
11 CYLINDER, motor 1 15M289 15M211 15M781 15M672 15M390 16A516
12 SHIELD, cylinder 1 15M302 15M212 15M782 15M676 15M539 16V472
13 COVER, upper, assembly, includes
9, 19, 39, 40, and 41
1 15M291 15X353 15X130 15X354 15X320 15X320
14* GASKET, manifold 2 Not sold separately. See Air Motor Seal Kit (page 21) or
Manifold Assembly (15, this table)
15 MANIFOLD, assembly, includes 14,
16, and 18 (qty. 4)
1 24A579 24A579 24A580 24A580 24A580 16G521
16*GASKET, air valve 1 Not sold separately. See Air Motor Seal Kit (page 21) or
Manifold Assembly (15, this table)
17 VALVE, air, see page 21
Standard (for models with no Data-
Trak or DataTrak with cycle
count only)
1 24A351 24A351 24A352 24A352 24A352 24A352
Compatible with DataTrak with Run-
away Protection
1 24A353 24A353 24A354 24A354 24A354 -----
Park - lowers to down position (cycle
count only)
1 ----- ----- ----- 262608 ----- -----
18 SCREW, M6 x 25 varies Not sold separately. See Manifold Assembly (15, this table) or
Solenoid Assembly (25, this table)
19 VALVE, pilot 2 24A366 24A366 24A366 24A366 24A366 24A366
20 MUFFLER
M02xxx 1 15M213 ----- ----- ----- ----- -----
M04xxx 1 ----- 15M213 ----- ----- ----- -----
M07xxx 1 ----- ----- 117237 ----- ----- -----
M12xxx 1 ----- ----- ----- 117237 ----- -----
M12Fxx 2 ----- ----- ----- 15M940 ----- -----
M18xxx 2 ----- ----- ----- ----- 117237 -----
M34xxx 1 ----- ----- ----- ----- ----- 102656
22 SCREW, ground 1 116343 116343 116343 116343 116343 116343

Air Motor Parts — All Models
18 312796S
* Included in Air Motor Seal Kit. See page 21.
Replacement Warning labels, signs, tags, and cards are available at no cost.
25 SOLENOID/REED SWITCH,
assembly, for DataTrak models with
runaway protection, includes 18 (qty.
2 or 4 depending on model), 26, 31,
32, and 33.
1SeeReed
Switch
(31, this
table)
24B565 24B566 24B566 24B566
26 BRACKET, solenoid
(for DataTrak models with runaway
protection)
1Not sold separately. See Solenoid/Reed Switch Assembly
(25, this table)
28 BUMPER KIT, includes lower bum-
per, upper bumper, and screws
(M18xxx only)
124A914 24A914 24A915 24A915
29 BUMPER, upper (M18xxx only) 1 Not sold separately.
See Bumper Kit (28,
this table)
30 SCREW, M5, flat head (M18xxx
only)
3
31 SWITCH, reed, includes 32
(DataTrak models)
1 24B564 See Solenoid/Reed Switch Assembly
(25, this table)
32 SCREW, reed switch, 8-32 x 1.50,
(DataTrak models)
1 Not sold separately. See Solenoid/Reed Switch Assembly
(25 this table) or Reed Switch (31, this table)
33 CLAMP, hose, not shown
(DataTrak models)
1 Not sold separately.
Order Kit 24A544 for
package of 10.
Not sold separately.
Order Kit 24A548 for package of
10.
34 ADAPTER, muffler
M12xxx 1 15T560
M18xxx 2 15T560
35LABEL, warning (not shown) 15W719 15W719 15W719 15W719 15W719 15F674
39 O-RING, upper cover plug 1 Not sold separately. See Upper Cover Assem-
bly (13, this table), Plug (40), or Bushing (41)
110782
40 PLUG, upper cover (MxxLN0 or
MxxLT0 models)
124E990 24E990 24E990 24E990 24E990
42 HOOK, lift. Not included. Order kit
separately if needed, includes
o-ring 39).
024E991 24E991 24E991 24E991 24E991
43 SEAL, u-cup with flange 1 Not sold separately. See Air Motor Seal Kit (page 21) or
Lower Cover Assembly (1, this table)
Ref. Description Qty M02xxx M04xxx M07xxx M12xxx M18xxx M34xxx

Air Valve Parts
312796S 19
Air Valve Parts
117
106†
110
25
110
107
107
109†
105
112
111103
102
108†
108 †
26
101
104
32
31
110
ti11840a
106†
106†
118 
DataTrak Models
with Runaway
Protection
119 †
Two-Piece Cup for M07xxx,
M12xxx, and M18xxx Motors
112c
1
112b
1
112a

Air Valve Parts
20 312796S
Air valve parts are not sold individually. The table below shows possible kit options for each part. See page 21 to
order the correct kit(s), or full replacement air valves, for your motor.
† Included in Air Valve Seal Kit. See page 21.
Included in Air Valve Repair Kit. See page 21.
Included in Air Valve End Cap Kit. See page 21.
Ref. Description Qty.
Air Valve
Repair Kit
AirValve
Seal Kit
Air Valve
End Cap Kit Other
101 HOUSING 1
102AIR VALVE PISTON 1 
103DETENT PISTON ASSEMBLY 1
104DETENT CAM 1 
105PLATE, air valve 1
106† O-RING 2  
107CAP 
Standard 2
Compatible with DataTrak
with runaway protection
1
108†U-CUP 2 
109†SCREW 2  Screws Kit 24A359
(pack of 10)
110 SNAP RING 2 
111DETENT SPRING 1
112CUP (for M02xxx and M04xxx
models)
1
112a
112b
112c
TWO-PIECE CUP ASSEM-
BLY, with o-ring (for M07xxx,
M12xxx, and M18xxx models)
1
117CAP (for DataTrak models with
runaway protection)
1
118BUTTON, solenoid release
(for DataTrak models with
runaway protection)
1
119† O-RING (for DataTrak models
with runaway protection)
1 
18 SCREW, M6 x 25 4See Manifold Assembly
(15, Air Motor Parts table)
or
Solenoid Assembly (25,
Air Motor Parts table)
16*†AIR VALVE GASKET 1  See Air Motor Seal Kit
(page 21) or
Manifold Assembly (15,
Air Motor Parts table
