Grandio Ascent 8x8 KIT User manual

GREENHOU S E S
GRANDIO
GREENHOUSE USER MANUAL
© 2013 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved
2015 Manual Edition Extendable Greenhouses

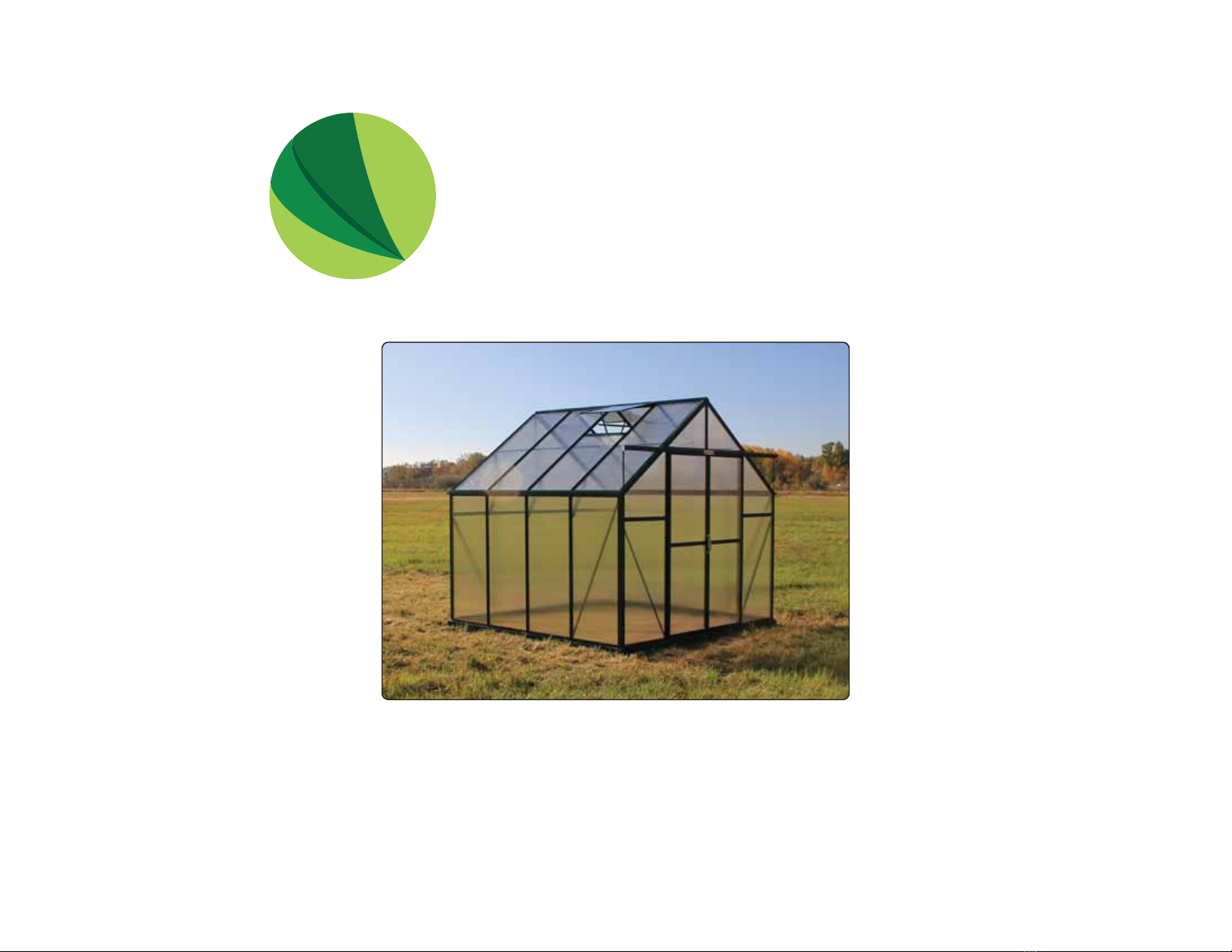

Grandio Ascent 8x8 Shown In Image
2015 GRANDIO ASCENT 8x8 KIT

GREENHOU S E S
GRANDIO
Before you begin take time to complete this check list.
Take inventory of all parts using the parts list at the back of this manual.
Be cautious where you place the polycarbonate panels as they will burn grass
or plants if left on top of them in direct sunlight. Note that clear film side of
panels should always face the sun and opal film side faces inside greenhouse.
Panels may scratch easily so be very carful what you clean them with.
Plan out when and where you are going to place the greenhouse, we recom-
mend that you place it in an area that will receive direct sunlight and will be
protected from the wind as much as possible
It will take at least (2) people to put the greenhouse together.
Before your build, make sure you are allowed to build it! Consult all building
codes, as well as City or Municipality ordinances and HOA’s, as you may need
a permit or documentation before you build.
Contact your insurance company to make sure your Grandio Greenhouse will
be covered on your policy.
Call your local utilities companies before digging.
Do not attempt to begin construction on a windy day.
Your greenhouse should be built on a flat level surface allowing for drainage.
Read this entire manual to get familiar with all pieces and parts prior to
beginning assembly. Follow the steps outlined in the order presented!
Save this owner’s manual for future
reference and if you need our help.
CONTACT OUR CUSTOMER SERVICE
DEPARTMENT at:
1-866-448-8231
Hours: 8:30a.m.-5:00p.m. Monday through
Friday (Mountain Standard Time)
Backyard Living Source
9543 W. Emerald St., Suite 101
Boise, ID 83704
www.grandiogreenhouses.com
IMPORTANT! PLEASE READ BEFORE BEGINNING ASSEMBLY
Dear Valued Customer,
We would like to congratulate you on your new
Grandio Greenhouse purchase. We are confident
that you have made the right decision in choos-
ing Grandio. Our greenhouses are made with
high quality aluminium and polycarbonate and
will last for many garden seasons to come.
Please take the time to carefully read this
instruction manual for an easier and more
enjoyable assembly experience.
Cheers!
Grandio Greenhouses
1

IMPORTANT! SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and
inside all packing material for parts and/or additional instruction materials. Before beginning assembly, read the instruc-
tions and identify all parts using the hardware identifier and parts list on pages 67-76. Complete assembly and
proper usage are essential to reduce the risk of accident or injury when using your Grandio Greenhouse.
CAUTION: Do not leave polycarbonate panels laying on grass or leave in the sun or extreme heat, keep in a cool
dry place until they are to be installed!! (May cause burning to plants or grass if left directly on top of them, also may
damage panels due to the protective lm adhering to panels.) Panels may scratch easily. Do Not use solvent cleaners.
• Each of the polycarbonate panels have a clear lm side that should always face the sun, and an white lm side which faces
inside. The clear side has a UV coating and we recommend marking a small “x” on a corner of each panel to determine which side
has the UV Coating as you cannot visually determine with your eye in the case of future disassembly.
• Due to shipping, the grooves of some of the aluminum proles may be too small to insert into the polycarbonate sheet, you may
carefully use a screwdriver to pry the framework open so the polycarbonate sheet can be inserted smoothly.
• Do not use or store hot objects such as grills, blow torches, welding equipment, etc. in or near your greenhouse.
• Do not allow children or pets to play in greenhouse or in the set up area until assembly is complete.
• If using a ladder during assembly, use extreme caution.
• A clean level surface is essential to maintaining the solid integrity of the structure, Install the base correctly as described in
manual. Please anchor the greenhouse down to a rm and level base.
TOOLS YOU WILL NEED FOR ASSEMBLY
• Tape Measure • 2 Step Ladders • Safety Glasses
• Level • Work Gloves • Drill Is Helpful
• Carpenter Square • Permanent Marker • Knee Pads
• At Least 2 Adults • Masking Tape • Folding Utility Table
GRANDIO
TIP When you see this icon
pay special attention to
the helpful tips we have provided that will
make installation more ecient.
2

PREPARE A FOUNDATION FOR YOUR
GRANDIO GREENHOUSE
3
8X8 GRANDIO ASCENT BARN STYLE
GREENHOUSE DIMENSIONS
Before assembling your new greenhouse, a proper
foundation must be prepared. A number of anchor-
ing options are acceptable, based on wind and
ground conditions in your area.
Pre-read pages 6-9 for base kit assembly information.
Go to www.grandiogreenhouses.com for founda-
tion ideas and tour our online learning center for
tips, tricks and videos for putting your greenhouse
together.
Transparent Film
Opal White Film
Polycarbonate
Panels
Sun
The UV-Protected side is covered with transparent lm
and must face toward the sun. The side covered in white
lm will always face the interior of the greenhouse. We
suggest you peel all lm o completely prior to assem-
bly and use a permanent marker to place a small “X” on
the lower right corner of each panel on the transparent
side that faces the sun, each panel has a sticker labeling
the panel number and this side always faces the sun or
outward as well. DO NOT REMOVE LABELS UNTIL
YOU INSTALL PANELS. The “X” is suggested in case
you dis-assemble your greenhouse in the future so you
may identify which side has the UV coating. Always use
gloves when handling the polycarbonate panels as the
edges can be very sharp.
IMPORTANT: POLYCARBONATE PANELS
93”
97.5”
72”
97.25” 42”
8X8
8X8
LEFT SIDE
FRONT WIDTH
ROOF PEAK HEIGHT
DOOR HEIGHT
DOOR
1
3
/
4
”
GUTTERS
55.5”
EAVE HEIGHT
BASE 31/4”

Y4-1
L08B
604-L 604-R
L08A-XL08A-X 623B
LEFT SIDE RIGHT SIDE
609
601A-B
604-L 604-R
622-L 622-R
601A-FL
609 609
601A-FR
609
622 622
601A-B
FRONT
L08A
610
L08B-X
601B 601B
607
603C
603A
601B 601B
L08D L08D
620 620
623A623A
623B 623B
619
L21
LEFT SIDE
L08C
610
602B
602A
602A
602A
602B
L08C
603B/616
602B
L08C-X
L08C-X
615
RIGHT SIDE
603B/616
602A
602A
L08C-X
602B
L08C
602B
610
602A
L08C-X
602B
L08C
615
6
603B
603B
602C
L08B-X
602D
L08A-X
610 610
618 618
Y5
Y4-2 Y2-1Y2-2
Y1
Y1
Y2-1
Y1
Y3-1 Y3-2
Y9 Y9
Y6
Y7
Outside View
606-WS
606-WS
606-WS
606-WS
BA-S1
L08A-X
606-WS
606-WS
603B
Y6
Y6
Y6
Y7
Y7
Y7
Y7
Y7
Y8
Y8
BA-S2 BA-S2
606-WS
606-WS
606-WS
606-WS
Y6
Y6
Y6
Y6
Y5 Y5
Y5 Y2-2
Y1
606-WS 606-WS 606-WS
606-WS
Y1
Y1

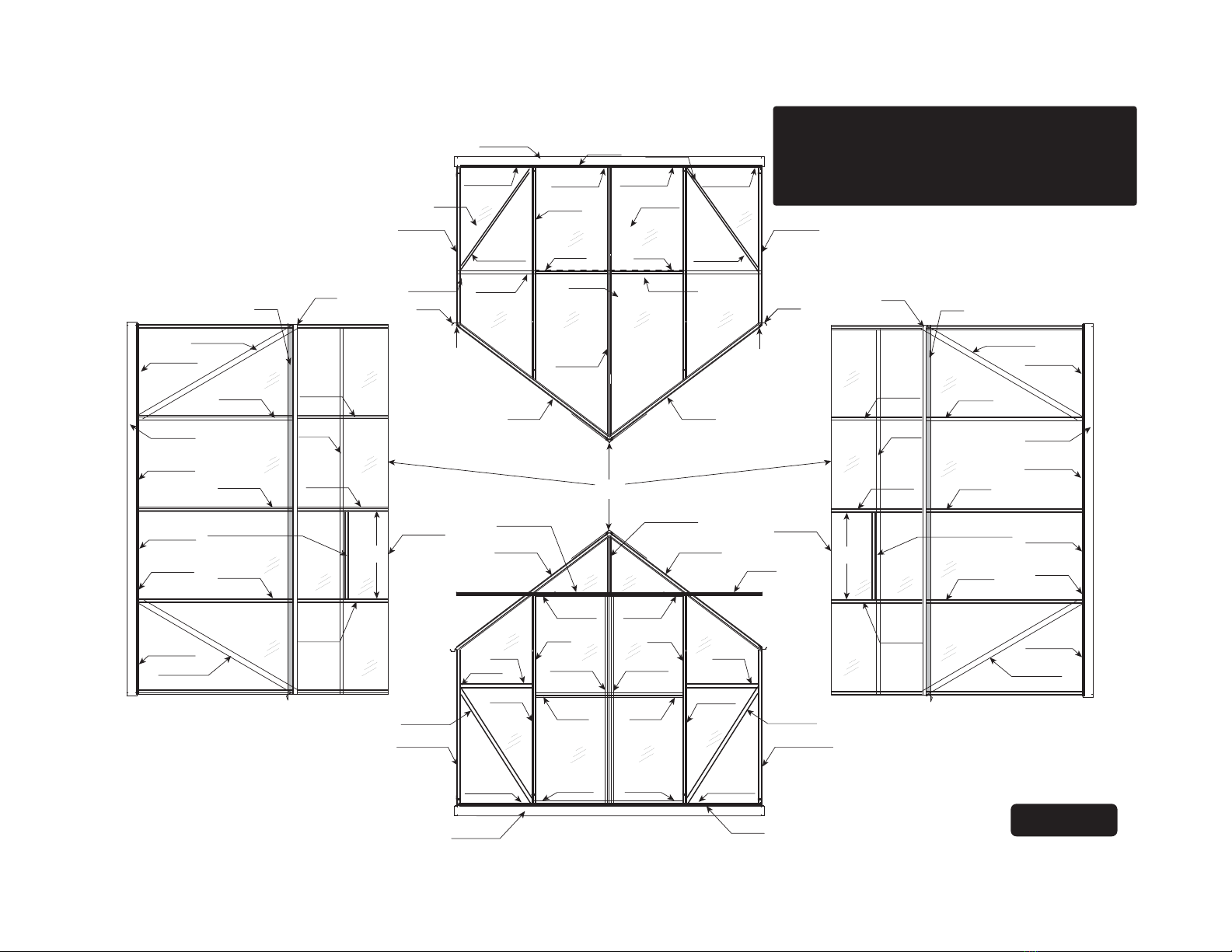

DIAGRAM SHOWS THE ASSEMBLED
(8’x8’ BASIC CONFIGURATION)
(GRA-ASC-8A & GRA-ASC-8P & GRA-BA-8)
8x8 ASCENT KIT INCLUDES, FRONT,
BACK, BASE AND SIDES.
BA-S1

ASSEMBLY INSTRUCTION STEPS
GREENHOU S E S
GRANDIO©
5

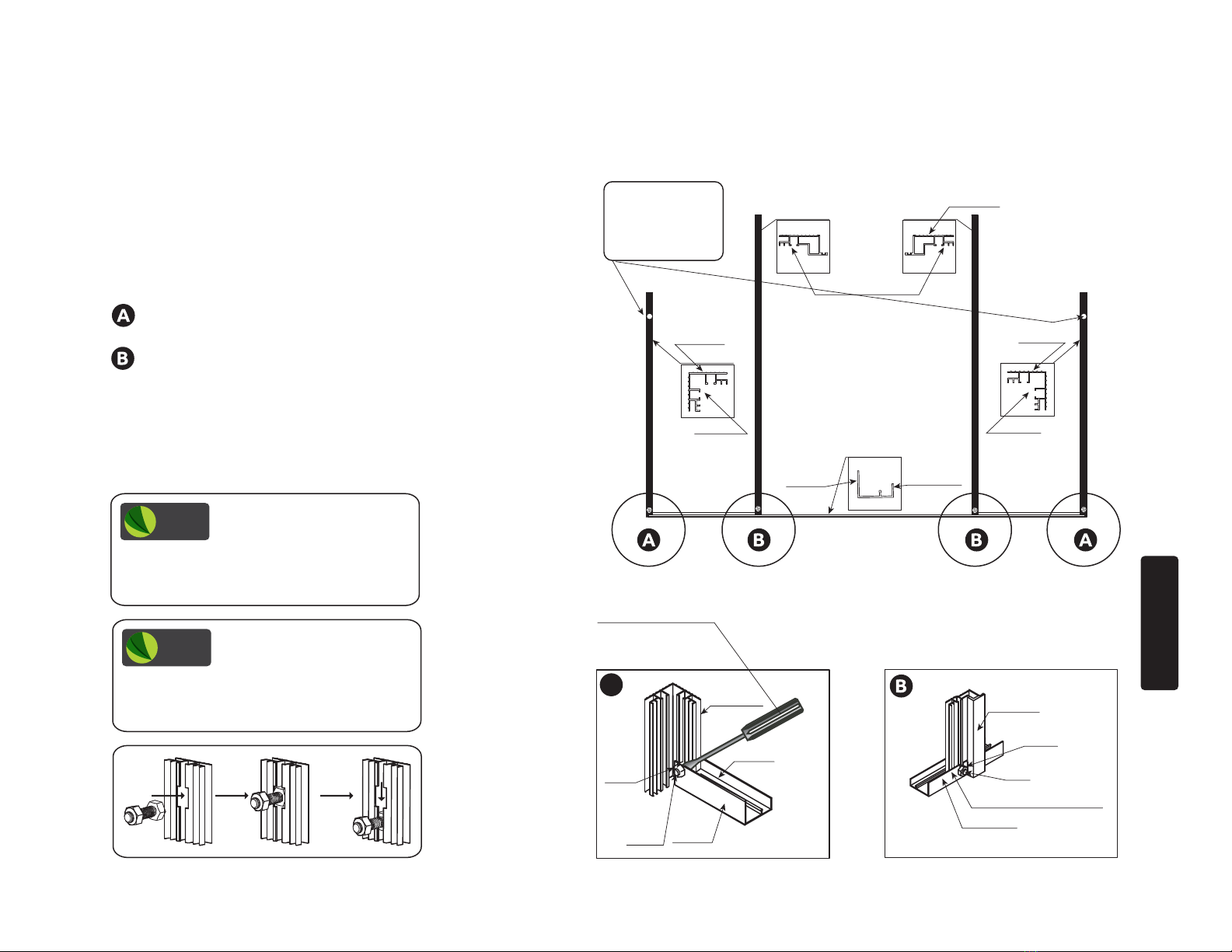

STEP ONE: BASE ASSEMBLY

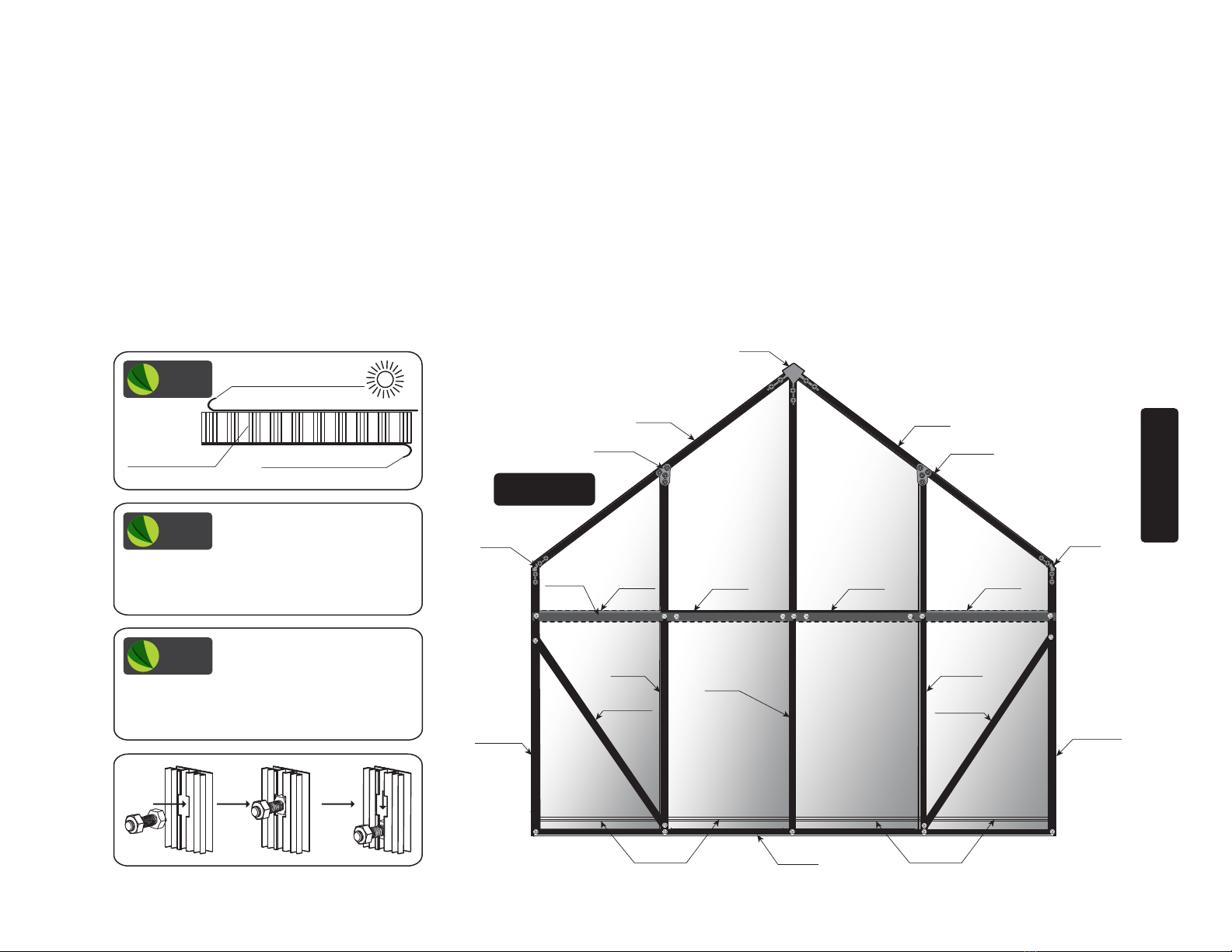

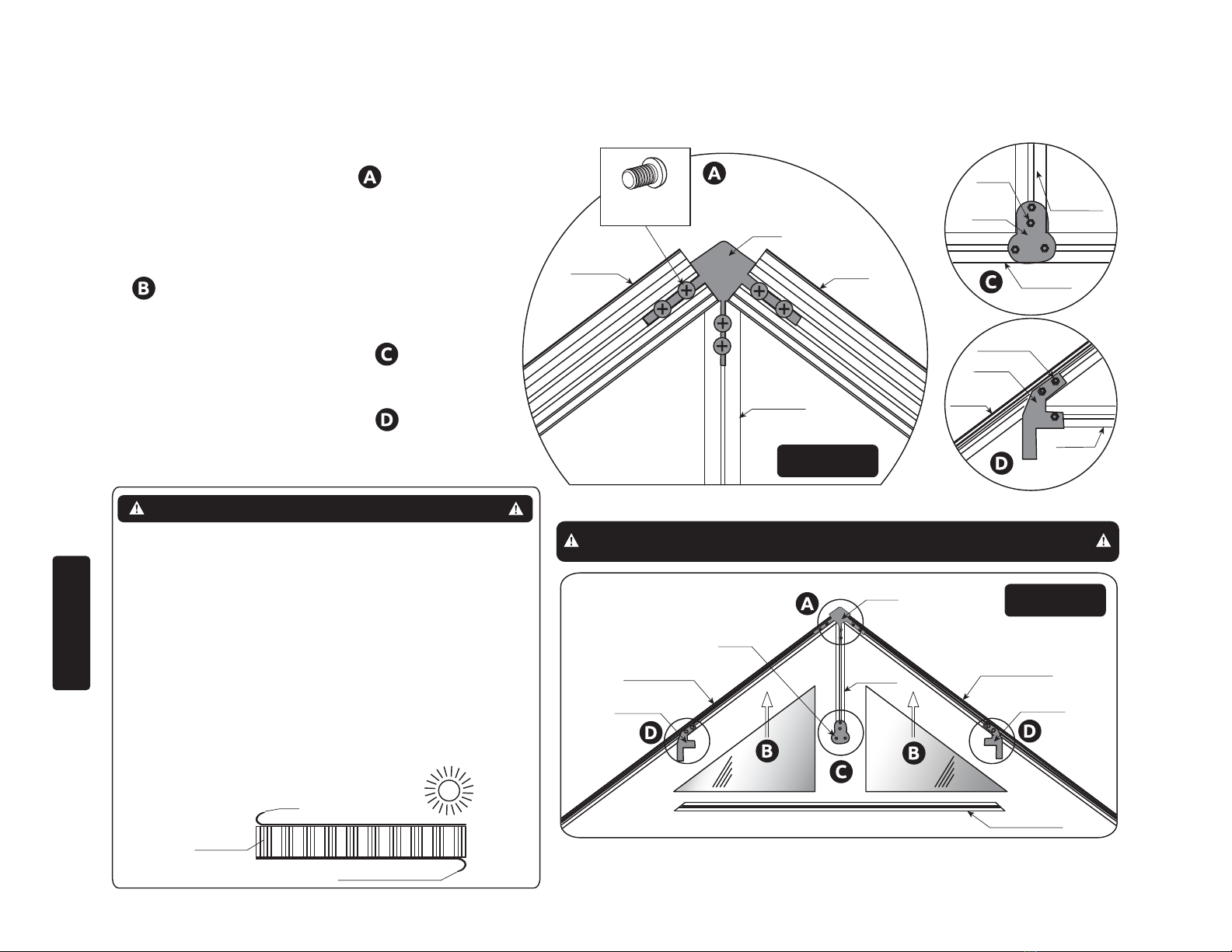

STEP TWO: FRONT ASSEMBLY

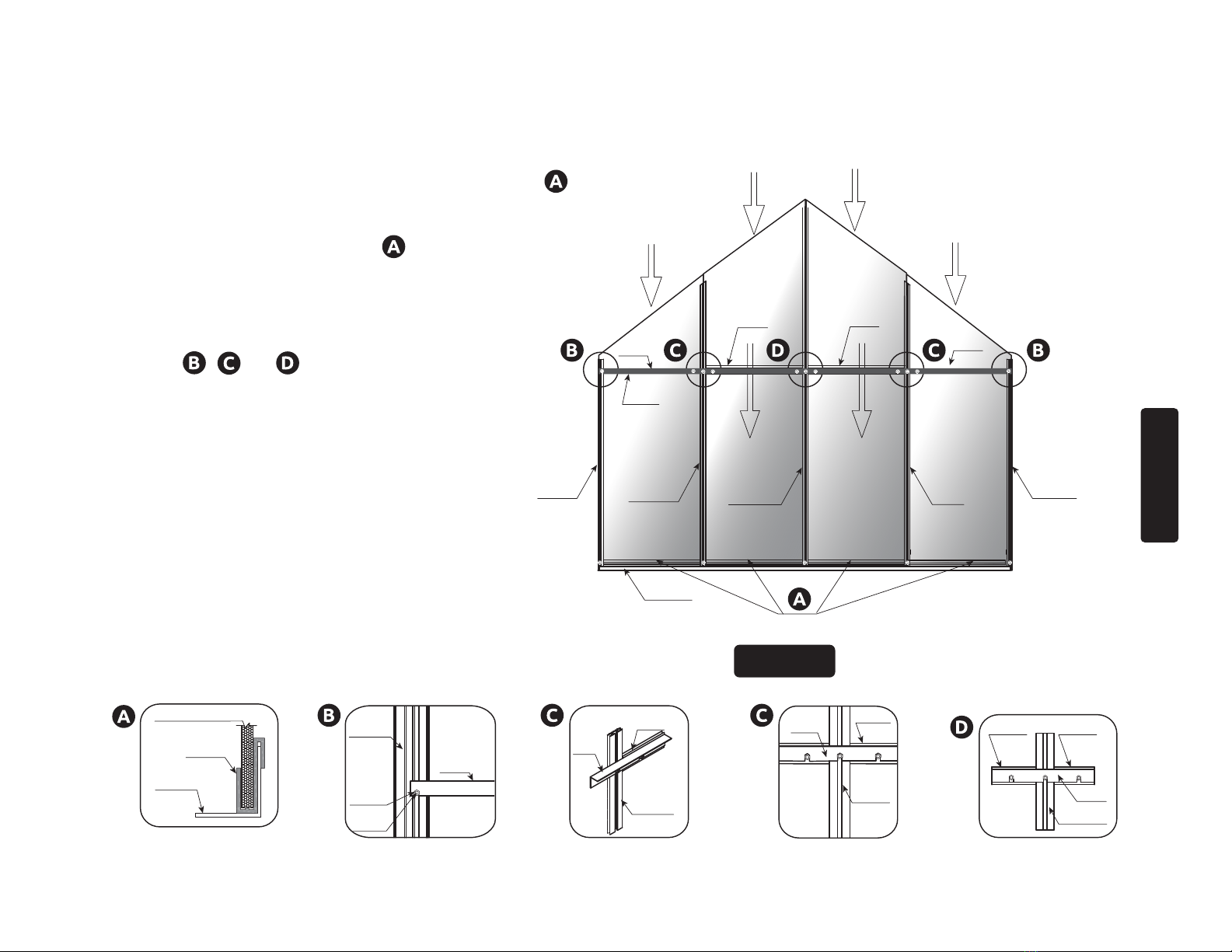

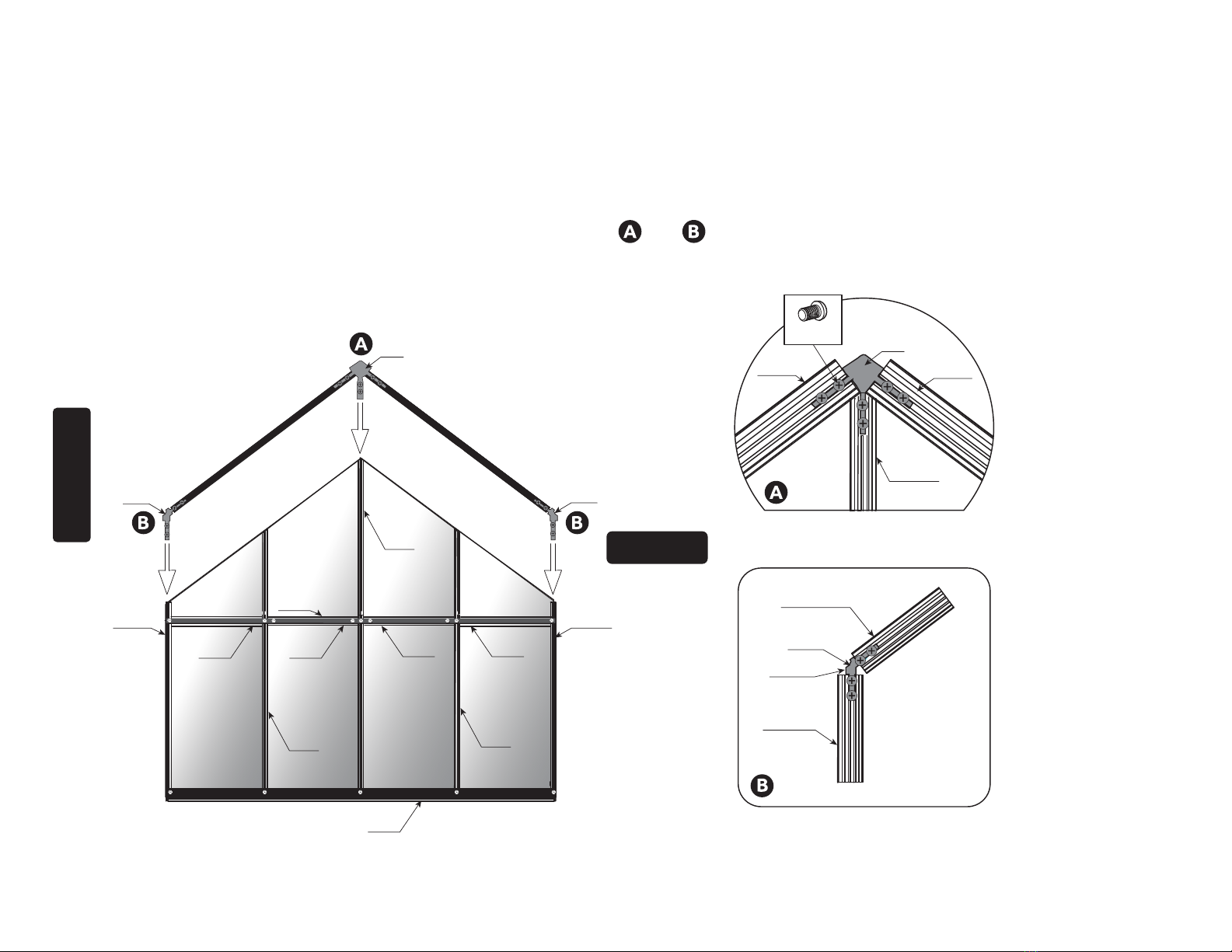

STEP THREE: BACK ASSEMBLY
STEP FOUR: MIDDLE ASSEMBLY
STEP FIVE: DOOR ASSEMBLY
STEP SIX: INTERIOR ROOF SUPPORTS
