GReddy Full Auto Timer User manual

Instruction Manual

Instruction Manual
Turbo Timer
1pc.
Power Harness
1pc.
Tie Strap
3 pcs.
Double-sided Tape
1 set
Parts List
Important
Please check the list below to make sure you have all of the following
parts before you proceed. If you are missing parts please contact the
GReddy Authorized Dealer you purchased the unit from.
1
Main Harness
1pc.
Instruction Manual
1pc.
Minimum Tools Required Tools for a Professional Installation
* Pliers
* Dikes
* Phillips and Flat Screw drivers
* 10mm Wrench
* Wire Tester (15V-min)
* Soldering Iron & Solder
* Drill and Drill Bits
* Electrical Tape
* Wire Connectors

Installation (using Optional Turbo Timer Harness)
Important!
A bad ground connection can lead to a mechanical failure, therefore
please attach the ground to a non-painted surface of the vehicles
steel body.

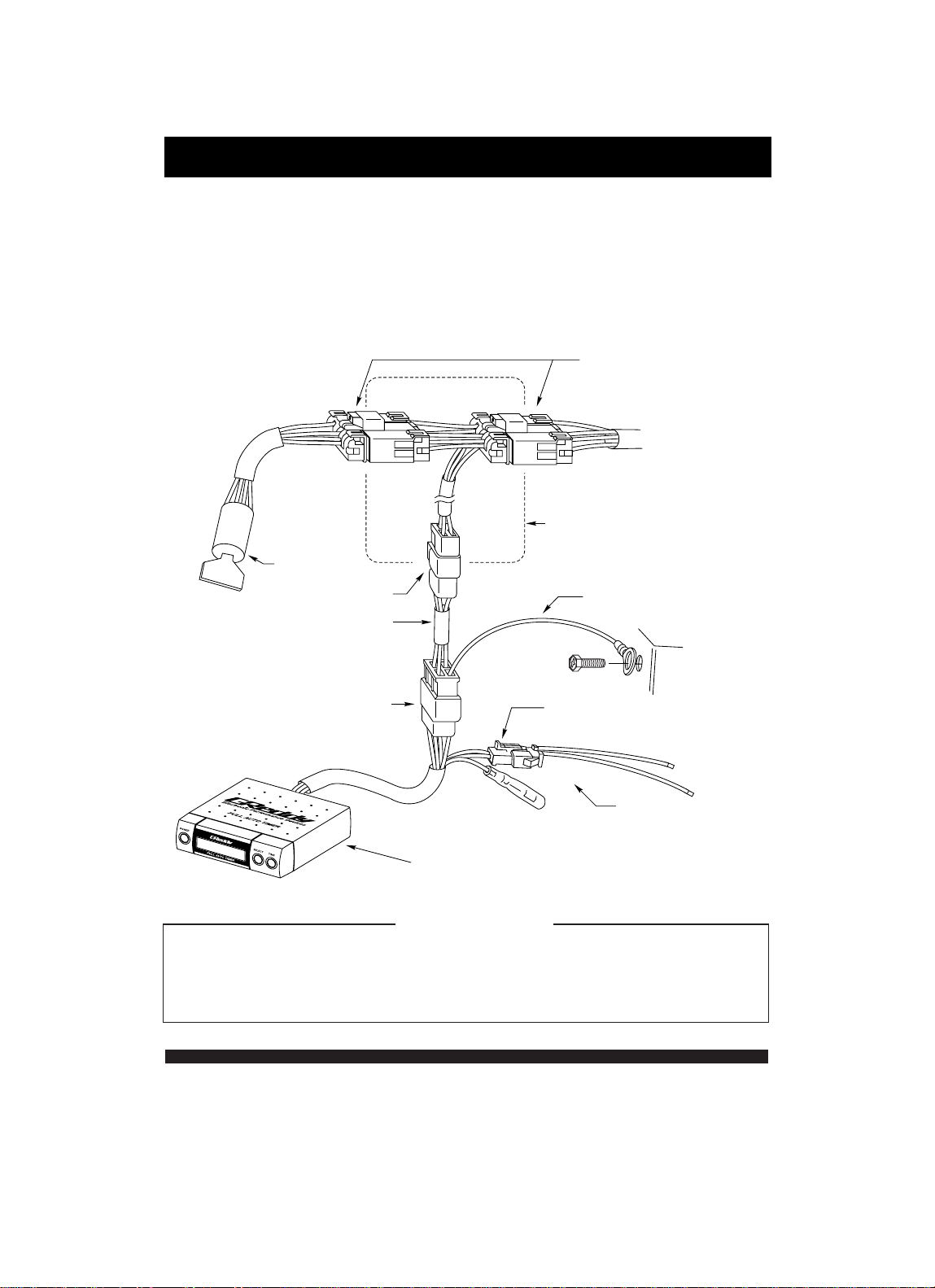

(1) Follow the key switch to it’s electrical connector, then unplug the
 harness and place the Optional Turbo Timer harness in-line with the
 key switch harness.
(2) Connect the supplied power harness in between the 3-pin connector
 of the optional harness and the 4-pin connector of the Turbo Timer.
(3) Then connect the black wire with the loop connecter to a good
 chassis ground.( to steel body)
2
key switch connector
power harness
key cylinder
4-pin connector
3-pin connector
parking / speed
harness
Turbo Timer
ground wire.
Optional GReddy
Turbo Timer Harness
(sold separately)

Installation (without Optional Turbo Timer Harness)
(1) Follow the key switch to it’s electrical connector, then unplug the
 harness. Find the appropriate wires with either a factory service
 manual or a volt meter.
(see 2.3 for wiring)
(2) Cut off the 3-pin connector on power harness. Then splice and solder
 the appropriate wires to the power harness.
(be sure to cover connections)
(3) Then connect the black wire with the loop connecter to a good
 chassis ground.( to steel body)
(4) Reconnect the key switch harness.
Important!
A bad ground connection can lead to a mechanical failure, therefore
please attach the ground to a non-painted surface of the vehicles
steel body.
power harness
key switch connector
splice and solder
the appropriate lines
key cylinder
ground wire.
4-pin connector 2-pin connector
Turbo Timer
parking / speed
harness
3

Wiring Diagram
The wires coming out form the key
switch usually consist of:
12 v - 12 volt constant power
ON - Ignition power
ACC- Accessory power
ST - Starter signal
Other than these four wires, the
vehicle may have two ON wires.
Wiring Procedure:
(1) Cut the Power harness close to the 3-pin connector
(2) Use a volt meter or test light to find the appropriate wires. Connect
 the Red wire to the 12v, the Green to to ON, and the Blue to ACC
 using solder.
(3) Cover all connections carefully with electrical tape.

Warning !
Green
Red
Blue
Black
Green
Red
Blue
Black
With vehicles that have 2 ignition (ON) wires, connect the Green wire
to the ignition (ON) wire which does not drop voltage when the starter
is activated. Then connect the Blue wire to the other ignition wire.
Warning
Standard Ignition w/ 2 Ignition Wires
4
12V
ON
ACC
ST
12V
ON
ACC
ST
ON
12V
ACC
START
ON
12V
ACC
START
ON
ON

Harness Connections
Brown / Parking
do not use
Gray
not used
in the US
Turbo
Timer
2-pin connector
Purple / Speed
Parking Brake Feature:
(1) Remove the cover over the parking brake and find the parking
 switch wire(s).
(see you factory service manual)
(2) * If there is one wire, make sure the wire:
 shows 0 volts, when the parking brake is engaged.
 and shows 12 volts, when the parking brake is released.
 * If there are two wires, find the wire that:
 shows 0 volts, when the parking brake is engaged.
 and shows 12 volts, when the parking brake is released.
(3) Route the Brown wire from the 2-pin connector to the parking
 brake switch you found in (2).
(4) Connect the Brown wire to the wire found in (2)
(5) Replace the parking brake cover.

Speedometer / Auto timer Feature:
(Some vehicles do not have a speed signal to connect)
(1) Check your factory service manual for the proper speed signal wire.
(2) Access the speed signal wire on the ECU harness.
(3) Connect the Purple wire to the speed signal wire.
Note: This feature should only be attempted by a trained mechanic,
 serious electrical damage can result form improper installation.
5
Shift lock
release uint
(for Japan only)
12V
0V

Turbo Timer Functions
6

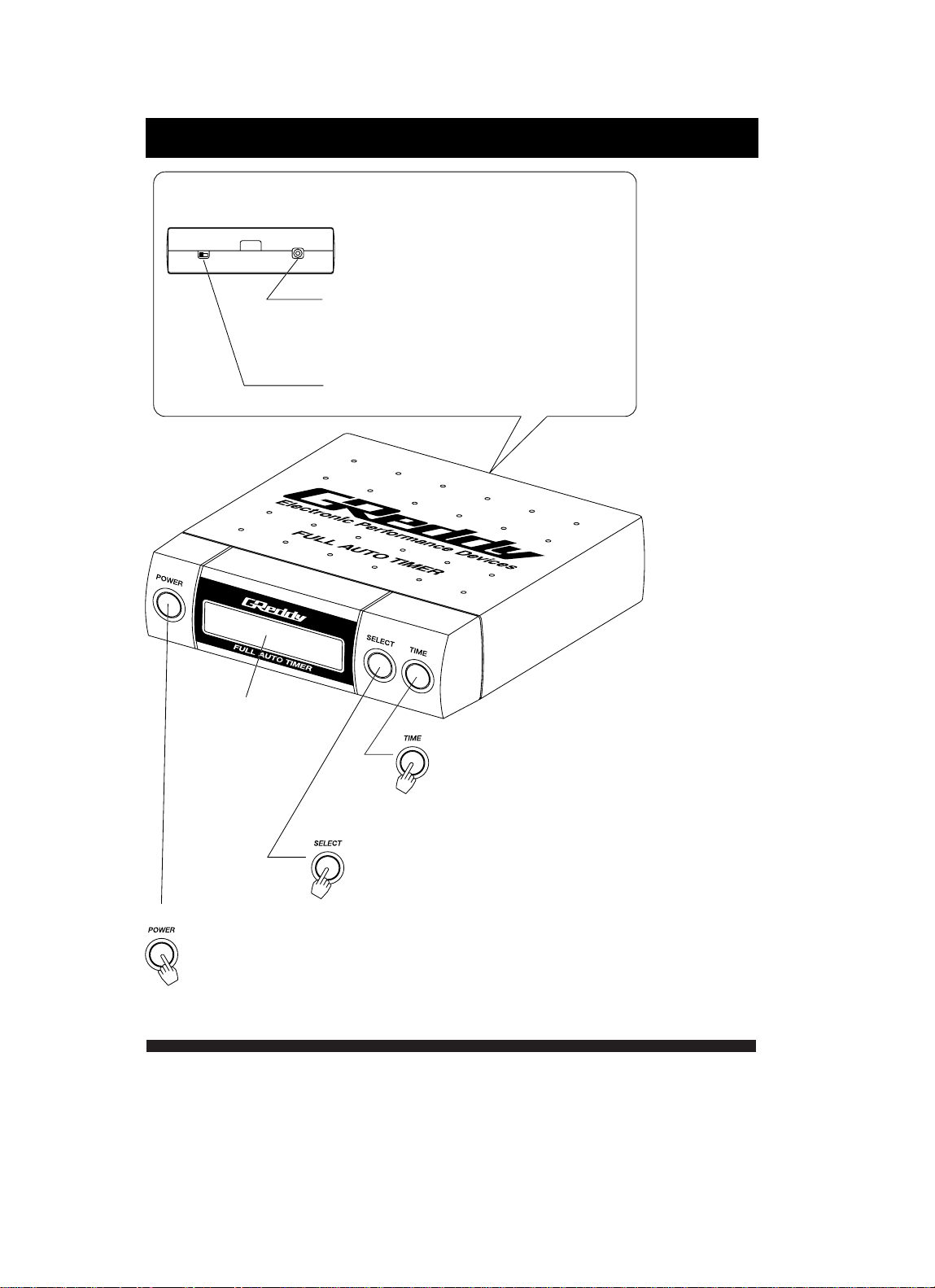

OPTION Switch
Used to connect the
Remote Switching System (sold separately)
Back
Line Switch
Display TIME Button (Referred as "T")
Used when switching the main modes.
Used to change the countdown
time and set-up time.
SELECT Button (Referred as "S")
Used when switching the sub modes.
Used to start the stopwatch mode.
POWER Button (Referred as "P")
Turns the Turbo Timer "ON" or "OFF"
Used when switching the main and sub modes.
Shuts off engine and timer during count down.

Display Description
7
1
2
3
4
6
5
7
11
8
10
9
Attack Mode indicator. Flashes when Attack timer is activated.
Stopwatch Mode indicator. Flashes when the stopwatch is
activated.
Speed Mode indicator.
Displayed while in Battery Mode.
Best lap time indicator. Flashes the best lap time during
Stopwatch Mode.
Count Down Mode indicator.
Battery Mode indicator.
Auto Mode indicator in the Count Down Mode.
Displayed while in Attack mode or Speed Mode.
Displayed while in Stopwatch Mode.
Displayed with lap time while in Stopwatch mode.
9
1 3 4 25
10 116 7 8

Display Description
8
Stopwatch
Mode
Voltage
Display
Mode
Lap
Mode
Battery
Warning
Lo Mode
Battery
Warning
Hi Mode
Lap Read
Mode
Split
Mode
Split Read
Mode
Auto
Lo Mode
Auto
Hi Mode
Preset 1
Mode
Preset 2
Mode
Count
Down
Mode
P+S+T P+S+T
Battery
Mode
P+S+T
P+S
P+S
P+S

0-200m
Mode
Attack
Mode Speed Mode Setup Mode
0-400m
Mode
Speedometer
Mode Sound Mode
200-400m
Mode
Speed peek
Mode Line Switch Mode
0-100km/h
Mode
Speed Warning
Set up
Mode
RPM Setup
Mode
0-200km/h
Mode Speedometer
Set up
Mode
50-100km/h
Mode
P+S+T P+S+T
9
Display Description
P+S+T

Operation Check
Parking Brake Safety Feature Operation Check
10
P+S
P+S
This shows P-1
selected.
Count down begins.
During count down,
release the parking
brake.
Pull the Parking brake.
After 2 sec. default
value will display.
Turn off the ignition
switch.
Engage parking brake.
Manual Transmission: Place into
Neutral
Automatic Transmission: Place
into Park.
Start the engine. Make sure the
Turbo Timer powers up with the
music and display lights operating.
(note: The Turbo Timer may be turned
"Off" if so, press the "POWER" button
once to turn on the unit)

Press P + S to select to "P-1" or
"P-2" Mode.
1’00" will show in display.
First depress the brake pedal, so
that the car does not roll, then turn
the ignition "Off" with the key switch.

The Turbo Timer will then give a
warning "beep" and display "Sid"
Next the unit should begin the
counting-down mode.
Reengage the Parking Brake.
Check to see if the "Sid" display
disappears and the unit continues
to count-down.
Now release the Parking Brake.
the count down should stop and
"OFF" displayed. Then the Timer
and engineshould immediately turn
off.
(1)
(2)
(3)
(4)
(5)
(6)
(7)

Operation Check
Vehicle Speed Signal Safety Feature Operation Check
11
(2)
(1)Go over check procedure 4.3
"Parking Brake Feature Check"
before continuing.
Carefully, place the vehicle into gear
and move the vehicle slowly.
Turbo Timer and engine should
then turn off.
This concludes the check
procedures.
During count down,
Place the car in gear
and move the vehicle.
Timer and engine
should trun off.
Turn off the key
switch
Warning !
Before moving your vehicle, be sure that the area around
your vehicle is clear. If not, you may cause an accident.
If the Turbo Timer did not power up, or these safety features
are not working, please recheck all the wiring connections
and then contact your Authorized GReddy Dealer.

Countdown Mode
Auto Countdown Mode
12
Auto Timer Mode automatically calculates a suggested count down time
for your vehicle, according to your car’s RPM. You may also choose
2 count down time offset ratios "Hi" or "Lo". This will add a preset time to
your calculated count down time.
On some vehicles, there is a possibility that the Auto Mode will not
function properly due to difference in usable rpm range.
The Turbo Timer begins calculating, when your RPM reaches
approximately 3000 RPM for "LO" mode and 2000 RPM for
"HI" mode.
A minimum value can be set from 0 sec. to 1 min 30 sec. by increments
of 10 sec. The factory setting is 0 sec.

(1) Press the P+S switch to
display -L- or -H-. Two sec.
later, the current minimum
offset value will be displayed.
(2) By pressing the Tswitch (once),
you can increase the minimum
value by 10 sec. increments
(3) By holding down the Tswitch,
you can increase the minimum
value by 30 sec. increments
(4) 3 sec. after releasing the T
switch, the unit will alert a
confirmation beep. Then the
unit will switch back to -L- or
-H- mode. (2 sec. later the current
minimum value will be displayed.)

2 sec. later
2 sec. later
Press T3 times to
set to 30 sec.
This show -L- being
selected.
After the setting is
confirmed the minimum
setting is displayed
When the vehicle starts
to move, it will start
to add time to the
minimum set time.
Auto Timer Minimum Setting

Countdown Mode
Preset Mode
13
There are two Preset Countdown mode you can select from.
Preset mode can be set from 0 sec. to 9 min 59 sec. by increments
of 10 sec.
The factory setting is: 1 min. for P-1
 3 min. for P-2
Preset Countdown Mode Setting
(1) Press the P+S button to
display P-1 or P-2. Two sec.
later, the current minimum
offset value will be displayed.
(2) By pressing the Tbutton (once),
you can increase the preset
value by 10 sec. increments
(3) By holding down the Tbutton
you can increase the preset
value by 30 sec. increments
(4) 3 sec. after releasing the T
button, the unit will alert a
confirmation beep. Then the
unit will switch back to P-1 or
P-2 mode.

2 sec. later
After the setting is
confirmed the preset
time will be displayed.
Ex. this show the time
set to 2 min.
Press Tbutton to
set to the desired
countdown time.
This show P-1 being
selected.

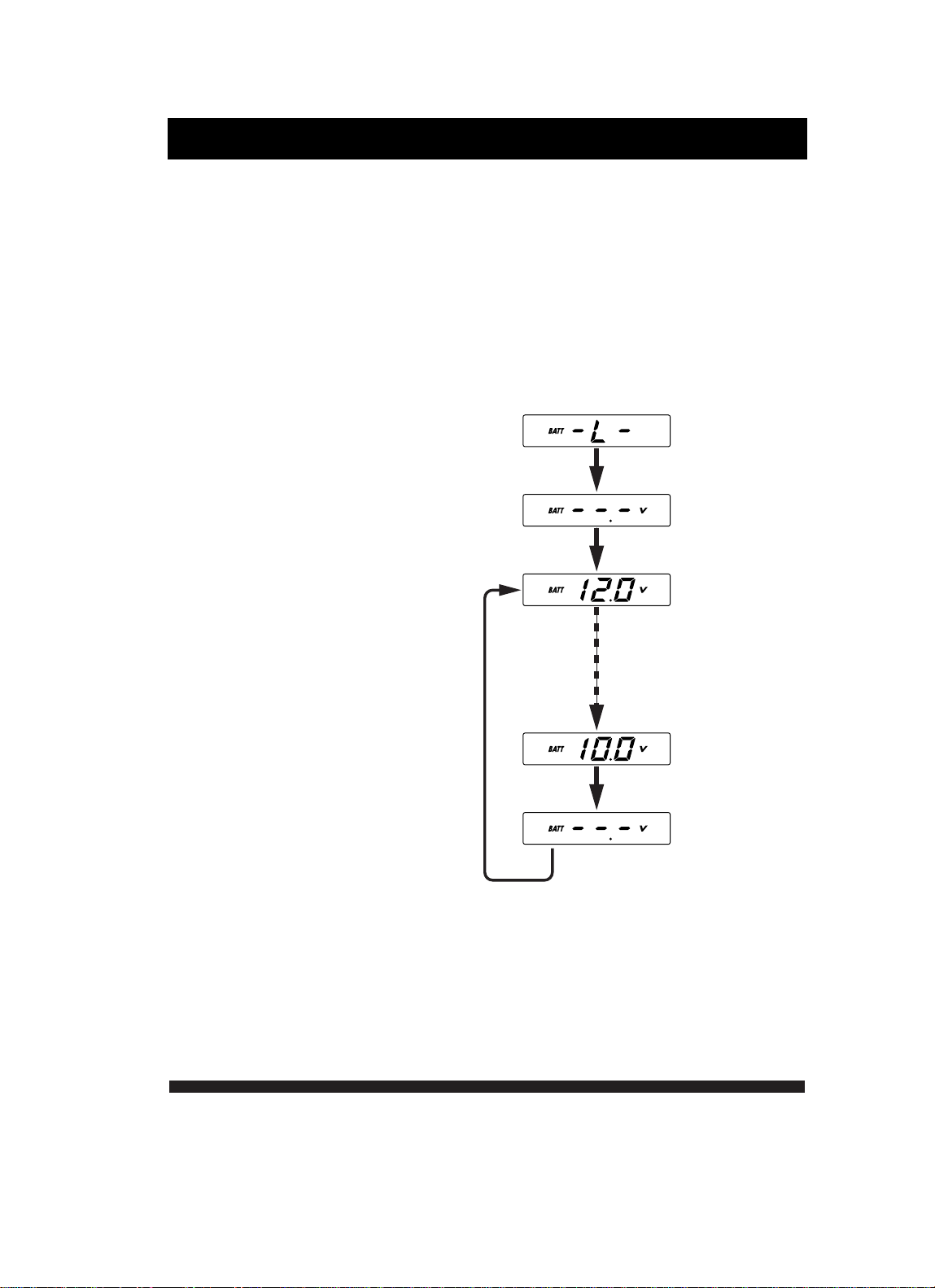

Battery Mode
Battery Voltage Display Mode
14
This feature displays the "real-time" battery voltage.
There is a voltage warning feature that can be turned on and off.
The warning buzzer and the back light will flash when the voltage
exceeds the set voltage.
(1) To go to the Battery Mode from
Countdown Mode, press P+S+T
buttons and release Sbutton first.
(2) Vwill display with the " real-time"
voltage.

"Real-time" battery
voltage will display.

Battery Mode
Voltage Warning Display Mode
15
When the Warning is set, the warning buzzer and the back light will
flash when the voltage exceeds the set voltage.
This feature will only work while in battery mode.
(1) Press the P+S button to
display -L- or -H-. Two sec.
later, the current minimum
offset value will be displayed.
At this time the back light will
turn red.
(2) By pressing the Tbutton (once),
you can increase the voltage
value by 0.1V increments.
Range for -L- setting is
 10.0 ~ 12.0V
Range for -H- setting is
 14.0 ~ 16.0V
(3) By holding down the Tbutton
you can increase the voltage
value by 0.5V increments

2 sec. later, the current
setting will display
Minimum setting
will be the "off" position.
Ex. This show the
voltage set to 12.0 V
By pressing T button,
set the desired voltage,
P-1 is selected here.

Stopwatch Mode
Lap Mode
16
This feature can record up to 30 lap times from 0 ~ 9’ 59" 99. Also while
recording the time, the best lap will be indicated by "BEST" on the display.
(1) Press the P+S+T button to go to
Stopwatch Mode. Two sec. later,
0’00" will display.
*if there are recorded time stored
in the memory, the 0’00" will flash.
To clear the memory, hold down
T button over 5 sec.
(2) By pressing the S button once,
the stopwatch will start.
(3) Press the Tbutton to store and
display the lap time. To stop,
press the Sbutton once.

2 sec later, Standby
mode will display.
press S button to start.
press T button
If the displayed time is
the best lap time,
"BEST" will show up
on the display.
press S button to stop
the last recorded lap
time will display.

Stopwatch Mode
Lap Read Mode
17

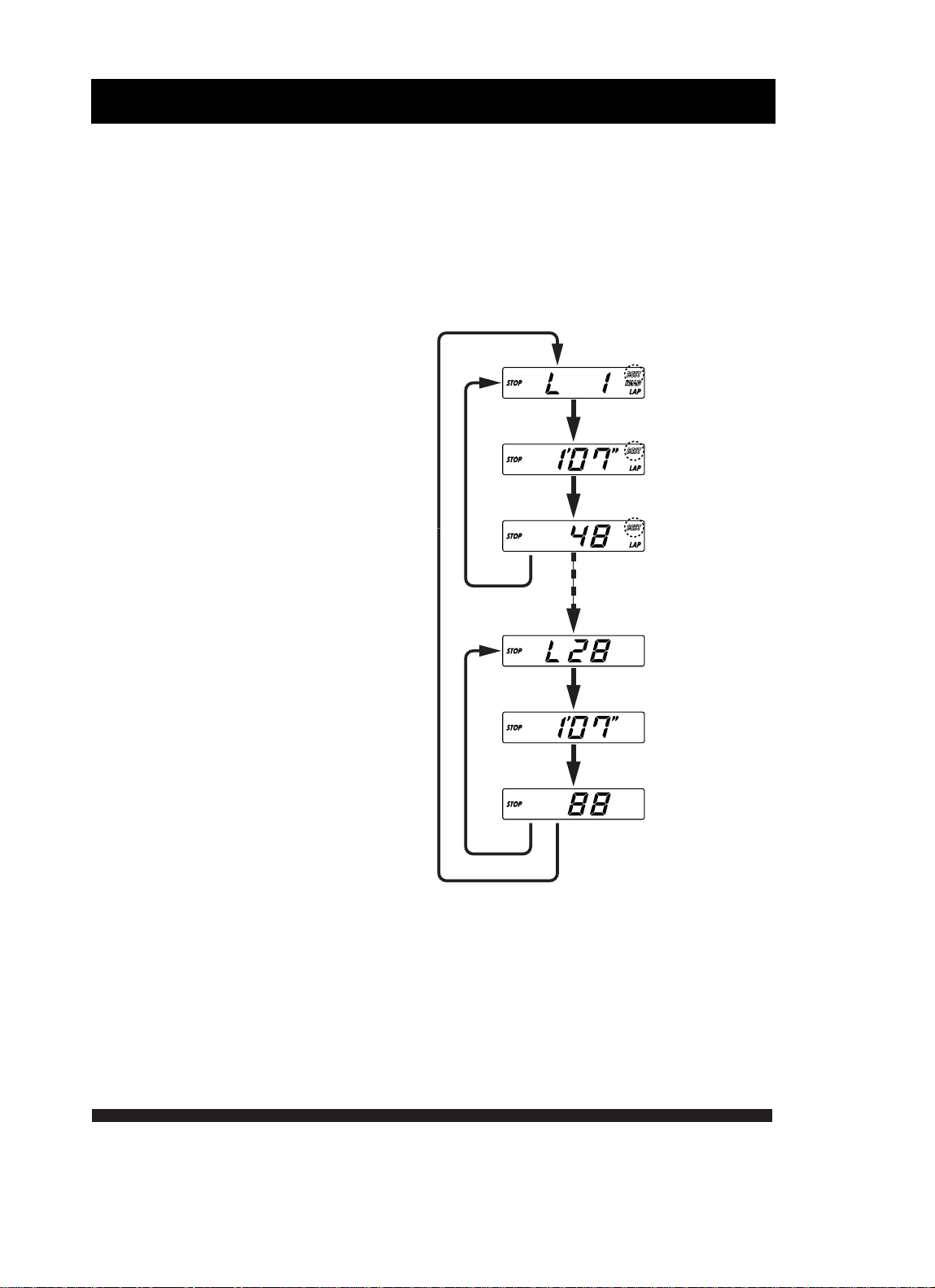

This feature allows the user to look over the recorded lap times.
Up to 30 lap time can be recalled one by one. The best lap time will be
indicated with "BEST" shown in the display.
(1)While in Stopwatch Mode, press
the P+S button to go to Lap
Read mode. L-1 will display
indicating lap 1.
(2)Press the T button once to go
to the next lap time stored
(3) After the last lap time is displayed,
it will return to L-1.
To clear the memory, hold down
T button over 5 sec.
If the displayed
time is the best lap
time, "BEST" will
flash on the display.
Press T button to
go to next lap time.

Stopwatch Mode
Split Mode
18

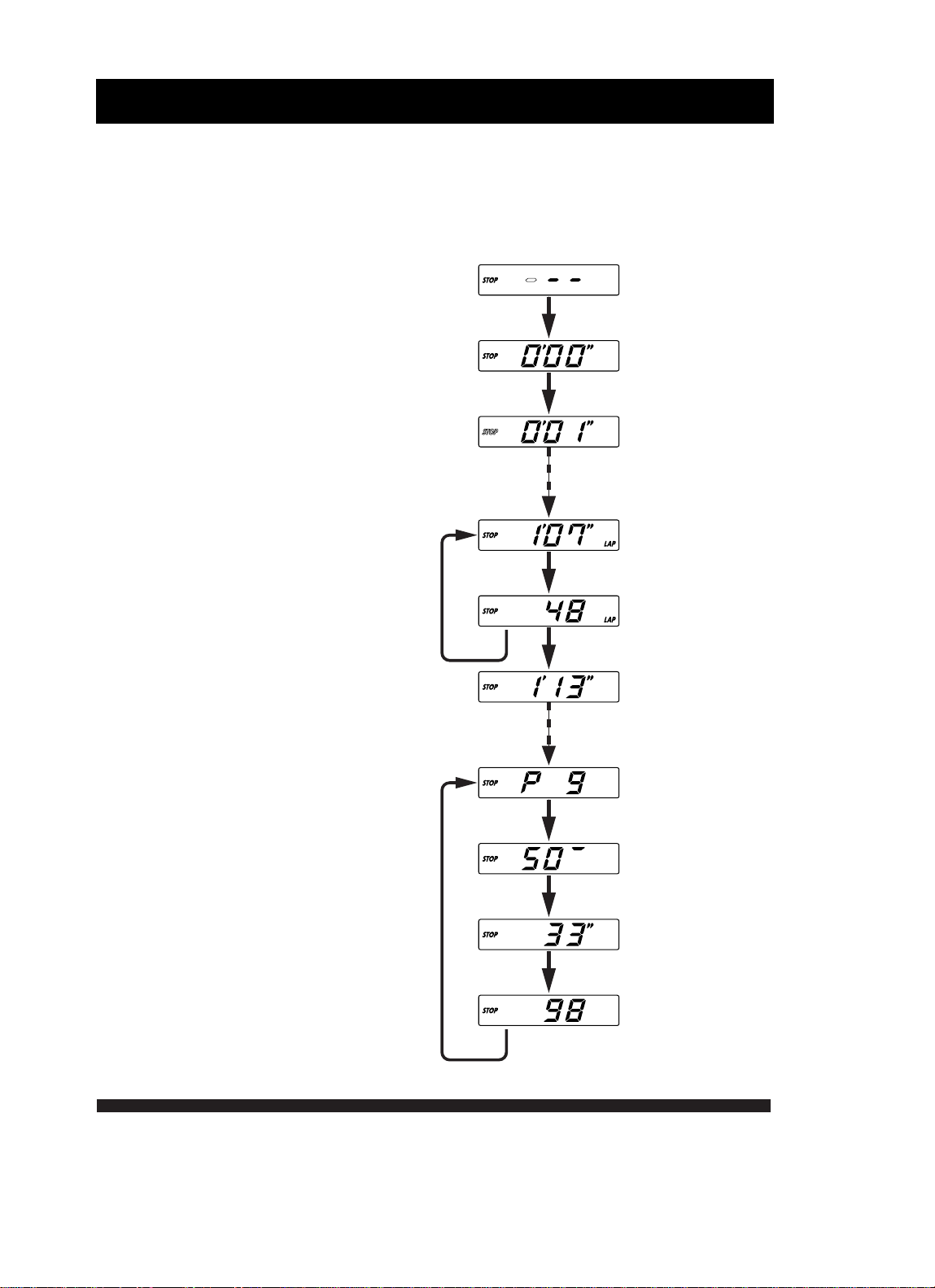

This feature can record up to 10 split times from 0 ~ 9’ 59" 99. Lap time
can also be recorded at the same time.
(1) While in the Stopwatch mode,
press the P+S button to go to
Split Mode. Two sec. later,
0’00" will display.
*if there are recorded time stored
in the memory, the 0’00" will flash.
To clear the memory, hold down
T button over 5 sec.
(2) By pressing the S button once,
the stopwatch will start. At each
split point, press Tbutton to
store and display the lap time.
(3) After the lap time, the display
will show the current count time.
To stop, press the Sbutton once.

2 sec later, Standby
mode will display.
press S button to start.
press T button
Press S button to stop.
Number of total split
time stored will display
followed by the total
time.

Stopwatch Mode
Split Read Mode
19
This feature allows the user to look over the recorded split times.
Up to 10 split time can be recalled one by one in order. Lap time
can also be recalled at the same time.
(1)While in Stopwatch Mode, press
the P+S button to go to Split
Read mode. P-1 will display
indicating Split point 1 followed
by the recorded time.
(2)Press the T button once to go to
the next split time stored. At any
time hold down the Sbutton to
recall the lap time. Once you
release the Sbutton, it will return
to split times.
(3) After the last split time is
displayed, it will return to P-1.
To clear the memory, hold down
T button over 5 sec.

Hold down the S
button to recall
lap time.
Press T button to
go to next lap time.
