Grizzly T27140 User manual

For questions or help with this product contact Tech Support at [phone] or [e-mail]
MODEL T27140
12" HEAVY-DUTY
BENCH SHEAR
INSTRUCTIONS
COPYRIGHT © MARCH, 2015 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 11/14) #WK17309 PRINTED IN CHINA
Introduction
The Model T27140 uses compound lever action
to cut up to 12" wide sheet metal. It includes
an adjustable work stop for repeat cuts with
workpieces up to 6" long and a built-in 12" ruler
on the table.
Figure 1. Model T27140.
V1.03.15
Maximum Cut Length ..................................... 12"
Cutting Capacities (Thickness):
Steel ................................................... 0.020"
Aluminum............................................ 0.050"
Brass .................................................. 0.025"
Weight .......................................................34 lbs.
Specifications
1. Overloading this tool can cause injury
from flying parts if tool breaks. Do not
exceed tool capacities.
2. NEVER operate bench shear without
plastic safety guard in place.
3. Always chamfer and de-burr sharp
sheet metal edges after cutting. Sharp
edges on sheet metal can result in
severe cuts.
4. NEVER place your fingers or hands
between shear blades. Amputation or
severe cuts can easily occur!
5. Always wear leather gloves and
approved safety glasses when using
this tool.
6. Inspect bench shear for any cracked
components or loose fasteners. Correct
any problems before use. Loose hard-
ware or cracks could result in sudden,
unexpected movements during use.
7. DO NOT allow children to have unsper-
vised access to bench shear.
Damage to your eyes and hands could
result from using this tool without proper
protective gear. Always wear safety glasses
and heavy gloves when operating this tool.
If you have never used this type of machine
or equipment before, we strongly recom-
mend that you read books, trade magazines,
or get formal training before beginning any
projects. Regardless of the content in this
section, Grizzly Industrial will not be held
liable for accidents caused by lack of train-
ing.

-2- T27140 12" Heavy-Duty Bench Shear (Mfd. 1/15)
Description Qty
A. Bench Shear ............................................... 1
B. Work Stop Assembly .................................. 1
Inventory
Assembly
3. Use left hand to hold workpiece steady on
table and lower handle with right hand to per-
form cut.
The Model T27140 is equipped with a work stop
that makes it quick and easy for you to make
repeat cuts of the same size.
To use work stop:
1. Lift handle to open shear blades, then align
shear blades with cut line marked on work-
piece.
Using Work Stop
Figure 3. Location of work stop and knob.
2. Slide work stop against workpiece and tight-
en work stop knob (see Figure 3).
3. For subsequent cuts, place workpiece on
table and slide against work stop, then pro-
ceed with cut.
Work Stop
Work Stop
Knob
The Model T27140 comes fully assembled, except
for the optional work stop assembly.
To install work stop, insert threaded end of work
stop rod into mounting hole on bench shear, and
tighten using 8mm wrench on flats of rod end (see
Figure 2).
1. Mark cut line on workpiece.
2. Lift handle to open shear blades, then align
shear blades with cut line.
Injury to your hands and fingers could
result from improper use of this tool. Never
place your hands or fingers in path of blade
while using this tool. Never use tool without
safety guard in place.
Operations
Figure 2. Work stop assembly installed.
Flats For Tightening
Work Stop
Rod
Mounting
Hole

T27140 12" Heavy-Duty Bench Shear (Mfd. 1/15) -3-
1. Remove blade guard.
2. Loosen, but do not remove, the four fixed
blade cap screws (see Figure 5).
Figure 5. Blade adjustment components.
Blade Adjustment
Set Screws
Fixed Blade
Cap Screws
3. Rotate blade adjustment set screws with
2.5mm hex wrench to fine-tune position of
fixed blade (see Figure 5).
— Turning blade adjustment set screw clock-
wise moves fixed blade outward, toward
moving blade.
— Turning blade adjustment set screw coun-
terclockwise moves fixed blade inward,
away from moving blade.
4. Once fixed blade is set parallel to mov-
ing blade, tighten the four fixed blade cap
screws, then re-install blade guard.
5. Test performance of shear on scrap work-
piece.
— If results are satisfactory (producing a
clean cut with no bending), no further
adjustment is necessary.
— If results are not satisfactory, repeat Steps
1–5 until results meet your standards.
Cleaning
Periodically wipe down the tool with a cleaner,
such as Grizzly Model T23692 Orange Power
Degreaser, to remove dust and oil.
Tools Needed: Qty
Hex Wrench 4mm .............................................. 1
Hex Wrench 2.5mm ........................................... 1
To adjust blade:
Lubrication
Lubricating the Model T27140 consists of applying
oil to the pivoting and sliding surfaces.
To lubricate machine:
1. Apply 3–4 drops of lubricant, such as Grizzly
Model T26685 Moly-D Multi-Function
Machine Oil-ISO 32, to areas indicated in
Figure 4 so that oil penetrates between slid-
ing surfaces. Raise and lower handle several
times to disperse oil.

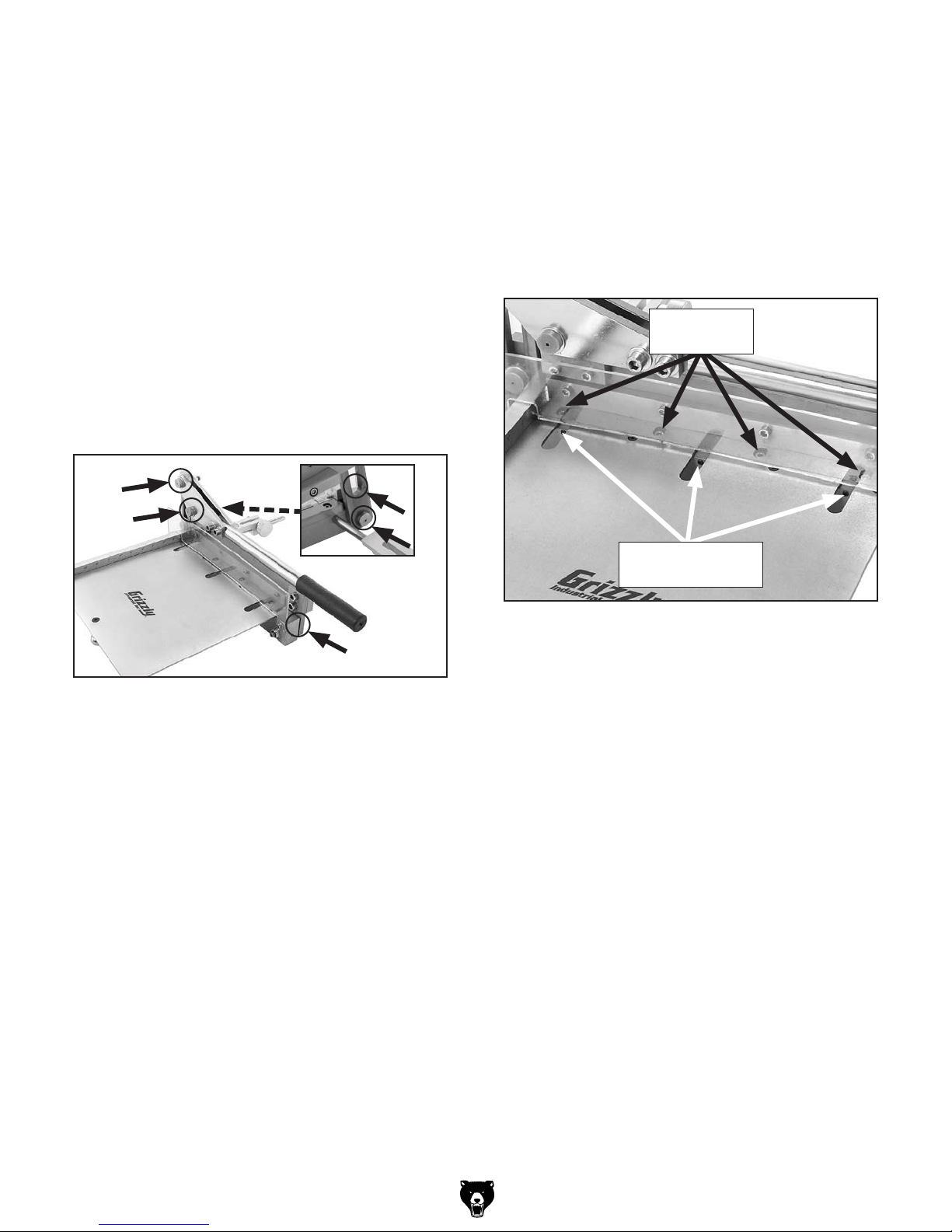

Figure 4. Lubrication locations (left side shown).
2. Wipe up any excess oil to prevent dust and
grime build-up.
The fixed (lower) blade on the Model T27140 is
adjustable to allow for different materials and to
compensate for wear to the blades. The blade
position is factory set and only needs to be adjust-
ed if there is excessive binding between the fixed
and moving blade or if a gap exists between the
blades that causes the workpiece to bend, rather
than shear between the blades.
The ideal blade adjustment will vary depending on
the material and dimensions of your workpiece.
Above all, make sure the fixed blade is parallel
with the moving blade and contacts it evenly along
the entire width.
Adjusting Blade

-4- T27140 12" Heavy-Duty Bench Shear (Mfd. 1/15)
1
2
3
45
6
7
7
8
9
9
10
11
11
12
12
12
11
13
14
15
16
17 18
19
20
21
22
23
25
23
27
23
23
23
24
25
25 26
2713
28
29
30
31
35
32
33
36
34
37
38
39
T27140 Parts Breakdown and List
REF
PART # DESCRIPTION
REF
PART # DESCRIPTION
1 PT27140001 BLADE BASE (LOWER) 21 PT27140021 FLAT HD CAP SCR M4-.7 X 10
2 PT27140002 BLADE (LOWER) 22 PT27140022 PIVOT BUSHING
3 PT27140003 BLADE BASE (UPPER) 23 PT27140023 FLAT WASHER 12MM BRASS
4 PT27140004 BLADE (UPPER) 24 PT27140024 BLADE BRACE
5 PT27140005 BLADE PIVOT PLATE 25 PT27140025 CAP SCREW M6-1 X 25
6 PT27140006 HANDLE PIVOT PLATE 26 PT27140026 CAP SCREW M10-1.5 X 25
7 PT27140007 CONNECTING PLATE 27 PT27140027 FLAT WASHER 12MM
8 PT27140008 HANDLE 28 PT27140028 WORK STOP
9 PT27140009 SHOULDER SCREW M10-1.5 X 15, 12 X 43 29 PT27140029 FLAT HD CAP SCR M6-1 X 12
10 PT27140010 SLIDE PLATE 30 PT27140030 CAP SCREW M6-1 X 12
11 PT27140011 FLAT WASHER 10MM 31 PT27140031 FLAT WASHER 5MM
12 PT27140012 LOCK NUT M10-1.5 32 PT27140032 CAP SCREW M10-1.5 X 45
13 PT27140013 SHOULDER SCREW M10-1.5 X 18, 12 X 30 33 PT27140033 KNOB BOLT M8-1.25 X 45
14 PT27140014 TABLE 34 PT27140034 SET SCREW M5-.8 X 12
15 PT27140015 BLADE GUARD 35 PT27140035 CAP SCREW M5-.8 X 10
16 PT27140016 LEG 36 PT27140036 FLAT WASHER 8MM
17 PT27140017 TABLE STOP 37 PT27140037 DO NOT REMOVE GUARD LABEL
18 PT27140018 WORK STOP ROD 38 PT27140038 AMPUTATION HAZARD LABEL
19 PT27140019 SLIDE BUSHING 39 PT27140039 QR CODE LABEL
20 PT27140020 CAP SCREW M5-.8 X 12
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.
