ARK High Voltage Battery System
User Manual (V1.0)
4-13/F,Building A,Sino-German(Europe) Industrial Park,
Hangcheng Ave,Bao’an District, Shenzhen, China

Contents
1 Product Overview
2 Safety
3 Storage and Transportation
2.1 Basic security
2.2 Safety Precautions
2.3 Warning Labels
2.4 Emergency Responses
4 Installation
5 Power on/off Battery system 5 1 Power on Battery system
5.2 Power off battery system
.
6.1 Preparation
6.2 Battery pack or high voltage
controller replacement
6.3 System fault information and
suggestions
1.1 Intended Use
1.2 Appearance
1.3 Working Principle and Function
3.1 Storage Requirements
3.2 Transportation Requirement
4 1 Basic Installation Requirements
4.2 Installation Required Tools
4.3 Installation Procedures
4.4 Electrical Connection
.
About this Document
This document describes the installation, electrical connection, operation, commission,
maintenance and troubleshooting of ARK High Voltage Battery System. Before installing
and operating ARK High Voltage Battery System, ensure that you are familiar with
product features, functions, and safety precautions provided in this document.
Symbol
Description
Indicates a potentially hazardous situation, if not avoided, could result
in serious injury or death.
WARNING
6 Maintenance Guide
7 Technical Specifications
Appendix I
Appendix II
7.1 System Data
7.2 Battery System designation
7.3 HVC 60050-A1
7.4 ARK 2.5H-A1

The entire ARK High Voltage Battery System includes a HVC 60050-A1(high voltage
controller) and multiple ARK 2.5H-A1 (battery pack).
Each ARK 2.5H-A1 consists of 50Ah cells which form 51.2V voltage battery pack via one
parallel and sixteen serial connection (1P16S). Two to ten ARK 2.5H-A1 can be connected
in serial to extend the capacity and power of energy storage system.
The ARK battery system powers the loads through PCS at nighttime without solar; when
solar becomes available during daytime, solar energy powers the loads as a priority and
store residual solar power into the ARK battery system.
1.2 Appearance
1 Product Overview
1.1 Intended Use
Fig 1.1: Schematic diagram of power panel
12
1.2.1 HVC 60050-A1 (high voltage controller)
The high voltage controller is composed of battery control unit, DC breaker, power
supply and communication terminals. The appearance of the product is shown as below.
Location
Port
Function
1
PCS
Communication with PCS
2
Link-In
Battery system parallel communication entrance
3
Pressure relief valve
Pressures inside is released via the vent
4
Link-Out
Battery system parallel communication export
5
BMU
Communication with battery module
6
Module+/ Module-
Connect to the power terminal of the battery string
7
Ground terminal
8
PCS+/PCS-
The output from battery system to the PCS
9
Ground terminal
10
USB interface
USB communication interface
11
LED
SOC and working status indication of the system
12
Breaker
Breaker to turn on/off the whole battery system
13
Power button
Wake up the battery system
Dimension (unit: mm)
Fig 1.2: Dimension of HVC 60050-A1
1.2.2 ARK 2.5H-A1 (battery pack)
ARK 2.5H-A1 consists of battery module (including cell and mechanical parts), Battery
management unit (BMU) as well as power and communication terminals. Product
appearance is shown as below.
Fig 1.3: Schematic diagram of power panel
Location
Port
Function
1
Link0
Communicate with the previous module Link1
2
Link1
Communicate with the next module Link0
3
Module-
Connect to the positive terminal of the adjacent
module
4
Module+
Connect to the negative terminal of the adjacent
module
5
Ground terminal
6
Pressure relief valve
Pressures inside is released via the vent
7
Ground terminal

34

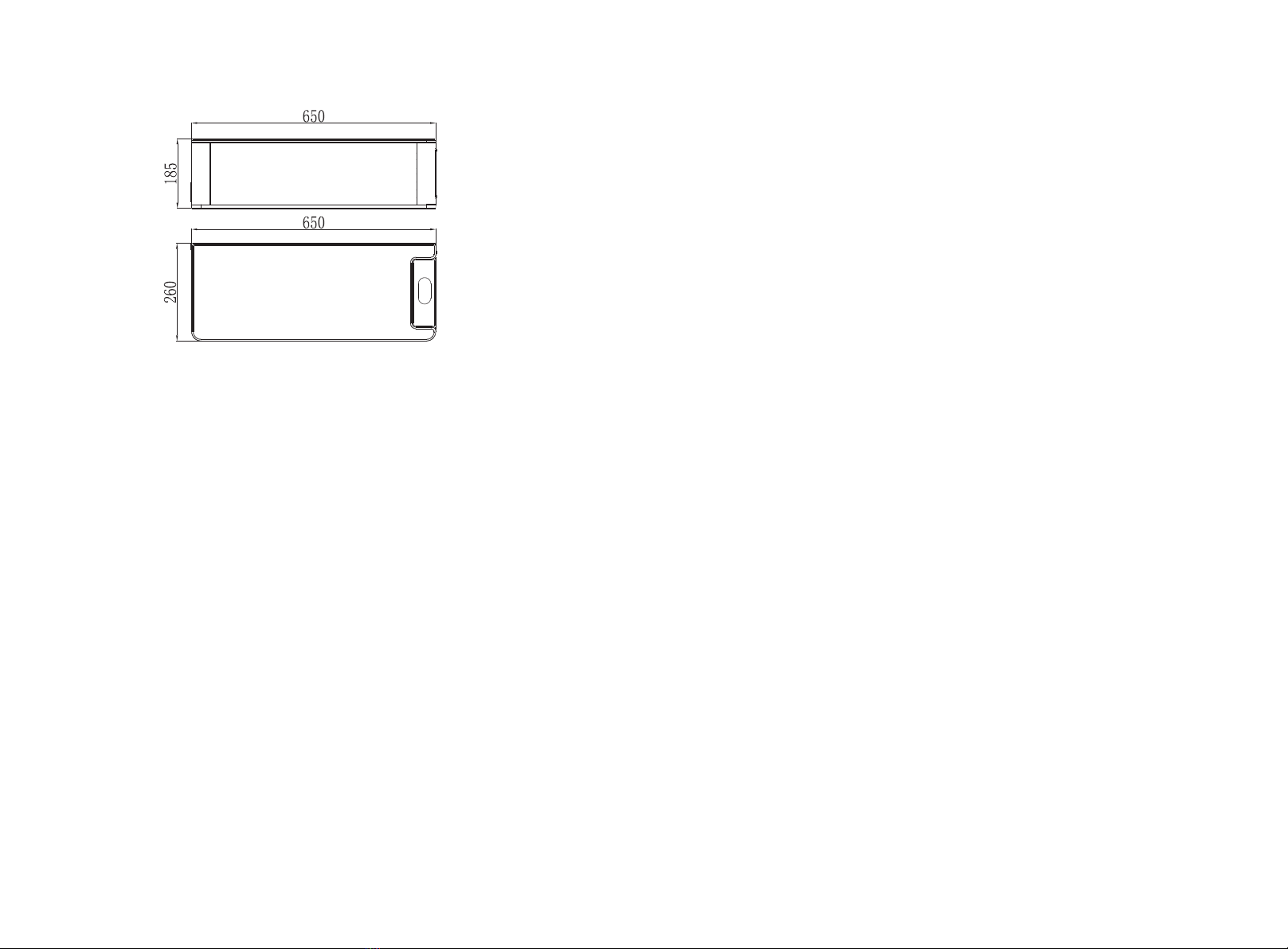

Dimension (unit: mm)
Fig 1.4: Dimension of ARK 2.5H-A1
1.3 Working Principle and Function
The ARK high voltage battery system is composed of a high voltage controller HVC
60050-A1 and battery pack ARK 2.5H-A1 in series. It contains electrochemical batteries,
battery control units, battery management units, power and signal terminals, and
mechanical parts.
Compared with other battery systems, it has better charging and discharging
performance, higher charging and discharging efficiency, more accurate status monitor,
longer cycle life and less self-discharge loss.
A single cluster system can connect 2 to 10 packs in series to increase the capacity and
power of the battery system. The entire battery system communicates with the inverter
through CAN communication, and the operation stability is high.
ØMonitoring: voltage, current and temperature detection of both single cells and
battery system.
ØProtection and Alarm: protection and alarm when overvoltage, under voltage, over
current, over temperature or under temperature occurs. See Appendix I for the details.
ØReport: report all alarm and status data to PCS.
ØSeries connection: support two to ten packs in Series connection.
ØPower failure triggered by fault: 10 minutes after the battery system and PCS
communication is disconnected or 15 minutes after undervoltage protection.
When installing or using a battery system, the safety information contained in this
section must always be followed. For safety reasons, it is the installer's responsibility to
be familiar with this manual and all warnings before installation.
2.1 Basic security
The battery system has been designed and tested in accordance with strict rules with
international safety certification requirements. Before any installation or use of the
battery system, please read all safety instructions carefully and always follow the relevant
rules. Growatt is not responsible for any consequences resulting from violation of the
following regulations:
Damage occurred during transportation.
Incorrect transportation, storage, installation and use, or customer fails to convey the
correct information about transportation, storage, installation and use to terminal.
customers.
Non-professional installation.
Failure to obey the rules of this operation instructions and safety precautions in this
document.
Unauthorized modifications or removal of the software package.
The product's tamper label is damaged or the product lacks any parts (except
authorized disassembly parts).
Operation in extreme environments which are not allowed in this document .
Repair, disassemble, or change packs without authorization and cause failure.
Damage to shell labels or modifies date of production.
Packs fail to be charge for more than six months.
Damages due to force majeure (such as lightning, earthquakes, fire, and storms).
Warranty expiration.
2.2 Safety Precautions
2.2.1 Environment requirements
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Do not expose the battery to temperature above 50℃ or heat sources.
Do not install or use the battery in wet locations, moisture, corrosive gases or liquids,
such as bathroom.
Do not expose the battery to direct sunlight for extended periods of time.
Place battery in safe place away from children and animals.
Battery power terminals shall not touch conductive objects such as wires.
Do not dispose the batteries in fire, which may cause an explosion.
The battery system shall not come in contact with liquids.
Safety 2

6
5
2.2.2 Operation Precautions
ØDo not touch the battery system with wet hands.
Do not disassemble the battery system without permission.
Do not crush, drop or pierce the battery pack and high voltage controller.
Dispose the batteries according to local safety regulations.
Store and recharge battery in accordance with this manual.
Ensure the connection of ground wire reliable.
Remove all metal objects such as watches and rings that could cause a short-circuit
before installation, replacement and maintenance.
The pack shall be repaired, replaced or maintained by skilled personal that has been
recognized.
When storing or handling batteries ,do not stack batteries without package.
Do not broke the battery, the released electrolyte may be toxic and is harmful to skin
and eyes.
Packaged batteries should not be stacked more than specified number stipulated on
the packing case.
Do not use damaged, failed or deformed batteries, which may lead to high
temperature or even dangerous accidents. Continued operation of damaged battery may
result in electrical shock, fire or even worse.
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Ø
2.3 Warning Labels
Symbols
Description
Do not dispose in trash
Lithium ion battery can be recycled
Certification in European union area
Electric shock hazard
Explosive gas
May leak corrosive electrolyte
Heavy enough to cause severe injury
Keep the Pack away from children
Make sure the battery polarity well connected
Do not expose to fire
Operate as the Manual
ARK 2.5H-A1
51.2V
2560Wh/2300Wh
Made In China
Nominal/Rated Energy
Operating Ambient
Temperature
50Ah/45Ah
-10°C ~ +50°C
Model
Nominal/Rated Capacity
Rated Current
25A
Do not disassemble or alter the PACK to avoid heat ,explosion or fire.
Do not use the PACK beyond specifide conditions.It might cause heat
generation,damage,or deterioration of its performance.
Do not throw,drop,hit,drive a nail in,stamp on the PACK.It may cause
heat generation,explosion,or fire.
In case of electrolyte leakage,keep leaked electrolyte away from
contact with eyes or skin.immediately clean with water and seek help
from a doctor.
Do not put the PACK into a fire.Do not use it or leave it on a place
near fire,heaters,or high temperature sources.It may cause over
temperature,explosion or fire.
Do not submerge the PACK in water,or wet the product.It may cause
heat generation,explosion ,or fire.
Do not reversely connect the PACK positive(+)and negative(-)terminal.
Do not short circuit by letting the PACK terminals(+and -)contact a wire
or any metal.
The unit is heavy enough to cause severe injury.
Keep out of reach of children or animals.
WARNING
X
ARK 5.1H-A1/102.4V/
5.12kWh/4.6kWh
Made In China
Nominal Energy/
Nominal Voltage/
System Model/
Rated Energy
Nominal/Rated
Capacity
Ingress
Protection
OperatingAmbient
Temperature
IP65
50Ah/45Ah
ARK 7.6H-A1/153.6V/
7.68kWh/6.9kWh
ARK 10.2H-A1/204.8V/
10.24kWh/9.2kWh
ARK 12.8H-A1/256.0V/
12.80kWh/11.5kWh
ARK 15.3H-A1/307.2V/
15.36kWh/13.8kWh
ARK 17.9H-A1/358.4V/
17.92kWh/16.1kWh
ARK 20.4H-A1/409.6V/
20.48kWh/18.4kWh
ARK 23.0H-A1/460.8V/
23.04kWh/20.7kWh
ARK 25.6H-A1/512.0V/
25.6kWh/23.04kWh
ARK High Voltage Battery System
X
Rated Current
High Voltage
Controller Model
25A
HVC 60050-A1
Protective Class I
-10°C ~ +50°C
Fig 2.1: Nameplate Fig 2.2: Label
Fig 2.3: Nameplate
The performance will be limited
when the temperature is below
0°C.
Notice

78
2.4 Emergency Responses
Manufacturer takes foreseeable risk scenarios into consideration and is designed to
reduce hazards and dangers. However, if the following situation occurs, do as below:
Situation Occurs
Description and action need
Leakage
Avoid touch of leaking liquid or gas. If you touch the leaking
electrolyte, do as below immediately.
Inhalation: Evacuate the contaminated area, and seek medical help.
Eye contact: Rinse eyes with flowing water for 15 minutes, and seek
medical help.
Skin contact: Rinse contacted area thoroughly with soap and water,
and seek medical help.
Ingestion: Vomiting, and seek medical help.
On fire
It's hard for battery system ignite spontaneously. If the battery has
caught a fire, do not try to extinguish the fire but evacuate people
immediately.
Wet Packs
If the battery system is soaked or submerged in water, do not access
it. Contact Growatt or distributors immediately for technical
assistance.
Damaged shell
Damage to the shell is very dangerous, so special attention must be
paid. They are no longer suitable for use and may be dangerous to
personnel. If the battery case is damaged, please stop using it and
contact Growatt or a distributor.
Storage and Transportation 3
3.1 Storage Requirements
ØPlace the product follow the identification on the packing case during storage.
Do not put the product upside down or sidelong.
The defective product needs to be separated from other product.
ØThe storage environment requirements are as follows:
Place the product in a dry, clean and well ventilated place.
The storage temperature for a short week（7 days） is between -30°C to 50℃.
If you store the product over a long period of six months, the storage temperature is
between -20°C to 45°C, relative humidity: 5%~95%RH.
Place the product away from corrosive and organic substances (including gas
exposure).
Free from direct exposure to sunlight and rain.
At least two meters away from heat sources (such as a radiator) .
Free from exposure to intensive infrared radiation.
If the battery is stored for more than six months, the battery pack shall be recharged to
40% SOC every six months using a charger.
Ø
Ø





Ø
3.2 Transportation Requirement
Battery pack has been certified in UN38.3 (Section 38.3 of the sixth Revised Edition of the
Recommendations on the Transport of Dangerous Goods: Manual of Tests and Criteria)
and SN/T 0370.2-2009 (Part 2: Performance Test of the Rules for the Inspection of
Packaging for Exporting Dangerous Goods). Battery pack is classified as category 9
dangerous goods.
The battery pack shall not be transported with other inflammable, explosive or toxic
substances.
ØEnsure the original Package and label complete and recognizable.
ØProhibit direct exposure to sunlight, rain, condensing water caused by temperature
difference and mechanical damages.
ØProhibit to pile up more than six battery pack.
ØThere will be a drop in capacity during transportation and storage.
ØTransportation temperature is between -20°C to 45°C, relative humidity: 5%~95%RH.
Ø
If not follow the above instructions for long-term storage, the battery
cycle life will be reduced or even damaged.
Notice

10
9
4Installation
WARNING
ØThe installation and use of batteries involve a lot of expertise.
Therefore, please ensure that technicians have obtained relevant
technical certificates before operation.
ØEnsure to read the Guidance before installation in order to understand
product information and safety cautions.
ØOperators should be well trained technicians and fully understand the
whole photovoltaic system, grid network, battery system, working
principle and national regional standards.
ØInstallers must use insulating tools and wear safety equipment.
Device damages caused by failure to comply with storage,
transportation, installation and use requirements specified in Guidance
are not coved by Warranty.
Do not install or use battery near explosive or inflammable substances.
Use battery in well-ventilated environment with temperature ranging
from -10℃ to 50℃.
ØMaintain a minimum level of dust and dirt in the environment.
Do not install battery in highly humid area such as bathroom.
Please make sure that all battery pack connected in series are from the
same batch, the same model and the same manufacturer. Do not mix old
batteries with new batteries. A battery pack that does not exceed 200
cycles is defined as a new battery.
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Before installing in series, make sure that the voltage difference of the
battery pack must be less than or equal to 0.5V.
When installing the batteries, we recommend that the manufacturing
date of batteries in the same system should be within 3 months. The
manufacturing date of batteries can be interpreted through bar code
(refer to Appendix 1).
Notice
4.1 Installation environment
ØThe battery system can be installed indoors or outdoors. The following conditions are
allowed:
Fig 4.1:Acceptable wall mounted installation
Fig 4.2:Acceptable floor standing installation
Do not place the battery pack upside down.
WARNING
ØWhen installing outdoors, it is necessary to install sunshades and rain shelters to avoid
direct exposure to sunlight and rain.
Fig 4.3: Sunshades and rain shelters

11 12
4.2 Installation Required Tools
The following tools are required to install the battery system:
Drill Screw Driver Wrench
Pencil Tap Measure Multimeter
It is recommended to wear the following safety gear when dealing with the battery
system.
Insulated Glove Safety Goggle Safety Shoes
4.3 Installation Procedures
4.3.1 Pre-installation Check
ØCheck the PACK package before open it. If any abnormity is detected, do not open the
Package and contact your distributor.
Check the quantity of all parts inside according to the package list. If there is any part
missing or damaged, please contact your distributor.
Ø
4.3.1.1 Check the list of HVC 60050-A1
Pl u g X1
Fig 4.4:compoents and parts of HVC 60050-A1
4.3.1.2 Check the list of ARK 2.5H-A1
Ser ial c abl e X1
Ba tt er y ba se
Fig 4.5:compoents and parts ARK 2.5H-A1
4.3.1.3 Check the battery base and wall bracket
Fig 4.6:Optional installation accessories
ØThe high voltage controller (HVC 60050-A1) and the battery pack (ARK
2.5H-A1) are standard accessories, please be sure to purchase both, a
battery system only needs a high voltage controller (HVC 60050-A1),
battery pack (ARK 2.5H-A1) You can freely match the number within 2 to
10 .
The battery base is only used for floor installation, and the wall bracket
is only used for wall installation .The battery base and wall bracket are
optional accessory, not standard accessory.
You need to separately purchase the connection cable from the high
voltage controller (HVC 60050-A1) to the PCS.
If you want to install the same battery system in two lines, you need to
purchase a extension cable separately for connection.
The installation method can be selected wall Mounted installation or
floor standing installation as required.
Ø
Ø
Ø
Ø
Notice

14
13
4.3.2 Wall Mounted Installation
ØStep 1: Please make sure that the weight capacity of the wall should exceed 150kg.
Step 2: Put bracket on wall and mark drilling spots. Keep a minimum distance of
300mm between the wall and bracket; a minimum distance of 500mm between bracket
and ground.
Step 3: Choose an alloy drill with a diameter of 8mm, and drill at least 60mm mounting
holes in the wall. Clean the soil and insert the expansion tube into the hole, then screw in
the screw to fix the wall mount.
Step 4: Fix the battery on the wall mount, make sure that the battery will not shake,
and then lock the safety screw.
Ø
Ø
Ø
ØThe number of wall-mounted installations should not exceed 4
(including high voltage controllers).
If there are more than 4, please install them in two lines, and the
spacing should be greater than or equal to 300mm.
Ø
Notice
4.3.3 Floor Standing Installation
Ø
Ø
Ø
Ø
Step 1: Place the battery base in the area to be installed, and mark the position of the
installation hole with a marker. The minimum distance between the wall and the battery
is 300mm.
Step 2: Select an alloy drill with a diameter of 10mm and drill a mounting hole at least
60mm deep in the wall. Insert the expansion pipe into the hole and screw in the screws to
secure the anti roll over plate.
Step 3: Stack the battery on the base, connect the fixed connecting strip between the
battery packs.
Step 4: Make sure the battery will not shake, and then lock the safety screw.
ØIf more than 4 batteries are used , base mounting is recommended.
For floor installation with base , the maximum stack number of the
battery is ten. But if the battery number is greater than six , we
recommend stacking them in two lines.
The safety part needs to be installed at the top battery, however, once
the number of the battery pack is higher than 7, one more safety part
should be installed in the middle battery which is shown the last step.
Ø
Ø
Notice
4.4 Electrical Connection
ØDo not forget wear ESD wrist strap and gloves, safety gloves and
goggles.
Notice
Fig 4.8: Floor standing installation process

15 16
4.4.1 Definition of RJ45 communication port pin
4.4.1.1 Communication port definition of HVC 60050-A1
No.
PCS
LINK_IN
LINK_OUT
BMU
1
RS485_B
Add_in
Add_out
\
2
RS485_A
Master
GND
\
3
GND
GND
Slaver
IMA_isoSPI
4
CAN_H
GND
GND
IPA_isoSPI
5
CAN_L
CANH
CANH
IMB_isoSPI
6
GND
CANL
CANL
IPB_isoSPI
7
WAKE-
GND
GND
\
8
WAKE+
Power_ON
Power_ON
\
4.4.1.2 Communication port definition of HVC 60050-A1
No.
LINK 0
LINK 1
1
\
\
2
\
\
3
\
\
4
\
\
5
IMA_isoSPI
IMB_isoSPI
6
IPA_isoSPI
IPB_isoSPI
7
\
\
8
\
\
4.4.2 Definition of RJ45 communication port pin
ØWhen connecting the power line, it must be the same color terminal to
connect , otherwise there may be dangers such as short circuit .
A DC circuit breaker has been installed in the high voltage controller. If
you want to install a DC circuit breaker between the battery system and
the PCS, you need to purchase it yourself according to the following
specifications:
a. Voltage: 750Vdc/1000Vdc
b. Current: 63A
Ø
Notice
4.4.2.1 System connection diagram
Fig 4.9: Single line installation Fig 4.10: Two lines installation
Note:
The battery is not allowed to be installed in the running state. Turn off the system
power before installation.
To ensure system security, do not forget to install ground wire.
Don't forget to connect the communication plug of the last battery pack, otherwise it
will cause system failure.
When installing in two rows, please purchase the extended serial cable.
The cable connecting PCS can be purchased from GROWATT.
Ø
Ø
Ø
Ø
Ø

17 18
4.4.2.2 Electrical wiring connection
A. HVC 60050-A1(High Voltage Controller) wiring
Step 1: Insert the power cable into the corresponding port, then there is click sound
indicating the connection is ok.
Step 2: Insert the communication cable into the "PCS" port and "BMU" port, and then
tighten the communication terminal clockwise. (“PCS” port connects to the PCS. “BMU”
port connects to the adjacent battery pack.)
Step 3: Connect to the PCS and adjacent battery pack using a 6mm2 grounding wire
through grounding terminal.
Fig 4.11: HVC60050-A1 Electrical wiring connection diagram
ØFor a single battery system, the “Link-in” and “Link out” port of the
High Voltage Controller don't need to be connected, they are only used
for parallel connection of the battery systems.
Please pay attention to the connector color when connection the
power line. Only the same color of the connector could be connected
together.
To ensure system security, do not forget to install ground wire.
Ø
Ø
Notice
B. ARK 2.5H-A1(Battery module) wiring
Fig 4.12: ARK 2.5H-A1 Electrical wiring connection diagram
Step 1: Insert the power cable into the corresponding port, then there is click sound
indicating the connection is ok.
Step 2: Insert the communication cable into the "Link0" and "Link1" port, and then
tighten the communication terminal clockwise. (“Link0” connects to “Link1” of the
previous module. For the battery adjacent to the high voltage controller, "link0" is
connected to the "BMU" of the high voltage controller. “Link1” connects to “Link0” of
the next module.)
Step 3: Insert a plug into the "Link1" port of the last battery module. The plug is an
annex of HVC 60050-A1 (high voltage controller).
Step 4: Connect to adjacent battery pack using a 6mm2 grounding wire through
grounding terminal.
ØThe battery module furthest from the HVC 60050-A1(high voltage
controller) is defined as the last battery module.
Please pay attention to the connector color when connecting the
power line. Only the same color of the connector could be connected
together.
The power lines between the battery modules are connected in series.
Be careful not to short-circuit the battery modules during the connection
process.
Ø
Ø
Notice

20
5Power on/off Battery system
5.1 Power on Battery system
5.2 Power off
ØThe installation and use of batteries need to be operated by
professional technicians.
ØDo not contact any positions with potential difference.
ØProhibition sign should be hung on the battery: " Non - professionals,
do not touch.
ØIf any abnormalities occur during the startup phase, power off the
system immediately. After problem confirmed, proceed again.
ØMake sure the inverter is turned off before checking the battery system.
Notice
ØBefore turning on the battery, please check if the cable is properly connected.
Power on the battery system by pressing power button(t>5S)
Serial
Procedures
Acceptation criteria
1
Connect the battery and PCS
Make sure the wiring harnesses are well
connected
2
Close the breaker of the battery
system
Make sure the breaker is ON
3
Press POWER button for 5
seconds. Observe the LED
indication on panel..
1. If both RUN/ALM and SOC lights turn on
normally, system is powered on successfully.
2. If RUN/ALM light turns red, there is a failure
and should solve it before power on again.
Fig 5.1
Fig 5.2
Turn the DC breaker of the HVC 60050-
A1(High Voltage Controller) to "Off" to turn
off the entire battery system.
19
Maintenance Guide 6
6.1 Preparation
Before maintenance, please make sure that the battery system is powered off and the DC
circuit breaker is off.
6.2 Battery pack or high voltage controller replacement
Ø
Ø
Ø
Ø
Ø
Ø
Wear safety gloves.
Close the breaker and power off the battery system.
Disconnect power lines and CAN communication lines of the battery system.
Uninstall the safety screws on both sides of the battery pack or high voltage controller.
Lift up the battery pack or high voltage controller.
Put the battery pack or high voltage controller into the packing box according to the
repair procedure and transport the battery pack or high voltage controller to the
designated repair site.
Install new battery pack or high voltage controller based on procedure specified in
Section 4.
6.3 System Failure Information List and Troubleshooting
Suggestions
Error
Indication
Error
description
Error cause
Suggested actions
ALM
（ ALM
Light
Flickers）
Discharge under
voltage
protection
Single cell voltage
below the threshold
for under-voltage
protection.
There is over discharge risk. User
should stop discharging and
arrange recharge
Charge over
voltage
protection
Single cell voltage
exceeding threshold
for protection
threshold.
1. There is no safety threat;
2. User should stop charging.
Wait for the battery system to
automatically resolve the fault
External CAN
Communication
failure
Communication loss
between PCS and
battery system.
1. There is no safety threat and
user should stop using battery.
2. Check if PCS and battery
communication terminal is well
connected.
3. If PCS and battery system
cannot communicate when the
communication wire is confirmed
well connected, user should
contact installer to repair battery.
ØBefore replacing the battery, use the charger to charge the new battery
and the existing battery to full (SOC 100%).
ØIf the battery is not used, it is recommended to charge and discharge
the battery every 3 months to activate the chemical characteristics, and
the maximum interval shall not exceed 6 months.
Notice

22
21
Interior
Communication
failure
Communication loss
between two packs
1.Check whether the
communication line between the
battery pack and the battery pack
is connected OK;
2.Check whether the
communication line between the
high voltage controller and the
battery pack is connected OK.
High
temperature
protection
The temperature
exceeds the
protection value
It is dangerous, please stop using
the battery immediately, wait for
the battery temperature to drop,
the fault will be automatically
resolved.
Low temperature
protection
The temperature is
below the
protection value
No safety risk, wait for the
temperature to rise, the fault will
be automatically resolved.
(ALM
Light on)
Discharge short
circuit
External short circuit
of battery system
There is safety risk and user
should stop using battery.
User should contact installer to
repair PCS and battery.
Precharge short
circuit
Precharge
overtime
Voltage
sampling
anomaly
protection
BMS Voltage
sampling
failure
There is safety risk and user
should stop using battery.
User should contact installer to
repair battery.
Current
sampling fault
BMS current
sampling
failure
Main circuit fault
BMS main power
circuit failure
There is safety risk and user
should stop using battery.
User should contact installer to
repair battery.
Technical Specifications7
7.1 System Data
System Model
ARK 5.1H-A1
ARK 7.6H-A1
ARK 10.2H-A1
ARK 12.8H-A1
ARK 15.3H-A1
Nominal energy
5.12kWh
7.68kWh
10.24kWh
12.8kWh
15.36kWh
Rated energy
4.608kWh
6.912kWh
9.216kWh
11.52kWh
13.82kWh
Rated Power
2.56kw
3.84kw
5.12kw
6.4kw
7.68kw
Max Power
4.915kw
7.372kw
9.83kw
12.288kw
14.745kw
Nominal
capacity
50Ah(@25℃)
Rated
capacity
45Ah(@25℃)
Nominal
voltage
102.4V
153.6V
204.8V
256V
307.2V
Voltage range
94.4V~113.6V
141.6V~170.4V
188.8V~227.2V
236V-284V
283.2V~340.8V
Dimensions
(mm）
650/260/555
650/260/740
650/260/925
650/260/1110
650/260/1295
Weight
64kg
91kg
118kg
45kg
172kg
Rated current
25A(@25℃)
Max current
48A(@25℃)
Fault current
49A(@25℃)
DoD
90%
Operating
ambient
temperature
-10 50℃~ ℃
RTE
≥95%
Battery pack
in series
Maximum support 10 units in series, series voltage difference V 0.5V△ ≤
Humidity
5%~95%
Storage
temperature
﹣ ℃ ℃ ℃ ℃30 ~50 /7 days; -20 ~45 /6 months; 95%RH
cooling
method
Natural cooling
Installation
Wall-mounted/floor stacking installation
Altitude
≤2000m
communicati
on method
CAN（to PCS）
Certified
product
IEC62619 / RCM+ CEC /CE
Transport
certification
UN38.3
IP rating
IP65
Environment
requirements
al
RoHS，Reach
Battery
System
Secondary Li-ion Battery System
Warranty[1]
10 years
[1]Conditions apply. Refer to GROWATT Warranty Card.

System Model
ARK 17.9H-A1
ARK 20.4H-A1
ARK 23.0H-A1
ARK 25.6H-A1
Nominal energy
17.92kWh
20.48kWh
23.04kWh
25.6kWh
Rated energy
16.13kWh
18.43kWh
20.74kWh
23.04kWh
Rated Power
8.96kw
10.24kw
11.52kw
12.8kw
Max Power
17.203kw
19.66kw
22.118kw
24.576kw
Nominal
capacity
50Ah(@25℃)
Rated capacity
45Ah(@25℃)
Nominal voltage
358.4V
409.6V
460.8V
512V
Voltage range
330.4V~397.6V
377.6V~454.4V
424.8V~511.2V
472V~568V
Dimensions
(mm）
650/260/1480
650/260/1665
650/260/1850
650/260/2035
Weight
199kg
226kg
253kg
280kg
Rated current
25A(@25℃)
Max current
48A(@25℃)
Fault current
49A(@25℃)
DoD
90%
Operating
ambient
temperature
-10 50℃~ ℃
RTE
≥95%
Battery pack in
series
Maximum support 10 units in series, series voltage difference V 0.5V△ ≤
Humidity
5%~95%
Storage
temperature
﹣ ℃ ℃ ℃ ℃30 ~50 /7 days; -20 ~45 /6 months; 95%RH
cooling method
Natural cooling
Installation
Wall-mounted/floor stacking installation
Altitude
≤2000m
communication
method
CAN（to PCS）
Certified
product
IEC62619 / RCM+ CEC /CE
Transport
certification
UN38.3
IP rating
IP65
Environment
requirements
al
RoHS，Reach
Battery System
Secondary Li-ion Battery System
Warranty[1]
10 years
[1]Conditions apply. Refer to GROWATT Warranty Card.
ØMethod for calculating rated capacity:
Rated capacity of the measured module: 45 Ah
Number of modules connected in series: 2~10
Calculated rated capacity (Ah) = 45 Ah *1 =45Ah
ØThe performance will be limited when the temperature is below 0°C.
Notice
7.2 Battery System designation
Model
Battery designation
Recommended charge instructions
ARK 5.1H-A1
IFpP/41/150/102/[(1P16S)
2S]M/-10+50/90
1.Constant current 25A charging to 108V;
2.Constant current 10A charging to 110V;
3.Constant current 2A charging to 110V;
ARK 7.6H-A1
IFpP/41/150/102/[(1P16S)
3S]M/-10+50/90
1.Constant current 25A charging to 162V;
2.Constant current 10A charging to 165V;
3.Constant current 2A charging to 165V;
ARK 10.2H-A1
IFpP/41/150/102/[(1P16S)
4S]M/-10+50/90
1.Constant current 25A charging to 216V;
2.Constant current 10A charging to 220V;
3.Constant current 2A charging to 220V;
ARK 12.8H-A1
IFpP/41/150/102/[(1P16S)
5S]M/-10+50/90
1.Constant current 25A charging to 270V;
2.Constant current 10A charging to 275V;
3.Constant current 2A charging to 275V;
ARK 15.3H-A1
IFpP/41/150/102/[(1P16S)
6S]M/-10+50/90
1.Constant current 25A charging to 324V;
2.Constant current 10A charging to 330V;
3.Constant current 2A charging to 330V;
ARK 17.9H-A1
IFpP/41/150/102/[(1P16S)
7S]M/-10+50/90
1.Constant current 25A charging to 378V;
2.Constant current 10A charging to 385V;
3.Constant current 2A charging to 385V;
ARK 20.4H-A1
IFpP/41/150/102/[(1P16S)
8S]M/-10+50/90
1.Constant current 25A charging to 432V;
2.Constant current 10A charging to 440V;
3.Constant current 2A charging to 440V;
ARK 23.0H-A1
IFpP/41/150/102/[(1P16S)
9S]M/-10+50/90
1.Constant current 25A charging to 486V;
2.Constant current 10A charging to 495V;
3.Constant current 2A charging to 495V;
ARK 25.6H-A1
IFpP/41/150/102/[(1P16S)
10S]M/-10+50/90
1.Constant current 25A charging to 540V;
2.Constant current 10A charging to 550V;
3.Constant current 2A charging to 550V;
23 24

7.3 HVC 60050-A1
No.
Items
Specification
1
Model
HVC 60050-A1
2
Input/output voltage range
90~585V
3
Rated current
25A
4
Operating ambient temperature
-10~50℃
5
IP rating
IP65
6
Warranty
≥10 years
7
communication method
CAN2.0
8
Dimensions (W/D/H)
W650*D260*H185 mm ±2mm
9
Weight
8.5±1kg
10
Certification
CE-EMC
11
Environmental requirements
RoHS
7.4 ARK 2.5H-A1
No.
Items
Specification
1
Battery pack Module
ARK 2.5H-A1
2
Nominal Capacity/Energy
50Ah/2.56kWh
3
Rated Capacity/Energy
45Ah/2.3 kWh
4
Nominal Voltage
51.2V
5
Operating Voltage
47.2 - 56.8V
6
Rated current(25℃)
25A
7
Battery Type
Cobalt Free Lithium Iron
Phosphate (LFP)
8
Operating ambient temperature
-10~50℃
9
Storage conditions
﹣ ℃ ℃ ℃ ℃
/6 months; 95%RH
30 ~50 /7 days; -20 ~45
10
Cooling
Natural cooling
11
Dimension (W/D/H)
W650*D260*H185 mm ±2mm
12
Weight
27±1kg
13
Installation
Wall-mounted installation/floor
standing installation
14
Warranty
10 Years
15
Ingress protection
IP65
16
Cell safety certification
IEC62619/UL1642
17
safety certification
IEC62619/CE/RCM/ CEC
18
Transportation test standard
UN38.3
19
Environmental requirements
RoHS
20
Battery designation
IFpP/41/150/102/[1P16S]M/-
10+50/90
Appendix I
ØBarcode coding rules
Bar code number position：
XXX X XXXX XXXX XXXX
The 13th to 16th digits repres ent the serial number , base 34 ,
from 0001 to ZZZZ , automatically return to 0 every week
The 9th to 12th digits repres ent the production date , a total of 4 digits ,
s uch as in the 38th w eek of 2013 is 1338
The 5th to 8th digits re pre s ent the supplier . G RO WA TT is 0000 , other
outs ourcing suppliers refer to the corresponding relations hip of the s upplier code
The 4th repres ents the s oftw are vers ion code , refer to G RO WA TT controlled
"S oftw are code his tory table"
The 1th to 3th digits indicate the product code : refer to the product naming table and code
corres pondence table for details
1. The 1th to 3th digits indicate the product code : refer to the product naming table and
code correspondence table for details.
2. The 4th represents the software version code , refer to GROWATT controlled
"Software code history table".
3. The 5th to 8th digits represent the supplier code. GROWATT is 0000, the supplier D is
0001, and other outsourced suppliers are 0002/0003... , and so on, please refer to the
corresponding relationship table of the supplier code.
4. The 9th to 12th digits represent the production date, which is represented by 4 digits,
the year is represented by the first 2 digits, and the week is represented by the last 2
digits, for example, the 38th week of 2013 is 1338.
5. The 13th to 16th digits represent the serial number, 34 base , represented by 4 digits,
and the characters 0 to Z are used. I and O in the letters are discarded.
For example, the product number is SD00.0002100, the product code is ARJ, the
software version is 0, the supplier D is 0001, the production date is 21th week in 2021,
and the first barcode of the work order is ARJ0000121210001.
25 26

Appendix II
27
LED indication Control Mechanism
LED light definition
Status
Items
SOC indication
RUN/ALM
Remark
LED1
LED2
LED3
LED4
LED5
Charge
SOC
0%-25%
(t=1S)
RUN/ALM light
on and one SOC
lights flicker
26%-50%
(t=1S)
51%-75%
(t=1S)
76%-99%
(t=1S)
100%
Discharge
SOC
100%-76%
75%-51%
50%-26%
25%-5%
5%-0%
(t=1S)
RUN/ALM light
flicker
Idle
100%-76%
75%-51%
50%-26%
25%-5%
5%-0%
(t=1S)
RUN/ALM light
flicker
Protection
Cell charge
overvoltage
alarm
LED1-LED4 indicates current
remaining capacity
(t=1S)
RUN/ALM light
flicker green
Cell charge
overvoltage
protection
(t=1S)
RUN/ALM light
flicker green
Cell
discharge
undervoltag
e alarm
(t=1S)
RUN/ALM light
flicker green
Cell
discharge
undervoltag
e protection
(t=1S)
RUN/ALM light
flicker green
Charge and
discharge
high
temperatur
e alarm
(t=1S)
RUN/ALM light
flicker green
Charge and
discharge
high
temperature
protection
(t=1S)
RUN/ALM light
flicker green
Charge and
discharge
low
temperature
alarm
(t=1S)
RUN/ALM light
flicker green
Charge and
discharge
low
temperature
protection
(t=1S)
RUN/ALM light
flicker green
PACK
charge
overvoltage
alarm
(t=1S)
RUN/ALM light
flicker green
PACK
charge
overvoltage
protection
(t=1S)
RUN/ALM light
flicker green
PACK
discharge
undervoltag
e alarm
(t=1S)
RUN/ALM light
flicker green
PACK
discharge
undervoltag
e protection
(t=1S)
RUN/ALM light
flicker green
High
temperature
environment
alarm
(t=1S)
RUN/ALM light
flicker green
High
temperature
environment
protection
(t=1S)
RUN/ALM light
flicker green
Cell Large
voltage
difference
alarm
(t=1S)
RUN/ALM light
flicker green
Cell Large
voltage
difference
protection
(t=1S)
RUN/ALM light
flicker green
28

Warning of
high
temperature
difference
of PACK
module
(t=1S)
RUN/ALM light
flicker green
Fault,perso
nnel
handling
required
Discharge
short circuit
SOC indicates current remaining
capacity
(t=1S)
RUN/ALM light
flicker red
Precharge
short circuit
(t=1S)
RUN/ALM light
flicker red
Precharge
overtime
circuit
(t=1S)
RUN/ALM light
flicker red
External
CAN
communicat
ion failure
(t=1S)
RUN/ALM light
flicker red
Interior
communicat
ion failure
(t=1S)
RUN/ALM light
flicker red
Voltage
sampling
anomaly
protection
(t=1S)
RUN/ALM light
stays red
Current
sampling
fault
(t=1S)
RUN/ALM light
stays red
Main circuit
fault
(t=1S)
RUN/ALM light
stays red
Shenzhen Growatt New Energy Co., Ltd
[phone]
www.ginverter.com
T
E
W
[e-mail]
4-13/F,Building A,Sino-German(Europe) Industrial Park,
Hangcheng Ave,Bao’an District, Shenzhen, China
29
