GrowSpan PGFLSAXXFCW0063 User manual

1
Revision date: 04.17.20
©2020 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
Photo may show a different but similar model. Greenhouse with single door and roll-up
sides is shown in the example.
2
• Flashing
• Ribbon Board
• Baseboard
• 102197 U-Channel
• Install Film: Layer 1
• Air Inflation System
• Install Film: Layer 2
GrowSpan™Greenhouse
2-Layer Film Roof Installation —
Roll-Up Sides

22-Layer Film Install Revision date: 04.17.20
READ THIS DOCUMENT BEFORE YOU BEGIN
These instructions include helpful hints and important information needed
to safely install the roof cladding. Please read these instructions before you
begin. If you have any questions during the assembly, contact Customer
Service at 1-800-245-9881 for assistance.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Wear gloves when handling metal tubes.
• Use a portable GFCI (Ground Fault Circuit Interrupter) when working
with power tools and cords.
• Do not climb on greenhouse or framing during or after construction.
• Do not occupy greenhouse during high winds, tornadoes, or hurricanes.
• Provide adequate ventilation if structure is enclosed.
• Do not store hazardous materials in greenhouse.
• Provide proper ingress and egress to prevent entrapment.
Important Information
Contents
Important Information ..................................................................................... 2
Required Lumber — Customer-Supplied — Ribbon Boards.......................... 4
Recommended — Customer-Supplied —Baseboards................................... 5
End Panel Installation Details & Foil Tape Install ........................................... 6
Flashing (PGFLSAXXFCW0063) Installation ................................................. 7
Mark Ribbon Board Location.......................................................................... 9
Baseboards and Ribbon Boards..................................................................... 10
U-Channel (102197) — End Rafters .............................................................. 11
Side U-Channel Installation — Roll-Up Sides ................................................ 12
Inspect Frame Before Film Installation........................................................... 13
2-Layer Film Roof — Layer 1 (IR/AC) ............................................................ 14
Ination Fan Kit Installation ............................................................................ 17
2-Layer Film Roof — Layer 2 ......................................................................... 18
Seal Greenhouse............................................................................................ 19
DOUBLE-LAYER FILM INSTALLATION
Greenhouses equipped with a double-layer film include a layer that is Infra
Red (IR) Retention film.
IMPORTANT! During cover installation, install IR film first! Examine
film and install it according to instructions printed on the film.
WEAR EYE
PROTECTION
WHEN
INSTALLING
SPRING WIRE!

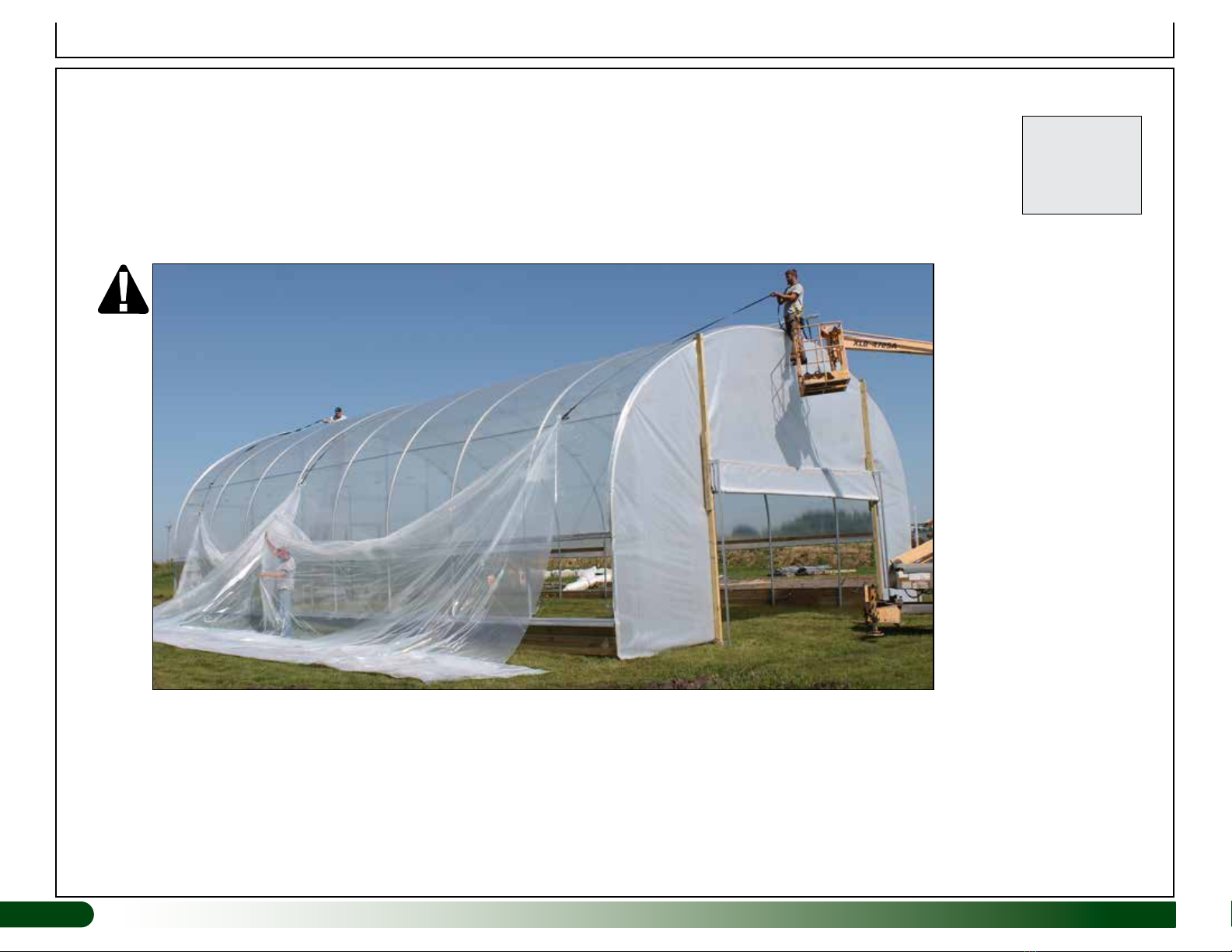

WARNING: To prevent damage to cover and to prevent serious personal injury,
DO NOT attempt to install main cover on windy or stormy days.

3
Revision date: 04.17.20 2-Layer Film Install
Important Information
REQUIRED TOOLS
The following list identifies the main tools needed. Additional tools and
supports may be needed depending on structure and location.
• Tape measure and marker; hammers and gloves.
• Clutched drill driver to drive Tek screws. (Cordless with extra batteries
works best.) Do not use an impact driver to install Tek screws.
• Scissors (or utility knife); tin snips or wire cutters for wire spring.
• 1/4" or 5/16" drill bit; 1-3/8" hole saw bit.
• Hand tools; saw or grinder to cut aluminum flashing. Clamps to install
u-channel flashing.
• Ladders, work platforms, and other machinery for lifting designed to work
safely at building height. Rope for cover installation.
ASSEMBLY NOTE: Install Tek screws using a clutched drill driver
running approximately 750 RPM while applying approximately 50
lbs of force.
Do not use an impact driver to install Tek screws!
PARTS
102198A U-Channel Spring
102197 Aluminum
U-Channel
FA4482B Tek Screw
108553 Truss Head Screw
FAH008B (or FAH009B) & FALB01B
Carriage Bolt & Hex Nut
FA4650 or FA4652
Wood Screws

42-Layer Film Install Revision date: 04.17.20
RIBBON BOARDS — CUSTOMER SUPPLIED (REQUIRED) — FOR ROLL-UP SIDE
Greenhouses equipped with roll-up side panels require a ribbon board. Materials for ribbon
boards are not included and are supplied by customer. Examples below show ribbon board as
attached to frame.
IMPORTANT: Installation of customer-supplied ribbon board is described later in this guide. Do
not install boards at this time.
Required Lumber — Customer-Supplied — Ribbon Boards
RIBBON BOARD HEIGHT: Consult main frame
technical document to determine ribbon board height
for your greenhouse.
ATTENTION: Fasteners to secure boards to building frame are included with building materials. Minimum lumber dimensions shown; wider boards can be
used if desired. Counter sink holes for 1/4" carriage bolts if bolt length is too short for selected board thickness.

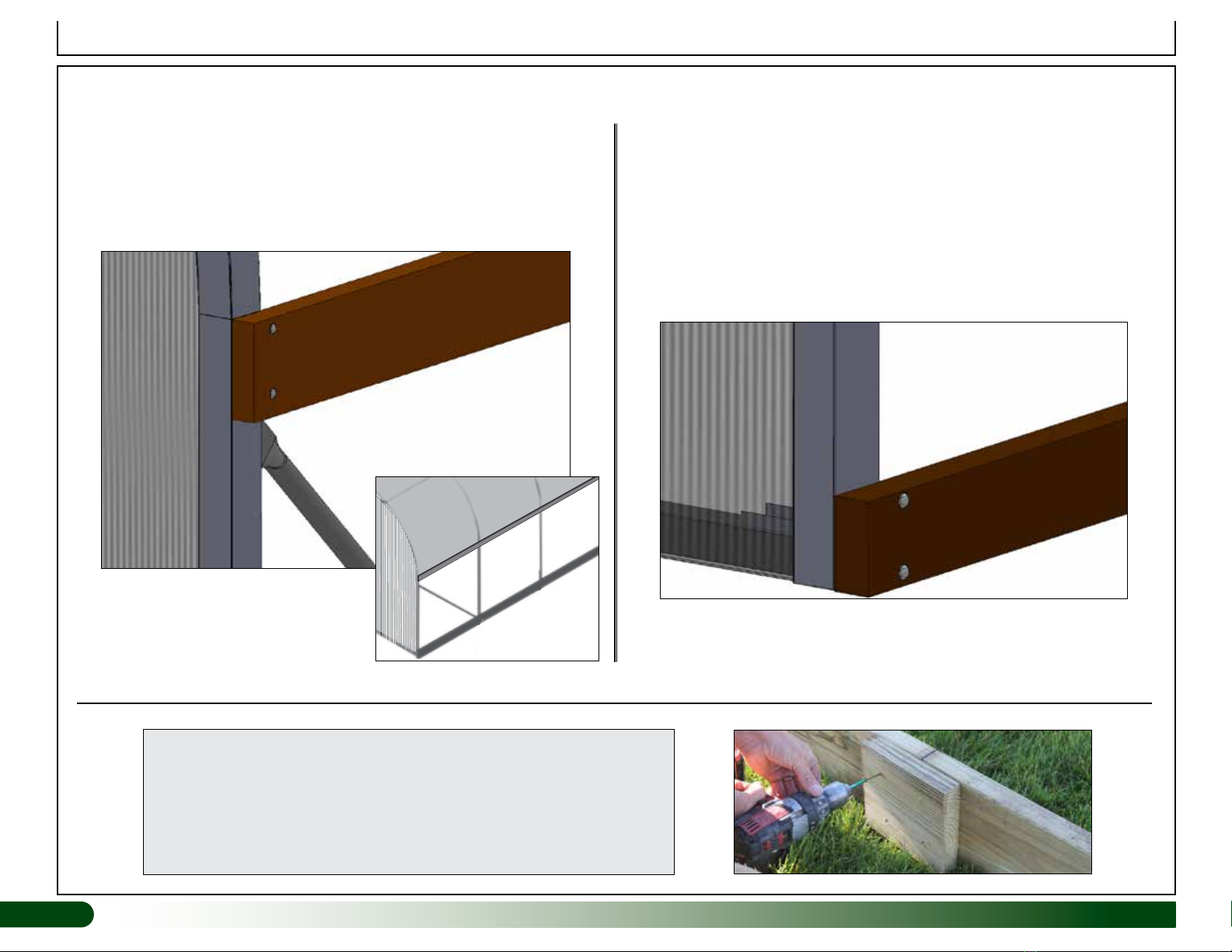

Ribbon Board
Baseboard
Actual frame may di󰀨er from example shown.
Diagram shows ribbon board attached for roll-up sides and film roof.
NOTE: Flashing and u-channel are not shown.
RIBBON BOARD FOR ROLL-UP SIDES
1/4" x 3-1/2" (FAH008B) or
1/4" x 4" (FAH009B) carriage
bolts & 1/4" nuts (FALB01B).
Carriage bolt length depends
on rafter pipe diameter.
Rafter
2" x 6" Board

5
Revision date: 04.17.20 2-Layer Film Install
Recommended — Customer-Supplied —Baseboards
BASEBOARDS — CUSTOMER SUPPLIED (RECOMMENDED) — FOR ROLL-UP SIDES
Baseboards are optional, but recommended, for greenhouses with roll-up sides. Materials for baseboard are not included and are supplied by customer.
Examples below show baseboard as attached to frame for a building with roll-up sides.
ATTENTION: Baseboards run the frame length along both sides at ground level. Installation of customer-supplied baseboard is described later in this guide.
Do not install boards at this time.
ATTENTION: Fasteners to secure boards to building frame are included.
Minimum lumber dimensions shown; wider boards can be used if desired.
Counter sink holes for 1/4" carriage bolts if bolt length is too short for
board thickness.
CURTAIN STABILIZER BAR KIT: If the curtain stabilizer bar kit was
purchased for your greenhouse, consult the installation guide included
with the kit before installing a baseboard.
2" x 6" Baseboard

62-Layer Film Install Revision date: 04.17.20
End Panel Installation Details & Foil Tape Install
End panels are rounded and follow contour of end rafter. (See diagram below.) If needed, cut end panels so top of end panels are flush with top of end rafter.
Apply foil tape (DH8007) to cover all open cells after cutting and before flashing (if this has not been completed yet). U-channel flashing overlaps end panels
to cover open cells at top. If end panels are prepared, continue with instructions on the next page. (Actual end wall with panel layout may differ from example
shown. End panel preparation is the same.)
Cut panels to size and apply foil
tape to cover open cells if this has
not been completed yet.

7
Revision date: 04.17.20 2-Layer Film Install
1
2
3
108553 Wafer
Head Screws
Gather Parts and Tools:
• PGFLSAXXFCW0063 Flashing (8' long)
• 108553 Wafer Head Screws
• Clutched Drill Driver and Phillips Head Bit
• Tool to cut metal flashing.
• Tape Measure and Marker.
Complete these steps:
1. Take one section of PGFLSAXXFCW0063 flashing and place it in place on end
rafter.
2. Mark flashing where rafter begins to bend. Place flashing on ground or work bench.
3. From first cut, mark remainder of flashing face at 12" on-center intervals.
Flashing (PGFLSAXXFCW0063) Installation
ATTENTION: To bend flashing more easily, decrease the on-center spacing of cut
lines. Spacing between cuts depends on rafter. Cut as needed for desired results.
4. Using snips or a saw, cut flashing face to the bend in flashing. Flashing face is the
part that overlaps tops of end panels.
12"
96"
PGFLSAXXFCW0063 Flashing
Bend
4
5. Repeat steps to cut flashing face to the flashing bend to make additional cuts.

82-Layer Film Install Revision date: 04.17.20
Install Flashing (PGFLSAXXFCW0063)
6. Place prepared flashing against top of end rafter with cut surface against end panels.
7. Using 108553 wafer head screws spaced at 16" on-center intervals, secure flashing to top of end rafter.
8. Prepare another piece of flashing and attach to rafter. Overlap end of first section with end of second section of flashing by approximately 2" to 3" if desired.
Use hand clamps to help hold and bend flashing into position.
9. Continue installing flashing and work down to ground.
INSTALL FLASHING — CONTINUED
Flashing
6
7
Flashing
ATTENTION: Be mindful of where to cut last section of flashing as you near end of end rafter. You may not need to cut every 12" to install final section.
10. Once one end is complete, attach flashing to remaining end rafter.
11. Continue with next procedure.
Cross Section of End Rafter,
End Panel, and Flashing.
Top of End Rafter
End
Rafter
Polycarbonate End Panel Foil Tape
108553 Screw
ATTENTION: Actual frame and
door design may differ. Flashing
installation is similar.

9
Revision date: 04.17.20 2-Layer Film Install
Mark Ribbon Board Location
Ribbon board runs along each frame side and serves as a mounting surface for side u-channel. Ribbon board is required for greenhouses that include
roll-up sides.
Read through the information on this page and continue as instructed. Customer is responsible for supplying materials to construct a ribbon board (and
baseboard if used) as described. Fasteners to secure ribbon boards (and baseboards) to frame are included. See ribbon board information earlier in this
guide.
Complete these steps:
1. Using diagrams included in frame assembly Guide #1, mark ribbon board location on frame along each side at each end rafter.
NOTE: When side panel is rolled up, sidewall opening is typically 48" to 54" depending on intended use and building size. Do not exceed 54".
2. Stretch a chalk line from end to end, verify it is level, and snap to mark top of ribbon board on each rafter tube along each side.
3. Continue by installing ribbon board and baseboard as described on next page.
Ribbon Board
Baseboard
Top of Ribbon
Board
Maximum
opening is 54"
from bottom of
ribbon board. Ground Level

10 2-Layer Film Install Revision date: 04.17.20
Ribbon Board
Baseboards and Ribbon Boards
ATTENTION: Materials for baseboards and ribbon boards are supplied by customer.
INSTALL BASEBOARDS
ATTENTION: If you want to install a baseboard and the curtain stabilizer bar
kit was purchased, consult instructions included with that kit for details. If you
do not want to install the optional baseboard as described below, continue
with the next page.
1. After flashing is prepared, attach baseboards to assembled frame. Use
a drill and 5/16" drill bit to drill through rafter tubes and baseboards.
Secure using 1/4" x 3-1/2" (FAH008B) or 1/4" x 4" (FAH009B) carriage
bolts and FALB01B nuts. Review diagram below.
INSTALL RIBBON BOARDS
1. After flashing is installed, attach ribbon boards to assembled frame. Use
a drill and 5/16" drill bit to drill through rafter tubes and ribbon board.
Secure using 1/4" x 3-1/2" (FAH008B) or 1/4" x 4-1/2" (FAH009B)
carriage bolts and FALB01B nuts. Review diagram below.
NOTE ABOUT SPLICING BASEBOARDS AND RIBBON BOARDS
Never attach two boards to same rafter. Instead, splice boards on
the backside/inside between rafters. This results in a stronger, more
dependable installation. Use a small piece of lumber that spans a few
inches on each side of the splice. Secure using customer-supplied nails or
wood screws. See diagram at the right. Inside greenhouse.
Outside
greenhouse.
2. Continue with u-channel installation.
2. Continue by installing baseboards.
Ribbon Board
Baseboard
Sample Frame
Actual frame may di󰀨er in design.
Baseboard

11
Revision date: 04.17.20 2-Layer Film Install
U-Channel (102197) — End Rafters
After attaching ribbon boards and baseboards (if used), attach u-channel to top of each end rafter using FA4482B Tek screws spaced at 12" on-center.
Complete these steps:
1. Beginning at top of ribbon board along
one side, attach the first section of 102197
u-channel using FA4482B Tek screws.
NOTE: Align u-channel with center of end
rafter and install over and through the
installed flashing.
2. Continue to install u-channel up and over the
end rafter down to remaining ribbon board. 102197 Aluminum
U-Channel
FA4482B
Tek Screw
Baseboard
U-Channel
Ribbon Board
3. Cut additional sections of u-channel to
install below ribbon board down to ground
level or to top of baseboard.
4. Repeat for remaining end rafter.
5. Continue with next page.
U-Channel
Baseboard
U-Channel
U-Channel
Ribbon Board

12 2-Layer Film Install Revision date: 04.17.20
Complete these steps:

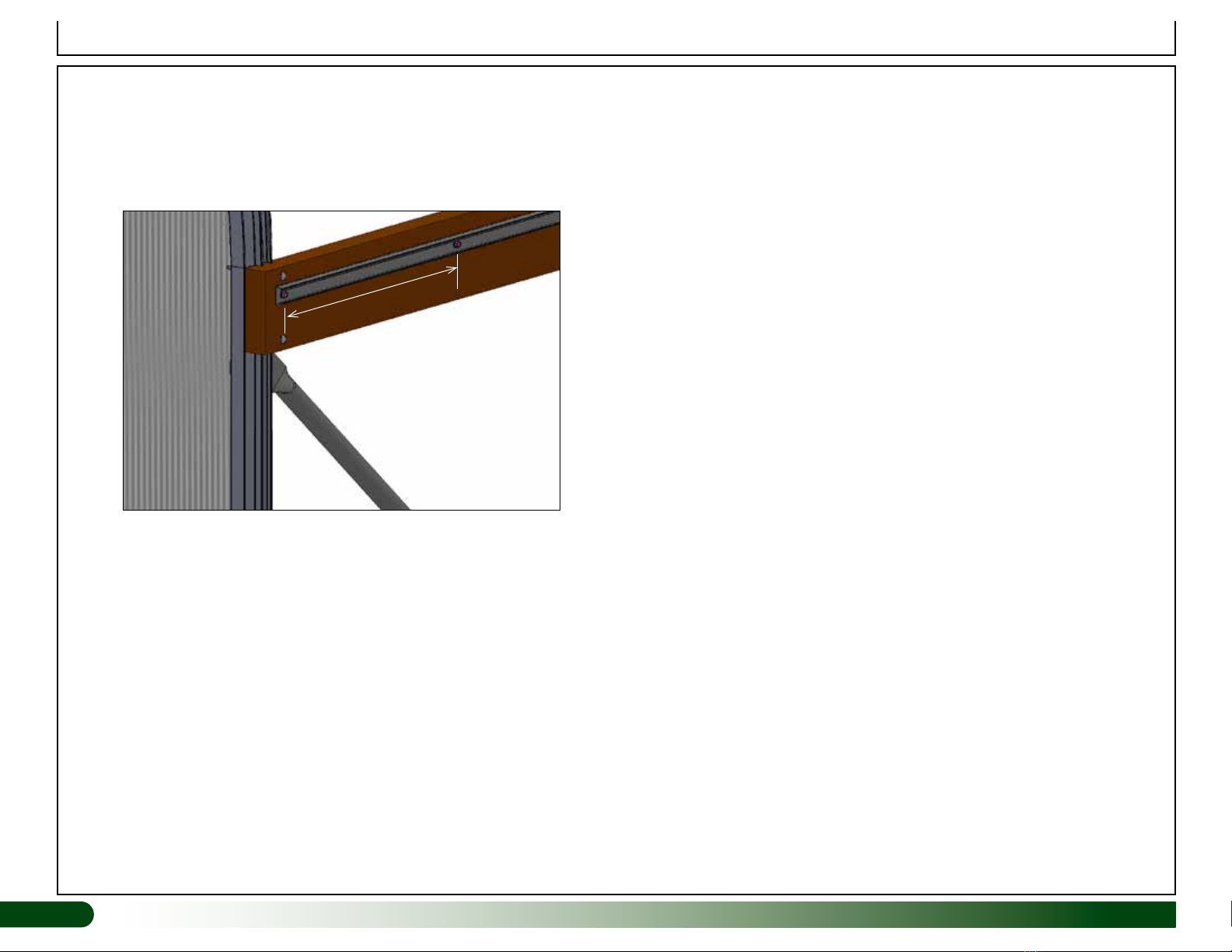

1. Attach u-channel to ribbon board using FA4650 wood screws spaced every
12". Mark and predrill holes through u-channel using a drill bit slightly larger
than diameter of threaded shaft of wood screw. Review diagram.
INSTALL U-CHANNEL (102197) ALONG EACH SIDE — ROLL-UP SIDES
IMPORTANT: Do not use FA4482B Tek screws to attach u-channel to ribbon
board; these will not hold. Use only wood screws.
2. Continue attaching u-channel and work toward other end of frame.
U-channel to run level throughout installation.
3. Cut last section to required length so it is flush with outside edge of u-channel
flashing that is attached to end rafter.
4. Repeat steps to install u-channel along remaining side.
5. Continue with film installation procedures.
Side U-Channel Installation — Roll-Up Sides
Gather parts:
• Aluminum U-channel (#102197)
• Wood screws (FA4650)
• 100443 Driver Bit
For Round Pro Greenhouses up to 38' Wide —
Attach one (1) run of u-channel to ribbon board along
each side using FA4650 wood screws.
12"
For Round Pro
Greenhouse Widths
up to 38'.

13
Revision date: 04.17.20 2-Layer Film Install
Inspect Frame Before Film Installation
TAPE SHARP EDGES AND CONNECTORS
Inspect frame for sharp edges that could damage cover film. File smooth or
tape over them using the supplied duct tape.
Return to rafters and apply tape over connectors to better protect cover film
and prolong film life once installed. Photo above shows one way to apply the
tape. Rafter and frame shown above may differ from actual frame. Photo is
used to illustrate how to apply tape.
Tape over fasteners to prevent damage to film. Never allow any fastener to
directly contact film once installed. For best results, reposition fastener when
possible.
Tape over
connector

14 2-Layer Film Install Revision date: 04.17.20
2-Layer Film Roof — Layer 1 (IR/AC)
INSTALL IR/AC FILM COVER
Continue with the following procedure. Greenhouse includes two film types. Install the IR/AC
film first! Gather parts:
• Cover film and wire spring (#102198A)
• Ropes/straps long enough to reach over frame (provided by customer)
After attaching 102197 u-channel along sides and u-channel flashing to end rafters, install IR/AC
cover film. Ropes or straps are typically used to pull main cover onto and over the frame.
Complete these steps:
1. Take film and position it along base at one side. Ensure IR/AC cover will pull over frame with correct surface positioned toward the soil.
NOTE: Unfold cover and locate edge. Cover ground if needed to protect film and to keep film clean and free of debris.
WARNING: To prevent damage
to the cover and to prevent
serious personal injury, DO
NOT attempt to install the main
cover on windy or stormy days.
WEAR EYE
PROTECTION
WHEN
INSTALLING
SPRING WIRE!
DOUBLE-LAYER FILM INSTALLATION
Greenhouses equipped with a double-layer film include a layer that is Infra Red (IR) Retention film; item 109094, 109095, 109096, 109097, or 109098.
During cover installation, install IR/AC film first! Examine film and install it according to instructions printed on film.
Actual frame may differ
from example shown.
ATTENTION: Depending on greenhouse
size, the roll-up side panels may be part
of the main cover, or they may be an
individual panel cut from a separate roll
of film.
Main cover film is typically cut two (2)
feet longer than greenhouse (e.g., length
is 48'; film roll is 50'). When choosing
the correct film roll for cover, review
documents included with shipment to
identify the film. Roll out along frame and
measure.
Also, ensure you have selected the IR/AC
film for your first layer. Install this film
first and according to the instructions
printed on film.

15
Revision date: 04.17.20 2-Layer Film Install
IMPORTANT: To prevent damage
to cover film during installation, use
additional personnel and lifts as
needed stationed inside frame.
4. Center side-to-side and end-to-end.
NOTE — ROLL-UP PANELS: For
small frames, roll-up panel is part of
roof film. It is important to center cover
on frame so each side has an equal
amount of film hanging below ribbon
boards before securing film to
u-channel. Do not cut this film off! It
is the roll-up portion of cover.
5. Once main cover is in place and
centered, begin at peak at one end
and install the 102198A wire spring
into the 102197 u-channel.
ATTENTION: Ensure enough film is
present to lock into u-channel flashing.
Typically, cover film is cut longer
than required to cover frame end-
to-end. For easier anchoring, allow
approximately 10" to extend past end
rafter as film is anchored. Remove
ropes (if used) after film is secure.
6. Continue down both edges of first end
rafter until film is secured.
7. Pull film toward other end and stretch
gently to remove wrinkles.
2. Along film edge to pull over frame, tie rope (or strap) around a tennis ball, for example, and toss free end of
rope over frame. See photo. Not required for small greenhouses; pull cover over by hand when possible.
NOTE: Evenly space ropes along side. Number of ropes depends on building length; use additional ropes
spaced evenly throughout length to prevent tearing cover when pulled onto frame.
3. After tying ropes to cover, throw free end of each rope over building and pull cover onto frame.
INSTALL COVER FILM (continued)
WEAR EYE
PROTECTION
WHEN
INSTALLING
SPRING WIRE!
Step 3
Step 5-7
2-Layer Film Roof — Layer 1 (IR/AC)

16 2-Layer Film Install Revision date: 04.17.20
INSTALL COVER FILM (continued) WEAR EYE
PROTECTION
WHEN
INSTALLING
SPRING WIRE!

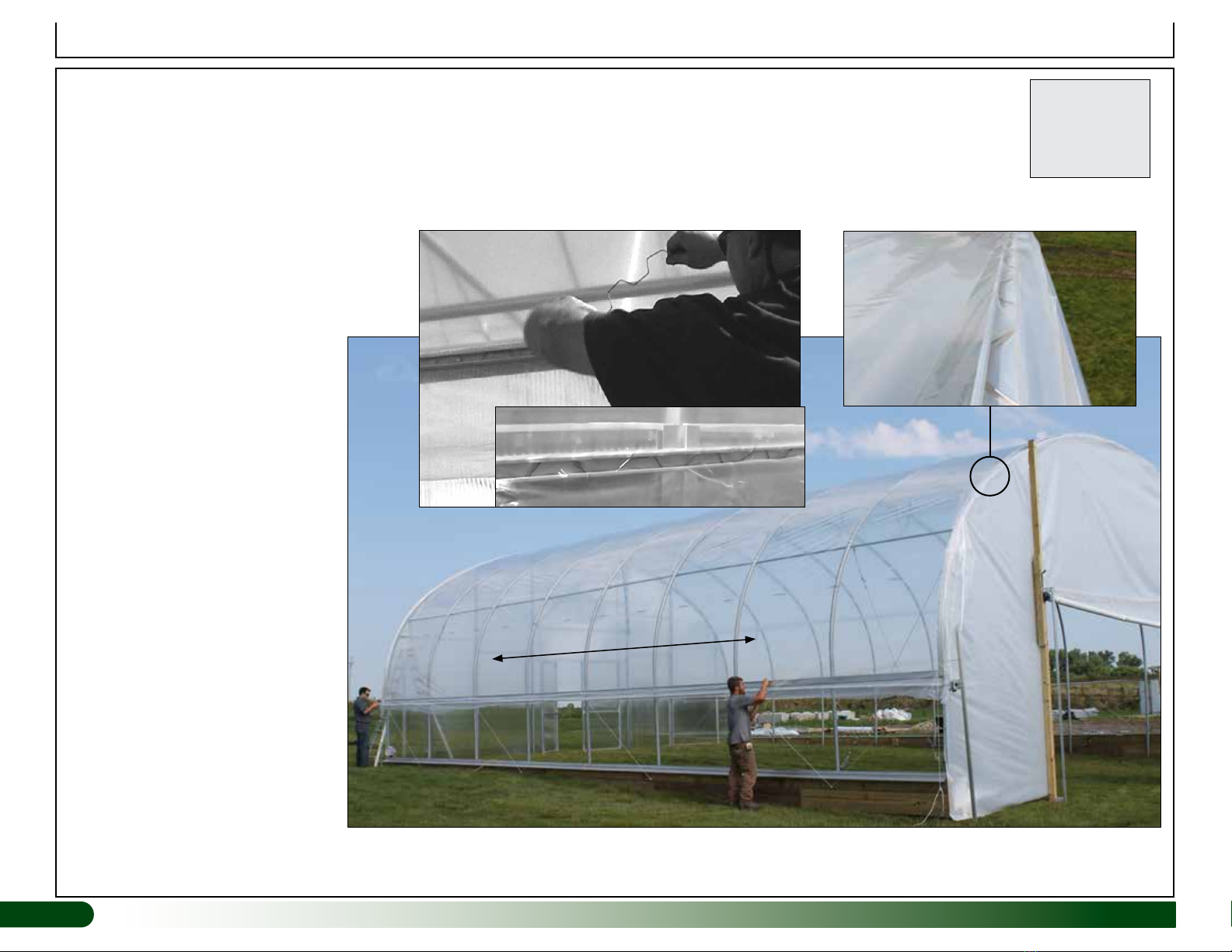

8. Move to the other end rafter, pull film tight, and repeat steps to secure film to u-channel flashing attached to that end rafter .
9. After securing cover end-to-end, move to one side, and install 102198A spring wire in side u-channel.
NOTE: Beginning at middle, work toward each end keeping wrinkles removed from film during installation. Maintain an even length
working along the side. Use upper run of u-channel to secure roof film if two (2) runs of channel are attached to ribbon board.
10. Next, move to remaining side,
stretch film, and secure in place.
Pull film sung during spring wire
installation.
11. Continue with installation of
inflation fan kit before installing
next film layer. See next page.
ATTENTION: Do not trim film
length or width at this time.
For covers that include the
roll-up panel, take necessary
steps to prevent loose ends from
blowing in the wind.
TO PREVENT FILM DAMAGE
AND POSSIBLE INJURY, DO
NOT ALLOW SIDE SECTIONS
OF FILM TO REMAIN
UNSECURED.
Sample greenhouse shown.
Actual greenhouse style differs.
Step 8
Step 9
Step 9
2-Layer Film Roof — Layer 1 (IR/AC)

17
Revision date: 04.17.20 2-Layer Film Install
Ination Fan Kit Installation
The air inflation system assembly is quick and easy. Consult instructions included with kit for installation details. You
will need a socket wrench set, utility knife, marker, and repair tape or heavy-duty duct tape to complete the steps.
Actual frame may differ from what is shown in the example. Some larger buildings may include multiple
inflation fan kits.
ATTENTION: Install all air inflation fan kit components before installing the second layer of film. Failure to do so will
require partial removal of the second film to install fan kit components.
Locate the inflation fan kit (or kits) and install now according to instructions included with kit(s). Remember to test the
air inflation systems before installing second layer of film.
ALL ELECTRICAL WIRING TO BE COMPLETED BY A QUALIFIED ELECTRICIAN ACCORDING TO
ESTABLISHED STANDARDS AND CODES.

18 2-Layer Film Install Revision date: 04.17.20
Once air inflation kit (or kits) are installed, install remaining film for greenhouse. After installing second film layer, continue with installation of roll-up side
components and panels (Guide #3). Complete these steps to install remaining film:
1. Repeat steps to install second layer of film. After pulling film onto frame, secure film by adding a second run of 102198A
spring wire over first in the same channel. For greenhouses with two (2) runs of u-channel along each side, this is the
upper run of channel. Lower run of u-channel is reserved for roll-up side panel.
ATTENTION: Install second layer of film with either surface toward the soil. Do not damage first film layer during installation of
second film.
2. After installing second layer of film, test inflation fan kit operation. Ensure entire roof section inflates when blower is running.
3. Continue with Guide #3 (Roll-Up Side Assembly).
WEAR EYE
PROTECTION
WHEN
INSTALLING
SPRING WIRE!
2-Layer Film Roof — Layer 2
Photo shows pulling second layer of film onto a sample greenhouse. (Actual greenhouse differs.) Procedure is
similar for all film-covered frames with roll-up sides.
WARNING: To prevent damage to cover and to
prevent serious personal injury, DO NOT attempt
to install main cover on windy or stormy days.

19
Revision date: 04.17.20 2-Layer Film Install
Seal Greenhouse
Anytime after roof film installation,
apply sealant to these areas:
• Around all doors
• Around accessory framing and
accessories
• At joint where u-channel meets
flashing for both end rafters
• All flashing joints
• Around intake for air inflation fan
