OWNER’S MANUAL
GP-SW100
Commercial Duty Swing Gate Operator
With Inherent UPS Battery Back-up System
GPSW100 rev - 10/24/07
Printed in China for GTO, inc.
This product meets and exceeds the requirements of UL 325 gate operator safety standards.
For more information on GTO/PRO’s full line of automatic gate openers and access controls visit our website at www.gtopro.com
L
I
S
T
E
D
US
TWO 12VDC, U1, 230A BATTERIES ARE REQUIRED BUT NOT INCLUDED.
DO NOT Install This Operator Without Safety Edges and Photo Beams!
APPROPRIATE ENTRY/EXIT DEVICES WILL BE REQUIRED - SEE YOUR DEALER.

VEHICULAR GATE OPERATOR CLASS CATEGORIES
Residential Vehicular Gate Operator–Class I: A vehicular gate operator (or system) intended for use
in a home of one-to-four single family dwelling, or a garage or parking area associated therewith.
Commercial/General AccessVehicular Gate Operator–Class II: A vehicular gate operator (or system)
intended for use in a commercial location or building such as a multifamily housing unit (ve or more
single family units), hotel, garages, retail store, or other building servicing the general public.
Industrial/Limited Access Vehicular Gate Operator–Class III: A vehicular gate operator (or system)
intended for use in an industrial location or building such as a factory or loading dock area or other
locations not intended to service the general public.
Restricted AccessVehicularGateOperator–Class IV: Avehiculargateoperator(or system)intendedfor
use in a guarded industrial location or building such as an airport security area or other restricted access
locations not servicing the general public, in which unauthorized access is prevented via supervision
by security personnel.
The GP-SW100 automatic gate operators are intended for use with vehicular swing gates. The operators
can be used in Class I, II, III, and IV applications.
Converting Metric Units to English Equivalents
When You Know Multiply By To Find Symbol
centimeters 0.3937 inches in. (or “)
meters 3.2808 feet ft. (or ‘)
kilograms 2.2046 pounds lb. (or #)
Converting English Units to Metric Equivalents
When You Know Multiply By To Find Symbol
inches 2.5400 centimeters cm
feet 0.3048 meters m
pounds 0.4535 kilograms kg
Temperature
deg. Celsius (ºC x 1.8) + 32 deg. Fahrenheit ºF
deg. Fahrenheit (ºF-32) / 1.8 deg. Celsius ºC
Conversion Chart
WARNING!
• READALLINSTRUCTIONSCOMPLETELYbeforeattemptinginstallationanduse;failure
to do so may result in serious injury or death!
• Thisunitmustonlybeinstalledbyanexperiencedtechnician!
• DANGER:HIGHVOLTAGE!Contactwithgateoperatorcircuitrycancauseserious
injury or death! Operator power must be disconnected before servicing!
• Thisgateoperatormayproduceahighlevelofforce.Stayclearoftheunitwhileitis
operating and exercise caution at all times.

Table of Contents
Gate Operator Class Categories ......................................................................................InsideCover
MetricConversionChart..........................................................................................................................InsideCover
SafetyInstructionsfortheGP-SW100SwingGateOperators....................................................1
ImportantSafetyInstructionsfortheSystemDesigner.....................................................................................1
ImportantSafetyInstructionsfortheInstaller ......................................................................................................2
ImportantSafetyInstructionsSpecictoSecondaryMeansofProtectionAgainstEntrapment.......3
ImportantSafetyInstructionsfortheConsumer/EndUser..............................................................................4
RequiredSafetyPrecautionsforGates.....................................................................................................................5
Warning Labels ................................................................................................................................................................6
Technical Specications ..........................................................................................................................7
PartsIdentication.....................................................................................................................................8
InstallingtheGateOperator...................................................................................................................9
Preparation of the Gate..................................................................................................................................................9
OperatorInstallationOverview ..................................................................................................................................9
UsingtheMountingTemplate ............................................................................................................................... 10
MountingTemplate(nottoscale)......................................................................................................................... 11
RemovingtheOperatorHousing.......................................................................................................................... 12
MountingtheOperator ............................................................................................................................................ 12
Connecting Power to the Operator ...................................................................................................................... 13
Connecting the Gate Arm Assembly...................................................................................................................... 14
Connecting Gate Arm to The Gate ........................................................................................................................ 15
ControlBoardDescription ......................................................................................................................................... 16
Setting The Limits ......................................................................................................................................................... 17
Stall Force and Auto-Close Adjustments.............................................................................................................. 18
DIPSwitchSettings ...................................................................................................................................................... 19
InputConnections........................................................................................................................................................ 20
Accessory Terminal Connections............................................................................................................................. 21
Output Connections .................................................................................................................................................... 22
Accessory Power Supply............................................................................................................................................. 23
PrisonModeOperationandWiringA3-ButtonStation.................................................................................. 24
ReinstallingtheOperatorHousing..................................................................................................................... 25
InstallingaDualSystem.........................................................................................................................26
SettingDualGateSequence ................................................................................................................27
OverviewofaDualGateOperatorInstallation .............................................................................28
Maintenance ..............................................................................................................................................29
Troubleshooting Guide..........................................................................................................................30
WarrantyandRepairService...............................................................................................................33
InstallationChecklist............................................................................................................. Back Cover

1
Important Safety Instructions
SAFETY INSTRUCTIONS FOR THE GPSW100 SWING GATE OPERATORS
IMPORTANT SAFETY INSTRUCTIONS for the System Designer
WARNING: To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Thisoperatorisintendedforuseonlyonvehiculargates.Pedestriansmustbesupplied withaseparate
walk-through gate (see Entrapment Protection on page 5).
3. When designing a system that will be entered from a highway or main thoroughfare, make sure the
system is placed far enough from the road to prevent trac congestion.
Because automatic gate operators produce high levels of force, all system designers, installers, and consumers
have an obligation to know the potential hazards associated with improperly designed, installed, or maintained
gate operator systems. Keep in mind that the gate operator is just one component of the total gate operating system.
Eachcomponentmustworkinunisontoprovidetheconsumerwithconvenience,security,andsafety.
This manual contains various safety precautions and warnings for the system designer, installer, and consumer.
Because therearemany possible applications of the gate operator, the safety precautionsandwarningscontained
in this manual cannot be completely exhaustive in nature. They do, however, provide an overview of the safe
design, installation, and use of this product. CAREFULLY READ AND FOLLOW ALL SAFETY PRECAUTIONS,
WARNINGS, AND INSTALLATION INSTRUCTIONS TO ENSURE THE SAFE SYSTEM DESIGN, INSTALLATION,
AND USE OF THIS PRODUCT.
The precautions and warnings in this manual are identied with these warning symbols.
This symbol identies the conditions that can result in serious injury or death from electrical shock.
This symbol identies the conditions that can result in damage to the operator or its components, serious
injury, or death.
BecauseGTOautomaticgateoperatorsareonlypartofthetotalgateoperatingsystem,itistheresponsibility
of the designer, installer, and purchaser to ensure the total system is safe for its intended use. Bypassing
safety devices or neglecting to use safety devices with the gate operator is NOT acceptable.

2
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For the Installer
WARNING–To reduce the risk of injury or death:
I. Before Installation
1. READ AND FOLLOW ALL INSTRUCTIONS.
2.  Verifythisoperatorisproperforthetypeandsizeofgate,anditsfrequencyofuse.
3. Makesurethatthegatehasbeenproperlyinstalledandswingfreelyinbothdirections.Repairorreplace
all worn or damaged gate hardware prior to installation. A freely moving gate will require less force to
operate and will enhance the performance of the operator and safety devices used with the system.
4. for pedestrian use (see page 5). NO ONE SHOULD CROSS THE PATH OF A MOVING GATE.
II. During Installation
1. Installthegateoperatorontheinsideofthepropertyandfenceline.DONOTinstallanoperatoronthe
outside of the gate where the public has access to it.
2. Be careful with moving parts and avoid close proximity to areas where ngers or hands could
be pinched.
3. Determinethebestobstructionsensingsettingforthisinstallation.ThegateMUSTstopandreverse
on contact with an obstruction. After adjusting the force or the limit of travel, retest the gate operator.
Failure to adjust and retest the gate operator properly can increase the risk of injury or death
(see page 18).
4. Additional safety equipment such as photo beams and safety edges MUST be installed to prevent
bodily injury (see page 9).
5. Mountaccesscontrolsawayfromthegate(minimum distance is 10 feet). The user must have full view
of the gate but be unable to touch it while operating the controls.
6. Secure outdoor or easily accessed gate operator controls in order to prohibit unauthorized use of
the gate.
III. After Installation
1. ReviewALL safety instructions with the consumer/end user and explain the basic operation and safety
systems of the entire gate operator system.
2. Informtheconsumer/enduserthatservicingoftheoperatormustonlybedonebyan
experienced technician.
3. Attach the warning signs (included) to each side of the gate to alert public of automatic gate operation.
Takeaphotoofwarningsignsinstalledongate.Recordthedateofthephotoforyourreference.
4. SAVETHESEINSTRUCTIONS.Leave IMPORTANT SAFETY INSTRUCTIONS (included)
with consumer/end user.

3
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Specic to Secondary
Means of Protection Against Entrapment
AsspeciedbyUnderwritersLaboratoriesInc.UL325(30A.1.1),automaticgateoperatorsshallhaveprovisions
for, or be supplied with, at least one independent primary and one independent secondary means to protect
against entrapment. GTO gate operators utilize Type A, an inherent entrapment sensing system, as the primary
type of entrapment protection. The GP-SW100 operators have provisions for the connection of Type B1, B2, or
Dprotection to be used as the secondary type of entrapment protection.
1.Forgateoperatorsutilizinganon-contactsensor(TypeB1)inaccordancewithUL325(51.8.4[h]):
 A. Refertothesensormanufacturer’s instructions on the placement of non-contact sensors for each type of
application.
B. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor
while the gate is still moving.
C. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists,
such as the perimeter reachable by a moving gate or barrier.
2.Forgateoperatorsutilizingacontactsensor(TypeB2)inaccordancewithUL325(51.8.4[i]):
A. One or more contact sensors shall be located at the leading edge, trailing edge, and post mounted both
inside and outside of a vehicular swing gate system.
B. A hard wired contact sensor shall be located and its wiring arranged so that the communication between
the sensor and the gate operator is not subjected to mechanical damage.
 C. Awirelesscontactsensorsuchasonethattransmitsradiofrequency(RF)signalstothegateoperator
for entrapment protection functions shall be located where the transmission of the signals are not
obstructed or impeded by building structures, natural landscaping or similar obstruction. A wireless
contact sensor shall function under the intended end-use conditions.
3. For gate operators utilizing an actuating device requiring continuous pressure to maintain opening or
closingmotionofthegate(TypeD)inaccordancewithUL325(51.8.4[e]):
A. The gate operator controls must be placed so that the user has full view of the gate area when the gate
is moving.
B. Warning signs (see page 6) shall be placed adjacent to the controls.
 C. Nootheractivationdeviceshallbeconnected.
ENTRAPMENT ALARM (UL 325; 30A.1.1A)
The GP-SW100 operators are designed to stop and reverse for 2 seconds when the gate comes in contact
with an obstruction or when an object activates the non-contact sensors. Additionally, these operators
are equipped with an audio entrapment alarm which will function if the unit obstructs twice while
opening or closing. This alarm will sound for a period of 5 minutes or until the operator receives an
intended signal (e.g., transmitter signal) and the gate returns to a fully open or fully closed position.

4
Important Safety Instructions
Important Safety Instructions fortheConsumer/EndUser
WARNING: To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Distribute and discuss copies of the IMPORTANT SAFETY INSTRUCTIONS manual with all persons
authorized to use your gate. SAVE THESE INSTRUCTIONS.
3. Always keep people and objects away from the gate and its area of travel.
NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Yourautomaticgateisnotforpedestrianuse.Ifpedestriantracisexpectednearthegate,awalk-
through gate must be installed for this purpose (see page 5).
5. Donotallowchildrenorpetsnearyourgate. Never let children operate or play with gate controls.
Keeptheremotecontrolsawayfromchildrenandunauthorizedusers;storecontrolswherechildrenand
unauthorized users do not have access to them.
6. Ifpushbuttonsorkeyswitchesareinstalled,theyshouldbewithinsightofthegate,yetlocatedfarenough
fromthegate(atleast10feet)sothegatecannotbetouchedwhileinoperation.Donotoperateany
control without watching the movement of the gate.
7. Donotactivateyourgateoperatorunlessyoucanseeitandcandeterminethatitsareaoftravelisclear
of people, pets, or other obstructions.
8. Itisyourresponsibilitytomakesurethattheinstallerpostedwarningsignsonbothsidesofyourgate.If
any of these signs or warning decals become damaged, illegible or missing, replace them immediately.
Contact your installer or GTO for replacements.
9. Verifythatelectricsafetyedgesensorsorphotoelectricsensorshavebeeninstalled(see page 5). These
safety devices should be tested monthly.
10. KEEPGATESPROPERLYMAINTAINED.Haveaqualiedservicepersonmakerepairstothegatehardware.
NEVER REMOVE THE OPERATOR HOUSING.
11. DANGER:HIGHVOLTAGE!Contactwithgateoperatorcircuitrycancauseserious injuryor death! DO
NOT attempttoservicethisoperatoryourself;forservice,contactyourinstalleroranotherexperienced
technician.
12. Haveyourgateoperatortestedmonthlyandservicedregularlybyanexperiencedtechnician.Thegate
MUSTstopandreverseoncontactwithanobstructionorwhenanobjectactivatesthenon-contact
sensors.Ifthesefunctionsareobservedtooperateimproperly,discontinueuseandhaveoperatorserviced
immediately.

5
Important Safety Instructions
Required Safety Precautions for Gates
Safety Edge Safety Edge
Safety Edge
Photo Beams
Warning Sign
Pedestrian Gate
Vehicle Gate
Operator
Photo Beams
Warning Signs
The warning signs (with orange panel)
must be installed on both sides of the
gate.
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
Entrapment Protection
GTO’s internal obstruction settings, even when properly adjusted, may not be sensitive enough to prevent bodily
injury.Forthisreason,safetydevicessuchassafetyedgesandphotobeamsMUSTbeinstalled.Furthermore,
a walk-through gate must be installed if pedestrian trac is expected near the gate. We recommend the GTO
Bulldog Pedestrian Gate Lock (available as an accessory) for controlled access.

6
Important Safety Instructions
Warning Labels
Thesewarningsignsandlabelsshouldbefoundatthelocationsspeciedbelow.Ifanyofthemaremissing,
immediately contact your installer for replacements.
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
Warning signs (2) to be installed on each side of the gate
(3–5 feet above the bottom of the gate)
Maximum Gate: 1200 lb. (544.3 kg); 20 ft. (6.1 m)
Voltage: 110 Vac; Frequency: 60 Hz; Power: 300 W
Class I, II, III and IV Vehicular Swing Gate Operator.
Serial Number: XXXXXXXXXX
#xxxxxxx
Conforms to UL 325 STANDARDS
TO MANUALLY OPEN AND CLOSE THE GATE:
1. Turn control box power switch OFF.
2. Disconnect opener arm from gate brackets.
3. Pull opener open.
GP-SW100
GTO, Inc. Tallahassee, Florida USA
Disconnect operator ONLY when the power switch is OFF
and the gate is NOT moving.
L
I
S
T
E
D
US
Product identication and manual operation instruction
label (1) installed on cover.
C

7
Technical Specications
Motor
•BrushlessDCmotor24VDC300watts
•½Horsepower
•Maximummotorcurrent20Amp
•2500RPM
•Openandclosetimefor90°openingisapproximately15seconds
Gear Reducer
•AluminumCased1200:1,size40/75,compound,wormreducerwithballbearings.
•Permanentlylubricatedwithsyntheticgearoil–oilspecications5w-30,Mobil1recommended
Power
•120vac@60Hzwithinherent24vdcbatterybackup
•Batteriesarerequired–two12vdc,U1,230Aminimumcoldcrankampswiredtogetherinseries.
•100cyclesinbackuptypicalforminimumsizebattery.
•15ampcircuitbreakerondedicatedcircuit
•Onboard120vacoutletforaccessoriesthatpullnomorethan1ampofcurrent
Control
•Microcontrollerbasedlogiccontrolboard
•Adjustableautoclose
•Independentobstructionsettings
•DiagnosticLED’s&AudibleAlarms
•Accessoryterminalscompatiblewithloopdetectors,photobeams,edgesensors,pushbuttons,cardreaders,exitwands,etc.
•RelayOutputs
•OnboardOpenandClosedStopbuttons
•JogButtons
Construction
•Heavydutysteelframe
•RotomoldedUVstabilizedHDPEcover
Operational Capacity
•Continuousdutyoperations
•Maxrating:20ftgate@1200lbs
•DualGatecompatibleusingtwoconductor22AWGshieldedwireratedfordirectburial.Recommended
Belden Wire®, 22 AWG, type 8761, 9461, 9451, 1266A or equivalent. 1-pair shielded with drain wire. Available at your
local electrical supply store.
Dimensions
•HousingDimensions:height33in(68.7cm),depth18in(45.7cm),width15in(38cm),shippingweight:130lbs
•ConcretePadDimensions:18inx18in,(45.7cmx45.7cm).Consultlocalbuildingcodesfordepthbelow
ground level. Absolute minimum depth 30 in (76.2 cm) below ground level.
Operational Temperature:
•Incolderclimates(ambienttemperatureslessthan10degrees)GTOrecommendstheuseofathermostatically
controlled heating source (ceramic heating strips, etc.) on the batteries and gearbox assembly. Styles, types,
and power requirements of heating devices will vary by climate and region.
Warranty:
•Residential (7) years for mechanical parts, (5) years electronic components
•Commercial (5) years for mechanical parts, (3) years electronic components

8
Owner’s Manual
Owner’s Manual
GTO/PRO GP-SW100
AC Powered Swing Gate Operators
WARNING
Reducer /Operator Arm
Gate Bracket
1/2" Washer (2)
Plastic Spacer (1)
1/2" Nut (2)
½" – 2¾" Bolt (2)
Clevis Pin (1)
Hairpin Clip (1)
Gate Warning Signs
(one for each side)
Fully Assembled Operator
33 in
(84 cm)
TO
BASE
27 in
(69 cm)
17 in
(42 cm)
24 in
(61 cm)
13 in
(33 cm)
18 in
(46 cm)
15 in
(38 cm)
NOTE: GTO receiver (RB709U),
batteries (12vdc, U1, 230A minimum)
not included. Must order separately.
23¾ in
(60.3 cm)
19¾ in
(50.2 cm)
12½ in
(31.8 cm)
14½ in
(36.8 cm) 12½ in
(31.8 cm)
Operator Chassis
Parts Identication
HARDWAREBAG-R4027

9
This unit must only be installed by an experienced technician.
Preparation of the Gate
Before installing the GTO/PRO swing gate operator, make sure:
• thegateisproperlyinstalled.
• thegateisplumb,level,andmovesfreely.
• thegatedoesnotbindordragontheground.
Installing the Gate Operator

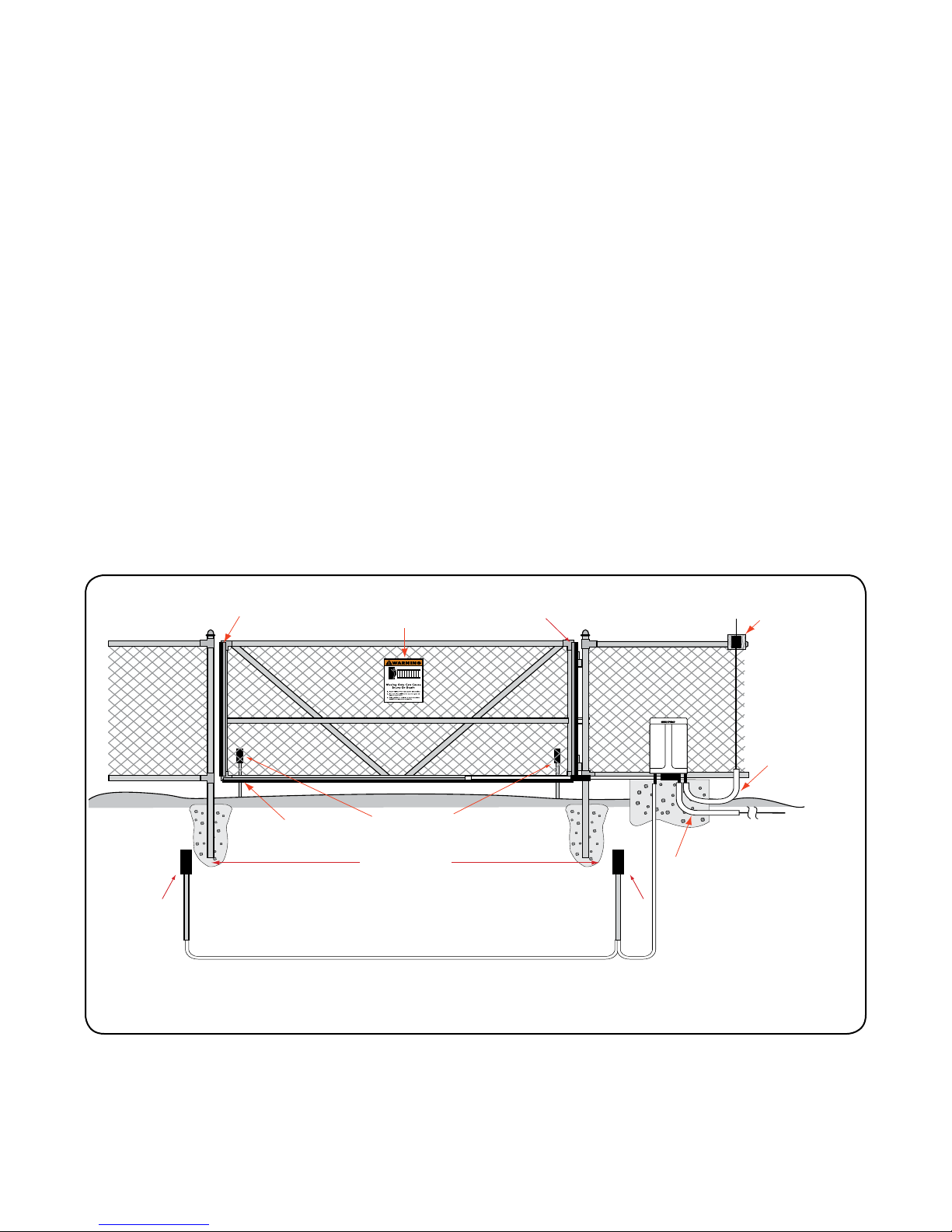

Overview of a Single Gate Operator Installation
The diagram below is an example of a single swing gate installation with required safety features. The
operator must be installed on the inside of the gate. You must install safety edges and photo beams
(not included) to reduce the possibility of bodily injury.
Use rigid conduit
for inbound AC wire.
Use PVC conduit
for Receiver wire
Safety Edge
Warning Sign
Receiver
AC POWER
Safety Edge
Photo Beam
Operator
Safety Edge
Photo Beams
Photo Beams
Photo Beam
NOTE: A separate gate or entrance must be installed for pedestrian use.

10
Using the Mounting Template
The mounting template (see insert)isdesignedtosimplifymountingtheoperator.Itprovidestheinstallerwith
the proper locations for running power and accessory wiring conduits. The template is also marked with the
correct distance between the operator mounting holes and shows the installer how to position the operator for
the correct clearance between the housing and the gate.
NOTE: The operator must be securely mounted on a level concrete pad. If you do not have an existing pad to work
with, be sure to install wiring conduit before pouring concrete. You must use (5) 3/8” diameter wedge type mounting
anchors, washers, and nuts (not included) to mount the operator on the pad.
Study the mounting template. Lay the mounting template on the level concrete pad and mark the pad according
to the instructions on the template.
Before mounting the operator, check the following:
•Theconcretepadislevel. 
•(6)3/8”diametermountinganchorsareintheircorrectpositions.
•Conduitforpowerandaccessorywiringisinstalled.
16 in
(45.7cm) 16 in
(45.7 cm)
30 in
(76.2 cm)
MINIMUM
BELOW GROUND LEVEL

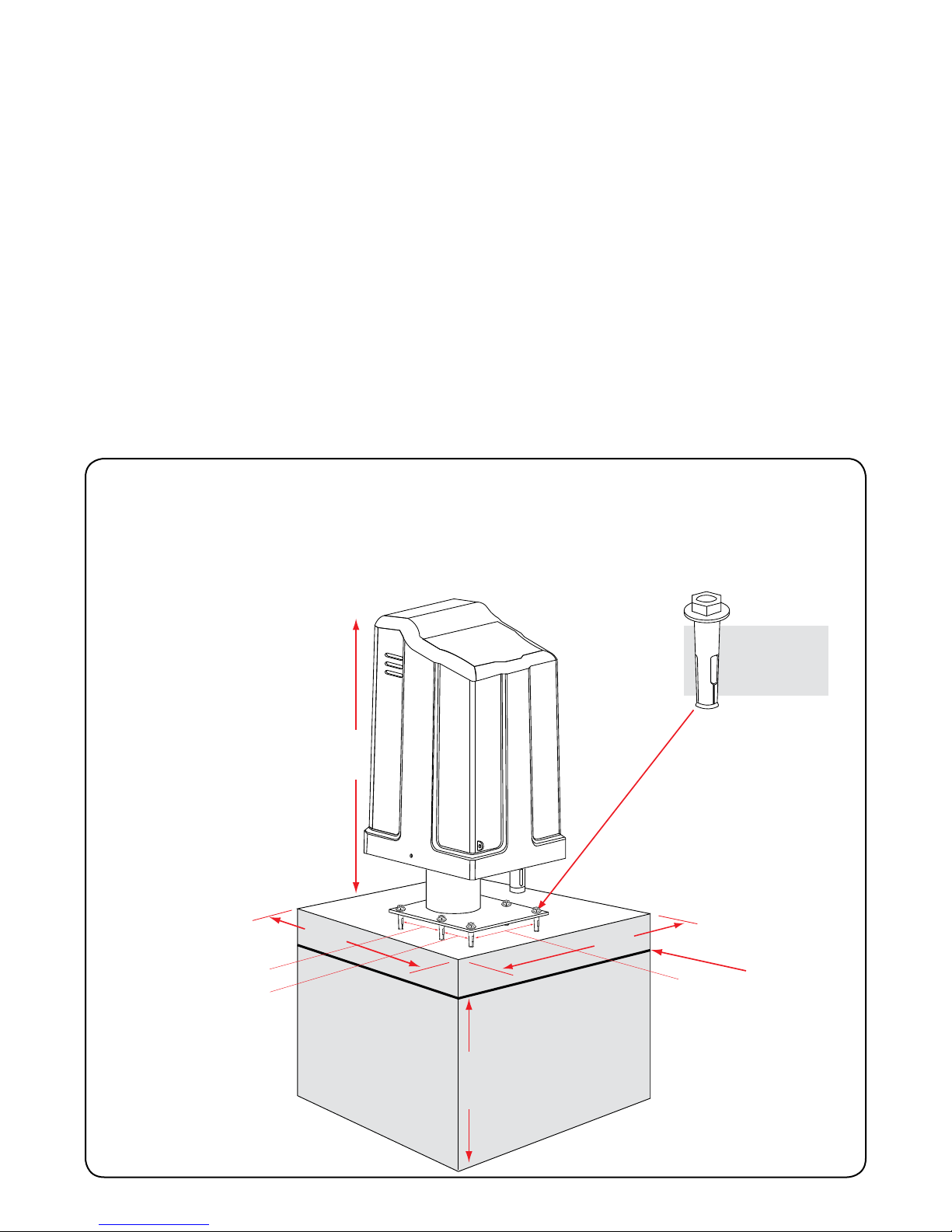

Mounting Operator
Concrete mounting pad 16 in x 16 in. Consult local building codes for depth below
ground level. Absolute minimum depth 30 in (76.2 cm) below ground level.
Use 3/8 in (.95 cm) diameter concrete mounting bolts in mounting pad.
10 in
(25.4 cm)
33 in
(83.8cm)
TO BASE
GROUND LEVEL
6 / in
(16.2 cm)
38
4 / in
(16.2 cm)
58
6 Concrete
Mounting Bolts
3/8” diameter
not included

11
Mounting Template (NOTTOSCALE)
10”
2½”
3”
11”
6 3/8”4 5/8”
Drill 3/8” x 3” deep 6 places. Use 3/8” wedge type anchors.
18½“ From
Hinge Centerline 7“ From
Hinge Centerline
Gate open position
Gate closed position
Hinge centerline
Gate post
Concrete pad 16” x 16”. Consult local building codes for depth below ground. Absolute minimum depth 30” below ground level.
Output Shaft

12
Removing the Operator Housing
Before you can gain access to the operator frame and its mounting holes, the housing will have to be
removed from the operator.
1.  Removethe(2)3/8”allenboltsand(2)m8washersfromtheoperatorhousing(thishardwareis
located on each side of the housing).
2. Lift the housing o the operator and set it aside.
Allen Bolts
with 5mm key
Washers
Mounting the Operator
1.  Lifttheoperatorandalignitsmountingholesoverthe3/8”diameterconcretemountinganchors.
2.  Lowertheoperatorintopositionandfastenittothemountinganchorswith(4)3/8”washersand
nuts (not provided).

13
RED WIRE to positive (+)
JUMPER WIRE (Supplied)
RED WIRE to positive (+)
BLACK WIRE to negative (–)
JUMPER WIRE (Supplied)
negative (-) to positive (+)
BLACK WIRE to negative (–)
2. Connect batteries to operator as shown. The red wire connects to the positive terminal
in the control box. The black wire connects to the negative terminal in the control
box. The jumper wire (included) connects both batteries together with the remaining
terminals.Wirethe24Vsysteminseriesasshownbelow.
3. Turn on AC power at this time.
NOTE: Battery should be a 12 Vdc, U1,
230 Amp Minimum, Lead Acid Battery
(Typical Lawn and Tractor Battery).
NOTE: When rst turning operator power switch on, the unit may beep once
every 5 seconds until the new batteries can be fully charged (30-60 minutes charging time).
1.  TurnthebreakerpowerswitchobeforeconnectingACpower.Havealicensedelectrician
  run115VacwiringintotheFieldWiringConnectionCompartment.The115Vaclinewillpower
the gate operator system. The circuit must be protected with a 15 A main disconnect breaker
(not provided).
NOTE: Power and wiring connections MUST be
performed by a licensed electrician in accordance
with NEC (National Electric Code) and local codes.
NEVER run low voltage (e.g., accessory or receiver)
wires in conduit containing 115 Vac wiring.
Connecting Power to the Operator

14
IMPORTANT: Be sure the operator housing
will not be hit by a fully open gate and that
the gate column will not interfere when
housing is installed.
2 ft. square area
Center point
of gate hinge
Closed Gate
Opened Gate
Round
Column
Housing
Pivot point
of operator
Right Mounted Arm
Center point
of gate hinge
Center point of gate hinge
to center of gate bracket pin
(approximately) 50”
Closed Gate
Opened Gate
5°-10°
Column
Pivot point
of operator
CAUTION:
DO NOT STAND
IN THIS AREA
Range of
Arm Movement
160°-175°
Housing
Gate Arm Connection Overview
NOTE: All work on operator requires disconnecting AC power and batteries !

15
Bolts
and
Washers
Reducer
Arm
Key
Closed Gate
Closing
Gate Bracket
Operator Arm
Reducer Arm
(approx)
5°-10° Angle
Clevis Pin
Hairpin Clip
Output Shaft
Fig. 1
Fig. 2
Fig. 5
Fig. 6
Fig. 4
CAUTION:
DO NOT STAND
IN THIS AREA
Fig. 3
1 2 3 4
ON
OPTIONS
MODE 1
MODE 2
OPEN DIR.
SLV OPN
DUAL MODE
LOW BATT
ON
ON
>>>
SIMUL
SLAVE
SECURE
OFF
OFF
<<<
DELAY
MASTER
SAFE
Connecting the Gate Arm to the Gate
NOTE: Gate Arm’s length can be adjusted
by rotating the gate arm’s tube before
mounting it to the gate bracket. (Fig. 5)
1. Install the key into the output shaft. (Fig. 1)
2. Fit the end of the reducer arm onto the output shaft as shown and
tighten the bolts. (Fig. 2)
3. Turn the power on.
4. Set DIP switch 1 to designate the operator arm as left or right (Fig. 3)
(right is shown here).
5. Manuallymove gate to the closed position. (Fig. 4)
6. Unfold the arm to approximately a 5-10° angle. (Fig. 4)
7. Use ‘CLOSE’ button on control board to move operator arm/reducer arm to the gate. CAUTION: Be careful
not to stand in the gray area surrounding the operator. (Fig. 4) Be prepared to stop (using the ‘STOP’ button)
when the gate arm and reducer arm near the desired position.
NOTE: Use ‘JOG’ buttons to ne tune the position.
8. Mark the position of the gate bracket holes on the gate, drill holes and mount bracket.
9. Fit the end of the operator arm into the gate bracket and attach using clevis pin and hairpin clip. (Fig. 5)

16
Control Board Description
1 2 3 4
ON
LOCK
COM
COM
COM
ALARM
CYCLE
SAFETY
SHADOW
OPEN
CLOSE
STOP
OPEN
EDGE
CLOSE
EDGE
STATUS
STALL FORCE ADJUST
LIMIT ADJUSTMENTS
DUAL
LINK
GTO LOOP DETECTORS
LIMIT SENSORS
DIAG.
PORT
BLDC SPEED CONTROL
EXIT SHADOW SAFETY
AT OPEN
LIMIT
PRISON
MODE
RUNNING
OPTIONS
TEST SWITCHES
CLOSE STOP OPEN
GTO Inc. Tallahassee, FL
SX4000 Logic Board Rev. E
MIN MAX MIN MAX OFF 120
<<< JOG >>>
<<< >>>
SET
LIMIT
CLOSED
+ ACC. PWR.
12VDC
- 300ma
W1
CUT TO USE
3 BUTTON
STATION
AUTO CLOSE
TIMER
MODE 1
MODE 2
OPEN DIR.
SLV OPN
DUAL MODE
LOW BATT
ON
ON
>>>
SIMUL
SLAVE
SECURE
OFF
OFF
<<<
DELAY
MASTER
SAFE
ACC. POWER DUAL CABLE
+12Vdc
COM
DUAL LINK
LINK COM
RELAY OUTPUTS
LOCK N.C.
LOCK COM
LOCK N.O.
RUN 1
RUN 2
CLOSED 1
CLOSED 2
CYCLE
SAFETY
OPEN EDGE
CLOSE EDGE
OPEN
CLOSE
STOP
COM
COM
COM
SHADOW
LOOP
12
3
9
10
11
12
13
14 20
21
19
17
15
18
4
5
6
7
8
16
COM +12V OPEN COM COM +12V OPEN COM COM +12V OPEN COM
BLDC Motor Control Connection
Limit Sensor Connection
Alarm / Buzzer Connection
12Vdc Accessory Power
Dual Link Connection
Relay Output - To Control Lock
Relay Output-ToIndicateGate’sRunning
Relay Output-ToIndicateGate’sClosed
Accessory Inputs
LED Indicators - For accessory inputs
LED Indicators - To show‘closed’ relay is on
1
2
3
4
5
6
7
8
9
10
11
LED Indicator-ToShow‘Running’Relayison
LED Indicator-ToShow‘Lock’Relayison
LED Indicators-ToShowDualLinkCommunication
Test Switches - To Control Gate Operation
Limit Adjustment Control Switches
Left and Right Stall Force Adjustment
Auto Close Timers Adjustment Potentiometer (OFF, 3-120 sec)
DIP Switch Option Setting
Diagnostic Port(NOTfortelephone)
W1-for3-buttonStationwithNormallyClose‘Stop’Button
12
13
14
15
16
17
18
19
20
21

17
COM
COM
COM
OPEN
CLOSE
STOP
CLOSE
EDGE
LIMIT ADJUSTMENTS
TEST SWITCHES
CLOSE STOP OPEN
GTO Inc. Tallahassee, FL
SX4000 Logic Board Rev. E
MIN MAX MIN MAX OFF 120
<<< JOG >>>
SET
LIMIT
W1
CUT TO USE
3 BUTTON
STATION
CYCLE
SAFETY
OPEN EDGE
RUN 2
OPEN
CLOSE
STOP
COM
COM
COM
STALL FORCE ADJUST
LIMIT ADJUSTMENTS
TEST SWITCHES
MAX OFF 120
<<< JOG >>>
<<<
>>>
SET
LIMIT
AUTO CLOSE
TIMER
Setting the Limits
OPEN LIMIT SETTING:
1. Turn on operator power.
2. Press and release the OPEN button on the board and be prepared to press the STOP button
when the gate reached the desired open position/limit.
3. The JOG buttons can be used to bring the gate to the precise open position. The JOG buttons
will slowly run the gate when pressed and stop the gate when released.
4. Once at the desired open position, press and hold the SET LIMIT button for 3 seconds or until
the alarm sounds and STATUS LED is on. At this time, release the SET LIMIT button.
5. Be prepared to stop the gate when it reaches the closed position.
CLOSED LIMIT SETTING:
1. Ifnotalreadyclosed,pressandreleasetheclosebutton.
2. Press and release the CLOSE button on the board and be prepared to press the STOP button
when the gate reached the desired closed position/limit.
3. The JOG buttons can be used to bring the gate to the precise closed position. The JOG buttons
will slowly run the gate when pressed and stop the gate when released.
4. Once at the desired closed position, press and hold the SET LIMIT button for 3 seconds or until
the alarm sounds and STATUS LED is on. At this time, release the SET LIMIT button.
5. Open the gate to allow it to stop on its own.
6. Openandclosethegatetoverifyproperoperations.Iflimitsarenotset
properly, redo limit setting steps above.
NOTE: If limits are too short, use jog button to move arm short distances to stop gate at
the precise open or closed position.
CAUTION: Be extremely careful not to stand in the path of the gate arm while setting limits.
