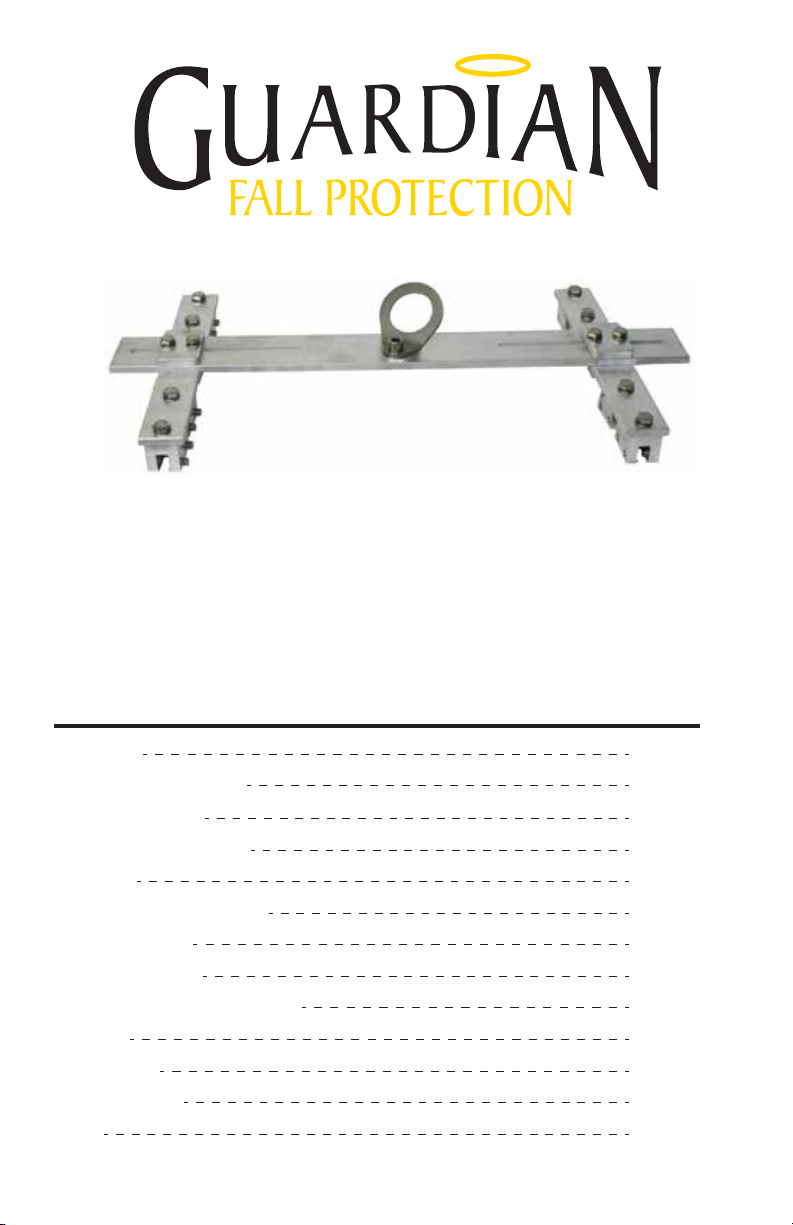

Guardian Fall Protection 53221 User manual

Product Name:
Permanent Adjustable Standing Seam Roof Anchor
Instruction Manual
Part #: 53221; 53569
Do not throw away these instructions!
Read and understand these instructions before using equipment!
Introduction 1
Applicable Safety Standards 1
Worker Classifications 1
Safety Information 13
Product Specific Applications 2
Limitations 3 - 4
Components and Specifications 5
Maintenance, Cleaning, and Storage 12
Inspection 12
Installation and Use 5 - 8
Inspection Log 12
Labels 14
Compatible SSMR List 9 - 11

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
1
Introduction
Thank you for purchasing a Guardian
Fall Protection Permanent Adjustable
Standing Seam Roof Anchor. This
manual must be read and understood
in its entirety, and used as part of an
employee training program as
required by OSHA or any applicable
state agency.
This and any other included instructions
must be made available to the user of
the equipment. The user must
understand how to safely and effectively
use the Permanent Adjustable Standing
Seam Roof Anchor, and all fall safety
equipment used in combination with the
Permanent Adjustable Standing Seam
Roof Anchor.
User Information
Date of First Use:
Serial #:
Trainer:
User:
Applicable Safety Standards
When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926
Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 standards for fall protection. This product
has been tested in compliance with the requirements of ANSI/ASSE Z359.7. Testing only covers hardware and
does not extend to the anchorage or substrate to which this product is attached. Applicable standards and
regulations depend on the type of work being done, and also might include state-specific regulations. Consult
regulatory agencies for more information on personal fall arrest systems and associated components.
Worker Classifications
!
CAUTION
Understand the following definitions of those who
work near or who may be exposed to fall hazards.
Qualified Person: A person with an accredited degree or certification, and with extensive experience or
sufficient professional standing, who is considered proficient in planning and reviewing the conformity of fall
protection and rescue systems.
Competent Person: A highly trained and experienced person who is ASSIGNED BY THE EMPLOYER to be
responsible for all elements of a fall safety program, including, but not limited to, its regulation, management,
and application. A person who is proficient in identifying existing and predictable fall hazards, and who has
the authority to stop work in order to eliminate hazards.
Authorized Person: A person who is assigned by their employer to work around or be subject to potential or
existing fall hazards.
It is the responsibility of a Qualified or Competent person to supervise the job site and ensure all
applicable safety regulations are complied with.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
2

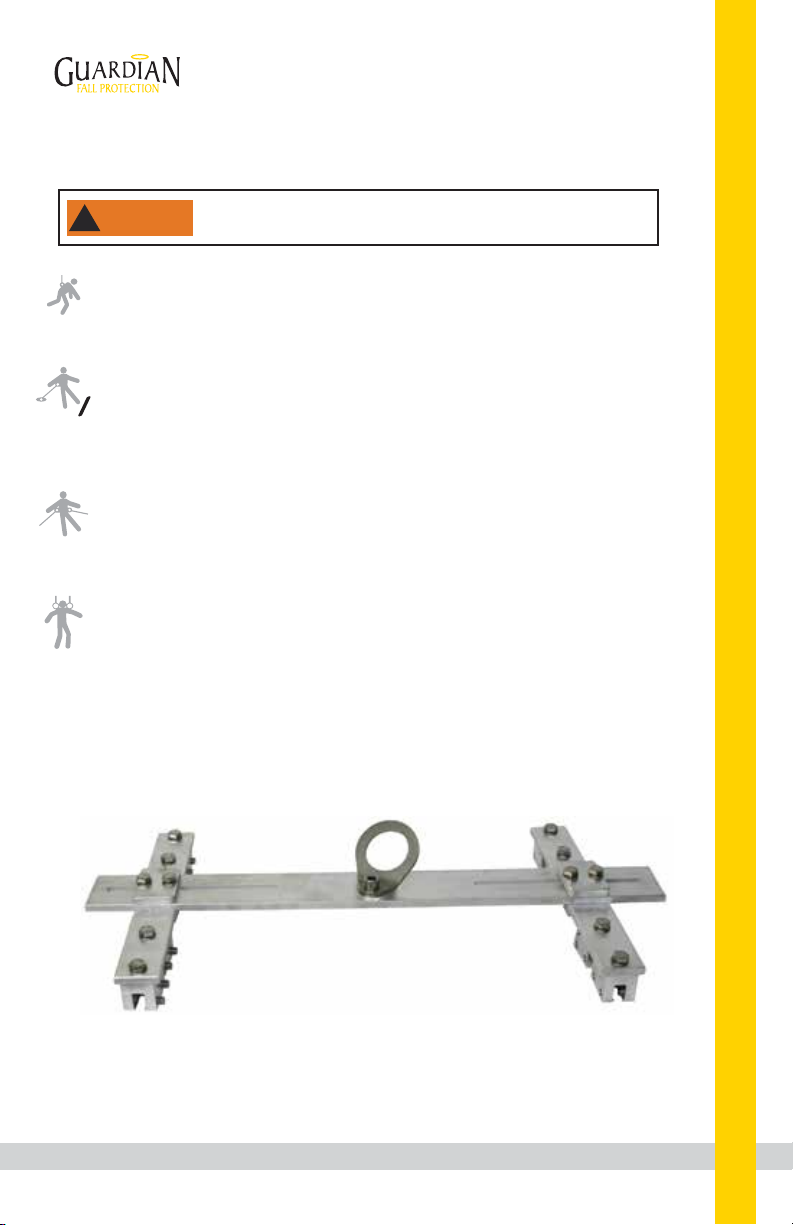

Product Specific Applications
Personal Fall Arrest: Permanent Adjustable Standing Seam Roof Anchor may be used to support
a MAXIMUM 1 PFAS for use in Fall Arrest applications. Structure must withstand loads applied in
the directions permitted by the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if
used in combination with equipment explicitly certified for such use. Applicable D-ring: Dorsal.
Restraint: Permanent Adjustable Standing Seam Roof Anchor may be used in Restraint
applications. Restraint systems prevent workers from reaching the leading edge of a fall hazard.
Always account for fully deployed length of lanyard/SRL. Structure must withstand loads applied
in the directions permitted by the system of at least 1,000 lbs. No free fall is permitted. Restraint
systems may only be used on surfaces with slopes up to 4/12 (vertical/horizontal). Applicable
D-rings: Dorsal, Chest, Side, Shoulder.
!
WARNING
Use of equipment in unintended applications may result in serious
injury or death. Maximum 1 attachment per connection point.
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is 130-420 lbs.
Work Positioning: Permanent Adjustable Standing Seam Roof Anchor may be used in Work
Positioning applications. Work Positioning systems allow a worker to be supported while in
suspension and work freely with both hands. Structure must withstand loads applied in the
directions permitted by the system of at least 3,000 lbs. Maximum allowable free fall is 2’.
Applicable D-rings: Side.
Rescue/Confined Space: Permanent Adjustable Standing Seam Roof Anchor may be used in
Rescue/Confined Space applications. Rescue systems function to safely recover a worker from a
confined location or after exposed to a fall. There are various configurations of Rescue systems
depending on the type of rescue. Structure must withstand loads applied in the directions
permitted by the system of at least 3,000 lbs. No free fall is permitted. Applicable D-rings: Dorsal,
Chest, Shoulder.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
3
Limitations
Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the
user strikes the ground or any obstruction. When calculating fall clearance, account for a MINIMUM 2’ safety
factor, free fall, deceleration distance, harness stretch, swing fall, and all other applicable factors.

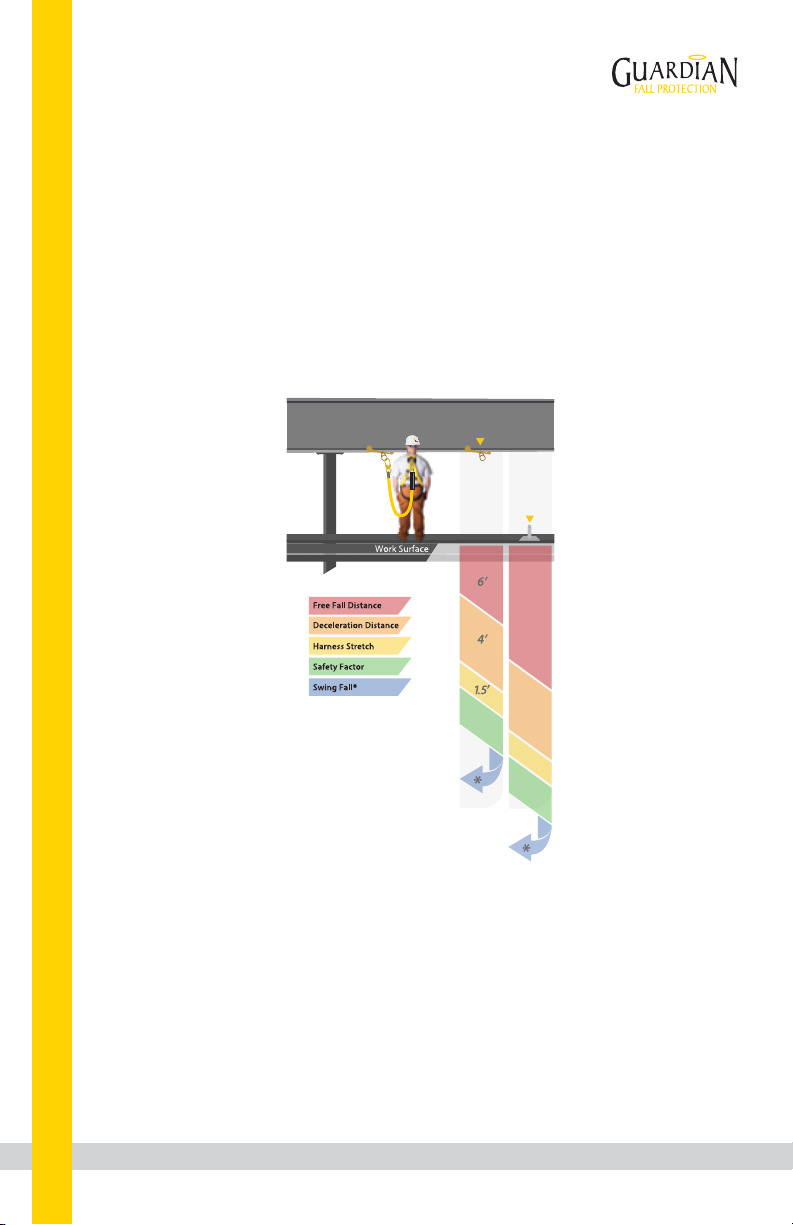

Diagram shown is an example fall clearance calculation ONLY.
Fall clearance calculation shown based on standing
worker falling directly in-line with anchor point.
Always consider potential swing fall and other
hazards when calculating fall clearance.
*Eliminate Swing Fall whenever
possible! If Swing Fall exists,
always account for additional
fall clearance.
1.5’
2’
12’
5’
Anchor Point
at Foot Level
12’ Free Fall
Lanyard
Anchor Point
Level w/Dorsal D-ring
6’ Free Fall
Lanyard
2’
Swing Falls: Prior to installation or use, make considerations for eliminating or minimizing all swing fall
hazards. Swing falls occur when the anchor is not directly above the location where a fall occurs. Always work
as close to in line with the anchor point as possible. Swing falls significantly increase the likelihood of serious
injury or death in the event of a fall.

Ø: Total Working Angle
X: Working Distance
Along Leading Edge
Y: Distance From
Leading Edge
X
Y
ø
X
Leading Edge
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
4
Compatibility: When making connections with Permanent Adjustable Standing Seam Roof Anchor, eliminate
all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes
the hook gate to unintentionally open and release. All connections must be selected and deemed compatible
with Permanent Adjustable Standing Seam Roof Anchor by a Competent Person. All connector gates must be
self-closing and self-locking, and withstand minimum loads of 3,600 lbs. See the following for examples of

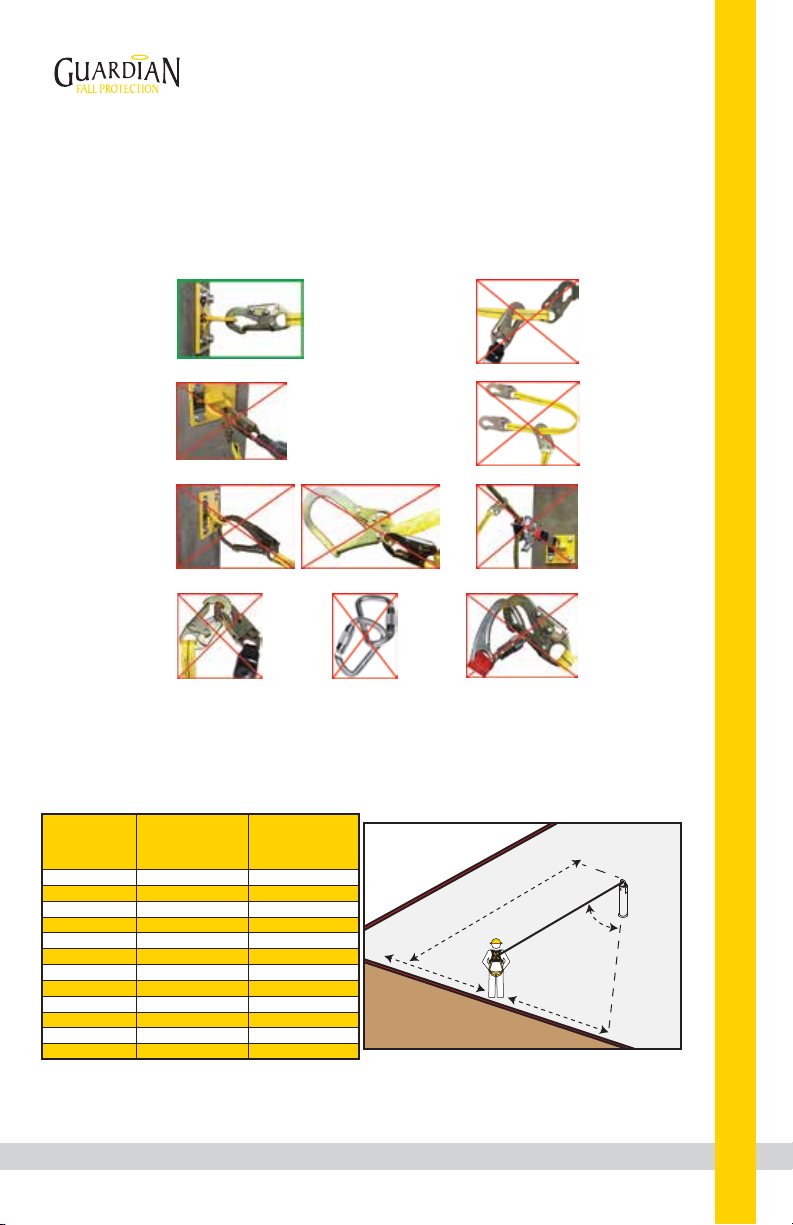

compatible/incompatible connections:
Correct Anchorage Positioning:
This chart details allowable working zones required
to reduce risk of swing falls and improper side loading.
ALWAYS adhere to information specified by chart.
Anchor Distance
From
Leading Edge (Y)
Working Distance
Along Roof Edge
(Either Direction) (X)
Working Angle
From
Perpendicular (Ø)
6’
10’
15’
20’
25’
30’
35’
40’
45’
50’
55’
60’
8’
9’ - 9”
11’ - 7”
13’ - 3”
14’ - 6”
16’
17’ - 2”
18’ - 3”
19’ - 4”
19’ - 10”
21’ - 4”
22’ - 3”
53°
45°
38°
33°
30°
28°
26°
24°
23°
21°
21°
21°
For example, if the anchorage connector is 6’ from the leading
edge (Y), the working distance (X) is 8’ in each direction from
the perpendicular, which translates to a 53° working angle.
Connector
closed and
locked to
D-ring. OK.
Connector
to integral
lanyard.
NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Two connectors
to same
D-ring. NO.
Connector
directly to
horizontal
lifeline. NO.
Connector
directly to
webbing.
NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
5
Installation and Use
Components and Specifications
Some assembly of components is necessary prior to installation and use of Permanent Adjustable Standing
Seam Roof Anchor. Always use fasteners, S-5 Clamps, and Set Screws provided by Guardian Fall Protection.
Components are manufactured from the following materials:
Large Tie-Off Bar: Aluminum
Seam Bar (2): Aluminum
Tie-Off Tab: Stainless Steel
S-5 Clamp (8): Aluminum
(2) Set Screws are provided with each S-5 clamp. S-5 Clamps are designed with four Set Screw holes for
increased versatility, but require only two Set Screws for use with the Permanent Adjustable Standing Seam
Roof Anchor.
A Qualified Person must be responsible for the supervision of the installation of the Permanent
Adjustable Standing Seam Roof Anchor, and must verify both standing seam roof and existing structure
meet all compatibility and minimum strength requirements, as specified by this instruction manual.
This anchor is primarily intended for permanent installations, but may also be used in multiple
installations. Always use new fasteners and nylock nuts for each installation application.

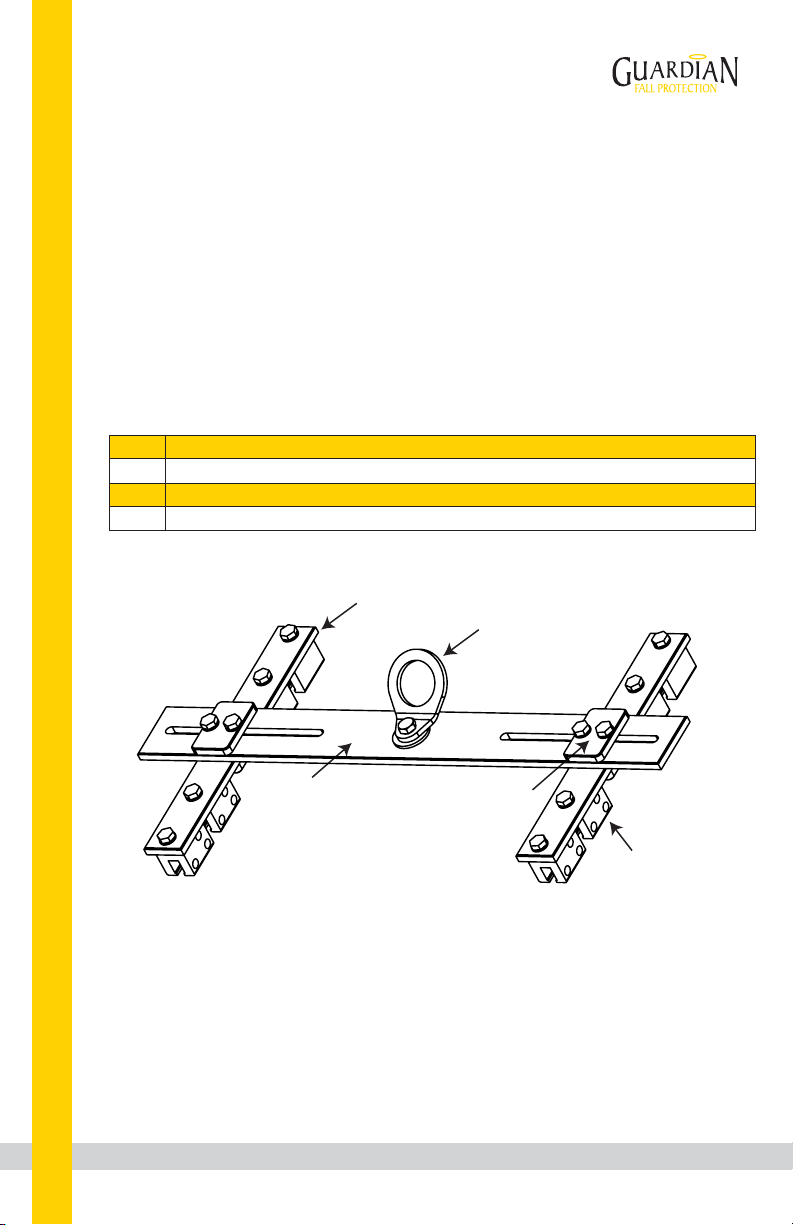

Large
Tie-Off Bar
Seam Bar
x1 per side (L/R)
Tie-Off Tab
L R
S-5 Clamps
x4 per side (L/R)
Plate Nut
x2 per side (L/R)
Part # Description
53221
53569
Permanent Adjustable Standing Seam Roof Anchor. Includes (2) Seam Bars,
(4) Plate Nuts, (1) Tie-Off Bar, (1) Tie-Off Tab, (8) S-5 Clamps, & All Fastening Bolts
Replacement S-5-U Clamp w/Fasteners
Anti-Seize
D105-0019

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
6
Top View Bottom View
Qualified Person must determine Permanent Adjustable Standing Seam Roof
Anchor is compatible with roof seam. NEVER attach to incompatible roof seams.
!
WARNING
2. All PFAS equipment must be selected and deemed compatible with the Permanent Adjustable Standing
Seam Roof Anchor by a Competent Person.
3. Work surface must be free of any and all deficiencies, including, but not limited to, corrosion, rust,
deformation, cracking, debris, and loose materials that may infringe upon the stability of the Permanent
Adjustable Standing Seam Roof Anchor.
4. Consider and minimize all existing and potential swing fall hazards.
5. Permanent Adjustable Standing Seam Roof Anchor is rated for loading in any direction provided it is
installed as prescribed.
6. Permanent Adjustable Standing Seam Roof Anchor may be used in combination with a temporary horizontal
lifeline (HLL) system. No intermediate anchorage connectors may be used in a temporary HLL system of which
the Permanent Adjustable Standing Seam Roof Anchor is a part. For use with permanent HLL systems, please
contact Guardian Fall Protection for additional assistance.
Prior to installation:
1. Ensure make, model, and material of selected standing seam metal roof (SSMR) are compatible with the
Permanent Adjustable Standing Seam Roof Anchor. Refer to compatible SSMR list (pgs. 9-11). If SSMR does not
appear on this list, do not install Permanent Adjustable Standing Seam Roof Anchor.
Assembly:
Torque all fasteners to 25-30 foot-pounds and ensure that MINIMUM 1 complete bolt thread is visible.

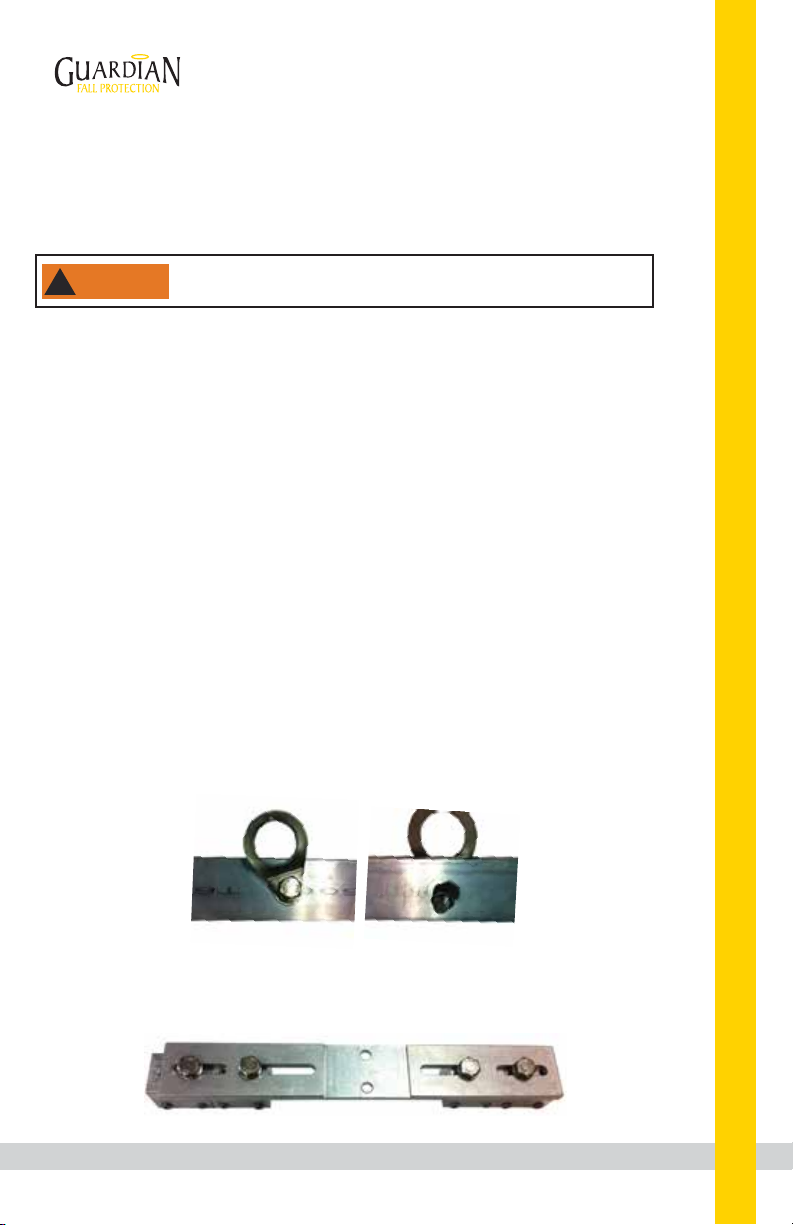

1. Install Tie-Off Tab to Tie-Off Bar:
Apply provided anti-seize (or equivalent) to 2” x 5/8”-18 Bolt.
Insert bolt through Tie-Off Tab bolt hole, through washer, through Tie-Off Bar, and secure with lock nut.
Tighten lock nut against underside of Tie-Off Bar. Tie-Off Tab must swivel freely a full 360°.
2. Install all (8) S-5 Clamps (4 per Seam Bar) onto Seam Bars prior to installation of Seam Bars onto Tie-Off
Bar. Insert bolt through washer, through Seam Bar, and through one of top two S-5 Clamp holes. One bolt and
one washer per S-5 Clamp.

Installation:
1. 3/16” Allen wrench attachment tip (provided with S-5 Clamps) is required for installation of Permanent
Adjustable Standing Seam Roof Anchor. To install, attach Allen wrench attachment to compatible 1/4” drive
screw gun.

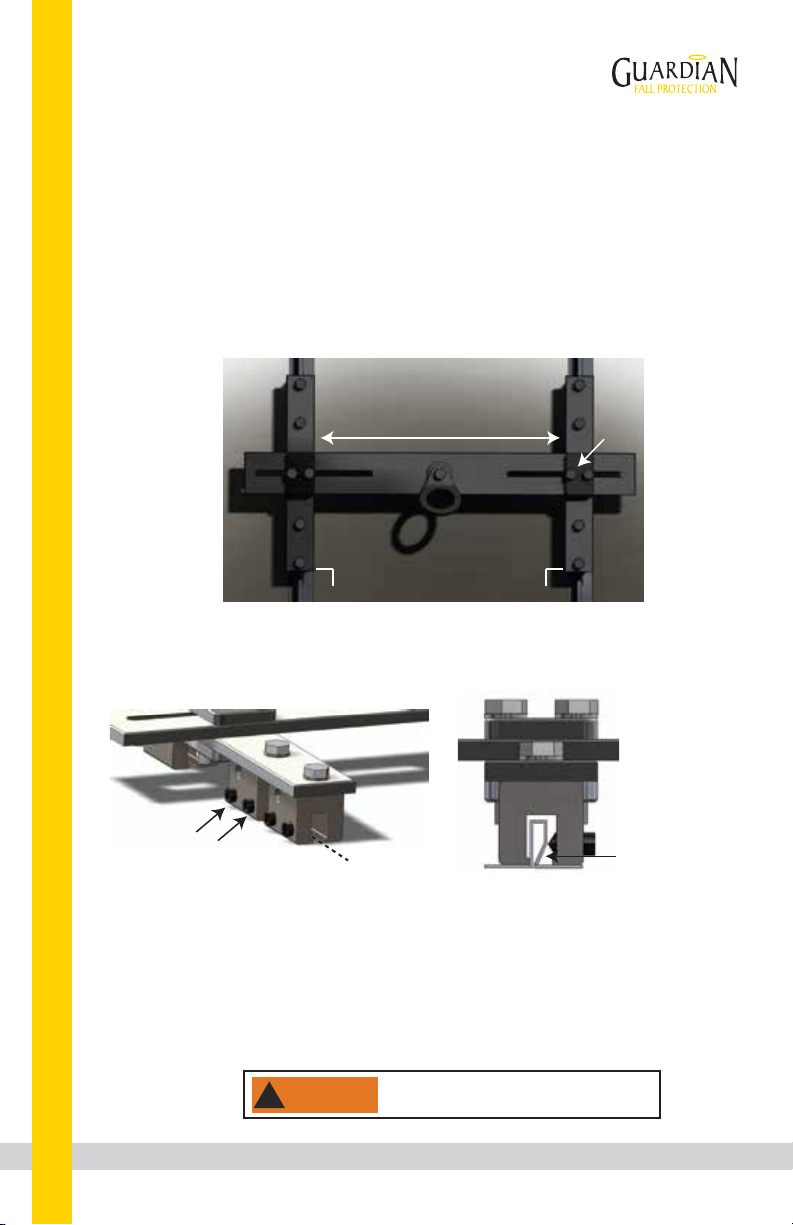

2. Adjust Permanent Adjustable Standing Seam Roof Anchor to match roof seam spacing. Compatible with roof
seams from 12” - 24” apart. Tighten all (4) bolts on Tie-Off Bar to 25-30 foot-pounds.
3. Place all S-5 Clamps over selected roof seams. Both sets of S-5 Clamps must be the same distance from
roof edge.
4. Insert Set Screws in bottom two holes of all S-5 Clamps. All Set Screws must face same direction. Ensure all
Set Screws will compress against roof seam when fully installed.
Set Screws
must compress
against roof seam.
5. Use 3/16” Allen wrench attachment (provided with S-5 Clamps) with compatible 1/4” drive screw gun to
install Set Screws.
• If roof is 22 gauge or thicker, torque all S-5 Clamp Set Screws to between 13.33-15 foot-pounds.
• If roof is thinner than 22 gauge, torque all S-5 Clamp Set Screws to between 10.83-12.5 foot-pounds.
Roof Seam
12” - 24” 25-30
ft.-lbs.
NEVER over-torque set-screws; doing so could
strip hardware or damage roof panels.
!
WARNING
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
7

When applying torque to Set Screws, ensure that selected drive screw
gun (with 3/16” Allen wrench attachment) is applying consistent and
adequate torque. Prior to each use, ALWAYS use properly calibrated
torque wrench to ensure all Set Screws are adequately torqued.
!
WARNING
6. As installation of Set Screws progresses, torque values of already installed Set Screws may change as
tension on roof seam increases. As necessary, re-torque Set Screws until all Set Screws are within torque range
specified by this instruction manual. Measure Set Screw torque with torque wrench.
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
8

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
9
Compatible Standing Seam Metal Roofs (SSMR)
SSMR Manufacturer SSMR Name SSMR Thickness SSMR Manufacturer SSMR Name SSMR Thickness
A&S Double-Lok 22 gauge steel Bryer Company TBC-Ultra 22 gauge steel
A&S DuraSeal Seam 22 gauge steel Bryer Company TBC-Ultra 24 gauge steel
A&S DuraSeal Snap 22 gauge steel Bryer Company TBC-Superseam (Single Fold) 22 gauge steel
A&S Ultra Dek 22 gauge steel Bryer Company TBC-Superseam (Double Fold) 22 gauge steel
A&S DuraSeal Snap 24 gauge steel Bryer Company TBC-Superseam (Single Fold) 24 gauge steel
A&S Ultra Dek 24 gauge steel Butler MR24 24 gauge steel
A&S Double-Lok 24 gauge steel Butler VSR 24 gauge steel
A&S DuraSeal Seam 24 gauge steel Butler MR24 22 gauge steel
AB Marn Roong AB Seam 19.5 24 gauge steel Carlisle Engineered Metals, Inc. Architectural Panel 22 gauge steel
AEP Span Snap Seam 22 gauge steel Carlisle Engineered Metals, Inc. Architectural Panel 24 gauge steel
AEP Span Snap Seam 24 gauge steel Carlisle Engineered Metals, Inc. VersaLok Panel 22 gauge steel
AEP Span Span Seam (DBF) 22 gauge steel Carlisle Engineered Metals, Inc. VersaLok Panel 24 gauge steel
AEP Span Mullok (Quad Lok) 24 gauge steel CBC Steel Buildings SS 24 24 gauge steel
AEP Span Span Seam (DBF) 24 gauge steel Ceco CXP 22 gauge steel
AEP Span Span Lok HP 2" SF 22 gauge steel Ceco CRP 24 gauge steel
AEP Span Design Span hp 22 gauge steel Ceco CXP 22 gauge steel
All Weather Insulated Panels (AWIP) SR Series (Single Fold) 24 gauge steel Central States Manufacturing Central Seam Plus 22 gauge steel
American Buildings Company Loc Seam 360 22 gauge steel Central States Manufacturing Central Loc 22 gauge steel
American Buildings Company Standing Seam 360 22 gauge steel Central States Manufacturing Central Loc 24 gauge steel
American Buildings Company Loc Seam 360 24 gauge steel Central States Manufacturing Central Seam Plus 24 gauge steel
American Buildings Company Standing Seam II Panel 22 gauge steel Central Texas Metal Roong Supply ShurLoc 175 24 gauge steel
Architectural Building Components Permaseam 22 gauge steel Centria SDP 175 22 gauge steel
Architectural Building Components Permaseam 24 gauge steel Centria SDP 175 24 gauge steel
Architectural Building Components Permaseam 22 gauge steel Centria SDP 200 24 gauge steel
Architectural Building Components Permaseam 24 gauge steel Centria SDP 300 24 gauge steel
Architectural Metal Speciales, Inc. AMS175 1-3/4" Snap-Lock 24 gauge steel Chief Industries MSC Panel 22 gauge steel
Architectural Metal Speciales, Inc. AMS175 1-3/4" Snap-Lock 24 gauge steel Chief Industries STC Panel 22 gauge steel
Architectural Metal Speciales, Inc. Ultraseam US175LS Snap-Lock 24 gauge steel Chief Industries STC Panel 24 gauge steel
ASC Building Products Sterling Roof System 22 gauge steel Chief Industries MSC Panel 24 gauge steel
Associated Building Systems KA-2000 22 gauge steel Classic Roong Systems CR-S 38 (Single Fold) 22 gauge steel
Associated Building Systems KA-2000 24 gauge steel Classic Roong Systems CR-S 25 (Single Fold) 22 gauge steel
ATAS 2" Field-Lok 24 gauge steel Construcon Metals, Inc. Sur-Lock 22 gauge steel
Bax Steel Buildings Bax-Lock 22 gauge steel Construcon Metals, Inc. Barrier Roof 22 gauge steel
Bax Steel Buildings Bax-Lock 24 gauge steel Construcon Metals, Inc. Barrier Roof 24 gauge steel
Bax-Steel Buildings, Inc. Bax-Lock 22 gauge steel Construcon Metals, Inc. Sur-Lock 24 gauge steel
Bax-Steel Buildings, Inc. Bax-Lock 24 gauge steel Copper Sales UC4 24 gauge steel
BC Steel Buildings BCL 24-MS 22 gauge steel Corle Building Systems Seam-Lok 22 gauge steel
BC Steel Buildings BCL 24-SD 22 gauge steel Corle Building Systems Snap-Seal 22 gauge steel
BC Steel Buildings BCL 24-SD 24 gauge steel Corle Building Systems Snap-Seal 24 gauge steel
BC Steel Buildings BCL 24-MS 24 gauge steel Corle Building Systems Seam-Lok 24 gauge steel
Behlen Building Systems ZL-24 Triple-Lock 24 gauge steel Custom Bilt Metals SL 1750 NT 24 gauge steel
Behlen Building Systems ZL-16 Triple-Lock 22 gauge steel Custom Bilt Metals CB 150 (Double Fold) NT 22 gauge steel
Berridge Cee-Lock 24 gauge steel Dean Steel Buildings, Inc Pro Seam Panel 22 gauge steel

Compatible Standing Seam Metal Roofs (SSMR)
SSMR Manufacturer SSMR Name SSMR Thickness SSMR Manufacturer SSMR Name SSMR Thickness
D
ean Steel Buildings, Inc Pro Seam Panel 24 gauge steel Kirby Building Systems Kirbylok 2000 24 gauge steel
D
imensional Metals SL-25 22 gauge steel Kirby Building Systems Kirbylok 2000 MS 24 gauge steel
D
imensional Metals IL-20 24 gauge steel Knudson Building Systems KR-20 24 gauge steel
D
imensional Metals SL-25 24 gauge steel Laura Star-Roof, BV Spanlock 22 gauge steel
D
imensional Metals DL-15 24 gauge steel Laura Star-Roof, BV Artlock 22 gauge steel
D
rexel Metals DMC 175S Snap Lock 1-3/4 24 gauge steel Laura Star-Roof, BV Artlock 24 gauge steel
D
rexel Metals DMC 210S (Armco Style) 22 gauge steel MBCI LokSeam 22 gauge steel
D
rexel Metals DMC 175S Snap Lock 1-3/4 22 gauge steel MBCI DoubleLok 22 gauge steel
D
rexel Metals DMC 200S 2" Double Fold 22 gauge steel MBCI LokSeam 24 gauge steel
D
rexel Metals DMC 210S (Armco Style) 24 gauge steel MBCI LokSeam 22 gauge steel
D
rexel Metals DMC 150SS (Double Fold) 22 gauge steel MBCI UltraDek 22 gauge steel
D
rexel Metals DMC 175S Snap Lock 1-3/4 24 gauge steel MBCI UltraDek 24 gauge steel
E
nglert Series 2000 22 gauge steel MBCI DoubleLok 24 gauge steel
E
nglert Series 2500 (Double Fold) 22 gauge steel MBCI LokSeam 24 gauge steel
E
nglert Series 2000 24 gauge steel MBCI SuperLok 22 gauge steel
E
nglert Series 2400 (Double Fold) 22 gauge steel MBCI BaenLok 22 gauge steel
E
nglert Series 2000 24 gauge steel MBCI BaenLok 24 gauge steel
E
nglert Series 1300 22 gauge steel McElroy Metal Maxima 1.5" 22 gauge steel
F
ab Tech, Inc. Seam-Lok 22 gauge steel McElroy Metal Medallion-Lok 22 gauge steel
F
ab Tech, Inc. Snap-Seal 22 gauge steel McElroy Metal Maxima 2" ADV 22 gauge steel
F
ab Tech, Inc. Snap-Seal 24 gauge steel McElroy Metal Medallion-Lok 24 gauge steel
F
ab Tech, Inc. Snap-Seal 24 gauge steel McElroy Metal Medallion-Lok 22 gauge steel
F
ab Tech, Inc. Seam-Lok 24 gauge steel McElroy Metal Master-Lok 90 (ML90) 22 gauge steel
F
abral Thin Seam 24 gauge steel McElroy Metal Master-Lok 90 (ML90) 24 gauge steel
F
abral Stand N Seam 24 gauge steel McElroy Metal Maxima 1.5" 24 gauge steel
F
abral 3" Snap Rib 24 gauge steel McElroy Metal Medallion-Lok 24 gauge steel
F
irestone UC14 24 gauge steel McElroy Metal Maxima 2" ADV 24 gauge steel
F
irestone UC4 24 gauge steel McElroy Metal ML-FS 22 gauge steel
F
ollansbee Steel 1in (25mm) DF (TCS) .018 TCS II Merchant & Evans Interlock 24 gauge steel
G
alvak, S.A. De C.V. Galvalok II 22 gauge steel Merchant & Evans Interlock .040 aluminum
G
alvak, S.A. De C.V. Galvalok I 22 gauge steel Merchant & Evans #305 24 gauge steel
G
alvak, S.A. De C.V. Galvalok I 24 gauge steel Merchant & Evans #305 .040 aluminum
G
alvak, S.A. De C.V. Galvalok II 24 gauge steel Mesco Double-Lok 22 gauge steel
G
arco Building Systems Garco Standing Seam 22 gauge steel Mesco Ultra Dek 22 gauge steel
G
arco Building Systems Garco Standing Seam 24 gauge steel Mesco Ultra Dek 24 gauge steel
G
arland R-Mer Loc 22 gauge steel Mesco Double-Lok 24 gauge steel
I
metco Snap Lok 1-3/4" 22 gauge steel Metal Sales Vercal Seam 22 gauge steel
I
nland Buildings IN-LOC 24 gauge steel Metal Sales Vercal Seam 24 gauge steel
I
nterlock Roong Snap Lock 1" .027 aluminum Metal Sales Magna Loc 22 gauge steel
I
nterlock Roong Future Roof 1.5" SF 26 gauge steel Metal-Fab Manufacturing MetFab Snap-On 675 24 gauge steel
K
ingspan USA KingZip 1020 22 gauge steel Metal-Fab Manufacturing MetFab III Panel 22 gauge steel
K
irby Building Systems Kirbylok 2000 MS 22 gauge steel Metal-Fab Manufacturing MetFab III Panel 24 gauge steel
Kirby Building Systems Kirbylok 2000 22 gauge steel Metal-Fab Manufacturing MetFab Historic Panel 1.5" DBF 22 gauge steel
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
10

Compatible Standing Seam Metal Roofs (SSMR)
SSMR Manufacturer SSMR Name SSMR Thickness SSMR Manufacturer SSMR Name SSMR Thickness
Metal-Fab Manufacturing MetFab Snap-on 550 Panel 24 gauge steel Steel Span, Inc. Architectural 24 gauge steel
Morin SLR 22 gauge steel Steelco Sur-Lock 22 gauge steel
Morin SWL 22 gauge steel Steelco Barrier Roof Panels 22 gauge steel
Morin SLR 24 gauge steel Steelco Barrier Roof Panels 24 gauge steel
Morin SWL 24 gauge steel Steelco Sur-Lock 24 gauge steel
NCI/Midwest Metallic Double-Lok 22 gauge steel Steelway Building Systems RTL-24 Quad Loc 22 gauge steel
NCI/Midwest Metallic Weather Roof III 22 gauge steel Steelway Building Systems RTL-24 Quad Loc 24 gauge steel
NCI/Midwest Metallic Ultra Dek 22 gauge steel Taylor Metals Versa-Span 24 gauge steel
NCI/Midwest Metallic Weather Roof II 22 gauge steel Taylor Metals MS 200 22 gauge steel
NCI/Midwest Metallic Ultra Dek 24 gauge steel Taylor Metals MS 200 24 gauge steel
NCI/Midwest Metallic Weather Roof II 24 gauge steel Tremco TremLock LSP 22 gauge steel
NCI/Midwest Metallic Double-Lok 24 gauge steel Triad Corrugated Metal, Inc. Snap Lock 1-3/4 24 gauge steel
NCI/Midwest Metallic Weather Roof III 24 gauge steel U.S. Metals US-175LS 22 gauge steel
NCI/Midwest Metallic 216 22 gauge steel U.S. Metals US-175LS 24 gauge steel
NCI/Midwest Metallic BaenLok 22 gauge steel U.S. Metals US-150 22 gauge steel
NCI/Midwest Metallic 216 24 gauge steel Una-Clad UC14 24 gauge steel
NCI/Midwest Metallic BaenLok 24 gauge steel Una-Clad UC4 24 gauge steel
New Tech Machinery SS 675 Snap Lock 1-3/4 24 gauge steel Union Corrugang Company ML150 (Double Fold) 22 gauge steel
New Tech Machinery SS 210A (Armco Style) 2 22 gauge steel Union Corrugang Company SL150 24 gauge steel
New Tech Machinery SS 210A (Armco Style) 2 24 gauge steel United Structures of America Guardian II 22 gauge steel
New Tech Machinery SS 150 (Double Fold) 22 gauge steel United Structures of America Guardian I 22 gauge steel
New Tech Machinery SS 675 Snap Lock 1-3/4 24 gauge steel United Structures of America Guardian I 24 gauge steel
New Tech Machinery SS 550 Snap Lock 1 1/2 24 gauge steel United Structures of America Guardian II 24 gauge steel
Nu Ray Metals Series 2000 Standing Seam 24 gauge steel Varco Pruden SSR 24 gauge steel
Nucor Building Systems VR16-II Vise-Lock 360 24 gauge steel Varco Pruden SLR 22 gauge steel
Nucor Building Systems CFR Vise Lock 360 Seam 24 gauge steel Whirlwind Building Systems Super Seam Plus 22 gauge steel
OC Metals OCM 175 SL 24 gauge steel Whirlwind Building Systems Super Seam II 22 gauge steel
OC Metals OCM 175 SL 24 gauge steel Whirlwind Building Systems Super Seam II 24 gauge steel
Petersen Aluminum Corp Snap Clad 22 gauge steel Whirlwind Building Systems Super Seam Plus 24 gauge steel
Petersen Aluminum Corp Snap Clad 24 gauge steel Zamil Steel Industries Max Seam 22 gauge steel
Petersen Aluminum Corp Snap Clad 22 gauge steel Zamil Steel Industries Max Seam 24 gauge steel
Petersen Aluminum Corp Snap Clad 24 gauge steel Zimmerman Metals, Inc. SL1750 22 gauge steel
Petersen Aluminum Corp Tite-Loc Plus 22 gauge steel Zimmerman Metals, Inc. SL1750 24 gauge steel
Petersen Aluminum Corp Tite-Loc 22 gauge steel
Petersen Aluminum Corp Tite-Loc 24 gauge steel
Rigid Global Buildings Planum Series Quad-Lok 24 gauge steel
Rigid Global Buildings HI-Tech Series Quad-Lok 24 gauge steel
Robertson Building Systems Starshield-SSR 24 gauge steel
Schulte Building Systems TS-324 TripleLok 24 gauge steel
Star Starshield 24 gauge steel
Steel Span, Inc. Trapezoidal 22 gauge steel
Steel Span, Inc. Trapezoidal 24 gauge steel
Steel Span, Inc. Architectural 22 gauge steel
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
11

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
12
Maintenance, Cleaning, and Storage
If Permanent Adjustable Standing Seam Roof Anchor fails inspection in any way, immediately remove it from
service, and contact Guardian to inquire about its return or repair. Field serviceability testing is not required,
and should not be done by the end user.
Cleaning after use is important for maintaining the safety and longevity of Permanent Adjustable Standing
Seam Roof Anchor. Remove all dirt, corrosives, and contaminants from Permanent Adjustable Standing Seam
Roof Anchor before and after each use. If Permanent Adjustable Standing Seam Roof Anchor cannot be
cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean Permanent
Adjustable Standing Seam Roof Anchor with corrosive substances.
When not in use, store equipment where it will not be affected by heat, light, excessive moisture, chemicals,
or other degrading elements.
Prior to EACH use, inspect Permanent Adjustable Standing Seam Roof Anchor for deficiencies, including, but
not limited to, corrosion, deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup,
excessive heating, alteration, and missing or illegible labels. IMMEDIATELY remove Permanent Adjustable
Standing Seam Roof Anchor from service if defects or damage are found, or if exposed to forces of fall arrest.
Ensure that applicable work area is free of all damage, including, but not limited to, debris, rot, rust, decay,
cracking, and hazardous materials. Ensure that selected work area will support the application-specific
minimum loads set forth in this instruction manual. Work area MUST be stable.
At least every 12 months, a Competent Person other than the user must inspect Permanent Adjustable Standing
Seam Roof Anchor. Competent Person inspections MUST be recorded in inspection log in instruction
manual and on equipment inspection grid label. The Competent Person must sign their initials in the
box corresponding to the month and year the inspection took place.
During inspection, consider all applications and hazards Permanent Adjustable Standing Seam Roof Anchor
have been subjected to.
Inspection
Inspection Log
If equipment fails inspection IMMEDIATELY REMOVE FROM SERVICE.
Date of First Use: __________________.
Product lifetime is indefinite as long as
it passes pre-use and Competent Person
inspections. User must inspect prior to
EACH use. Competent Person other than
user must complete formal inspection at
least every 12 months. Competent Person
to inspect and initial.
This inspection log must be specific to
one Permanent Adjustable Standing
Seam Roof Anchor. Separate inspection
logs must be used for each Permanent
Adjustable Standing Seam Roof Anchor.
All inspection records must be made
visible and available to all users at all times.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
13
Safety Information
Failure to understand and comply with safety regulations may result in
serious injury or death. Regulations included herein are not all-inclusive,
are for reference only, and are not intended to replace a Competent
Person’s judgment or knowledge of federal or state standards.
!
WARNING
Do not alter equipment. Do not misuse equipment.
Workplace conditions, including, but not limited to, flame, corrosive chemicals, electrical shock, sharp objects,
machinery, abrasive substances, weather conditions, and uneven surfaces, must be assessed by a Competent
Person before fall protection equipment is selected.
The analysis of the workplace must anticipate where workers will be performing their duties, the routes they
will take to reach their work, and the potential and existing fall hazards they may be exposed to. Fall
protection equipment must be chosen by a Competent Person. Selections must account for all potential
hazardous workplace conditions. All fall protection equipment should be purchased new and in an unused
condition.
Fall protection systems must be selected and installed under the supervision of a Competent Person, and used
in a compliant manner. Fall protection systems must be designed in a manner compliant with all federal, state,
and safety regulations. Forces applied to anchors must be calculated by a Competent Person.
Unless explicitly stated otherwise, the maximum allowable free fall distance for lanyards must not exceed 6’.
No free fall allowed for non-LE SRLs. Class A SRLs must arrest falls within 24”; Class B SRLs must arrest falls
within 54”.
Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of
compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied
in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be
self-locking and self-closing, and must never be connected to each other.
A pre-planned rescue procedure in the case of a fall is required. The rescue plan must be project-specific. The
rescue plan must allow for employees to rescue themselves, or provide an alternative means for their prompt
rescue. Store rescue equipment in an easily accessible and clearly marked area.
Training of Authorized Persons to correctly erect, disassemble, inspect, maintain, store, and use equipment
must be provided by a Competent Person. Training must include the ability to recognize fall hazards, minimize
the likelihood of fall hazards, and the correct use of personal fall arrest systems.
NEVER use fall protection equipment of any kind to hang, lift, support, or hoist tools or equipment, unless
explicitly certified for such use.
Equipment subjected to forces of fall arrest must immediately be removed from use.
Age, fitness, and health conditions can seriously affect the worker should a fall occur. Consult a doctor if there
is any reason to doubt a user’s ability to withstand and safely absorb fall arrest forces or perform set-up of
equipment. Pregnant women and minors must not use this equipment.
Physical harm may still occur even if fall safety equipment functions correctly. Sustained post-fall suspension
may result in serious injury or death. Use trauma relief straps to reduce the effects of suspension trauma.

Labels
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
14 85021 (Rev. M)
User must inspect prior to EACH use. Competent
Person must complete formal inspection every
12 months. Competent Person to inspect and initial.
Date of First Use: __________________.
Product lifetime is indefinite as long as
equipment passes pre-use and
Competent Person inspections.
20___ 20___20___ 20___20___
INSPECTION GRID
J
F
M
A
M
J
J
A
S
O
N
D
If equipment fails inspection
IMMEDIATELY REMOVE FROM SERVICE
DO NOT REMOVE LABELS
YR
MO
!
WARNING
1-800-466-6385
guardianfall.com
Permanent Adjustable Standing Seam Roof Anchor
Part #: 53221
Compliant with all OSHA 1910, 1926 Subpart M,
ANSI Z359.18-2017, and ANSI A10.32-2012 regulations.
Prior to use, read and understand all manufacturer’s
instructions provided with equipment at
time of shipment from manufacturer.
Worker capacity: 130-420 lbs. (including all equipment).
Material: Aluminum and stainless steel.
Qualified Person must ensure roof seam compatibility.
Prior to use, ensure all Set Screws are torqued correctly.
Refer to instructions for installation requirements
and for a list of compatible standing seam roofs.
90027 (Rev. F)
Assembled in USA
MAXIMUM 1 connection per anchor.
Avoid contact with hazards, including, but not limited to, heat,
chemicals, electricity, and sharp or abrasive edges and surfaces.
All PFAS equipment must be selected and
deemed compatible by Competent Person.
Only make compatible connections.
Refer to instructions for proper connection methods.
Type A anchorage connector.
5,000 lb. MBS (minimum breaking strength).
Minimum service temperature: -30° F.
DOM: Serial #:
