Product Name: Adjustable Skyhook Anchor
Instruction Manual
Part #: 00342
Do not throw away these instructions!
Read and understand these instructions before using equipment!
Introduction 1
Applicable Safety Standards 1
Worker Classifications 1
Safety Information 6 - 7
Product Specific Applications 1 - 2
Limitations 2 - 3
Components and Specifications 4
Maintenance, Cleaning, and Storage 5
Inspection 5
Installation and Use 4 - 5
Inspection Log 6
Labels 7

Introduction
Thank you for purchasing a Guardian Fall
Protection Adjustable Skyhook Anchor. This
manual must be read and understood in its
entirety, and used as part of an employee
training program as required by OSHA or
any applicable state agency.
This and any other included instructions
must be made available to the user of the
equipment. The user must understand how
to safely and effectively use the Adjustable
Skyhook Anchor, and all fall safety
equipment used in combination with the
Adjustable Skyhook Anchor.
User Information
Date of First Use:
Serial #:
Trainer:
User:
Applicable Safety Standards
When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926
Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 standards for fall protection. Note that if
installing onto wood or metal this product is compliant with OSHA only. This product has been tested in
compliance with the requirements of ANSI/ASSE Z359.7. Testing only covers hardware and does not extend to
the anchorage or substrate to which this product is attached. Applicable standards and regulations depend on
the type of work being done, and also might include state-specific regulations. Consult regulatory agencies for
more information on personal fall arrest systems and associated components.
Worker Classifications
!
CAUTION
Understand the following definitions of those who
work near or who may be exposed to fall hazards.
Qualified Person: A person with an accredited degree or certification, and with extensive experience or
sufficient professional standing, who is considered proficient in planning and reviewing the conformity of fall
protection and rescue systems.
Competent Person: A highly trained and experienced person who is ASSIGNED BY THE EMPLOYER to be
responsible for all elements of a fall safety program, including, but not limited to, its regulation, management,
and application. A person who is proficient in identifying existing and predictable fall hazards, and who has
the authority to stop work in order to eliminate hazards.
Authorized Person: A person who is assigned by their employer to work around or be subject to potential or
existing fall hazards.
It is the responsibility of a Qualified or Competent person to supervise the job site and ensure all
applicable safety regulations are complied with.
Guardian Fall Protection
1
PRODUCT COMPLIANCE OSHA 1910 & OSHA 1926 Subpart M ANSI Z359.18 & ANSI A10.32
Wood Installations
Metal Installations
Concrete Installations
YES
YES
YES YES
NO
NO

Guardian Fall Protection
2
Product Specific Applications
Personal Fall Arrest: Adjustable Skyhook Anchor may be used to support a MAXIMUM 1 PFAS for
use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted
by the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if used in combination
with equipment explicitly certified for such use. Applicable D-ring: Dorsal.
Restraint: Adjustable Skyhook Anchor may be used in Restraint applications. Restraint systems
prevent workers from reaching the leading edge of a fall hazard. Always account for fully deployed
length of lanyard/SRL. Structure must withstand loads applied in the directions permitted by the
system of at least 1,000 lbs. No free fall is permitted. Restraint systems may only be used on
surfaces with slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side,
Shoulder.
!
WARNING
Use of equipment in unintended applications may result in serious
injury or death. Maximum 1 attachment per connection point.
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is 130-420 lbs.
Limitations

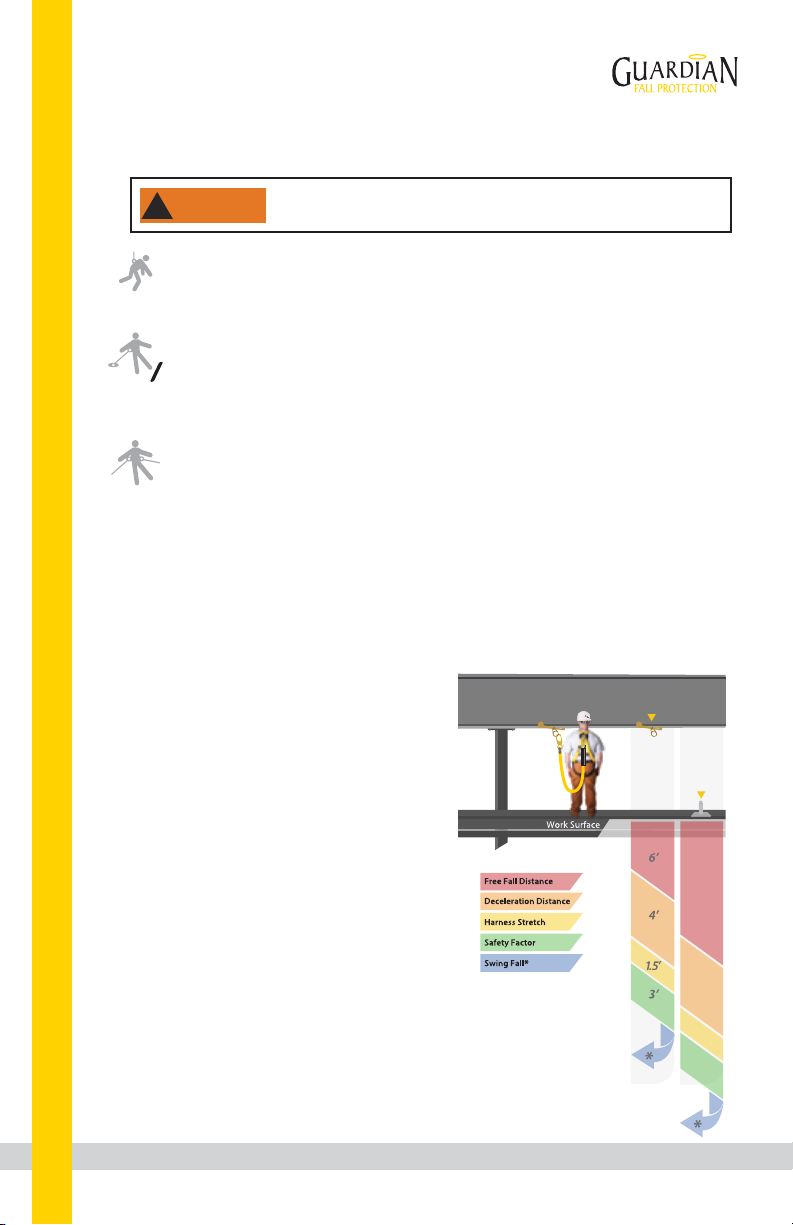

Fall Clearance: There must be sufficient
clearance below the anchorage connector
to arrest a fall before the user strikes the
ground or an obstruction. When calculating
fall clearance, account for a MINIMUM 3’
safety factor, deceleration distance, user
height, length of lanyard/SRL, harness
stretch, and all other applicable factors.
Diagram shown is an example fall
clearance calculation ONLY.
Swing Falls: Prior to installation or use, make
considerations for eliminating or minimizing
all swing fall hazards. Swing falls occur when
the anchor is not directly above the location
where a fall occurs. Always work as close to in
line with the anchor point as possible. Swing
falls significantly increase the likelihood of
serious injury or death in the event of a fall.
Work Positioning: Adjustable Skyhook Anchor may be used in Work Positioning applications. Work
Positioning systems allow a worker to be supported while in suspension and work freely with
both hands. Structure must withstand loads applied in the directions permitted by the system of
at least 3,000 lbs. Maximum allowable free fall is 2’. Applicable D-rings: Side, Shoulder.
Fall clearance calculation shown based on standing
worker falling directly in-line with anchor point.
Always consider potential swing fall and other
hazards when calculating fall clearance.
*Eliminate Swing Fall whenever
possible! If Swing Fall exists,
always account for additional
fall clearance.
1.5’
3’
12’
5’
Anchor Point
at Foot Level
12’ Free Fall
Lanyard
Anchor Point
Level w/Dorsal D-ring
6’ Free Fall
Lanyard

Ø: Total Working Angle
X: Working Distance
Along Leading Edge
Y: Distance From
Leading Edge
X
Y
ø
X
Leading Edge
Guardian Fall Protection
3
Connector
closed and
locked to
D-ring. OK.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Two connectors
to same
D-ring. NO.
Connector
directly to
horizontal
lifeline. NO.
Connector
to integral
lanyard.
NO.
Connector
directly to
webbing.
NO.
Application
that places
load on gate.
NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.
Correct Anchorage Positioning:
This chart details allowable working zones required
to reduce risk of swing falls and improper side loading.
ALWAYS adhere to information specified by chart.
Anchor Distance
From
Leading Edge (Y)
Working Distance
Along Roof Edge
(Either Direction) (X)
Working Angle
From
Perpendicular (Ø)
6’
10’
15’
20’
25’
30’
35’
40’
45’
50’
55’
60’
8’
9’ - 9”
11’ - 7”
13’ - 3”
14’ - 6”
16’
17’ - 2”
18’ - 3”
19’ - 4”
19’ - 10”
21’ - 4”
22’ - 3”
53°
45°
38°
33°
30°
28°
26°
24°
23°
21°
21°
21°
For example, if the anchorage connector is 6’ from the leading
edge (Y), the working distance (X) is 8’ in each direction from
the perpendicular, which translates to a 53° working angle.
Compatibility: When making connections with Adjustable Skyhook Anchor, eliminate all possibility of roll-out.
Roll-out occurs when interference between a hook and the attachment point causes the hook gate to
unintentionally open and release. All connections must be selected and deemed compatible with Adjustable
Skyhook Anchor by a Competent Person. All connector gates must be self-closing and self-locking, and
withstand minimum loads of 3,600 lbs. See the following for examples of compatible/incompatible
connections:

Guardian Fall Protection
4
Installation and Use

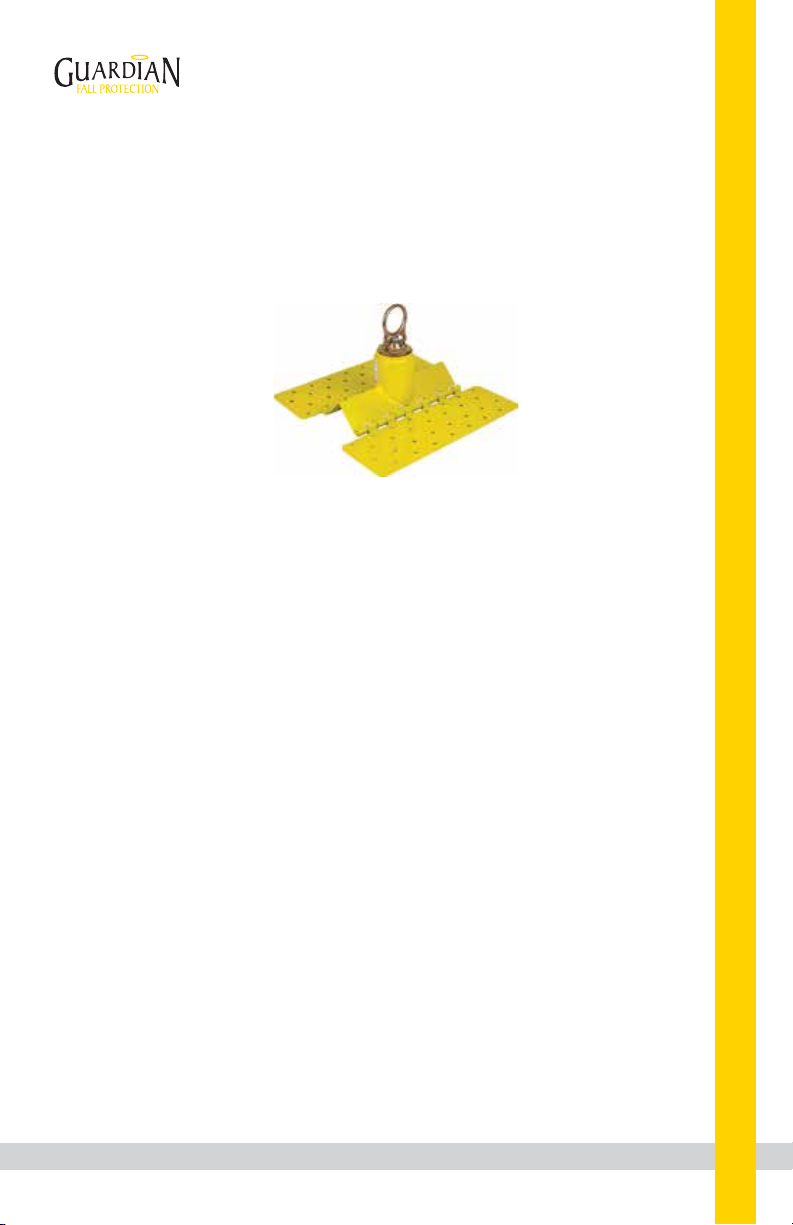

Components and Specifications
Type A anchorage connector.
Minimum permitted service
temperature: -30° F.
5,000 lb. MBS (minimum
breaking strength).
Materials: powder-coated steel.
Fastener
Installation
Holes
(60 total,
30 per side)
MINIMUM substrate requirements:
• Wood: 3/4” CDX plywood (for all fasteners)
and 3“ support beam (for minimum 4 fasteners).
• Metal: 20 gauge.
• Concrete: 6” (must be 2,000 psi or greater).
*Wood and metal installations compliant with
OSHA only. Concrete installation compliant with
both OSHA and ANSI.
Adjustable Skyhook Anchor MUST install flush against substrate.
1. Determine desired location for anchor; ensure location is free of debris, rot, decay, cracking, and hazardous
materials. NEVER install on gable ends, fascias, rake ends, overhangs, bottom cords, collar boards, spliced
sections, or substrate incapable of withstanding application minimum loads. If unable to determine suitable
installation location, consult jobsite Qualified Person.
2. Make considerations for eliminating or minimizing swing fall hazards.
3. Adjustable Skyhook Anchor is compatible with roof pitches from flat to 12/12. ALWAYS measure roof pitch
prior to installation. NEVER use Adjustable Skyhook Anchor incompatible with roof pitch.
4. Adjustable Skyhook Anchors MUST be placed a MINIMUM 10’ from all leading edges of fall hazards.
5. Ensure all fasteners are those supplied by Guardian Fall Protection, or are deemed compatible by a
Competent Person. All fastener installation holes MUST be filled. Installations must be done directly on
substrate, and never through any intermediary substrates.
- If installing onto wood, a minimum of 4 fasteners must fully embed into truss or underlying support beam.
- If installing onto concrete, use qty. 15 fasteners per side. Fill two full rows closest to center (on each side).
- If removing and reinstalling a Adjustable Skyhook Anchor, fully inspect the anchor according to instruction
inspection specifications. DO NOT reuse if any signs of damage or defects are found. ALWAYS use new
fasteners for each new installation application.
Substrate fastener requirements:
• Wood: #14 x 10, 2” wood deck screws. Qty. 60.
• Metal: #14 x 10, 2” metal deck screws. Qty. 60.
• Concrete: ¼“ x 2¾” concrete bolts. Qty. 30
Connection point

Guardian Fall Protection
5
Maintenance, Cleaning, and Storage
If Adjustable Skyhook Anchor fails inspection in any way, immediately remove it from service, and contact
Guardian to inquire about its return or repair. Field serviceability testing is not required, and should not be
done by the end user.
Cleaning after use is important for maintaining the safety and longevity of Adjustable Skyhook Anchor.
Remove all dirt, corrosives, and contaminants from Adjustable Skyhook Anchor before and after each use. If
Adjustable Skyhook Anchor cannot be cleaned with plain water, use mild soap and water, then rinse and
wipe dry. NEVER clean Adjustable Skyhook Anchor with corrosive substances.
When not in use, store equipment where it will not be affected by heat, light, excessive moisture, chemicals,
or other degrading elements.
Prior to EACH use, inspect Adjustable Skyhook Anchor for deficiencies, including, but not limited to, corrosion,
deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating,
alteration, and missing or illegible labels. IMMEDIATELY remove Adjustable Skyhook Anchor from service if
defects or damage are found, or if exposed to forces of fall arrest.
Ensure that applicable work area is free of all damage, including, but not limited to, debris, rot, rust, decay,
cracking, and hazardous materials. Ensure that selected work area will support the application-specific
minimum loads set forth in this instruction manual. Work area MUST be stable.
At least every 12 months, a Competent Person other than the user must inspect Adjustable Skyhook Anchor.
Competent Person inspections MUST be recorded in inspection log in instruction manual and on
equipment inspection grid label. The Competent Person must sign their initials in the box
corresponding to the month and year the inspection took place.
During inspection, consider all applications and hazards Adjustable Skyhook Anchor have been subjected to.
Inspection
6. Connect to Adjustable Skyhook Anchor with complete and compatible PFAS.
7. Adjustable Skyhook Anchor is rated for loading in any direction provided it is installed as prescribed. Suitable
for use in HLL applications.
Adjustable Skyhook Anchors must be properly flashed when used in permanent applications. It is the
responsibility of the installer/roofer to properly flash this anchor.

Guardian Fall Protection
6
Safety Information
Failure to understand and comply with safety regulations may result in
serious injury or death. Regulations included herein are not all-inclusive,
are for reference only, and are not intended to replace a Competent
Person’s judgment or knowledge of federal or state standards.
!
WARNING
Inspection Log
If equipment fails inspection IMMEDIATELY REMOVE FROM SERVICE.
Date of First Use: __________________.
Product lifetime is indefinite as long as it
passes pre-use and Competent Person
inspections. User must inspect prior to
EACH use. Competent Person other than
user must complete formal inspection at
least every 12 months. Competent Person
to inspect and initial.
This inspection log must be specific to one Adjustable Skyhook Anchor. Separate inspection logs must
be used for each Adjustable Skyhook Anchor. All inspection records must be made visible and available
to all users at all times.
Do not alter equipment. Do not misuse equipment.
Workplace conditions, including, but not limited to, flame, corrosive chemicals, electrical shock, sharp objects,
machinery, abrasive substances, weather conditions, and uneven surfaces, must be assessed by a Competent
Person before fall protection equipment is selected.
The analysis of the workplace must anticipate where workers will be performing their duties, the routes they
will take to reach their work, and the potential and existing fall hazards they may be exposed to. Fall
protection equipment must be chosen by a Competent Person. Selections must account for all potential
hazardous workplace conditions. All fall protection equipment should be purchased new and in an unused
condition.
Fall protection systems must be selected and installed under the supervision of a Competent Person, and used
in a compliant manner. Fall protection systems must be designed in a manner compliant with all federal, state,
and safety regulations. Forces applied to anchors must be calculated by a Competent Person.
Unless explicitly stated otherwise, the maximum allowable free fall distance for lanyards must not exceed 6’.
No free fall allowed for non-LE SRLs. Class A SRLs must arrest falls within 24”; Class B SRLs must arrest falls
within 54”.
Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of
compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied
in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be
self-locking and self-closing, and must never be connected to each other.

Guardian Fall Protection
785340 (Rev. A)
Labels
A pre-planned rescue procedure in the case of a fall is required. The rescue plan must be project-specific. The
rescue plan must allow for employees to rescue themselves, or provide an alternative means for their prompt
rescue. Store rescue equipment in an easily accessible and clearly marked area.
Training of Authorized Persons to correctly erect, disassemble, inspect, maintain, store, and use equipment
must be provided by a Competent Person. Training must include the ability to recognize fall hazards, minimize
the likelihood of fall hazards, and the correct use of personal fall arrest systems.
NEVER use fall protection equipment of any kind to hang, lift, support, or hoist tools or equipment, unless
explicitly certified for such use.
Equipment subjected to forces of fall arrest must immediately be removed from use.
Age, fitness, and health conditions can seriously affect the worker should a fall occur. Consult a doctor if there
is any reason to doubt a user’s ability to withstand and safely absorb fall arrest forces or perform set-up of
equipment. Pregnant women and minors must not use this equipment.
Physical harm may still occur even if fall safety equipment functions correctly. Sustained post-fall suspension
may result in serious injury or death. Use trauma relief straps to reduce the effects of suspension trauma.
DO NOT REMOVE LABELS
If equipment fails inspection
IMMEDIATELY REMOVE FROM SERVICE
User must inspect prior to EACH use. Competent Person must complete
formal inspection every 12 months. Competent Person to inspect and initial.
INSPECTION GRID
Date of First Use: __________________. Product lifetime is indefinite as
long as equipment passes pre-use and Competent Person inspections.
YR J F M A M J J A S O N D
20____
20____
20____
20____
20____
!
WARNING
www.guardianfall.com 1-800-466-63856305 St. 231st St., Kent, WA 98032
Compliant with OSHA 1910, OSHA 1926 Subpart M, ANSI A10.32-2012, and
ANSI Z359.18-2017* regulations. *Depending on application. Refer to instructions for
more details. Type A anchorage connector.
Prior to use, read and understand all instructions provided with equipment.
All fasteners, equipment, and connections must be selected and deemed compatible
with the Skyhook Anchor by a Competent Person. All fastener holes MUST be filled.
Maximum 1 connection per anchor.
Avoid contact with all hazards, including, but not limited to,
sharp edges, electricity, corrosion, and high heat.
Skyhook Anchor
Materials: Powder-coated steel.
Capacity range: 130-420 lbs. (including all equipment)
90050 (Rev. C)
Only make compatible connections. Refer to instructions.
Part #: 00342
DOM:
Serial #:
5,000 lb. MBS (minimum breaking strength).
Compatible
roof pitch: Flat - 12/12
Minimum service temperature: -30° F.
Distributed by Engineered Fall Protection | [email protected] | [phone] | www.EngineeredFallProtection.com
