GWINNER MISANO R5516 User manual

1MISANO INSTALLATION
INSTALLATION
MISANO
Qualied specialist personnel

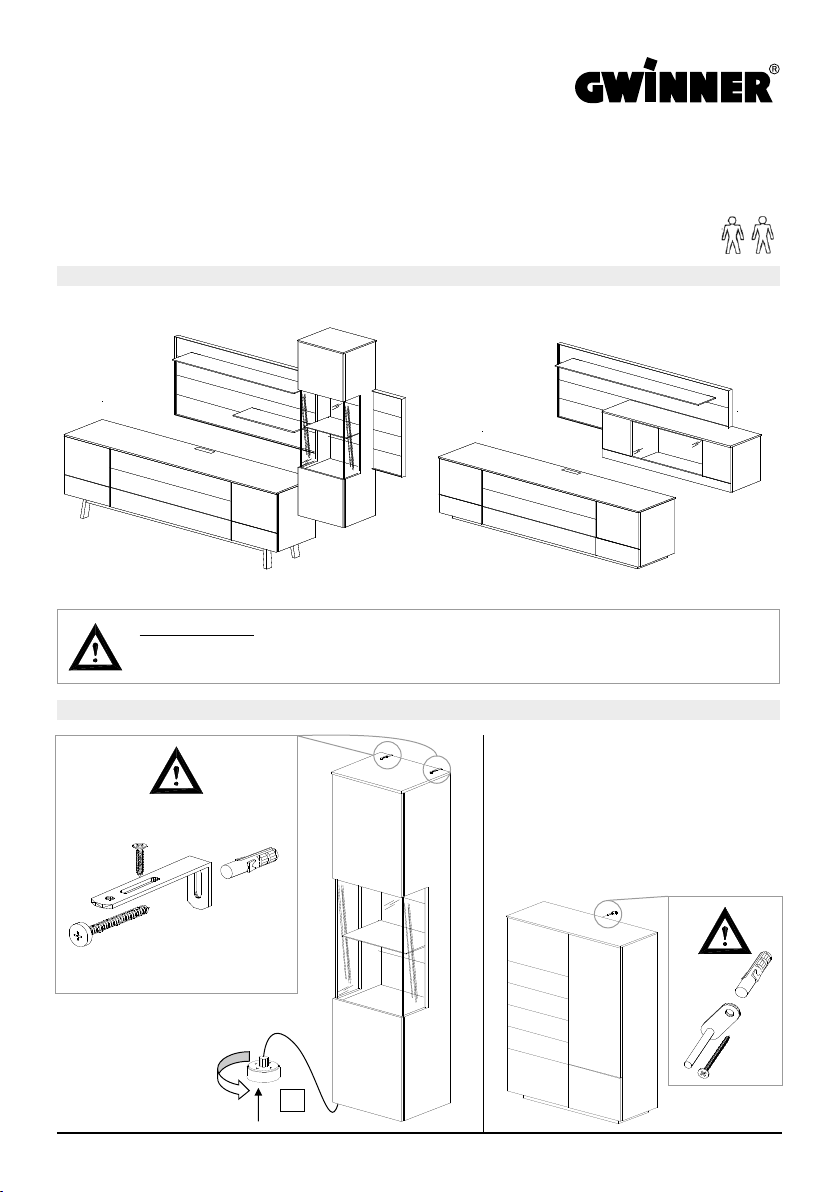

IMAGE 1, Example walls MI2 and MI7

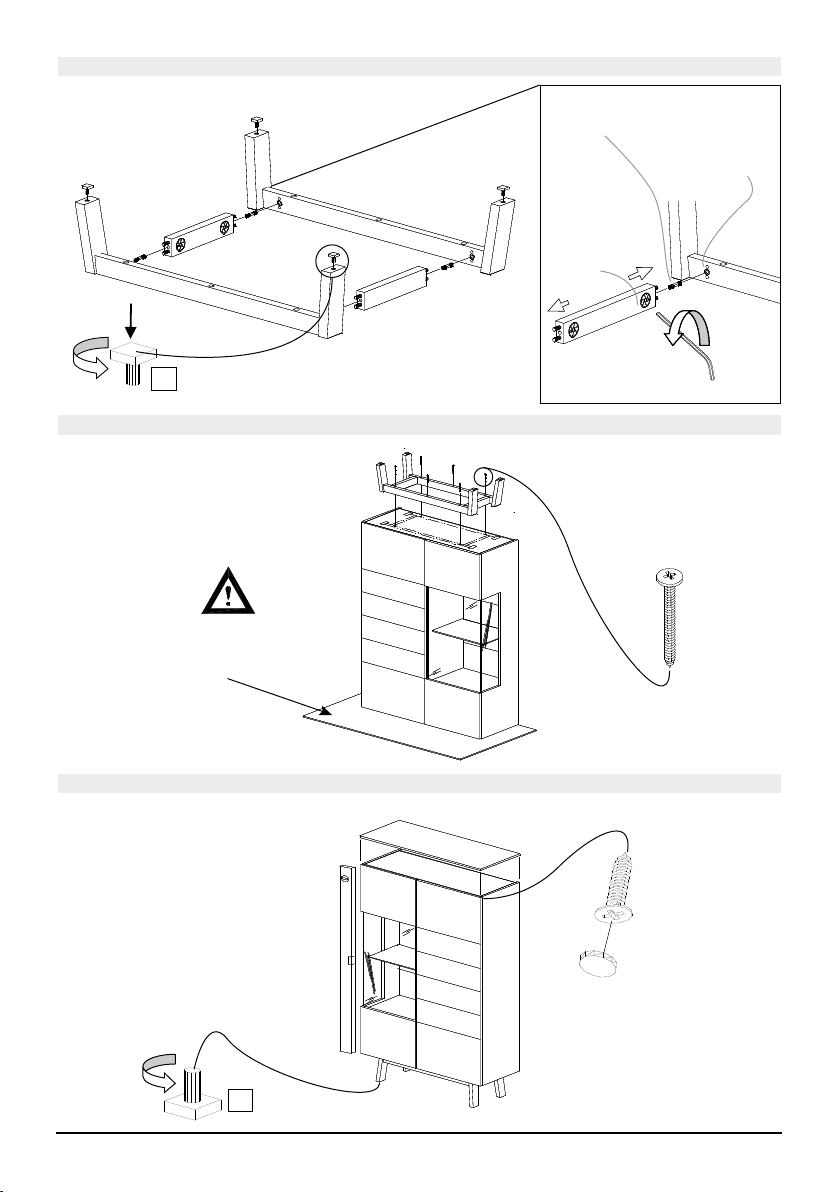

IMAGE 2, Fitting the anti-tip mechanism
On all 8-increment U cabinets, a fixing
bracket with metal pins is fitted as an
anti-tip mechanism. A 5x60 mm
countersunk screw and an 8-mm-dia.
plastic wall plug is used to do so. The
13-mm cover panel only covers the
fittings on angled assemblies.
+/-
Push the levelling gliders
into the intended holes
and align the cabinets
FROM R5516 ONWARDS
PLEASE NOTE!
CAUTION! Follow the specications carefully when tting wall units. Secure all
elements that may tip with the anti-tip mechanisms supplied.
Wall plug,
dia. 8 mm
4x17 fillisterhead
screw
5.5x70
cylinderhead screw

+/-
SW 5
2
1
Wall panel
Glass shelf
2MISANO INSTALLATION
WPG4-162L
WPG4-162R
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
5.5x70 cylinder-head screw
and 8-mm wall plug

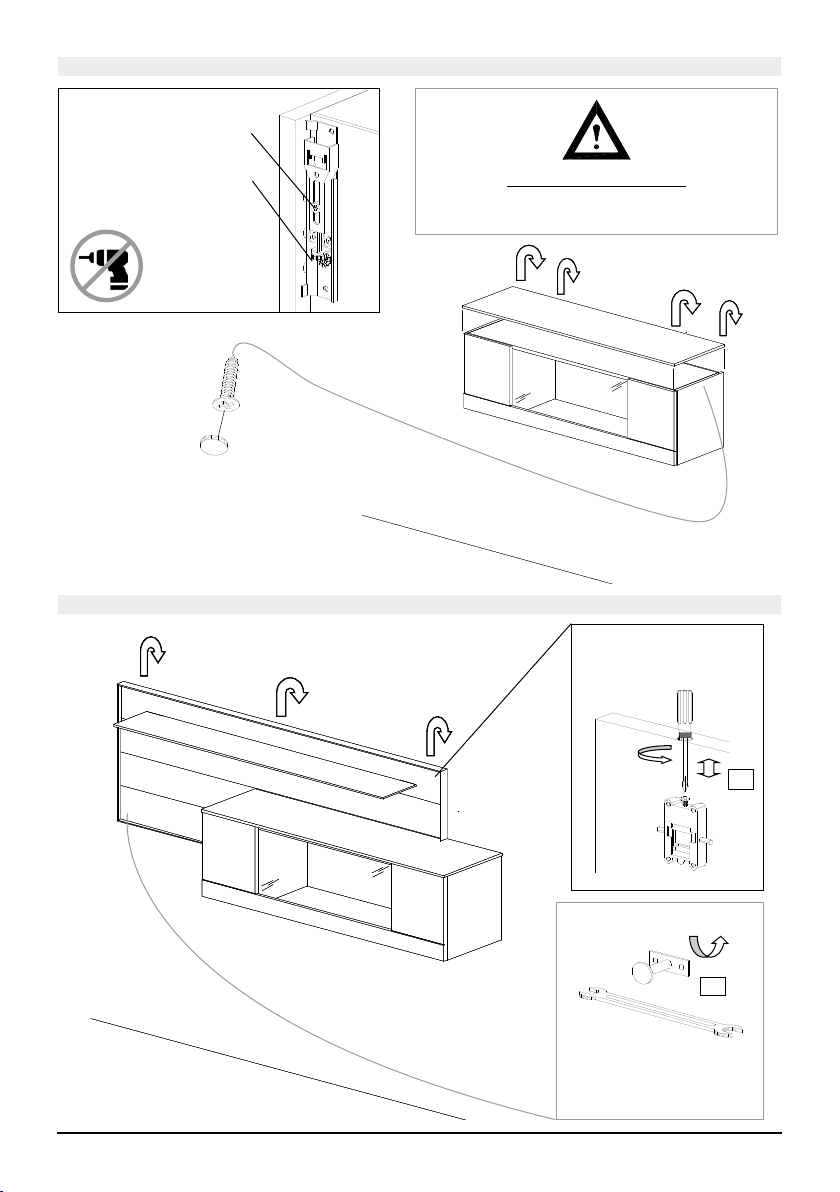

IMAGE 3, Securing the glass shelf to the wall panel
IMAGE 4, Drilling the wall panels and wall unit
Slide the glass shelf into
the wall panel.
Securely x the
glass shelf in place
and adjust the angle.
Drill five 8-mm wall plugs
and screw in the wall hook

+/-
+/-
2
+/-
+/-
3
1Hang wall
panel
WP4-1
WP4-2
3MISANO INSTALLATION
Adjusting
wall panels
Set the wall panel
angle using the AF8
spanner wrench
Upper adjustment screw
= depth adjustment
Lower adjustment screw
= height adjustment
Adjusting the wall units –
Caution! Check from above that all
ttings have been tted in the rails.
Hanging the
wall unit
Cover cap
d = 12 mm
Secure the 13-mm
cover panels at the
marked points from
the inside.
(4x27mm countersunk
screw and cover caps
in the carcase colour)

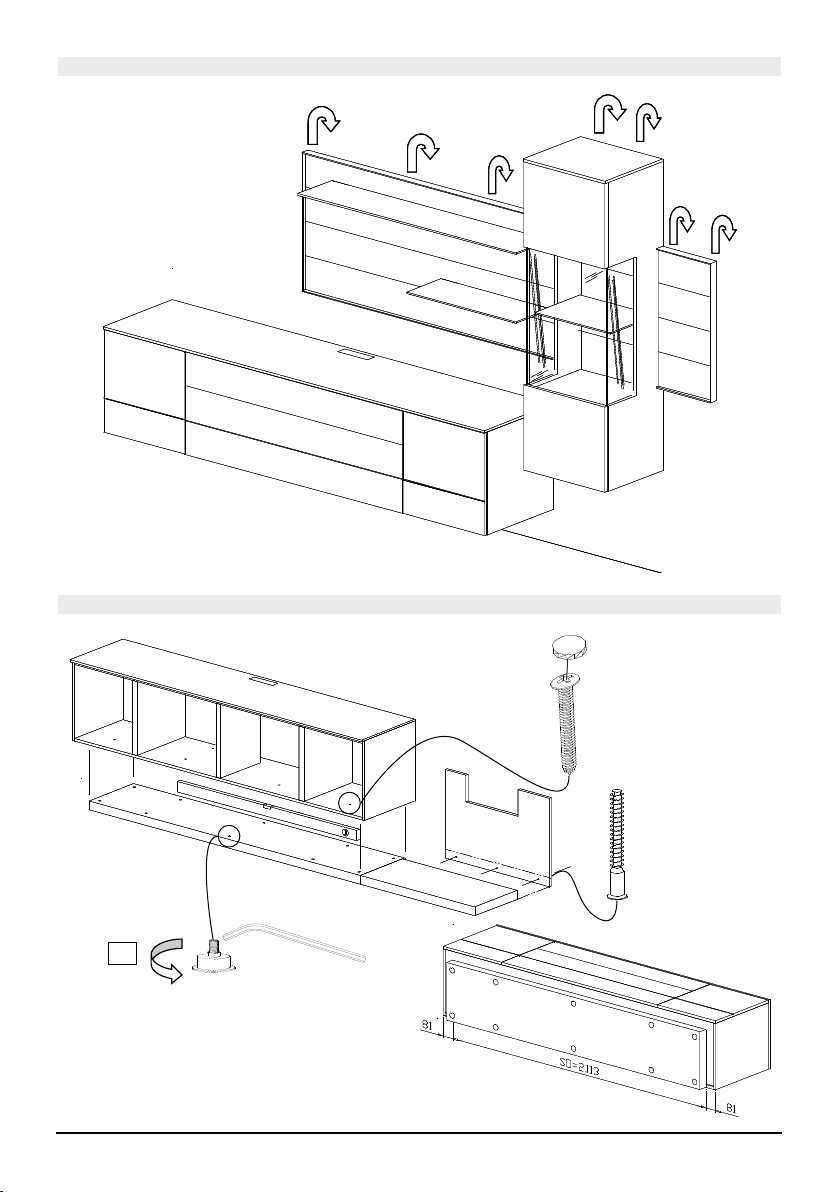

IMAGE 5, Hanging the wall unit, securing the cover panel
IMAGE 6, Hanging the wall panel

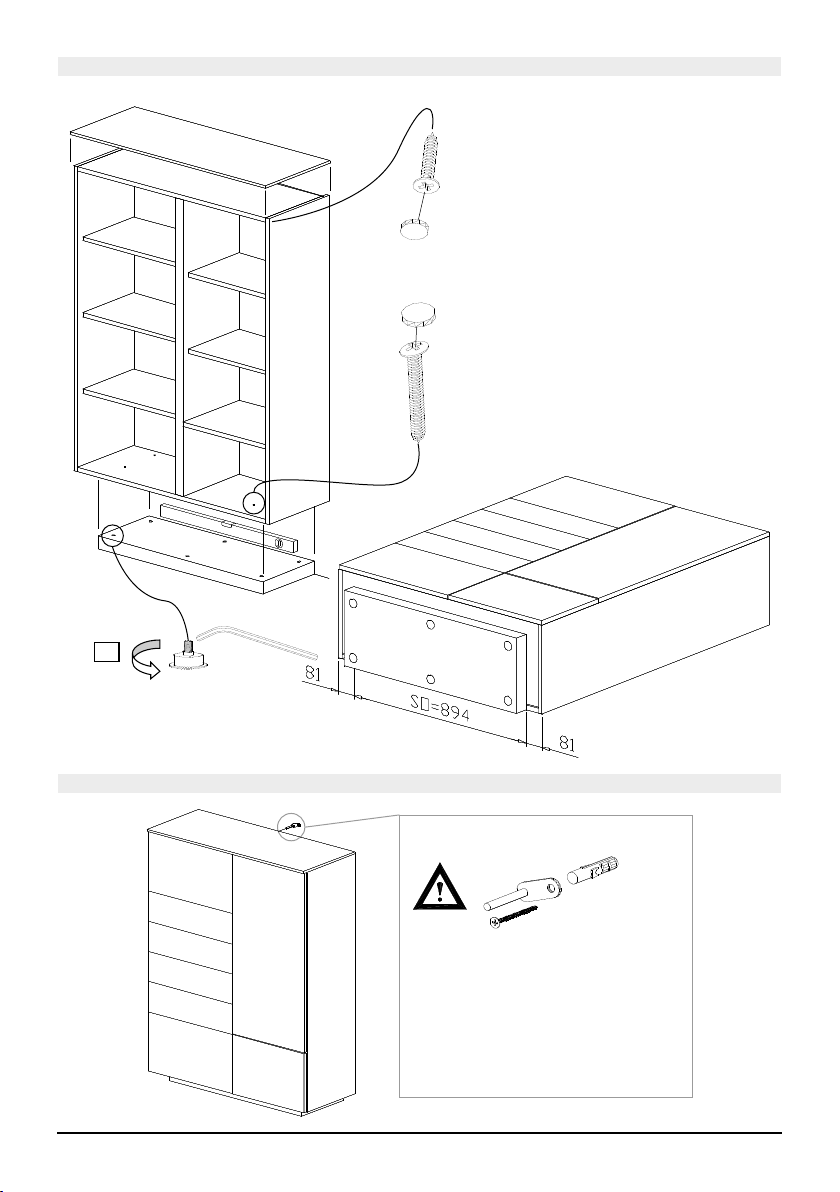

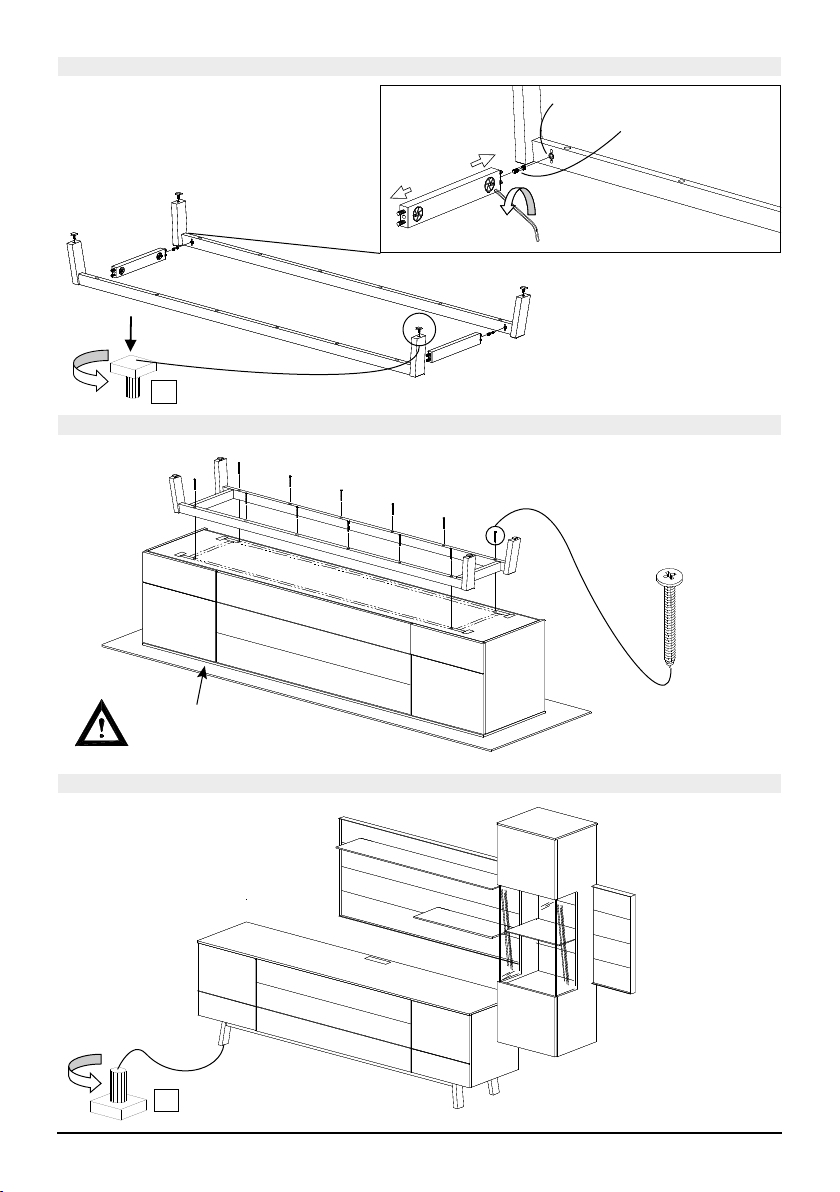

IMAGE 7, Connecting the base panel
IMAGE 8, Securing the base panel
IMAGE 9, Aligning the cabinet
+/-
+/-
Maxi eccentric
connector
Note direction
of arrow.
Threaded socket pre-fitted
Bolts for maxi
eccentric connector
Hexagon
spanner AF6
4MISANO INSTALLATION
Base with 12x plate
screws 4.5 x 60 mm
at marked points
Use cardboard
Scratch protection
Screw in four M8 x 20 mm adjustable gliders

+/-
SW 5
2
WPG4-195L
WPG4-195R
5MISANO INSTALLATION
Caution: Take other installation heights and widths from the measurements system provided
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
5.5x70 cylinder-head screw
+ 8-mm wall plug
+ 4x support plate
1
IMAGE 10, Securing the glass shelf on the wall panel
IMAGE 11, Drilling the wall panels and wall unit
Glass shelf ins
Wall panel einschieben
Securely x the glass
shelf in place and
adjust the angle.
Drill three 8-mm wall
plugs and screw in the
wall hook
Wall panel
Glass shelf

+/-
+/-
+/-
+/-
6MISANO INSTALLATION
2
Adjusting
wall panels
Set the wall panel
angle using the AF8
spanner wrench
3
1Hang wall panel
Cover cap
d = 12 mm
Secure the 13-mm cover panels
at the marked points from the inside.
(4x27mm countersunk screw and
cover caps in the carcase colour)
IMAGE 12, Hanging the wall unit, securing the cover panel
IMAGE 13, Hanging the wall panel
Upper adjustment screw
= depth adjustment
Lower adjustment screw
= height adjustment
Adjusting the wall units –
Caution! Check from above that all ttings
have been tted in the rails.
WPG4-195L
WPG4-195R

+/-
7MISANO INSTALLATION
IMAGE 14, Securing the plinth panel
IMAGE 15
4x 40 mm countersunk screw
and cover caps in the carcase
colour
Align the plinth panel
Hexagon spanner AF5
(for M10x 35)

5x Dübel 8mm bohren
und Wandhaken
eindrehen
8MISANO INSTALLATION
5.5x70 cylinder-head screw
+ 8-mm wall plug
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
IMAGE 16, Drilling the wall panels and wall units
Cylinder screw 5.5x70
+ wall plug, dia. 8 mm
+ wall rails
2x WP5-L (left)
2x WP5-R (right)
IMAGE 17, Hanging the cabinet
Adjusting the wall units
Tighten the screw no. 3,
safety catch.

+/-
9MISANO INSTALLATION
IMAGE 18, Hanging the cabinet + wall panels
IMAGE 19, Securing the plinth panel
For details,
see images 5+6
4x 40 mm countersunk
screw and cover caps
in the carcase colour
Align the plinth panel
Hexagon spanner AF5
(for M10x 35)
Secure wall panel
with 3x connecting
screws Ø 6.3 x 60 mm

The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
10 MISANO INSTALLATION
Upper adjustment screw
= depth adjustment
Lower adjustment screw
= height adjustment
IMAGE 20, Drilling the wall unit + shelf
IMAGE 21, Hanging the wall unit + shelf
5.5x70 cylinder-head screw
+ 8-mm wall plug

11MISANO INSTALLATION
IMAGE 22, Connecting the base panel
IMAGE 23, Securing the base panel
IMAGE 24, Fitting the cover panel, aligning the cabinet
+/-
+/-
Maxi eccentric
connector Note
direction of
arrow.
Bolts for
maxi eccentric
connector
Threaded socket
pre-fitted
Hexagonal
spanner AF6
Base with 6x plate
screws 4.5x60 mm
at marked points
Use cardboard
Scratch protection
Screw in four M8x 20 mm adjustable glider
Cover cap,
d= 12mm
HB2
MI41

+/-
Align the plinth panel
Hexagon spanner AF5
(for M10x 35)
HB49
MI51
12 MISANO INSTALLATION
IMAGE 25, Securing the plinth + cover panel
IMAGE 26, Securing the anti-tip mechanism
On all 8-increment U cabinets, a fixing
bracket with metal pins is fitted as an
anti-tip mechanism. A 5x60 mm
countersunk screw and an 8-mm-dia.
plastic wall plug is used to do so. The
13-mm cover panel only covers the
fittings on angled assemblies.
Secure the 13 mm plinth panel
at the marked points from the inside.
4x 40 mm countersunk screw and
cover caps in the carcase colour
Secure the 13 mm cover panel
at the marked points from the inside.
4x 27 mm countersunk screw and
cover caps in the carcase colour

+/-+/-+/-+/-
13MISANO INSTALLATION
IMAGE 27, Drilling the 195 cm angled shelf
IMAGE 28, Drilling the 162 cm angled shelf
IMAGE 29
+/-
+/-
Adjusting
wall panels
Drill the 8-mm wall plug
and screw in the wall
hook
Drill the 8-mm wall plug
and screw in the wall
hook
2
3
1Hang wall
panel
Set the wall
panel angle
using the AF8
spanner wrench

14 MISANO INSTALLATION
5.5x70 cylinder-head
screw and 8-mm wall
plug
5.5x70 cylinder-head
screw and 8-mm wall
plug
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
5.5x70 cylinder-head screw
+ 8 mm wall plug
+ wall rails
2x WP5-L (left)
2x WP5-R (right)
IMAGE 31, Drilling the MI3 combination
IMAGE 30, Drilling the MI1 combination
Drill the 8-mm wall plug
and screw in the wall
hook

15MISANO INSTALLATION
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
Drill the 8-mm wall plug
and screw in the wall
hook
Drill the 8-mm wall plug
and screw in the wall
hook

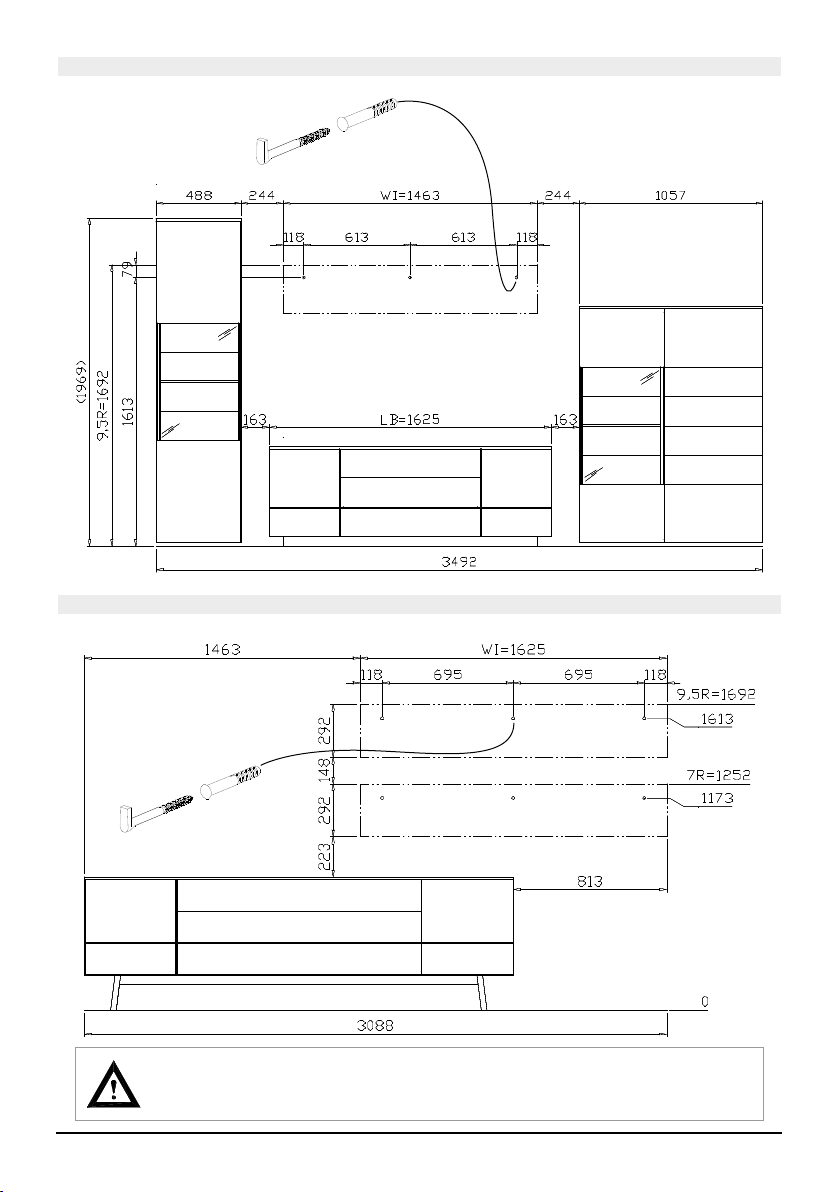

IMAGE 32, Drilling the WI146 for MI5 combination
IMAGE 33, Drilling the WI162 for MI6 combination

5.5x70 cylinder-head screw
+ 8-mm wall plug
+ wall rails
3x WP5-L (left)
3x WP5-R (right)
16 MISANO INSTALLATION
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
Drill the 8-mm wall plug
and screw in the wall hook
IMAGE 34, Drilling MI219 combination
IMAGE 35
Install units
Connect units!
(coutersunk screw
4 x 35 mm and cover caps)
2
1

12
+/-
17MISANO INSTALLATION

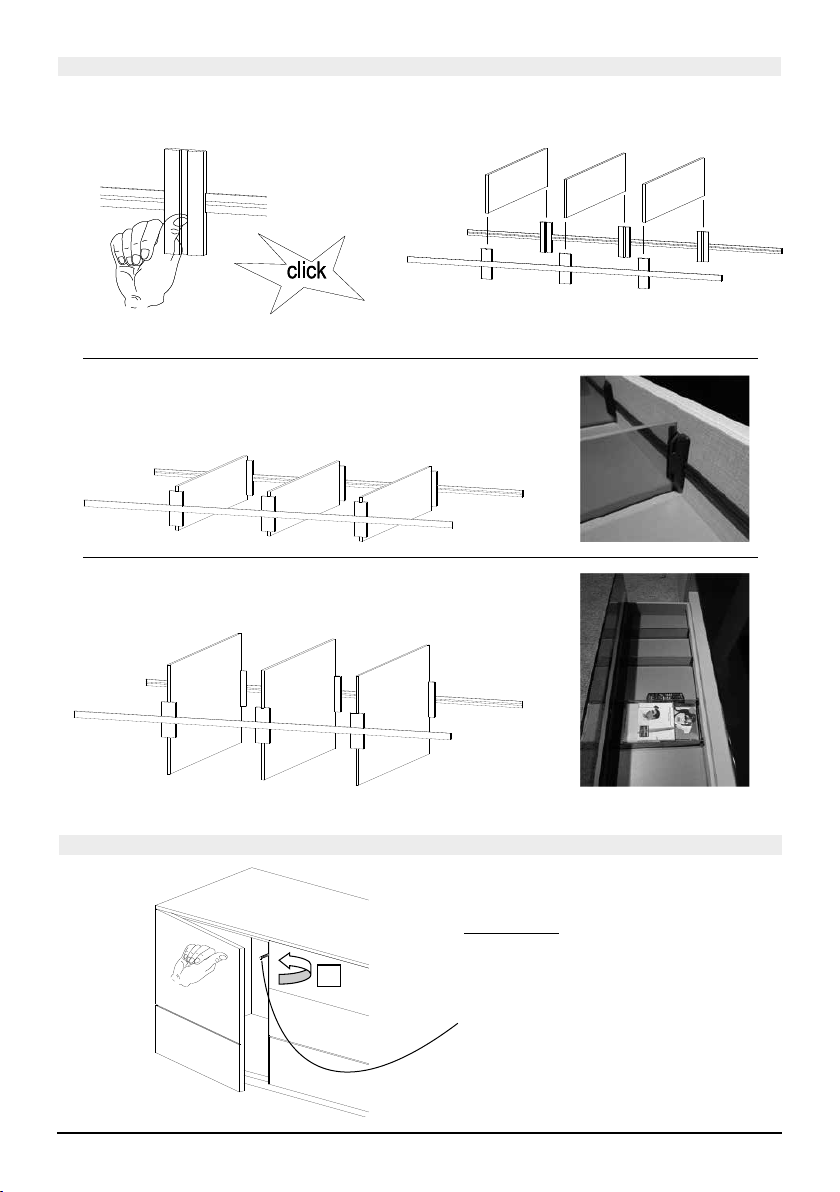

Assembling the drawer organiser
Adjusting the push mechanism
Press in the clips Slide in the glass panels
The profiles are preassembled in the drawer
EK1-65, 3 glass panels 378 x 70 x 4 mm
EK1-81, EK1-98, 4 glass panels each 378 x 70 x 4 mm
EK2-65, 3 glass panels 378 x 170 x 4 mm
EK2-81, EK2-98, 4 glass panels each 378 x 170 x 4 mm
Push ttings
fitted to the cabinet, adjustable using the
magnetic locking system
Push the door to open it.
Adjusting the front
door gap by turning.

+
-
+
-
+
-
18 MISANO INSTALLATION
Ausrichten der Türen durch Nachstellen der Scharniere
Griffe nur auf Wunsch
Drawer-height ne adjustment
Contrasting drawers always
come without handles.
Handles do not come
as standar.
Handles will only be tted
if requested by the customer.
+/-
click
On/off switch
for door
soft-close.
Align the door
vertically
Align the door horizontally
using the adjusting screw
Depth
adjustment
Hinge cover:
Use the offset cover for
offset hinges
Open
Fitting the hinge
+/-
+/-
The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating
brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material.
No liability is assumed for injuries to persons or damage to property in the event of non-compliant
and/or incorrect installation.
Caution: Important information about LED lighting:
Only connect the lights to the safety transformers in accordance with EN 61558 (VDE
570) using 12-volt direct current (DC). The total power consumption of the connected
lights (see type label) must not exceed the transformer nominal capacity.

5.5x70 cylinder-head screw
+ 8-mm wall plug
+ wall rails
2x WP5-L (left)
2x WP5-R (right)
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
19MISANO INSTALLATION

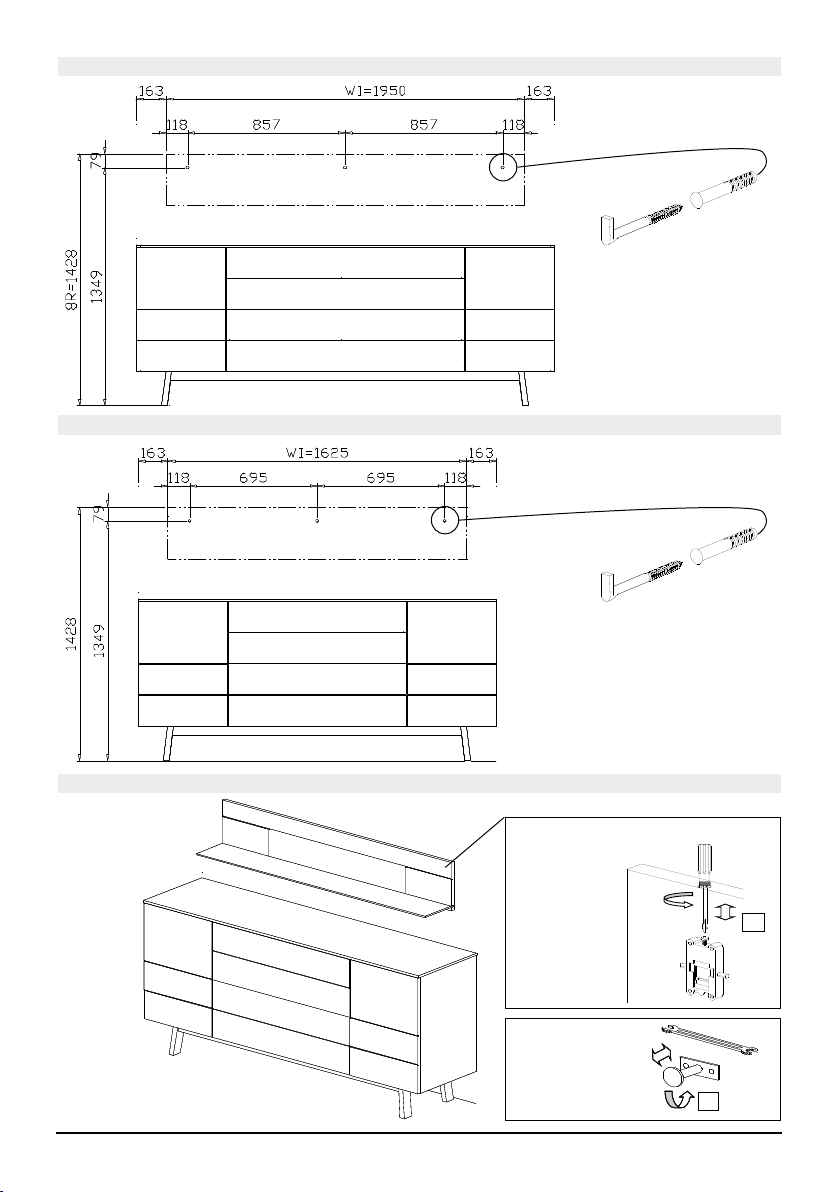

Drilling dimensions for free-standing lowboard elements
LB61
LB62
LB63

The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
20 MISANO INSTALLATION

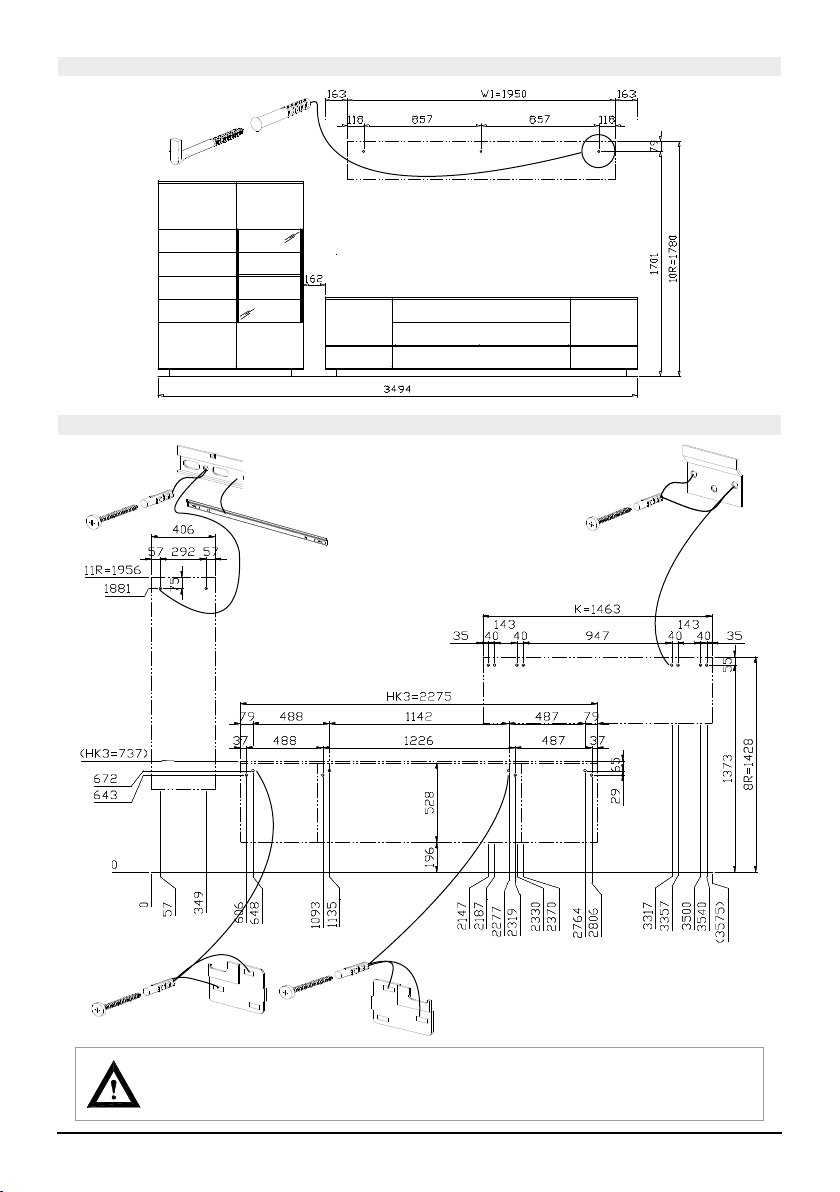

Drilling/installation dimensions for wall units
For installation height, see order service card (graphic)
Standard-Einbauhöhe 8 Raster
BohrIMAGE für Holzklappe beachten!
H9-49 Cabinet
ZH25-1 with glass cover
RH8 Shelf H65-81 Cabinet
ZH25-2 with wooden cover
