GWINNER TREVISO User manual

1GENERAL TREVISO + TOS ASSEMBLY

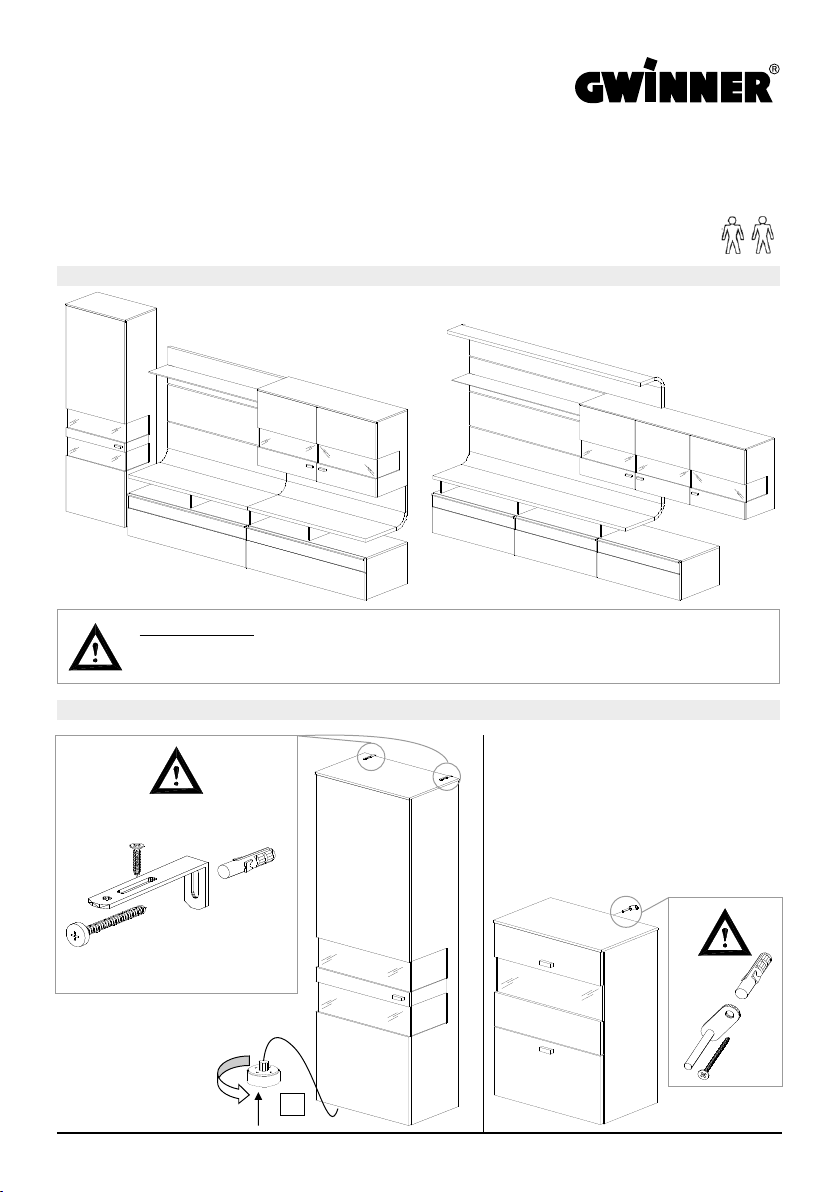

IMAGE 1 Example walls TO203 and TO201
IMAGE 2, Fitting the anti-tip mechanism
On all 5-increment and 8-increment
U cabinets, a fixing bracket with metal
pins is fitted as an anti-tip mechanism.
A 5x60 mm countersunk screw and an
8 mm-dia. plastic wall plug is used to
do so. The 12-mm cover panel only co-
vers the fittings on angled assemblies.
+/-
FROM R5424 ONWARDS
GENERAL INSTALLATION & TOS
TREVISO
Qualied specialist personnel
PLEASE NOTE!
CAUTION! Follow the specications carefully when tting wall units. Secure all
elements that may tip with the anti-tip mechanisms supplied.
Push the levelling gliders
into the intended holes
and align the cabinets
Wall plug,
dia. 8 mm
4x17 fillisterhead
screw
5.5x70
cylinderhead screw

+/-
2GENERAL TREVISO + TOS ASSEMBLY

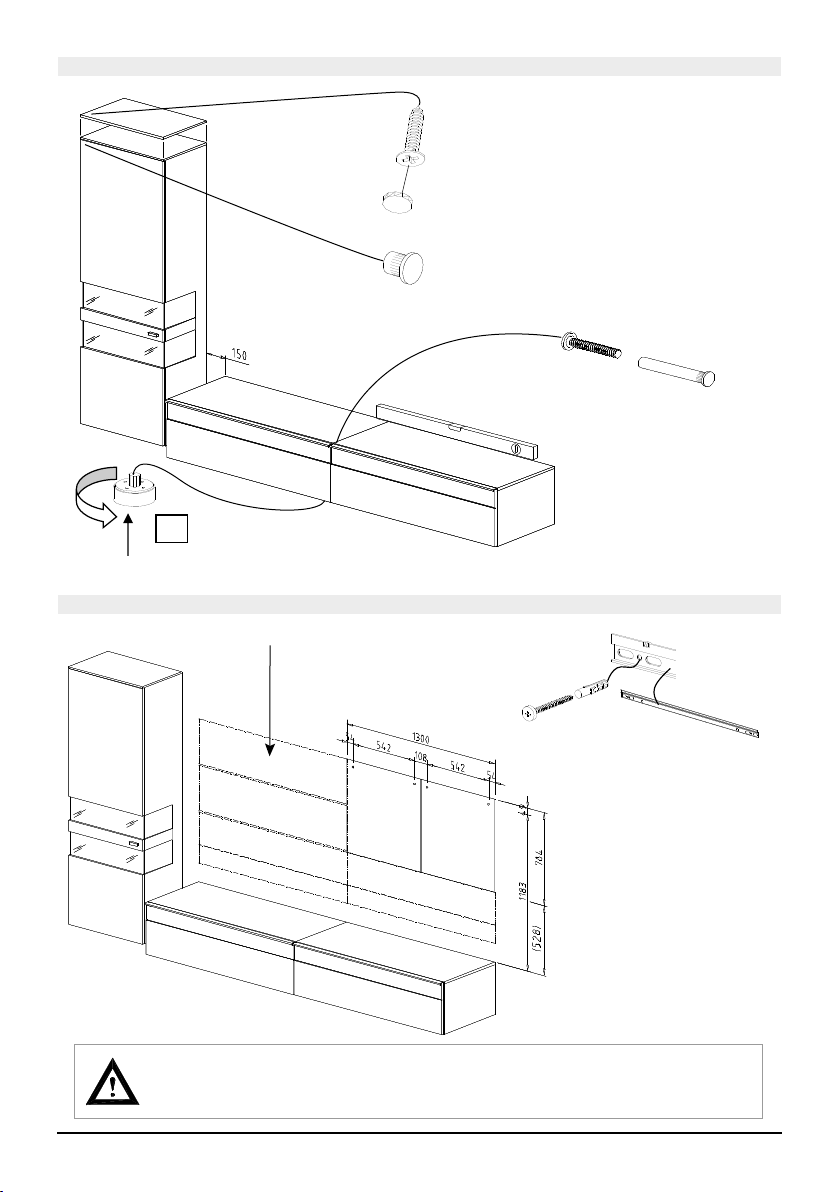

IMAGE 3, Aligning the cabinets and tting the cover panel
IMAGE 4
Secure the 12-mm cover panels at
the marked points from the inside.
Use 4x27 mm countersunk screws
and cover caps
Fit nickel-plated cover caps (dia. 5 mm) over
the unused connecting holes in the cabinet
M4x28 connecting screw
with sleeve nut
Push the levelling gliders into the intended holes and align the cabinets
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
5.5x70 cylinder-head screw
+ 8-mm wall plug
See the separate assembly instructions to assemble the wall panels.
Joining cabinets

3GENERAL TREVISO + TOS ASSEMBLY
IMAGE 5
IMAGE 6
Upper adjustment screw
= depth adjustment
Lower adjustment screw
= height adjustment
To secure the wall units to the wall, fit the hanging rails provided to the wall using 8-mm-dia. plastic
wall plugs and 5x70 mm pan-head screws (Image 4, central hole = upper carcase edge less 49 mm)
Adjusting the wall units
– Caution! Check from
above that all ttings
have been tted in the
rails.
Wall unit
See Image 2 for information on
fitting the anti-tip mechanism
See Image 3 for
information on fitting the
cover panel
Caution: Take other installation heights and widths from the measurements system

Adjusting the wall units – Caution! Check that all ttings have been used.
4GENERAL TREVISO + TOS ASSEMBLY
The wall plugs supplied are suitable for the following sub-surfaces:
Concrete, solid brick, ventilating brick, hollow concrete blocks.
If there is a different subsurface, select an appropriate fixing material.
5.5x70 cylinder-head
screw
+ 8-mm wall plug
See the separate assembly instructions to assemble the wall panels.
Upper adjustment screw = depth adjustment
Lower adjustment screw = height adjustment
IMAGE 7, Connect foot frame
IMAGE 8, Hanging the wall units

2
3
4
1
5GENERAL TREVISO + TOS ASSEMBLY
Fit the upper wall panel with shelf,
see separate assembly instructions.
Four M8x15 adjusting screws
+ 40x15x2 mounting plate
+ 3.5x17 lens-head screws
Glass shelf with holes
Upper wall panel
Lower wall panel
Fit steel wall plugs
with barrel bolt
nuts to the upper
wall panel
Fit housings to the lower
wall panel using M6 stud
bolts, join the panels and
tighten the fittings.
Always push the cable
sleeve in completely.
The sleeve or screw
must not protrude.
+/-
+/-
IMAGE 9, TO201 completed

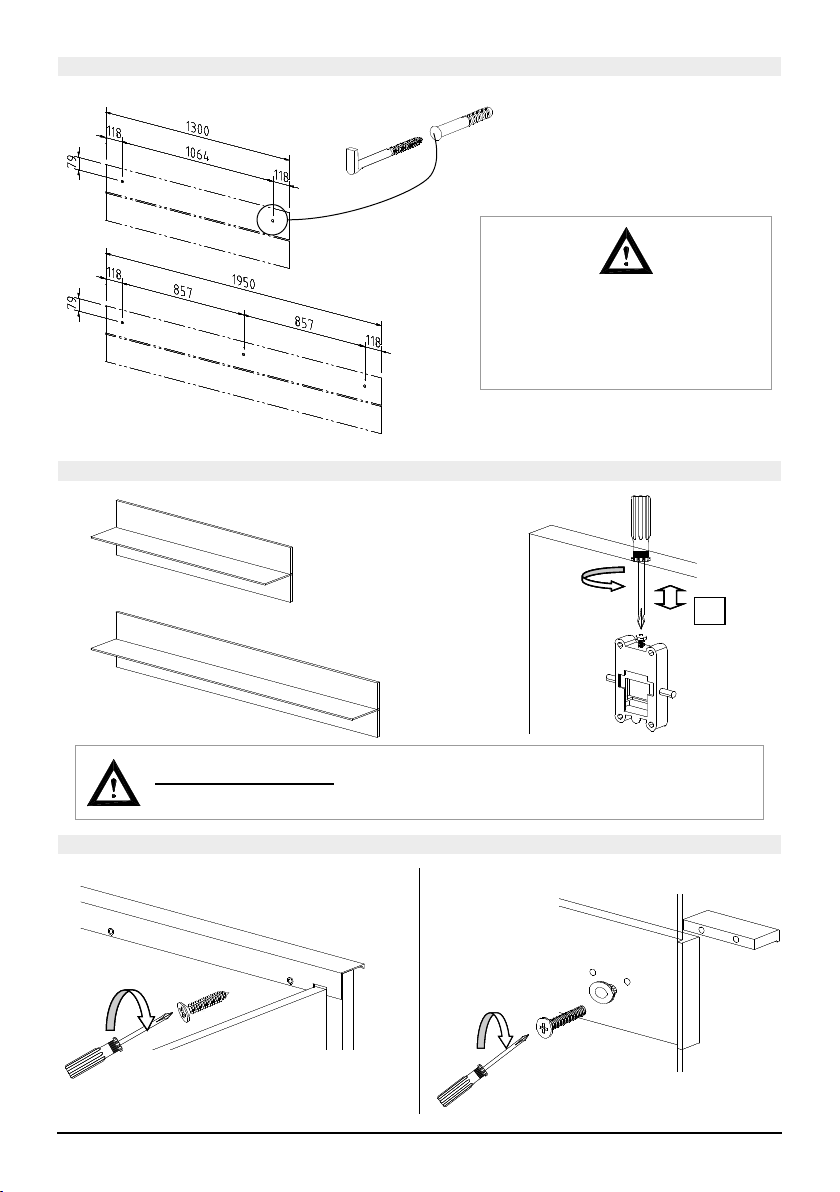

IMAGE 10, Joining 19 mm wall panels to the glass shelves

6GENERAL TREVISO + TOS ASSEMBLY
Fitting the handle on base-element drawers Fitting the handle on glass doors with double
glass cut-out
Screw in the handle using two M4x25
plate screws + two cable sleeves.
+/-+/-+/-
IMAGE 11, Drilling 19 mm wall panels
IMAGE 12, Hanging 19 mm wall panels
Handle assembly
The wall plugs supplied are
suitable for the following subsurfaces:
Concrete, solid brick, ventilating
brick, hollow concrete blocks. If there
is a different subsurface, select an
appropriate fixing material.
Drill the 8-mm wall plug and
screw in the wall hook
Adjusting
the wall panel
Fix handle with
3.5x 17 Seko screws
6 pcs for 130 cm handle,
9 pcs for 195 cm handle
Adjusting the wall panels –
Caution! Check from above that all ttings have been tted in the wall hooks.

7GENERAL TREVISO + TOS ASSEMBLY
+
-
+
-
+
-

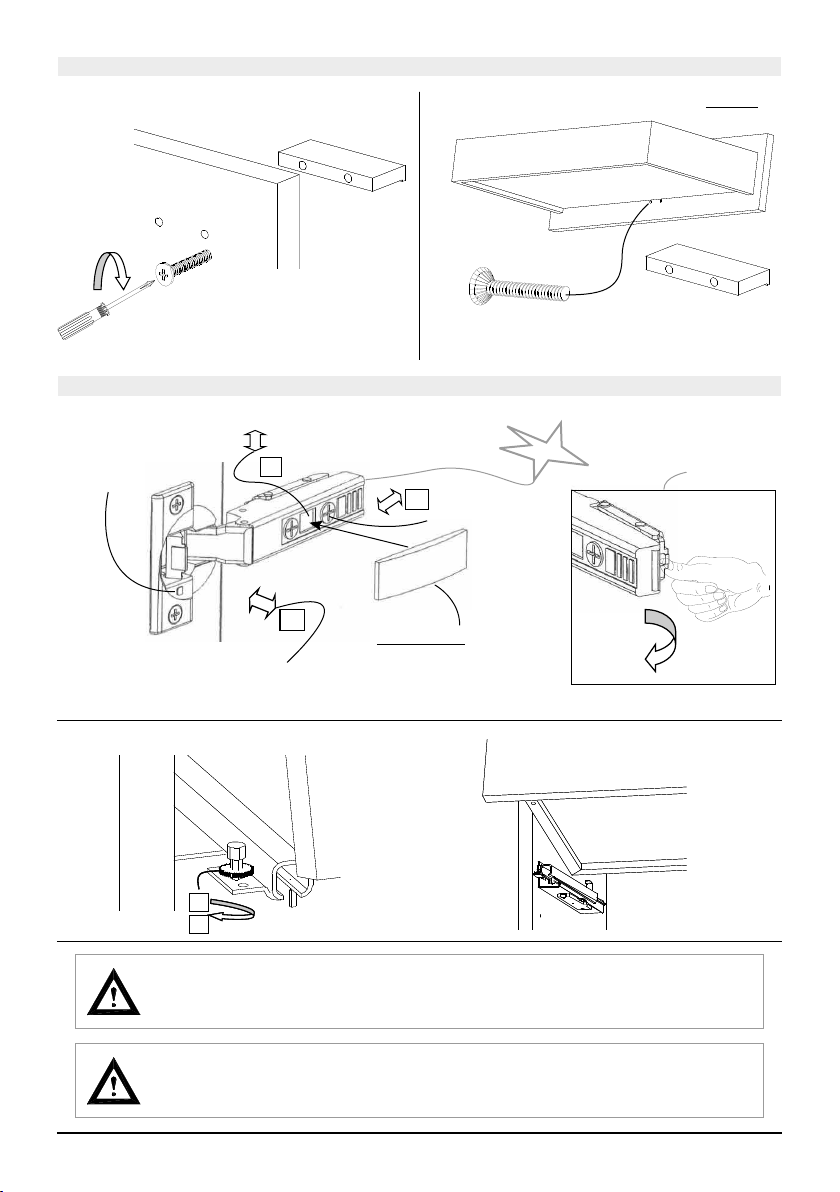

Ausrichten der Türen durch Nachstellen der Scharniere
Handle assembly for doors and drawers Fitting the handle to upper drawers „S1O-65“
Handle assembly
Handle with two countersunk screws
using two M4x25 plate screws.
Screw in the handle using two
M4x25 plate screws.
Drawer-height ne adjustment
+/-
click
On/off switch
for door
soft-close.
Align the door
vertically
Align the door horizontally
using the adjusting screw
Depth
adjustment
Hinge cover:
Use the offset cover for
offset hinges
Open
Fitting the hinge
+/-
+/-
The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating
brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material.
No liability is assumed for injuries to persons or damage to property in the event of non-compliant
and/or incorrect installation.
Caution: Important information about LED lighting:
Only connect the lights to the safety transformers in accordance with EN 61558 (VDE
570) using 12-volt direct current (DC). The total power consumption of the connected
lights (see type label) must not exceed the transformer nominal capacity.

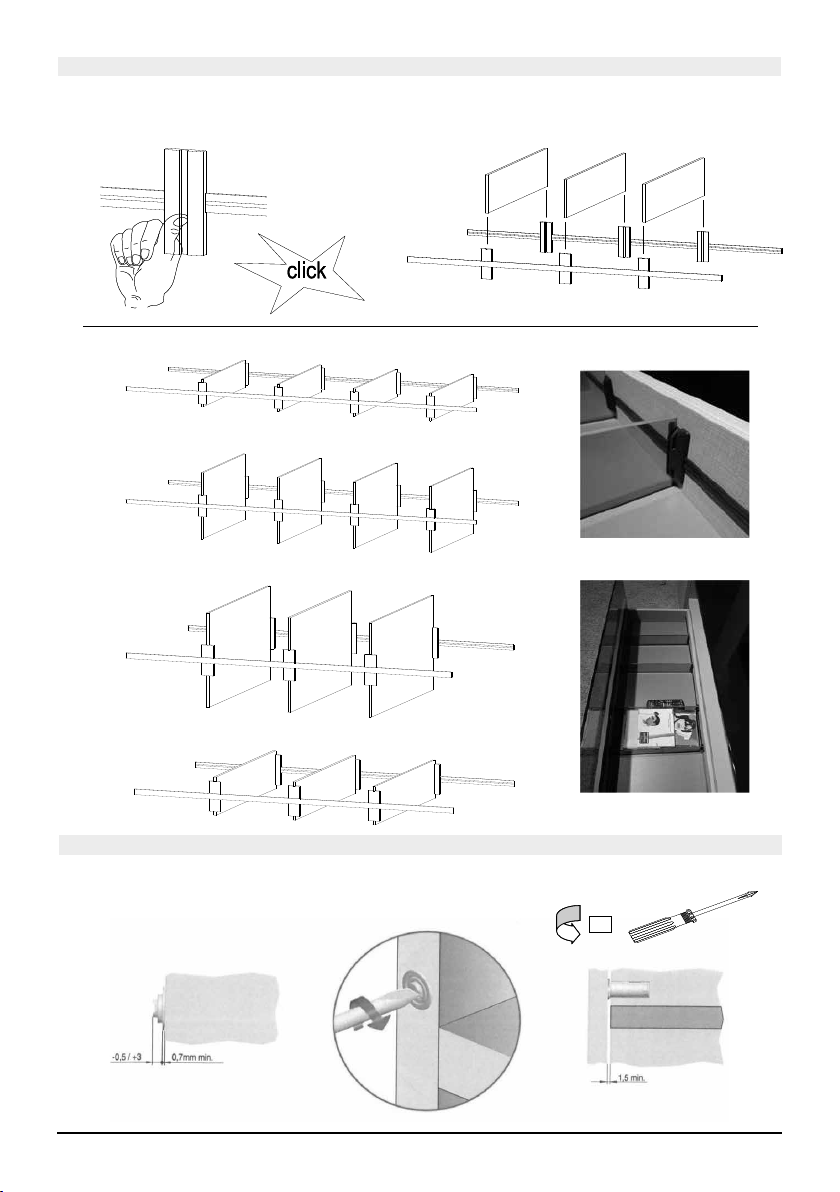

Assembling the drawer organiser
Adjusting the front gap using magnets
Press in the clips Slide in the glass panels
12
The profiles are preassembled in the drawer
ET1-98, EK1-98, E1-98, 4 glass shelves 476 / 376 / 296 x 70x4 mm
ET2-98, EK2-98, E2-98, 4 glass shelves 476 / 376 / 296 x 170 x 4 mm
ET2-65, EK2-65, E2-65, 3 glass shelves 476 / 376 / 296 x 170 x 4 mm
ET1-65, EK1-65, E1-65, 3 glass shelves 476 / 376 / 296 x 70x4 mm
Adjust the front gap by turning the magnets using a screwdriver
(On large display-unit doors & base-element flaps)
+/-+/-+/-
8GENERAL TREVISO + TOS ASSEMBLY

Rasterhöhen (1Raster = 176mm) Bohr- / Einbaumaße Hängeschränke
49
Hänge-
Bohrbilder Hängeschränke
54 542 54
650
4R= 704
54 542 54
schrank 9R-65
8611266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49 Hänge-
schrank 4R-65
49 1599
4R= 704
54 542 54
Hänge- schrank 4R-65
49 1775
650
650
54 542
650
542 54108
2x Hängeschrank 4R-65
650
54 542
650
542 54108
3x Hängeschrank 4R-65
650 650
108 542
49
4R= 704
49
Hänge-
54 542 54
650
schrank 9R-65
6851266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49

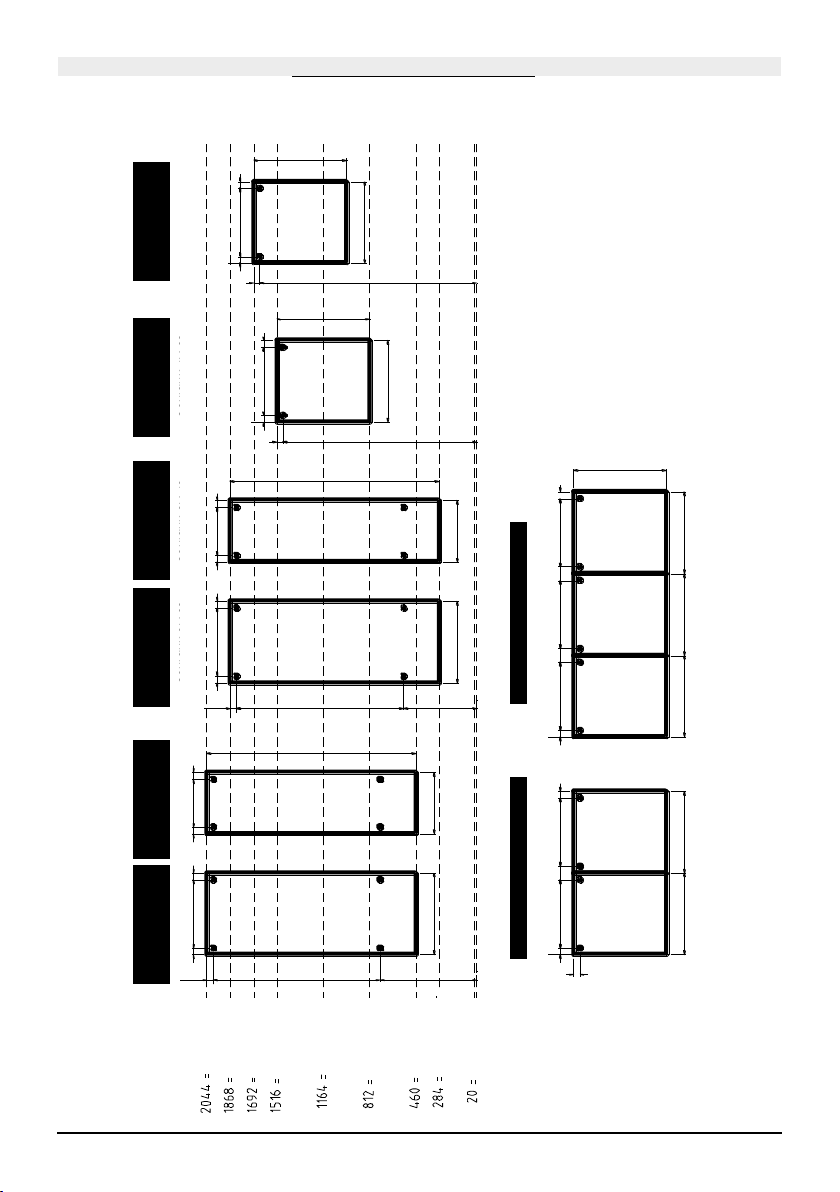

TREVISO height grid, Wall units with base element, 2.3 increments
Wall unit drilling templates
Drilling/installation dimensions for wall units
Increment heights (1 incr. = 1 increment = 176 mm)
Rasterhöhen (1Raster = 176mm) Bohr- / Einbaumaße Hängeschränke
49
Hänge-
Bohrbilder Hängeschränke
54 542 54
650
4R= 704
54 542 54
schrank 9R-65
7291266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49 Hänge-
schrank 4R-65
49 1467
4R= 704
54 542 54
Hänge- schrank 4R-65
49 1643
650
650
54 542
650
542 54108
2x Hängeschrank 4R-65
650
54 542
650
542 54108
3x Hängeschrank 4R-65
650 650
108 542
49
4R= 704
49
Hänge-
54 542 54
650
schrank 9R-65
5531266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49
UT 2,3 Raster
Wall unit
4R-65
Wall unit
4R-65
Wall unit
4R-65
Wall unit
9R-65
Wall unit
4R-49
Wall unit
9R-49
2x wall unit 4R-65 3x wall unit 4R-65
Rasterhöhen (1Raster = 176mm) Bohr- / Einbaumaße Hängeschränke
49
Hänge-
Bohrbilder Hängeschränke
54 542 54
650
4R= 704
54 542 54
schrank 9R-65
7291266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49 Hänge-
schrank 4R-65
49 1467
4R= 704
54 542 54
Hänge- schrank 4R-65
49 1643
650
650
54 542
650
542 54108
2x Hängeschrank 4R-65
650
54 542
650
542 54108
3x Hängeschrank 4R-65
650 650
108 542
49
4R= 704
49
Hänge-
54 542 54
650
schrank 9R-65
5531266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49
12,3 incr. 11,3 incr. 10,3 incr. 9,3 incr. 7,3 incr. 5,3 incr. 3,3 incr. UT 2,3 incr. base
9GENERAL TREVISO + TOS ASSEMBLY

Rasterhöhen (1Raster = 176mm) Bohr- / Einbaumaße Hängeschränke
49
Hänge-
Bohrbilder Hängeschränke
54 542 54
650
4R= 704
54 542 54
schrank 9R-65
7291266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49 Hänge-
schrank 4R-65
49 1467
4R= 704
54 542 54
Hänge- schrank 4R-65
49 1643
650
650
54 542
650
542 54108
2x Hängeschrank 4R-65
650
54 542
650
542 54108
3x Hängeschrank 4R-65
650 650
108 542
49
4R= 704
49
Hänge-
54 542 54
650
schrank 9R-65
5531266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49
TREVISO height grid, wall units with base element, 1.5 increment
Wall unit
4R-65
Wall unit
4R-65
Wall unit
4R-65
Wall unit
9R-65
Wall unit
4R-49
Wall unit
9R-49
2x Wall unit 4R-65 3x Wall unit 4R-65
Rasterhöhen (1Raster = 176mm) Bohr- / Einbaumaße Hängeschränke
49
Hänge-
Bohrbilder Hängeschränke
54 542 54
650
4R= 704
54 542 54
schrank 9R-65
7291266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49 Hänge-
schrank 4R-65
49 1467
4R= 704
54 542 54
Hänge- schrank 4R-65
49 1643
650
650
54 542
650
542 54108
2x Hängeschrank 4R-65
650
54 542
650
542 54108
3x Hängeschrank 4R-65
650 650
108 542
49
4R= 704
49
Hänge-
54 542 54
650
schrank 9R-65
5531266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49
Drilling/installation dimensions for wall units
Increment heights (1 incr. = 1 increment = 176 mm)
UT
Rasterhöhen (1Raster = 176mm) Bohr- / Einbaumaße Hängeschränke
49
Hänge-
Bohrbilder Hängeschränke
54 542 54
650
4R= 704
54 542 54
schrank 9R-65
7291266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49 Hänge-
schrank 4R-65
49 1467
4R= 704
54 542 54
Hänge- schrank 4R-65
49 1643
650
650
54 542
650
542 54108
2x Hängeschrank 4R-65
650
54 542
650
542 54108
3x Hängeschrank 4R-65
650 650
108 542
49
4R= 704
49
Hänge-
54 542 54
650
schrank 9R-65
5531266
Hänge-
54 380 54
9R= 1584
488
schrank 9R-49
Wall unit drilling templates
11,5 incr. 10,5 incr. 9,5 incr. 8,5 incr. 6,5 incr. 4,5 incr. 2,5 incr. UT 1,5 incr. base
10 GENERAL TREVISO + TOS ASSEMBLY

TREVISO lighting plan without radio remote control
Test the lighting.
If necessary, check the plug
connections. Push the plug in fully.
Caution: Note the maximum transformer
load. Overloading the transformer
reduces its service life. Fault!
Important information about LED lighting:
Only connect the lights to the safety
transformers in accordance with EN 61558
(VDE 570) using 12-volt direct current (DC).
L=1m L=3,85m L=0,15m
LED-Verlängerung
2m, nur bei Bedarf
EVG-LED, 10fach-Verteiler, 12V-DC (weißes Stecksystem), 30Watt, 230V
L. 5m, mit Handschalter und Euro-Flachstecker "LEVG30"
LED-Einbauleuchte "LST2"
2,6 Watt, Zuleitung 2m LED-Verlängerung
2m, nur bei Bedarf
12V-DC (weißes Stecksystem)
LED-Paneelleuchte "LSP5"
2 Watt, Zuleitung 2m
12V-DC (weißes Stecksystem)
LED-Aufbauleuchte Ice-Line A "LB174"
L1740mm, 5,1Watt, 2m Zuleitung
12V-DC (weißes Steckersystem)
LED-Aufbauleuchte Ice-Line A "LB144"
L1440mm, 4,2Watt, 2m Zuleitung
12V-DC (weißes Steckersystem)
LED-Aufbauleuchte Ice-Line A "LB114"
L1140mm, 3,3Watt, 2m Zuleitung
12V-DC (weißes Steckersystem)
LED-Beleuchtungsplan TREVISO ohne FKS
L=1m L=3,85m L=0,15m
EVG-LED, 6fach-Verteiler, 12V-DC (weißes Stecksystem), 15Watt, 230V
L. 5m, mit Handschalter und Euro-Flachstecker "LEVG15"
bauseitige Steckdose
EVG LED, 6-way distributor, 12 V-DC (white plug), 15 watt, 230 V
LED Ice-Line A "LB174" surface luminaire
length 1740 mm, 5.1 watt, 2 m supply cable
12 V-DC (white plug)
LED "LSP5" panel light
2 watt, 2 m supply cable
12 V-DC (white plug)
LED "LST2" recessed light
2.6 watt, 2 m supply cable
12 V-DC (white plug)
LED extension,
2 m only if required
LED extension,
2 m only if required
On-site
EVG LED, 10-way distributor, 12 V-DC (white plug), 30 watt, 230 V
length 5 m, with manual switch and flat Euro plug "LEVG30"
LED Ice-Line A "LB114" surface luminaire
length 1140 mm, 3.3 watt, 2 m supply cable
12 V-DC (white plug)
LED Ice-Line A "LB144" surface luminaire
length 1440 mm, 4.2 watt, 2 m supply cable
12 V-DC (white plug)
This product
contains a light
source of energy
efficiency class
"F"
Montage TREVISO allg.+TOS-ab R5424_EN.xlsx 15.10.2018 / GRO Page 11/12
TREVISO lighting plan without radio remote control
Test the lighting! If necessary, check plug connections. Push plug in completely.
Caution, Note the maximum transformer
load. Overloading the transformer reduces
its service life. Fault!
Important information about LED lighting:
Only connect the lights to the safety transformers
in accordance with EN 61558 (VDE 570) using
12-volt direct current (DC).
This product
contains a light
source of energy
efciency class „F“
11GENERAL TREVISO + TOS ASSEMBLY

TREVISO lighting plan with FKS4
Caution: Note the maximum transformer
load. Overloading the transformer
reduces its service life. Fault!
Important information about the LED
lighting:
Only connect the lights to the safety
transformers in accordance with EN 61558
(VDE 570) using 12-volt direct current (DC).
Test the lighting.
If necessary, check the plug
connections. Push the plug in fully.
bauseitige
LED-Verlängerung
2m, nur bei Bedarf
LED-Einbauleuchte "LST2"
2,6 Watt, Zuleitung 2m
12V-DC (weißes Stecksystem)
LED-Aufbauleuchte Ice-Line A "LB174"
L1740mm, 5,1Watt, 2m Zuleitung
12V-DC (weißes Steckersystem)
L=1m L=3,85m L=0,15m
EVG-LED, 6fach-Verteiler, 12V-DC (weißes Stecksystem), 15Watt, 230V
L. 5m, mit Handschalter und Euro-Flachstecker "LEVG15"
LED-Aufbauleuchte Ice-Line A "LB144"
L1440mm, 4,2Watt, 2m Zuleitung
12V-DC (weißes Steckersystem)
LED-Aufbauleuchte Ice-Line A "LB114"
L1140mm, 3,3Watt, 2m Zuleitung
12V-DC (weißes Steckersystem)
LED-Beleuchtungsplan TREVISO mit FKS4
L=1m L=3,85m L=0,15m
EVG-LED, 10fach-Verteiler, 12V-DC (weißes Stecksystem), 30Watt, 230V
L. 5m, mit Handschalter und Euro-Flachstecker "LEVG30"
Steckdose
LED-Paneelleuchte "LSP5"
2 Watt, Zuleitung 2m
12V-DC (weißes Stecksystem)
On-site socket
EVG LED, 10-way distributor, 12 V-DC (white plug), 30 watt, 230 V
length 5 m, with manual switch and flat Euro plug "LEVG30"
EVG LED, 6-way distributor, 12 V-DC (white plug), 15 watt, 230 V
LED electrical storage compartment
with radio remote control "FKS4" (4-
channel). Dimmable up to max. 30
watt only if requested by the
customer 4 pcs, 6-way distributor,
max. 24 lights, max. 30
watt when using LEVG30
max. 15 watt when using
LED "LST2" recessed light
2.6 watt, 2 m supply cable
12 V-DC (white plug)
LED Ice-Line A "LB114" surface luminaire
length 1140 mm, 3.3 watt, 2 m supply cable
12 V-DC (white plug)
LED Ice-Line A "LB144" surface luminaire
length 1440 mm, 4.2 watt, 2 m supply cable
12 V-DC (white plug)
LED Ice-Line A "LB174" surface luminaire
length 1740 mm, 5.1 watt, 2 m supply cable
12 V-DC (white plug)
LED "LSP5" panel light
2 watt, 2 m supply cable
12 V-DC (white plug)
LED extension,
2 m only if required
This product
contains a light
source of energy
efficiency class
"F"
Montage TREVISO allg.+TOS-ab R5424_EN.xlsx 15.10.2018 / GRO Page 12/12
Test the lighting! If necessary, check plug connections. Push plug in completely.Test the lighting! If necessary, check plug connections. Push plug in completely.
Caution, Note the maximum transformer
load. Overloading the transformer reduces
its service life. Fault!
Important information about LED lighting:
Only connect the lights to the safety transformers
in accordance with EN 61558 (VDE 570) using
12-volt direct current (DC).
TREVISO lighting plan with FKS4
This product
contains a light
source of energy
efciency class „F“
12 GENERAL TREVISO + TOS ASSEMBLY
