HACH LANGE TU5400 sc Quick manual

DOC023.52.90501
TU5400 sc/TU5300 sc
09/2014, Edition 1
Basic User Manual
-BETA DRAFT-
BETA

-BETA DRAFT-
BETA

Table of contents
Specifications on page 3 Calibration on page 17
General information on page 4 Maintenance on page 17
Installation on page 10 Troubleshooting on page 22
Startup on page 17
Additional information
Additional information is available on the manufacturer's website.
Specifications
Specifications are subject to change without notice.
Specification Details
Measurement method 90-degree nephelometry collected at 360-degrees about the axis of the
incident light beam
Primary compliance method USEPA
Optical light source 650 nm, maximum 1 mW laser
Laser Class 2 laser product: contains an embedded non user-serviceable class
2 laser
Measurement units TU5300 sc: NTU, FNU, TE/F, FTU, EBC; TU5400 sc: NTU, FNU, TE/F, FTU,
EBC, mNTU
Range 0 to 700 NTU
Stray light <0.010 NTU
Accuracy ± 2% of reading plus 0.01 NTU from 0 to 40 NTU
± 10 % of reading from 40 to 700 NTU based on formazin primary standard
Linearity Better than 1% for 0 to 40 NTU on formazin at 25 °C (77 °F). Allows for
accurate calibration at 20 NTU
Repeatability Better than 1% of reading or ± 0.002 NTU on formazin at 25 °C (77 °F),
whichever is more
Signal average time 5 to 90 seconds (default: 30 seconds)
Air bubble compensation Physical, mathematical (default: on)
Detection limit TU5300 sc: 0.003 NTU, TU5400sc: 0.0003 NTU
Response time T90 < 30 seconds at 100 mL/minute (without bubble trap, signal average time:
off)
T90 < 3 minutes at 100 mL/minute (with bubble trap, signal average time: off)
Sample pressure 6 bar (87 psi) maximum, compared to air at sample temperature range from
2 to 40 °C (35.6 to 104 °F)
3 bar (43.5 psi) maximum compared to air at temperature range from 40 to
70 °C (104 to 158 °F)
Sample flow rate 100 to 1000 mL/min; optimal flow rate: 200 to 500 mL/min
Sample temperature 2 to 70 °C (35.6 to 158 °F)
Sample salt content Up to 65 g/L
English 3
-BETA DRAFT-
BETA

Specification Details
Calibration options StablCal®: at 20 NTU from 0 to 40 NTU; at 20 NTU and 600 NTU for full
range
User prepared formazin: at 20 NTU from 0 to 40 NTU; at 20 NTU and 600
NTU for full range
Custom calibration for up to 6-point calibrations
Verification options Liquid: StablCal®, formazin (0.1 to 40 NTU)
Dry: factory-set values of 1.0 ± 25% NTU
Verification (Link2SC software) Verfication of the measurement value to compare values to a laboratory
instrument via Link2sc software
Dimensions (W x D x H) 268 x 249 x 190 mm (10.6 x 9.8 x 7.5 in.)
Enclosure Rating: NEMA/IP65 for functional units
Material: ASA Luran S 777K / RAL7000, TPE RESIN Elastocon® STK40,
Thermoplastic Elastomer TPS-SEBS (60 Shore)
Display resolution 0.0001 NTU (0.0001 to 0.9999/1.000 to 9.999/10.00 to 99.99/100.0 to
700 NTU)
Default=TU5300sc: 0.001 NTU, TU5400sc: 0.0001 NTU
Sensor cable length 1.6 m (5.25 ft), extendable up to 50 m (164 ft) for instrument without
accessories
Fittings Sample quick connector: ¼-in. for ¼-in. tubing
Tubing Materials: Polyethylene, polyamide or polyurethane tubing, calibrated outside
diameter ¼ in. +0.001 / –0.004 in. or +0.03 mm / –0.1 mm
Weight ???
Installation environment Indoor or outdoor with cover
Mounting Wall
Protection class III
Pollution degree/installation
category
2, II
Power requirements 12 VDC, 14 VA from the sc controller. Refer to the controller documentation
for the controller power requirements.
Operating temperature 0 to 50 °C (32 to 122 °F)
Storage temperature –40 to 60 °C (–40 to 140 °F)
Operating humidity Relative humidity: 5 to 95% at different temperatures, non-condensing
Certifications CE compliant; US FDA accession number: 1420493-xxx. This product
complies with IEC/EN 60825-1 and to 21 CFR 1040.10 in accordance with
Laser Notice No. 50.
Warranty 1 year (EU: 2 years)
General information
In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential
damages resulting from any defect or omission in this manual. The manufacturer reserves the right to
make changes in this manual and the products it describes at any time, without notice or obligation.
Revised editions are found on the manufacturer’s website.
4 English
-BETA DRAFT-
BETA

Safety information
N O T I C E
The manufacturer is not responsible for any damages due to misapplication or misuse of this product including,
without limitation, direct, incidental and consequential damages, and disclaims such damages to the full extent
permitted under applicable law. The user is solely responsible to identify critical application risks and install
appropriate mechanisms to protect processes during a possible equipment malfunction.
Please read this entire manual before unpacking, setting up or operating this equipment. Pay
attention to all danger and caution statements. Failure to do so could result in serious injury to the
operator or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired. Do not use or install this
equipment in any manner other than that specified in this manual.
Use of hazard information
D A N G E R
Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate injury.
N O T I C E
Indicates a situation which, if not avoided, may cause damage to the instrument. Information that requires special
emphasis.
Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or damage to the instrument
could occur if not observed. A symbol on the instrument is referenced in the manual with a
precautionary statement.
Electrical equipment marked with this symbol may not be disposed of in European domestic or public
disposal systems. Return old or end-of-life equipment to the manufacturer for disposal at no charge to
the user.
This symbol, if noted on the instrument, references the instruction manual for operation and/or safety
information.
This symbol indicates that a risk of electrical shock and/or electrocution exists.
This symbol indicates the need for protective eye wear.
This symbol indicates a laser device is used in the equipment.
English 5
-BETA DRAFT-
BETA

This symbol identifies a risk of chemical harm and indicates that only individuals qualified and trained
to work with chemicals should handle chemicals or perform maintenance on chemical delivery
systems associated with the equipment.
This symbol indicates radio waves.
Class 2 laser product
D A N G E R
Personal injury hazard. Never remove covers from the instrument. This is a laser-based instrument and
the user risks injury if exposed to the laser.
Class 2 laser product, IEC60825-1:2007, 650nm/max. 1,0 mW
Location: Rear of the instrument.
Conforms to U.S. regulations 21 CFR 1040.10 and 1040.11 in accordance with
Laser Notice No. 50.
Location: Rear of the instrument.
Caution—Class 2 laser radiation when the lid is open. Do not look into the
laser beam.
Location: Top of the vial compartment.
This instrument is a Class 2 Laser product. There is only visible laser radiation when the instrument
is defective and when the instrument lid is open. This product complies with EN 61010-1, "Safety
Requirements for Electrical Equipment for Measurement, Control and Laboratory Use" and with
IEC/EN 60825-1, "Safety of Laser Products" and with 21 CFR 1040.10 in accordance with Laser
Notice No. 50. Refer to the labels on the instrument that supply laser information.
RFID module
An optional RFID module is available for this instrument. RFID technology is a radio application.
Radio applications are subject to national conditions of authorization. The use of the sensor is
currently permitted in the following countries: EU. The manufacturer advises that the use of the
sensor outside of the above-mentioned regions may contravene national laws. The manufacturer
reserves the right also to obtain authorization in other countries. In case of doubt, contact the
manufacturer.
The sensor contains an RFID module to receive and transmit information and data. The RFID
module operates with a frequency of 13.56 MHz.
6 English
-BETA DRAFT-
BETA

Safety information for RFID modules
WARNING
Multiple hazards. Do not disassemble the instrument for maintenance. If the internal components must
be cleaned or repaired, contact the manufacturer.
WARNING
Electromagnetic radiation hazard. Do not use the instrument in dangerous environments.
N O T I C E
This instrument is sensitive to electromagnetic and electromechanical interference. These interferences can have
an effect on the analysis performance of this instrument. Do not put this instrument near equipment that can
cause interference.
Obey the safety information that follows to operate the instrument in accordance with local, regional
and national requirements.
• Do not operate the instrument in hospitals and comparable establishments or near medical
equipment, such as pace makers or hearing aids.
• Do not operate the instrument near highly flammable substances, such as fuels, highly flammable
chemicals and explosives.
•Do not operate the instrument near combustible gases, vapors or dust.
• Keep the instrument away from strong vibration or shock.
• The instrument can cause interference in immediate proximity to televisions, radios and
computers.
• The warranty does not cover improper use or wear.
FCC conformance for RFID
This instrument may contain a registered radio frequency identification device (RFID). Refer to
Table 1 for the Federal Communications Commission (FCC) registration information.
Table 1 Registration information
Parameter Value
FCC identification number (FCC ID) YCB-ZBA987
IC 5879A-ZBA987
Frequency 13.56 MHz
Certification
Canadian Radio Interference-Causing Equipment Regulation, IECS-003, Class A:
Supporting test records reside with the manufacturer.
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de classe A répond à toutes les exigences de la réglementation canadienne
sur les équipements provoquant des interférences.
FCC Part 15, Class "A" Limits
Supporting test records reside with the manufacturer. The device complies with Part 15 of the FCC
Rules. Operation is subject to the following conditions:
1. The equipment may not cause harmful interference.
2. The equipment must accept any interference received, including interference that may cause
undesired operation.
English 7
-BETA DRAFT-
BETA

Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to
correct the interference at their expense. The following techniques can be used to reduce
interference problems:
1. Disconnect the equipment from its power source to verify that it is or is not the source of the
interference.
2. If the equipment is connected to the same outlet as the device experiencing interference, connect
the equipment to a different outlet.
3. Move the equipment away from the device receiving the interference.
4. Reposition the receiving antenna for the device receiving the interference.
5. Try combinations of the above.
Product overview
D A N G E R
Chemical or biological hazards. If this instrument is used to monitor a treatment process and/or
chemical feed system for which there are regulatory limits and monitoring requirements related to
public health, public safety, food or beverage manufacture or processing, it is the responsibility of the
user of this instrument to know and abide by any applicable regulation and to have sufficient and
appropriate mechanisms in place for compliance with applicable regulations in the event of malfunction
of the instrument.
D A N G E R
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the personal protective
equipment appropriate to the chemicals that are handled. Refer to the current safety data sheets
(MSDS/SDS) for safety protocols.
The TU5300 sc and the TU5400 sc sensors are used with an sc controller to measure low range
turbidity primarily in water purification water applications and in seawater with high salt

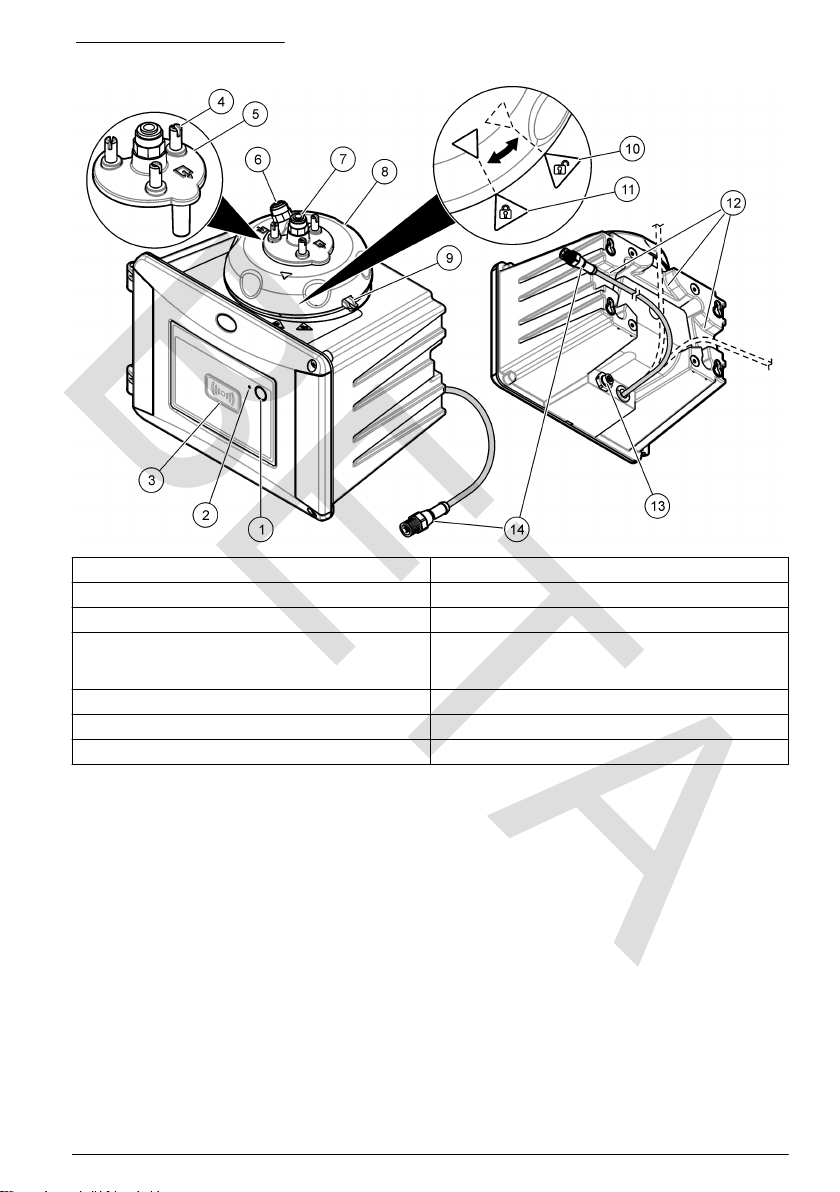

concentrations. Refer to Figure 1.
These sensors measure scattered light at an angle of 90° in a 360° radius around the axis of the
incident light beam.
The optional accessories for the sensors include: an integrated automatic system check, which
monitors for vial condensation and fouling, an automatic mechanical cleaning unit, a bubble trap or a
flow sensor.
Refer to Installation overview on page 10 to see an installation overview with all the accessories.
Refer to the documentation supplied with the accessories for more information.
8 English
-BETA DRAFT-
BETA

Figure 1 Product overview
1 User-specified button 8 Process head (shown) or cleaning head (optional)
2 Status indicator light 9 Process head water drain
3 RFID unit (optional) 10 Process head (open)
4 Knurled screws (3x) for (≤ 40 ºC (104 ºF) or high-
temperature screws (3x) for (40 to 70 ºC (104 to
158 ºF)) for the vial access cover1
11 Process head (closed)
5 Vial access cover 12 Cable channels
6 Inlet 13 Extension connector for more accessories
7 Outlet 14 Sensor cable
1Use a screwdriver to change the screws when the instrument is operated at 40 to 70 ºC (104 to 158 ºF).
Product components
Make sure that all components have been received. Refer to Figure 2. If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.
English 9
-BETA DRAFT-
BETA

Figure 2 Product components
1 Turbidity sensor with 1.6 m cable (3 ft 3⅜ in.) 6 Screws, bracket to sensor (4x), 4 x 16 mm
2 Vial removal tool 7 Screws for tubing clips (4x), 2.2 x 6 mm
3 Maintenance rack18 Tubing clips (4x)
4 Vial wiper 9 Bracket for tubing attachments and optional
accessory
5 Desiccant cartridge 10 High-temperature screws (3x) for (40 to 70 ºC
(104 to 158 ºF))
1Not supplied with the TU5300 sc EPA model.
Installation
CAUTION
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
Installation guidelines
N O T I C E
Make sure that a floor drain is available near the instrument. Examine the instrument daily for leaks.
This instrument is rated for an altitude of 3100 m (10,710 ft) maximum. Use of this instrument at an
altitude higher than 3100 m can slightly increase the potential for the insulation to breakdown, which
can result in an electric shock hazard. The manufacturer recommends that users with concerns
contact technical support.
• Install the sensor upright and level on a flat, vertical surface.
• Mounting hardware is supplied by the user.
•Refer to the documentation supplied with the accessories for installation of the optional units.
• Refer to Installation overview on page 10 for the minimum clearances.
Installation overview
Figure 3 shows the basic installation overview. The sensor can be used with optional accessories.
Refer to the documentation supplied with the accessory. Refer to the expanded manual on the
manufacturer's website for a full installation overview.
10 English
-BETA DRAFT-
BETA

Figure 3 Installation overview
1 Maintenance rack 4 Sample inlet
2 Process head 5 Sample outlet
3 Controller 6 Sensor
Wall mount
Install with a bracket
D A N G E R
Electrocution hazard. Remove power from the instrument before this procedure is started.
To install the sensor on a wall with the mounting bracket, refer to the illustrated steps that follow.
English 11
-BETA DRAFT-
BETA

12 English
-BETA DRAFT-
BETA

Install without a bracket
D A N G E R
Electrocution hazard. Remove power from the instrument before this procedure is started.
As an alternative, attach the sensor directly to a wall. Refer to the illustrated steps that follow. Make
sure to remove the thin, plastic film from the mounting holes on the back of the instrument.
Install the maintenance rack
Refer to the illustrated steps that follow to install the maintenance rack. The process head is set on
the maintenance rack to clean or change the vial or for calibration with the sealed StablCal vials and
the calibration lid.
English 13
-BETA DRAFT-
BETA

Install the desiccant cartridge
Refer to the documentation supplied with the desiccant cartridge for initial installation. Make sure that
the indicator on the desiccant cartridge is blue. Refer to Figure 4.
Figure 4 Desiccant cartridge overview
1 Label (LWWYY = lot number, week and year) 2 Indicator (blue = OK, pink = expired)
Connect to an sc controller
Connect the sensor to the quick-connect fitting of an sc controller. Refer to Figure 5. The sc controller
can be on or off. Keep the connector cap for later use.
Figure 5 Quick-connect fitting
Set the power to on
CAUTION
Personal injury hazard. Never remove covers from the instrument. This is a laser-based instrument and
the user risks injury if exposed to the laser.
CAUTION
Personal injury hazard. Do not look into the vial compartment when the instrument power is set to on.
14 English
-BETA DRAFT-
BETA

Set the controller power to on after the connection to the sensor is made. When the sensor is set to
on, the status light is activated. Refer to Status indicator light on page 15.
Status indicator light
When the controller power is set to on, the status indicator light on the sensor shows. Refer to
Figure 1 on page 9. Refer to Table 2 for the status indicator light definitions. The controller display
will show and identify the status of each light color.
Table 2 Status indicator light definitions
Light color Definition
Green (stable) The instrument is in operation with no warnings, errors or reminders.
Green (flashes) Calibration is completed and the status is OK until the instrument is ready for operation again.
Verification is completed and the status is OK until the instrument is ready for operation again.
Yellow (stable) Warning for a time out (e.g., during a calibration)
Condensation warning (auto verification)
Contamination warning (auto verification)
Yellow (flashes) The lid is open.
Manual cleaning is in progress.
Repair is in progress.
Change the vial.
Automatic cleaning is in process.
Red (stable) Instrument component defect
Condensation error (auto verification)
Contamination error (auto verification)
Red (flashes) Calibration not OK.
If the flow sensor installed (optional):
Error shows if the flow is higher than the upper limit value (>1.25 L/min).
Warning shows if the flow is lower than the limit value (<75 mL/min).
Error shows if there is no flow (<10 mL/min).
Verification not OK.
Reading error of RFID. Sound signal occurs. Operator tag ID not accepted.
Blue (stable) Calibration is started.
Wait time during the calibration for RFID reading or standard insertion
Verification process is started.
Read RFID.
English 15
-BETA DRAFT-
BETA

Table 2 Status indicator light definitions (continued)
Light color Definition
Blue (flashes) Calibration process (measurement)
Verification process (measurement)
Reading RFID. Sound signal occurs when the reading is OK.
Plumbing
Plumb the sensor
WARNING
Explosion hazard. Make sure that the drain tube is free of all obstructions. If the drain tube has a
blockage or is pinched or bent, high pressure can build up in the instrument.
WARNING
Personal injury hazard. The sample line contains water under high water pressure that can burn skin if
hot. Qualified personnel must remove the water pressure and wear personal protective equipment
during this procedure.
N O T I C E
Before the sensor is plumbed, make sure that the desiccant cartridge is installed, all the electrical connections are
made and that the sensor power is set to on.
Make sure that the tubing is of sufficient length that the process head can be moved to the
maintenance rack. Refer to Specifications on page 3 for the tubing requirements. Refer to Figure 6 to
plumb the sensor.
Figure 6 Plumb the sensor
1 Sample in 2 Sample out
16 English
-BETA DRAFT-
BETA

Startup
Set up the sensor
Use the setup menu to start an automatic vial cleaning (optional) and to select calibration,
verification, configuration and maintenance options.
1. Push menu.
2. Select SENSOR SETUP.
3. Select an option.
Option Description
WIPE (optional) Starts an automatic cleaning process to clean the vial if an automatic mechanical cleaning
unit is installed.
CALIBRATION Shows calibration options: to start a calibration process, to set the calibration options (cal
curve, verification after calibration, cal reminder, output mode and more), to set the offset
and factor and to see the calibration log. Refer to the expanded manual on the
manufacturer's website. Refer to the calibration lid documentation for more calibration
procedure options.
VERIFICATION Shows verification options. START—Starts the verification process. SETUP—Sets the
verification options. VERIF LOG— Shows the verification times. Refer to the calibration lid
documentation for more verification procedure options.
CONFIGURE Shows the sensor configuration options: to change the location name, set the signal
average, measurement units, resolution, bubble reject, logger interval, button function and
more. Refer to the expanded manual on the manufacturer's website.
DIAG/TEST Gives diagnostics and maintenance options. Refer to Maintenance on page 17.
Calibration
WARNING
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the personal protective
equipment appropriate to the chemicals that are handled. Refer to the current safety data sheets
(MSDS/SDS) for safety protocols.
When the instrument is used for EPA regulatory reporting, calibrations must be completed according
to EPA guidance documents and methodologies. Contact local authorities for compliance
regulations.
The sensor is factory calibrated and the laser light source is stable over time. The manufacturer
recommends that a calibration verification is done periodically to make sure that the system operates
as intended. The manufacturer recommends calibration at quarterly intervals or as local regulations
require and after any repair or comprehensive maintenance work.
Refer to the expanded manual on the manufacturer's website for more information about the
calibration settings. Calibrate the sensor with a StablCal standard(s), a formazin standards(s) or a
custom standard(s). The verification options are StablCal and glass rod.
Maintenance
WARNING
Burn hazard. Obey safe handling protocols during contact with hot liquids.
English 17
-BETA DRAFT-
BETA

CAUTION
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
CAUTION
Personal injury hazard. Never remove covers from the instrument. This is a laser-based instrument and
the user risks injury if exposed to the laser.
CAUTION
Personal injury hazard. Glass components can break. Handle with care to prevent cuts.
N O T I C E
Do not disassemble the instrument for maintenance. If the internal components must be cleaned or repaired,
contact the manufacturer.
N O T I C E
Stop the sample flow to the instrument and let the instrument to cool before this procedure.
Maintenance schedule
Table 3 shows the recommended schedule of maintenance tasks. Facility requirements and
operating conditions may increase the frequency of some tasks.
Table 3 Maintenance schedule
Task 3 weeks 3 months 1 year
Refer to Clean the vial with the wiper on page 20 (settled water)1. X
Refer to Clean the vial with the wiper on page 20 (filtered water)1. X
Refer to Replace the vial on page 20. X
Refer to Replace the desiccant cartridge on page 22.
Note: The replacement interval is very much dependent on ambient humidity, ambient
temperature and sample temperature.
X2
1Without the automatic mechanical cleaning unit.
2Or as identified by instrument notification
Set the maintenance options
Use the DIAG/TEST menu to view or reset the service history or to start an instructed maintenance
process.
1. Push menu.
2. Select SENSOR SETUP>DIAG/TEST.
3. Select an option.
Option Description
SENSOR INFO Shows the sensor name, location, serial number, sensor type, model number, code version
and measurement version.
SIGNALS Shows signals from internal components.
18 English
-BETA DRAFT-
BETA

Option Description
COUNTERS Shows operational and maintenance times. Refer to the expanded manual on the
manufacturer's website.
MAINTENANCE Starts an instructed menu process to replace or clean the vial, replace the wiper or the
desiccant cartridge. WIPE—Starts a wiper cleaning. OUTPUT MODE—Selects the output
behaviour during maintenance (default: hold). FACTORY SERVICE—For service use only.
Set more maintenance options
Use the COUNTERS menu options to view or reset the service history.
1. Push menu.
2. Select SENSOR SETUP>DIAG/TEST>COUNTERS.
3. Select an option.
Option Description
TOTAL TIME Shows the operational time of the sensor.
WIPER (for optional
cleaning unit)
Shows the number of wipes. Resets the counter to 0 when the wiper is replaced in
MAINTENANCE>WIPER REPLACEMENT. Refer to the documentation of the
mechanical cleaning unit for the wiper replacement.
MOTOR Shows the operational time of the motor.
SEALING
MECHANICAL
CLEANING (for
optional cleaning unit)
Shows the operational time of the sealing. Resets the counter to 0 when the
sealing is replaced.
VIAL Shows the operational time of the vial. Resets the counter when the vial is
replaced in Replace the vial on page 20.
CLEANING Shows the last cleaning date. Resets the counter when the vial is cleaned. Refer
to Clean the vial with the wiper on page 20.
CALIBRATION Shows the last calibration time. Resets the counter when a calibration is
completed. Refer to Calibration on page 17 and the calibration lid documentation
for more information.
VERIFICATION Shows the last verification time. Resets the counter when a verification is
completed. Refer to the calibration lid documentation for more information.
LASER TIME Shows the length of time the laser light source was set to on. Resets the counter
when the laser is replaced.
DESICCANT Shows the operational time of the process head desiccant cartridge. Resets the
counter when the desiccant is replaced. Refer to Replace the desiccant cartridge
on page 22.
FACTORY SERVICE Shows the last completed factory service.
Clean spills
CAUTION
Chemical exposure hazard. Dispose of chemicals and wastes in accordance with local, regional and
national regulations.
1. Obey all facility safety protocols for spill control.
2. Discard the waste according to applicable regulations.
English 19
-BETA DRAFT-
BETA

Clean the instrument
N O T I C E
Do not use solvents to clean the instrument.
The instrument is maintenance free. Regular cleaning is not necessary for normal operation. If the
exterior of the instrument becomes dirty, wipe the instrument surfaces with a clean, moist cloth.
Clean the vial with the wiper
N O T I C E
Carefully put the wiper into the vial so that no water can spill out.
Refer to the illustrated steps that follow and use the menu-guided process in MAINTENANCE>VIAL
CLEANING.
Replace the vial
N O T I C E
Do not touch the glass of the vial. Contamination on the glass can cause measurement errors. To protect the
glass from contamination, use the vial removal tool to install the new vial.
Note: Make sure that no water or particles fall into the vial compartment.
Use the menu-guided process in MAINTENANCE>VIAL REPLACEMENT to replace the vial. Do
steps 1 to 4 in reverse order to assemble. Refer to the illustrated steps that follow to replace or to
clean the vial. To protect the glass from contamination, use the vial removal tool to install the new
vial.
20 English
-BETA DRAFT-
BETA
