Please read this instruction manual before using the air conditioner

CONTENTS
CAUTIONS ..................................................................................................
FEATURES AND FUNCTIONS ....................................................................
NAME OF PARTS ..........................................................................................
INTRODUCTION TO SPARE PARTS .........................................................
REMOTE CONTROLLER OPERATION........................................................
GUIDE TO OPERATION ..........................................................................
CLEANING AND CARE .........................................................................
TROUBLE SHOOTING ...............................................................................
WHEN PROBLEMS OCCUR ......................................................................
OPERATING TIPS ........................................................................................
1-2
3
4
5-6
7
8-15
16-17
18
19
20

1
CAUTIONS
Disposal of the old air
conditioner
Before disposing an old air
conditioner that goes out of use,
please make sure it's inoperative
and safe. Unplug the air
conditioner in order to avoid the
risk of child entrapment.
It must be noticed that air
conditioner system contains
refrigerants, which require
specialized waste disposal. The
valuable materials contained in a
air conditioner can be recycled.
Contact your local waste disposal
center for proper disposal of an
old air conditioner and contact
your local authority or your dealer
if you have any question. Please
ensure that the pipework of your
air conditioner does not get
damaged prior to being picked up
by the relevant waste disposal
Disposal of the packaging of your
new air conditioner
All the packaging materials
employed in the package of your
new air conditioner may be disposed
without any danger to the
environment.
The cardboard box may be broken or
cut into smaller pieces and given
to a waste paper disposal service.
The wrapping bag made of
polyethylene and the polyethylene
All these valuable materials may be
taken to a waste collecting center
and used again after adequate
Consult your local authorities for
the name and address of the waste
materials collecting centers and waste
paper disposal services nearest to
Safety Instructions and Warnings
Before starting the air conditioner,
read the information given in the
User's Guide carefully. The User's
Guide contains very important
observations relating to the
assembly, operation and maintenance
of the air conditioner.
The manufacturer does not accept
responsibility for any damages that
may arise due to non-observation of
Damaged air conditioners are not
to be put into operation. In case of
doubt, consult your supplier.
Use of the air conditioner is to
be carried out in strict compliance
with the relative instructions set
forth in the User's Guide.
Installation shall be done by
professional people, don't install

2
CAUTIONS
D
LK1
For the purpose of safety, the air
conditioner must be properly grounded in
accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air conditioner's
tubes with sharp or pointed items, crushing
or twisting any tubes, or scraping the
coatings off the surfaces. If the refrigerant
spurts out and gets into eyes, it may result
in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
When installation in under ceiling, dial
switch "K1" in the PC board to "D"
position. When installation in floor
console, dial switch to "L" position (Brand
new unit is in "D" position).

FEATURES AND FUNCTIONS
3
AUTOMATIC OPERATION
COOLING TYPE
HEAT & COOL TYPE
Merely press the ON/OFF button, and the unit will begin automatic operation in the Cooling
or Dry mode as appropriate, in accordance with the thermostat setting and the actual
temperature of the room.
Merely press the ON/OFF button, and the unit will begin automatic operation in any of the
Heating, Cooling and Blow modes as appropriate, in accordance with the thermostat setting and
the actual temperature of the room.
WIRELESS REMOTE CONTROL UNIT
The WIRELESS REMOTE CONTROL UNIT allows convenient control of air conditioner
operation.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth, thus allowing cleaner use and
easier care.

NAME OF PARTS
4
Fig.4
Fig.3
Fig.1 Indoor Unit
Operating Control Panel (Fig.2)
Emergency switch
Remote Control Signal Receiver
Power Indicator Lamp (Red)
OPERATION Indicator Lamp (Green)
TIMER Indicator Lamp (Yellow)
Compressor Run Lamp (Green)
Intake Grill (Fig.3)
Air Filter
UP/DOWN Air Direction Flaps
RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flaps)
Power Plug
Fig.4 Outdoor Unit
Intake port
Outlet port
Pipe Unit
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
16
15
17
4
6
7
3
3
1
9
8
Fig.1
Fig.2
POWER
OPER
TIMER
COMP
EMER 2
12
1110
5

INTRODUCTION TO SPARE PARTS
5
Buttons and display of the remote
Operation
CLOCK
MODE
SWING
Power ON/OFF TEMP
FAN
SLEEP
SET
HOUR
RESET
LOCK
TIMER
Used for unit start
and
Used to set auto
fan
Used to select AUTO
run,
COOL,DRY,HEAT and
Used to set correctUsed to set correct
Used to select
TIMER ON, TIMER OFF,
TIMER ON/OFF.
Used to lock
buttons Used to reset the
controller
Used to set clock
and
Used to confirm
Timer
Used to select sleep
mode.
Used to select fan speed:
LO, MID, HI, AUTO
Used to select
your
Cautions:
On cooling only unit, heating mode is not
available.
After replacing batteries, press ON/OFF, and
display
becomes as follows:
Note:
1. The above information is theexplanation
of the displayed information therefore
varies
with those displayed in actual operation.
2. This type only has the relevant function
T
SWING FAN ON OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AUTO
ON OFF
AM PM AM PM

INTRODUCTION TO SPARE PARTS
6
Hints
LO MID
HI AUTO AUTO
Buttons and display of the remote controller.
Operation
DRY
COOL
AUTO
SWING
FAN SPEED
SLEEP
Clock set
TIMER ON
TIMER OFF
LOCK
CLOCK
TEMP.
SIGNAL SENDING
FAN OPERATION
HEAT
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AUTO
ON OFF
AM
PM AM PM

REMOTE CONTROLLER OPERATION
7
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM
When in use, put the signal transmission head directly to the receiver hole on the indoor unit.
The distance between the signal transmission head and the receiver hole should be within 7m
without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless
telephoneisinstalledintheroom,thereceiverisapttobedisturbedinreceivingthesignalsso
the distance to the indoor unit should be shorter.

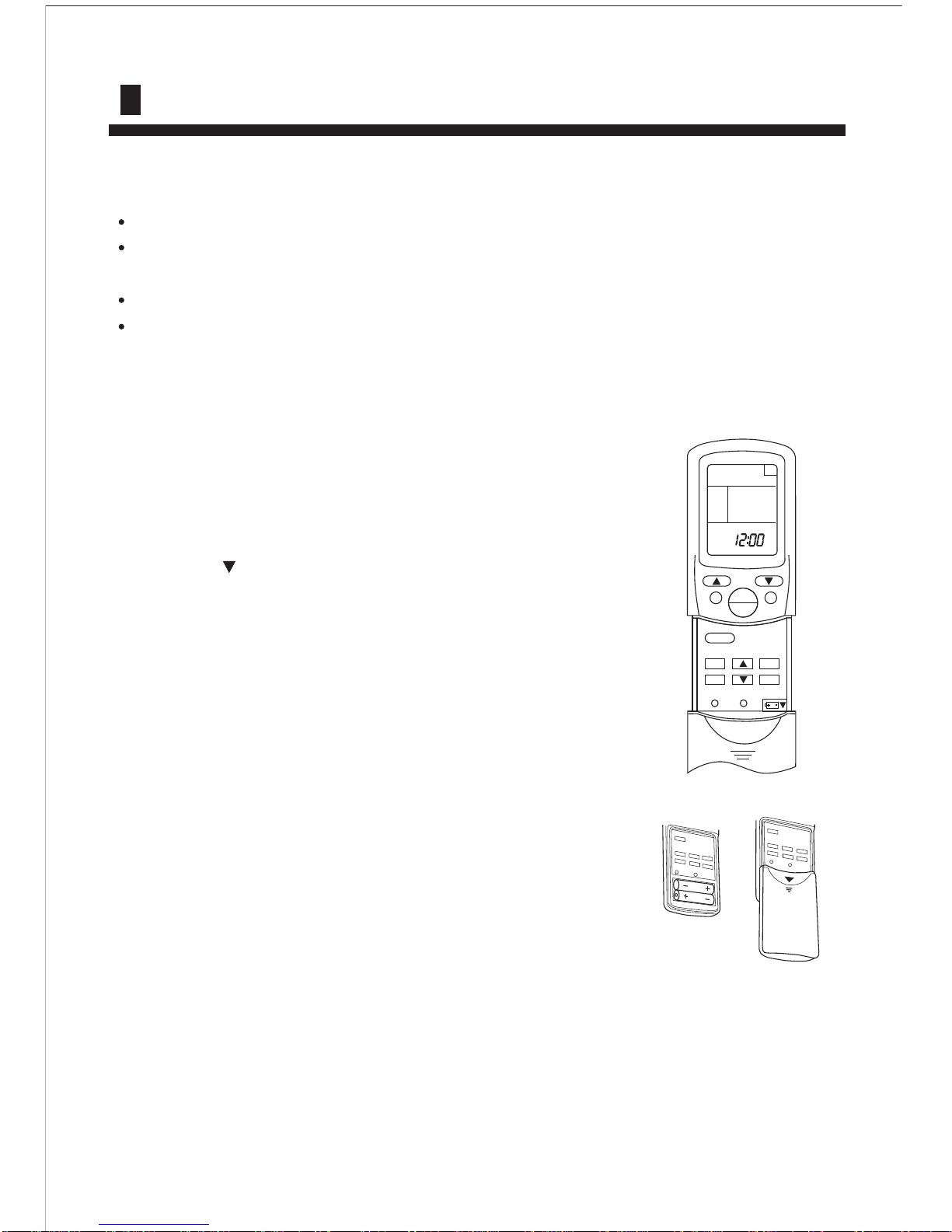

Loading of the battery
Load the batteries as illustrated.
2R-03batteries,resettingkey(cylinder)
Remove the battery cover :
Slightly press " " and push down the cover.
Load the battery :
Besurethattheloadingisinlinewiththe"+"/"-"polerequestas
illustrated.
Put on the cover again
Confirmation indicator :
In disorderation, reload the batteries or load the new batteries
after 5mins.
Note :
Use two new same-typed batteries when loading.
Iftheremotecontrollercan'trunnormallyordoesn'tworkatall,
use a sharp pointed item to press the reset key.
Hint : Remove the batteries in case unit won't be in usage for a long period.
If there is any display after taking-out just need to press reset key.
Remote controller's operation

GUIDE TO OPERATION
8
FAN operation
Remote controller can memorize settings in each operation mode. To run it next
time just select the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
Hints

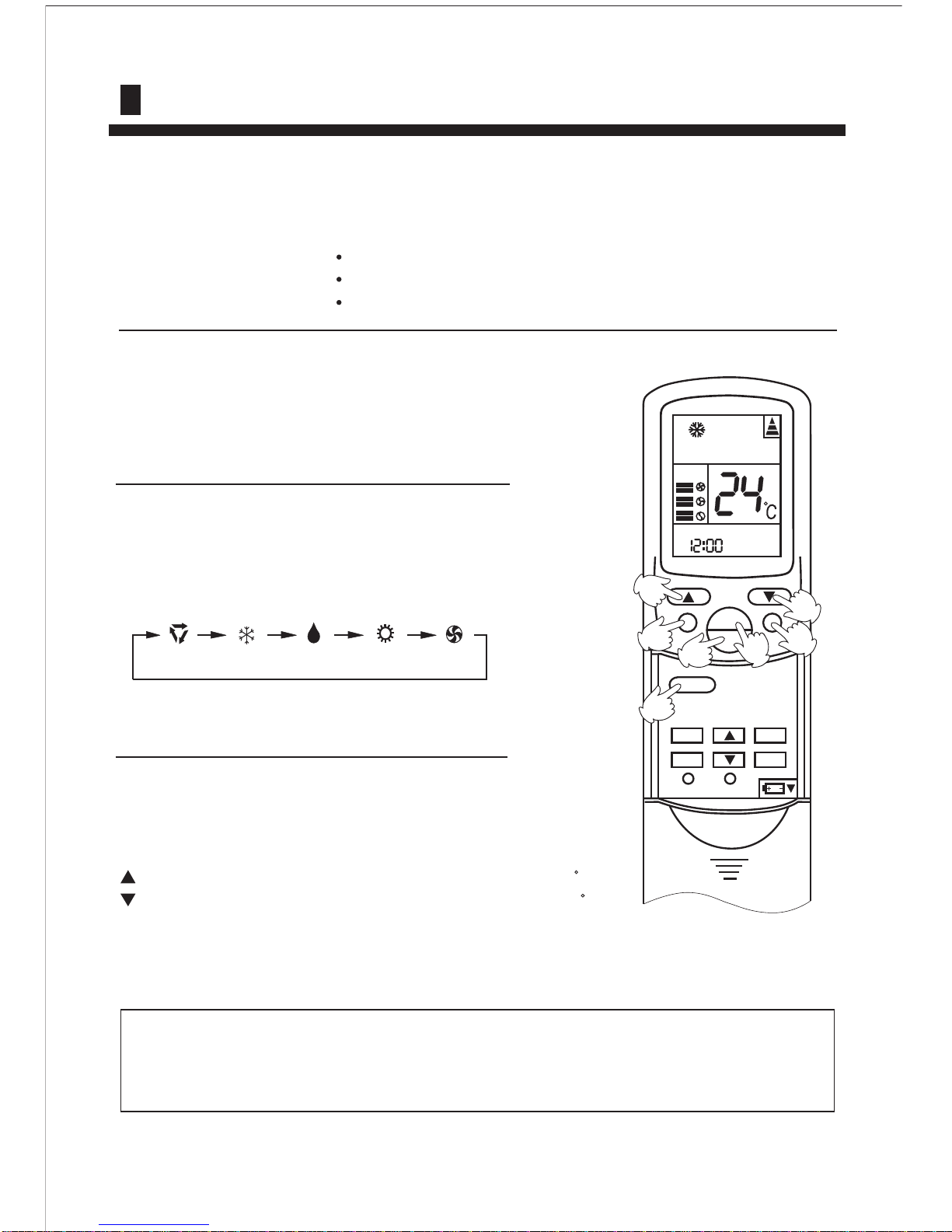

(1) Unit start
(2) Select operation mode
(3) Fan
(4) Unit stop
AUTO COOL DRY HEAT FAN
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator on indoor unit lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in selected mode.
stop display at " " FAN.
Press FAN button. For each press, fan speed changes
as follows:
Unit will run at selected fan speed.
Adjust air flow direction if necessary, refer to page10.
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closed automatically.
LO MID HI
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM
2
413

GUIDE TO OPERATION
9
AUTO run, COOL,HEAT and DRY operation
Use COOL in summer.
Use HEAT in winter.
Use DRY in spring,autumn and in damp climate.
(1) Unit start
(2) Select operation mode
(3) Select temp.setting
Press ON/OFF button, unit starts.
Previous operation status appears on display.(Not Timer setting)
Power indicator on indoor unit lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
Hints
Unit will start running to reach the temp. setting on LCD.
Remote controller can memorize each operation status. When starting it next time,
just press ON/OFF button and unit will run in previous status.
AUTO COOL DRY HEAT FAN
Press TEMP button
Every time the button is pressed, temp. setting increases 1 C
Every time the button is pressed, temp. setting decreases 1 C
Recommendations
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM
14
3
2
3
6
5

GUIDE TO OPERATION
10
Press FAN button. For each press, fan speed changes
as follows:
(4) Fan speed selection
Unit runs at the speed displayed on LCD.
In HEAT mode, warm air will blow out after a short period
of time due to cold-draft prevention function.
In DRY mode, when room temp. becomes 2 C higher than
temp. setting, unit will run intermittently at LO speed
regardless of FAN setting.
AUTO
LO MID HI AUTO
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closes automatically.
(6) Unit stop
As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more
helpful for a better air circulation.
As warm air flows upward in HEAT mode, adjusting air flow downward will be much more
helpful for a better air circulation.
Be careful not to catch a cold when cold air blows downward.
It is harmful to your health in summer to go frequently in and out of places where temp. difference
is above 7 C . Temp. difference of 3-5 C will remove your fatigue.
More than this, unit's load can be reduced and power consumption cut down as well. So, you'd
better set a temp. diff of 3-5 C between indoor and outdoor temp. in COOL mode.
Hints
COOLoperationstartswhenroom
temp.ishigherthantemp.setting.
Onreachingtemp.setting,unit
willruninmildDRYmode.
Ultra-lowairflow
Temp.setting+2C
Temp.setting
(5) Air flow direction adjust
After operation mode is selected, vertical flap will open automatically according to the mode.

GUIDE TO OPERATION
11
TIMER operation
Hints
Set Clock correctly before starting Timer operation(refer to page 6)
You can let unit start or stop automatically at following times: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
TIMER ON/OFF
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as follows:
Select your desired TIMER mode (TIMER ON or TIMER
OFF) ON or OFF will flash.
(3)Timer setting
Press HOUR button.
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly. Time
will be shown on LCD. It can be adjusted within 24hours.
(4)Confirming your setting
After setting correct time, press SET button to confirm "ON"
or "OFF" stops flashing
Time displayed: Unit starts or stops at x hour x min (TIMER
ON or TIMER OFF).
Timer mode indicator on indoor unit lights up.
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
After replacing batteries or a power failure happens, Time setting should be reset.
Remote controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.
ON OFF ON OFF blank
TIMER OFFTIMER ON TIMER ON-OFF
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
ON
AM
2
1
4
3
3

GUIDE TO OPERATION
12
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly. Time
will be shown on LCD.
It can be adjusted within 24hours.
AM refers to morning and PM to afternoon.
TIMER ON-OFF
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
(3)Time setting for TIMER ON
(4)Time confirming for TIMER ON
After time setting, press TIMER button to confirm.
"ON" stops blinking, While "OFF" starts blinking.
Time displayed: Unit starts at Xhour X min.
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
According to the Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or
Stop-Start can be achieved.
Press HOUR button.
(1)After unit start, select your desired operation mode
Every time the button is pressed, display changes as follows:
(2)Press TIMER button to change TIMER mode
ON OFF ON OFF blank
TIMER OFFTIMER ON TIMER ON-OFF
Select TIMER ON-OFF, "ON" will flash.
(5)Time setting for TIMER OFF
Follow the same procedures in "Time setting for TIMER ON".
(6)Time confirming for TIMER OFF
After time setting, press SET button to confirm "OFF" stops flashing.
Time displayed: Unit starts at Xhour X min.
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
ON
AM
2
1
6
3
5
OFF
PM
4

GUIDE TO OPERATION
13
Adjusting up/down air flow direction
Up/down direction can be adjusted by using the SWING button on the remote controller.
Each time pressing this button, the mode changes in the following sequence.
SWING No indication
(louver stopped)
Change to the AIRFLOW mode.
SWING LOUVER STOPPED
Louver moves in upward and
downward directions continuously.
When the LOUVER button is
pushed during SWING mode,
it stops swinging at the just
angle.
Recommendable stopping angle of the louver
Avoid direct air flow to the body
for many hours.
Avoid downward blowing opera-
tion of cooling mode for many
hours.
Do not touch the swing louver
during swing operation.
CAUTION
COOL
and
DRY
HEAT
(Horizontal Blowing)
(Downward Blowing)

GUIDE TO OPERATION
14
about 6 hrs
1 hr
1 hr
increase1C
increase1C
Comfortable Sleep
At night, before going to bed you can press down the SLEEP button on the
controller and the air-conditioner will run by the comfortable sleeping mode
to make you sleep more comfortable.
One hour after sleeping operation start, the temp. is 1 C higher than
the setting one. After another hour the temp. rises 1 C and then run
continuously for another 6hrs' and then close. The actual temp. is
higher than the setting one which is to prevent from being too cool
to your sleep.
In cooling, dehumiditying mode
Press SLEEP button once to make the air conditioner have the previous-set
sleep time (first power-on is "1h"), the sleep symbol will appear. Press time
button / , you can choose the time in 1~8 hours. Each press of / ,
the time increases/reduces 1 hour and "Xh" appears in the temperature
setting part, "OFF" appears in "TIMER OFF" display part and timer-off
time; press SLEEP button again to cancel sleep function, the sleep symbol
diappears.
One hour after start up, the temp. decrease 2 C lower than the
setting one. After another hour decrease by more 2 C.
The temperature will automatically rise by 1 C after another 3hrs'
operation, and then automatically close after 3hrs' continuous
operation. The actral temperature is lower than the setting one which
is to prevent from being too hot to your sleep.
In heating mode
Note:
In AUTO mode, unit will run in SLEEP function according to the operation mode.
After setting SLEEP function, it is forbidden to calibrate clock.
If the set sleep-time does not reach 8 hours, the unit will stop operation automatically after set
time is complete.
Change "TIMER-OFF" first, then set SLEEP, and press the sleep-set-performance; set TIMER-
ON function first, the sleep function can only be set before TIMER-ON; if set theSLEEP function
first, the TIMER function can not be set.
After setting SLEEP, press CLOCK button to show the time; press TEMP. button to show the
temperature; press again to change temperature.
TEMP
SWING FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
AM
SETTING T
SLEEP RUN BEGINS SLEEP RUN STOPS
1 hr
1 hr
3 hrs
about 3 hrs
decrease 2 C
decreases 2 C
increase1 C
SHUT DOWN
SLEEP RUN STOPS
Heat mode
SLEEP RUN BEGINS
SETTING T SHUT DOWN
Cooling mode

GUIDE TO OPERATION
15
RemoteControl :
Thereisatelecommunicationinterfaceforremotecontrolonthecontrolpanelofthe indoorunit.Aftertheperipheralequipmenthavebeeninstalledinaccordancewiththe instructionmanualoftheselectedremotecontroldetector,theairconditionerwillbe computerizedandcontrolledfromafar-awayplace.
PowerFailureCompensation(tobeappliedforanecessarysituation):
SettingMethod:Whentheremotecontrollerison(excludingtimermodeandfanmode),pressthe"Sleeping"buttonontheremotecontroller10timeswithin5 seconds,andafterthebuzzerrings4times,theairconditionerwillenter thestateofpowerfailurecompensation.
CancelMethod:Pressthe"Sleeping"buttonontheremotecontroller10timeswithin5seconds,andafterthebuzzerrings2timer,thepowerfailurecompensation mode will be cancelled.
Notes:Whenapowerfailuresuddenlyoccursduringtheairconditionerisworkingafterthe powerafterthepowerfailurecompensationisset,iftheairconditionerwillnotbeusedfor alongtime,pleasecutoffthepowersupplytopreventitsoperationfrombeingresumed afterthepowerissuppliedagain,orpressthe"SwitchOn/Off"buttonafterthepowercomes again.
Afterthepowerfailurecompensationisset,ifpowerfailuresuddenlyoccurswhiletheair conditionerisworking,itwillresumethepreviousworkingstatewhenthepowerissupplied again.

CLEANING AND CARE
16
CAUTION! Before cleaning the air conditioner ,be sure to turn it off and disconnect
the Power Supply Cord.
Be sure the Intake Grill is installed securely.
When removing and replacing the air filters, be sure not to touch the heat
exchanger, as personal injury may result.
Cleaning the Air Filter
Open the Intake Grill
1. Pull out both sides and the center of the
Intake Grill.
2. Pull the Air Filters upward to remove
them.
3. Clean the Air Filters.
5. Push in both sides and the center of the
Intake Grill.
4. Re-attach the Air Filters to the Intake Grill.
Push the Air Filter handles away from the
Intake Grille in direction as illustrated, then
pull out Air Filters.
Remove the dust from the Air Filters by
vacuum cleaner or washing them. After
washing, allow the Air Filters to dry
thoroughly in an area protected from sunlight.
1
2
3
The Filters fit onto the inside of the intake
Grill. (figure 1)
The bottom edges of the Air Filters should
fit into the filter brackets. (figure 1)
The Air Filters should be pushed down so
that their top edges fit under the projections
at the top of the Intake Grill. (figure 2)
Dust can be cleaned from the Air Filter
either with a vacuum cleaner, or by washing
the filter in a solution of mild detergent and
warm water. If you wash the filter, be sure
to allow it to dry thoroughly in a shady
place before reinstalling.
If dirt is allowed to accumulate on the Air
Filter, air flow will be reduced, lowering
operating efficiency and increasing noise.
During periods of normal use, the Air
Filters should be cleaned every two weeks.
(Figure 1)
Filter bracket
Air Filter
(Figure 2)
Handle
Air Filter
Bracket
Base
About 30 mm
Arm Intake Grill
Arm
Notch
Hook
Side Panel

CLEANING AND CARE
17
Whenusedforextendedperiods,theunitmayaccumulatedirtinside,whichreducesits
performance.Werecommendthattheunitisinspectedregularly,inadditiontoyourown
cleaningandcare.Formoreinformation,consultauthorizedservicepersonnel.
Whencleaningtheunit'sbody,donotusewaterhotterthan40C,harshabrasive
cleansers,orvolatileagentslikebenzeneorthinner.
Donotexposetheunitbodytoliquidinsecticidesorhairsprays.
Whenshuttingdowntheunitforonemonthormore,firstallowtheFanmodetooperate
continuouslyforabouthalfadaytoallowinternalpartstodrythoroughly.
Dote:
If the fuse on the PC board is broken, please change it with the type of 50F, 230V/3.15A.

TROUBLE SHOOTING
18
Followings are not problems
Sound of water flowing is
not a problem.
Sound of cracking is heard.
Smell are generated.
During operation, white fog or
steam comes out from the indoor
unit.
No outlet air or fan speed can't be changed
in dry mode.
In cooling operation, unit switches to
blowing operation.
Won't start?
In heating operation, water or steam are
blown out of outdoor unit.
In heating operation, indoor fan won't stop
even if unit is stopped.
During unit operation or at stop, a swishing or
gurgling noise may be heard. This noise is generated
by refrigerant flowing in the system.
Unit will not restart after stop.
During unit operation, a cracking noise may be heard.
This noise is generated by the casing expanding or
shrinking because of temperature changes.
This is because the system circulates smells from the
interior air such as the smell of cigarettes or the
painting on the furniture.
When unit is running at places like restaurant, etc. where
dense edible oil fumes always exist, this will happen.
To prevent frost from accumulating on indoor heat
exchanger, unit will switch to blowing operation for a
while then resume cooling operation.
Though ON/OFF button is set
to ON, unit won't resume cooling,
dry or heating operation
in 3 min after it is stopped, this
is because of 3-min-delay
protection circuit. Please wait 3 minutes
Unit will reduce fan speed repeatedly and automatically
if room temp. is too low in dry operation.
This occurs when frost accumulated
on the outdoor unit is removed.
(during defrosting operation)
After unit stop, indoor fan will go on running
until indoor unit cools down.
