Hakko Electronics FR-400 User manual

Table of Contents
........................... 1
...................................................... 1
...................... 2
............................................................ 3
................................................................ 4
............................................ 13
........................................................ 23
....................................... 28
................................................... 30
................................. 31
.............................................................. 32
................................................... 35

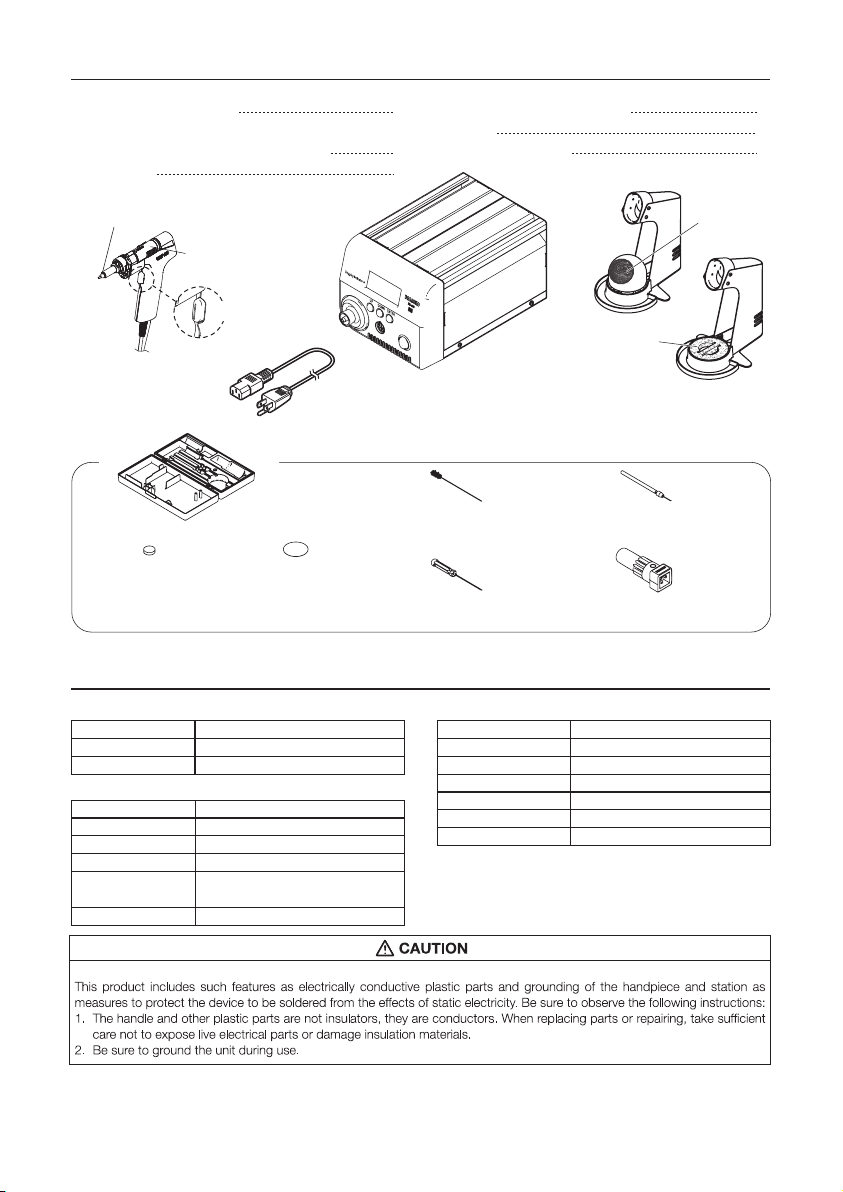

1. PACKING LIST AND PART NAMES
2. SPECIFICATIONS
3. WARNINGS, CAUTIONS AND NOTES
4. INITIAL SETUP
5. OPERATION
6. PARAMETER SETTING
7. MAINTENANCE
8. CHECKING PROCEDURE
9. ERROR MESSAGE
10. TROUBLE SHOOTING GUIDE
11. PARTS LIST
12. WIRING DIAGRAM
ThankyouforpurchasingtheHAKKOFR-400DesolderingTool.
Thisproductisadesolderingtoolequippedwithaquickchangemechanism.
PleasereadthismanualbeforeoperatingtheHAKKOFR-400.
Keepthismanualreadilyaccessibleforreference.
Instruction Manual
DESOLDERING TOOL
FR-400

1
2. SPECIFICATIONS
1. PACKING LIST AND PART NAMES
HAKKO FR-400 station
HAKKO FR-4003 handpiece
(with N60-02 (ø1.0 mm [0.04 in]) nozzle)
Power cord
1
1
1
HAKKO FH-400 iron holder
Tool box
Instruction Manual
1
1
1
● HAKKO FR-400
Power consumption
Temperature range
Temperature stability
320 W
350 - 500°C(660 - 940°F)
±5°C(±9°F) at idle temperature
● Handpiece (HAKKO FR-4003)
Part name
Power consumption
Nozzle to ground resistance
Nozzle to ground potential
Cord
Length (w/o cord)
Weight (w/o cord)
HAKKO FR-4003
300 W (29 V)
<2 Ω
<2 mV
1.2 m (4 ft.)
183 mm (7.2 in.) with N60-02 nozzle
270 g (0.6 lb.) with N60-02 nozzle
* The temperature was measured using the HAKKO FG-101
Soldering Tester.
* This product is protected against electrostatic discharge.
* Specifications and design are subject to change without notice.
■Electrostatic Protection
● Station
Output
Vacuum generator
Vacuum pressure (max.)
Suction flow
Dimensions
Weight
AC 29 V
Vacuum pump, double cylinder type
80 kPa (600 mmHg)
15 L/min.
166 (W) × 137 (H) × 264 (D) mm
(6.5 × 5.4 × 10.4 in.)
5.7 kg (12.6 lb.)
Please check to make sure that all items
listed below are included in the package.
Power cord
HAKKO FR-400
or
Cleaning Pin (for ø1.0 mm
[0.04 in] nozzle)
Nozzle wrench
Ceramic paper Filter
(for handpiece)
Filter
(for station)
Cleaning Pin
(for heating element)
Cleaning Drill (for ø1.0 mm
[0.04 in] nozzle)
HAKKO FH-400
Tool box
×1
×1
×1
×1
×2×4
Cleaning
wire
HAKKO FR-4003
Nozzle (N60 series)
Filter pipe
Trigger
Cleaning
sponge
2
3. WARNINGS, CAUTIONS AND NOTES
WARNING
CAUTION
To prevent accidents or damage to the HAKKO FR-400, be sure to observe the following:
● Do not use the unit for applications other than desoldering.
● Do not strike the handpiece against hard objects to remove excess solder. This will
damage the handpiece.
● Do not modify the HAKKO FR-400.
● Use only genuine HAKKO replacement parts.
● Do not allow the HAKKO FR-400 to become wet, or use it when hands are wet.
●
Be sure to hold the plug when inserting or removing the handpiece and power cords.
● Be sure the work area is well ventilated. Soldering produces smoke.
● Be sure the cooling fan at the rear of the station is unrestricted.
● While using the HAKKO FR-400, don't do anything which may cause bodily harm
or physical damage.
When power is ON, the nozzle will be hot. To avoid injury or damage to
personnel and items in the work area, observe the following:
● Donottouchthenozzleorthemetalpartsnearthenozzle.
● Donotallowthenozzletocomecloseto,ortouch,flammablematerials.
● Informothersintheareathattheunitishotandshouldnotbetouched.
● Turnthepoweroffwhennotinuse,orleftunattended.
● TurnthepoweroffwhenconnectingtheHAKKOFR-4003or
storingtheHAKKOFR-400.
● Theunitisforacounterorworkbenchuseonly.
● Thisapplianceisnotintendedforusebypersons(including
children)withreducedphysical,sensoryormentalcapabilities,
orlackofexperienceandknowledge,unlesstheyhavebeen
givensupervisionorinstructionconcerninguseoftheappliance
byapersonresponsiblefortheirsafety.
● Childrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance.
● Donotallowchildrentoperformcleaningandmaintenancewithoutsupervision.
Warnings, cautions and notes are placed at critical points in this manual to direct the
operator’s attention to significant items. They are defined as follows:
WARNING：FailuretocomplywithaWARNINGmayresultinseriousinjuryordeath.
CAUTION： FailuretocomplywithaCAUTIONmayresultininjurytotheoperator,
ordamagetotheitemsinvolved.
 NOTE：ANOTEindicatesaprocedureorpointthatisimportanttotheprocess
beingdescribed.

1
2. SPECIFICATIONS
1. PACKING LIST AND PART NAMES
HAKKO FR-400 station
HAKKO FR-4003 handpiece
(with N60-02 (ø1.0 mm [0.04 in]) nozzle)
Power cord
1
1
1
HAKKO FH-400 iron holder
Tool box
Instruction Manual
1
1
1
● HAKKO FR-400
Power consumption
Temperature range
Temperature stability
320 W
350 - 500°C(660 - 940°F)
±5°C(±9°F) at idle temperature
● Handpiece (HAKKO FR-4003)
Part name
Power consumption
Nozzle to ground resistance
Nozzle to ground potential
Cord
Length (w/o cord)
Weight (w/o cord)
HAKKO FR-4003
300 W (29 V)
<2 Ω
<2 mV
1.2 m (4 ft.)
183 mm (7.2 in.) with N60-02 nozzle
270 g (0.6 lb.) with N60-02 nozzle
* The temperature was measured using the HAKKO FG-101
Soldering Tester.
* This product is protected against electrostatic discharge.
* Specifications and design are subject to change without notice.
■Electrostatic Protection
● Station
Output
Vacuum generator
Vacuum pressure (max.)
Suction flow
Dimensions
Weight
AC 29 V
Vacuum pump, double cylinder type
80 kPa (600 mmHg)
15 L/min.
166 (W) × 137 (H) × 264 (D) mm
(6.5 × 5.4 × 10.4 in.)
5.7 kg (12.6 lb.)
Please check to make sure that all items
listed below are included in the package.
Power cord
HAKKO FR-400
or
Cleaning Pin (for ø1.0 mm
[0.04 in] nozzle)
Nozzle wrench
Ceramic paper Filter
(for handpiece)
Filter
(for station)
Cleaning Pin
(for heating element)
Cleaning Drill (for ø1.0 mm
[0.04 in] nozzle)
HAKKO FH-400
Tool box
×1
×1
×1
×1
×2×4
Cleaning
wire
HAKKO FR-4003
Nozzle (N60 series)
Filter pipe
Trigger
Cleaning
sponge
2
3. WARNINGS, CAUTIONS AND NOTES
WARNING
CAUTION
To prevent accidents or damage to the HAKKO FR-400, be sure to observe the following:
● Do not use the unit for applications other than desoldering.
● Do not strike the handpiece against hard objects to remove excess solder. This will
damage the handpiece.
● Do not modify the HAKKO FR-400.
● Use only genuine HAKKO replacement parts.
● Do not allow the HAKKO FR-400 to become wet, or use it when hands are wet.
●
Be sure to hold the plug when inserting or removing the handpiece and power cords.
● Be sure the work area is well ventilated. Soldering produces smoke.
● Be sure the cooling fan at the rear of the station is unrestricted.
● While using the HAKKO FR-400, don't do anything which may cause bodily harm
or physical damage.
When power is ON, the nozzle will be hot. To avoid injury or damage to
personnel and items in the work area, observe the following:
● Donottouchthenozzleorthemetalpartsnearthenozzle.
● Donotallowthenozzletocomecloseto,ortouch,flammablematerials.
● Informothersintheareathattheunitishotandshouldnotbetouched.
● Turnthepoweroffwhennotinuse,orleftunattended.
● TurnthepoweroffwhenconnectingtheHAKKOFR-4003or
storingtheHAKKOFR-400.
● Theunitisforacounterorworkbenchuseonly.
● Thisapplianceisnotintendedforusebypersons(including
children)withreducedphysical,sensoryormentalcapabilities,
orlackofexperienceandknowledge,unlesstheyhavebeen
givensupervisionorinstructionconcerninguseoftheappliance
byapersonresponsiblefortheirsafety.
● Childrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance.
● Donotallowchildrentoperformcleaningandmaintenancewithoutsupervision.
Warnings, cautions and notes are placed at critical points in this manual to direct the
operator’s attention to significant items. They are defined as follows:
WARNING：FailuretocomplywithaWARNINGmayresultinseriousinjuryordeath.
CAUTION： FailuretocomplywithaCAUTIONmayresultininjurytotheoperator,
ordamagetotheitemsinvolved.
 NOTE：ANOTEindicatesaprocedureorpointthatisimportanttotheprocess
beingdescribed.

3
4. INITIAL SETUP
CAUTION
Increasing the angle of the handpiece receptacle will cause
an increase in the handpiece temperature.
NOTE :
You can put nozzles that are not in use on the radial tray
of the cleaner base.

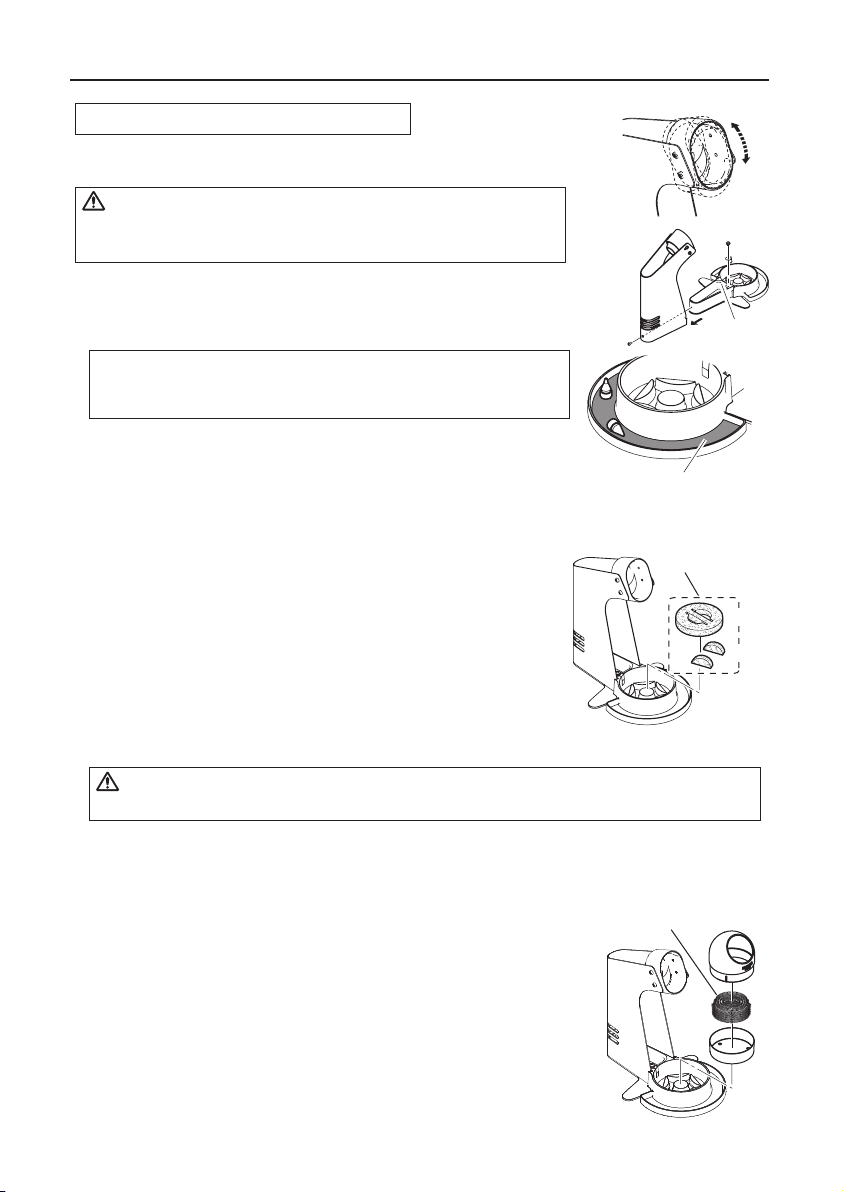

Loosen the adjusting screws to change the angle of the handpiece
receptacle as you like, then tighten the screws.
A. Iron holder
● Setup the iron holder
Following the instructions given in the illustration on the right,
assemble the iron holder.
● When the cleaning sponge is included
in the PACKING LIST
The sponge is compressed. It will swell when moistened
with water. Before using the unit, dampen the sponge with
water and squeeze it to remove excess water.
CAUTION
Be sure the sponge is moistened with water before use to avoid damaging the nozzle.
1. Fit the small sponge pieces into the hollows in the
cleaner base.
2. Add an appropriate amount of water into the cleaner base.
The small sponge pieces will absorb water and help keep
the larger sponge damp at all times.
3. Dampen the large sponge, squeeze it to remove excess
water and put it on the cleaner base.
●When the cleaning wire is included in the PACKING LIST
Following the instructions given in the illustration on the right,
put the cleaning wire on the cleaner base.
Operation:
First, remove any excess solder from the nozzle by thrusting
the nozzle into the cleaning wire.
(Do not wipe the nozzle against the wire. This may cause
molten solder to spatter.)
When the wire becomes dirty or loaded with solder, reposition
the wire until a clean surface is presented. When changing the
cleaning wire, lift the case top vertically to prevent solder debris
from falling out.
Radial tray
Cleaner
base
Cleaning
sponge
(Large)
(Small)
Cleaning wire
4

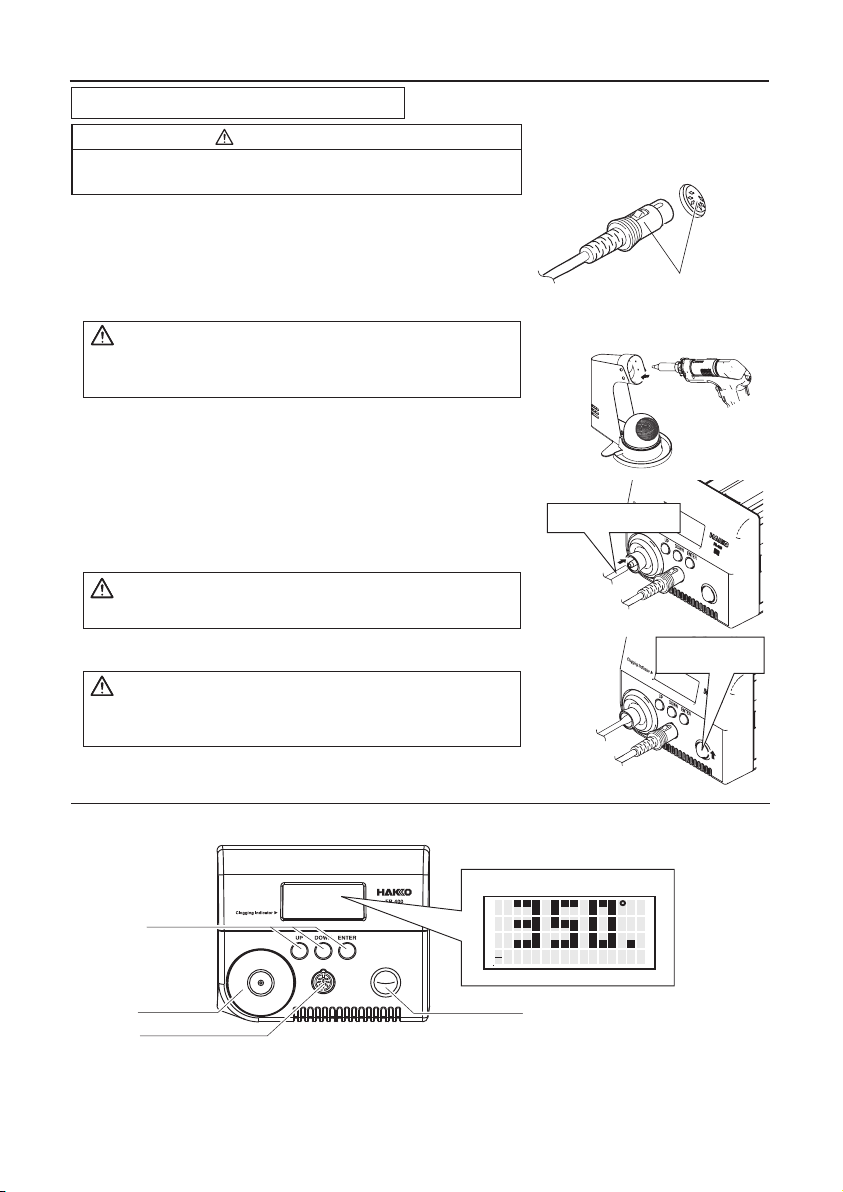

3. Set the HAKKO FR-4003 in the iron holder.
4. Connect the hose from the HAKKO FR-4003 to the
vacuum outlet cap on the HAKKO FR-400 station.
5. Plug the power cord into a grounded power outlet.
Ensure that the power switch is OFF before plugging
in the power cord.
CAUTION
Be sure to ground this product as it is ESD safe by design.
CAUTION
Place the handpiece in the iron holder when not in
use.
6. Turn the power switch ON.
Connect the hose.
Turn the power
switch ON
Control
Buttons
Vacuum
outlet cap
PART NAMES
Power Switch
5. OPERATION
C
Normal display screen
Receptacle
- Moving the cursor UP. Increases the value.
- Moving the cursor DOWN. Decreases the value.
- End of sequence (terminates a phase of a data entry mode).
UP
DOWN
ENTER
The HAKKO FR-400 has three controls
B. Station
CAUTION
Be sure to hold the plug when inserting or removing
the handpiece cord.
● Connection
1. Connect the power cord to the receptacle on therear
of the station.
2. Connect the plug from the HAKKO FR-4003 to the
receptacle on the HAKKO FR-400.
CAUTION
Connect the plug to the receptacle, aligning the tab
on the plug with the opening on the receptacle.
Insert the plug into
the receptacle until
it seats.
Receptacle
To disconnect, pull the plug
from the receptacle while
pressing down the tab on
the plug.

3
4. INITIAL SETUP
CAUTION
Increasing the angle of the handpiece receptacle will cause
an increase in the handpiece temperature.
NOTE :
You can put nozzles that are not in use on the radial tray
of the cleaner base.
Loosen the adjusting screws to change the angle of the handpiece
receptacle as you like, then tighten the screws.
A. Iron holder
● Setup the iron holder
Following the instructions given in the illustration on the right,
assemble the iron holder.
● When the cleaning sponge is included
in the PACKING LIST
The sponge is compressed. It will swell when moistened
with water. Before using the unit, dampen the sponge with
water and squeeze it to remove excess water.
CAUTION
Be sure the sponge is moistened with water before use to avoid damaging the nozzle.
1. Fit the small sponge pieces into the hollows in the
cleaner base.
2. Add an appropriate amount of water into the cleaner base.
The small sponge pieces will absorb water and help keep
the larger sponge damp at all times.
3. Dampen the large sponge, squeeze it to remove excess
water and put it on the cleaner base.
●When the cleaning wire is included in the PACKING LIST
Following the instructions given in the illustration on the right,
put the cleaning wire on the cleaner base.
Operation:
First, remove any excess solder from the nozzle by thrusting
the nozzle into the cleaning wire.
(Do not wipe the nozzle against the wire. This may cause
molten solder to spatter.)
When the wire becomes dirty or loaded with solder, reposition
the wire until a clean surface is presented. When changing the
cleaning wire, lift the case top vertically to prevent solder debris
from falling out.
Radial tray
Cleaner
base
Cleaning
sponge
(Large)
(Small)
Cleaning wire
4
3. Set the HAKKO FR-4003 in the iron holder.
4. Connect the hose from the HAKKO FR-4003 to the
vacuum outlet cap on the HAKKO FR-400 station.
5. Plug the power cord into a grounded power outlet.
Ensure that the power switch is OFF before plugging
in the power cord.
CAUTION
Be sure to ground this product as it is ESD safe by design.
CAUTION
Place the handpiece in the iron holder when not in
use.
6. Turn the power switch ON.
Connect the hose.
Turn the power
switch ON
Control
Buttons
Vacuum
outlet cap
PART NAMES
Power Switch
5. OPERATION
C
Normal display screen
Receptacle
- Moving the cursor UP. Increases the value.
- Moving the cursor DOWN. Decreases the value.
- End of sequence (terminates a phase of a data entry mode).
UP
DOWN
ENTER
The HAKKO FR-400 has three controls
B. Station
CAUTION
Be sure to hold the plug when inserting or removing
the handpiece cord.
● Connection
1. Connect the power cord to the receptacle on therear
of the station.
2. Connect the plug from the HAKKO FR-4003 to the
receptacle on the HAKKO FR-400.
CAUTION
Connect the plug to the receptacle, aligning the tab
on the plug with the opening on the receptacle.
Insert the plug into
the receptacle until
it seats.
Receptacle
To disconnect, pull the plug
from the receptacle while
pressing down the tab on
the plug.

5
HEAT I NG...
PLEASE
W A I T
B.Making Changes to Settings
● Selecting the preset number
If changing temperatures, there is a preset function
that selects arbitrarily set temperatures.
<↑> <↓> <ENT>
PRESET1
PRESET2
PRESET3
350℃
400℃
450℃
2. The preset selection screen
appears.
1. Press any of the
three control buttons.
Nozzle
Board
Solder
Lead
1. Place the nozzle over the lead wire of the part to be
desoldered and begin heating.
Be careful to heat the lead wire and the solder, not the land.
Placing the nozzle directly in contact with the land may
cause the land to peel off. You may apply a small amount of
solder to form a heat bridge to help the heating process.
2. Check to make sure all of the solder on the joint has melted.
With the nozzle still in place over the lead wire, slowly move
the lead wire, being careful not to apply too much force. If
the lead wire moves easily, all of the solder has melted.
3. Pull the trigger to remove the melted solder.
4. If the solder was not removed, re-solder the part using new
solder and then repeat the desoldering process.
A. Desoldering
If the pump does not operate, immediately clean
the nozzle & heating element and replace the filter
if necessary.
CAUTION
● When triggering before the heater reaches set temperature
When triggering before the heater reaches set
temperature, the display screen shows “HEATING...
PLEASE WAIT” and the vacuum does not work.
Please wait for the heater to reach the set temperature.
Make sure that a filter has been inserted in the desoldering
tool. Desoldering without a filter may damage the pump.
CAUTION
5. OPERATION (continued)
6
<↓> <ENT><↑>
<↓> <ENT>
350℃
400℃
450℃
<↑>
PRESET1
PRESET2
PRESET3
350℃
400℃
450℃
PRESET1
PRESET2
PRESET3
3. Move the cursor UP or
DOWN by pressing
the corresponding buttons.
4. Press the <ENT> button to
finalize your selection.
If you wish to exit the PRESET SELECTION screen...
Scroll the cursor to the bottom, select <EXIT>, and press the <ENT> button.
You will return to the normal display without making changes.
Or, if the device is left alone without performing any operations for 10 seconds,
you will be returned to the normal display.
When changing the current set temperature or the preset temperature, follow the
operation of “
● Changing various setting (other than preset selections)”.
1. Press and hold any one
of the three control buttons
for at least 2 seconds.
● Changing various settings (other than preset selections)
2. The setting selection screen
appears.
The following settings can be changed from this screen:
Set Temp
Offset Temp
Vacuum Check
Preset Temp
Preset ID
LCD Contrast
<EXIT>
(Nozzle temperature setting)
(Nozzle temperature offset setting)
(Check of nozzle clogging and suction force)
(Setting of each preset temperature)
(Setting of each preset name)
(Contrast adjustment of display screen)
(Return to the normal display)
3. Move the cursor UP or
DOWN by pressing the
corresponding buttons.
4. Press the <ENT> button to
finalize your selection.
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C

5
HEAT I NG...
PLEASE
W A I T
B.Making Changes to Settings
● Selecting the preset number
If changing temperatures, there is a preset function
that selects arbitrarily set temperatures.
<↑> <↓> <ENT>
PRESET1
PRESET2
PRESET3
350℃
400℃
450℃
2. The preset selection screen
appears.
1. Press any of the
three control buttons.
Nozzle
Board
Solder
Lead
1. Place the nozzle over the lead wire of the part to be
desoldered and begin heating.
Be careful to heat the lead wire and the solder, not the land.
Placing the nozzle directly in contact with the land may
cause the land to peel off. You may apply a small amount of
solder to form a heat bridge to help the heating process.
2. Check to make sure all of the solder on the joint has melted.
With the nozzle still in place over the lead wire, slowly move
the lead wire, being careful not to apply too much force. If
the lead wire moves easily, all of the solder has melted.
3. Pull the trigger to remove the melted solder.
4. If the solder was not removed, re-solder the part using new
solder and then repeat the desoldering process.
A. Desoldering
If the pump does not operate, immediately clean
the nozzle & heating element and replace the filter
if necessary.
CAUTION
● When triggering before the heater reaches set temperature
When triggering before the heater reaches set
temperature, the display screen shows “HEATING...
PLEASE WAIT” and the vacuum does not work.
Please wait for the heater to reach the set temperature.
Make sure that a filter has been inserted in the desoldering
tool. Desoldering without a filter may damage the pump.
CAUTION
5. OPERATION (continued)
6
<↓> <ENT><↑>
<↓> <ENT>
350℃
400℃
450℃
<↑>
PRESET1
PRESET2
PRESET3
350℃
400℃
450℃
PRESET1
PRESET2
PRESET3
3. Move the cursor UP or
DOWN by pressing
the corresponding buttons.
4. Press the <ENT> button to
finalize your selection.
If you wish to exit the PRESET SELECTION screen...
Scroll the cursor to the bottom, select <EXIT>, and press the <ENT> button.
You will return to the normal display without making changes.
Or, if the device is left alone without performing any operations for 10 seconds,
you will be returned to the normal display.
When changing the current set temperature or the preset temperature, follow the
operation of “
● Changing various setting (other than preset selections)”.
1. Press and hold any one
of the three control buttons
for at least 2 seconds.
● Changing various settings (other than preset selections)
2. The setting selection screen
appears.
The following settings can be changed from this screen:
Set Temp
Offset Temp
Vacuum Check
Preset Temp
Preset ID
LCD Contrast
<EXIT>
(Nozzle temperature setting)
(Nozzle temperature offset setting)
(Check of nozzle clogging and suction force)
(Setting of each preset temperature)
(Setting of each preset name)
(Contrast adjustment of display screen)
(Return to the normal display)
3. Move the cursor UP or
DOWN by pressing the
corresponding buttons.
4. Press the <ENT> button to
finalize your selection.
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C

● Set Temp (Nozzle temperature setting)

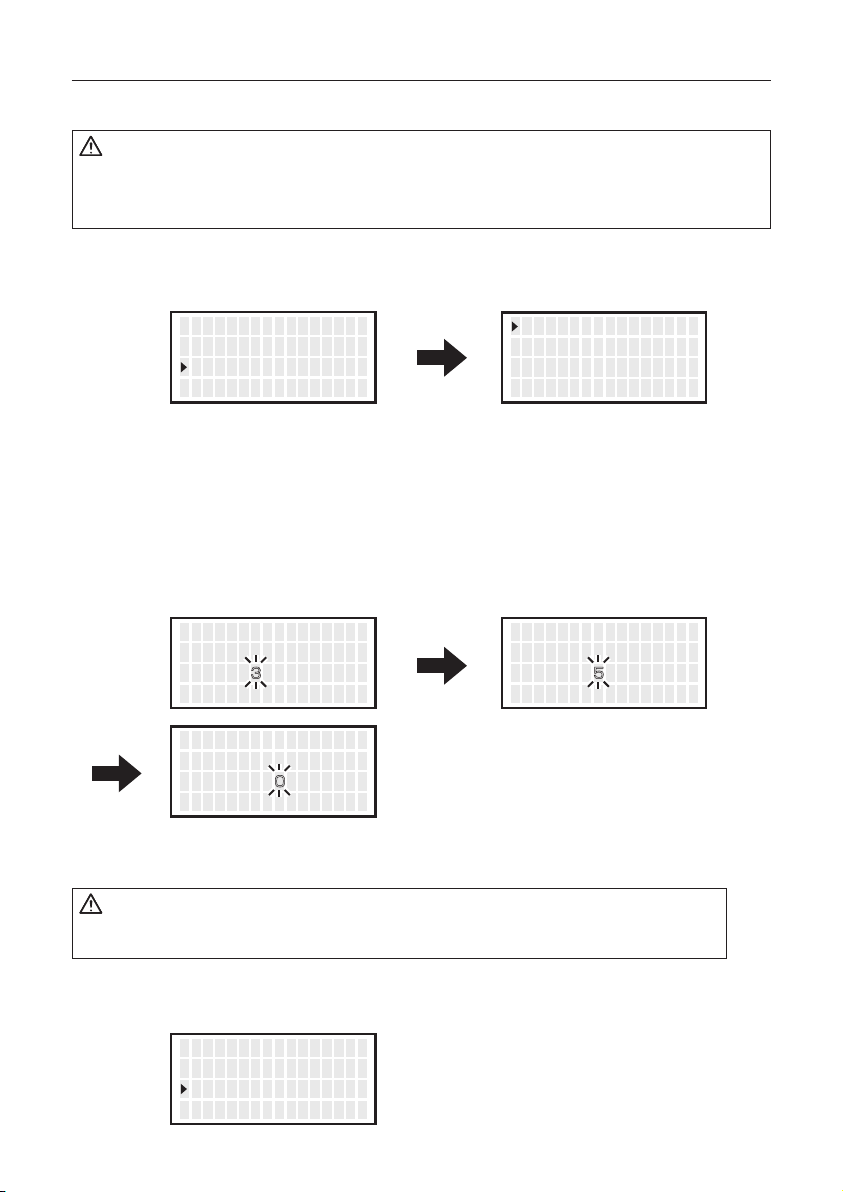

1. Move the cursor to select “Set Temp”. After selecting, press <ENT>.
2. Entering from hundreds to units digit
Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
Only values from 3 to 5 can be selected when entering the hundreds digit.
(In °F mode, values from 6 to 9 can be selected.)
Values from 0 to 9 can be selected when entering the tens or units digits.
(The same values can be selected in °F mode.)
3. When desired figure is displayed, press the button to enter.
The next digit will begin to flash. After entering the units digit, press the button to
save the figure to the system memory and begin heater control with new setting
temperature.
CAUTION
The temperature range is from 350 to 500°C. (660 to 940°F)
If you enter a value outside the temperature setting range, the display returns to the
hundreds digit, and you have to enter a correct value.
CAUTION
If power is switched off or lost during the execution of this procedure, no data
will be entered. The entire procedure must be repeated from step 1.
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
7
5. OPERATION (continued)
●Offset Temp (Nozzle temperature offset setting)

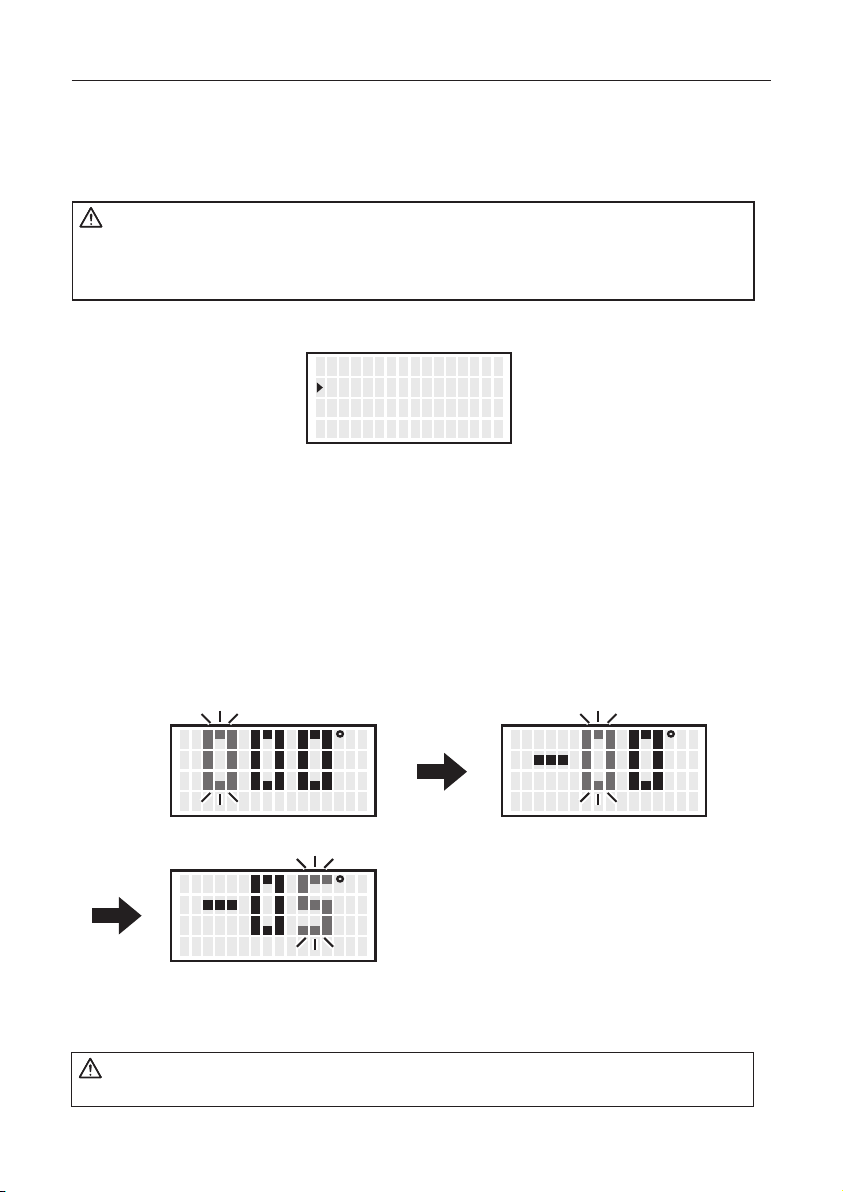

1. Move the cursor to select “OffsetTemp”. After selecting, press <ENT>.
2. Enter the offset value (-05) which is the difference between tip temperature and set
temperature.
Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
The hundreds digit can display 0 (for positive value) or minus sign. (for negative value)
(Same values can be selected in
°F mode.)
Values from 0 to 5 can be selected when entering the ten digit.
(In °F mode, values from 0 to 9 can be selected.)
Values from 0 to 9 can be selected when entering the units digit.
(Same values can be selected in °F mode.)
3. After entering the units digit, press the button to save the figure to the system
memory and begin heater control with the new offset value.
CAUTION
During the offset setting, please be careful tip temperature does not exceed 500°C.
CAUTION
The allowable ranges for offset values are from -50 to +50°C . (In °F mode, from -90
to +90°F) If you enter a value outside the offset value range, the display returns to
the hundreds digit, and you have to enter a correct value.
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
8
Example:If the measured temperature is 405°C and set temperature is 400°C, the
difference is -5°C. (need to decrease by 5°C) So, enter the figure which 5
is deducted from present offset value.

● Set Temp (Nozzle temperature setting)
1. Move the cursor to select “Set Temp”. After selecting, press <ENT>.
2. Entering from hundreds to units digit
Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
Only values from 3 to 5 can be selected when entering the hundreds digit.
(In °F mode, values from 6 to 9 can be selected.)
Values from 0 to 9 can be selected when entering the tens or units digits.
(The same values can be selected in °F mode.)
3. When desired figure is displayed, press the button to enter.
The next digit will begin to flash. After entering the units digit, press the button to
save the figure to the system memory and begin heater control with new setting
temperature.
CAUTION
The temperature range is from 350 to 500°C. (660 to 940°F)
If you enter a value outside the temperature setting range, the display returns to the
hundreds digit, and you have to enter a correct value.
CAUTION
If power is switched off or lost during the execution of this procedure, no data
will be entered. The entire procedure must be repeated from step 1.
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
7
5. OPERATION (continued)
●Offset Temp (Nozzle temperature offset setting)
1. Move the cursor to select “OffsetTemp”. After selecting, press <ENT>.
2. Enter the offset value (-05) which is the difference between tip temperature and set
temperature.
Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
The hundreds digit can display 0 (for positive value) or minus sign. (for negative value)
(Same values can be selected in
°F mode.)
Values from 0 to 5 can be selected when entering the ten digit.
(In °F mode, values from 0 to 9 can be selected.)
Values from 0 to 9 can be selected when entering the units digit.
(Same values can be selected in °F mode.)
3. After entering the units digit, press the button to save the figure to the system
memory and begin heater control with the new offset value.
CAUTION
During the offset setting, please be careful tip temperature does not exceed 500°C.
CAUTION
The allowable ranges for offset values are from -50 to +50°C . (In °F mode, from -90
to +90°F) If you enter a value outside the offset value range, the display returns to
the hundreds digit, and you have to enter a correct value.
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
C
<↑> <↓> <ENT>
8
Example:If the measured temperature is 405°C and set temperature is 400°C, the
difference is -5°C. (need to decrease by 5°C) So, enter the figure which 5
is deducted from present offset value.

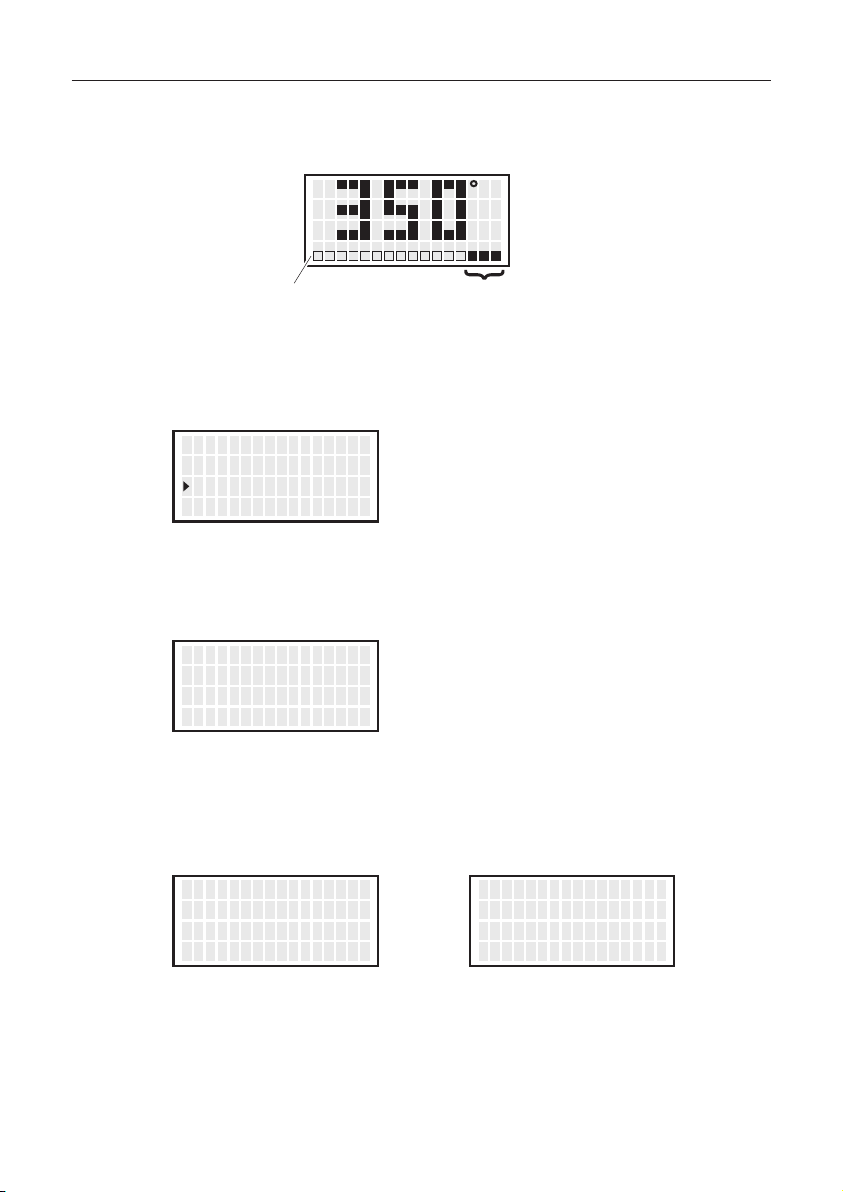

●Vacuum Check (Check of nozzle clogging and suction force)
During suction, the gauge indicating sucking status is shown at the lower side
of the screen.
When “CHK” appears and you notice that the sucking force is weakening,
perform “Vacuum Check”.
1. Move the cursor to select “Vacuum Check”. After selecting, press <ENT>.
2. Pull the trigger.
3. When “Clogging” appears, perform cleaning and replace filters.
4. Select <EXIT>, and press the <ENT> button to return to the selection screen.
C
Suction gauge Sign of clogging
CHK
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
<EXIT>
Vacuum Check
P u ll T r i gge r
<EXIT>
Vacuum Check
P u ll T r i gge r
O K
<EXIT>
Vacuum Check
P u ll T r i gge r
Clo g ging
No degradation in sucking force Degradation in sucking force
9
5. OPERATION (continued)
● Preset Temp (Setting of each preset temperature)
1. Move the cursor to select “Preset Temp”. After selecting, press <ENT>.
Select the preset No. whose temperature setting you wish to change.
2.
Entering from hundreds to units digit
Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
Only values from 3 to 5 can be selected when entering the hundreds digit.
(In °F mode, values from 6 to 9 can be selected.)
Values from 0 to 9 can be selected when entering the tens or units digits.
(The same values can be selected in ℉mode.)
3. After entering the units digit, press the button to save the figure to the system
memory and begin heater control with new setting temperature.
4. To exit from each setting screen, scroll the screen, select <EXIT>, and press the
<ENT> button.
CAUTION
If power is switched off or lost during the execution of this procedure, no data
will be entered. The entire procedure must be repeated from step 1.
<↑> <↓> <ENT>
O f f s e t T emp
Vacuum Check
P r ese t T emp
00ﾟ C
<↑> <↓> <ENT>
P1 T emp
P2 T emp
P3 T emp
350ﾟ C
400ﾟ C
450ﾟ C
<↑> <↓> <ENT>
PRESET1 TempS e t
50ﾟ C
<↑> <↓> <ENT>
PRESET1 TempS e t
3 0ﾟ C
<↑> <↓> <ENT>
PRESET1 TempS e t
35 ﾟ C
<↑> <↓> <ENT>
P2 T emp
P3 T emp
<EXIT>
400ﾟ C
450ﾟ C
10
CAUTION
The temperature range is from 350 to 500°C. (660 to 940°F)
If you enter a value outside the temperature setting range, the display returns to
the hundreds digit, and you have to enter a correct value.

●Vacuum Check (Check of nozzle clogging and suction force)
During suction, the gauge indicating sucking status is shown at the lower side
of the screen.
When “CHK” appears and you notice that the sucking force is weakening,
perform “Vacuum Check”.
1. Move the cursor to select “Vacuum Check”. After selecting, press <ENT>.
2. Pull the trigger.
3. When “Clogging” appears, perform cleaning and replace filters.
4. Select <EXIT>, and press the <ENT> button to return to the selection screen.
C
Suction gauge Sign of clogging
CHK
<↑> <↓> <ENT>
S e t T emp
O f f s e t T emp
Vacuum Check
350ﾟ C
00ﾟ C
<EXIT>
Vacuum Check
P u ll T r i gge r
<EXIT>
Vacuum Check
P u ll T r i gge r
O K
<EXIT>
Vacuum Check
P u ll T r i gge r
Clo g ging
No degradation in sucking force Degradation in sucking force
9
5. OPERATION (continued)
● Preset Temp (Setting of each preset temperature)
1. Move the cursor to select “Preset Temp”. After selecting, press <ENT>.
Select the preset No. whose temperature setting you wish to change.
2.
Entering from hundreds to units digit
Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
Only values from 3 to 5 can be selected when entering the hundreds digit.
(In °F mode, values from 6 to 9 can be selected.)
Values from 0 to 9 can be selected when entering the tens or units digits.
(The same values can be selected in ℉mode.)
3. After entering the units digit, press the button to save the figure to the system
memory and begin heater control with new setting temperature.
4. To exit from each setting screen, scroll the screen, select <EXIT>, and press the
<ENT> button.
CAUTION
If power is switched off or lost during the execution of this procedure, no data
will be entered. The entire procedure must be repeated from step 1.
<↑> <↓> <ENT>
O f f s e t T emp
Vacuum Check
P r ese t T emp
00ﾟ C
<↑> <↓> <ENT>
P1 T emp
P2 T emp
P3 T emp
350ﾟ C
400ﾟ C
450ﾟ C
<↑> <↓> <ENT>
PRESET1 TempS e t
50ﾟ C
<↑> <↓> <ENT>
PRESET1 TempS e t
30ﾟ C
<↑> <↓> <ENT>
PRESET1 TempS e t
35 ﾟ C
<↑> <↓> <ENT>
P2 T emp
P3 T emp
<EXIT>
400ﾟ C
450ﾟ C
10
CAUTION
The temperature range is from 350 to 500°C. (660 to 940°F)
If you enter a value outside the temperature setting range, the display returns to
the hundreds digit, and you have to enter a correct value.

● Preset ID (Setting of each preset name)
1.
Move the cursor to select “Preset ID”. After selecting, press <ENT>.
2. Move up and down the cursor with the control buttons.
After selecting, press <ENT>.
3. Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
4. To exit from setting screen, scroll the screen, select <EXIT>, and press the
<ENT> button.
CAUTION
As a preset ID, 1 to 8 characters can be used.
Usable characters are “A - Z”, “0 - 9”, and space (“ ”). Entering a space makes your
entry terminated. Any character(s) that follows the space is deleted.
<↑> <↓> <ENT>
Vacuum Check
P r ese t T emp
P r ese t I D
<↑> <↓> <ENT>
P1 I D SET
RESET1
<↑> <↓> <ENT>
P1 I D PRESET1
P2 I D PRESET2
P3 I D PRESET3
<↑> <↓> <ENT>
P2 I D PRESET2
P3 I D PRESET3
<EXIT>
11
5. OPERATION (continued)

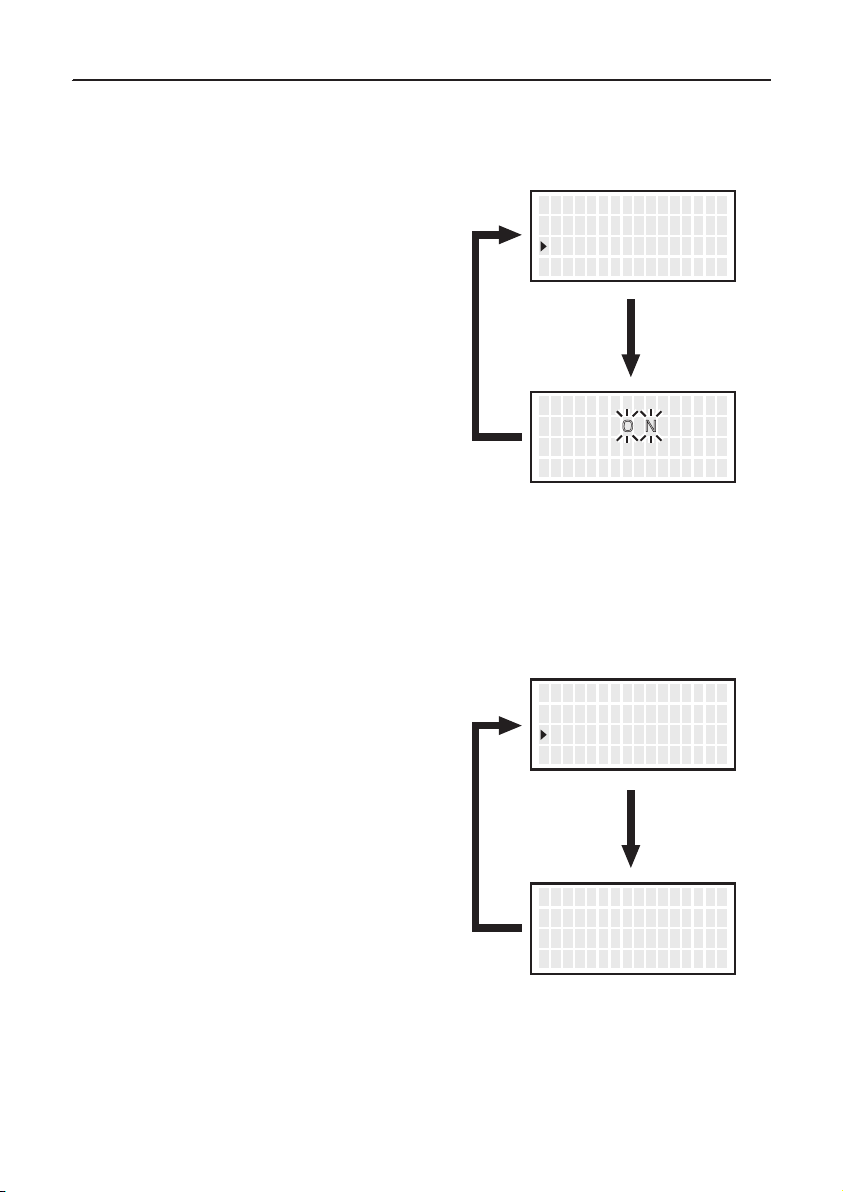

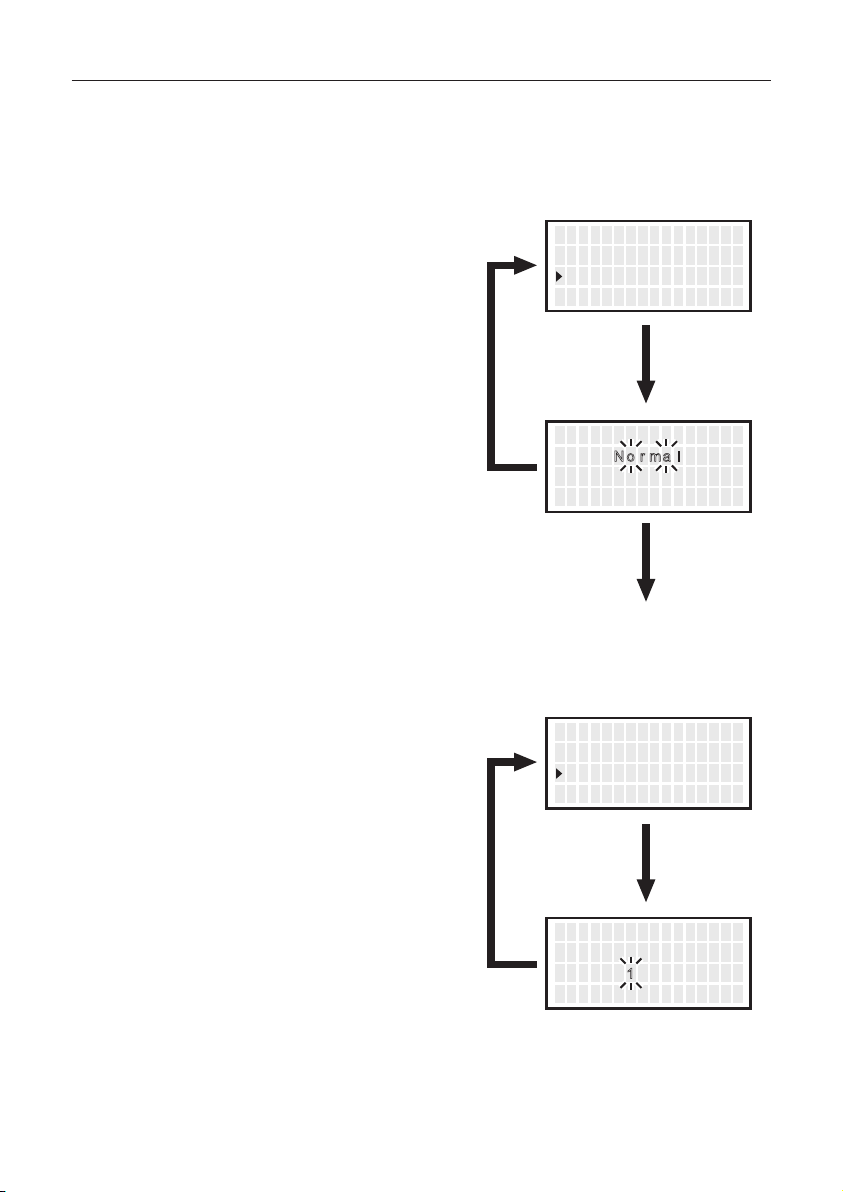

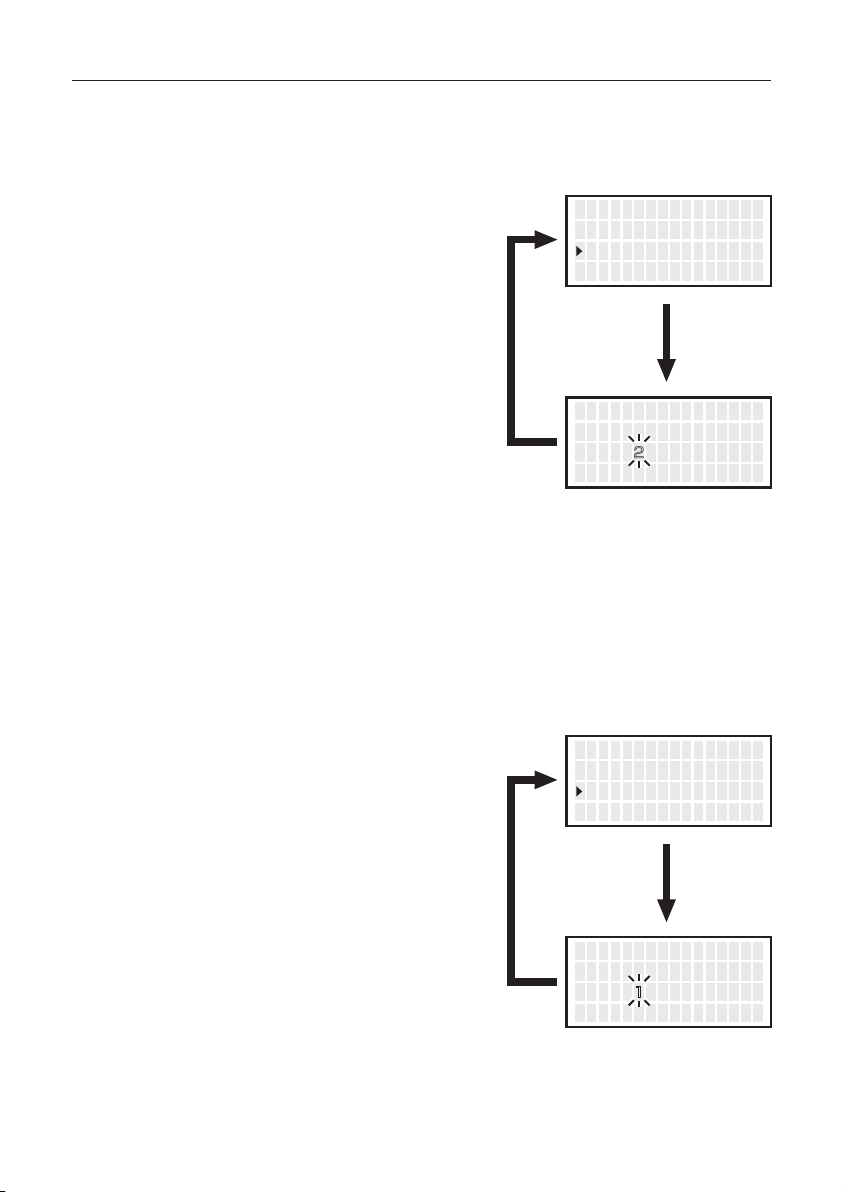

● LCD Contrast (Contrast adjustment of display screen)
1.
Move the cursor to select “ LCD Contrast ”. After selecting, press <ENT>.
To make the screen display easy to see, adjust contrast.
2. Press the <↑> or <↓> to set the adjust contrast .
(Selection range is 1 to 25.)
3. After selecting the value, press <ENT> to return to the selection screen.
To exit from each setting screen, scroll the screen, select <EXIT>, and press
the <ENT> button.
<↑> <↓> <ENT>
P r ese t T emp
P r ese t I D
LCD Contra s t
<↑> <↓> <ENT>
LCD Contra s t
A d jus t me n t
10
<↑> <↓> <ENT>
P r ese t I D
LCD Contra s t
<EXIT>
12

● Preset ID (Setting of each preset name)
1.
Move the cursor to select “Preset ID”. After selecting, press <ENT>.
2. Move up and down the cursor with the control buttons.
After selecting, press <ENT>.
3. Press the <↑> or <↓> to set the desired figure.
You will proceed to the next digit if the <ENT> button is pressed.
4. To exit from setting screen, scroll the screen, select <EXIT>, and press the
<ENT> button.
CAUTION
As a preset ID, 1 to 8 characters can be used.
Usable characters are “A - Z”, “0 - 9”, and space (“ ”). Entering a space makes your
entry terminated. Any character(s) that follows the space is deleted.
<↑> <↓> <ENT>
Vacuum Check
P r ese t T emp
P r ese t I D
<↑> <↓> <ENT>
P1 I D SET
RESET1
<↑> <↓> <ENT>
P1 I D PRESET1
P2 I D PRESET2
P3 I D PRESET3
<↑> <↓> <ENT>
P2 I D PRESET2
P3 I D PRESET3
<EXIT>
11
5. OPERATION (continued)
● LCD Contrast (Contrast adjustment of display screen)
1.
Move the cursor to select “ LCD Contrast ”. After selecting, press <ENT>.
To make the screen display easy to see, adjust contrast.
2. Press the <↑> or <↓> to set the adjust contrast .
(Selection range is 1 to 25.)
3. After selecting the value, press <ENT> to return to the selection screen.
To exit from each setting screen, scroll the screen, select <EXIT>, and press
the <ENT> button.
<↑> <↓> <ENT>
P r ese t T emp
P r ese t I D
LCD Contra s t
<↑> <↓> <ENT>
LCD Contra s t
A d jus t me n t
10
<↑> <↓> <ENT>
P r ese t I D
LCD Contra s t
<EXIT>
12

6. PARAMETER SETTING
13
Parameter name
Temp Mode
ShutOff Set
Timer**
Vaccum Mode
Vacuum Time ***
Auto Sleep
Timer**
Sleep Temp
Low Temp
Error Alarm
Ready Alarm
Pass. Lock
Password****
Initial Reset
● PARAMETER SETTINGS
Press and hold any one of the three control buttons, and turn on the power switch to
display the parameter setting screen. The following parameters can be set:
* For USA.
** Timer can be set when ShutOff / Auto Sleep is set to “ON”.
***
Vacuum Time is displayed when Vacuum Mode is set to "Timer".
****Password is displayed when Password Lock is set to "Lock" or "Partial".
Initial value
°C (°F*)
OFF
30 min.
Normal
1 sec.
ON
6 min.
200°C (390°F)
150°C (270°F)
ON
ON
OFF
-
Value
°C / °F
OFF / ON
30 to 60 min.
Normal / Timer
1 to 5 sec.
OFF / ON
1 to 29 min.
200 to 300°C
(390 to 570°F)
30 to 150°C (54 to 270°F)
ON / OFF
ON / OFF
ON (Lock/Partial) / OFF (Unlock)
“ABCDEF”
Select three letters
°C / °F / Cancel
①
②
Press and hold any one of
the three control buttons while
turning on the power switch.
● Temp Mode
1.
Move the cursor to select “Temp Mode”.
After selecting, press <ENT>.
The displayed temperature can be switched between Celsius and Fahrenheit.
2. °C and °F will be switched alternately
if you press the <↑> or <↓> button.
3. Return to parameter setting display
if you press the <ENT> button after
setting.
● ShutOff Set
1.
Move the cursor to select “ ShutOff Set ”.
After selecting, press <ENT>.
Select whether you will activate the auto shutoff function. When the auto shutoff
function is set to on and no operation is performed for constant time after the handpiece
is set in the iron holder, the buzzer sounds three times and the auto shutoff function
will be enabled.
2. ON and OFF will be switched alternately
if you press the <↑> or <↓> button.
3. Selecting “ON” allows you to make the
setting for “Timer”.
(Default is 30 minutes.)
<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
OFF
NOR
<↑> <↓> <ENT>
Temp M o d e S e t
ﾟ F

<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
OFF
NOR
<↑> <↓> <ENT>
S h u t O f f S e t
S h u t O f f
T i m e r
OFF
30m
Select
“OFF”
Select
“ON”
(Next page) 14

6. PARAMETER SETTING
13
Parameter name
Temp Mode
ShutOff Set
Timer**
Vaccum Mode
Vacuum Time ***
Auto Sleep
Timer**
Sleep Temp
Low Temp
Error Alarm
Ready Alarm
Pass. Lock
Password****
Initial Reset
● PARAMETER SETTINGS
Press and hold any one of the three control buttons, and turn on the power switch to
display the parameter setting screen. The following parameters can be set:
* For USA.
** Timer can be set when ShutOff / Auto Sleep is set to “ON”.
***
Vacuum Time is displayed when Vacuum Mode is set to "Timer".
****Password is displayed when Password Lock is set to "Lock" or "Partial".
Initial value
°C (°F*)
OFF
30 min.
Normal
1 sec.
ON
6 min.
200°C (390°F)
150°C (270°F)
ON
ON
OFF
-
Value
°C / °F
OFF / ON
30 to 60 min.
Normal / Timer
1 to 5 sec.
OFF / ON
1 to 29 min.
200 to 300°C
(390 to 570°F)
30 to 150°C (54 to 270°F)
ON / OFF
ON / OFF
ON (Lock/Partial) / OFF (Unlock)
“ABCDEF”
Select three letters
°C / °F / Cancel
①
②
Press and hold any one of
the three control buttons while
turning on the power switch.
● Temp Mode
1.
Move the cursor to select “Temp Mode”.
After selecting, press <ENT>.
The displayed temperature can be switched between Celsius and Fahrenheit.
2. °C and °F will be switched alternately
if you press the <↑> or <↓> button.
3. Return to parameter setting display
if you press the <ENT> button after
setting.
● ShutOff Set
1.
Move the cursor to select “ ShutOff Set ”.
After selecting, press <ENT>.
Select whether you will activate the auto shutoff function. When the auto shutoff
function is set to on and no operation is performed for constant time after the handpiece
is set in the iron holder, the buzzer sounds three times and the auto shutoff function
will be enabled.
2. ON and OFF will be switched alternately
if you press the <↑> or <↓> button.
3. Selecting “ON” allows you to make the
setting for “Timer”.
(Default is 30 minutes.)
<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
OFF
NOR
<↑> <↓> <ENT>
Temp M o d e S e t
ﾟ F

<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
OFF
NOR
<↑> <↓> <ENT>
S h u t O f f S e t
S h u t O f f
T i m e r
OFF
30m
Select
“OFF”
Select
“ON”
(Next page) 14

● ShutOff Set (continued)
4. When setting “Shut Off” to “ON”,
the area for “Timer” flashes.
5. Press the <↑> or <↓> to set the desired
figure.
6. Pressing the <ENT> button after this change
makes the set time stored in the internal memory.
<↑> <↓> <ENT>
S h u t O f f S e t
S h u t O f f
T i m e r
ON
0m
<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
ON
NOR
15
6. PARAMETER SETTING (continued)
● Vacuum Mode
1.
Move the cursor to select “ VacuumMode ”.
After selecting, press <ENT>.
2. Normal and Timer will be switched alternately
if you press the <↑> or <↓> button.
3. Return to parameter setting display
if you press the <ENT> button after
setting.
● Vacuum Time
1.
Move the cursor to select “ Vacuum Time ”.
After selecting, press <ENT>.
2. Press the <↑> or <↓> button, you can
change to the desired value.
3. Return to parameter setting display
if you press the <ENT> button after
setting.
* When selecting “Timer”
“Vacuum Time” appears under “VacuumMode” in the parameter select screen.
Select whether you manually operate the desoldering pump or use the timer function.
Normal:Solder is sucked only when you are pulling the trigger.
Timer:
Even after you release the trigger, sucking continues for the specified period of time.
* Set time in “Vacuum Time”.
<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
OFF
NOR
<↑> <↓> <ENT>
Vacuum M o d e S e t
T i me r
Select
Normal
Select
Timer
(Vacuum Time)
<↑> <↓> <ENT>
S h u t O f f S e t
VacuumM o d e
Vacuum T i m e
OFF
T I ME
1s
<↑> <↓> <ENT>
Vacuum T i m e S e t
0sec
16

● ShutOff Set (continued)
4. When setting “Shut Off” to “ON”,
the area for “Timer” flashes.
5. Press the <↑> or <↓> to set the desired
figure.
6. Pressing the <ENT> button after this change
makes the set time stored in the internal memory.
<↑> <↓> <ENT>
S h u t O f f S e t
S h u t O f f
T i m e r
ON
0m
<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
ON
NOR
15
6. PARAMETER SETTING (continued)
● Vacuum Mode
1.
Move the cursor to select “ VacuumMode ”.
After selecting, press <ENT>.
2. Normal and Timer will be switched alternately
if you press the <↑> or <↓> button.
3. Return to parameter setting display
if you press the <ENT> button after
setting.
● Vacuum Time
1.
Move the cursor to select “ Vacuum Time ”.
After selecting, press <ENT>.
2. Press the <↑> or <↓> button, you can
change to the desired value.
3. Return to parameter setting display
if you press the <ENT> button after
setting.
* When selecting “Timer”
“Vacuum Time” appears under “VacuumMode” in the parameter select screen.
Select whether you manually operate the desoldering pump or use the timer function.
Normal:Solder is sucked only when you are pulling the trigger.
Timer:
Even after you release the trigger, sucking continues for the specified period of time.
* Set time in “Vacuum Time”.
<↑> <↓> <ENT>
Temp M o d e
S h u t O f f S e t
VacuumM o d e
ﾟ C
OFF
NOR
<↑> <↓> <ENT>
Vacuum M o d e S e t
T i me r
Select
Normal
Select
Timer
(Vacuum Time)
<↑> <↓> <ENT>
S h u t O f f S e t
VacuumM o d e
Vacuum T i m e
OFF
T I ME
1s
<↑> <↓> <ENT>
Vacuum T i m e S e t
0sec
16

● Auto Sleep
1.
Move the cursor to select “ Auto Sleep ”.
After selecting, press <ENT>.
Select whether you will activate the auto sleep function. When the auto sleep function is
set to on and no operation is performed for constant time after the handpiece is set in
the iron holder, the auto sleep function will be enabled and the temperature of the
handpiece declines to the controlled degree.
*
The auto sleep temperature can be set in “Sleep Temp”.
2. ON and OFF will be switched alternately
if you press the <↑> or <↓> button.
3. Selecting “ON” allows you to make the
setting for “Timer”.
(Default is 6 minutes.)
* When selecting “ON”
4. When setting “Auto Sleep” to “ON”,
the area for Timer flashes.
5. Press the <↑> or <↓> button, you can
change to the desired value.
6. Pressing the <ENT> button after this change
makes the set time stored in the internal
memory.
<↑> <↓> <ENT>
S h u t O f f S e t
VacuumM o d e
Auto S l e ep
OFF
NOR
OFF
<↑> <↓> <ENT>
Auto S l e ep S e t
Auto S l e ep OFF
T i m e r 06m
<↑> <↓> <ENT>
Auto S l e ep S e t
Auto S l e ep ON
T i m e r 6m
Select
“OFF”
Select
“ON”
<↑> <↓> <ENT>
S h u t O f f S e t
VacuumM o d e
Auto S l e ep
OFF
NOR
06m
17
6. PARAMETER SETTING (continued)
●Sleep Temp
●Low Temp
1.
Move the cursor to select “ SleepTemp ”.
After selecting, press <ENT>.
Sets the auto sleep temperature.
When the temperature drops below a set limit, an error is displayed and the buzzer
sounds.
2. Entering from hundreds to units digit.
Press the <↑> or <↓> to set the desired
figure.
You will proceed to the next digit if the
<ENT> button is pressed.
Only values from 2 to 3 can be selected when
entering the hundreds digit.
(In °F mode, values from 3 to 5 can be selected.)
Values from 0 to 9 can be selected when
entering the tens or units digits.
(The same values can be selected in °F mode.)
2. Entering from hundreds to units digit.
Press the <↑> or <↓> to set the desired
figure.
You will proceed to the next digit if the
<ENT> button is pressed.
Only values from 0 to 1 can be selected when
entering the hundreds digit.
(In °F mode, values from 0 to 2 can be
selected.)
Values from 0 to 9 can be selected when
entering the tens or units digits.
(The same values can be selected in °F mode.)
3. After entering the units digit, press the button
to save the figure to the system memory
1. Move the cursor to select “ Low Temp ”.
After selecting, press <ENT>.
3. After entering the units digit, press the button
to save the figure to the system memory.
<↑> <↓> <ENT>
VacuumM o d e
Auto S l e ep
S l e e p T emp
NOR
06m
200ﾟ C
<↑> <↓> <ENT>
S l e e p T emp S e t
00ﾟ C
<↑> <↓> <ENT>
Auto S l e ep
S l e e p T emp
L o w Temp
06m
200ﾟ C
150ﾟ C
<↑> <↓> <ENT>
L o w T emp S e t
50ﾟ C
18

● Auto Sleep
1.
Move the cursor to select “ Auto Sleep ”.
After selecting, press <ENT>.
Select whether you will activate the auto sleep function. When the auto sleep function is
set to on and no operation is performed for constant time after the handpiece is set in
the iron holder, the auto sleep function will be enabled and the temperature of the
handpiece declines to the controlled degree.
*
The auto sleep temperature can be set in “Sleep Temp”.
2. ON and OFF will be switched alternately
if you press the <↑> or <↓> button.
3. Selecting “ON” allows you to make the
setting for “Timer”.
(Default is 6 minutes.)
* When selecting “ON”
4. When setting “Auto Sleep” to “ON”,
the area for Timer flashes.
5. Press the <↑> or <↓> button, you can
change to the desired value.
6. Pressing the <ENT> button after this change
makes the set time stored in the internal
memory.
<↑> <↓> <ENT>
S h u t O f f S e t
VacuumM o d e
Auto S l e ep
OFF
NOR
OFF
<↑> <↓> <ENT>
Auto S l e ep S e t
Auto S l e ep OFF
T i m e r 06m
<↑> <↓> <ENT>
Auto S l e ep S e t
Auto S l e ep ON
T i m e r 6m
Select
“OFF”
Select
“ON”
<↑> <↓> <ENT>
S h u t O f f S e t
VacuumM o d e
Auto S l e ep
OFF
NOR
06m
17
6. PARAMETER SETTING (continued)
●Sleep Temp
●Low Temp
1.
Move the cursor to select “ SleepTemp ”.
After selecting, press <ENT>.
Sets the auto sleep temperature.
When the temperature drops below a set limit, an error is displayed and the buzzer
sounds.
2. Entering from hundreds to units digit.
Press the <↑> or <↓> to set the desired
figure.
You will proceed to the next digit if the
<ENT> button is pressed.
Only values from 2 to 3 can be selected when
entering the hundreds digit.
(In °F mode, values from 3 to 5 can be selected.)
Values from 0 to 9 can be selected when
entering the tens or units digits.
(The same values can be selected in °F mode.)
2. Entering from hundreds to units digit.
Press the <↑> or <↓> to set the desired
figure.
You will proceed to the next digit if the
<ENT> button is pressed.
Only values from 0 to 1 can be selected when
entering the hundreds digit.
(In °F mode, values from 0 to 2 can be
selected.)
Values from 0 to 9 can be selected when
entering the tens or units digits.
(The same values can be selected in °F mode.)
3. After entering the units digit, press the button
to save the figure to the system memory
1. Move the cursor to select “ Low Temp ”.
After selecting, press <ENT>.
3. After entering the units digit, press the button
to save the figure to the system memory.
<↑> <↓> <ENT>
VacuumM o d e
Auto S l e ep
S l e e p T emp
NOR
06m
200ﾟ C
<↑> <↓> <ENT>
S l e e p T emp S e t
00ﾟ C
<↑> <↓> <ENT>
Auto S l e ep
S l e e p T emp
L o w Temp
06m
200ﾟ C
150ﾟ C
<↑> <↓> <ENT>
L o w T emp S e t
50ﾟ C
18

● Error Alarm
● Ready Alarm
In the buzzer sound setting mode, which sets whether to sound the buzzer when a
error occurs.
When the set temperature alert setting mode is on, the buzzer sounds if you reached
the usable temperature.
1.
Move the cursor to select “ Error Alarm ”.
After selecting, press <ENT>.
2. ON and OFF will be switched alternately
if you press the <↑> or <↓> button.
3. Return to parameter setting display if you
press the <ENT> button after setting.
2. ON and OFF will be switched alternately
if you press the <↑> or <↓> button.
3. Return to parameter setting display if you
press the <ENT> button after setting.
1. Move the cursor to select “ Ready Alarm ”.
After selecting, press <ENT>.
<↑> <↓> <ENT>
S l e e p T emp
L o w Temp
E r r o r A l arm
200ﾟ C
150ﾟ C
ON
<↑> <↓> <ENT>
E r r o r A l arm S e t
OFF
<↑> <↓> <ENT>
L o w Temp
E r r o r A l arm
Read y A l arm
150ﾟ C
OFF
ON
<↑> <↓> <ENT>
Read y A l arm S e t
O N
OFF
19
6. PARAMETER SETTING (continued)
● Pass. Lock
Set the password to limit changes by the following levels.
Lock
Partial
Unlock
1.
Move the cursor to select “ Pass. Lock ”.
After selecting, press <ENT>.
2. Using the <↑> or <↓> button, select an
option from “Lock”, “Partial”, and “Unlock”.
6. Using the <↑> or <↓> button, enter a
password. (Selection of three characters
from ABCDEF)
* When selecting “Partial” or “Lock”
* When selecting “OK”
3. Select Lock ON/OFF for set temperature/
preset selection/offset temperature change.
(Only when selecting “Partial”)
5. Press the <ENT> button.
(Only when selecting “Partial”)
4. After having selected all selections, use the
<↑> or<↓> button to select “OK/Cancel”.
(Only when selecting “Partial”)
7. After entering, press the <ENT> button.
Select “OK” or “Cancel” using the <↑> or
<↓> button.
8. After selecting, press the <ENT> button
to return to the parameter setting screen.
The password is displayed under “Pass. Lock”
on the parameter setting screen.
: All setting changes require a password entry.
:
Select whether or not to enter your password for set temperature/preset selection/
offset temperature change. Other procedures require password entry.
: Any setting change does not require a password entry.
<↑> <↓> <ENT>
E r r o r A l arm
Read y A l arm
Pass. Lock
OFF
OFF
OFF
<↑> <↓> <ENT>
Passw o r d Lock S e t
U nlock
Select
“Unlock”
Select
“Lock”
Select
“Partial”
<↑> <↓> <ENT>
S e t T emp
P r ese t S e l
O f f s e t T emp
ON
ON
ON
<↑> <↓> <ENT>
P r ese t S e l
O f f s e t T emp
O K
ON
ON
<↑> <↓> <ENT>
Passw o r d S e t
* * *
O K
<↑> <↓> <ENT>
P ass. Lock
P assw o r d
I n i t i a l R e s e t
ON


CAUTION
This setting cannot be changed unless you enter the correct password.
20
