Hakko Electronics FM-2023 User manual
®
MINI PARALLEL REMOVER
Instruction Manual
●
Thank you for purchasing the FM-2023 mini parallel remover.
Please read this manual before operating the FM-2023. Keep this
manual readily accessible for reference.
●
CAUTION
• The FM-2023 cannot function by itself. It must be connected to an
FM-202 soldering station.
• Specific information can be found in the instruction manual for your
FM-202 soldering station.
TABLE OF CONTENTS
1. PACKING LIST .........................................................1
2. SPECIFICATIONS ....................................................1
3. WARNINGS, CAUTIONS AND NOTES ...................2
4. PART NAMES ...........................................................3
5. SETTING UP THE FM-2023 ....................................3
6. OPERATION .............................................................4
7. MAINTENANCE .......................................................7
8. TROUBLESHOOTING GUIDE .................................8
9. PARTS LIST ...........................................................10
10. WIRING DIAGRAM ................................................11
11
10. WIRING DIAGRAM
HEAD OFFICE
4-5, SHIOKUSA 2-CHOME, NANIWA-KU, OSAKA, 556-0024 JAPAN
TEL:+81-6-6561-3225 FAX:+81-6-6561-8466
http://www.hakko.com
AMERICAN HAKKO PRODUCTS, INC.
28920 N. AVENUE WILLIAMS VALENCIA CA 91355, U.S.A.
TEL: (661) 294-0090 FAX: (661) 294-0096
Toll Free (800)88-HAKKO www.hakkousa.com
4 2 5 5 6
2005.12
MA01234JZ051219
P.W.B/LED
White
Red
Black
Green
S
-
LED1
+
Yellow
Blue
Brown
Purple
10

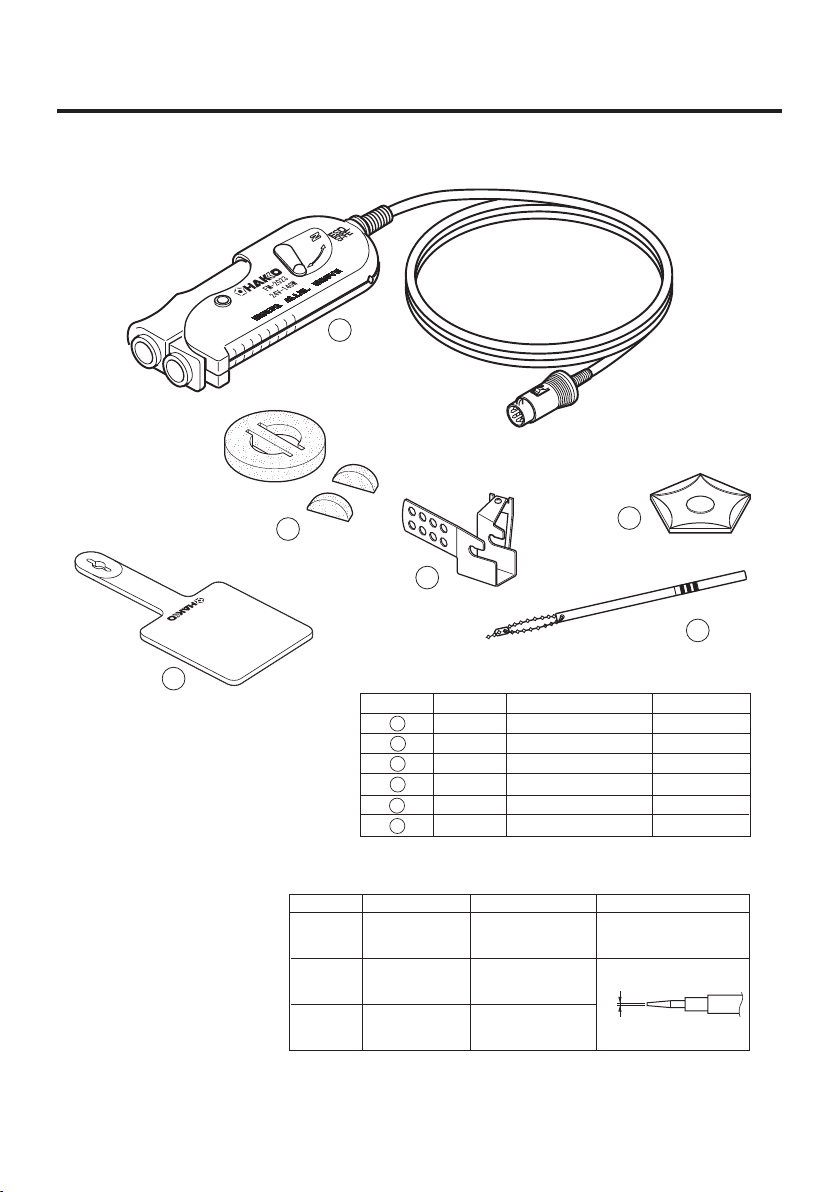

9. PARTS LIST
1
5
3
2
Tips
21
4
Mini parallel remover
Item No. Part No.
B2300
B2847
B2848
A1519
B2849
Part Name
Heat resistant pad
Tip ID number key
Holder clip
Cleaning sponge
Component bed
Handpiece only
Specifications
With screw
6
FM2023-02
Part No.
T9-I
T9-L1
T9-L2
Part Name
Tip/CHIP I
Tip/CHIP 1L
Tip/CHIP 2L
Size A
-----
1 mm (0.04 in.)
2 mm (0.08 in.)
Shape
A
-----
w/o tip
2
1
3
4
5
6
1

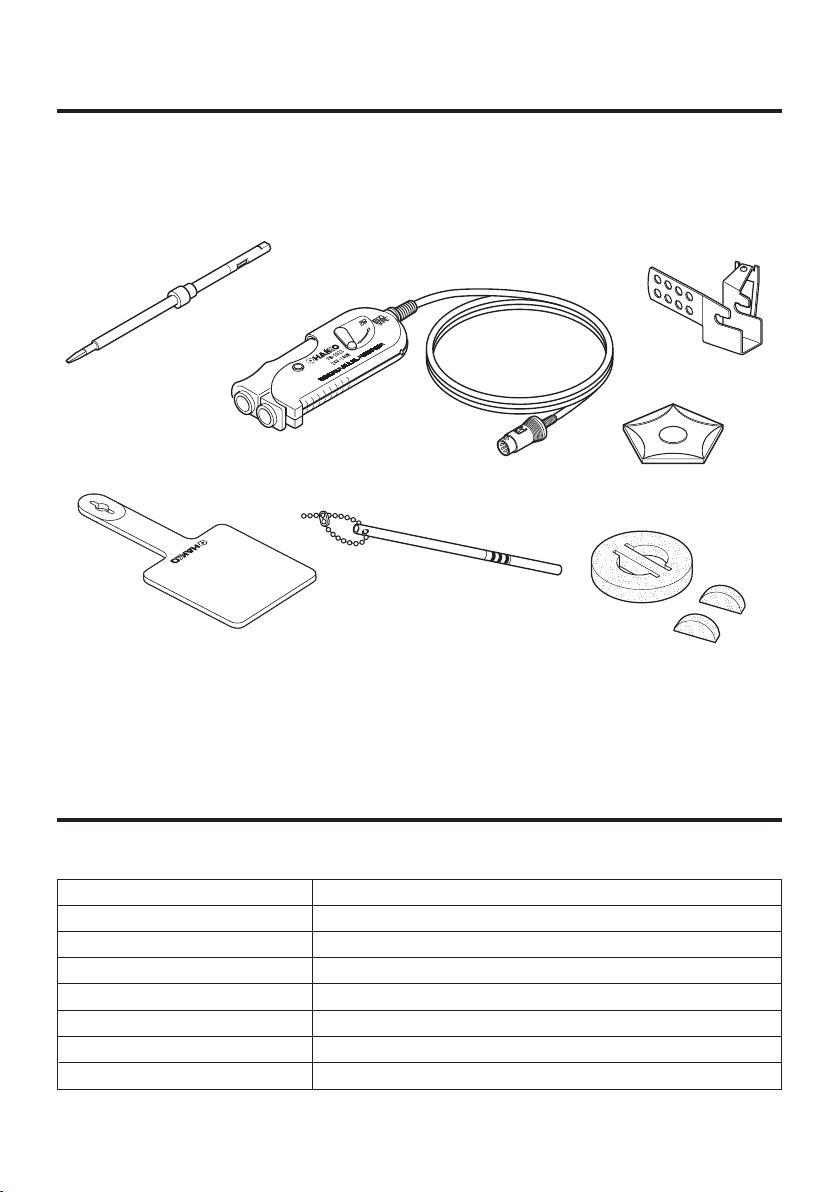

1. PACKING LIST
Mini parallel remover handpiece ........... 1
Tips (T9-I) 2pcs/set ................................ 1
Heat resistant pad .................................. 1
Cleaning sponge .................................... 1
Heat resistant pad
Tip ID number key
Holder clip
Mini parallel remover handpiece
Tip (shape-I)
Component bed
Cleaning sponge
Applicable Models
In order to function, the FM-2023 must be connected to the FM-202 soldering station.
2. SPECIFICATIONS
FM-2023 Mini parallel remover
Power Consumption
Temperature Range
Tip to Ground Resistance
Tip to Ground Potential
Cord Assembly
Total Length (w/o cord)
Weight (w/o cord)
Standard tip
140W (24 V)
200 – 400°C (400 – 750°F)
< 2
< 2mV
1.2m (4 ft.)
75mm (w/o tip)
32g (Handpiece only), 5g (I tip only)
T9-I (Shape-I)
Specifications and design are subject to change without notice.
Tip ID number key .................................. 1
Holder clip (w/screw) .............................. 1
Component bed ...................................... 1
2
3. WARNINGS, CAUTIONS AND NOTES
Warnings, cautions and notes are placed at critical points in this manual to direct the
operatorʼs attention to significant items. They are defined as follows:
WARNING: Failure to comply with a WARNING may result in injury or death.
CAUTION: Failure to comply with a CAUTION may result in injury to the operator, or
damage to the items involved. (One example is given below.)
NOTE: A NOTE indicates a procedure or point that is important to the process being de-
scribed.
CAUTION
When the power is on, the tip temperature is between 200°C/400°F and 400°C/750°F.
Since mishandling may lead to burns or fire, be sure to comply with the following pre-
cautions:
● Do not touch the metallic parts near the tip.
● Do not use the product near flammable items.
● Advise other people in the work area that the unit can reach a very high tempera-
ture and should be considered potentially dangerous.
● Turn off the power while taking breaks and when finished using the unit.
● Before replacing parts or storing the unit, turn off the power and allow the unit to
cool to room temperature.
CAUTION
To prevent damage to the unit and ensure a safe working environment, be sure to
comply with the following precautions:
● Do not use the unit for applications other than those specifically described in the
instruction manual.
● Do not set the tip temperature higher than 400°C/750°F.
● Do not rap the FM-2023 against the work bench to shake off residual solder, or
otherwise subject the iron to severe shocks.
● Do not modify the unit.
● Use only genuine HAKKO replacement parts.
● Do not wet the unit or use the unit when your hands are wet.
● The operating process will produce smoke. Make sure the area is well ventilated.
● Pull on the plug to disconnect the FM-2023 from the station outlet. Do not pull the
cord.
9
● The low-temperature
alarm tolerance error
occurs frequently.
CHECK : Is the tip too small for the items to be
removed?
ACTION
: Use a tip with a large thermal capac-
ity.
CHECK : Is the setting value for the low-tem-
perature alarm tolerance too low?
ACTION
: Increase the setting value.
● Tip ID error is dis-
played.
CHECK
: Does the tip come off during use?
ACTION
: Enter correctly. See section 6, Opera-
tion for instructions.
NOTE:
If the buzzer sounds three times when Tip ID number
key is inserted into the process gate, there has been
a reading error. Reinsert the Tip ID number key. If
the code bar is torn or damaged the process gate
will not be able to read it. See the FM-202 manual for
instructions of manually entering the Tip ID.
● Heater terminal short
circuit error is dis-
played.
CHECK : Is the tip for FM-2023?
ACTION
: Turn the power switch OFF and in-
sert the correct FM-2023 tip. Turn the
power switch ON.
● The tips cannot be
closed.
• The tips will not return to the
original position.
CHECK : Is there a foreign object between the
tips?
ACTION
: Remove it.
● Tip error or is
displayed.
ACTION
: Contact your Hakko representative.
8
8. TROUBLESHOOTING GUIDE
WARNING:
Disconnect the power plug before servicing.
Failure to do so may result in electric shock.
CHECK : Is the tip inserted properly?
ACTION
: Insert the tip completely.
CHECK : Is the connection cord and/or the
heater/sensor broken?
ACTION
: See the appropriate section of this
manual regarding how to check the
connection cord and/or the heater/
sensor for breakage.
● The tip does not heat
up.
• The sensor error is dis-
played.
● Solder does not wet the
tip.
CHECK : Is the tip temperature too high?
ACTION
: Set the appropriate temperature.
CHECK : Is the tip contaminated with oxide?
ACTION
: Remove the oxide by cleaning the tip
on a damp sponge or Hakko 599B tip
cleaner.
● The tip temperature is
too high.
CHECK
: Is the connection cord broken?
ACTION
: See “Checking the connection cord
for breakage”.
CHECK : Is the Tip ID number key entered cor-
rectly?
ACTION
: Enter the correct value.
● The tip temperature is
too low.
CHECK
: Is the tip contaminated with oxide?
ACTION
: Remove the oxide by cleaning the tip
on a damp sponge or Hakko 599B tip
cleaner.
CHECK : Is the Tip ID number key entered cor-
rectly?
ACTION
: Enter the correct value.
● The soldering iron error
is displayed.
• The LED heater lamp does not
light.
CHECK : Is the connection cord broken?
ACTION
: See “Checking the connection cord
for breakage”.
CHECK : Is the FM-2023 plug disconnected?
ACTION
: Connect the FM-2023.
3

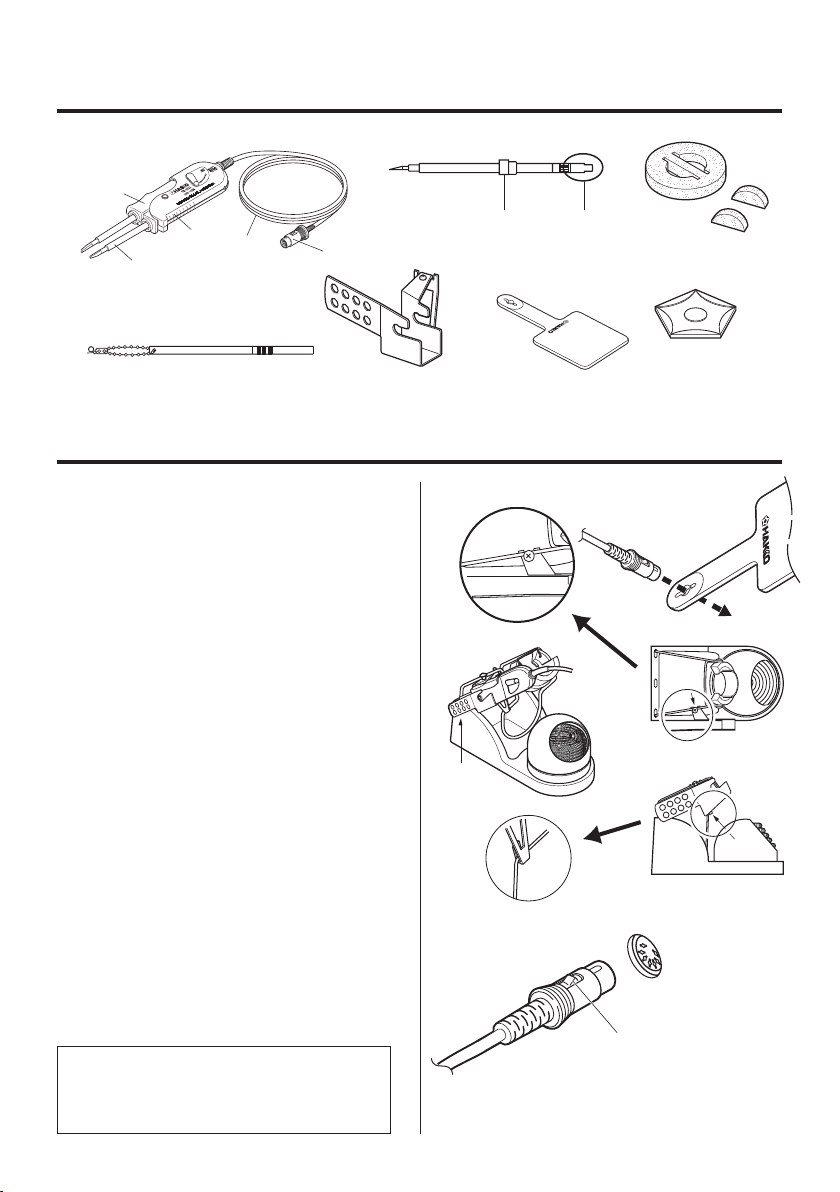

4. PART NAMES
Heat resistant pad
Tip ID number key
Plug
Fixing flange
21
Holder clip
Component bed
Cleaning sponge
Tip
Plug
Cord
Handle
Button
5. SETTING UP THE FM-2023
1. Connector cord
Pass the connector cord through the hole
in the heat resistant pad.
2. Iron holder
Attach the holder clip to iron holder
No.FH100-01 or FH100-02.
Hang the lower hook of holder clip on the
lower wire of the iron holder and attach it
with the screw.
(Setup follows)
1. Do not let the tips extend beyond the
back of the iron holder base.
(See drawing No.1)
2.
Before tightening the screw, make sure
that the 2 projections of holder clip
are touching the upper wire of the iron
holder. (See drawing No.2 and No.3)
3. Connections
1. Connect the plug to the FM-202.
2. Place the FM-2023 in the iron holder.
3. Plug the power cord into the power
supply. Be sure to ground the unit.
Push the plug in as far as
it will go, and try to remove it
without pressing the release pin.
If it stays in the receptacle
it is properly seated.
Receptacle
When the plug clicks ,
it is fully inserted.
NOTE:
This product is protected against electrostatic
discharge and must be grounded for full ef-
ficiency.
No. 1
No. 3
No. 2
4
6. OPERATION
● Controls and displays
Please refer to the FM-202 instruction
manual.
CAUTION:
Refrain from inserting foreign objects, the
wrong end of the tip, or incompatible tips into
the process gate. Damage may result.
NOTE:
If the buzzer sounds three times when the
Tip ID number key is inserted into the pro-
cess gate, there has been a reading error.
Reinsert the Tip ID number key. If the code
bar is torn or damaged the process gate will
not be able to read it.
MODEL FM-202
Soldering station
Process gate
Receptacle
NOTE:
This procedure must be followed EVERY
TIME THE TIPS ARE CHANGED.
NOTE:
The tips are a packaged matched set and
must be used together.
There is a flange.
Make sure that the flange will
fit the handle when inserted
into the handpiece.
● Displays
1. If tips are in the handpiece, remove
them.
2. Turn the power switch ON.
3. The display will show and the
LED on the connector will flash.
4. Insert the Tip ID number key into the
process gate until the buzzer sounds
once. ID data are displayed for one
second. The display shows .
5. Inserting the tip:
Hold the head part of the tip with the
heat resistant pad and insert the tip
into the handpiece. Push until the tip
stops. Repeat for second tip.
CAUTION:
FM-2023 tips do not have a tip ID. Use the
Tip ID number key.
7
7. MAINTENANCE
● Tip maintenance
Please refer to the FM-202 Instruction manual.
● Checking Procedure
WARNING:
Unless otherwise directed, carry out these procedures with the power switch OFF and the power
UNPLUGGED.
● Verify the electrical integrity of
the heater and sensor
1. Check for a broken heater or sensor
Measure the resistance while at room tempera-
ture(15 to 25°C; 59 to 77°F). It should be 8Ω±
10%. If the resistance exceeds these limits, re-
place the tip.
Measure the resistance across the tip as shown.
● Check the grounding line 1. Unplug the connection cord from the station.
2. Measure the resistance value between pin 2
and the tip (both tips).
3. If the value exceeds 2Ω (at room tem-
perature), perform the tip maintenance de-
scribed on P.12 of the FM-202 instruction
manual. If the value still does not decrease,
check the connection cord for breakage.
● Checking the connection cord
for breakage
1. Insert a set of verified tips in both sides of the
handle.
2. Measure the resistance value between two
pins.
Pin 1 - Pin 3 7~9Ω
Pin 5 - Pin 3 8~10KΩ
Pin 7 - Pin 4 7~9Ω
Pin 8 - Pin 4 8~10KΩ
If the measured value exceeds above values, re-
place the FM-2023.
1
4
7
2
8
5
6
3
6
● Control card and
changing the tempera-
ture setting
Please refer to the FM-202 Instruction
manual.
● Replacing the tip
Removing and inserting the tip:
Removing the tip:
Hold the handle and pull the tip out of the
handpiece with the heat resistant pad.
Inserting the tip:
Before inserting the tip; Insert the Tip ID
number key into the process gate until the
buzzer sounds once.
Hold head part and insert the tip into the
handpiece. Push until the tip stops.
CAUTION:
The tip can be very HOT. Use the heat resis-
tant pad for handling hot tips, but do not hold
the hot portion of the tip, even with the pad,
for longer than necessary.
Hold this part to insert into the handpiece.
24V-140W
FM-2023
Hold the handpiece at the front to remove tip.
24V-140W
FM-2023
5
6. When the set temperature is reached,
the buzzer sounds and the heater lamp
at the lower right of the temperature
display starts blinking.
NOTE:
Once the two tips are inserted into the hand-
piece, heat control begins.
Both tips of the set must be inserted or the
handpiece will not heat.
CAUTION:
Never set the temperature to any value over
400°C (750°F). Doing so may damage the
station. Set the temperature according to the
type of work to be done.
● Operating instructions
1. Set the Temperature
2. Switch lever on the handle
The FM-2023 is double acting.
• When the tips are touching - i.e. the
handpiece is closed- an ʻRʼ is visible on
the handle. Operate by squeezing the
movable part of the handle at the back.
• When the handpiece is open, an ʻNʼ
is visible on the handle. Operate by
squeezing the movable part of the
handle at the front.
3. Apply solder or flux
If there is insufficient solder on the PWB,
or the soldered area is too small, apply
solder or flux to the PWB. Solder may
also be applied to the tips.
4. Melt the solder
Place the tips on the soldered part and
melt the solder. Confirm that the solder is
fully melted. See sketch ʻAʼ.
5. Remove the component
After confirming that the solder is fully
melted, lightly squeeze the handpiece to
grasp the component and lift to remove
the component. See sketch ʻBʼ.
CAUTION:
Very high tip temperatures may damage the
printed circuit board, possibly causing the
printed pattern to become detached. HAKKO
recommends setting the tip temperature be-
low 300°C (572°F) for all normal work. Using
the lowest possible effective temperature not
only helps protect parts that are sensitive to
heat, it also helps protect the tip from deterio-
ration caused by heat.
Component
Solder
A B
Place the desoldered chip onto the tray
keeping the tips in parallel, and open
them to release.
6
● Control card and
changing the tempera-
ture setting
Please refer to the FM-202 Instruction
manual.
● Replacing the tip
Removing and inserting the tip:
Removing the tip:
Hold the handle and pull the tip out of the
handpiece with the heat resistant pad.
Inserting the tip:
Before inserting the tip; Insert the Tip ID
number key into the process gate until the
buzzer sounds once.
Hold head part and insert the tip into the
handpiece. Push until the tip stops.
CAUTION:
The tip can be very HOT. Use the heat resis-
tant pad for handling hot tips, but do not hold
the hot portion of the tip, even with the pad,
for longer than necessary.
Hold this part to insert into the handpiece.
24V-140W
FM-2023
Hold the handpiece at the front to remove tip.
24V-140W
FM-2023
5
6. When the set temperature is reached,
the buzzer sounds and the heater lamp
at the lower right of the temperature
display starts blinking.
NOTE:
Once the two tips are inserted into the hand-
piece, heat control begins.
Both tips of the set must be inserted or the
handpiece will not heat.
CAUTION:
Never set the temperature to any value over
400°C (750°F). Doing so may damage the
station. Set the temperature according to the
type of work to be done.
● Operating instructions
1. Set the Temperature
2. Switch lever on the handle
The FM-2023 is double acting.
• When the tips are touching - i.e. the
handpiece is closed- an ʻRʼ is visible on
the handle. Operate by squeezing the
movable part of the handle at the back.
• When the handpiece is open, an ʻNʼ
is visible on the handle. Operate by
squeezing the movable part of the
handle at the front.
3. Apply solder or flux
If there is insufficient solder on the PWB,
or the soldered area is too small, apply
solder or flux to the PWB. Solder may
also be applied to the tips.
4. Melt the solder
Place the tips on the soldered part and
melt the solder. Confirm that the solder is
fully melted. See sketch ʻAʼ.
5. Remove the component
After confirming that the solder is fully
melted, lightly squeeze the handpiece to
grasp the component and lift to remove
the component. See sketch ʻBʼ.
CAUTION:
Very high tip temperatures may damage the
printed circuit board, possibly causing the
printed pattern to become detached. HAKKO
recommends setting the tip temperature be-
low 300°C (572°F) for all normal work. Using
the lowest possible effective temperature not
only helps protect parts that are sensitive to
heat, it also helps protect the tip from deterio-
ration caused by heat.
Component
Solder
A B
Place the desoldered chip onto the tray
keeping the tips in parallel, and open
them to release.
4
6. OPERATION
● Controls and displays
Please refer to the FM-202 instruction
manual.
CAUTION:
Refrain from inserting foreign objects, the
wrong end of the tip, or incompatible tips into
the process gate. Damage may result.
NOTE:
If the buzzer sounds three times when the
Tip ID number key is inserted into the pro-
cess gate, there has been a reading error.
Reinsert the Tip ID number key. If the code
bar is torn or damaged the process gate will
not be able to read it.
MODEL FM-202
Soldering station
Process gate
Receptacle
NOTE:
This procedure must be followed EVERY
TIME THE TIPS ARE CHANGED.
NOTE:
The tips are a packaged matched set and
must be used together.
There is a flange.
Make sure that the flange will
fit the handle when inserted
into the handpiece.
● Displays
1. If tips are in the handpiece, remove
them.
2. Turn the power switch ON.
3. The display will show and the
LED on the connector will flash.
4. Insert the Tip ID number key into the
process gate until the buzzer sounds
once. ID data are displayed for one
second. The display shows .
5. Inserting the tip:
Hold the head part of the tip with the
heat resistant pad and insert the tip
into the handpiece. Push until the tip
stops. Repeat for second tip.
CAUTION:
FM-2023 tips do not have a tip ID. Use the
Tip ID number key.
7
7. MAINTENANCE
● Tip maintenance
Please refer to the FM-202 Instruction manual.
● Checking Procedure
WARNING:
Unless otherwise directed, carry out these procedures with the power switch OFF and the power
UNPLUGGED.
● Verify the electrical integrity of
the heater and sensor
1. Check for a broken heater or sensor
Measure the resistance while at room tempera-
ture(15 to 25°C; 59 to 77°F). It should be 8Ω±
10%. If the resistance exceeds these limits, re-
place the tip.
Measure the resistance across the tip as shown.
● Check the grounding line 1. Unplug the connection cord from the station.
2. Measure the resistance value between pin 2
and the tip (both tips).
3. If the value exceeds 2Ω (at room tem-
perature), perform the tip maintenance de-
scribed on P.12 of the FM-202 instruction
manual. If the value still does not decrease,
check the connection cord for breakage.
● Checking the connection cord
for breakage
1. Insert a set of verified tips in both sides of the
handle.
2. Measure the resistance value between two
pins.
Pin 1 - Pin 3 7~9Ω
Pin 5 - Pin 3 8~10KΩ
Pin 7 - Pin 4 7~9Ω
Pin 8 - Pin 4 8~10KΩ
If the measured value exceeds above values, re-
place the FM-2023.
1
4
7
2
8
5
6
3
8
8. TROUBLESHOOTING GUIDE
WARNING:
Disconnect the power plug before servicing.
Failure to do so may result in electric shock.
CHECK : Is the tip inserted properly?
ACTION
: Insert the tip completely.
CHECK : Is the connection cord and/or the
heater/sensor broken?
ACTION
: See the appropriate section of this
manual regarding how to check the
connection cord and/or the heater/
sensor for breakage.
● The tip does not heat
up.
• The sensor error is dis-
played.
● Solder does not wet the
tip.
CHECK : Is the tip temperature too high?
ACTION
: Set the appropriate temperature.
CHECK : Is the tip contaminated with oxide?
ACTION
: Remove the oxide by cleaning the tip
on a damp sponge or Hakko 599B tip
cleaner.
● The tip temperature is
too high.
CHECK
: Is the connection cord broken?
ACTION
: See “Checking the connection cord
for breakage”.
CHECK : Is the Tip ID number key entered cor-
rectly?
ACTION
: Enter the correct value.
● The tip temperature is
too low.
CHECK
: Is the tip contaminated with oxide?
ACTION
: Remove the oxide by cleaning the tip
on a damp sponge or Hakko 599B tip
cleaner.
CHECK : Is the Tip ID number key entered cor-
rectly?
ACTION
: Enter the correct value.
● The soldering iron error
is displayed.
• The LED heater lamp does not
light.
CHECK : Is the connection cord broken?
ACTION
: See “Checking the connection cord
for breakage”.
CHECK : Is the FM-2023 plug disconnected?
ACTION
: Connect the FM-2023.
3
4. PART NAMES
Heat resistant pad
Tip ID number key
Plug
Fixing flange
21
Holder clip
Component bed
Cleaning sponge
Tip
Plug
Cord
Handle
Button
5. SETTING UP THE FM-2023
1. Connector cord
Pass the connector cord through the hole
in the heat resistant pad.
2. Iron holder
Attach the holder clip to iron holder
No.FH100-01 or FH100-02.
Hang the lower hook of holder clip on the
lower wire of the iron holder and attach it
with the screw.
(Setup follows)
1. Do not let the tips extend beyond the
back of the iron holder base.
(See drawing No.1)
2.
Before tightening the screw, make sure
that the 2 projections of holder clip
are touching the upper wire of the iron
holder. (See drawing No.2 and No.3)
3. Connections
1. Connect the plug to the FM-202.
2. Place the FM-2023 in the iron holder.
3. Plug the power cord into the power
supply. Be sure to ground the unit.
Push the plug in as far as
it will go, and try to remove it
without pressing the release pin.
If it stays in the receptacle
it is properly seated.
Receptacle
When the plug clicks ,
it is fully inserted.
NOTE:
This product is protected against electrostatic
discharge and must be grounded for full ef-
ficiency.
No. 1
No. 3
No. 2
2
3. WARNINGS, CAUTIONS AND NOTES
Warnings, cautions and notes are placed at critical points in this manual to direct the
operatorʼs attention to significant items. They are defined as follows:
WARNING: Failure to comply with a WARNING may result in injury or death.
CAUTION: Failure to comply with a CAUTION may result in injury to the operator, or
damage to the items involved. (One example is given below.)
NOTE: A NOTE indicates a procedure or point that is important to the process being de-
scribed.
CAUTION
When the power is on, the tip temperature is between 200°C/400°F and 400°C/750°F.
Since mishandling may lead to burns or fire, be sure to comply with the following pre-
cautions:
● Do not touch the metallic parts near the tip.
● Do not use the product near flammable items.
● Advise other people in the work area that the unit can reach a very high tempera-
ture and should be considered potentially dangerous.
● Turn off the power while taking breaks and when finished using the unit.
● Before replacing parts or storing the unit, turn off the power and allow the unit to
cool to room temperature.
CAUTION
To prevent damage to the unit and ensure a safe working environment, be sure to
comply with the following precautions:
● Do not use the unit for applications other than those specifically described in the
instruction manual.
● Do not set the tip temperature higher than 400°C/750°F.
● Do not rap the FM-2023 against the work bench to shake off residual solder, or
otherwise subject the iron to severe shocks.
● Do not modify the unit.
● Use only genuine HAKKO replacement parts.
● Do not wet the unit or use the unit when your hands are wet.
● The operating process will produce smoke. Make sure the area is well ventilated.
● Pull on the plug to disconnect the FM-2023 from the station outlet. Do not pull the
cord.
9
● The low-temperature
alarm tolerance error
occurs frequently.
CHECK : Is the tip too small for the items to be
removed?
ACTION
: Use a tip with a large thermal capac-
ity.
CHECK : Is the setting value for the low-tem-
perature alarm tolerance too low?
ACTION
: Increase the setting value.
● Tip ID error is dis-
played.
CHECK
: Does the tip come off during use?
ACTION
: Enter correctly. See section 6, Opera-
tion for instructions.
NOTE:
If the buzzer sounds three times when Tip ID number
key is inserted into the process gate, there has been
a reading error. Reinsert the Tip ID number key. If
the code bar is torn or damaged the process gate
will not be able to read it. See the FM-202 manual for
instructions of manually entering the Tip ID.
● Heater terminal short
circuit error is dis-
played.
CHECK : Is the tip for FM-2023?
ACTION
: Turn the power switch OFF and in-
sert the correct FM-2023 tip. Turn the
power switch ON.
● The tips cannot be
closed.
• The tips will not return to the
original position.
CHECK : Is there a foreign object between the
tips?
ACTION
: Remove it.
● Tip error or is
displayed.
ACTION
: Contact your Hakko representative.
10
9. PARTS LIST
1
5
3
2
Tips
21
4
Mini parallel remover
Item No. Part No.
B2300
B2847
B2848
A1519
B2849
Part Name
Heat resistant pad
Tip ID number key
Holder clip
Cleaning sponge
Component bed
Handpiece only
Specifications
With screw
6
FM2023-02
Part No.
T9-I
T9-L1
T9-L2
Part Name
Tip/CHIP I
Tip/CHIP 1L
Tip/CHIP 2L
Size A
-----
1 mm (0.04 in.)
2 mm (0.08 in.)
Shape
A
-----
w/o tip
2
1
3
4
5
6
1
1. PACKING LIST
Mini parallel remover handpiece ........... 1
Tips (T9-I) 2pcs/set ................................ 1
Heat resistant pad .................................. 1
Cleaning sponge .................................... 1
Heat resistant pad
Tip ID number key
Holder clip
Mini parallel remover handpiece
Tip (shape-I)
Component bed
Cleaning sponge
Applicable Models
In order to function, the FM-2023 must be connected to the FM-202 soldering station.
2. SPECIFICATIONS
FM-2023 Mini parallel remover
Power Consumption
Temperature Range
Tip to Ground Resistance
Tip to Ground Potential
Cord Assembly
Total Length (w/o cord)
Weight (w/o cord)
Standard tip
140W (24 V)
200 – 400°C (400 – 750°F)
< 2
< 2mV
1.2m (4 ft.)
75mm (w/o tip)
32g (Handpiece only), 5g (I tip only)
T9-I (Shape-I)
Specifications and design are subject to change without notice.
Tip ID number key .................................. 1
Holder clip (w/screw) .............................. 1
Component bed ...................................... 1
®
MINI PARALLEL REMOVER
Instruction Manual
●
Thank you for purchasing the FM-2023 mini parallel remover.
Please read this manual before operating the FM-2023. Keep this
manual readily accessible for reference.
●
CAUTION
• The FM-2023 cannot function by itself. It must be connected to an
FM-202 soldering station.
• Specific information can be found in the instruction manual for your
FM-202 soldering station.
TABLE OF CONTENTS
1. PACKING LIST .........................................................1
2. SPECIFICATIONS ....................................................1
3. WARNINGS, CAUTIONS AND NOTES ...................2
4. PART NAMES ...........................................................3
5. SETTING UP THE FM-2023 ....................................3
6. OPERATION .............................................................4
7. MAINTENANCE .......................................................7
8. TROUBLESHOOTING GUIDE .................................8
9. PARTS LIST ...........................................................10
10. WIRING DIAGRAM ................................................11
11
10. WIRING DIAGRAM
HEAD OFFICE
4-5, SHIOKUSA 2-CHOME, NANIWA-KU, OSAKA, 556-0024 JAPAN
TEL:+81-6-6561-3225 FAX:+81-6-6561-8466
http://www.hakko.com
AMERICAN HAKKO PRODUCTS, INC.
28920 N. AVENUE WILLIAMS VALENCIA CA 91355, U.S.A.
TEL: (661) 294-0090 FAX: (661) 294-0096
Toll Free (800)88-HAKKO www.hakkousa.com
4 2 5 5 6
2005.12
MA01234JZ051219
P.W.B/LED
White
Red
Black
Green
S
-
LED1
+
Yellow
Blue
Brown
Purple
Other manuals for FM-2023
1
Table of contents
Other Hakko Electronics Power Tools manuals
Hakko Electronics
Hakko Electronics FR-301 User manual
Hakko Electronics
Hakko Electronics 951 User manual
Hakko Electronics
Hakko Electronics FX-8003 User manual
Hakko Electronics
Hakko Electronics FM-2022 User manual
Hakko Electronics
Hakko Electronics B5166 User manual
Hakko Electronics
Hakko Electronics 933 User manual
Hakko Electronics
Hakko Electronics FU-601 User manual
Hakko Electronics
Hakko Electronics FR-4103 User manual
Hakko Electronics
Hakko Electronics FM-2023 User manual
Hakko Electronics
Hakko Electronics 807 User manual
Hakko Electronics
Hakko Electronics FT-8004 User manual
Hakko Electronics
Hakko Electronics FV-310 User manual
Hakko Electronics
Hakko Electronics 474 User manual
Hakko Electronics
Hakko Electronics FX-950 User manual
Hakko Electronics
Hakko Electronics FM-2030 User manual
Hakko Electronics
Hakko Electronics FR400-53 User manual
Hakko Electronics
Hakko Electronics FR410-52 User manual
Hakko Electronics
Hakko Electronics 470B User manual
Hakko Electronics
Hakko Electronics FX-888D User manual
Hakko Electronics
Hakko Electronics 815 User manual
Popular Power Tools manuals by other brands
Tyco Electronics
Tyco Electronics AMP PRO-CRIMPER III Assembly
Baileigh Industrial
Baileigh Industrial HSP-5A Operating instructions and parts manual
Crivit
Crivit 94826 Instructions for use
Dynabrade
Dynabrade Mini-Dynorbital Supreme instruction manual
Beta
Beta 1951A Operation manual and instructions
Mannesmann
Mannesmann 094-T-04 instruction manual
