For your safety and correct operation, please carefully read and understand the contents of this manual before
use.
NOTE: All the information reported herein is based on data available at the time of printing. The supplier
reserves the right to modify its own products at any time without notice or incurring in any sanction. Please
verify with the supplier for possible updates.
Warning in advance
This jack shall be operated only by qualified personnel.
The use of this jack should follow every important points described in this manual, otherwise an injury of
operators or damage of articles might be caused because of a neglect during the use of this jack.
Before operation, operator should check and confirm that the jack is in good state. If any defects or
malfunctions occur, the product must be put out of service immediately.
The original manufacturer has no responsibility to the change/modification of jack's mechanical property
caused by maintaining of the third party without any written permission from manufacturer, except repairing
by the manufacturer or his agency.
Product code → TUNKKI5H TUNKKI10H TUNKKI25H
Capacity - head / toe 5 ton / 2 ton 10 ton / 5 ton 25 ton / 10 ton
Lifting height 205 mm 230 mm 215 mm
Min.height - toe 25 mm 30 mm 58 mm
Min height - head 368 mm 420 mm 505 mm
Force on the operating
handle
380 N 400 N 400 N
Net weight 25 kg 35 kg 109 kg
Reduced speed adjustable adjustable adjustable
Temperature range of
use
-20˚C…+50˚C -20˚C…+50˚C -20˚C…+50˚C
Transportation & storage
Transportation
The operating handle (02) is only for operating the jack, not to carry the jack. When transporting the jack, it
must not be dropped or thrown because it may cause damage to the pump. Therefore, the jack should be fixed
before transporting to avoid shocks/impacts with other objects.
Storage
Keep the completely descended jack in a dry place, protected from corrosion and mechanical impacts.
Assembly

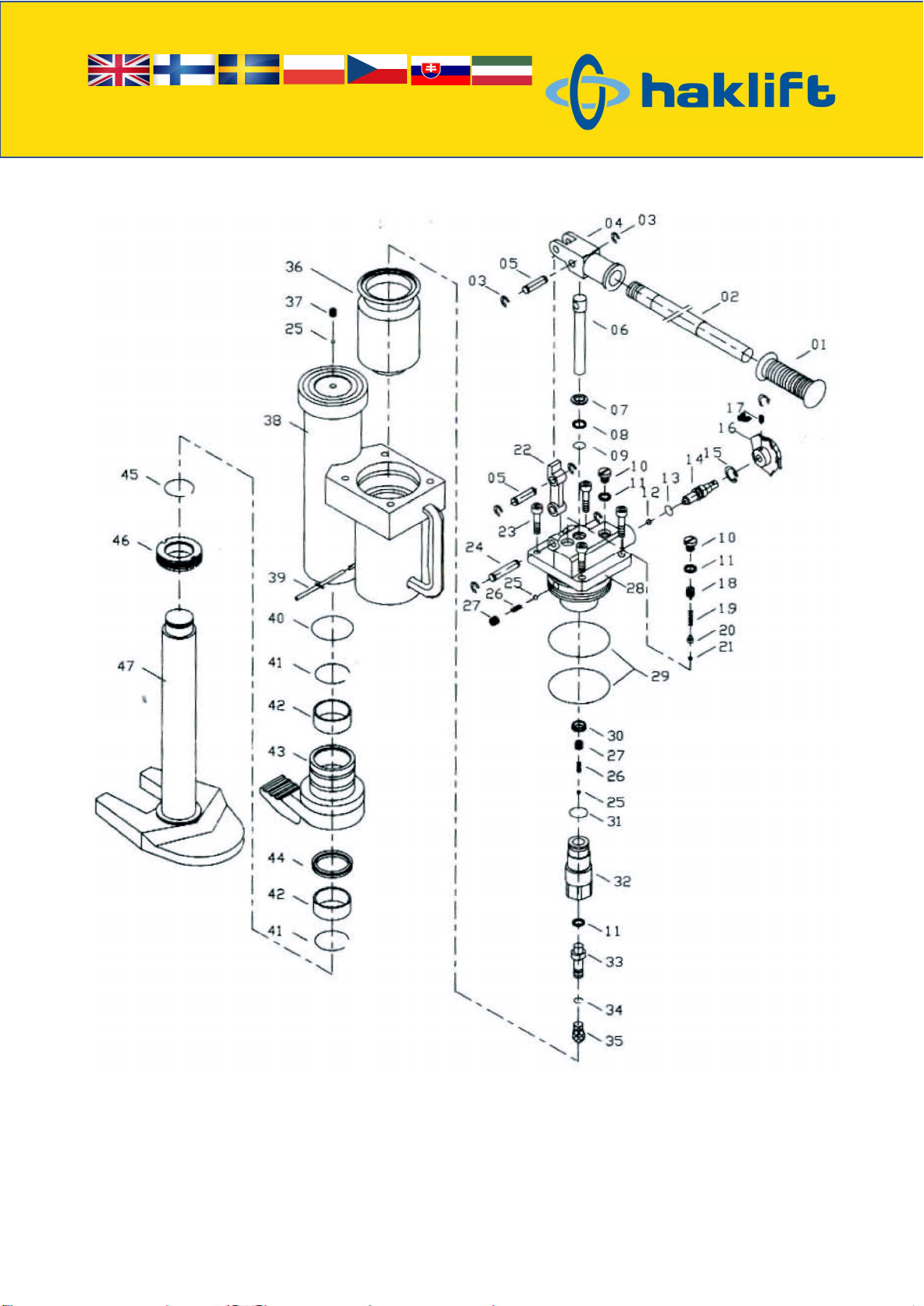

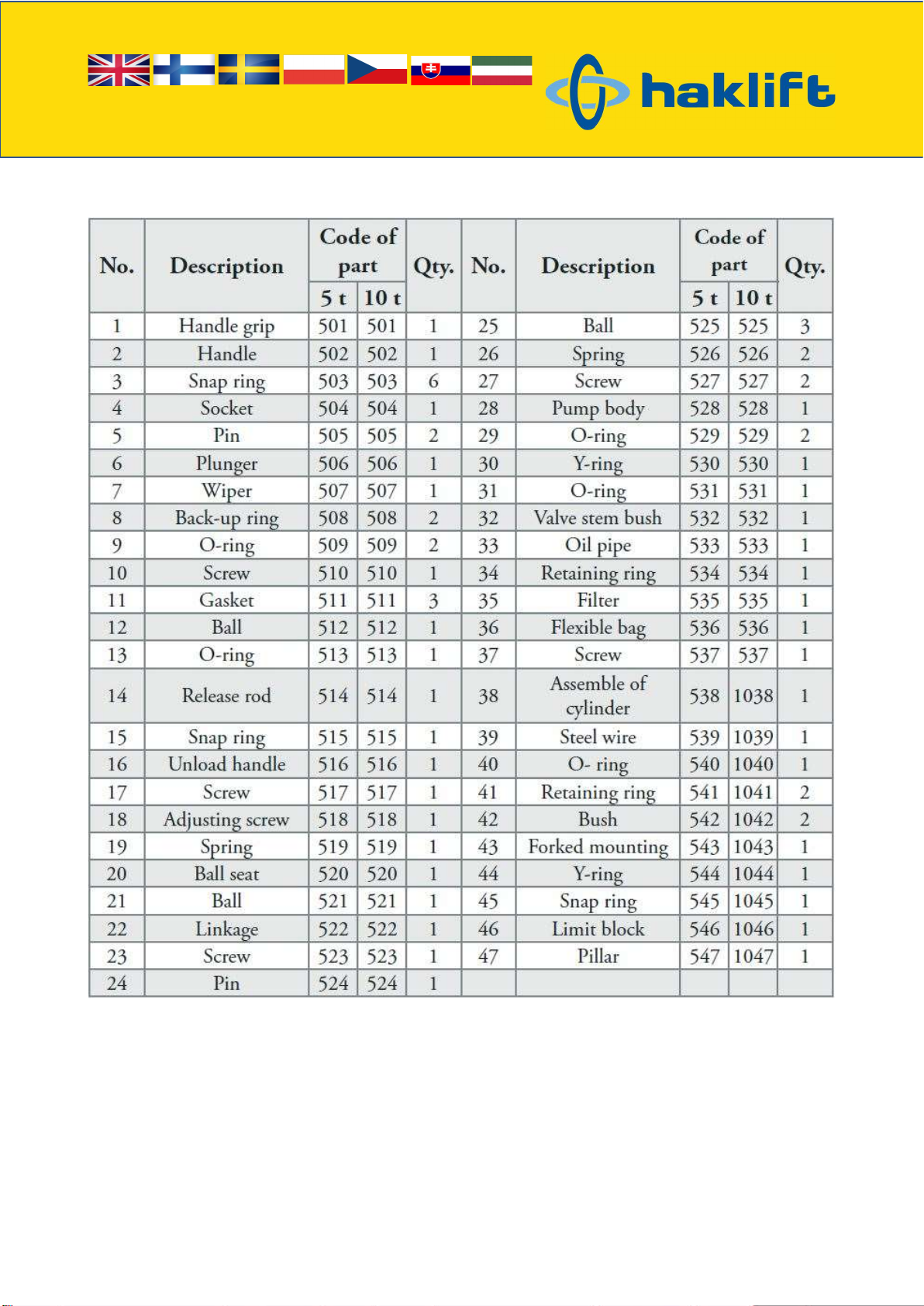

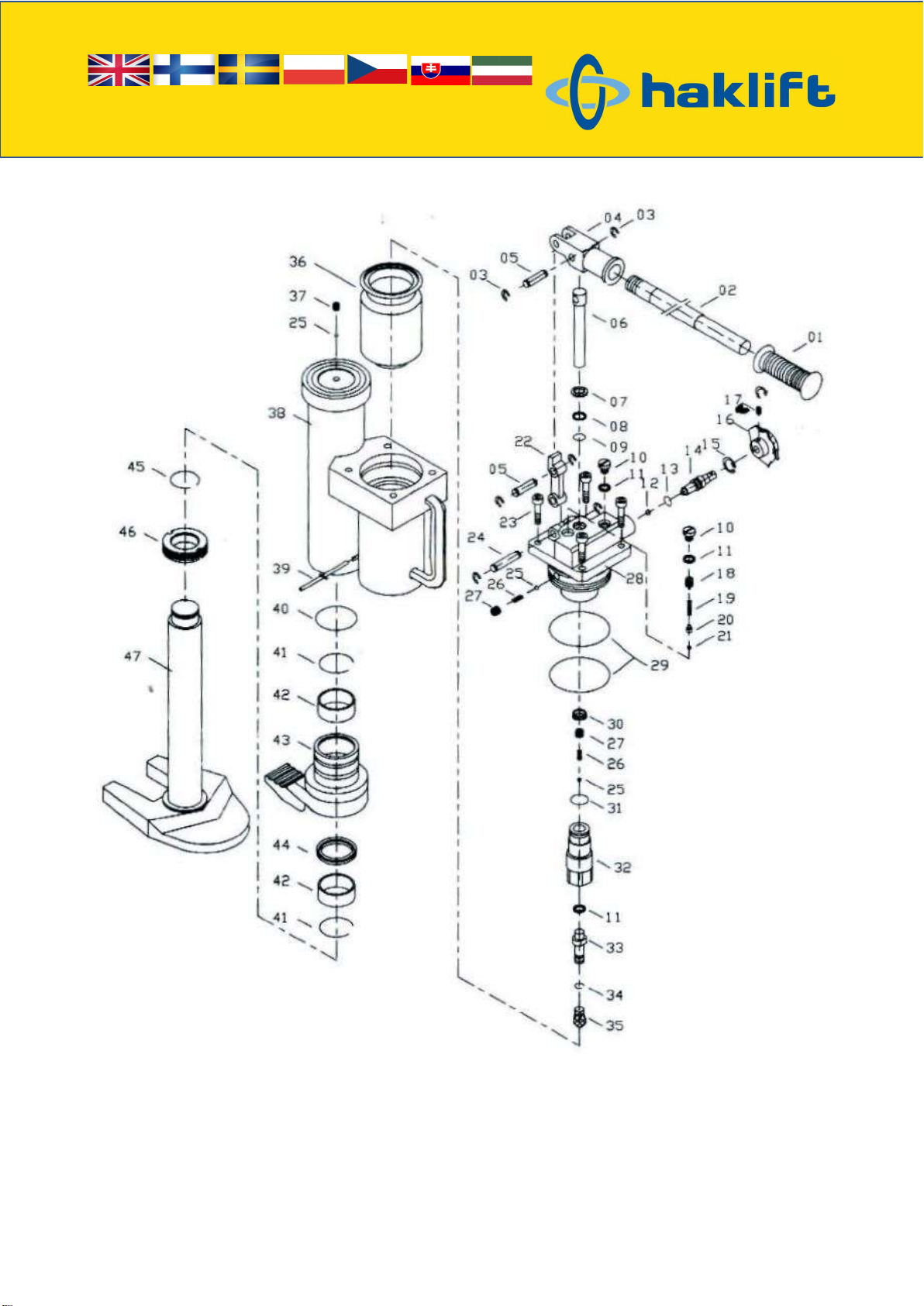

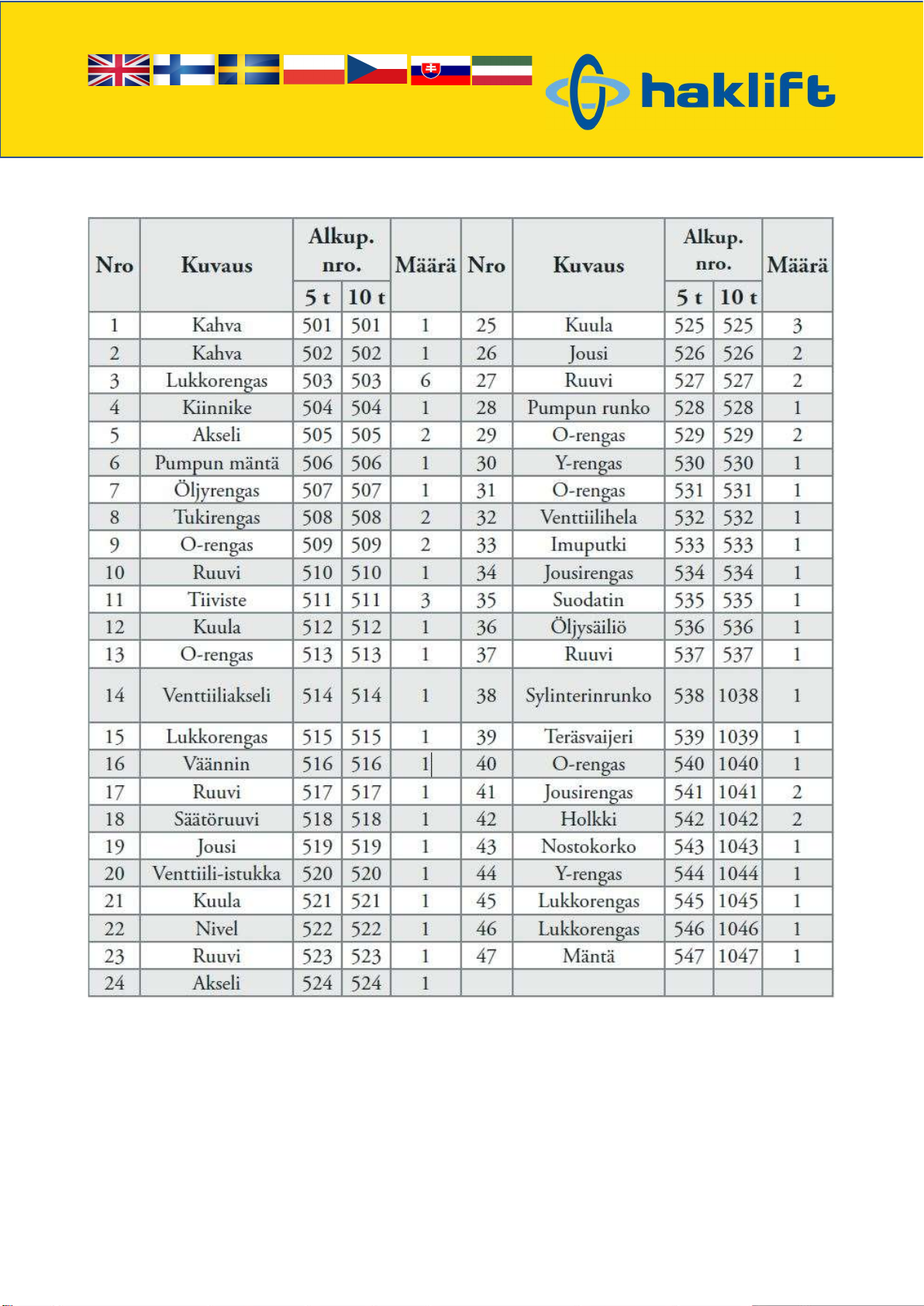

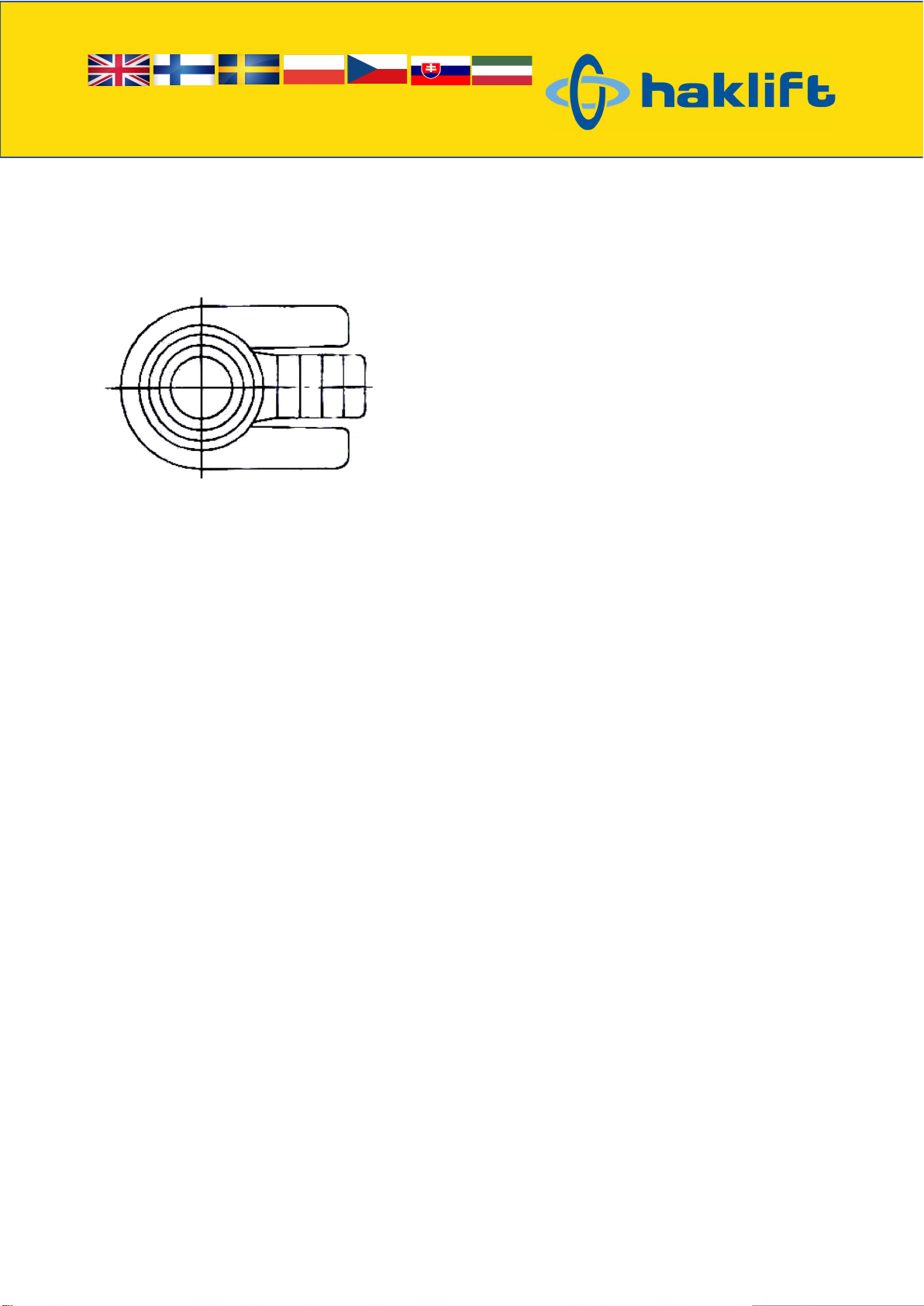

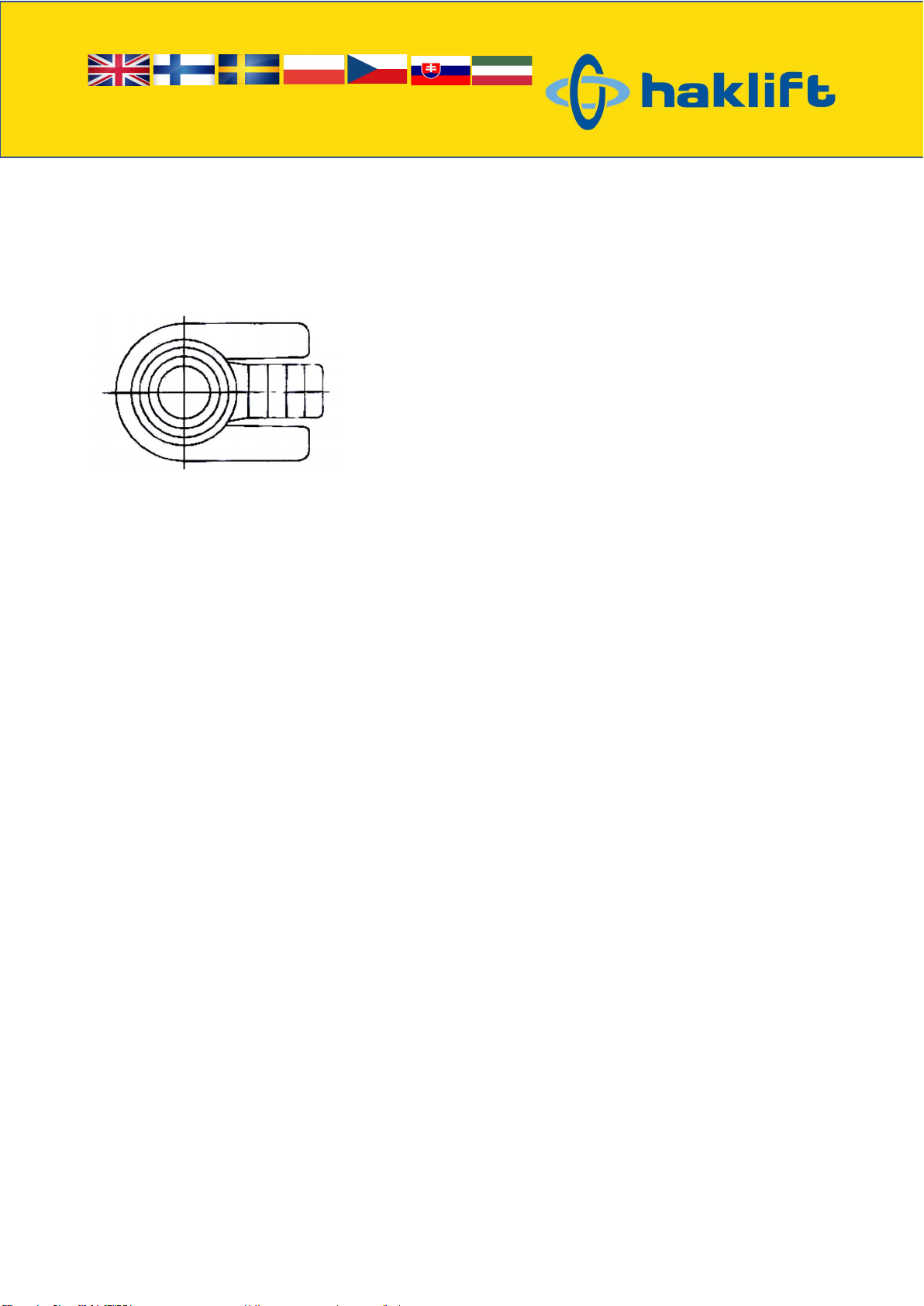

The installing of the jack is simple, just insert the operating handle (02) into the socket (04) and screw it tightly
in clockwise direction.
