HAMPTON BAY SOUTHWIND II 52-RMGII User manual

Item # XXXX XXX XXX
Model #50279
UL Model # 52-RMGII
USE AND CARE GUIDE
SOUTHWIND II 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly.............................................................................. 7
Operation ........................................................................... 15
Care and Cleaning............................................................. 16
Troubleshooting................................................................. 16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “For Fan Support.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: Remove the rubber motor stops on
the bottom of the fan before installing the blades or
testing the motor.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. AP-3RDL manufactured by Dawnsun
Electronic Co., LTD.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.

3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not
limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on how long
an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special
damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow
the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal
rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any
return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.

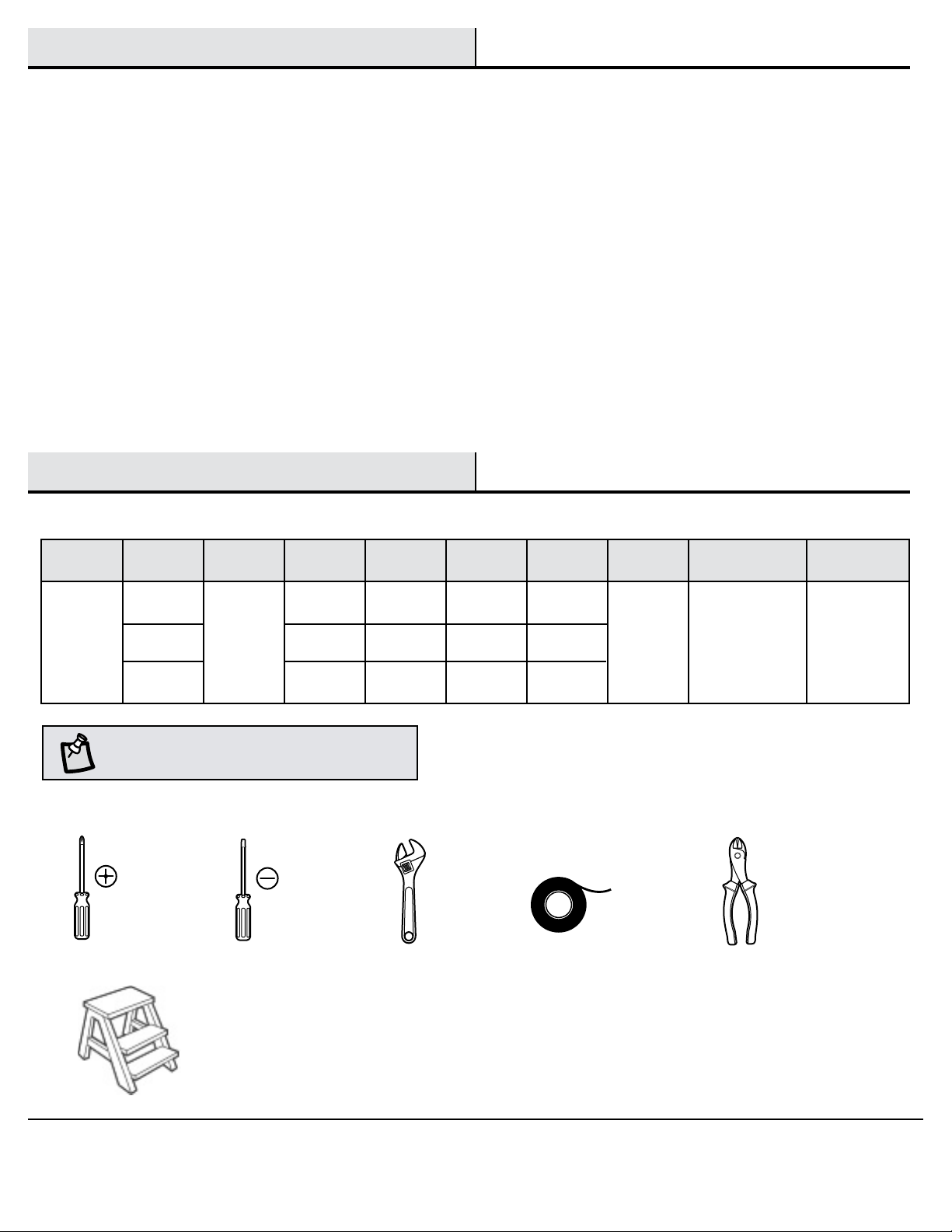

SPECIFICATIONS
TOOLS REQUIRED
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52”
Low
Medium
High
120
0.22
0.33
0.48
11.32
25.88
57.26
71
112
162
1999
3183
4719
xx.xx lbs.
(x.x kg)
xx.xx lbs.
(x.x kg) x.xx cu. ft.
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder

4
Part Description Quantity
AA Blade attachment hardware 16
BB Plastic wire connector 3
CC Hanger pin 1
DD Locking pin 1
Part Description Quantity
EE Extra plastic plug (to be used for fan
without light kit)
1
FF Extra blade bracket hardware (screw
and lock washer)
1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
DD
FF
EE

5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Fan-motor assembly 1
E Light kit tter assembly 1
Part Description Quantity
F Blade 5
G Blade bracket (ange), screws
pre-installed
5
H Glass bowl 1
I Light bulbs, 9-Watt maximum 2
J Transmitter (battery included) 1
K Receiver 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

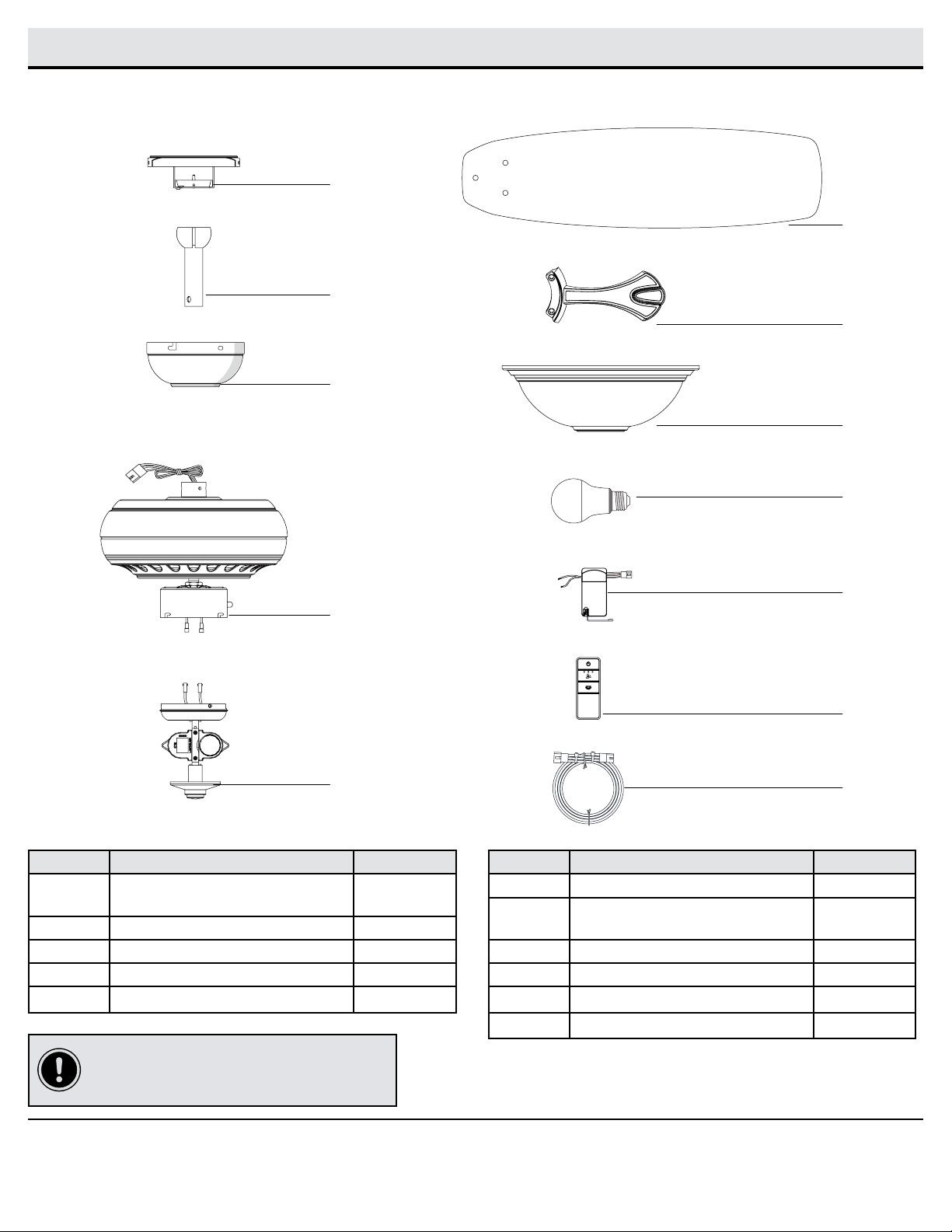

PACKAGE CONTENTS
J
K
L
D
C
B
A
E
F
H
G
I

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked ‘’acceptable for fan support of 35 lbs. (15.9
kg) or less’’, and use the screws provided with the
outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet box
Recessed
Outlet
Bo
x
Outlet Box
Hanger bar

7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparation for mounting
□Loosen, but do not remove, the setscrew on the collar (P) on
top of the motor housing.
□Align the holes at the bottom of the downrod (B) with the
holes in the collar (P) on top of the motor housing.
□Carefully insert the hanger pin (CC) through the holes in the
collar (P) and downrod (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the downrod (B).
□Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□Re-tighten the setscrews on the collar (P) on top of the
motor housing.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L shaped
slots”.
□Remove and save the two canopy screws (II) in the round
holes. This will enable you to remove the mounting bracket (A).
□Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball/
downrod assembly (B).
2
3
1
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.
C
A
II
HH
C
B
D
C
B
D
CC DD
P

8

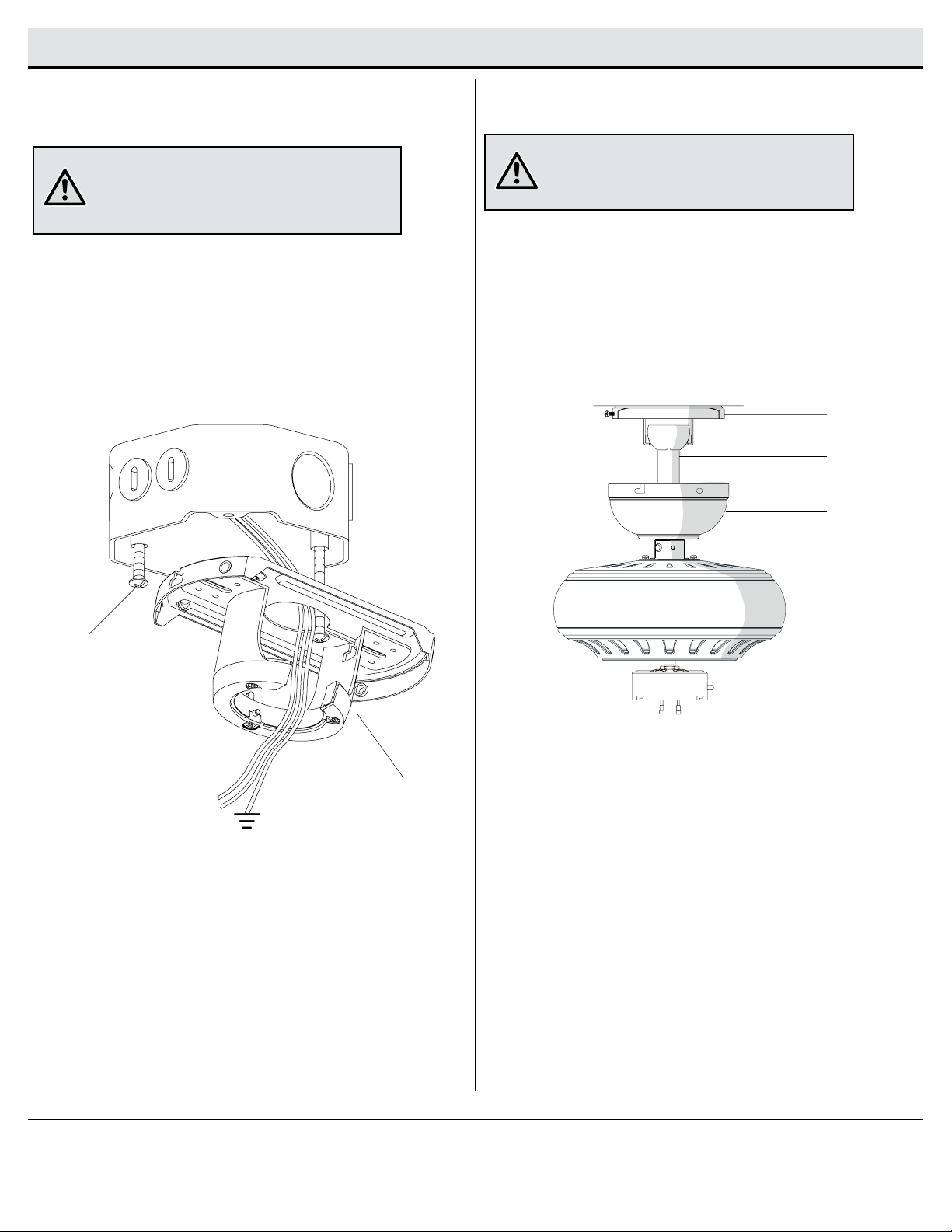

Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting plate on the outlet box by sliding the
mounting bracket (A) over the two screws (HH) provided with the
outlet box. If necessary, use leveling washers (not included) be-
tween the mounting bracket (A) and the outlet box. Note that the
at side of the mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (HH).
□Carefully lift the fan motor assembly (D) up to the mounting
bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
mounting bracket (A) socket is properly seated in the groove
in the hanger ball.
1 2
WARNING: To reduce the risk of re, electric shock,
or other personal injury, mount the fan to an outlet
box or supporting system marked acceptable for fan
support and use the mounting screws provided with
the outlet box.
A
HH
WARNING: The hook as shown is only to balance fan
while attaching wiring. Failure to hang as shown may
result in hook breaking, causing the fan to fall. Hook
must pass from inside to outside of canopy.
A
B
D
C

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
3

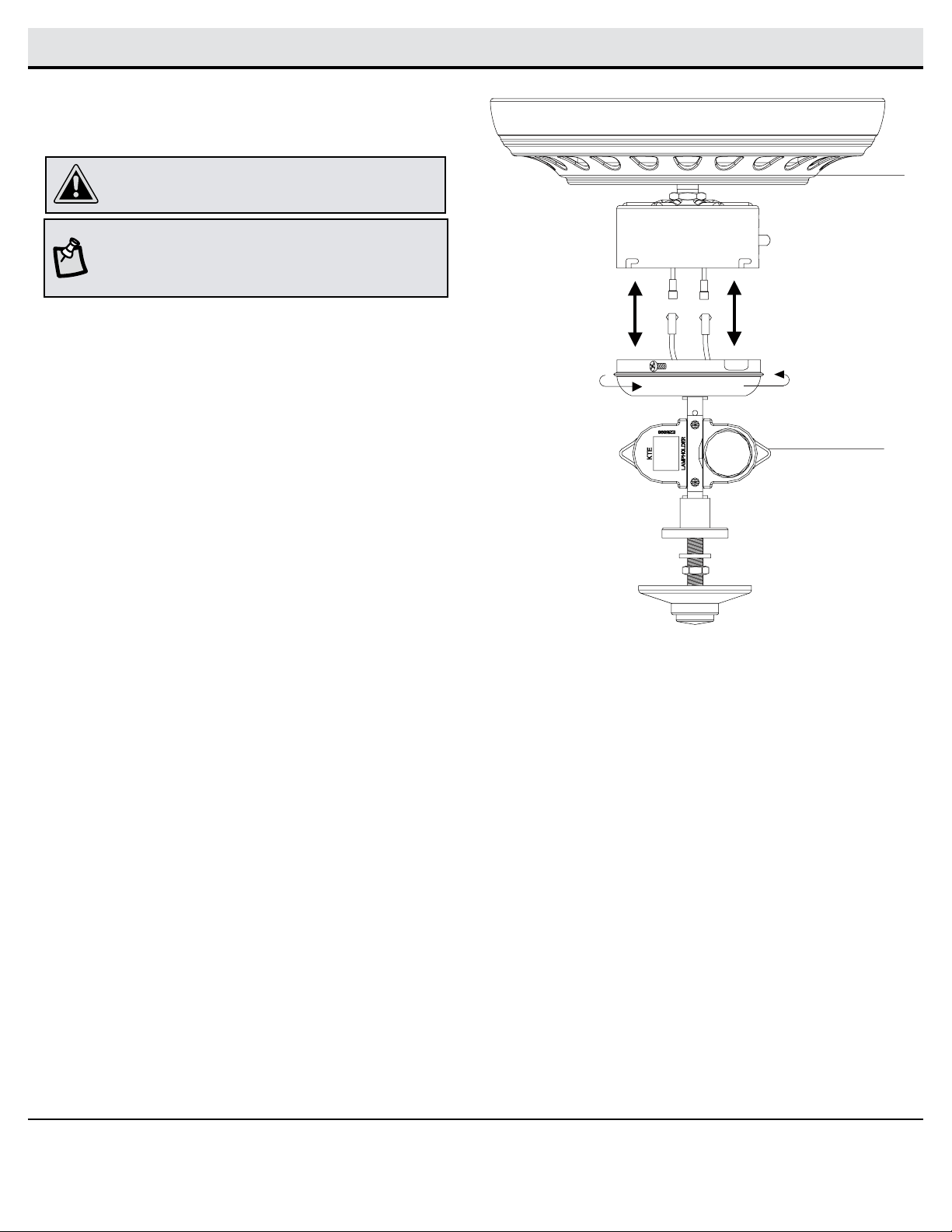

4Installing the receiver
□Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
□Insert the narrow end of the receiver (K) (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
J
K
ZZ
1 2 3 4
ON DIP
1 2 3 4
ON
OO
D
O
B
C
AAA
BBB
A
K
NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE: The switch marked “O/D” controls the dimming
function of the lights. If using non-dimmable bulbs, use a
ballpoint pen or small screwdriver to set the switch to “O” to
disable the dimming function. If using dimmable bulbs, set
the switch to “D” to enable the dimming function.
Setting the code on the remote
control and receiver
□Remove the remote control (J) battery cover by pressing
rmly on the arrow and sliding the cover off.
□Slide the dip switches (ZZ) to your choice of either up or
down. The factory setting is up.
□Slide the dip switches (ZZ) on the receiver (K) to the same
position as set on the remote control (J).
□Install the 23A 12V batteries (included).
□Replace the battery cover on the remote control (J).
□Insert the silicone rubber stopper (OO) into the hole on the
receiver (K) to cover the dip switches.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place, as this will damage the
hand unit. Dispose of the used battery properly and keep the
battery out of the reach of children.

10
Assembly - Hanging the Fan (continued)

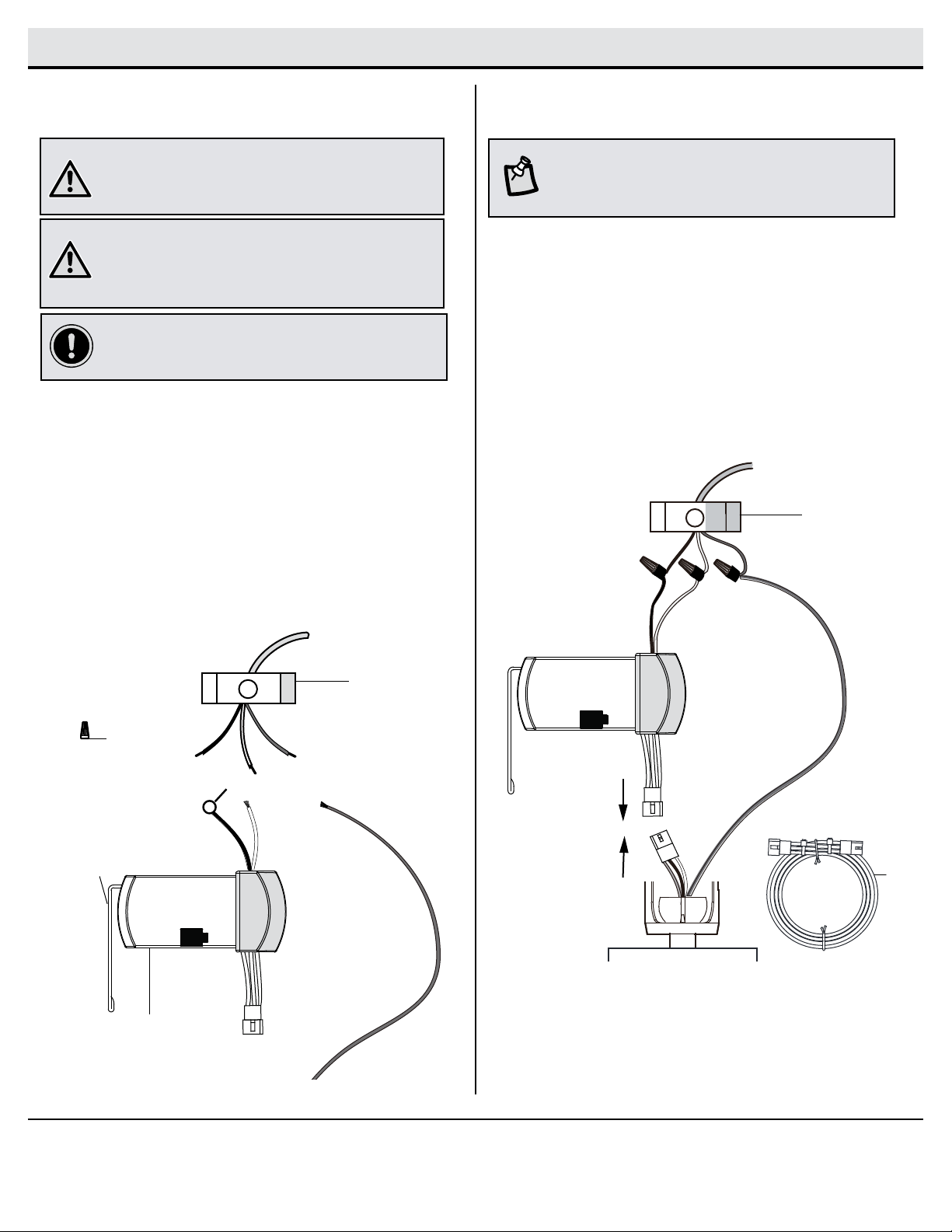

Making the electrical connection
6
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
NOTE:The fan comes with 12 in. lead wires for use with
the provided 4.5 in. ball downrod assembly (B). If you wish
to use longer downrod, you can use the extension lead
wire (42 in.) (L) provided.
Wiring the receiver to the
household wiring.
5
□If using the 4.5 in. ball downrod assembly (B) provided, wire the
receiver (K) to the fan wires by connecting the molded adaptor
plug from receiver (K) with molded adaptor of the fan motor
assembly (D) together.
□If you wish to use longer downrod, you can use the extension
lead wire (42 in.) (L) provided by connecting the molded adaptor
together.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you feel
you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
□Spread the wires apart so that the green and white wires are
on one side of the outlet box and the black wire is on the other
side.
□Connect the green fan wires to the household ground wire (this
may be a green or bare wire) using a wire connecting nut (BB).
□Connect the receiver black (or red) wire to the household black
(hot) wire using a wire connecting nut (BB).
□Connect the receiver white wire to the household white wire
(neutral) using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
Red
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (K)
BB (x3)
1 2 3 4
ON DIP
Outlet box
in the ceiling
(QQ)
Green
1 2 3 4
ON DIP
L

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Mounting the fan
□Align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock in place.
□Firmly tighten the two mounting screws.
□Install the remaining two mounting screws into the holes in the
canopy (C) and tighten rmly.
7
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
Assembly - Hanging the Fan (continued)
A
B
D
C
HH
Attaching the blades to the blade
brackets
Fastening the blade assemblies to
the motor
8
9
□Attach a blade (F) to a blade bracket (G) by inserting screws
(AA) into the holes in the blade and through the blade
bracket. Note that the rubber washers are pre-attached to
the blade bracket.
□Tighten each screw securely.
□Repeat these steps for each blade (F) and blade bracket (G).
□Fasten the blade assembly to the motor (D) by inserting the
alignment post into the slot on the bottom of the motor and
tightening the blade bracket (G) screws. The blade bracket
screws are pre-installed into the blade bracket (G).
□Repeat this step for the remaining blade assemblies.
G
AA
F
D
G
Assembly - Attaching the Fan Blades

12
Attaching the light kit tter
assembly
13
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
NOTE: Notice the location of the fan’s slide switch. This is
the switch used to change the fan’s directional rotation.
For more information on the operation of this switch, see
Operating Your Fan and Remote Control on page 12.
□Loosen the three screws on the switch cup cover of the light
kit tter assembly (E).
□Connect the wires from the light kit tter assembly (E) to the
wires from the switch cup of the fan motor assembly (D) by
connecting the molded adaptor plugs together (blue to black,
white to white). Carefully tuck all wires and splices in the
switch cup.
□Align the three screws on the switch cup cover of the light
kit tter assembly with the three key slots in the switch cup.
Make sure the notch in the switch cup cover of the light kit
tter assembly clears the reversing switch in the switch
cup. Position the light kit tter assembly on the switch cup
and turn it clockwise until it locks. Tighten the three screws
that were loosened in rst step to secure the light kit tter
assembly (E).
Assembly - Assembling the Fan with the Light Kit
E
D

13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Assembling the Fan without the Light Kit
Assembling the fan without the
light kit
15
□In order to use the fan without the light kit, remove the switch
cup cover from the top of the light kit tter assembly (E) by
removing the center hex nut inside the switch cup cover, and
then thread the switch cup cover off of the threaded nipple
on the top of the light kit tter assembly (E). Remove three
screws.
□Press the plastic plug (EE) (provided) into the center hole of the
switch cup cover.
□Align the three screw holes in the switch cup cover with the
three key slots in the switch cup. Make sure the notch in the
switch cup cover clears the reversing switch in the switch cup.
□Position the switch cup cover onto the switch cup and install
the three screws that were removed in rst step.
□Turn the switch cup cover clockwise until it locks and tighten
the three screws.
EE

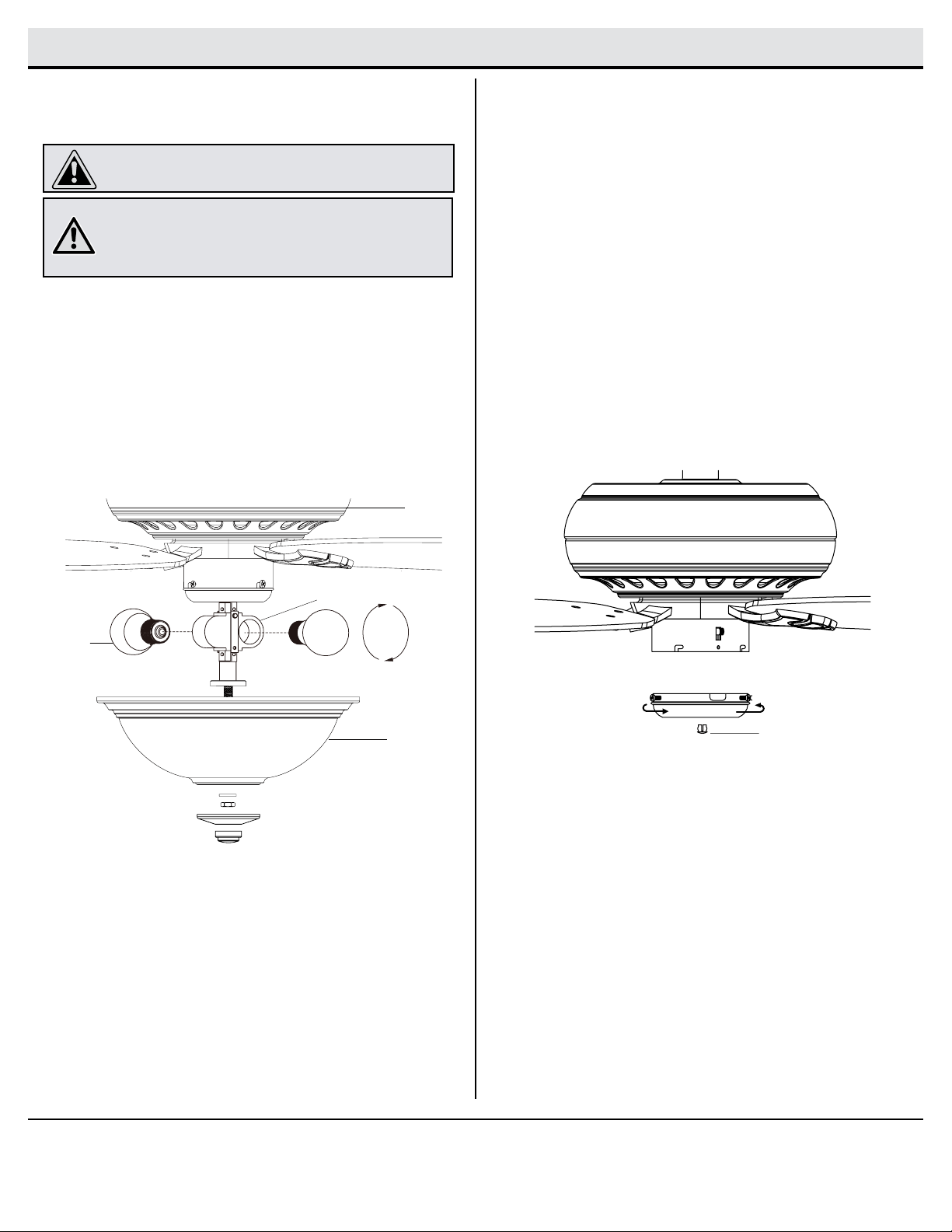

Installing the bulbs and attaching
the glass bowl
14
□Remove the rubber washer, hex nut, bottom cover and nial
from the threaded nipple of the light kit tter assembly (E).
□With power off, install the two LED bulbs (Max. 9.5W,
included) (I) by screwing into the light bulb sockets.
□Position the glass bowl (H) over the threaded nipple.
□Re-install the rubber washer, hex nut and bottom cover to
the threaded nipple to secure the glass shade properly.
□Re-install and tighten the nial.
CAUTION: Do not over tighten the hex nut, overtightening the
hex nut may cause the glass to break.
WARNING: Over lamping the fan will result in the fan lights
shutting down until the proper wattage of bulbs are installed.
Reset the lights by turning off, replace bulbs with the correct
wattage bulbs, turn on.
I
H
E
D

14

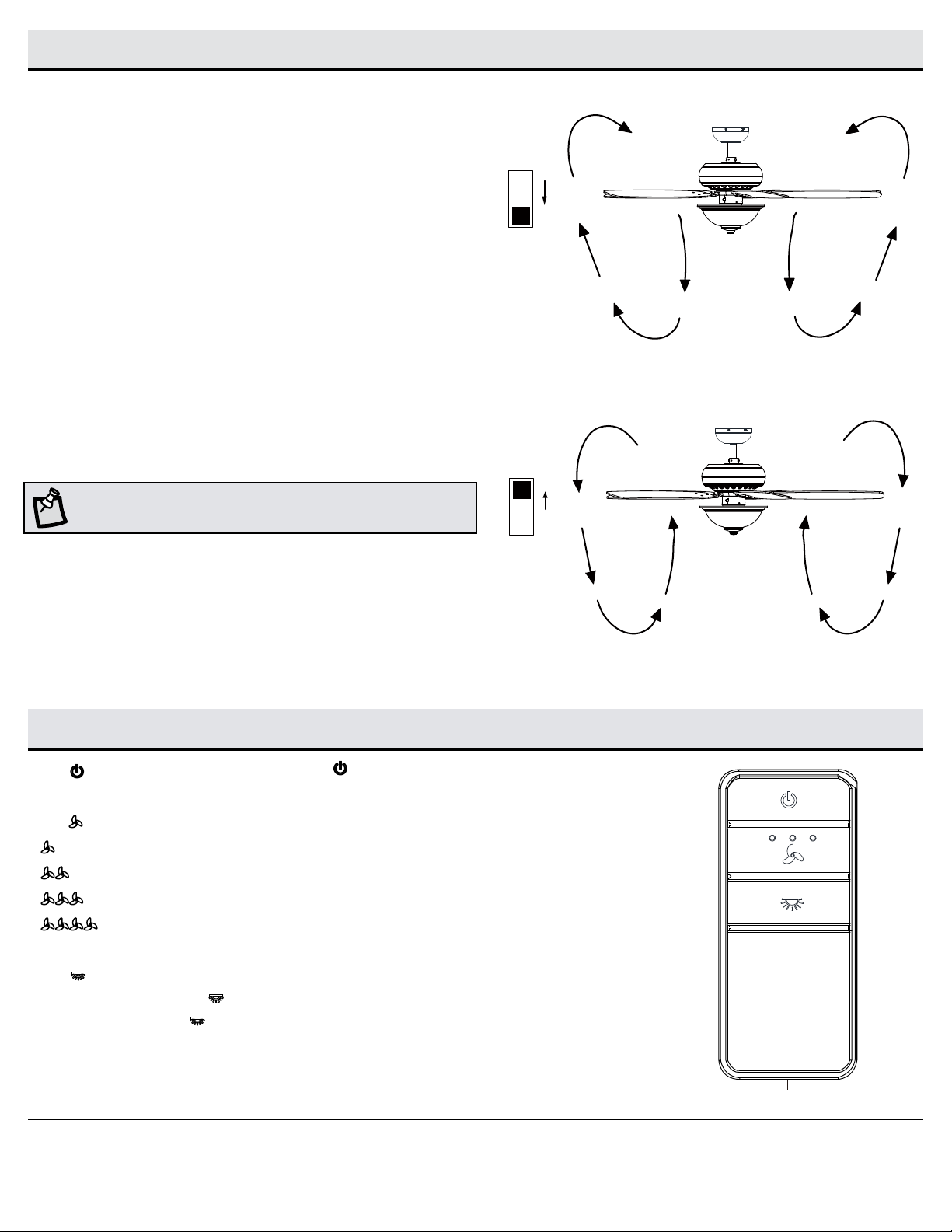

Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan. For more information
on how to install the remote control, see the remote control instruction
along with the remote control components.
Speed setting for warm or cool weather depends on factor such as the
room size, ceiling height, number of fans and so on.
The fan shipped from the factory with the reversing switch positioned
to circulate air downward. If airow is desired in the opposite direction,
turn your fan off and wait for the blades to stop turning, then slide the
reversing switch (located in switch cup) to opposite position, and turn
fan on again. The fan blades will turn in the opposite direction and
reverse airow.
1. Speed - The remote features Low, Med, Hi and Off buttons to select
the desired speed of operation and turn the fan On or Off.
2. Light - To control the light kit, the remote features a Light/Dimmer
button.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward air ow moves warm air off the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Wait for fan to stop before reversing the direction of blade rotation.
1. Power ON/OFF - Press and release the button to turn the fan and light on or off.
2. Fan Speed - LEDs on the fan speed button will illuminate to the corresponding speed.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
3. Light ON/OFF
□Press and release the button to turn the light on or off.
□Press and hold the button to activate the dimmer function (as long as you have NOT
previously set O/D dip switch in your remote to the “ON” position).
Operating Your Fan and Remote Control
K

15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Troubleshooting
Problem Solution
The fan will not start □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check battery in transmitter.
□Ensure you are in the normal range of 10-20 feet.
□Ensure the dip switches settings are in the same on the transmitter and receiver.
□Remember to turn power off power supply before checking the dip switches settings.
The fan is noisy □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for each
blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to
wobble please contact Customer Service and a balancing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove fan from ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently lubricated sealed ball bearings.
WARNING: Make sure the power if off before cleaning
your fan.
Care and Cleaning

Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
