HAMPTON BAY Gazebo 473-131 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
473-131
527-197
11289
792145350743(527-197)
792145350736(523-184)
792145350699(473-131)
523-184

Safety Rules.....................................................................................................................................
Unpacking Your Fan ........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit....................................................................................................................
........................................................................................................................
Care of Your Fan ............................................................................................................................
Troubleshooting ............................................................................................................................
Specifications ...............................................................................................................................
Operating Your Fan
1.
2.
3.
10.
11.
12.
13.
14.
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breakeror fuse boxbefore beginning.
2. Allwiring must bein accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan withany solid-state fanspeed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to bereplaced, consult aqualified electrician ifin doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
10. Do not use water or detergents when cleaningthe fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side ofthe outlet box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the Instructions packaged with the light kits
and switches forproper assembly.
WARNING
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TOOUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxesmarked FOR FAN SUPPORT.

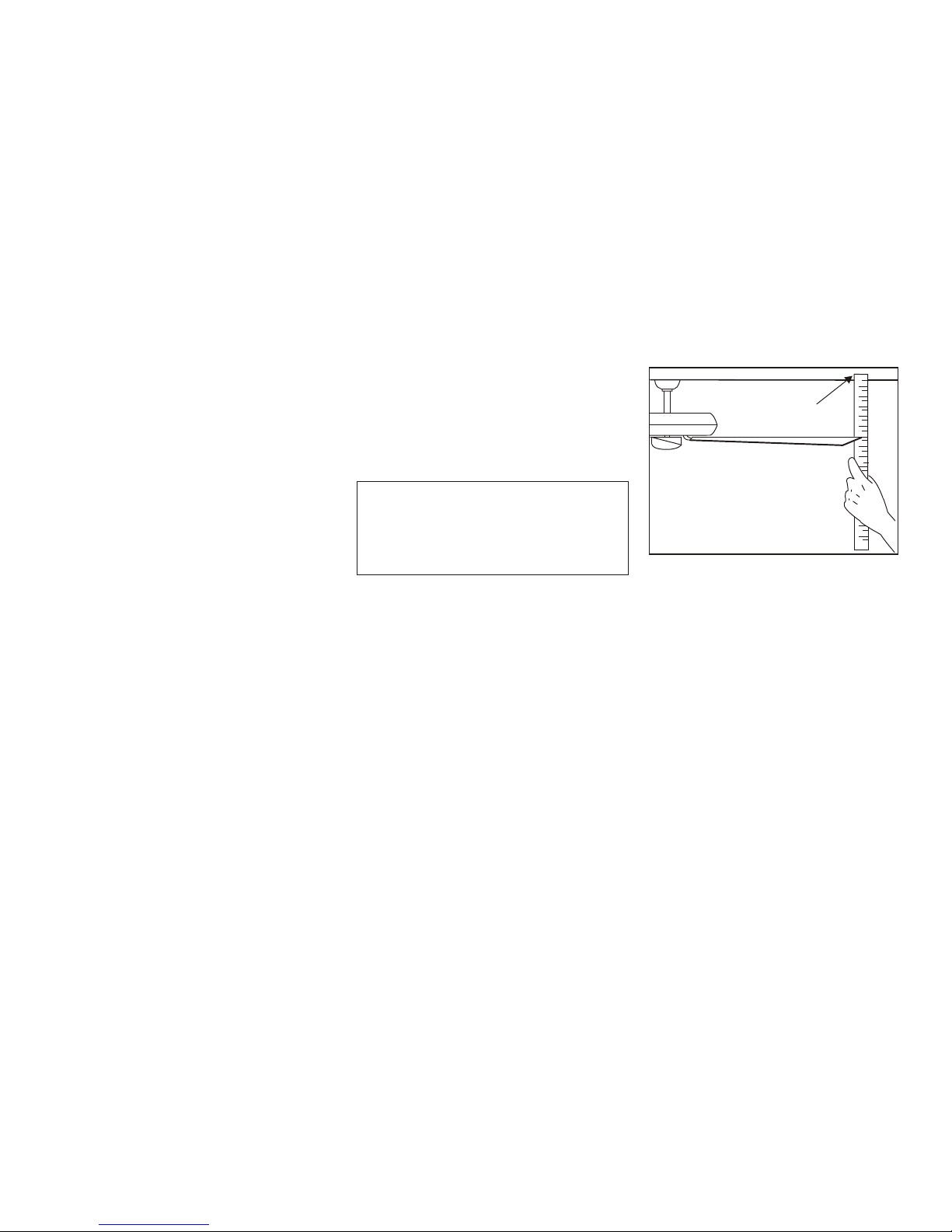

6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge ofthe blades tothe floor.
7. Do not operate the reverse switch while the fan blades are in motion.
The fan must be turned off and the blades stopped before reversing the
blades direction.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE ARMS(ALSO REFERRED TO ASBRACKETS) DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!

Unpacking Your Fan 2.

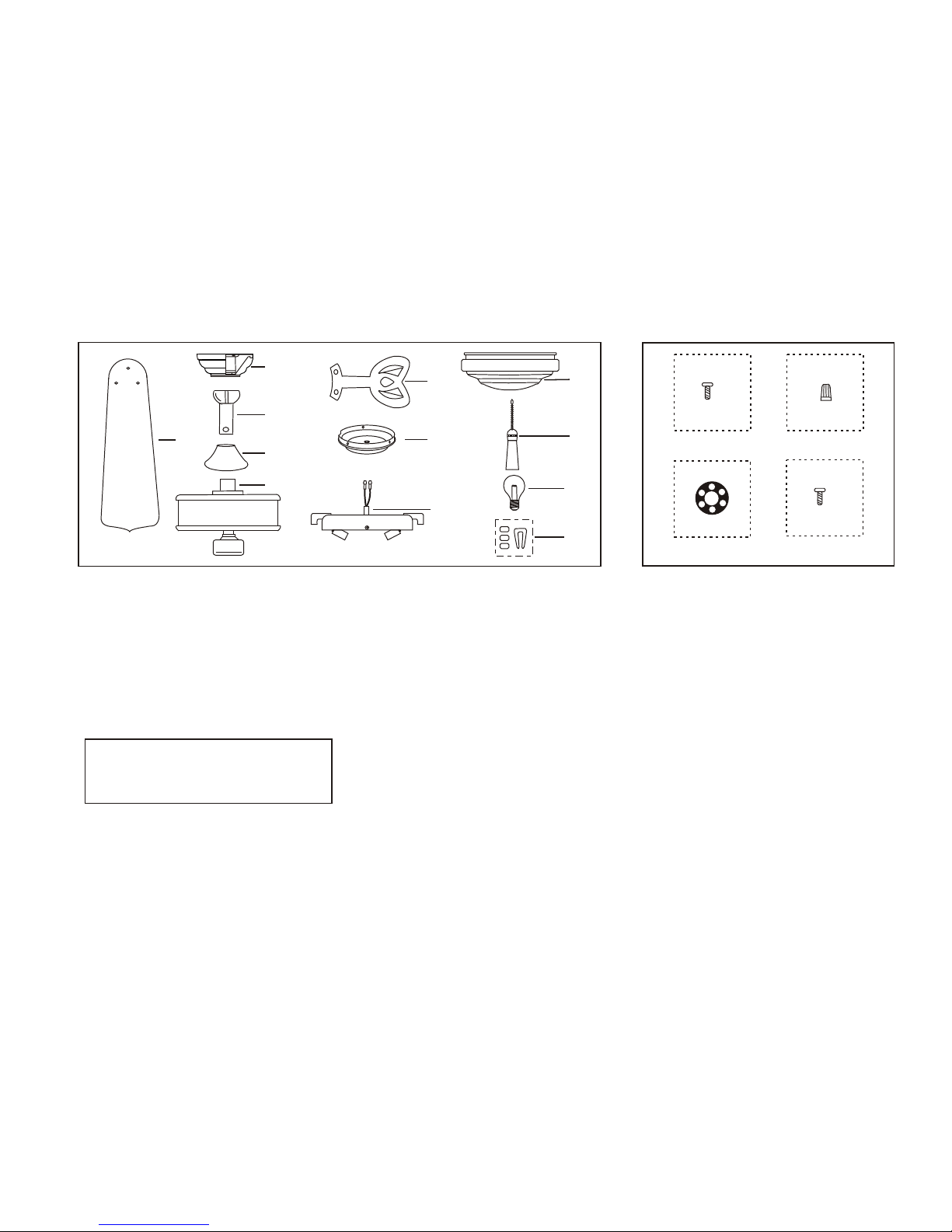

Unpack your fanand check thecontents. You should havethe following items:
13. Loose partsbag containing:
a. Blade attachmenthardware
(16 screws)
b. Mounting hardware
(3 plastic wireconnectors)
c. Rubber gasket
d. Light kithardware
(1 screw)
a
d
b
13
3
1
2
6
7
8
12
11
9
4
5
10
c
1.
2. Canopy assembly
3.
4.
5.
Set of blades(5)
Ball/downrod assembly
Collar cover
Fan motor assembly
6. Set ofblades arms (5)
7. Switch housingcover
8. Light fixture
Pull chain andfob (2)
11. 60Watt medium base bulbs (2)
9. Glass shade
10.
12. Balance kit
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 1-877-898-1881

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing ULlisted mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs). Do not use plastic outlet
boxes.

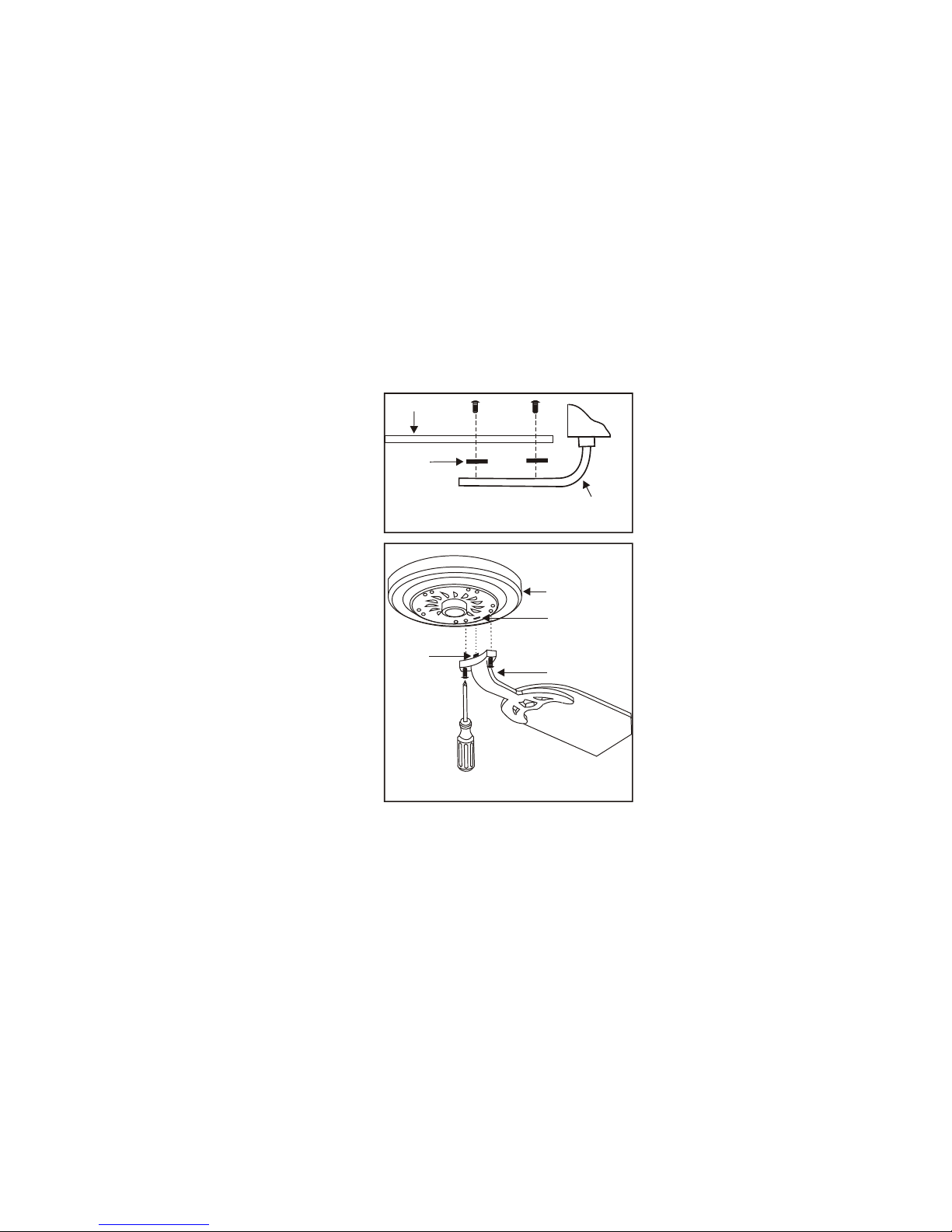

Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at yourHampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling
maximum
20 angle

Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod withball
and socket mounting and the "close-to-ceiling"
installation. The "close-to-ceiling" installation
is recommended in rooms with less than 8-feet
ceilings or in areas where additional space is
desired from the floor to the fan blades. When
using the standard 4 1/2" downrod, the
distance from the ceiling to the bottom of the
fan blades will be approximately 12 inches.
Once you have selected which mounting
system you will use, proceed with the
following instructions. Where necessary, each
section of the instructions will note the
different procedures to follow for the two types
of mounting.
1/2
4.

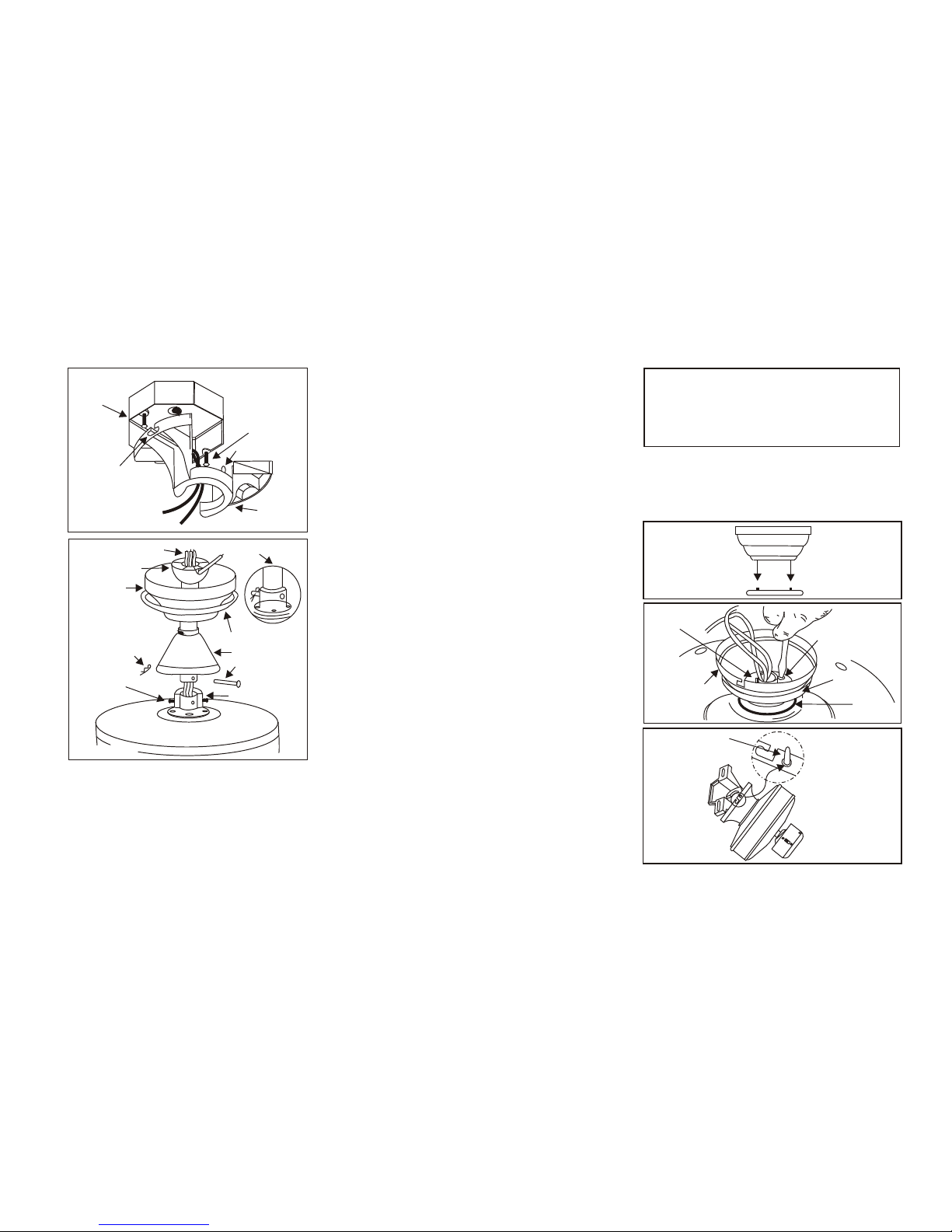

1. Remove the canopy ring from the canopy by
turning the ring clockwise until itunlocks. (Fig.
5)
2. Remove the hanger bracket from the canopy by
loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. This will enable
you to removethe hanger bracket.(Figure 5)

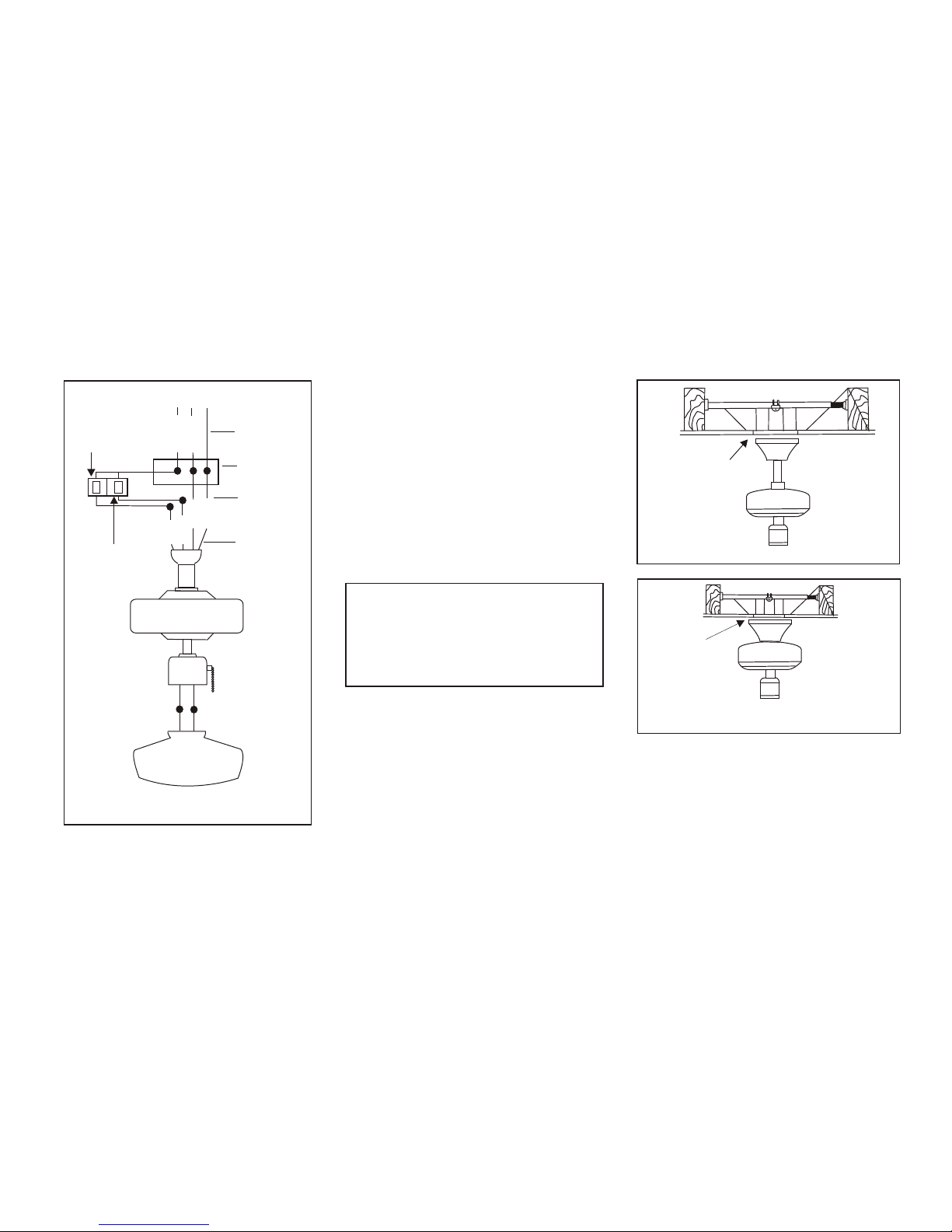

3. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig.6
4. Loose the two screws on the outlet box in half
way.
5. Attach the hanger bracket on the outlet box by
sliding the hanger bracket over the screws
provided with theoutlet box.
6. Tighten the two screws on the outlet box
securely.
7. Remove the hanger pin, lock pin and set screws
from the topof the motorassembly.
8. Route wires exiting from the top of the fan
motor through the collar cover and canopy ring.
Make sure the slot openings of the canopy ring
are on top. Route the wires through the canopy
and then through the ball/downrod assembly
(Figure 6A).
STANDARD CEILING INSTALLATION
CAUTION
REMOVE 5 RUBBERPACKING MOUNTS
AND DISCARD BEFOREINSTALLATION.
9. Align the holes at the bottom of the
downrod with the holes in the collar on
top of the motor housing (Figure 6A).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole in locked
position, as noted in the circle inset of
Figure 6A.
WARNING
FAILURETO PROPERLY INSTALL
LOCKING PIN ASNOTED IN STEP 9
COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.
10. Tighten two set screws on top of the fan
motor firmly.(Figure 6A)
11. Place the downrod ball into the hanger
bracket socket.
Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Screws
Canopy
ring

5.
CLOSE-TO-CEILING INSTALLATION
1. Remove the canopy ring from the canopyby turning
the ring until it unlocks. (Fig. 5)
2. Remove the hanger bracket from the canopy by
loosening the four screws on the top of the canopy.
Remove the two non-slotted screws and loosen the
slotted screws. This will enable you to remove the
hanger bracket. (Figure 5)
4. Pass the 120-volt supply wires through the center
hole in the ceiling hangerbracket as shown in Fig.6.
5. Loose the two screws on the outletbox halfway.
6. Attach thehanger bracket on the outletbox by sliding
the hanger bracket over thescrews provided with the
outlet box.
7. Tighten the two screws onthe outlet box securely.
8. Remove three of the six screws and lock washers
(every other one) from the collar of top motor
(Figure. 7)
9. Place the rubber gasket over the remaining three
screws, route the wires exiting the top of the fan
motor through the canopy ring (make sure the slot
openings of the ring are on top). then proceed to
place the ceiling canopy overthe collar at the topof
the motor. Align the mounting holes with the holes
in the motor and fasten using the screws and lock
washers provided (Fig. 7).
10.Tighten the mountingscrews securely.(Fig. 7)
3. Remove the decorative canopy bottom cover from
the canopy by depressing thethree studs (Fig. 7A)
Mounting
screws
(supplied with
electrical box)
Tab
Ceiling
hanger
bracket
UL Listed
electrical
box
Slide mounting
bracket over
screw heads
Figure 6 120V Wires
Pin in
locked
position
Canopy ring
Hanger pin
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Locking pin
Tighten
screws
firmly
Figure 6A
Collar cover
WARNING
FAILURE TOCOMPLETELYTIGHTEN
THE THREE SCREWS IN STEP9 COULD
RESULTIN FAN LOOSENING AND
POSSIBLYFALLING
11.Hang the fan on the tab of the hanger
bracket. Be certain that the canopy is fully
locked into tab as shown in Fig. 8. This
will allow you to make the electrical
connections.
Figure 8
Tab
Figure 7A
Canopy
Bottom
Cover
Screw and
Lockwasher
(3 of 6 places)
Ceiling
Canopy
Figure 7
Canopy
Ring
Collar
Rubber
gasket

Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below toconnect the fan to yourhousehold wiring.
Use the wire connecting nuts supplied with your fan. Secure the
connectors with electrical tape. Make sure there are no loose
strands or connections.
Step 1 Connect the fan supply (black) wire and light supply (blue)
wire to the black householdsupply wire as shown inFigure 9.
Step 2. Connect the neutral fan (white) wire to the white neutral
household wire.
Figure 10 and 11illustrate the wiring connections foroptional
wall control (available at yourHampton Bay Retailer,the wire
color out of wall control may vary, see wall control's
installation manual for correct wireconnections.)
NOTE
LIGHT KITS ARE AVAILABLE ATYOU
HAMPTON BAY RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THELIGHT KIT OPTION.
WARNING
TO REDUCE THE RISKOF FIRE, ELECTRIC
SHOCK, OR OTHER PERSONALINJURY.
MOUNT FANONLYON AN OUTLETBOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLEFOR FAN SUPPORT.
TO REDUCE THE RISKOF FIRE OR ELECTRIC
SHOCK. DO NOT USETHIS FANWITH ANY
SOLID-STATE SPEED CONTROLDEVICE.
Step 3 Connect the fan ground wire(green) to the household ground
wire.
Step 4 After connecting the wires, spread them apart so that the
green and white wires areon one side of the outlet box and the black
and the blue wires areon the other side.
Step 5 Turn the connectingnuts upward and push thewiring into the
outlet box.
6.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE

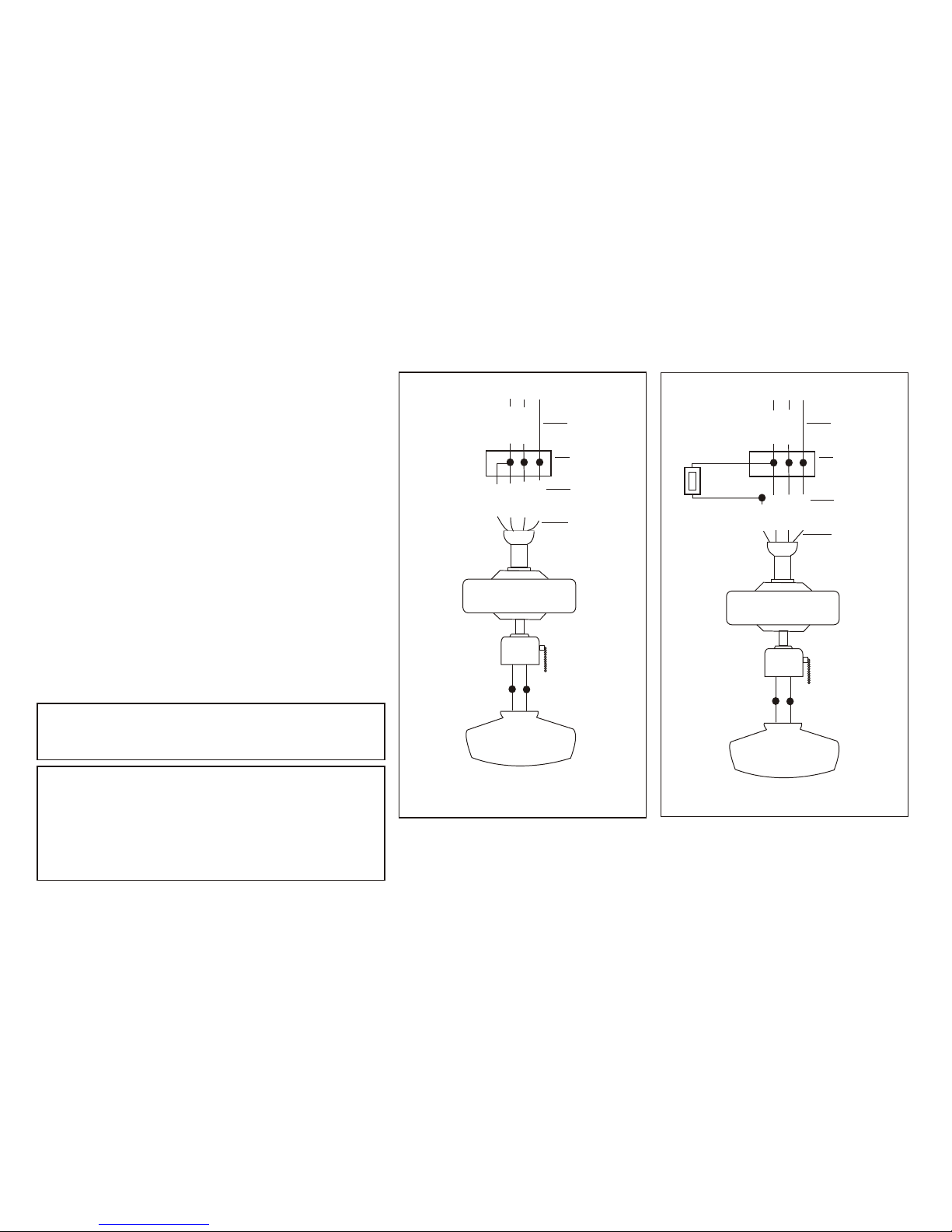

Figure 9
Diagram indicates optionallight kit wiring.
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 10
Diagram indicates optionallight kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE

Finishing the
Installation
STANDARD CEILINGINSTALLATION
Slide canopy up to the ceiling as shown in
Figure 12 leaving a 1/8" clearance
between the canopy and the ceiling. Make
sure you place the wires safely into outlet
box. Secure the canopy to the hanger
bracket with thefour screws withyour fan.
Slide the canopy ring over the canopy and
tighten by turningthe ring.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the tab on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Figure 13 with four
screws included with your fan. Slide the
canopy ring over the canopy and tighten
by turning thering.
WARNING
Make sure thenotch on thehanging
bracket properly sitsin the groovein the
hanger ball beforeattaching the canopyto
the bracket byturning the housinguntil it
drops into place.
7.
Figure 12
Figure 13
Allow 1/8"
Clearance
Allow 1/8"
Clearance
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 11
Diagram indicates optionallight kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
Remove the blade attachment screws from
the fan motor assembly. Attach and adjust
fan blades according to the instructions in
the following section.

Attaching the Fan
Blades
Step 1 Attach the blades to the blade arms using
the screws and rubber washers provided as
shown in Figure 14. Start a screw into the ,
but do not tighten. Repeat for the other 2 screws
and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
Step 3Fasten the blade assemblies to the motor
by insert the tab from the blade s to the slot
in the bottom motor housing, then tighten the
two screws and washers already installed in the
blade s (Figure 15).
Step 4 Install an optional light kit if you wish.
Follow the instructionsincluded with thekit.
arm
arm
arm
8.
Rubber
washer
Blade
arm
Figure 14
Motor
Blade arm
Slot
Tab
Figure 15
Blade

3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADE HOLDERS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.
Touching
ceiling
Figure 16
9.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weighed
equally.
The following procedure should correct most
fan wobbling problems.Check after eachstep.
1. Check that all blade and blade arm screws
are secure.
2. Most fan wobbling problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling above
the tip of one of the blades. Measure this
distance as shown in Figure 14. Rotate the fan
until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equalwithin 1/8".deviation

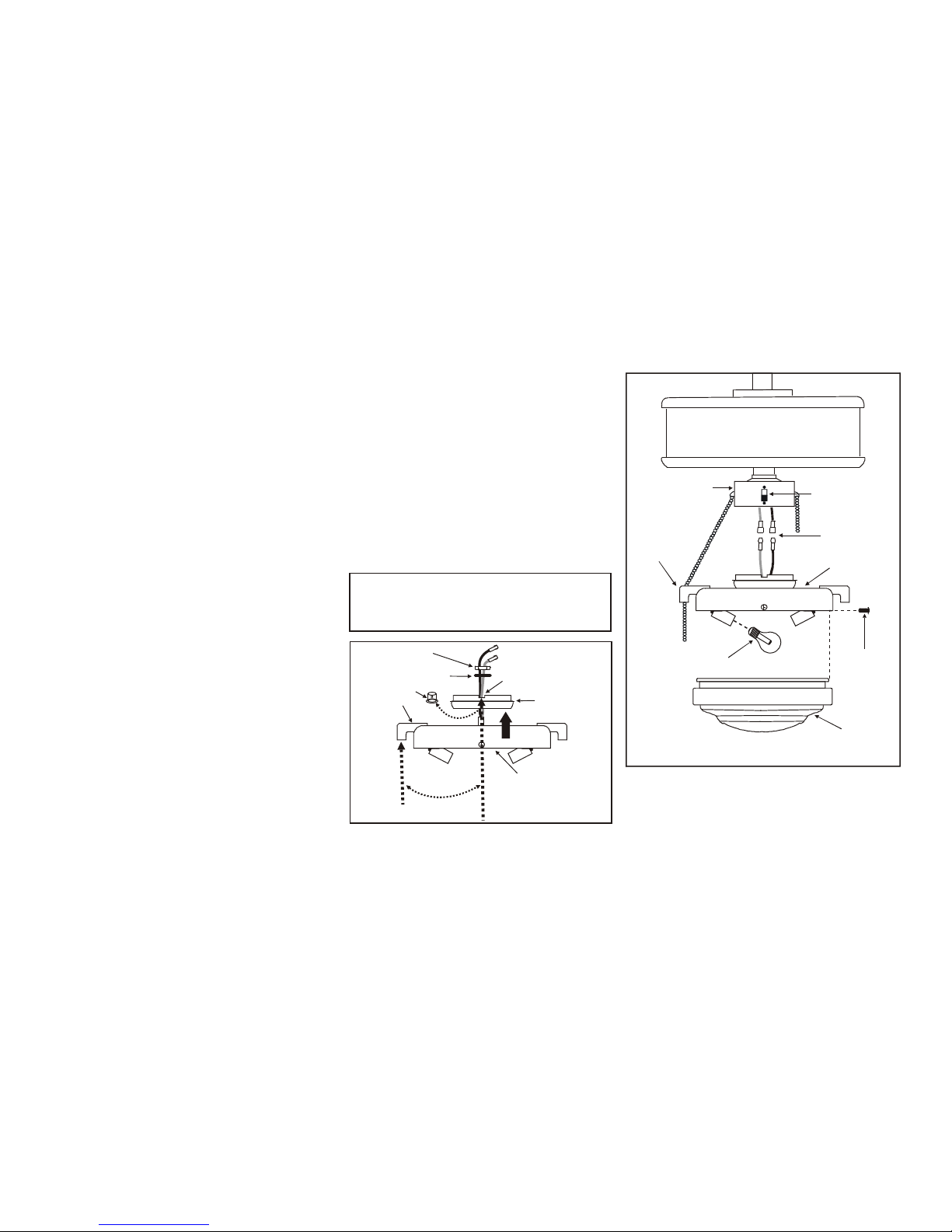

Installing the Light Kit 10.
Reverse
switch
Switch
housing
Wire
connector
Screws
Bulbs
Pull chain
and fob
Glass shade
Figure 18
NOTE: Before starting installation,
disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Turning power off using the fan switch is
not sufficient to prevent electric shock.
1. Remove the stainless steel plug from the
switch housing cover (Fig. 17), attach the
light kit to the switch housing cover by
feeding the light kit wires (black and white)
through the hole of switch housing cover
and then screw it onto the switch housing
cover by nut & lock washer provided. Be
sure it is tight enough to prevent light kit
from vibrating loose. NOTE: Make sure
that the concave of the switch housing
cover and the pull chain holders are in an
angle of 90 degrees for pull chains go
through the pull chain holders easily. (Fig.
17)
2. ocate two single white and blue
wires in the switch housing labeled FOR
LIGHT. Make the polarized plug
connections:
- White to white
- Blue to black
3. Carefully push all wires back into the switch
housing. Attach the light kit fitter by
aligning its keyhole slots with the three
screws holes and reversing switch on the
side of switch housing. Tighten the three
screws securely to prevent the light kit from
vibrating loose.(Fig. 18)
While holding the light kit assembly under
your fan, l
4. Pass the two pull chains on the switch
housing through the chain holders located
on the light fitter, install the fobs to the pull
chains. (Fig. 18)
5. Install two 60 watt (max.) bulbs (provided)
and glass shade with four thumb screws,
do not over tighten.
6. Restore power and your light kit is ready
for operation.
7. If the light kit does not work, turn off the
electricity and lower either canopy or
decorative housing on your ceiling fan to
make sure the blue wire is connected to the
black household wire.
Figure 17
NOTE: Light bulbs have no warranty,
can be purchased at local light bulb
specialty store orfrom our service center.
Switch housing
cover
Concave
Light kit
o
90
Nut
Lock washer
Plug
Pull chain
holder

NOTE
WAITFOR FAN TOSTOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Turn on the power and check the operation of
your fan. The pull chain controls the fan
speed as follows: 1 pull- High, 2 pulls-
Medium, 3 pulls-Low, and 4 pulls-Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, andso on.
The slide switch controls directions: forward
(switch down) orreverse (switch up).
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Figure 20. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 21. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Fan without Light Kit
(Optional)
Your fan is designed with light kit, in case
you intend to install the fan without light kit,
attach the switch housing cover to the switch
housing with thescrews provided. ( Fig.19) .
11.Operating Your Fan
Figure 20
Figure 21
Screws
Switch
housing
Switch
housing
cover
Figure 19

Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make sure
they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the
years. Use only a soft brush or lint-
free cloth to avoid scratching the
finish. The plating is sealed with a
lacquer to minimize discoloration or
tarnishing. Do not use water when
cleaning. This could damage the
motor, or the wood, or possibly cause
an electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TOTHE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
12.Care of Your Fan

13. Troubleshooting
Problem
Fan will notstart.
Fan sounds noisy.
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections tothe fan and switch wire connectionsin the switchhousing.
CAUTION: Make suremain power isoff.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbing against each otheror the interiorwall of theswitch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in"period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional lightkit, make sure the screws securingthe glassware aretight. Check that light bulb is
also secure.
6.Some fan motorsare sensitive tosignals from solid-state variable speed controls.
If you haveinstalled this type of control, chooseand install anothertype of control.
7. Make surethe upper canopyis a short distance from theceiling. It should not touch the ceiling.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 2.52'Xx
kgs
Xx
kgs
Xxx Xx Xx Xxxx
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Specifications 14.
Distributed by HomeDepot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, Georgia 30339
2005 Homer TLC, Inc.All Rights Reserved
Hampton Bay isa registered trademark of Homer TLC, Inc.
C
