HAMPTON BAY Parker Ridge User manual

Parker Ridge
44 in Ceiling Fan
Owner’s Manual
Parker Ridge
Ventilador de Techo de 1,12 m
Manual del Propietario
288 272

Parker Ridge by Hampton Bay
®

44” Parker Ridge
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit . . . . . . . . . . . 8
Operating Your Transmitter . . . . . . . . . . 9
Care of Your Fan . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . 12
Warranty Information . . . . . . . . . . . . 13
288-272
718212240250
219054

Safety Rules - Read and Save These Instructions
1
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.
WARNING

2

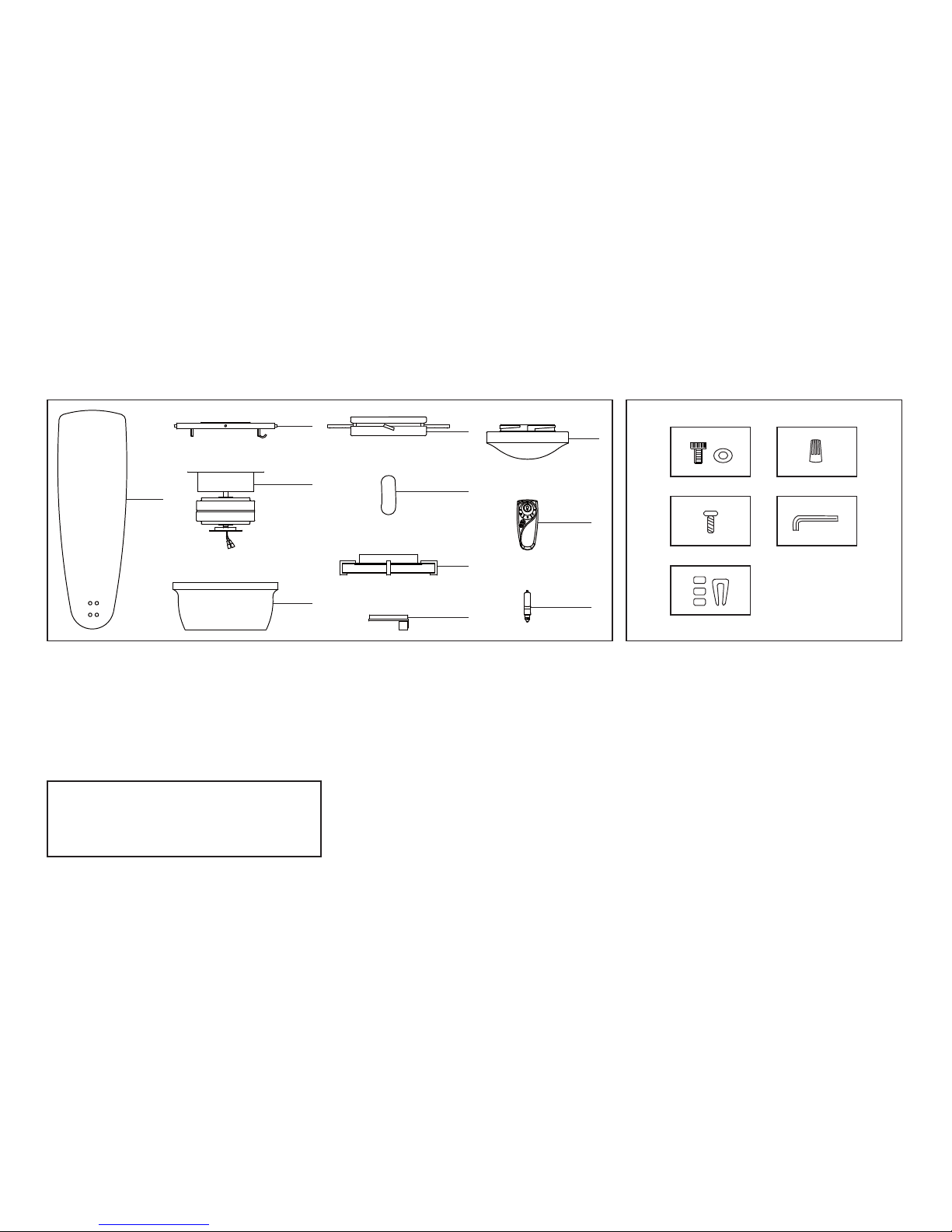

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
Set of blades (4)
Mounting bracket
Fan motor assembly
Motor housing
Blade holder plate
Blade medallions (8)
1.
2.
3.
4.
5.
6.
Mounting plate
Light plate
Glass shade
Transmitter+holder+2 mounting screws
100W Halogen bulb
6.
7.
8.
9.
10.
Blade Attachment Hardware
3/16"×9mm Allen Screws (17PCs.)
Rubber Washers (17PCs.)
Electrical Hardware
Plastic Wire Nuts (3PCs.)
Blade Holder Plate Hardware
1/4"×1/2" Screws (11PCs.)
Allen wrench
Balancing Kit
A.
B.
C.
D.
E.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-800-527-0998.
1
2
3
5
10
11
9
6
7
8
4
AB
C
E
D

3
Figure 2

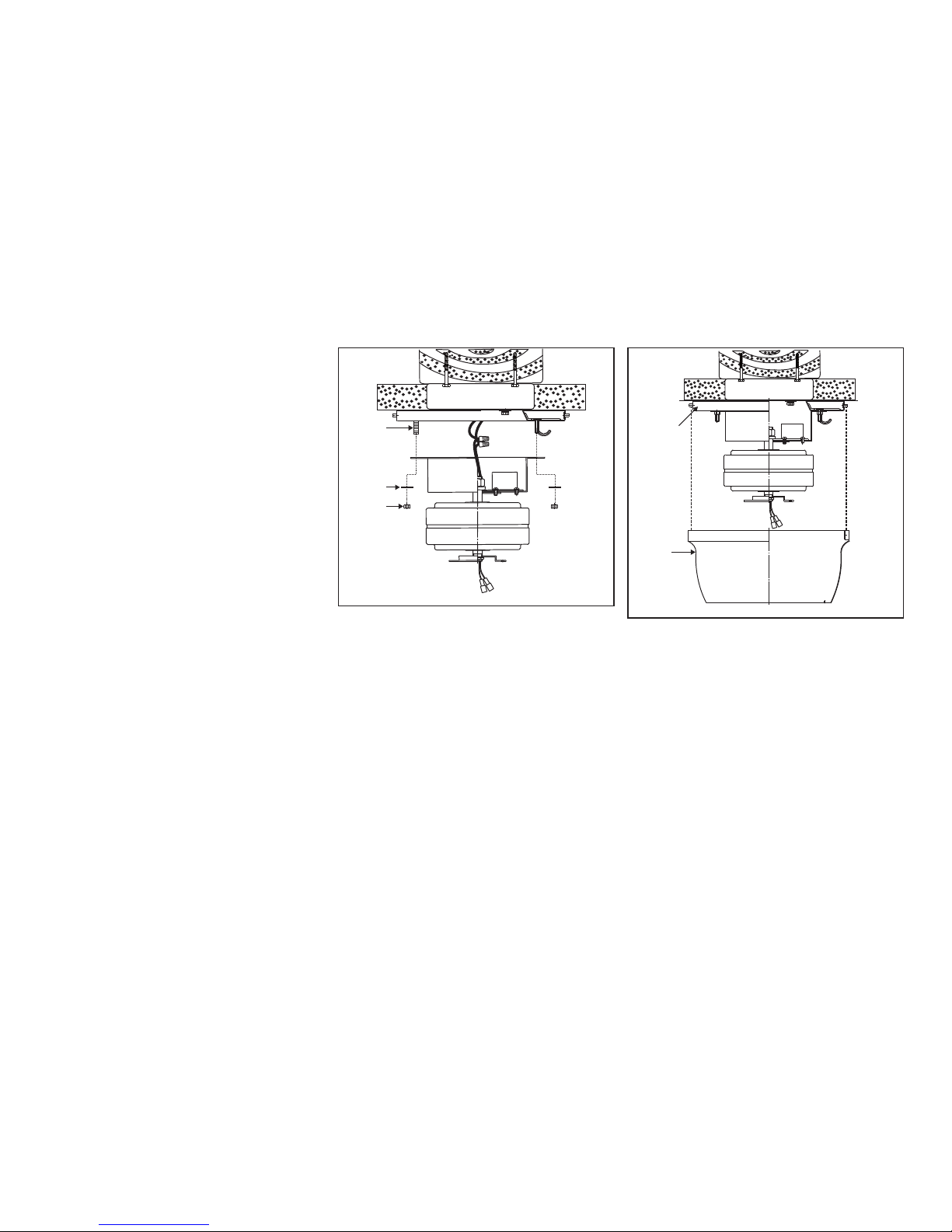

Figures 1 and 2 are examples of different ways to
mount the outlet box.
Outlet Box
Figure 1
Outlet Box
Installing Your Fan

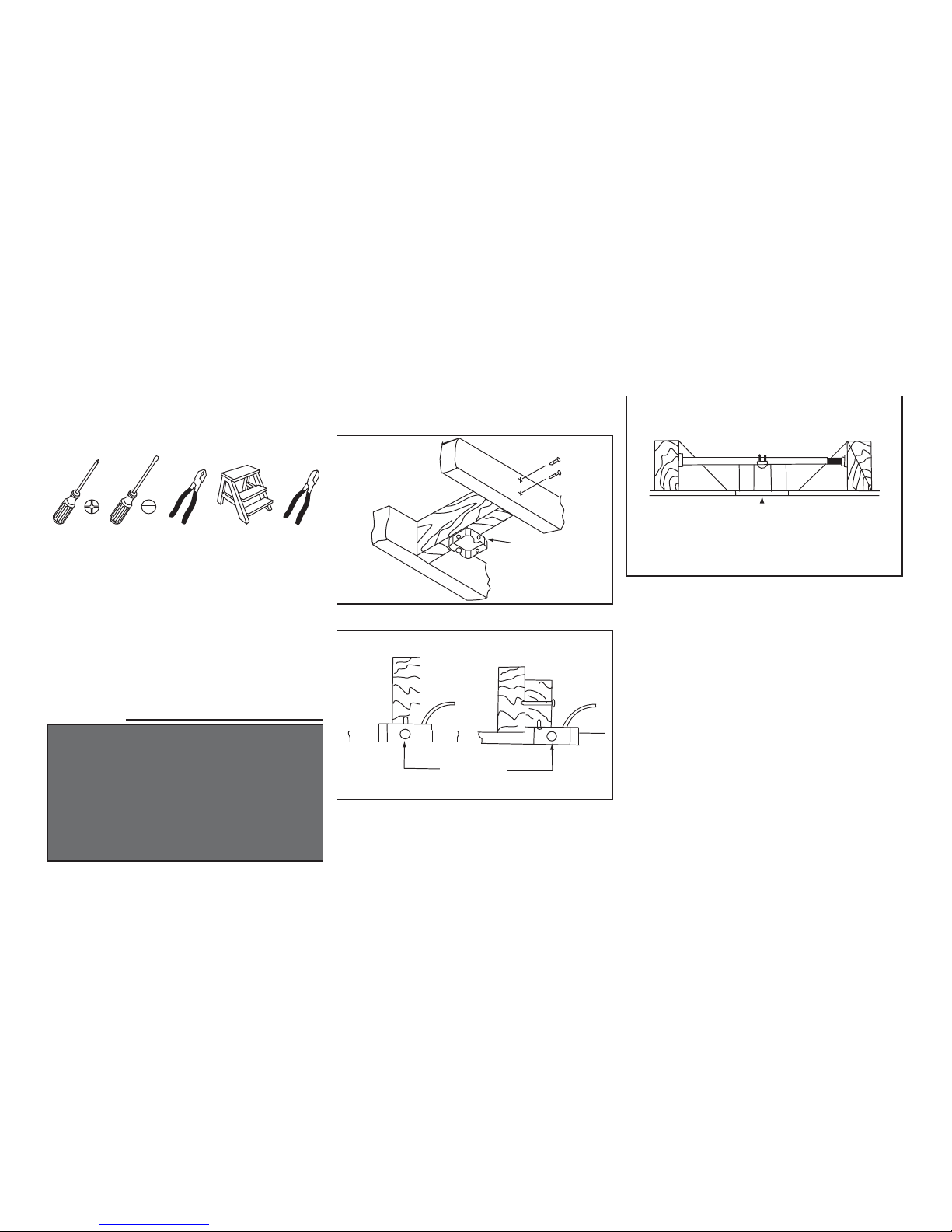

If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 3 (available at any
Home Depot retailer).
Figure 3
Outlet Box
Phillips screwdriver, straight slot screwdriver,
adjustable wrench, step ladder, and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan

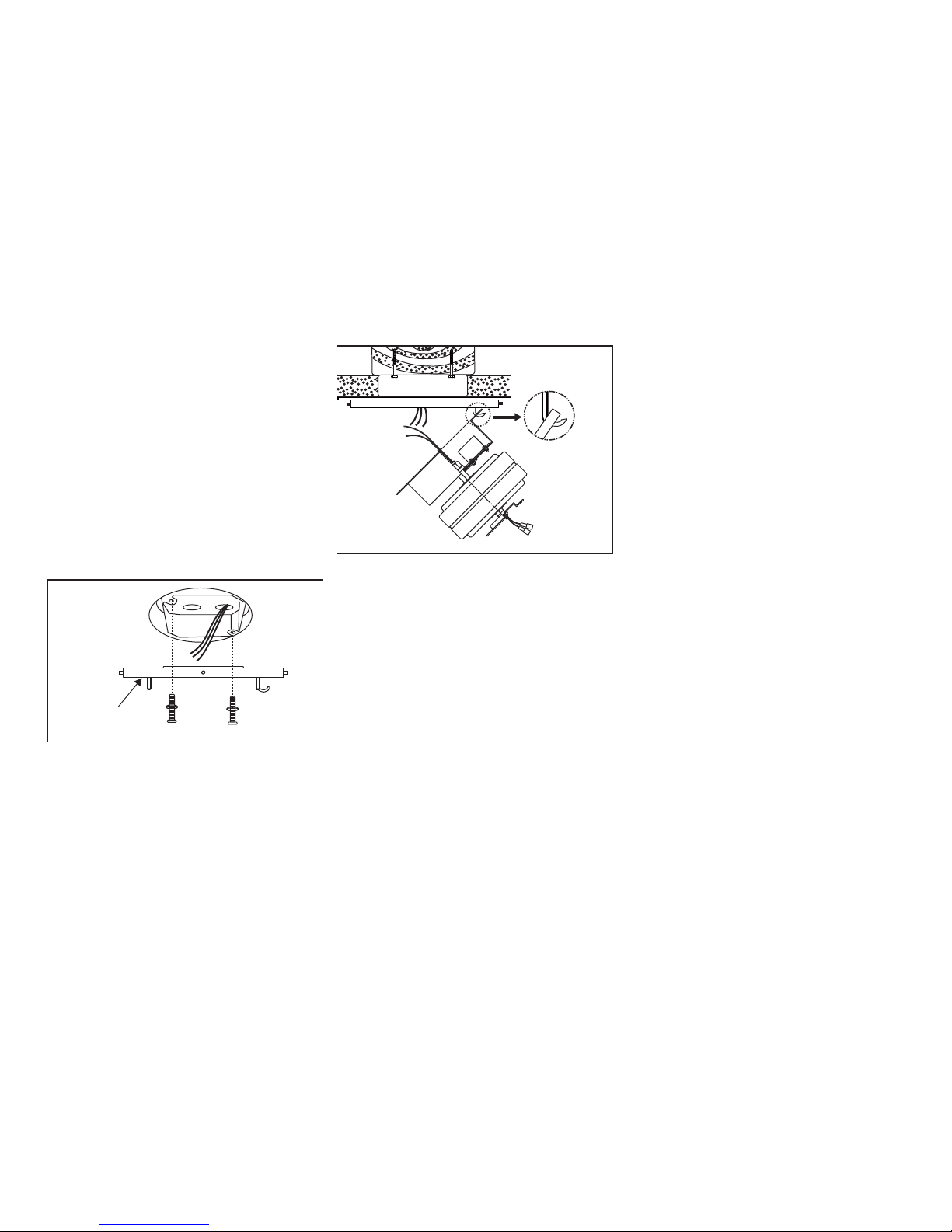

Attach the mounting bracket to the outlet box
with two screws and washers provided with the
outlet box. Make sure the bracket is tight and
secured (Fig. 4).
Lift fan into position by hanging the motor
assembly onto the hook from the ceiling
mounting bracket allowing it to hang freely
(Fig. 5).
1.
2.
Figure 5
Figure 4
Outlet Box
Mounting Bracket
Connect the fan supply (black) wire to the
black household supply wire as shown in
Figure 7.
Connect the neutral fan (white) wire to the
white neutral household wire.
Connect the fan ground wire (green) to the
household ground wire.
1.
2.
3.
Making the Electrical
Connections
REMEMBER to disconnect the power.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE: The Hand Held Remote or Wall Control
units included with your ceiling fan are equipped
with 16 code combinations to prevent possible
interference from or to other remote units. The dip
switches on your Receiver and Transmitter units
have been preset at the factory, please re-check to
make sure the switches on both units are set to the
same positions. The frequency settings should be
changed only in case of interference or if a second
or more remote controlled ceiling fans are
installed in the same structure. Any code
combination will operate the ceiling fan and light
as long as the Receiver and Transmitter units are
set to the same codes (Fig. 6)

5
SUPPLY CIRCUIT
Figure 7
BLACK
WHITE
BLACK
WHITE
GREEN
Outlet Box
Ground
Conductor
Green
Ground
Lead
Ground to
Downrod
After connecting the wires, spread them apart
so that the green and white wires are on one
side of the outlet box and the black wires are on
the other side.
Turn the connecting nuts upward and push the
wiring into the outlet box.
4.
5.
CAUTION
DO NOT USE WITH WALL LIGHT DIMMER
SWITCH.
NOTE
THE TRANSMITTER ONLY WORKS WITHIN 40
FEET FROM RECEIVER. Figure 6
Frequency Switch

6
Finishing the Fan
Installation
Figure 8
Move fan into position over the four mounting
studs and secure with the provided washers and
nuts. (Fig. 8)
Raise the motor housing up against the
mounting bracket, the four supports inside the
housing should be placed against the four studs
on mounting bracket, twist the housing
clockwise until snug. (Fig. 9)
1.
2.
Figure 9
Washers
Motor
Housing
Screws Studs
Nuts

7
Attaching the Fan Blades
Attach the blade holder plate to the motor using
the screws provided, tighten screws securely.
(Fig. 10)
Attach fan blade to the blade holder and blade
medallions using the 4 screws and rubber
washers provided. Tighten all 4 screws
securely using the Allen Wrench provided.
Repeat procedure with remaining blades. (Fig.
11)
1.
2.
for measurement. Repeat for each blade.
Measurements deviation should be within 1/8˝.
Run the fan for 10 Minutes.
Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
3.
Blade Balancing
Check that all blade and blade bracket screws
are secure.
Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure from a point on the
center of each blade to the point on the ceiling.
Measure this distance as shown in Figure 12.
Rotate the fan until the next blade is positioned
1.
2.
The following procedure should correct most fan
wobble. Check after each step.
Figure 12
Touching Ceiling
Figure 11
Allen Screws
Allen wrench
Rubber Washers
Blade
Blade Medallions
Figure 10
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE ARMS WHILE INSTALL-
ING, BALANCING THE BLADES, OR CLEANING
THE FAN. DO NO INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
Screws
Blade Holder Plate

8
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
Mounting Ring
Mounting Plate Screws
Installing the Mounting
Plate
Remove 1 of 3 screws from the mounting ring
and loosen the other 2 screws. (Do not remove)
Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 13)
1.
2.
Loosen the 3 screws from the mounting plate.
(Do not remove)
Raise and hold the light plate close to the
mounting plate and proceed to do the wire
connections. Connect the white wire
connectors from the light plate and fan, follow
the same procedure with the black wire
connectors. (Fig. 14)
Place the key holes on the light plate over the 3
screws previously loosened from the mounting
plate, turn light plate until it locks in place at
the narrow section of the key holes. Secure by
tightening the 3 screws previously loosened.
(Fig. 14)
Install 100W halogen bulb (included). (Fig.
15).
Raise light kit up against bottom of fan housing
and secure it to fan by twisting glass clockwise
until snug. DO NOT OVERTIGHTEN. (Fig.
15)
1.
2.
3.
4.
5.
Figure 13
Figure 14
Figure 15
Installing the Light Kit
Wire Connection
Plugs
Mounting
Plate
Screws
Light Plate
Bulbs
Glass
Shade
Mounting Plate
NOTE
LIGHT BULBS HAVE NO WARRANTY; CAN BE
PURCHASED AT ANY HOME DEPOT STORE.

99

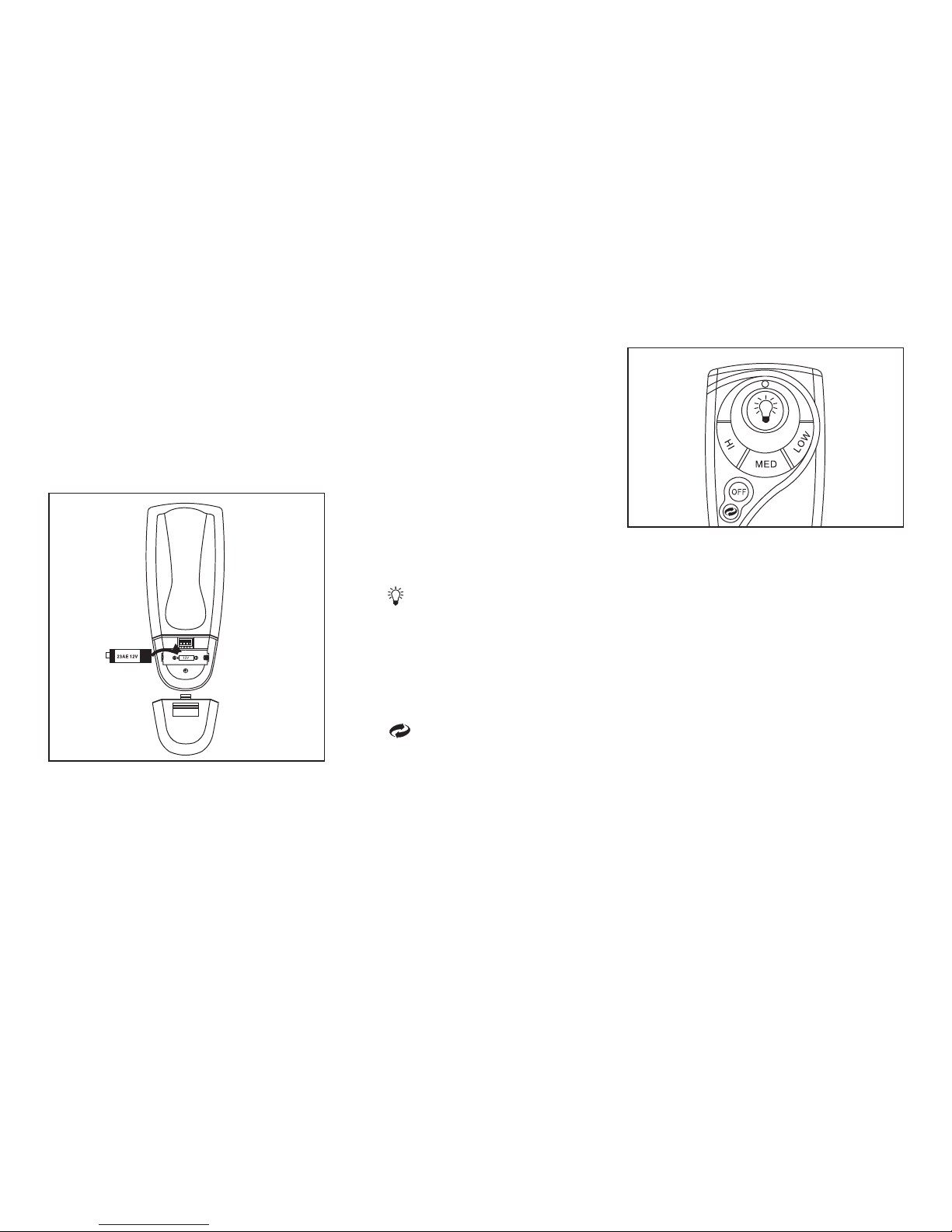

Installing the Battery:
"HI, MED, LOW" buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed,
MED= Medium speed
HI=High speed
"OFF" button: This button turns the fan off.
The " " button turns the light ON or OFF and
also controls the brightness setting. Press and
release the button to turn the light ON or OFF.
Press and hold the button to set the desired
brightness. The light key has an auto-resume, it
will stay at the same brightness as the last time
it was turned off.
The " " button is used to set the fan forward
or reverse, press the button forward (for warm
weather) or reverse (for cool weather).
1.
2.
3.
4.
Install 12V MN21/A23 battery (not included), to
prevent damage to transmitter, remove the battery
if not used for long periods.
Restore power to the ceiling fan and test for
proper operation.
Figure 16
Operating Your Transmitter
Figure 17

10
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect.(Fig.
18) This allows you to set your air conditioner on
a higher setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
19) This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE
TO OPERATE THE REVERSE FUNCTION ON
THIS FAN, PRESS THE REVERSE BUTTON
WHILE THE FAN IS RUNNING.
Figure 18
Figure 19

11
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use water
when cleaning. Use only a soft brush or lint-free
cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing. Do not use water when cleaning. This
could damage the motor, or the wood, or possibly
cause an electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in
the switch housing.
Check to make sure the dip switches from the transmitter and receiver
are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the canopy. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
2.
Fan will not start
Fan sounds noisy
Remote control
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
For any additional information on your Hampton
Bay Ceiling Fan, please write to:
THE HAMPTON BAY FAN & LIGHTING CO.
P. O. Box 395
Norco, CA 92860
Call toll free 1-800-527-0998

12
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
44" 120 9.20 kgs
(20.30 lbs)
10.80 kgs
(23.82 lbs) 2.43 '
LOW
MED.
HIGH
0.27
0.36
0.44
12
26
50
80
130
190
1584
2646
4025
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by
Your Other Warehouse, LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809

13
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives specific legal rights, and you may also have other rights which vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Lifetime Limited Warranty
(lifetime warranty on motor)
You must present a copy of the original
purchase receipt to obtain warranty
service.
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
THE HAMPTON BAY FAN &
LIGHTING CO.
P. O. Box 395
Norco, CA 92860
Attach receipt here for easy
location
