INSTRUCTION MANUAL
Floor Lamp with Reading Light, Black
Finish
Home Depot SKU 284-588
(UPC 798919038312)

2
Thank you for purchasing this Hampton Bay interior
portable luminaire. This product has been manufactured
to the highest standards of safety and quality. The
durable finish and shade design provide for care-free
maintenance. Simply wipe with a clean towel to keep
looking new.
FEATURES:
1. Provides both an uplight and adjustable reading light.
2. Lamp holder may be fitted with a CFL equivalent
energy-saving bulb(s).
QUESTIONS, PROBLEMS, MISSING PARTS:
Before returning to your local Home Depot, please call
our Customer Service Team at 1-877-527-0313 or visit
www.homedepot.com. Please reference your SKU 284-
588 (UPC 798919038312) Floor Lamp with Reading
Light, Black Finish when speaking to a Customer Service
agent.
CAUTION:
1. Before starting to assemble your portable luminaire,
spread all parts out on a clean flat surface. Inspect each
part for defects that may have occurred during shipping.
Be careful when unpacking the lamp since the wires are

Page 3
connected. If the wires are pulled out of their connectors,
it may result in a bad connection.
Important: Inspect the wire insulation for any cuts,
abrasions or exposed copper that may have resulted
during shipping. If there is a defect in the wire, DO NOT
continue the assembly operation. Please call our
Customer Service Team at 1-877-527-0313.
2. CONSULT A QUALIFIED ELECTRICIAN IF YOU
HAVE ANY ELECTRICAL QUESTIONS.
3. Keep your receipt and these Instructions for Proof of
Purchase.
4. This portable lamp has a polarized plug (one blade is
wider than the other) as a safety feature to reduce the risk
of electric shock. This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified
electrician. Never use with an extension cord unless plug
can be fully inserted. Do not alter the plug. CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT AND FULLY
INSERT.

4

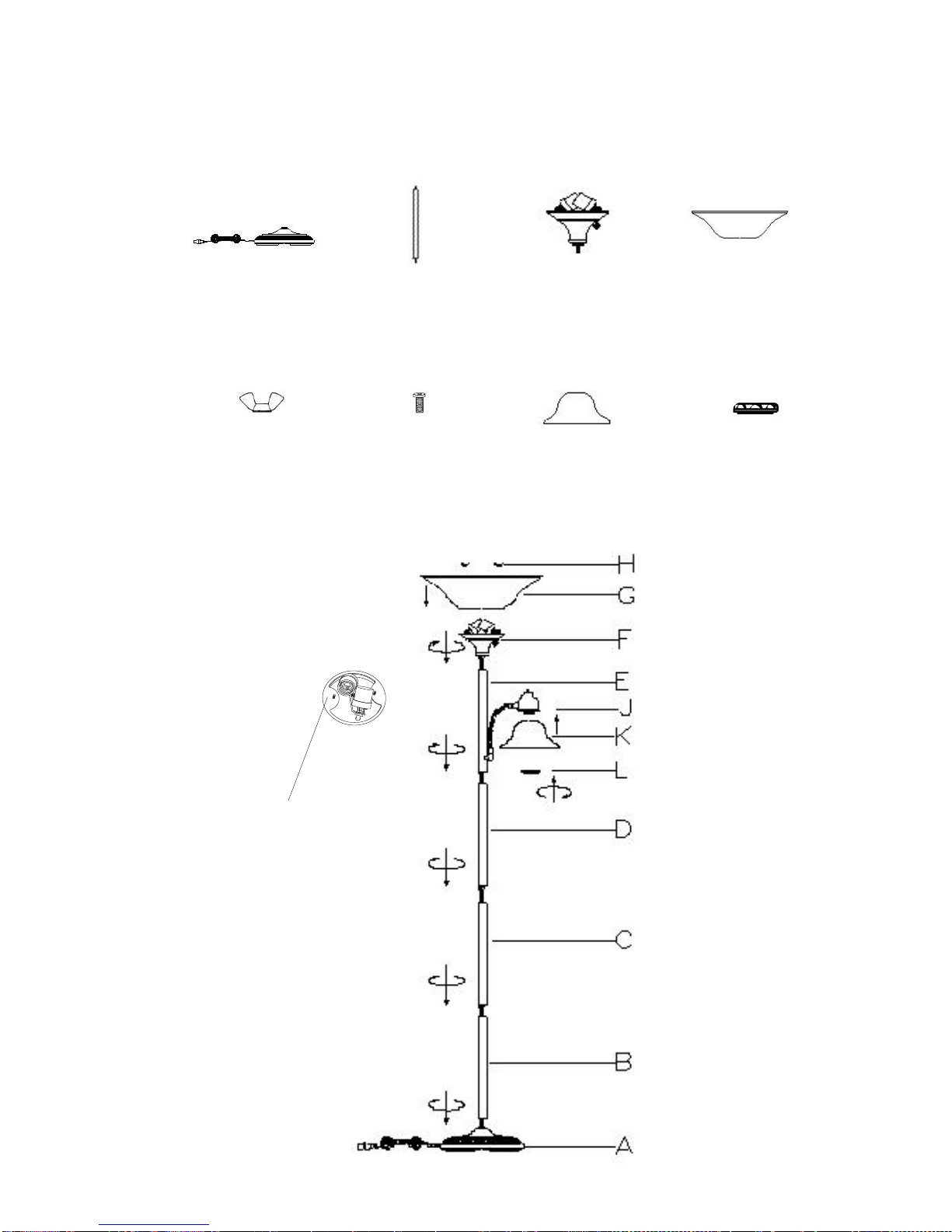

PARTS INCLUDED FOR ASSEMLBY (parts are not
to scale):
1 –metal
Base (A)
4 ea –Poles
(B-E)
1 ea –Double
Socket (F)
1 ea –
Shade (G)
2 ea –
Wing
Nuts (H)
2 ea –
Screws (I)
1 ea –
Shade
(K)
1 ea –
Ring (L)
I

Page 5

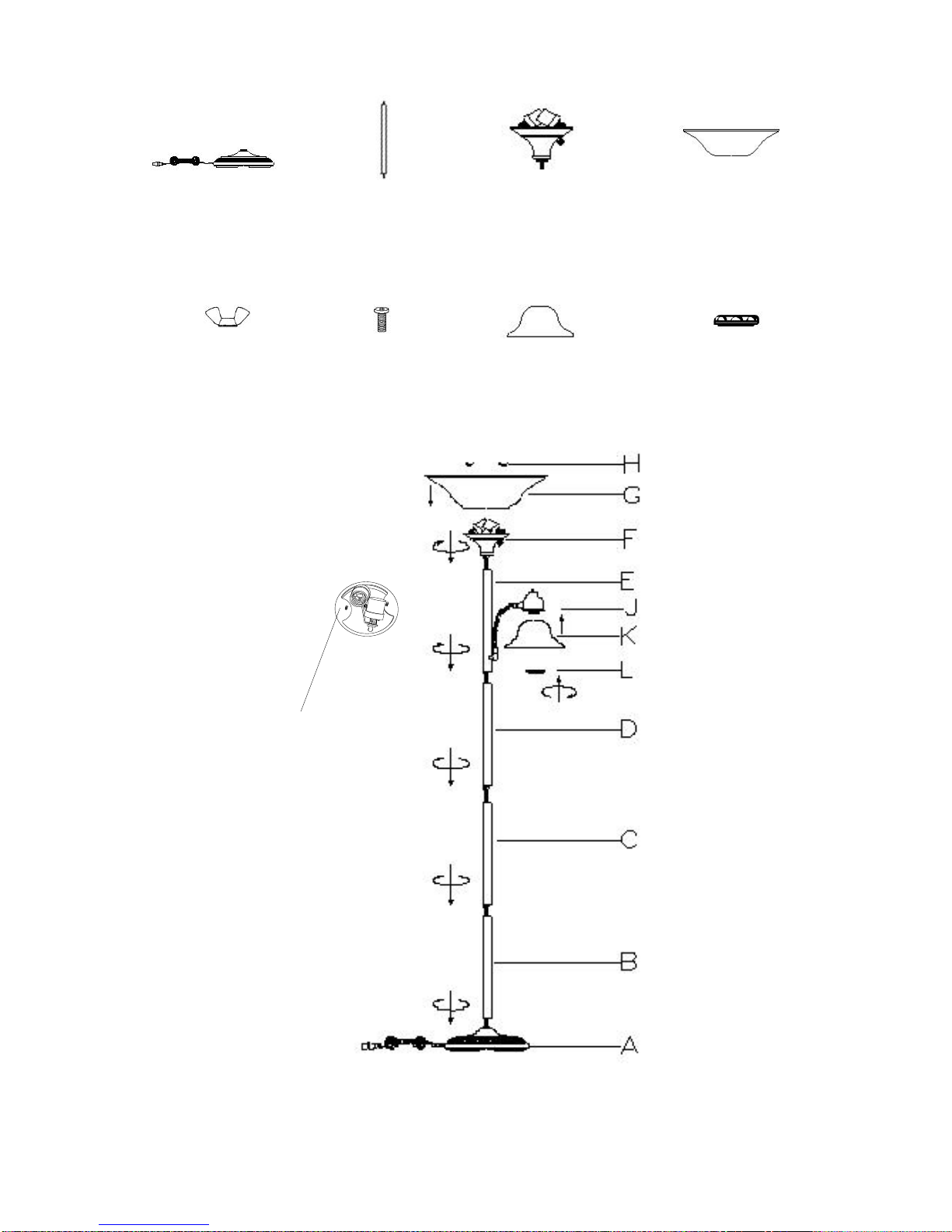

ASSEMBLY INSTRUCTIONS:
1. Begin assembly at the bottom of the lamp.
2. Insert lamp pole (B) into base (A) and turn clockwise
to tighten.
3. Insert lamp pole (C) into lamp pole (B) and turn
clockwise to tighten.
4. Repeat above step with poles D and E.
5. Insert the shade holder (F) into lamp pole (E) and turn
clockwise to tighten. You may need to pull any excess
cord gently through the poles so that these parts fit.
6. Unscrew the wing nut (H) from the screw (I), Place the
shade (G) onto shade holder (F) and matching the screw
(I), turn wing nut (H) onto screw (I) clockwise to tighten.
7. Unscrew the socket ring (L) counter-clockwise from
the socket (J).
8. Place the shade (K) to the socket (J) and turn the
socket ring (L) clockwise to tighten.
9. Install (2) 150W maximum type A bulbs or CFL
equivalent (bulbs not included) in uplight. Install (1)
60W maximum type A bulb or CFL equivalent in reading
light (bulb not included).
