Hand Held Products SCANTEAM 2070 User guide

™
SCANTEAM® 2070 Base
IMAGETEAM™ 3870/75 Linear Imager
SCANTEAM® 5770 Laser
System Manual
Cordless Scanning System

Disclaimer
Hand Held Products, Inc. d/b/a HHP (“HHP”) reserves the right to make changes
in specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HHP to determine whether any
such changes have been made. The information in this publication does not
represent a commitment on the part of HHP.
HHP shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnishing,
performance, or use of this material.
This document contains proprietary information which is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written consent
of HHP.
2000-2002 Hand Held Products, Inc. All rights reserved.
Web Address: www.HHP.com

Statement of Agency Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Class B Compliance Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for
help.
Caution: Any changes or modifications made to this device that are not
expressly approved by Hand Held Products, Inc. may void the user’s authority to
operate the equipment.
Note: To maintain compliance with FCC Rules and Regulations, cables
connected to this device must be shielded cables, in which the cable shield
wire(s) have been grounded (tied) to the connector shell.
Canadian Notice
This equipment does not exceed the Class B limits for radio noise emissions as
described in the Radio Interference Regulations of the Canadian Department of
Communications.
Le present appareil numerique n’emet pas de bruits radioelectriques depassant
les limites applicables aux appareils numeriques de la classe B prescrites dans
le Reglement sur le brouillage radioelectrique edicte par le ministere des
Communications du Canada.

CDRH Laser Safety Statement - ST5770 Series Only
This product complies with US DHHS21 CFR JPart 1040.10. This product is a
CLASS II LASERPRODUCT with a maximum output of 1.0 mW at 670
nanometers and continuous wave.
EN 60825-1 Laser Safety Statement - ST5770 Series Only
This product is classified as a CLASS 2LASERPRODUCT with a maximum
output of 9.0 mW at 670 nanometers per EN60825-1:1994, Issue 2, June 1997.
R&TTE Directive
The IMAGETEAM3870, SCANTEAM5770, and SCANTEAM2070arein
conformity with all essential requirements of the R&TTEDirective (1999/5/EC).
This equipment has been assessed to the following standards: ETS300 328
ETS300 826(November, 1997); EN60950: 1992, Incl Amdt 1-4, 11.
This product is marked with signifying conformity with Class II
product requirements specified in the R&TTEDirective.
The equipment is intended for use throughout the European Community, but its
authorization for use in France is restricted as follows: PAN European
Frequency Range: 2.402 - 2.480GHz; Restricted Frequency Range for use in
France: 2.448 -2.480GHz.
Regulatory and Safety Agency Approvals
Parameter Specification
Electromagnetic Emissions/Immunity
U.S.A. FCC Part 15, Class B - Verified
Canada SOR 88/475, Class B - Verified
Europe EN 55022 (CISPR22) Class B; ETS300 826
Type Certified; EMC89/336/EEC; EN55024
Safety
U.S.A. UL Listed, C22.2 No. 950/UL 1950
Canada 3548cUL Listed
Europe TÜVRheinland GS Licensed, EN60950 (IEC
950) (Scanner and Base only - not on battery)
Australia conforms to AS/NZS Standard
Mexico (does not apply to IT3875) Certified
RF Approvals
U.S.A. FCC Part 15.249 Certified
Canada RSS 210 Certified
Europe ETS300 328Certified
Australia C-TIC
Mexico IT3870-SCT RCPWEIM01-348,
ST2070 - RCPWESC01-349
0168

The CEmark on the product indicates that the system has been
tested to and conforms with the provisions noted within the 89/336/
EECElectromagnetic Compatibility Directive and the 73/23/EECLow
Voltage Directive.
For further information please contact:
Hand Held Products, Inc.
Nijverheidsweg 9
5627BT Einhoven
The Netherlands
HHP shall not be liable for use of our product with equipment (i.e., power
supplies, personal computers, etc.) that is not CEmarked and does not comply
with the Low Voltage Directive.
C.S.A. Statement
This product must be used with a certified Class 2 Power
supply or be powered by a certified SELV (Safety Extra
Low Voltage) output.
Patents
The SCANTEAM2070, SCANTEAM5770, IMAGETEAM3870, and
IMAGETEAM3875 are covered by one or more of the following U.S.patents:
3,991,299;4,470,057, 5,021,642; 5,038,024;5,081,343;5,095,197;5,144,119;
5,144,121; 5,182,441; 5,187,355; 5,187,356;5,218,191; 5,233,172; 5,258,606;
5,294,783;5,288,985; 5,420,409;5,430,285; 5,463,214;5,541,419;5,723,853;
5,831,254;5,900,613;5,932,862; 5,942,741; 5,965,863;6,119,939;6,149,063;
6,161,760; 6,164,544;6,254,003B1; and 6,275,388 B1. Other U.S. and foreign
patents pending.

Enlarged Views of Regulatory Labels - IT3870
IT3870 Scanner
Left Side View
IT3870 Scanner
Right Side View
Manufactured
Model #
Item #
S/N
REV
Welch Allyn, Skaneateles Falls
New York 13153-0187,USA
See User Guide for Patent Information
Made in USA
Complies with (en conformite avec):
FCC PART 15
CANADAICES-003
See manual
(Reféréz-vous à la documentation)
CISPR 22 CLASS B
Contains TXFCC ID:EHAUL
ISC: RSS/CNR 210
CANADA: 31101021090A
MAY 2000
IMAGETEAM 3870
3870XX-XX
12345
SW 1.6/1.08

Enlarged Views of Regulatory Labels - IT3875
IT3875 Scanner
Left Side View
IT3875 Scanner
Right Side View
Manufactured
Model #
Item #
S/N
REV
Welch Allyn, Skaneateles Falls
New York 13153-0187,USA
See User Guide for Patent Information
Made in USA
Complies with (en conformite avec):
FCC PART 15
CANADAICES-003
See manual
(Reféréz-vous à la documentation)
CISPR 22 CLASS B
Contains TXFCC ID:EHAUL
ISC: RSS/CNR 210
CANADA: 31101021090A
AUGUST 2001
IMAGETEAM 3875
3875XX-XX
12345
SW 1.6/1.08

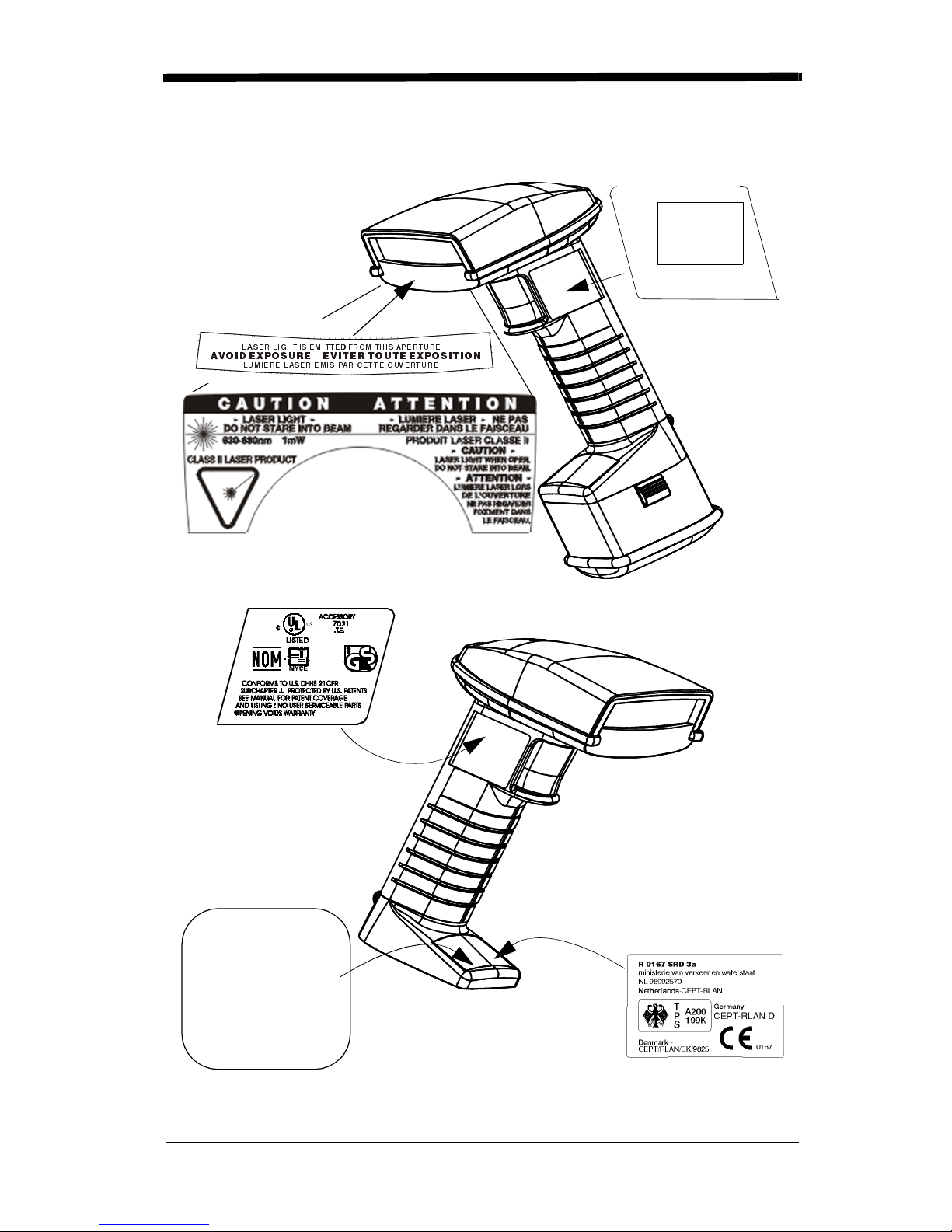

Enlarged Views of Regulatory Labels - ST5770
ST5770 Scanner
Left Side View
ST5770
Right Side View
Manufactured
Model #
Item #
S/N
REV
Welch Allyn, Skaneateles Falls
New York 13153-0187,USA
See User Guide for Patent Information
Made in USA
MAY 2000
IMAGETEAM 3870
3870XX-XX
12345
SW 1.6/1.08
Complies with (en conformite avec):
FCC PART 15
CANADAICES-003
See manual
(Reféréz-vous à la documentation)
CISPR 22 CLASS B
Contains TXFCC ID:EHAUL
ISC:RSS/CNR 210
CANADA: 31101021090A

Enlarged Views of Regulatory Labels - ST2070
ST2070 Base - Bottom
This device complies with Part 15 of the FCC Rules
and with RSS-210 of Industry Canada. Operation
is subjected to the following two conditions: (1)
This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that can cause un-
desired operation.
Canada ICES-003
See Manual (Reféréz-vous à la documentation)
CISPR 22 CLASS B
Contains TXFCC ID:EHAUL
ISC: RSS/CNR 210
CANADA: 31101021090A
MANUFACTURED: August 2001
MODEL # SCANTEAM2070
S/N#:U-35-00134
ITEM #:2070-1A
REV:3.80/1.08
