Handicare FST-300 User manual

Ovvners Manual
LJ:Je ard Care
Trrub!esho:tfng
Warranty
J.
lntroduction .............................................................2
Overview.................................................................. 2
General Placement..................................................3
Components of System.......................................... 4
Specifications ..........................................................5
Requirements and Cautions ................................... 6
Assembly
Assembling the Supporting Post .....................9
Trolley Installation ............................................. 11
Track Assembly................................................. 12
Mounting: Track ................................................ 13
Mounting: C-300............................................... 17
Mounting: P-300 ............................................... 18
Raising the Free Standing Track System ........ 19
Attaching SkirtAccessory ................................ 22
Disassembly
Disassembly
of Free Standing Track............... 23
Disassembly of Legs......................................... 26
Trolley Disassembly.......................................... 27
Troubleshooting ......................................................29
General Inspection and Maintenance.................... 31
Service Record History ...........................................32
Warranty...................................................................36
8 hondicore

;1\ CAUTION: DO NOTATTEMPT TO USE THIS EQUIPMENT WITHOUT
~ FIRST UNDERSTANDING THE CONTENTS OF THIS MANUAL.

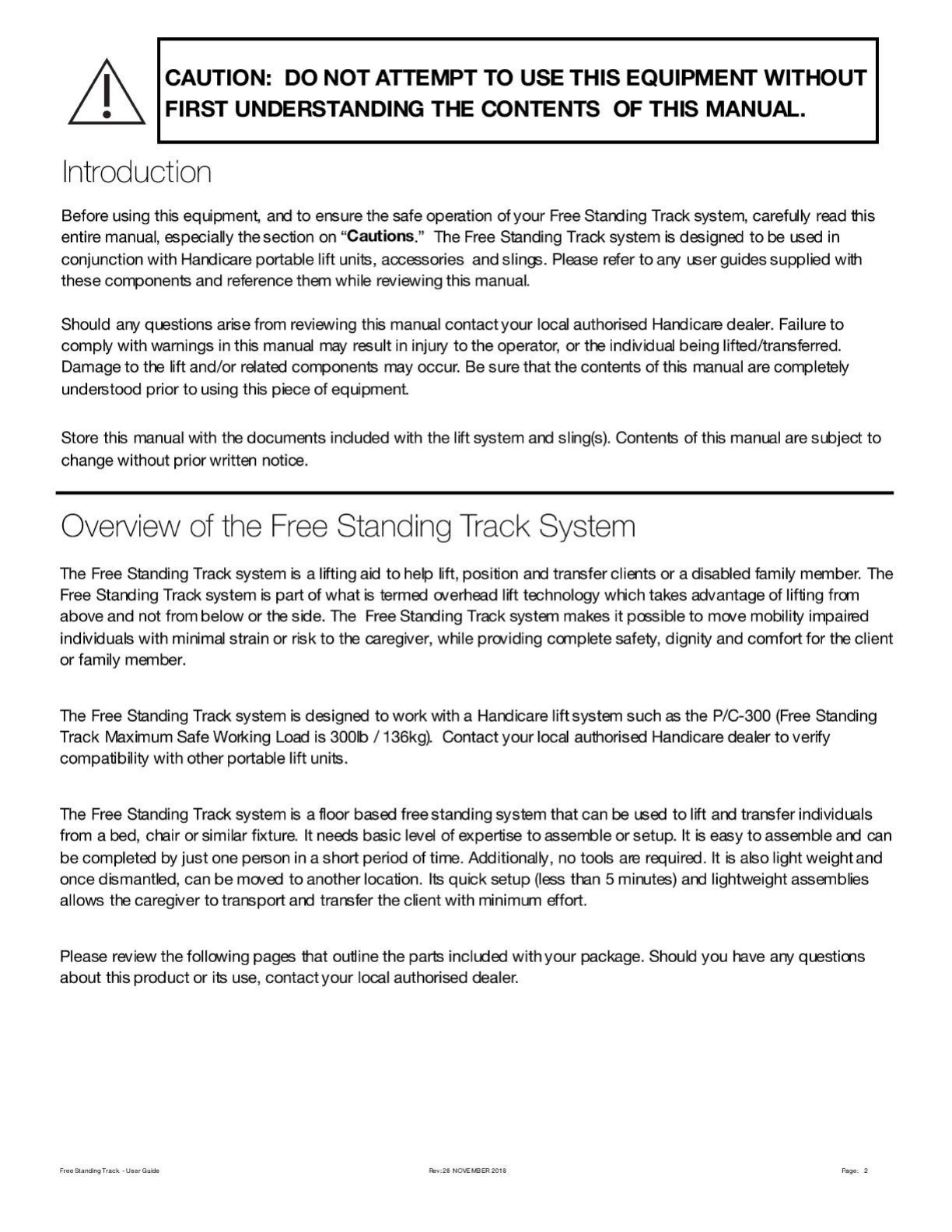

Introduction
Before using this equipment, and to ensure the safe operation of your Free Standing Track system, carefully read this
entire manual, especially thesection on "Cautions." The Free Standing Track system
is designed to be used in
conjunction with Handicare portable lift units, accessories and slings. Please refer
to any userguides supplied with
these components and reference them while reviewing this manual.
Should any questions arise from reviewing this manual contactyour local authorised Handicare dealer. Failure
to
comply with warnings in this manual may result in injury to the operator, or the individual being lifted/transferred.
Damage
to the lift and/or related components may occur. Be sure that the contents of this manual are completely
understood prior to using this piece of equipment.
Store this manual with the documents included with the lift system and sling(s). Contents of this manual are subject to
change without priorwritten notice.
Overview of the Free Standing Track System
The Free Standing Track system is a lifting aid to help lift, position and transferclients or a disabled family member. The
Free Standing Track system
is part of what is termed CNerhead lift technology which takes advantage of lifting fran
above and not from below or the side. The Free Standing Track system makes it possible to mCNe mobility impaired
individuals with minimal strain or risk to the caregiver, while prCNiding canplete safety, dignity and comfortfor the client
or family member.
The Free Standing Track system
is designed to work with a Handicare liftsystem such as the P/C-300 (Free Standing
Track Maximum Safe Working Load is
3001b I 136kg). Contact your local authorised Handicare dealer to verify
compatibility with other portable lift units.
The Free Standing Track system
is a floor based freestanding system that can be used to lift and transfer individuals
from a bed, chair or similar fixture. It needs basic level of expertise to assemble orsetup. It is easy to assemble and can
be completed by just one person in a short period of time. Additionally, no tools are required. It is also light weightand
once dismantled, can
be mCNed to anotherlocation. Its quick setup (less than 5 minutes) and lightweight assemblies
allows the caregiver
to transport and transfer the client with minimum effort.
Please review the follcming pages that outline the parts included with your package. Should you have any questioos
about this product or its use, contact your local authorised dealer.
Free StandingTrack -User Guide Aev:28 NOVEMBER 2018
Page: 2

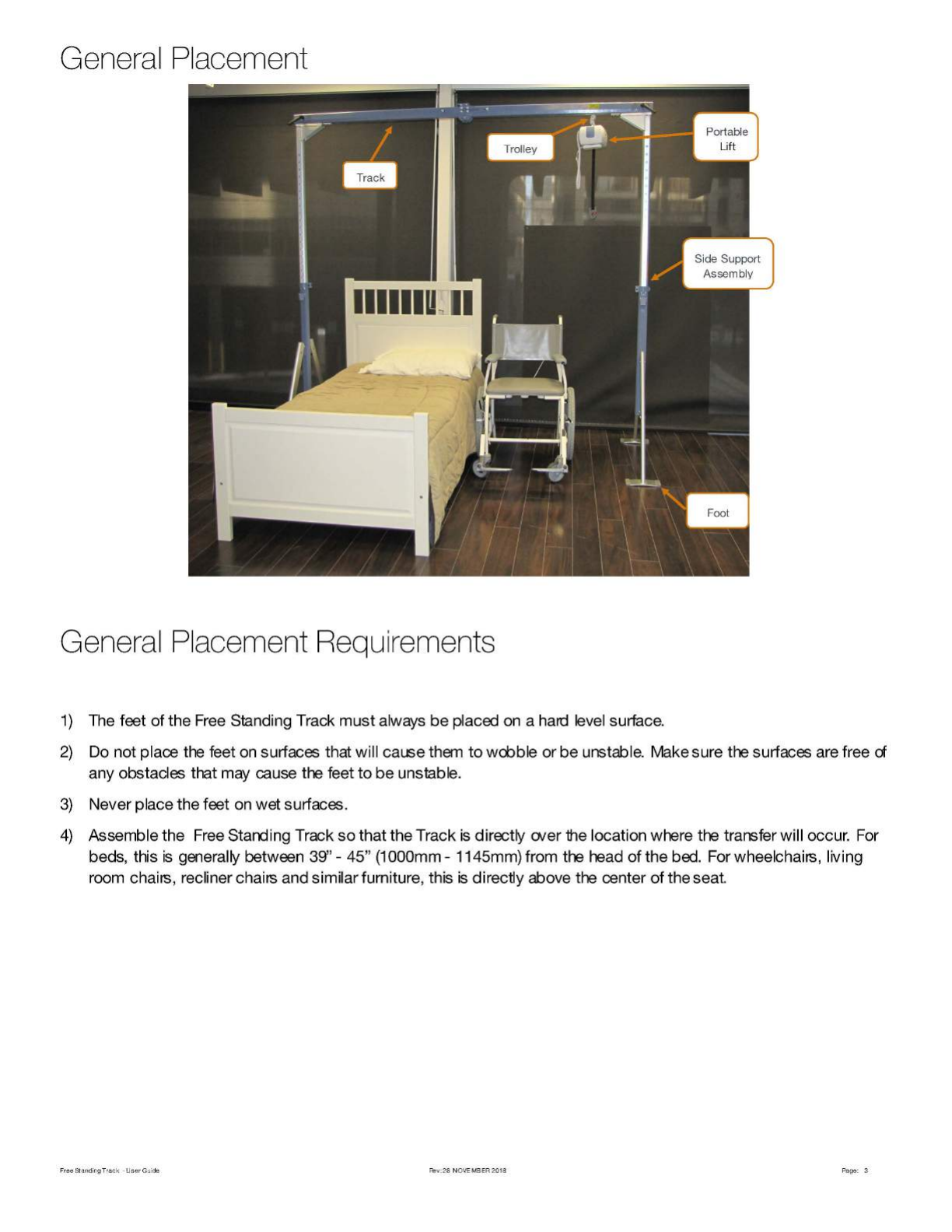

General Placement
General Placement Requirements
1) The feet of the Free Standing Track must always be placed on a hard level surface.
2) Do not place the feet on surfaces that will cause them to wobble or be unstable. Makesure the surfaces are free of
any obstacles that may cause the feet to be unstable.
3) Never place the feet on wet surfaces.
4) Assemble the Free Standing Track so that the Track is directly over the location where the transfer will occur. For
beds, this is generally between 39"- 45" (1 OOOmm- 1145mm) from the head ofthe bed. For wheelchairs, living
room chairs, recliner chairs and similarfurniture, this is directly above the center of theseat.
Free Standing Track -User Guide
Page: 3

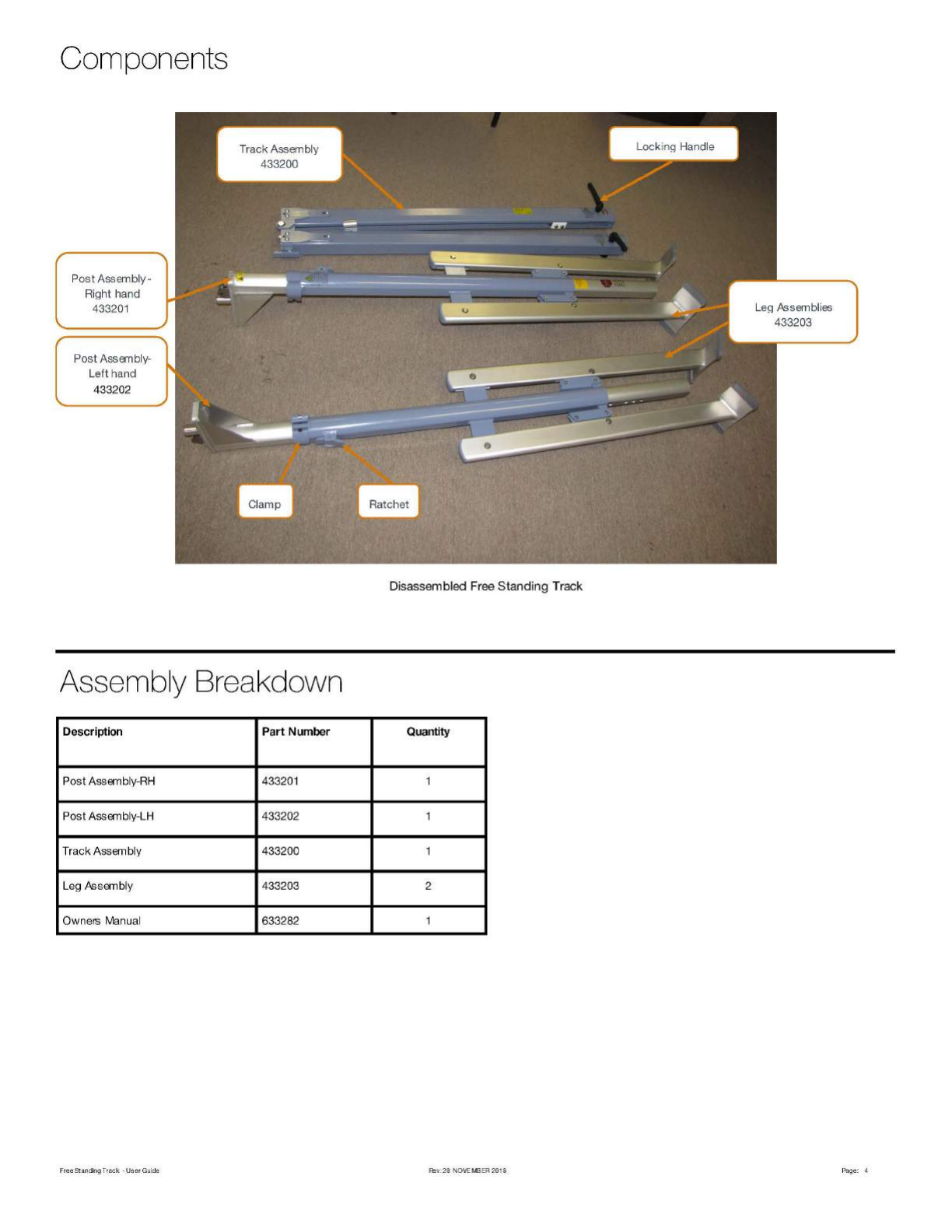

Components
Post Assembly-
Right hand
433201
Post Assembly-
Left hand
433202
Track Assembly
433200
Assembly Breakdown
Description Part Number
Post Assembly-RH 433201
Post Assembly-LH 433202
Track Assembly 433200
Leg Assembly 433203
Owners Manual 633282
FreeStanding Track -User Guide
Disassembled Free Standing Track
Quantity
1
1
1
2
1
Pev:28 NOVEMBER 2018 Page: 4














Specifications
High-strength, lightweight aluminum
Track weight 15 lb I 6.8kg
Post and leg assembly weight: 131bI 5.9 kg
Unit weight (including trolley): 43 lb I 19.5
Portable installation
Eliminates the mounting of a connection system in the ceiling
One person set up (less than 5 minutes)
Addresses a number
of different set ups
Maximum safe working load: 3001b I 136 kg
Adjustable in height
Minimum height: 5 ft/1 .52 m
Maximum height: 7.5 ft I 2.29 m
Height adjustable increments: 2 in I 51 mm
Jl\ CAUTION:
Code
341400
Model Table for the FST-300 System
Description
Free Standing Track
~ DO NOT EXCEED THE CAPACITY OF THE FREE STANDING TRACK
(Maximum Safe Working Load of 300
LB I 136 KG}
Dimensions
I·
8' 12 .44 m
J IC
r
~
._.
5' -7.5'
1.52 m- 2.29 m
~
Free StandingTrack -User Guide
Aev :28 NOVEMBER 2018 Page: 5
















Requirements and Cautions
BEFORE YOU START
& Failure to observe cautions listed below could result in serious injury or death
The Free Standing Track system must be assembled prior to use. Should you have any questions during
assembly
contact your local authorised dealer.
The Free Standing Track system parts should not
be loose, broken or bent. If any part is missing ordamaged do
not install. Contact yourlocal authorised dealer immediately.
Under nocircumstanceshould the track, lift and sling
(s) orentire system be put in control of a person who has
not been properly trained in the use and care
of this equipment. Failure to adhere to this warning may result in
serious injury
to the q:>erator, and/or the individual being lifted/transferred.
Never
expa;e the Free Standing Track directly to water.
Warranty does not cover any misuse or abuse
of the Free Standing Track system.
Any accessories used with the Free Standing Track including liftand sling
(s), should be checked to ensure that
they are in good working order. Check forsigns
of wear orfraying prior to use. Report any unusual wear or
damage immediately
to yourlocal authorised dealer.
The Free Standing Track and associated lift, and sling
(s) are intended only for lifting and transferring of aperson.
Handicare will not
be responsible forany damage caused by the misuse, neglect or purposeful destruction of the
lift and/or its associated components.
The installation
of the Free Standing Track, lift, accessories, and sling are certified to a maximum load. Do not
exceed the maximum rated load
of any of the canponents .
Ensure that a clear space
is maintained around the Free Standing Track. Remove all furniture and other
obstacles out of the way before performing a transfer.
The Free Standing Track has been designed
to lift vertically at its maximum load and at maximum height. Do not
attempt
to lift an individual at an angle to the track.
Do not install
The Free Standing Track on an uneven floor. Do not install on a slq:>ed floor greaterthan .5 degree.
Ensure floorarea
is clear off dirt and debris.
Do not
drop product, it may cause breakage. Protect the Free Standing Track and its accessories during
transport.
Prior
to each use of the equipment, complete avisual inspection. A monthly maintenance inspection must be
done in order to ensure good operating conditions.
Make sure the lift is in the designated parking
spot before raising orlowering the pa;ts .
Free StandingTrack -User Guide
Aev :28 NOVEMBER 2018 Page: 6









Requirements and Cautions

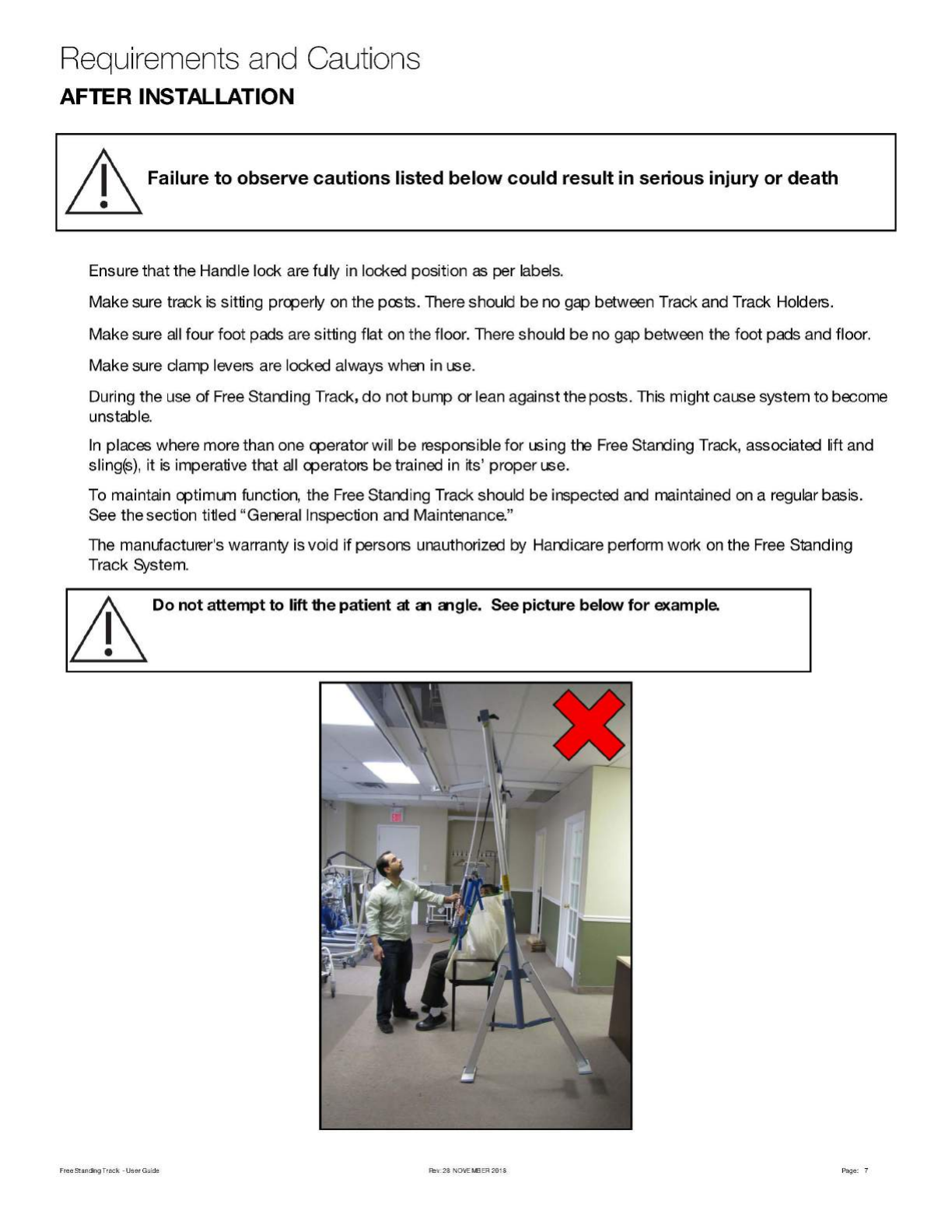

AFTER INSTALLATION
& Failure to observe cautions listed below could result in serious injury or death
Ensure that the Handle lock are fully in locked position as per labels.
Make sure track
is sitting properly on the pests. There should be no gap between Track and Track Holders.
Make sure
all four foot pads are sitting flat on the floor. There should be no gap between the foot pads and floor.
Make sure clamp levers are locked always when in use.
During the use
of Free Standing Track, do not bump or lean against theposts. This might cause system to become
unstable.
In places where more than one operator will be responsible for using the Free Standing Track, associated lift and
sling(s), it
is imperative that all operators be trained in its' proper use.
To maintain optimum function, the Free Standing Track should
be inspected and maintained on a regular basis.
See thesection titled "General Inspection and Maintenance."
The manufacturer's warranty is void if persons unauthorized by Handicare perform work on the Free Standing
Track System.
& Do not att....,t to lift the patient at m mgle.
See picture below for example.
FreeStanding Track -User Guide Pev:28 NOVEMBER 2018 Page: 7

Requirements and Cautions
AFTER INSTALLATION
&Caution: Before using the Free Standing Track, the Post assembly and track must
be visually checked to ensure that they
are not damaged. Should anything look
unusual, contact your local dealer prior to use.
Failure to comply with this caution could result in serious injury to the operator, the
individual being lifted and/or damage to the Free Standing Track and/or portable lift unit.
CLEANING RUBBER FEET
With a water-damped cloth, clean all (8) rubber foot pads prior to each installation. Dry the feet of all moisture and
residue. Ensure the floor area
is clean and free of dirt and debris.
FreeStanding Track -User Guide Pev:28 NOVEMBER 2018 Page: 8

Assembly

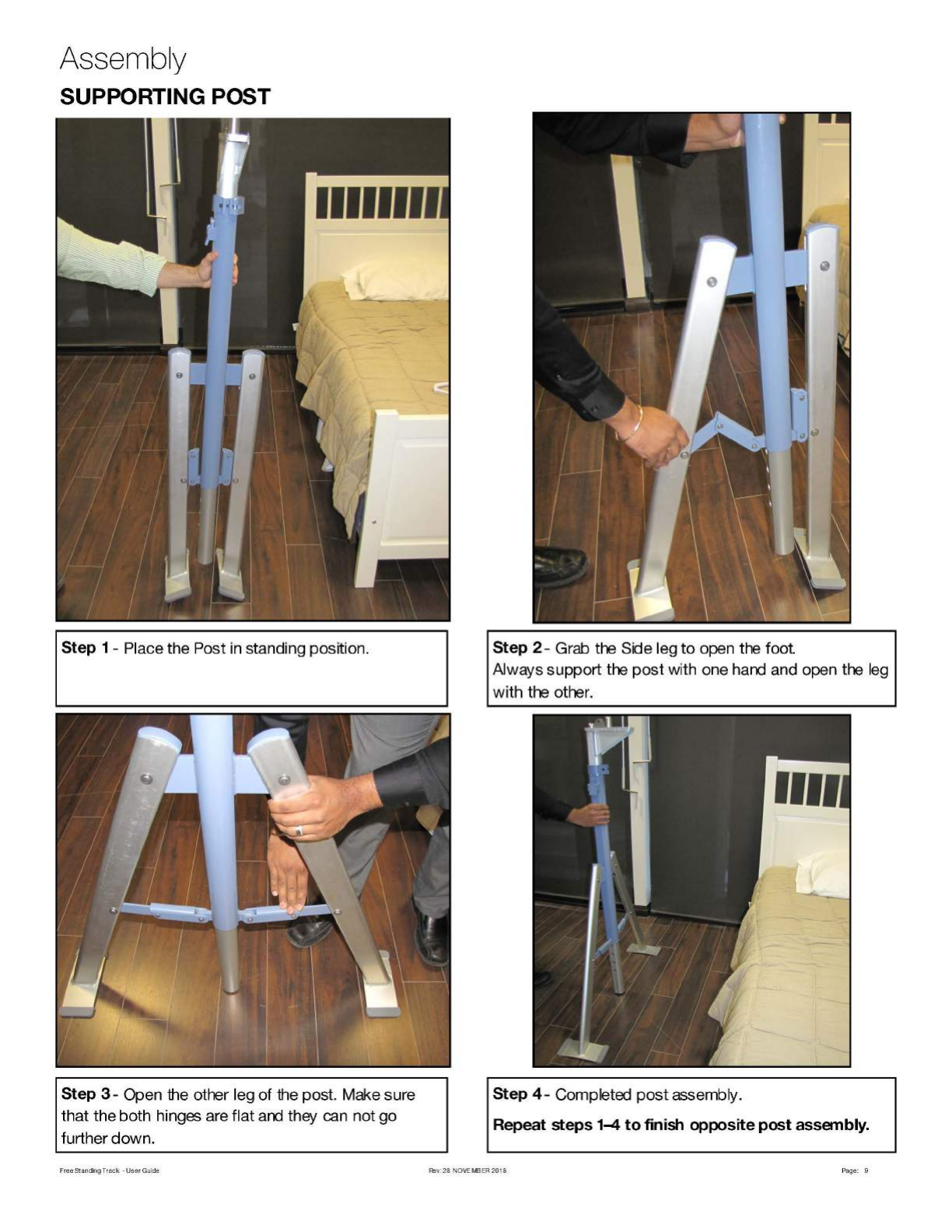

SUPPORTING POST
Step 3- Open the other leg of the post. Make sure
that the both hinges are flat
and they can not go
further down.
FreeStanding T rack -User Guide
Step 2- Grab the Side leg to open the foot.
Always support the post with one hand and open the leg
with the other.
Step 4- Completed post assembly.
Repeat steps1-4 to finish opposite post assembly.
Pe v:28 NO VE MB ER 2018 Page: 9

Completed Post Assembly of Free Standing Track
FreeStanding Track -User Guide
Track Holders must face
each other
Pev:28 NOVEMBER 2018
Track Holder Must face
each other as shown
above
Page: 10

Assembly

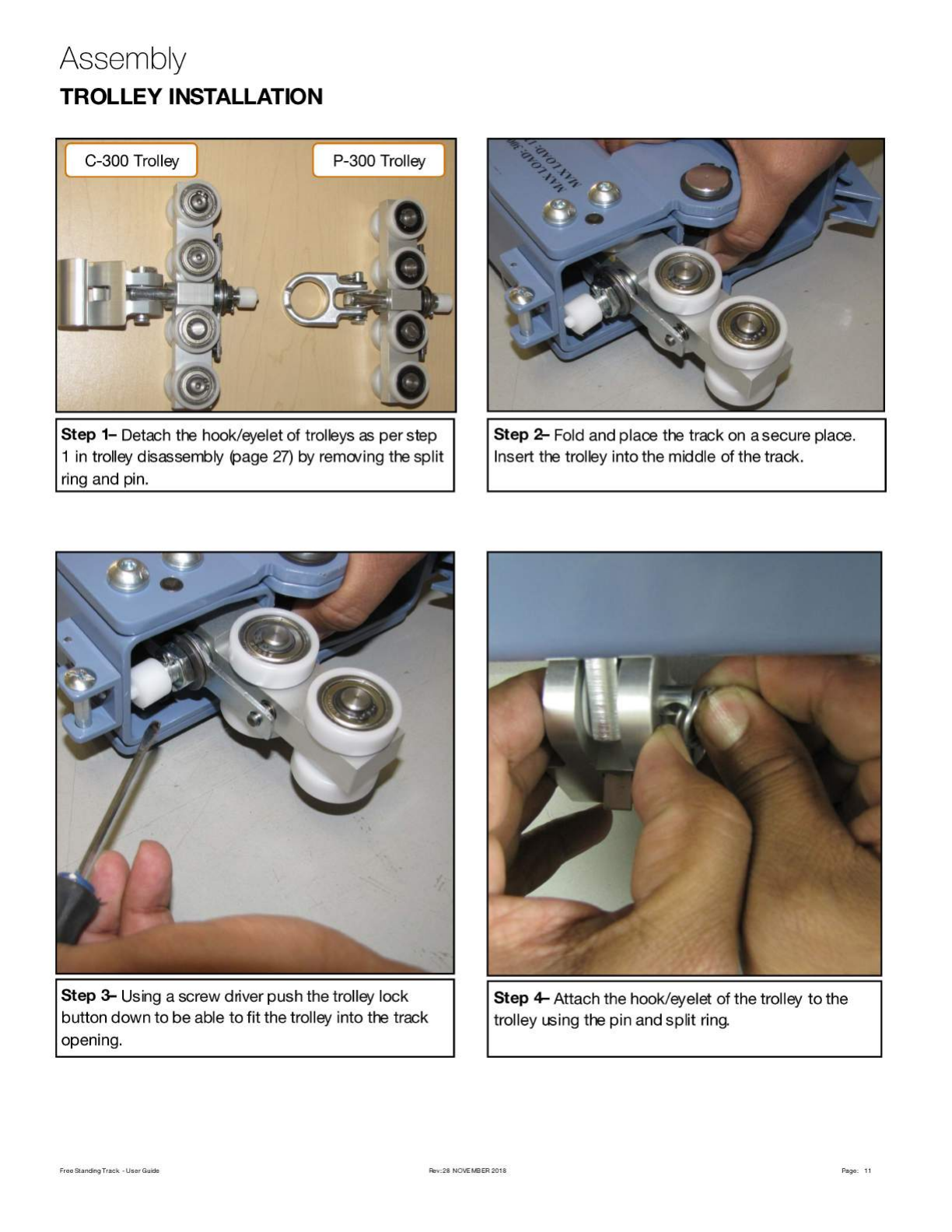

TROLLEY INSTALLATION
C-300 Trolley P-300 Trolley
Step 1- Detach the hook/eyelet of trolleys as per step
1 in trolley disassembly page 27) by remCNing the split
ring and pin.
Step 3- Using a screw driver push the trolley lock
button down to be able to fit the trolley into the track
opening.
Step 2- Fold and place the track on asecure place.
Insert the trolley into the middle ofthe track.
Step 4- Attach the hook/eyelet ofthe trolley to the
trolley using the pin and split ring.
Free StandingTrack -User Guide Aev:28 NOVEMBER 2018 Page:
11

Assembly

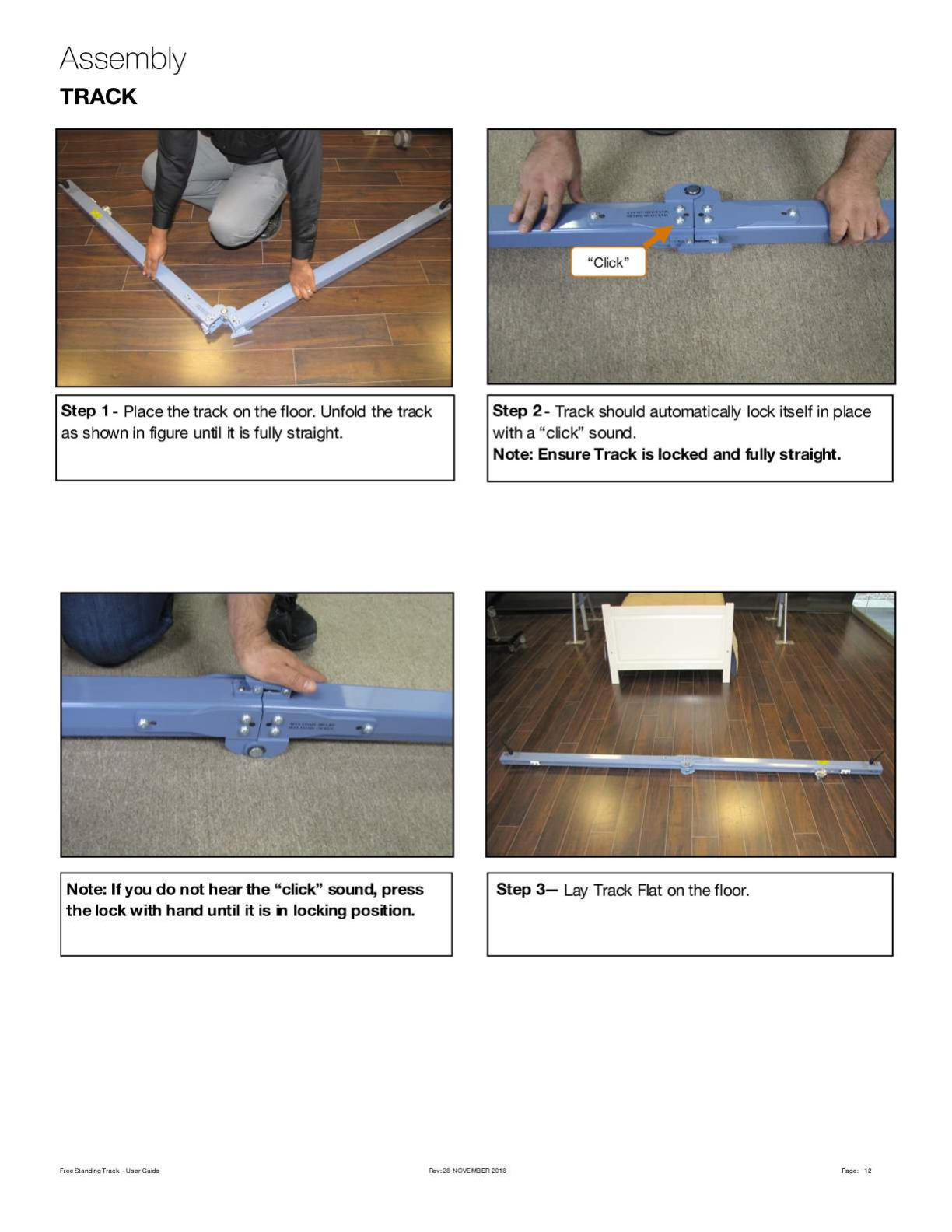

TRACK
Step 1-Place the track on the floor. Unfold the track
as
shCNVn in figure until it is fully straight.
Note: Ifyou do not hearthe "click" sound, press
the lock with hand until it is in locking position.
Step
2- Track should automatically lock itself in place
with a "click" sound.
Note: Ensure Track
is locked and fully straight.
Step
3- Lay Track Flat on the floor.
Free StandingTrack -User Guide Aev:28 NOVEMBER 2018
Page: 12

Assembly

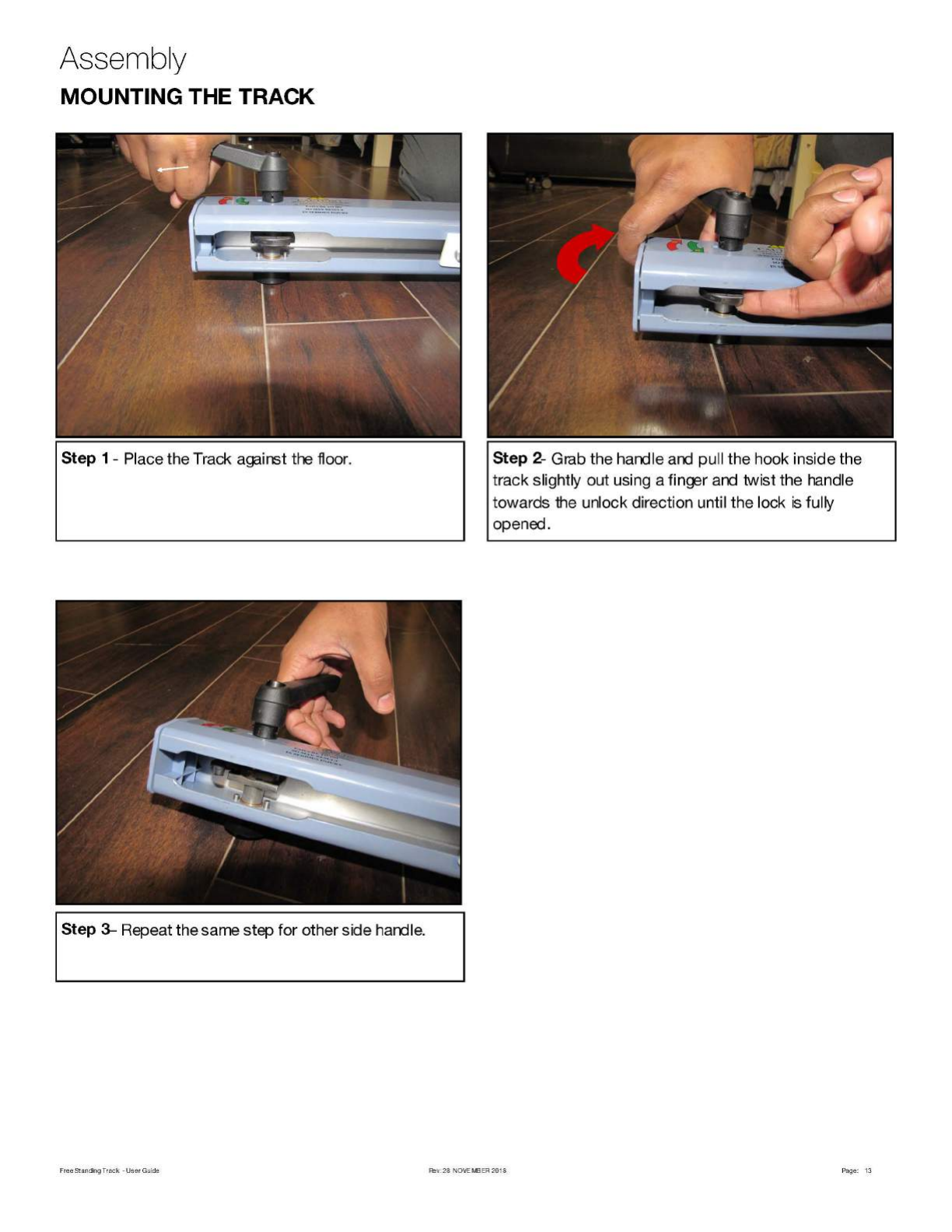

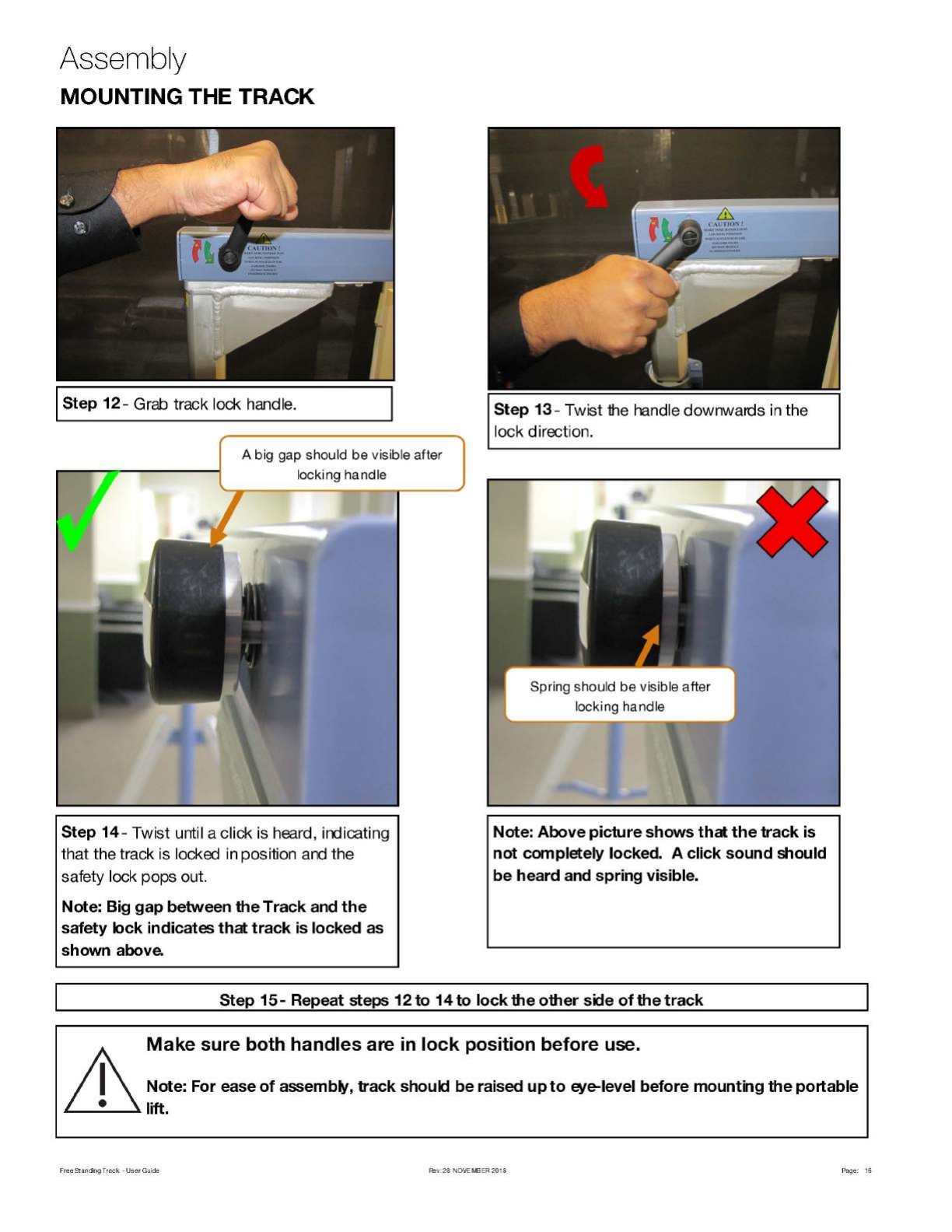

MOUNTING THE TRACK
Step 1-Place the Track against the floor.
Step 3-- Repeat thesame step for otherside handI e.
FreeStanding T rack -User Guide
Step 2- Grab the handle and pull the hook inside the
track slightly out using a finger and twist the handle
towards the unlock direction until the lock is fully
opened.
Pe v:28 NO VE MB ER 2018 Page: 13

Assembly
MOUNTING THE TRACK
Step 4- Lift the track with both hands and place one
end of the track on the post assembly as shONn in
figure.
Note: Always make surethat handles are in open
position before placing the track
on the post.
Step 6: Place the other end of the track on the
other post.
Note: Make surethere is no gap between the
Track and Track Holder.
Step
5- Track should fall into place and sit flat on the
track holderof the post
as seen in next figure.
Step 7- Both ends should lay canpletely flat on
the top of post assemblies.
FreeStanding Track -User Guide Pev:28 NOVEMBER 2018 Page: 14

Assembly
MOUNTING THE TRACK
Step 8- Grab canfort grip plastic knob =.
Step 10- Turn the plastic knd::> clockwise so
that the track locks with top post
Step 9- Hold plastic knob up and place track on
Note: Above picture shows that the plastic
knob is flush with track, and track locked with
top post.
Step 11- Repeat steps 8 to 10to lockthe other side ofthe track
.& Make sure both comfort grip plastic knobs are tight before use
Free Standing Track -User Guide Rev:28 NOVEMBER2018 Page: 15

Assembly
MOUNTING THE TRACK
IStep 12- Grab track lock handle.
A big gap should be visible after
locking handle
Step 14- Twist until a click is heard, indicating
that the track is locked
in position and the
safety lock pops out.
Note: Big gap between the Track and the
safety lock indicates that track is locked as
shown above.
Step 13- Twist the handle downwards in the
lock direction.
Note: Above picture shows that the track is
not completely locked. A click sound should
be heard and spring visible.
Step
15- Repeat steps 12to 14to lockthe other side ofthe track
Make sure both handles are in lock position before use.
Jl\ Note: For ease of assemb!/, track should beraised up to eye-level before mountilg the portable
~lift.
FreeStanding Track -User Guide Pev:28 NOVEMBER 2018 Page: 16

Mounting
C-300
&Caution: Prior
to mounting the C-300 lift onto the C-300 trolley, read the owners manual of the C-300 lift
Be sure that the instructions on the use of the lift and any accessories, such a slings are thoroughly
understood before attempting to use them with the Free Standing Track. Free Standing Track is rated only
for 300 lb I 136 kg. Do not exceed the limit of the Free Standing Track.
FAILURE TO COMPLY WITH THIS MAY RESULT IN INJURY TO THE INDIVIDUALBEING LIFTED AND/
OR THE CAREGIVER, OR DAMAGE TO THE LIFT AND/OR THE FREE STANDING TRACK
Step 1- Press latch of the trolley from back as shown in figure. Slide the lift hook on to the trolley hook and release the latch. Follow
the figures for the C-300 lift and attach the eyelet of the lift to the hook.
Step 2- Grab the lift and drag it to the parking
spot.
Free StandingTrack -User Guide
Note: Always make sure that the lift is in
parking
spot beforeraising the posts.
Apply load and pull the lift down to be able to
remove the lift from parking spot and use it.
Aev:28 NOVEMBER 2018 Page: 17

Mounting
C-300

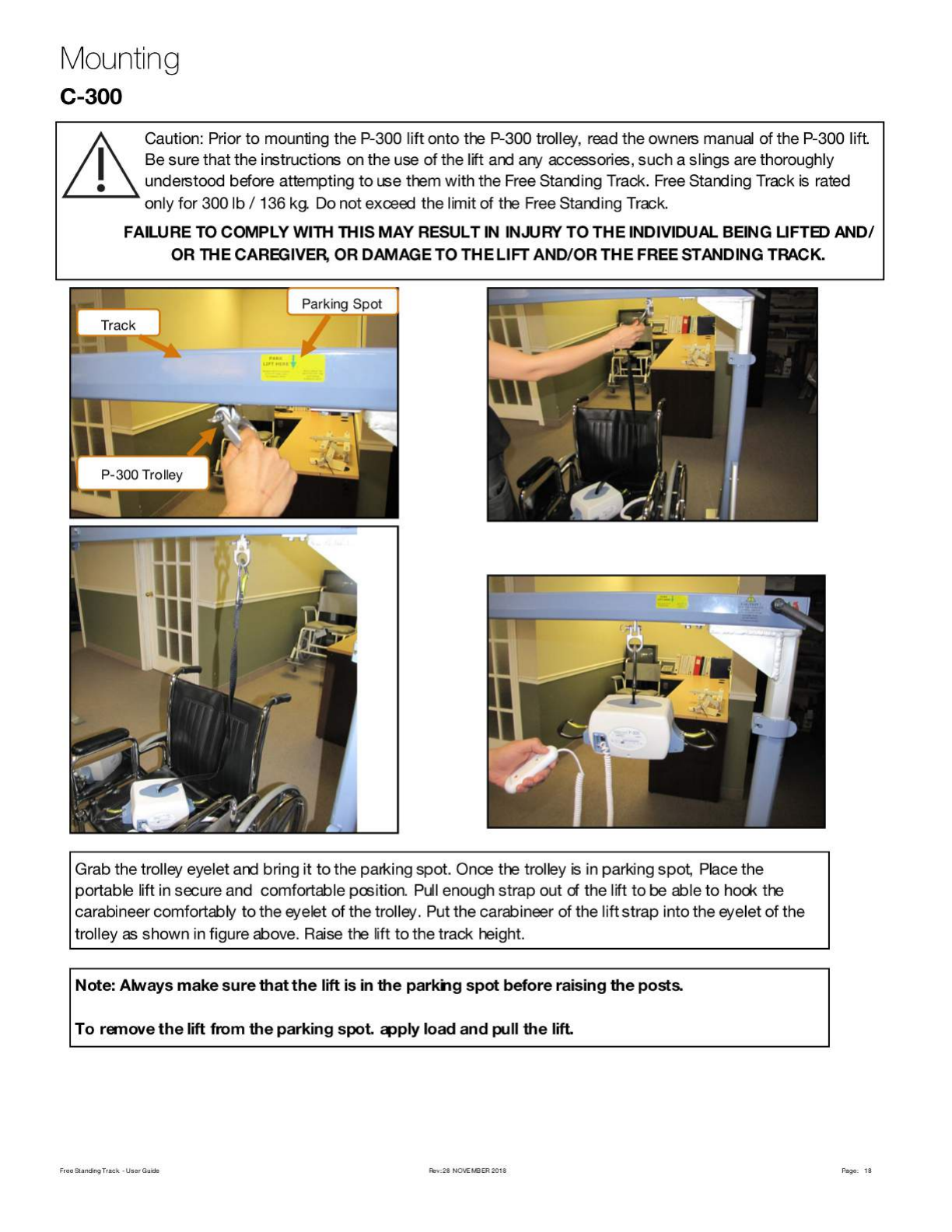

&Caution: Prior
to mounting the P-300 lift onto the P-300 trolley, read the owners manual of the P-300 lift.
Be sure that the instructions on the use of the lift and any accessories, such a slings are thoroughly
understood before attempting to use them with the Free Standing Track. Free Standing Track is rated
only for 300 lb I 136 kg. Do not exceed the limit of the Free Standing Track.
FAILURE TO COMPLY WITH THIS MAY RESULT IN INJURY TO THE INDIVIDUAL BEING LIFTED AND/
OR THE CAREGIVER, OR DAMAGE TO THE LIFT AND/OR THE FREEST ANDING TRACK.
Grab the trolley eyelet and bring it to the parking spot. Once the trolley is in parking spot, Place the
portable lift in secure and comfortable pcsition. Pull enough strap out of the lift to be able to hook the
carabineer comfortably
to the eyelet of the trolley. Put the carabineer of the liftstrap intothe eyelet of the
trolley as shown in figure above. Raise the lift to the track height.
Note: Always make surethat the lift is in the parkilg spot before raising the posts.
To remove the lift from the parking spot. ~ply load and pull the lift.
Free StandingTrack -User Guide Aev:28 NOVEMBER 2018 Page: 18

HEIGHT REFERENCE
ENGRAVING HEIGHT () HEIGHT (m)
14.5 1.37
251.52
35.5 1.68
461.83
56.5 1.98
672.13
MAX 7.5 2.29
LOCKING POSITIONS IN 2 in / 5.1 cm
INCREMENTS

Raising the Free Standing Track
Note: Set up the Free Standing Track by incrementally raising each post
assembly, one at a time. It is recommended to reach each post in increments
of no more than two engravings (1 ft I 0.3m).
&
The caution label at the 6 engraving
indicates that the height limit of the post
is near. Carefully extend the post no
further than the "MAX" engraving. &
Do not extend post beyond "MAX"
engraving. Maximum height of Free
Standing Track is 7.5ft I 2.29 m.
FreeStanding Track -User Guide Pev:28 NOVEMBER 2018 Page: 20
