Handicare SystemRoMedic MiniLift200 User manual

Visual inspection
Inspect lift unit functions regularly. Check to ensure that material is free from damage.
Before use
Ensure that the product is correctly assembled.
Check slingbar connection and safety latch function.
Check lift and base-width movement.
Check to ensure that the actuator is correctly installed.
Always read the user manuals for all assistive devices used during a transfer.
Keep the user manual where it is accessible to users of the product.
The lift unit may only be used by persons who have received instruction in the operation of the lift unit.
Safety information
Manual nr: 883-En Ver. 7 151210
Service manual - English
SWL: 200 kg/441 lbs
Always read the user manual
Valid from serial number:
MiniLift200
SystemRoMedicTM
200005000

Table of contents
Assembly
-Final inspection...................................................................................... 3
Using the product
- Important information............................................................................ 4
- Trouble-shooting ................................................................................... 4
Exploded view and components.......................................... 5-9

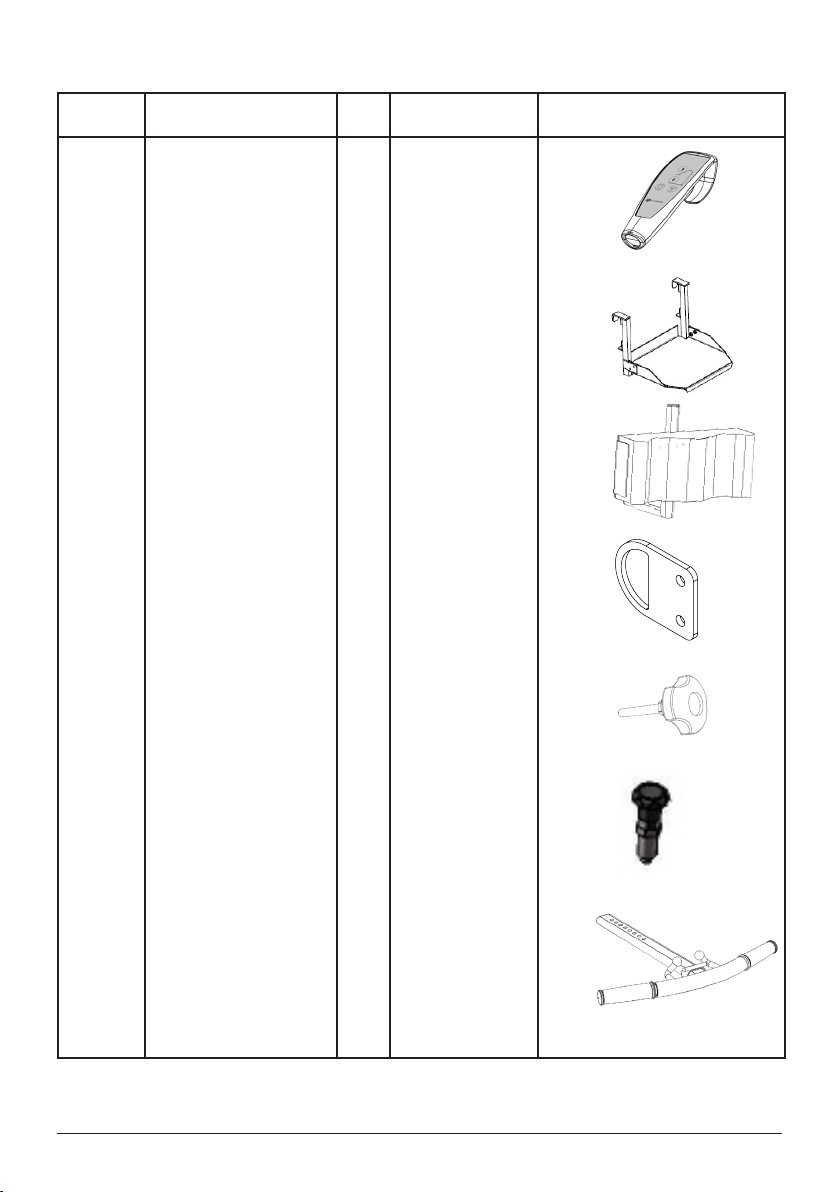

Spare part list...........................................................................10-11
Changing of spare parts....................................................12-13
Periodic inspection - protocol....................................................14
- Description for periodic inspection .........................................................15
- Periodic inspection - instruction....................................................... 16-17
Maintenance.................................................................................18
Symbols ..........................................................................................18
Technical information .............................................................19
- Dimensions.....................................................................................20-21
2SystemRoMedicTM

Assembly
Final inspection
Check to ensure that no parts have been left in the packaging.
Inspect the lift for signs of wear and damage.
Check all four castor wheels and castor wheel locks.
Check all connections and fixtures including screws and bolts.
Check the emergency stop function by activating the emergency stop, and then
pressing either the up or down button. If nothing happens when the up or down
buttons are pressed, the emergency stop is functioning properly.
Grasp the hand control, press the up button and run the lift arm all the way up. Then,
press the down button and run the lift arm all the way down.
Test base-width adjustment function. Press the button for base-width adjustment to
widen the base fully, and then press the other button to narrow the base again.

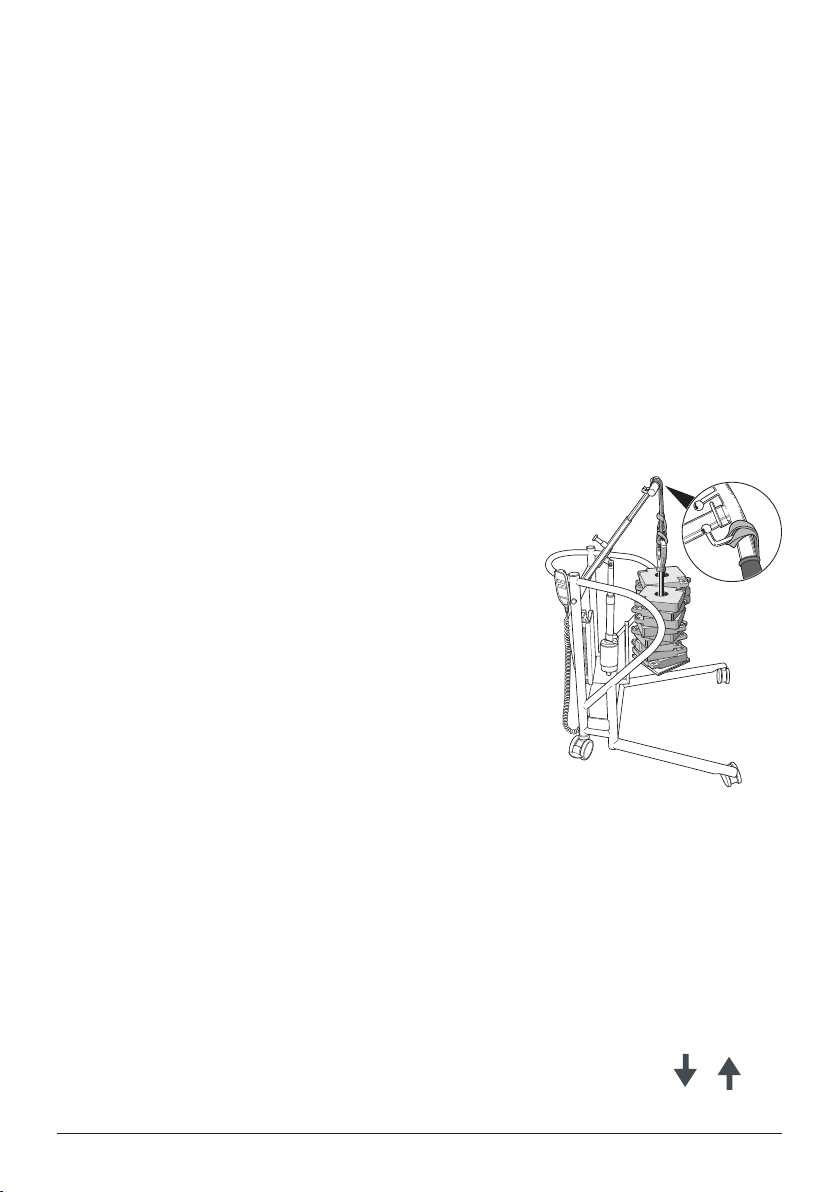

Test lift function by lifting a person (not a user) using an approved sling. At the same
time, check the emergency lowering function with someone on the lift. See section on
Emergency lowering.
If the lift is functioning correctly, connect the charger and check to ensure that the
charging lamp on the control box lights up.
NOTE!
Before the lift is used for the first time:
• it must be charged for at least 4 hours. See section on charging batteries.
• the control box service counter needs to be reset. To reset the service counters
press both lift buttons on the hand control at the same time for 5 seconds.
An audio signal will indicate that the timer has been reset.
Keep the user manual where it is accessible to users of the product.
3
SystemRoMedicTM

Trouble-shooting
If the lift or base-width adjustment cannot be activated, check the following:
- That the emergency stop button is not pressed in.
- That all cables are properly and securely connected. Pull out the contact and plug it in again firmly.
- That battery charging is not in progress.
- That the battery is charged.
If the lift unit is not working properly, contact your dealer.
If the lift unit makes unusual noises:
- Try to determine the source of the sound. Take the lift unit out of operation and contact your dealer.
• The lift must be assembled according to the assembly instructions provided with the lift.
• The lift may only be used indoors and on a level floor.
• Lifting accessories must be properly trial fitted and tested in relation to the user’s needs and functional ability.
• Do not leave the user unattended during a transfer situation.
• Under no circumstances may max. load be exceeded. See section on Safe working load.
• Ensure that the user’s feet do not get caught between the footplate and the floor. Ensure that the user’s feet do not get
caught between the footplate and the base when adjusting the base width.
• MiniLift200 is not intended for transporting users. It may only be used for short transfers.
• Never move the lift by pulling on the actuator!
• The lift must not be used or immersed in or under water including showering.
• The lift should not be left / stored in a high humidity environment.
• The lift must not be charged in a wet room.
• To ensure optimal function, the lift must be inspected regularly. See section on Maintenance.
• Warranty applies only if repairs or alterations are done by an authorized technician.
• Using lifting accessories other than those approved by Handicare can entail a risk.
Do not push
Important Information
Using the product
4SystemRoMedicTM

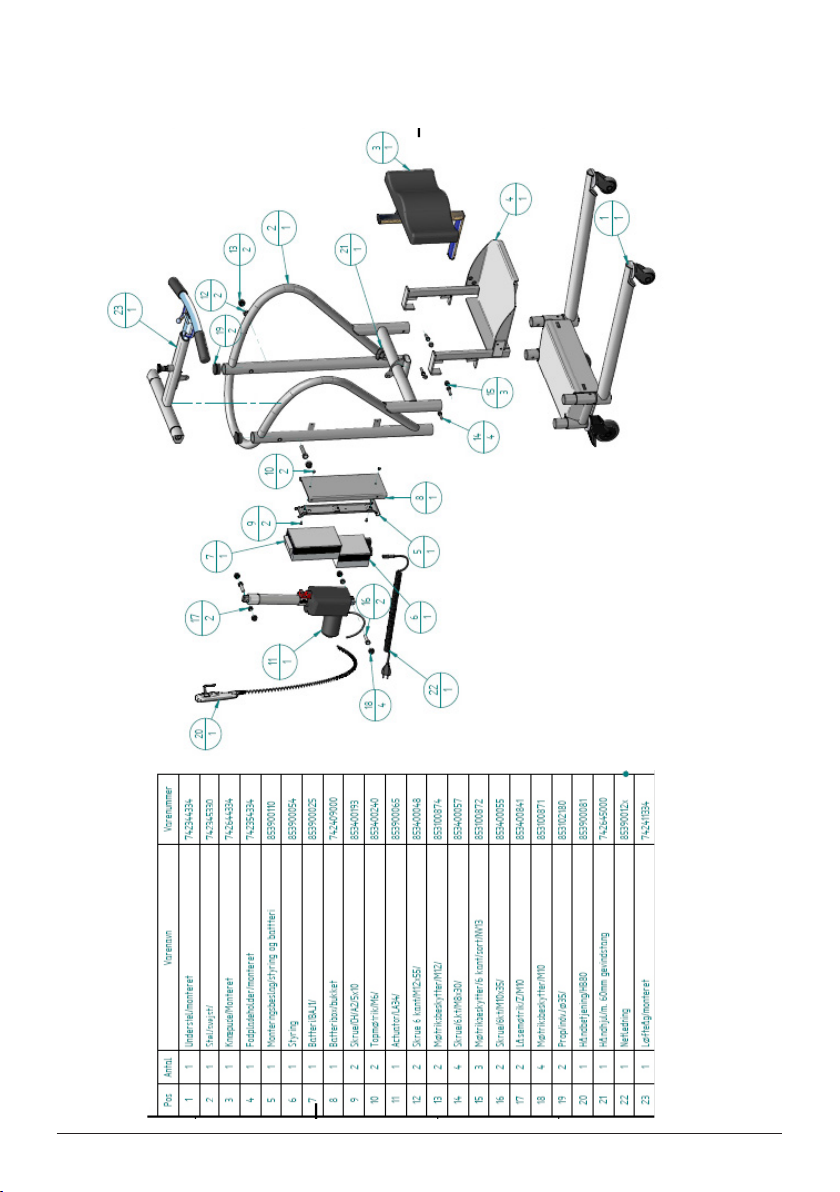

Exploded view and components
5
SystemRoMedicTM

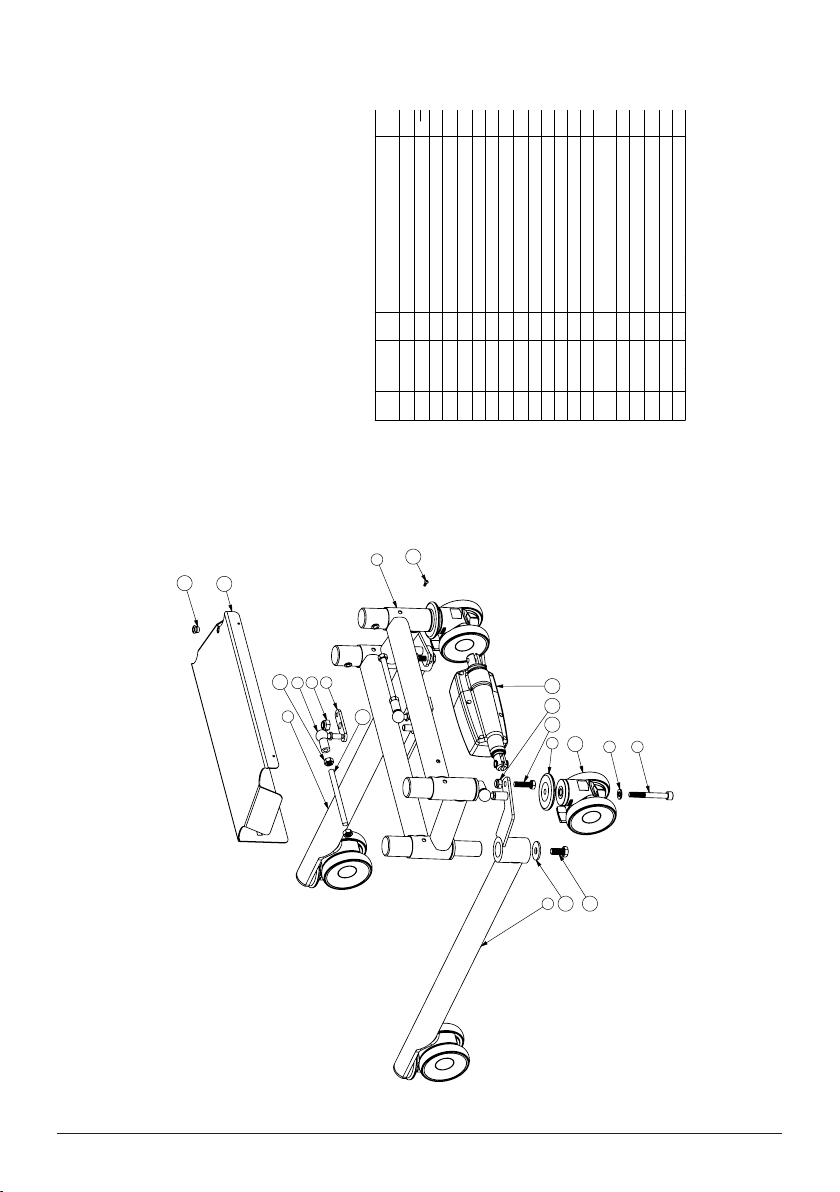

Exploded view - Base EM
6SystemRoMedicTM
18
17
8
1
4
3 2
15
16
1214135
20 6 7
9
10 11
19
Brako assembly number 742344334
REVISION HISTORY
REV.
POS.
DESCRIPTION
DATE
DRAWN BY
Item
No.
Part No.
Rev.
Description
Qty.
1 90004030 00
Undercarriage painted
1
290004031 00
Motion transmission plate painted
1
390000487 01
Lock nut DIN985 CL6 M12 fzb
1
490004024 00
Ball joint M10 DIN71805
2
590003460 01
Wheel bumper
2
690000601 01
Washer DIN125 10.5x20x2 fzb
2
790000733 00
Screw MC6S DIN912 8.8 M10x80 fzb
2
890004029 02
Left leg mounted ML200
1
990004025 02
Right leg mounted ML200
1
10 90001176 00
Washer DIN 9021 M12 Fzb
2
11 90004032 01 Screw_M6S_DIN933_8.8_M12x20_fzb 2
12 90000680 00
Actuator LA28 ML200
1
13 90004033 00 Screw_M6S_DIN933_8.8_M10x35_fzb 2
14 90000539 02
Lock nut DIN 985 CL6 M10 FZB
2
15 90002740
00A
Threaded steel rod DIN976-1 8.8
M10x200 fzb
2
16 90000873 01
Hex nut DIN934 M6M M10 fzb
4
17 90004065 00
Hedge plate painted
1
18 90004066 00
Gum grommet
1
19 90004067 00
Screw K6S DIN7380 8.8 M4x12 fzb
4
20 90000260 01
Rear wheel 100mm
2
D E F C
1
2
3
4
B A
3
2
1
5
C D
4
6
7
8
A B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE
PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
15.93 g
90004068
Undercarriage mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE
NAME
REV.
DWG. NO.
1:10
5
6
E
hc-makn

Exploded view - Lifting arm
7
SystemRoMedicTM
2 3 1
Brako assembly number 742364000
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004010 01
Handwheel Ø50 M8
Grey
1
290004011 00
Threaded bar M8x75 1
390000504 01
Nut M6M DIN934 M8 fzb 1
B
C
D
1 2
A
3 2 1 4
B
A
5 6
C
3
1:2
DWG. NO. REV.
NAME DATE
CREATED
SHEET 1 OF 1
WEIGHT:
STATUS
TITLE
MATERIAL:
SIZE
Released
Handwheel with threaded bar ML200
90004012 01
0.03 g
2015-06-10
A4
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
MATERIAL SPECIFICATION:
PROJECTION SCALE
hc-makn
352 4 1
6
7
8
9
10
13 14
11 12
Brako assembly number 742411334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004016 00 Liting arm outer 1
290004017 02
Sliding washer SKF Ø26xØ44x1,5 2
390004018 00
Turning bar 2
490004019 00
Bronze bearing Ø35xØ25x50 2
590004020 00
Threaded bar 1
690004022 00
Screw_P6SS_M6x8_DIN916_8.8_fzb 2
790004021 00
Screw K6S ISO7380 8.8 M6x8 fzb 1
8 90003136 02 Plastic spring screw Grey 1
990002772 02
Lifting arm inner 1
10 90002691 02 Lifting arm sling stopper asm 1
11 90004013 00 Screw P6SS DIN916 M6x16 2
12 90002697 01 Lifting arm sling hook end 2
13 90002773 01 Lifting arm handle black 2
14 90004014 00 Plastic cap Ø20x1,4 Black 2
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
6.68 g
90004023
Liftarm mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:5
5
6
E
hc-makn
2 3 1
Brako assembly number 742364000
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004010 01
Handwheel Ø50 M8
Grey
1
290004011 00
Threaded bar M8x75 1
390000504 01
Nut M6M DIN934 M8 fzb 1
B
C
D
1 2
A
3 2 1 4
B
A
5 6
C
3
1:2
DWG. NO. REV.
NAME DATE
CREATED
SHEET 1 OF 1
WEIGHT:
STATUS
TITLE
MATERIAL:
SIZE
Released
Handwheel with threaded bar ML200
90004012 01
0.03 g
2015-06-10
A4
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
MATERIAL SPECIFICATION:
PROJECTION SCALE
hc-makn
352 4 1
6
7
8
9
10
13 14
11 12
Brako assembly number 742411334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004016 00 Liting arm outer 1
290004017 02
Sliding washer SKF Ø26xØ44x1,5 2
390004018 00
Turning bar 2
490004019 00
Bronze bearing Ø35xØ25x50 2
590004020 00
Threaded bar 1
690004022 00
Screw_P6SS_M6x8_DIN916_8.8_fzb 2
790004021 00
Screw K6S ISO7380 8.8 M6x8 fzb 1
890003136 02
Plastic spring screw Grey 1
990002772 02
Lifting arm inner 1
10 90002691 02 Lifting arm sling stopper asm 1
11 90004013 00 Screw P6SS DIN916 M6x16 2
12 90002697 01 Lifting arm sling hook end 2
13 90002773 01 Lifting arm handle black 2
14 90004014 00 Plastic cap Ø20x1,4 Black 2
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
6.68 g
90004023
Liftarm mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:5
5
6
E
hc-makn

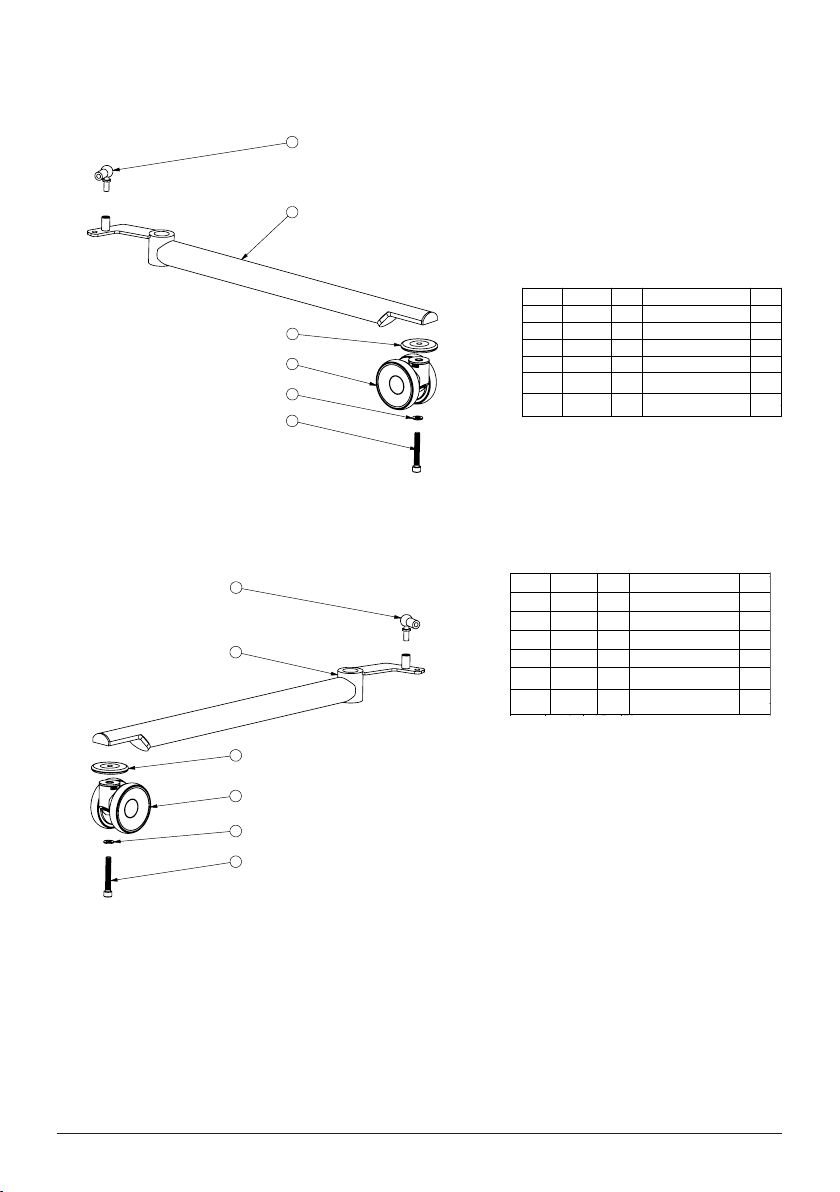

Exploded view - Leg Right
Exploded view - Leg Left
8SystemRoMedicTM
1
2
3
4
5
6
Brako assembly number 742343334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004028 00 Leg left ML200 1
290004024 00
Ball joint M10 DIN71805 1
390003460 01
Wheel bumper 1
490000259 01
Front wheel 100mm 1
590000601 01
Washer DIN125
10.5x20x2 fzb
1
690001175 00
Screw MC6S DIN 912
M10x70 8.8 fzb
1
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
3.67 g
90004029
Left leg mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:5
5
6
E
hc-makn
1
2
3
4
5
6
Brako assembly number 742343334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No.
Part No. Rev. Description Qty.
1 90004028 00 Leg left ML200 1
290004024 00
Ball joint M10 DIN71805 1
390003460 01
Wheel bumper 1
490000259 01
Front wheel 100mm 1
590000601 01
Washer DIN125
10.5x20x2 fzb
1
690001175 00
Screw MC6S DIN 912
M10x70 8.8 fzb
1
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
3.67 g
90004029
Left leg mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:5
5
6
E
hc-makn
2
1
3
4
5
6
Brako assembly number 742342334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004015 00 Right leg ML200 1
290004024 00
Ball joint M10 DIN71805 1
390003460 01
Wheel bumper 1
490000259 01
Front wheel 100mm 1
590000601 01
Washer DIN125
10.5x20x2 fzb
1
690001175 00
Screw MC6S DIN 912
M10x70 8.8 fzb
1
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
3.67 g
90004025
Right leg mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:5
5
6
E
hc-makn
2
1
3
4
5
6
Brako assembly number 742342334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004015 00 Right leg ML200 1
290004024 00
Ball joint M10 DIN71805 1
390003460 01
Wheel bumper 1
490000259 01
Front wheel 100mm 1
590000601 01
Washer DIN125
10.5x20x2 fzb
1
690001175 00
Screw MC6S DIN 912
M10x70 8.8 fzb
1
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
02
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
3.67 g
90004025
Right leg mounted ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:5
5
6
E
hc-makn

Exploded view - Kneepad
Exploded view - Foot plate
9
SystemRoMedicTM
6
1
43
5
2
Brako assembly number 742354334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004069 00 Footplate ML200 1
290004070 00
Foot plate painted 1
390004071 00
Screw_MC6S_DIN7984_8.8_M8x12_fzb 4
490000345 04
Washer DIN125 8.4x16x1.6 fzb 4
590000605 01
MF6S DIN 7991 8.8 M6x20 FZB 2
690004072 00
Rubber footplate ML200 1
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
01
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
5.16 g
90004073
Footplate holder ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:10
5
6
E
hc-makn
6
1
43
5
2
Brako assembly number 742354334
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004069 00 Footplate ML200 1
290004070 00
Foot plate painted 1
390004071 00
Screw_MC6S_DIN7984_8.8_M8x12_fzb 4
490000345 04
Washer DIN125 8.4x16x1.6 fzb 4
590000605 01
MF6S DIN 7991 8.8 M6x20 FZB 2
690004072 00
Rubber footplate ML200 1
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
01
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
5.16 g
90004073
Footplate holder ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:10
5
6
E
hc-makn
12
1
11
4
10
856
913
7
2 14 15
3
16
Brako drawing number 742654334
Pos 16 glued on to pos 7
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004074 00 Backplate 1
290004075 00
Bar - knee pad 2
390004077 00
Holder kneepad ML200 1
490002741 01
Plastic cover ovel 45x20 G 2
590000601 01
Washer DIN125 10.5x20x2 fzb 2
690000539 02
Lock nut DIN 985 CL6 M10 FZB 2
790004076 00
Clamping block 1
890002740
00A
Threaded steel rod DIN976-1 8.8
M10x200 fzb
1
990003132 01
Nut cover MSM10G 2
10 90004078 00 Screw_RXS_DIN7981-C_4,8x13_fzb 1
11 90004079 00 Screw_RXS_DIN7981-C_4,2x16_fzb 8
12 90004080 00 Kneepad ML200 1
13 90004012 01
Handwheel with threaded bar
ML200
1
14 90002799 00A Screw P6SS DIN913 8.8 M8x12 fzb 1
15 90003318 00 Nut cover M6 grey 1
16 90002753 01 Rubber bumper 2
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
01
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
11.03 g
90004081
Kneepad holder ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:10
5
6
E
hc-makn
12
1
11
4
10
856
913
7
2 14 15
3
16
Brako drawing number 742654334
Pos 16 glued on to pos 7
REVISION HISTORY
REV. POS. DESCRIPTION DATE DRAWN BY
Item No. Part No. Rev. Description Qty.
1 90004074 00 Backplate 1
290004075 00
Bar - knee pad 2
390004077 00
Holder kneepad ML200 1
490002741 01
Plastic cover ovel 45x20 G 2
590000601 01
Washer DIN125 10.5x20x2 fzb 2
690000539 02
Lock nut DIN 985 CL6 M10 FZB 2
790004076 00
Clamping block 1
890002740
00A
Threaded steel rod DIN976-1 8.8
M10x200 fzb
1
990003132 01
Nut cover MSM10G 2
10 90004078 00 Screw_RXS_DIN7981-C_4,8x13_fzb 1
11 90004079 00 Screw_RXS_DIN7981-C_4,2x16_fzb 8
12 90004080 00 Kneepad ML200 1
13 90004012 01
Handwheel with threaded bar
ML200
1
14 90002799 00A Screw P6SS DIN913 8.8 M8x12 fzb 1
15 90003318 00 Nut cover M6 grey 1
16 90002753 01 Rubber bumper 2
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
01
SCALE PROJECTION
MATERIAL SPECIFICATION:
A3
2015-06-10
11.03 g
90004081
Kneepad holder ML200
Released
SIZE
MATERIAL:
TITLE
STATUS
WEIGHT:
SHEET 1 OF 1
CREATED
DATE NAME
REV. DWG. NO.
1:10
5
6
E
hc-makn
Sprängskiss och komponentlista - Fotplatta
Sprängskiss och komponentlista - Underbenstöd

Art no. Product Unit Components Parts
80100045 Cable for charger US 1 pce 1 x Charger cable
80100046 Cable for charger Uk 1 pce 1 x Charger cable
80100047 Cable for charger AUS 1 pce 1 x Charger cable
80100048 Cable for charger EU 1 pce 1 x Charger cable
80100001 Front castor 100 mm 1 set 1 x Front castor
1 x Locking nut M10
80100002 Rear castor 100 mm 1 set 1 x Rear castor
1 x Locking nut M10
80100074 Bumper kit 1 set 4 x Bumper
80100040 Actuator legspreading LA28 1 set 1 x Actuator LA28 leg
spreading
2 x Locking nut
0,25 x Cardboard
80100041 Actuator mast LA34 1 set 1 x Actuator LA34 mast
2 x Locking nut M8
0,5 x Cardboard
80100072 Actuator mast LA31-L4 1 pce
80100161 Battery box CBJ Grey BAJ1 1 pce
80100057 Battery CBJ 1 pair 2 x Batteries
80100149 Control box CBJC 1 pce 1 x Control box
Spare part list
10 SystemRoMedicTM
80100048
80100001 80100002
80100149
80100161
80100040
80100041
80100074

Art no. Product Unit Components Parts
80100156 Hand control HB32-4 1 pce 1 x Hand control
4-buttons
80100130 Hand control Tester Linak 1 pce
80100079 Footplate complete 200 1 pce 1 x Footplate holder
mounted
80100080 Knee pad complete 200 1 pce 1 x Knee pad
80100070 Leg strap plate kit 1 set 2 x Leg strap plate
4 x Screw
80100077 Locking handle knee pad set 1 set 2 x Handle
80100081 Lift arm adjustment pin 1 set 2 x Position bolt
80100082 Lifting arm front part 200 1 pce 1 x Hoop
2 x Grip
2 x Screw
2 x Ball
2 x Plastic cap
11
SystemRoMedicTM
80100156
2x
6 THRU
42
R 17
24
9
22
2x R 2
R 21
AA
54 3
SECTION A-A
POWDER COATED RAL9006, GL70, LAYER THICKNESS 70-90µm
TUMBLE WELL
NO SHARP EDGES
FREE FROM BURRS
B
C
D
1 2
A
3 2 1 4
B
A
5 6
C
3
SCALE:1:1
DWG. NO. REV.
NAME DATE
DRAWN
APPROVED BY
SHEET 1 OF 1
WEIGHT:
COMMENTS:
STATUS: TITLE
MATERIAL:
SIZE
hc-jope
Released
Calf strap plate
90000805 01
S355JR or equivalent
- g
2010-04-08
A4
Unless otherwise stated,
general tolerances
according to ISO 2768-m
80100070
80100079
80100080
80100077
80100081
80100082

Changing of spare parts
80100045, -46, -47, -48,
Connect the charger cable to the control box, and then plug it into a wall socket.
80100049/ 80100050 Front/Rear castor kit 80mm
Using an Allen key, remove the screw. Replace the castor, apply Loctite 2701 or similar, and then secure the castor with
the screw.
80100001, 80100002 Front/rear castor 100 mm
Using an Allen key, remove the screw that holds the castor in place. Replace the castor, apply Loctite 2701 or similar,
and then secure the castor with the screw.
80100074 Bumper kit
Remove the castors and remove the bumper. Install the new bumper and castors. Adjust direction of the lift by turning
the bumper.
80100040 Acuator legspreading LA28
Run the actuator until the legs are drawn in fully. Activate emergency stop. Remove the foot plate and the cover by
loosen the four screws. Disconnect the actuator from the control box. Loosen and remove the screw that holds the
actuator. Remove the actuator. Remove the rubber cover on the actuator cord and move it to the new actuator.
Install the new actuator, use the accompanying lock nut. Connect the actuator to the control box. Mount the cover and
foot plate again.
80100041 Actuator mast LA34
Lower the lift arm to the lowest position. Activate the emergency stop. Disconnect the actuator from the control box.
Loosen the nut and pull the screw out; then, loosen the screw and nut on the lower end of the actuator. Lift the lift arm
and remove the actuator. Install the new actuator. Start by fitting the lower end, and then lift the lift arm and fit the upper
end. Secure the actuator with the existing screws and the new, accompanying lock nuts. Connect the actuator to the
control box.
80100149 Control box CBJC MiniLift200
Activate the emergency stop, and then disconnect the actuator and hand control. Remove the battery, loosen the long
screw and remove the control box. Install the new control box and secure it with the screw. Replace the battery, and
then connect the actuator and hand control.
12 SystemRoMedicTM

80100161 Battery box CBJ Grey BAJ1
Remove the battery by lifting it straight up and out of the holder in the control box. Install the new battery in the holder.
Note! The battery must be charged for at least four hours before it is used for the first time.
80100057 Battery CBJ
Remove the lift battery box and remove the screws. Disconnect the battery connectors and remove the batteries. Install
the new batteries in the battery box and connect the connectors. Place the cover on the box and secure it with the
screws. Note! The battery box must be charged for at least four hours before it is used for the first time.
80100156 Hand control HB32-4
Activate the emergency stop, and then disconnect the hand control. Connect the new hand control.
80100130 Hand control tester Linak
Follow the accompanying instructions.
80100079 Footplate complete 200
Remove the old footplate and install the new one. Replace the screws with the ones included if needed.
80100080 Kneepad complete 200
Loosen the locking screw. Loosen the lower locking handle and pull the knee pad straight out to remove it. Insert the
new knee pad in the tube and tighten the locking handle. Refit the locking screw.
80100070 Leg strap plate kit
Remove the screws on either side of the lower-leg support/knee pad. Replace the leg strap plate and secure it with the
accompanying screws.
80100077 Locking handle knee pad set
Unscrew the old handle and install the new one.
80100081 Lift arm adjustment pin
Using an wrench, remove the screw that holds the adjustment pin in place on the lift arm. Apply Loctite 2701 or similar
on the new adjustment pin and then secure it with the wrench.
80100082 Lift arm front part 200
Unscrew the locking screw on the bottom of the lifting arm. Pull the lift arm adjustment pin up and pull the handle out.
Insert the new lift arm in the tube and replace and lift the spring screw to secure th elifting arm. Make sure the spring
screw is klicking back into place. Apply Loctite 2701 or similar on the locking screw and screw it back on the bottom of
the lift arm.
13
SystemRoMedicTM

Base:
Check for visible damage
Check:
A Castor
B Brakes
C Screws
Upper part:
Inspect the mast
Check:
D Screws
E Lift arm hardware etc
F Lift arm adjustment pin
G Slingbar and the function of the safety latches
H Mast actuator
I Battery and cable installations
J Hand control
K Emergency stop
L Emergency lowering
M Charging
N Product label
Test of safe working load:
Safe working load test upper part
Safe working load test base
Mechanical emergency lowering
Accessories:
Documentation:
Instructions / manuals
Controll box:
Reset the control box service counter
Lift type: Contract no:
s/n: Name:
Version: Address:
Prod. year:
Sling bar id.: Situation of use: Home Institution Other
Comments: 1. Attention 2. Correct 3. Do not use!
Periodic inspection - protocol
Date:
Load test weight: Serviced by:
In accordance with ISO 10535:2006 Annex B-Periodic inspection

Description for periodic inspection
15
SystemRoMedicTM
A
A
G
E
L
J
M
I
K
F
B
A
H

Periodic inspection - instruction
Base
-Check the base for visible damage to the surfaces, finish, etc.
Castors
- Roll the lift unit unloaded on the floor, check that the castors roll and turn freely.
- Check that the castor fasteners are tight.
- Check that the lift runs straight. If Necessary, adjust the bumpers by loosening the screws slightly and turning the
bumpers.
Brakes
- Lock the brakes. Check that the castors do not turn when the lift unit is pushed.
- Run the base width adjustment and listen for peculiar noise or vibrations.
Screws
- Check screws.
Upper part
- Check the mast for visible damage to the surfaces, finish etc.
- Check screws, nuts, bolts etc.
Footplate
- Check the footplate for visible damage to the surfaces, finish, etc. Make sure it is correctly assembled.
Liftarm, hardware
- Check the liftarm for visible damage to the surfaces, finish etc.
- Check screws, nuts, bolts etc.
Kneepad
- Check the kneepad for visible damage to the surfaces, finish, etc. Make sure it is correctly assembled.
Slingbar and safety latch function
- Check to ensure that there is no visible wear or damage.
- Check the function of the safety latches.
Mast actuator
- Verify that the upper and lower actuator fasteners to the mast are tight.
- Visual inspection.
- Check limit switch function by running the lift arm up/down.
- Check of abnormal noise level.
- Check safety spline on actuator by running it downwards and obstructing the movement by hand. The actuator should
stop. It is necessary to run the lift slightly upwards before continuing the downward movement.
Battery and cable installations
- Check battery and electrical cable.
- Verify that all cables are properly inserted.
Hand control
-Verify that all functions on the hand control are working.
16 SystemRoMedicTM

Emergency stop
-Verify that the lift unit does not operate when emergency stop is pressed in.
Electric emergency lowering
-Verify the function of emergency lowering. Use a narrow object such as a pen.
Charging
-Verify that charging is operating. Yellow lamp on the controllbox should light up when charging.
Product label
- Check the serial number so that the label is there and readable. Note the serial number on the protocol.
Test loading
Test loading of MiniLift200 is done with 150 kg weight, which corresponds to a user weight of 200 kg.
Test loading with loose weights
NOTE! Both hooks must bear the weight. When one weight is used, the weight
must be distributed over both hooks. Ensure that the weight pack is well clear of the actuator.
Weights must be attached to the hooks as shown in picture.
Remove the lower-leg support and footrest before test loading; this allows
more space for the weight that is to be lifted.
NOTE! Replace the lower-leg support and footrest after test loading.
Move the lift arm to the outermost position and apply 150 kg.
- Run the actuator 160 mm up/down as shown in picture. The lift arm is loaded
with 150 kg and placed in the outermost position.
Listen for unusual sounds during raising/lowering.
Connector hooks
- Lift 150 kg clear of the floor and wait for 20 sec.
NOTE! Load the hooks according to picture.
The base is loaded with 200 kg.
- Place 200 kg on the footrest, within the frame for foot placement. Run the base-width adjustment in/out and listen for
unusual sounds.
Mechanical emergency lowering
-Verify the function of emergency lowering. With the lift loaded, round plastic knob on the actuator clockwise.
Documentation
- Check that the manual is available and up-to-date.
Accessories
-Check the accessories to the lift unit.
To reset the service counters press both lift buttons on the hand control at the same time for 5 seconds.
An audio signal will indicate that the timer has been reset.
17
SystemRoMedicTM

Maintenance
The lift must undergo thorough inspection at least once per year. Inspection must be performed by authorized personnel
and in accordance with Handicare’s service manual.
Repairs and maintenance may only be done by authorized personnel using original spare parts.
Used batteries are to be left at the nearest recycling station. Used batteries can also be returned to
Handicare or a Handicare dealer for recycling.
Cleaning/disinfection
If necessary, clean the lift with warm water or a soap solution and check that the castors are free from dirt and hair. Do
not use cleaning agents containing phenol or chlorine, as this could damage the aluminium and the plastic materials. If
disinfection is needed, 70 % ethanol, 45 % isopropanol or similar should be used.
Storage and transportation
If the lift is not to be used for some time or e.g., during transport, we recommend that the emergency stop button be
pressed in. The hoist should be transported and stored in -10 ° C to + 50 ° C and in normal humidity, 30% -75 %.
The air pressure should be between 700 and 1060 hPa. Let the hoist reach room temperature before the batteries are
charged or the hoist is used.
Service agreements
Handicare offers the possibility of service agreements for maintenance and regular testing of your mobile lift. Contact
your local Handicare representative.
1060 hPa
700 hPa
+50 °C
-10 °C
75%
30%
18 SystemRoMedicTM

Symbols
Read user manual
May not be discarded in domestic waste
The product complies with the requirements of the Medical Devices Directive 93/42/EEC.
Type B, according to the degree of protection against electric shock.
The device is intended for indoor use.
Class lI equipment
This product is tested and approved in regards to safety in the workplace according to the
requirements of the US Occupational Safety & Health Administration. ”US” stands for compliance
with the requirements of US authorities, ”C” for compliance with Canadian requirements.
Always Read The User Manual
Medical Device Class I. The product complies with the requirements of the Medical Devices Directive 93/42/EEC.
Lifting speed 35 mm/s without load
Batteries Two 12V, 2.9 Ah valve-regulated, sealed, lead accumulator (gel-type batteries)
Charger Max. 400mA
Motor (mast) DC 24 V, 10.5 Ah. Operating time: 10% maximum continuous operation for 2 minutes
Push: 7500N
Motor (base) DC 24 V, 12.3 Ah. Operating time: 10% maximum continuous operation for 2 minutes
Push: 2000N
Sound level 55.8 dB(A)
Material Steel
Emergency lowering Manual and electrical
Castors Front 3.9”, 100 mm, back 3.9”, 100 mm
Weight 49 kg/108 lbs
IP class IP X4
Expected lifetime 10 years
Operating forces buttons on
hand control
4 N
Max. load 200 kg/ 441 lbs
Technical Information
19
SystemRoMedicTM

Dimensions
* Maximum reach at 600 mm (referens height)
All measurement are in mm/inch
Tolerance +/- 5 mm/ 0.2”
20 SystemRoMedicTM
860/ 33.8
425/ 16.7 410/ 16.1
295/ 11.6*
960/ 37.7
600/ 23.6
1000/ 39.3
620/ 24.4
1500/ 39
880/ 34.6
50/ 1.9 75/ 2.9 90/ 3.5
132/ 5.1
