Thank you for choosing a Handicare stairlift.
This manual is for the Classic and Elegance/
Alliance seat types, and includes instructions
for the standard features and optional upgra-
des.

2 | USER MANUAL
EN
7
1
2
3
4
5
6
868MHz
CLASSIC
OPTIONS
One-way
powered swivel
Folding hinge
Two-way
powered swivel
Pow. footrest

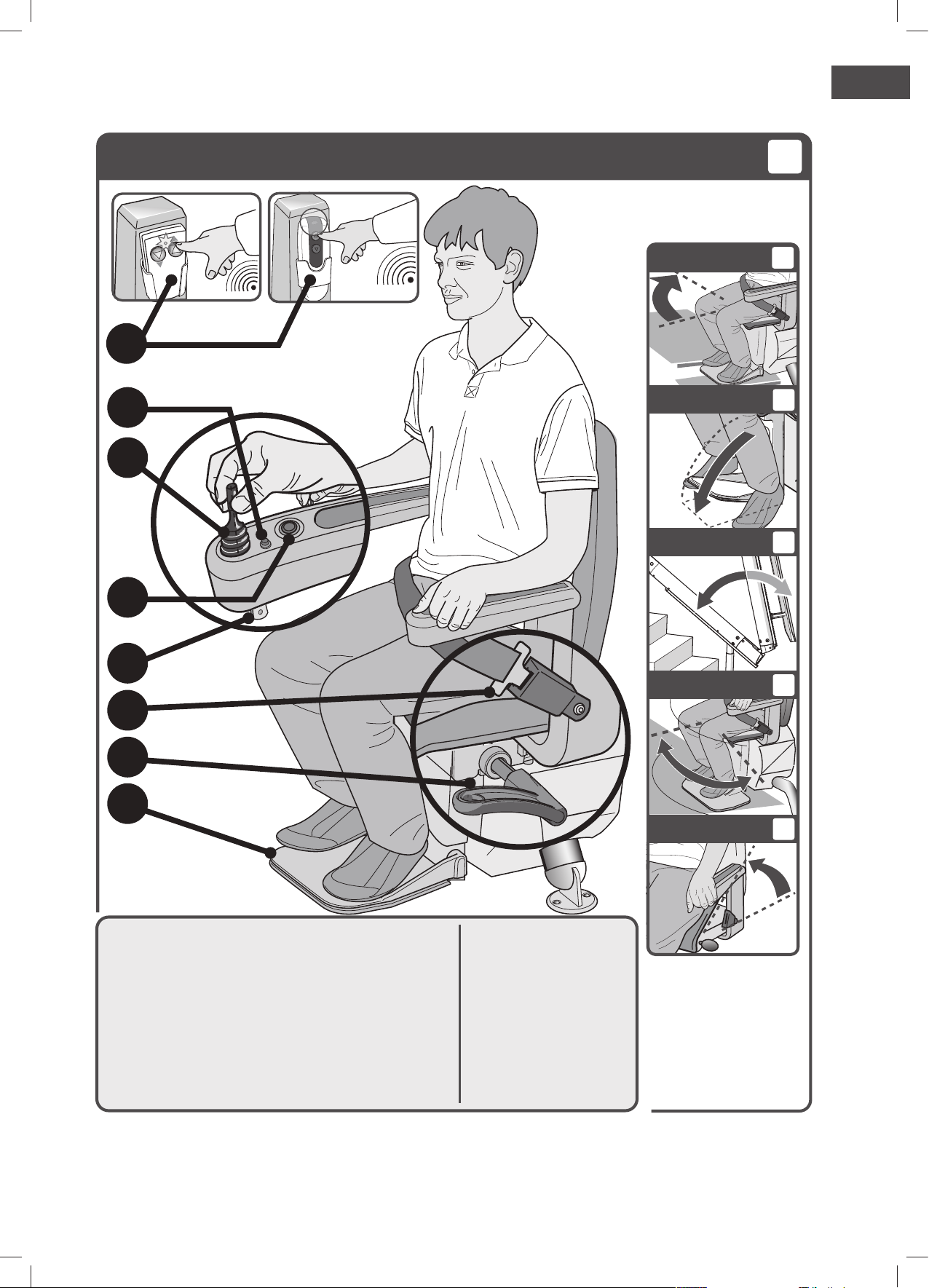

The illustration opposite shows the features
used to operate the Classic seat. The Classic
can be upgraded with the one-way powered
swivel seat, powered footrest, hinged rail and
two-way powered swivel options to create
even more seat comfort and user-friendliness.
[6]Seat swivel lever
[7]Footplate
[8]Remote control
[1]LED
[2]Joystick
[3]Stop button
[4]Key switch
[5]Seat belt
915 Mhz/
2.4 GHz
8

USER MANUAL | 3
EN
3
1
2
7
4
5
6
868MHz 915 Mhz/
2.4 GHz
8
ELEGANCE / ALLIANCE
OPTIONS
Pow. footrest
Folding hinge
ActiveSeat
The illustration opposite shows the
features used to operate the Elegance/
Alliance
seat. The Elegance/Alliance can
be upgraded with
the one-way powered
swivel seat, powered footrest, hinged
rail, two-way powered swivel and Active
Seat options to create even more seat
comfort and user-friendliness.
[1]LED
[2]Joystick
[3]Stop button
[4]Key switch
[5]Seat belt
[6]Seat swivel lever
[7]Footplate
[8]Remote control
One-way
powered swivel
Two-way
powered swivel

4 | USER MANUAL
EN
FOLD DOWN
Fold down the armrests and seat.
SIT DOWN
Sit down on the seat.
page 14 > OPTIONAL ACTIVE SEAT

USER MANUAL | 5
EN
1

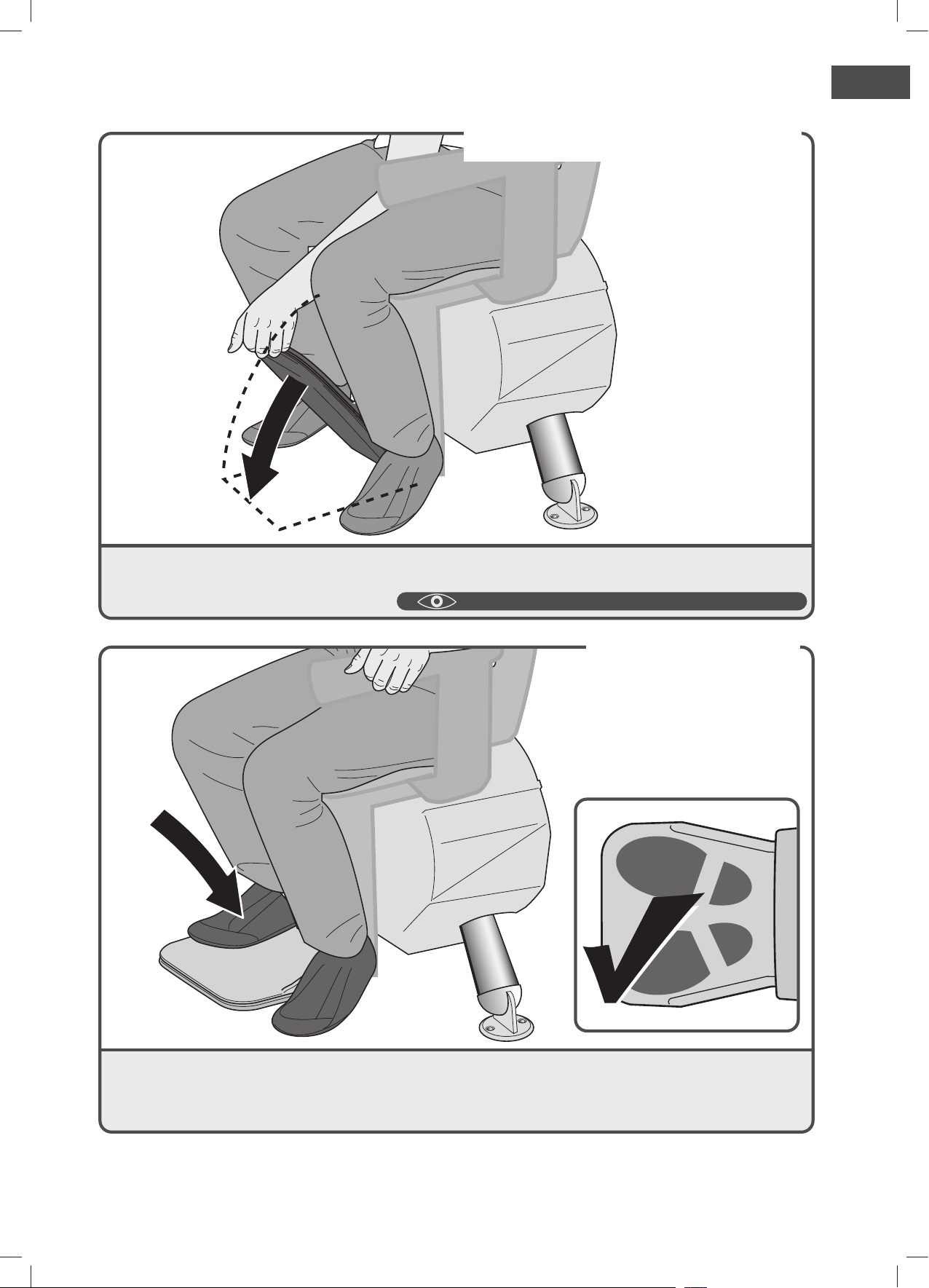

UNFOLD FOOTREST
Fold down the footplate.
PLACE FEET
Place your feet on the footplate. Ensure that both feet are completely on the
plate.
page 12 > OPTIONAL POWERED FOOTREST

6 | USER MANUAL
EN
CLICK!
3x

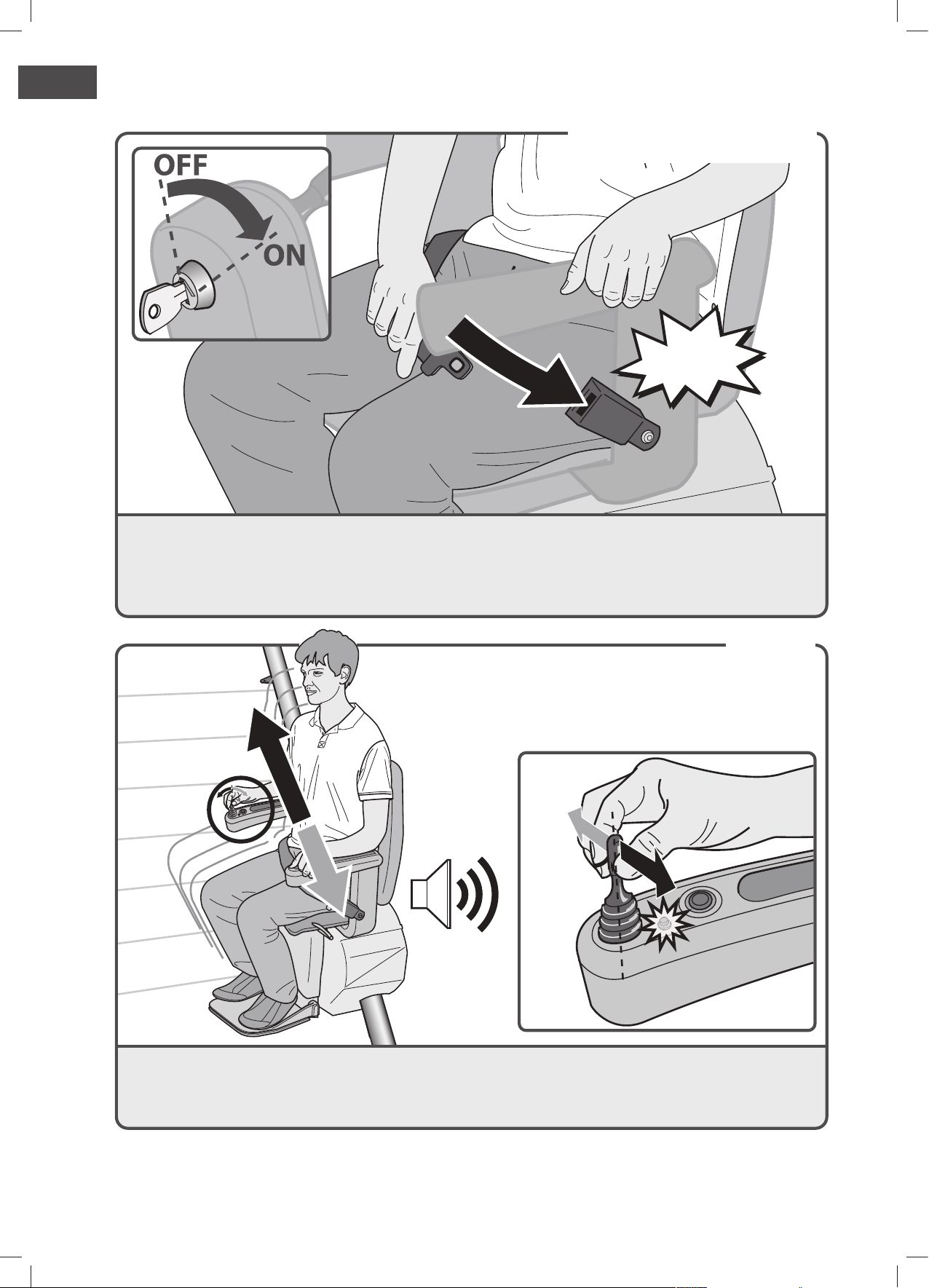

SAFETY FIRST
Fasten the seat belt securely, ensuring that it clicks into the holder. Put the key in
the switch and turn it ninety degrees clockwise. The LED on the armrest lights
up faintly.
RIDE
Move the joystick in the desired direction of travel. The LED lights up. The lift
beeps three times, then gradually starts to move.

USER MANUAL | 7
EN
CLICK!
BA
STOP BUTTON
In an emergency, press the stop button once. The lift stops straight away. To
release the lift, press the stop button again.
Optional: the emergency stop can be released by turning the emergency button.

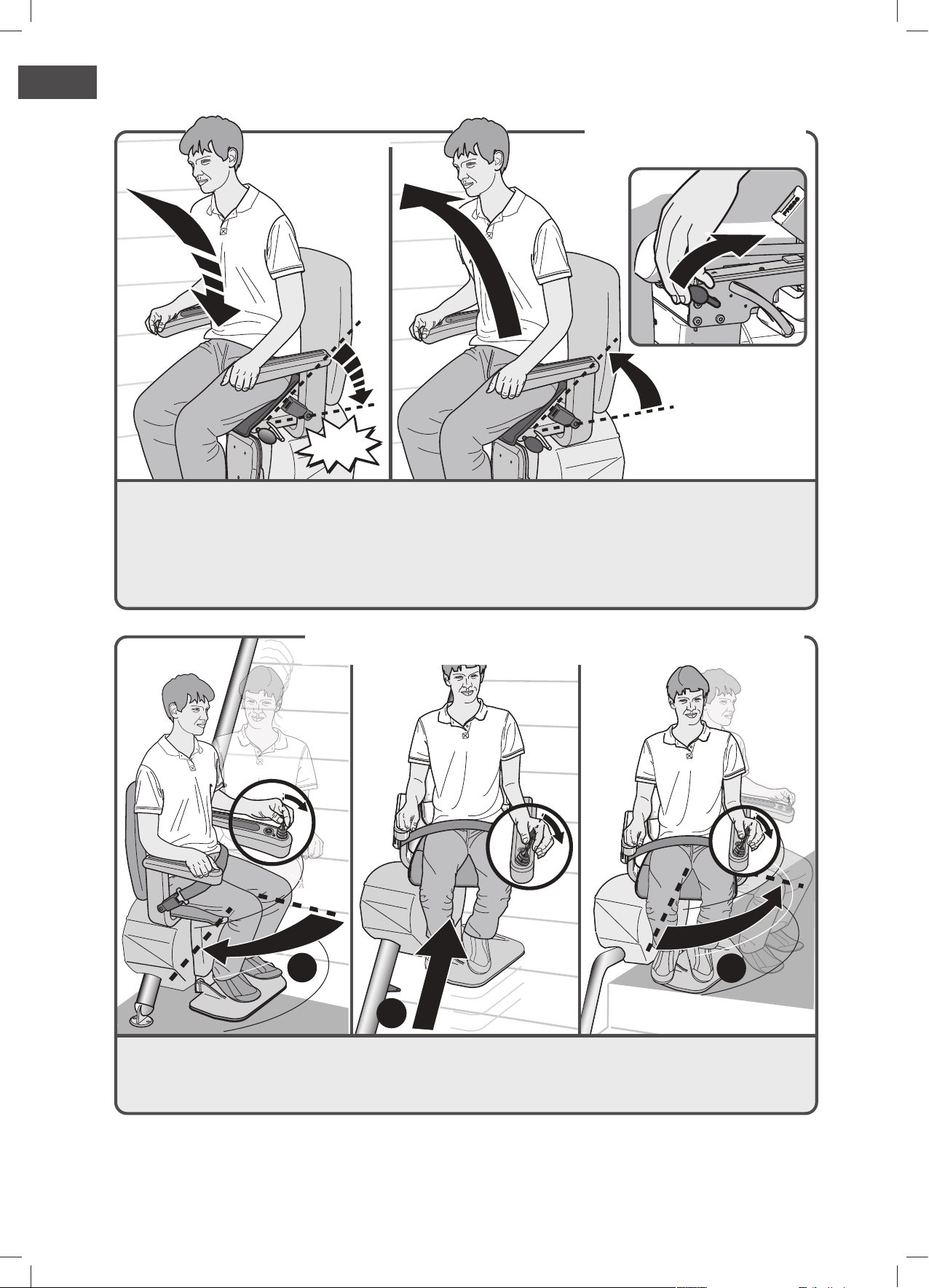

SWIVEL
The lift stops automatically at the end of the rail. You can now swivel the seat
manually, making it easier to get on and off. To do this, push down the lever{A}.
Swivel the seat until you hear a 'click'. The seat is now in the correct position{B}.
page 11 > OPTIONAL AUTOSWIVEL
OPTIONAL

8 | USER MANUAL
EN
FOLD FOOTREST
Fold up the footplate.
LOOSEN BELT
Unfasten the seat belt.
page 12 > OPTIONAL POWERED FOOTREST

USER MANUAL | 9
EN
B
A
CLICK!
STAND UP
Stand up from the seat.

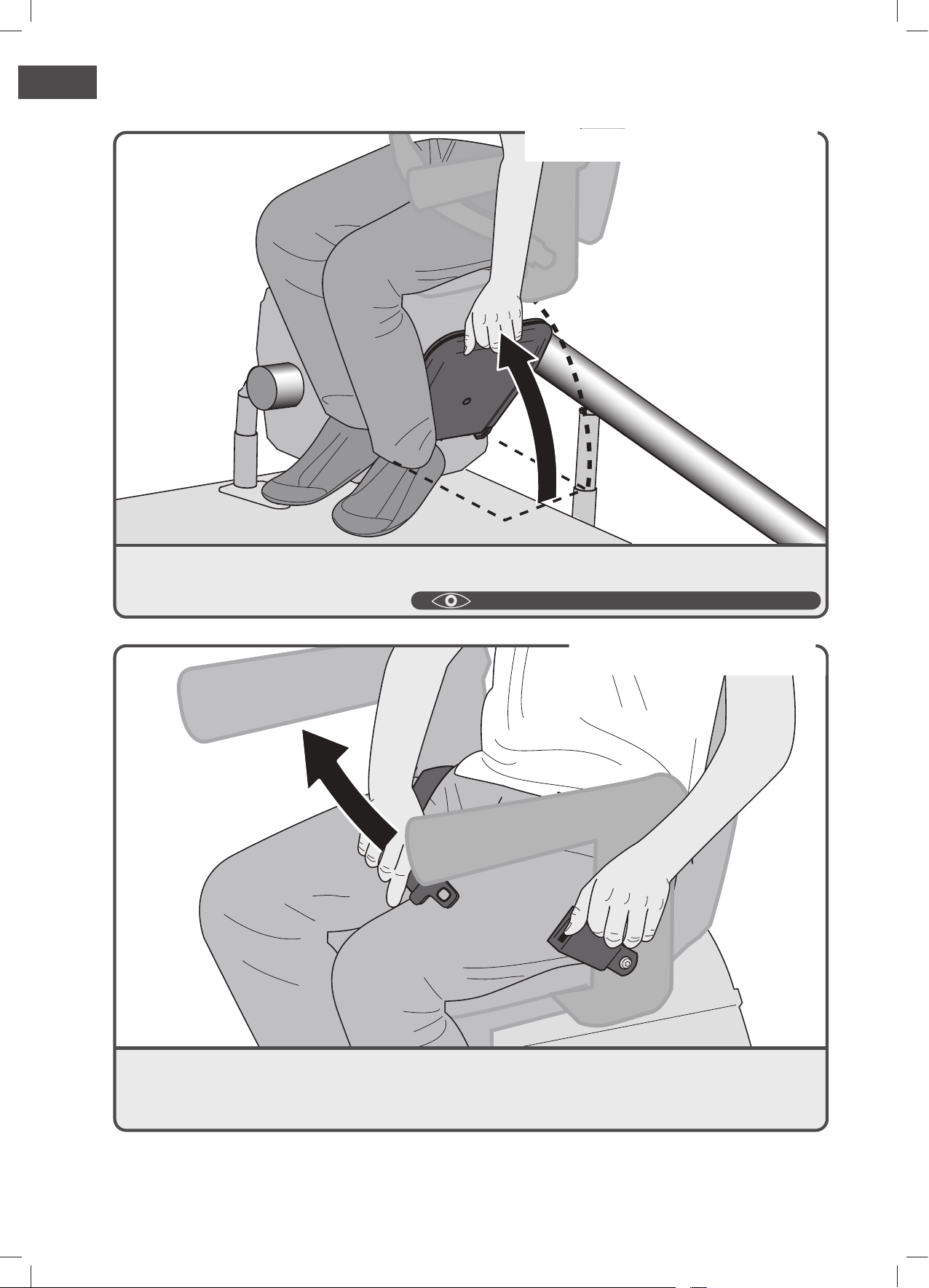

FOLD UP
Fold up the armrests and seat {A}. Push the handle, located to the left or right
under the seat, downwards. Swivel the seat until you hear a 'click'. The seat is
now in the locked position {B}.
page 14 > OPTIONAL ACTIVE SEAT

10 | USER MANUAL
EN
PARK
Press and hold the button on the remote control until the lift reaches a charge
point. Upon arrival, the lift stops automatically and the LED on the remote
control goes out.
CHARGE
There are charge points for recharging the lift's batteries at the top and bottom
of the rail (there may be additional charge points). If the lift is not in the correct
position at the charge point, the lift beeps for three minutes and the LED in the
armrest flashes. The lift does not work if the batteries are flat.

USER MANUAL | 11
EN
CLICK!
OPTIONS & FAULTFINDING
ONE-WAY POWERED
SWIVEL
The POWERED SWIVEL SEAT option let you swivel the seat automatically to
face the direction you are going to walk in. To do this, push and hold the joystick
in the upwards direction.
ONE-WAY POWERED SWIVEL
POWERED FOOTREST
FOLDING HINGE
ACTIVE SEAT
TWO-WAY POWERED SWIVEL
OBSTACLE
CHAIRPOSITION
STOP BUTTON
ARMREST
KEY
BATTERIES RC
POWER
page 11
page 12
page 12
page 14
page 14
page 20
page 20
page 21
page 22
page 22
page 23
page 23

12 | USER MANUAL
EN
1
OPTION
POWERED FOOTREST
The POWERED FOOTPLATE option lets you fold the footplate up and down
automatically using the switch on the side of the armrest. The footplate lights up
when folded down.
FOLDING HINGE
With the FOLDING HINGE option, the seat stops just above the hinged rail.
Move the joystick up or down to fold or unfold the rail.
When the hinge is not functioning, the lift can still ride in the upwards direction.

USER MANUAL | 13
EN
1
2
FOLDING HINGE [PARK]
Do not leave the lift on the hinged rail after use. Use the remote control to move
the lift to a charge point and recharge the batteries. The first stopping point is at
the hinged rail. Keep moving the lift until it reaches a charge point further up.
When the FOLDING HINGE is not functioning [1], the hinged rail can (only in case
of an emergency) fold down by hand [2].
FOLDING HINGE [WHEN NOT FUNCTIONING]

14 | USER MANUAL
EN
CLICK!
A
C
B
ACTIVE SEAT
With the ACTIVE SEAT option, the seat assists you when sitting down and
standing up. To stand up, pull the handle, located to the left or right under the
seat, upwards. The seat pushes you up. When you sit back down, the seat
slowly returns to its normal position and clicks into place.
The lift will not move until the seat is securely clicked in place.
TWO-WAY POWERED SWIVEL
The TWO-WAY POWERED SWIVEL option swivels the seat so that you travel up
and down with your back to the stairs {B}. Hold the joy stick in the desired
direction of travel, at the start and end of the rail {A and C}.

USER MANUAL | 15
EN
IMPORTANT INFORMATION
Project:
Date:

16 | USER MANUAL
EN
1
FOREWORD
Your stairlift is a sophisticated stairlift, specifically developed to carry one person sitting on
the chair up to a maximum weight of 125 kg (275 lbs). The information provided in
properties and working methods known to us at the time of publication; alterations and any
improvements are therefore excepted. Before using the stairlift read this manual thoroughly
and familiarise yourself with the working and operation of the stairlift. Users who can not
see and hear should receive assistance when using the stairlift. Your stairlift has been
constructed in accordance with state-of-the-art technology and satisfies recognized safety
regulations. Nevertheless during the wrong use of the stairlift risk to the user or third
parties, or damage to your stairlift or other goods, can arise. So use your stairlift only when
it is in good working order, in accordance with the intended use described above and with
due attention to this manual. Always keep this manual in the vicinity of the stairlift.
The strength and the suitability in general of wall, staircases, terraces, upper
floors,banisters, plinths etc. which are to support or surround the installation have been
verified and ensured by the customer, who therefore accepts all relative responsibilities.
Neither Handicare nor its authorized dealers may be held responsible for the suitability of
the structures which surround and support the installation. All tests, except for the
operating test, shall be performed by the customer.
TECHNICAL SUPPORT
Should problems occur that are not dealt with in this document, contact your supplier. The
Service department staff will always be pleased to help you. For quick handling it is
important that you keep the following items/particulars to hand:
• this manual;
• your name, address, postcode, town and telephone number;
• lift number.
GUARANTEE AND LIABILITY
As the user of this stairlift, you are always fully responsible for the observance of locally
prevailing safety regulations and guidelines.
Term of warranty – this warranty is valid for a period of 24 months from the date that the
product ships from our factory. The purchase price for the product must be paid in full in
order for the manufacturer to release parts under this warranty.
Coverage – this warranty applies to the repair or replacement, at the manufacturer’s
discretion, of parts that fail due to defective material or workmanship. The manufacturer
may, at its discretion, provide factory reconditioned parts. This warranty is provided to the
Authorised Handicare Dealer on behalf of the final purchaser of the product and is not
transferable. The manufacturer’s warranty does not cover labour charges for the removal,
repair or replacement of warranty parts.
Excluded from guarantee: damage caused by normal wear and tear, overloading or
misuse, the replacement of batteries in the remote control. Under no circumstances can
the manufacturer accept responsibility for death, personal injury, damage to property, or
incidental, unforeseen consequences and/or costs or damage resulting from the use of
your stairlift. The carrying out of alterations to the product is not permitted. The
manufacturer is not liable for damage resulting from such alterations. The manufacturer
accepts no liability for damage or injury caused by the non-observance, or inadequate
observance, of the safety regulations and safety instructions in this manual, or by
negligence during the installation, use, maintenance and repair or this stairlift. Installation
and servicing may

USER MANUAL | 17
EN
1
only be carried out under the responsibility of dealers or installers/service engineers
authorised by the manufacturer, in the course of which locally prevailing regulations
must be observed.
The wallbuttons of this stairlift work radiographic. Handicare does not accept any
responsability for the non-functioning of these wallbuttons due to interference by a
source outside this stairlift.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment OFF
and ON, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SAFETY INSTRUCTIONS
When using the stairlift always observe locally prevailing safety regulations regarding
risk of electric shock and physical injury.
1. Provide an unobstructed environment. The entire track must be free of obstacles.
2. Take environmental influences into account. Do not expose the lift to damp or
extreme sunlight. Make sure that the environment is well lit. The entire track must
be visible from the stopping places.
3. Keep uninstructed persons and domestic pets away from the stairlift.
Do not use the stairlift to carry animals or goods. Never use the stairlift with more
than one person sitting on it. The stairlift may only be used by adults who have
signed the instructed person’s declaration. Keep children away from the stairlift.
Remove the key after use.
4. Keep limbs and clothing away from moving parts. Make sure that wide or loose
clothing cannot become trapped between the chair and, say, the stairs or rail.
5. Ensure a safe position. Always ensure a correct, stable position. Sit right up against
the back support, use the armrests and place the feet squarely on the foot rest.
Always use the safety belt. Never stand on the stairlift.
6. Take care at all times. Concentrate on the operation of the stairlift.
7. Check for damage. Before use check the lift for external damage. Report unusual
noises, such as squeaking and creaking, to your supplier. The lift must comply with
all prevailing safety regulations. Do not use the lift if a part is defective.

1
To prevent accidents, repairs and preventive maintenance must only be carried out
by engineers qualified to do so.
8. The stairlift must not be used in the event of a fire or as a means of escape during a fire.
9. If the stairlift is not fitted with a communication device, we recommend that you
always have one to hand.
10. Only leave the stairlift at the designated points at the top and bottom of the rail.
(only for the installer)
Open stair rails (e.g. banisters) should be closed off so that the lift is not accessible
from behind.
The electrical connection must comply with section 4.3 of EN60204-1
11. Check for damage
Before the installation inspect the parts carefully for damage in order to make sure
that the lift will function properly. The lift must comply with all prevailing safety
regulations. Do not use defective parts; only use original parts.
12. Safety devices
All safety devices must be fitted correctly and may only be removed for
maintenance and repair work by qualified service engineers trained to do so.
The product must never be used if the safety devices are incomplete or absent,
or have been put out of action or are defective.
The safety devices must be checked regularly to see that they are working correctly
and, if necessary, must be repaired immediately.
13. Use and installation in accordance with intended use.
Where necessary use safety equipment such as face and hearing protection, safety
shoes and hard hat during assembly and servicing. Only use approved tools.
Before you start the assembly, please check whether the stairs and the
environment meet the safety requirements.
14. Please note that the Freecurve stairlift has an electronically assisted (or controlled)
emergency manual travel device. This can only be used by a qualified technician. In
the event of equipment failure, the user must have the necessary skills to get out of
the Chair lift on their own or to call for the help of a caregiver or a member of the
emergency personnel.
MAINTENANCE
Cleaning
Clean the stairlift lift regularly.
Avoid excessive use of water. Clean the seat, back support, armrests and footrest only
with a slightly damp cloth. Clean the track regularly with a dry cloth. Do not clean the
metal rack. If dirty spots appear on the rail, these can easily be removed with a damp
cloth using a mild detergent. In time the track wheels can leave a mark on the rail.
During the first 50 rides of the stairlift scales of paint might fall on the stairs due to
running in of the stairlift.
Preventive maintenance
In addition to cleaning your stairlift, periodic preventive maintenance is necessary for
long-term correct functioning.
The stairlift must be serviced at least once a year. This service must be carried out by a
qualified person. Contact your supplier to conclude a service agreement. If your stair lift
runs over more than 2 floors and/or has more than 2 users, it needs at least 2
maintenances a year.
18 | USER MANUAL
EN
