Handicare 2000 User manual

Handicare 2000
|QUICK REFERENCE GUIDE
VERSION 2.1

2

Contents
1. Introduction 2
2. Display codes 3
3. References 5
4. Glossary 6
5. Testing 10
6. Display 11
7. Toggle 11
8. The remotes 11
9. Safety edges 12
10. The batteries 13
11. Charging power supply 14
12. Boards 15
13. Options 16
14. Rescuing the user 18
15. Faults 19

2
1. Introduction
This guide is intended for use as a general reference by engineers
repairing faults on the Handicare 2000. The guide is structured as
follows: the first chapter provides general information about the
Handicare 2000, including how the Handicare 2000 should be tested,
where the components are located and how they react to certain
situations. The subsequent chapters deal with repairing faults.
Flow charts are used in some cases, where step-by-step choices have
to be made in order to find the cause of the fault.
There is room for improvement in every guide. If you have any tips or
suggestions, please let us know so that we can incorporate them.
We wish you the best of luck with your tasks and hope that this guide
will be of assistance.

Quick Reference Guide Handicare 2000
3
2. Display codes
Left hand
Code Meaning Page
None Power off 24
− Charging, joystick failure 23,26
0 General safety line 22
1 Requires charge 31
2 Off charge 31
3 Top track limit activated 27
4 Top safety edge activated 29
5 Bottom track limit activated 28
6 Bottom safety edge activated 30
7 Low battery voltage 31
8 UP travel direction 21
9 DOWN travel direction 21
A Hinge open 35
b Toggle switch active at power up 21
C IR address fail 32
d Relay not open 20
E Relay not closed 20
F Brake semi-conductor failed 21
G Brake not connected 20
H Relay not open (pre-delay) 20
J Hinge interlock switch fault 34
L Current limit exceeded 20
n Lift driving at half speed 38
o Default Eprom 21
r Power supply fault during charging 31
U Power supply fault when battery on float 31
y Main board hardware fault 21
.||. Overcurrent 20

4
2. Display codes
Right hand
Code Meaning Page
None Power off 24
− Charging, joystick failure 23,26
0 General safety line activated 22
1 Requires charge 31
2 Off charge 31
3 Bottom track limit activated 27
4 Bottom safety edge activated 29
5 Top track limit activated 28
6 Top safety edge activated 30
7 Low battery voltage 31
8 UP travel direction 21
9 DOWN travel direction 21
A Hinge open 35
b Toggle switch active at power up 21
C IR address fail 32
d Relay not open 20
E Relay not closed 20
F Brake semi-conductor failed 21
G Brake not connected 20
H Relay not open (pre-delay) 20
J Hinge interlock switch fault 34
L Current limit exceeded 20
n Lift driving at half speed 38
o Default Eprom 21
r Power supply fault during charging 31
U Power supply fault when battery on float 31
y Main board hardware fault 21
.||. Overcurrent 20

Quick Reference Guide Handicare 2000
5
3. References
Page
The general safetyline 22
The direction safetylines 29,30
The end limit switch 22,27,28,35
The batteries 24,31,34
The charger 31,35
The tractionmotor 21
The brake 21
The display 24
The on/off switch 24
The toggle 23,26
The armrestswitches 23,26
The hinge 33,34,35
The remotes 32
The infrared receiver 24,32
The fuse 24
The powered swivel 36
The powered footrest 37
The thermal fuse 24,32

6
4. Glossary
Version 2.1
7
4. Glossary

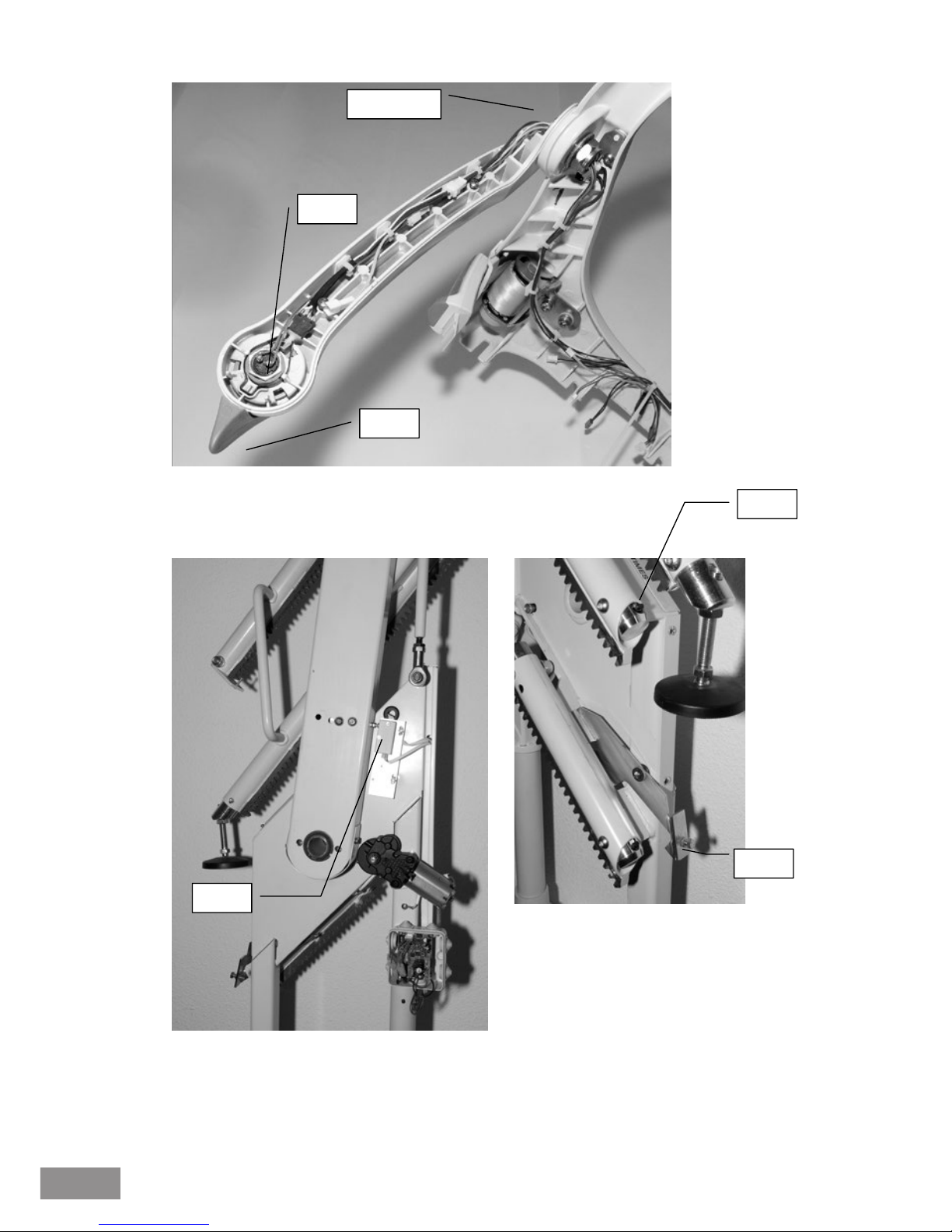

S13-14-15-16 Limit switch
S 17-18 Final limit switch
S10 Speed switch (lower trunnion)
S22 Hinge enable switch (top trunnion) not visible
S13
S14
S17
S18
S15
S16
S10
S13-14-15-16 Limit switch
S 17-18 Final limit switch
S10 Speed switch (lower trunnion)
S22 Hinge enable switch (top trunnion) not visible

Quick Reference Guide Handicare 2000
7
Version 2.1
8
S11-12 Front chassis edge switch
S35 Handwinderswitch
Contact charging (lower trunnion)
Contact communication hinge (upper trunion)
Safety brake
S19,S20 Overspeed governor switch
Infrared receiver
5-Amp-fuse/30-Amp-fuse
Main board P1
Motor
Brake
S11
S12
S35
S11-12 Front chassis edge switch
S35 Handwinderswitch
Contact charging (lower trunnion)
Contact communication hinge (upper trunion)
Safety brake
S19,S20 Overspeed governor switch
Infrared receiver
5-Amp-fuse/30-Amp-fuse
Main board P1
Motor
Brake

8
Version 2.1
9
Display
S21 Mainswitch
S7 Footrestswitch
S8 Footrestswitch
S9 Footrestswitch
Powered swivel
Motor
S25 Seat swivel switch
Board P3
S34 Emergency stop switch
S7/8
S7/8
S9
S25
S34
Display
S21 Mainswitch
S7 Footrestswitch
S8 Footrestswitch
S9 Footrestswitch
Powered swivel
Motor
S25 Seat swivel switch
Board P3
S34 Emergency stop switch
Version 2.1
9
Display
S21 Mainswitch
S7 Footrestswitch
S8 Footrestswitch
S9 Footrestswitch
Powered swivel
Motor
S25 Seat swivel switch
Board P3
S34 Emergency stop switch
S7/8
S7/8
S9
S25
S34
Version 2.1
9
Display
S21 Mainswitch
S7 Footrestswitch
S8 Footrestswitch
S9 Footrestswitch
Powered swivel
Motor
S25 Seat swivel switch
Board P3
S34 Emergency stop switch
S7/8
S7/8
S9
S25
S34

Quick Reference Guide Handicare 2000
9
Version 2.1
10
S24 Toggle
S23 Keyswitch
S29 – S30 Armrestswitches
S31 Foldable hinge contact
S32 Foldable hinge contact
S33 Foldable hinge contact
Motor
Board P4
S29/30
S23
S24
S33
S31
S32
S24 Toggle
S23 Keyswitch
S29 – S30 Armrestswitches
S31 Foldable hinge contact
S32 Foldable hinge contact
S33 Foldable hinge contact
Motor
Board P4

10

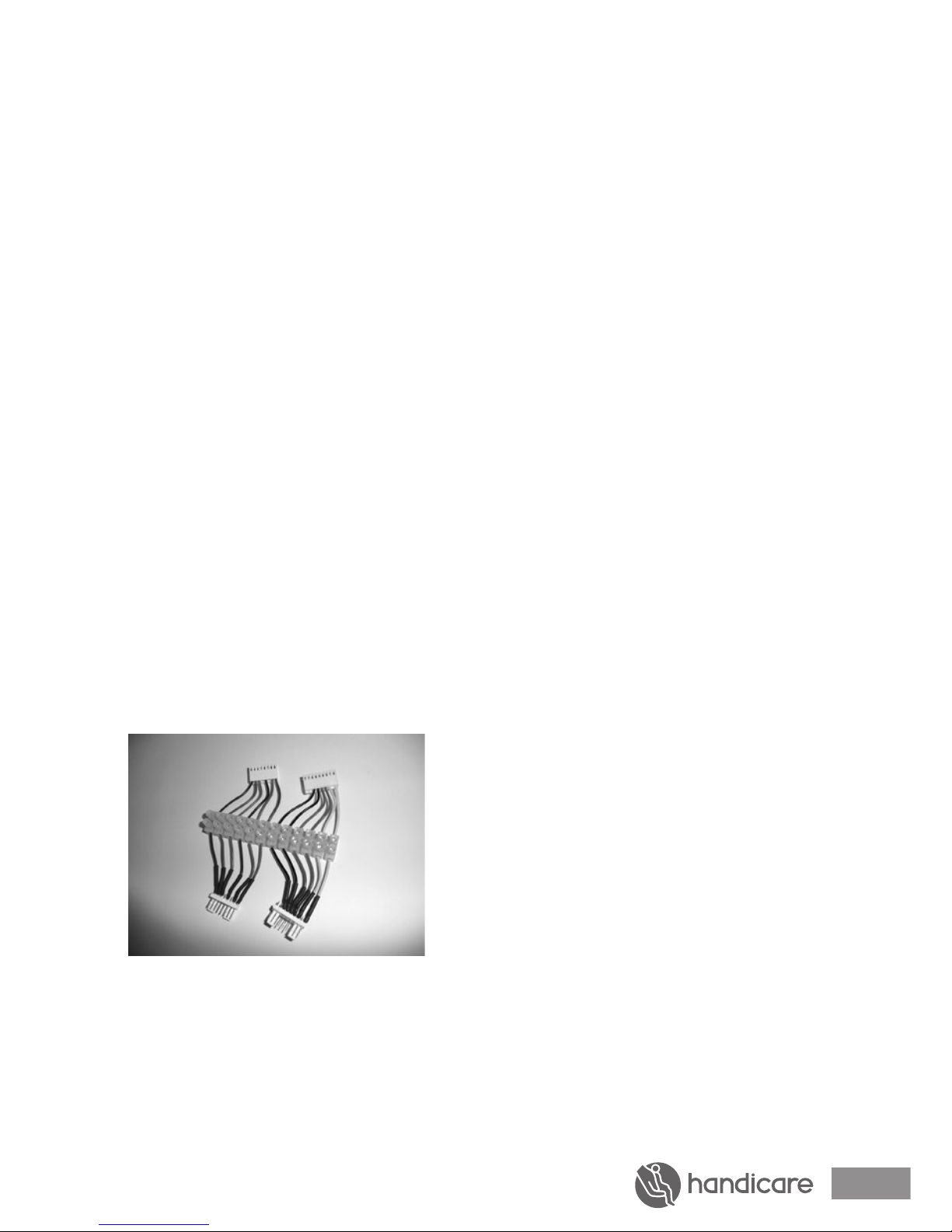

Molex testing link
5. Testing
The circuits should be tested as follows:
• Use the electrical diagram to see which circuit you need to test
• Disconnect the Handicare 2000 from the power supply
• Connect the molex testing link to the pcb
• Ensure looms are removed from pcb before carrying out
continuity testing
• Set the multimeter to the “beep” or resistance or voltage test
mode
• Check that you are testing between the correct connector pins/
numbers.
• No “beep” or resistance means that the circuit being tested is
not complete.
• Voltages can be find on the electrical scheme
If there is a short circuit with the frame, hold one of the measuring pins
against the unit’s ground pin of the seat and push the other measuring
pins into the top of the molex testing link.

Quick Reference Guide Handicare 2000
11
6. Display
On the lift is a display which shows a diagnostic code to help you to locate the
cause of the breakdown. The codes can be found on page 4/5 and in the user-
and installation manual.
7. The toggle
The lift is operated by the toggle on the armrest. The toggle as well
as the key switch or the button for the powered footrest raiser can be
swapped from right to left on side.
The lift will not ride when the armrests are in the folded position. It does
however operate on the remotes.
During the ride the diagnostic
display show “8” or “9”.
An installation toggle loom
can be used to ride the power
pack without chair. (art.
Nr.181001.50083).
In case of a public building when the key switch should switch off the
toggle but the remotes should stay operational, the key switch needs to
be transferred from the safety line to the control line.
8. The remotes

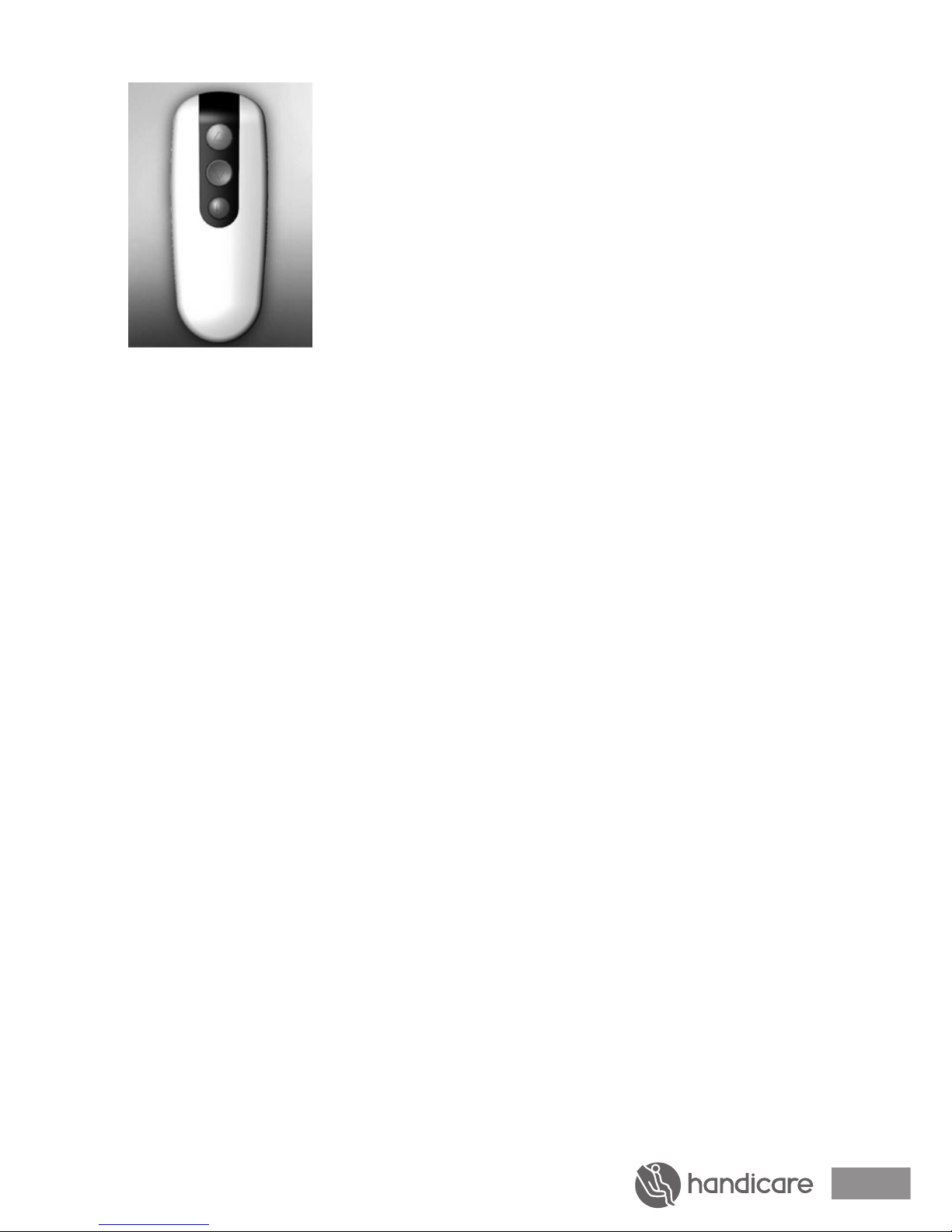

The remotes function on infrared. On the backside is a dipswitch for
setting a different code.
The lower button is a special button for parking the lift. On the backside
is a red,orange or green cover. Green means the remote functions on
Version 2.1
12
6. Display
On the lift is a display which shows a diagnostic code to help you to locate the cause
of the breakdown. The codes can be found on page 4/5 and in the user- and
installation manual.
7. The toggle
The lift is operated by the toggle on the armrest. The toggle as well as the key switch
or the button for the powered footrest raiser can be swapped from right to left on side.
The lift will not ride when the armrests are in the folded position. It does however
operate on the remotes. During the ride the diagnostic display show “8” or “9”.
An installation toggle loom can be used to ride the power pack without chair. (art.
Nr.181001.50083).
In case of a public building when the key switch should switch off the toggle but the
remotes should stay operational, the key switch needs to be transferred from the
safety line to the control line.
8. The remotes
The remotes function on infrared. On the backside is a dipswitch
for setting a different code.
The lower button is a special button for parking the lift. On the
backside is a red,orange or green cover. Green means the
remote functions on radiofrequency (2,4 Ghz), red means the
remote functions on infrared. Orange means the remote
functions on 868 Mhz.
Under this cover you can find a dipswitch to set a different canal.
The infrared remotes work out of the box. If they don’t, they can be linked as follows:
Press and hold the red button on the board P1. A yellow light will illuminate on the
board. Press any button on the handset and the light will go out.

12
radiofrequency (2,4 Ghz), red means the remote
functions on infrared. Orange means the remote
functions on 868 Mhz.
Under this cover you can find a dipswitch to set a
different canal.
The infrared remotes work out of the box. If they
don’t, they can be linked as follows: Press and
hold the red button on the board P1. A yellow
light will illuminate on the board. Press any button on the handset and
the light will go out.
9. The safety edges
Two direction-sensitive safety edges and one general safety edge have
been included in the Handicare 2000.
The direction-sensitive safety edges
The direction-sensitive safety edge prevents the lift from moving further
in the direction that is blocked.
However, the Handicare 2000 can still be moved in the opposite
direction to remove the block.
The diagnostic code shows “4” or “6”
The following switches have been included in the direction-sensitive
safety edge:
• Footrest switches
• Detection switches for the power pack
The handing of the safety edges is when sitting on the lift.
Version 2.1
12
6. Display
On the lift is a display which shows a diagnostic code to help you to locate the cause
of the breakdown. The codes can be found on page 4/5 and in the user- and
installation manual.
7. The toggle
The lift is operated by the toggle on the armrest. The toggle as well as the key switch
or the button for the powered footrest raiser can be swapped from right to left on side.
The lift will not ride when the armrests are in the folded position. It does however
operate on the remotes. During the ride the diagnostic display show “8” or “9”.
An installation toggle loom can be used to ride the power pack without chair. (art.
Nr.181001.50083).
In case of a public building when the key switch should switch off the toggle but the
remotes should stay operational, the key switch needs to be transferred from the
safety line to the control line.
8. The remotes
The remotes function on infrared. On the backside is a dipswitch
for setting a different code.
The lower button is a special button for parking the lift. On the
backside is a red,orange or green cover. Green means the
remote functions on radiofrequency (2,4 Ghz), red means the
remote functions on infrared. Orange means the remote
functions on 868 Mhz.
Under this cover you can find a dipswitch to set a different canal.
The infrared remotes work out of the box. If they don’t, they can be linked as follows:
Press and hold the red button on the board P1. A yellow light will illuminate on the
board. Press any button on the handset and the light will go out.

Quick Reference Guide Handicare 2000
13
The general safety edges
The general safety edge prevents the lift from moving further in both
directions.
The diagnostic code shows “0” when the toggle is moved in either
direction if the safety edge is obstructed.
The following switches have been included in the general safety edge:
• Seat swivel switch
• Overspeed governor switch
• Key-operated switch
• Final limit switch
• The emergency stop
• The handwinder switch
10. The batteries
Two 12V 7,2 Ah maintenance-
free lead-acid batteries are used.
They have an expected life span
of three years.
If the output voltage of one of
the batteries is at least 5V less
than that of the other, it can
be assumed the battery is faulty. If the voltage between the batteries
varies, there is something wrong with them.
Guarantee
No guarantee is provided for the batteries. However, we do ask that
you report any complaints to us, stating the identification number on
the battery.
Version 2.1
14
10. The batteries
Two 12V 7,2 Ah maintenance-free lead-acid batteries are used. They have an
expected life span of three years.
If the output voltage of one of the batteries is at least 5V less than that of the other, it
can be assumed the battery is faulty. If the voltage between the batteries varies,
there is something wrong with them.
Guarantee
No guarantee is provided for the batteries. However, we do ask that you report any
complaints to us, stating the identification number on the battery.

14
11. Charging power supply
The battery charger is suitable for
an input voltage of between 100V
and 240V. The output voltage is 33
V=. The charging current is 1 A.
There are different diagnostic codes
if the lift requires charge
Code 1 and 7: When the battery voltage is very low (maybe down to
10%capacity left in batteries), this fault code will appear. When the
lift docks on to charge contacts, the lift will not drive off the contacts.
1 will flash. Lift will only drive off if battery voltage has recovered
approximately three quarter capacity. Another way of driving off the
contacts is if lift is powered “off” then back “on” but as soon as lift
docks on contacts, process will repeat again. This fault code is linked
to fault code 7 but the code 7 is not usually seen as code 1 takes
priority.
Code r: This fault will occur when the lift is charging. If the power
supply is disconnected while the lift is charging, the r code will display.
A fault with the 33V power supply where the power supply cannot
supply current to charge the batteries will also show this code.
Code U: This fault occurs when the lift has fully charged the batteries
and is in float mode. When the 33V power supply is disconnected, the
U code will display.
Code E: This fault appears if the batteries are low. The main relay on
the board is rated for 24VDC operation so the low voltage will give a
false fault condition.

Quick Reference Guide Handicare 2000
15

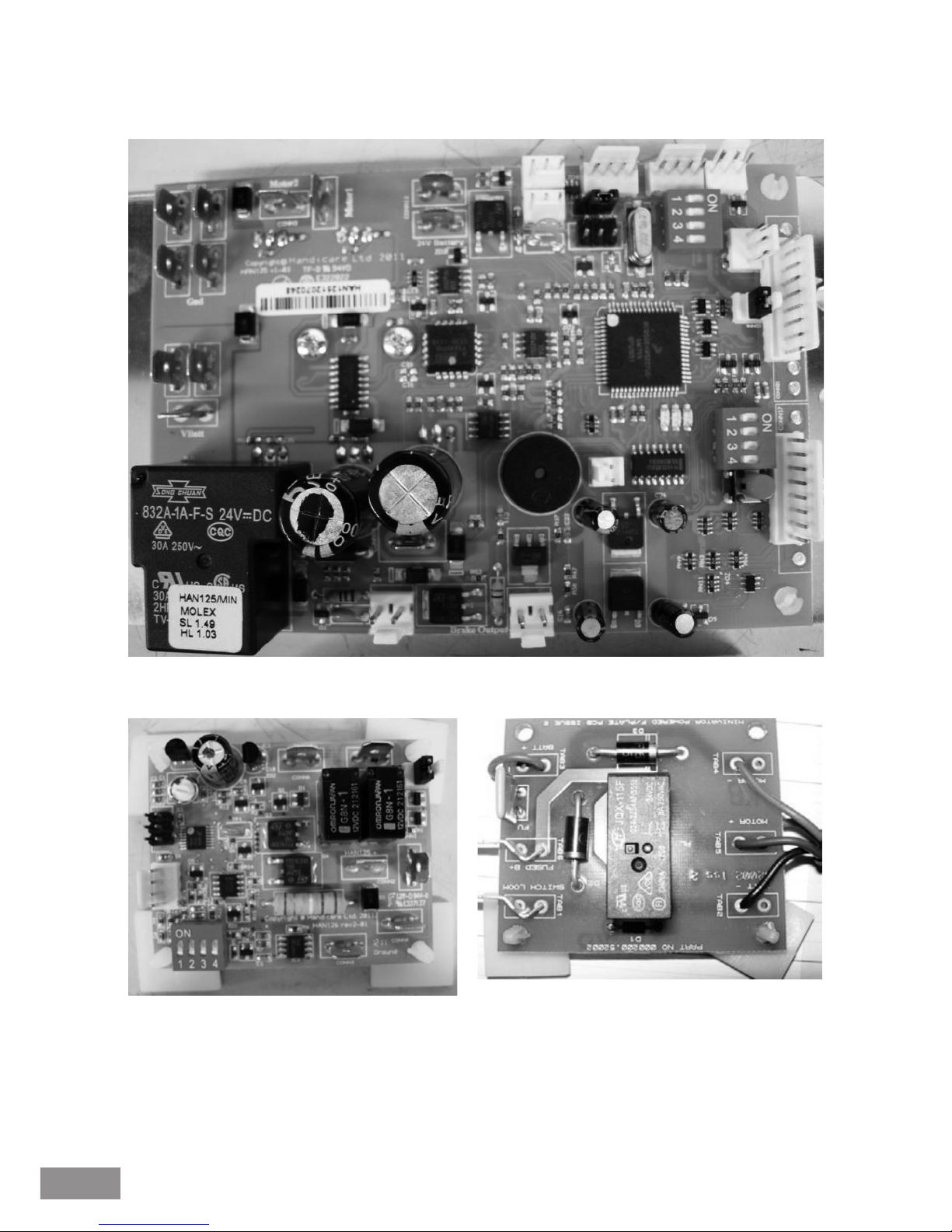

12. Boards
Version 2.1
16
12. Boards
125 Mainboard P1
126 Powered swivel P3 Powered footrest raiser P2
126 Foldable hinge P4
Version 2.1
16
12. Boards
125 Mainboard P1
126 Powered swivel P3 Powered footrest raiser P2
126 Foldable hinge P4
125 Mainboard P1
126 Powered swivel P3
126 Foldable hinge P4
Powered footrest raiser P2

16
13. Options
The stairlift can be extended with extra powered options:
• Powered swivel chair
• Powered footrest raiser
• Foldable hinge
Logic
The grey communication loom provides a link between the MS125 pcb
and the 126 pcb.
The 126 connection on the MS125 pcb output is between 8-12
volts. Each time a 126 pcb is connected, the reading will drop by
approximately 0.8 volts as communication between the two pcb’s is
established.
The 126 pcb dip switch settings tell the MS125 pcb what powered
option is connected. Each dip switch setting is looking for different
parameters to determine when and where power should be applied to
the attached motor.
When the parameters are met, the MS125 pcb passes the battery
voltage through the communication loom to the 126 pcb. The 126 pcb
then reduces the output to the correct voltage for the attached motor
to power the option. Depending on which option is attached, voltage
would be applied to the motor for a set time or until the motor has hit a
stop, the 126 pcb has a stall current.
In case of a failure on the communication circuit, the lift runs, but the
options don’t function.
Powered swivel chair
The powered swivel chair swivels at the top and is operated from the
toggle. The lift shall be on the upper end limit switch and the board

Quick Reference Guide Handicare 2000
17
should detect the charge voltage. The powered swivel chair can be
operated manually in case of emergency.
Powered footrest raiser
The powered footrest raiser is powered from a button under the armrest
or from a switch between the 2 seat parts. The powered footrest can be
activated all along the track.
The pcb used for the powered footrest raiser does not communicate
with the main pcb. The safety and the limits are build into the footrest
motor.
The foldable hinge
The foldable hinge is operated by the toggle. From the top of the stairs,
the toggle is pushed in the down direction. The lift will drive down the
track until it reaches the intermediate charge contacts. The lift will stop
at this point. Keep the toggle pushed in the down direction. After a
short pause the hinge will lower.
On the rail at the top and just above the foldable hinge are 2 contacts.
The contact on the upper tube is for the communication and the
contact on the lower tube is for the charging.
On the backside of the unit is a foldable hinge enable contact. This
contact shall be activated by the ramp to enable the foldable hinge to
move. At the same time the cupper strip in the power pack shall have
contact with the cupper strip on the rail, so the lift “sees” 33V=. In
case of a power down the foldable hinge will act on the foldable hinge
enable contact only.
On the rail are 2 switches to control the end position of the hinge and
to enable the lift to drive in case the hinge is completely (un) folded.
On the main board the dipswitch to enable foldable hinge shall be
activated. And on the board in the electric box on the rail shall be
activated. Consult the electric scheme for the right setting off the
dipswitch.
