Handicare Minivator 1000 series User manual

USER MANUAL
EN
Smart seat
Smart XL seat
Smart XXL seat
HANDICARE 1000

2
9
12
17
22
22
23
25
28

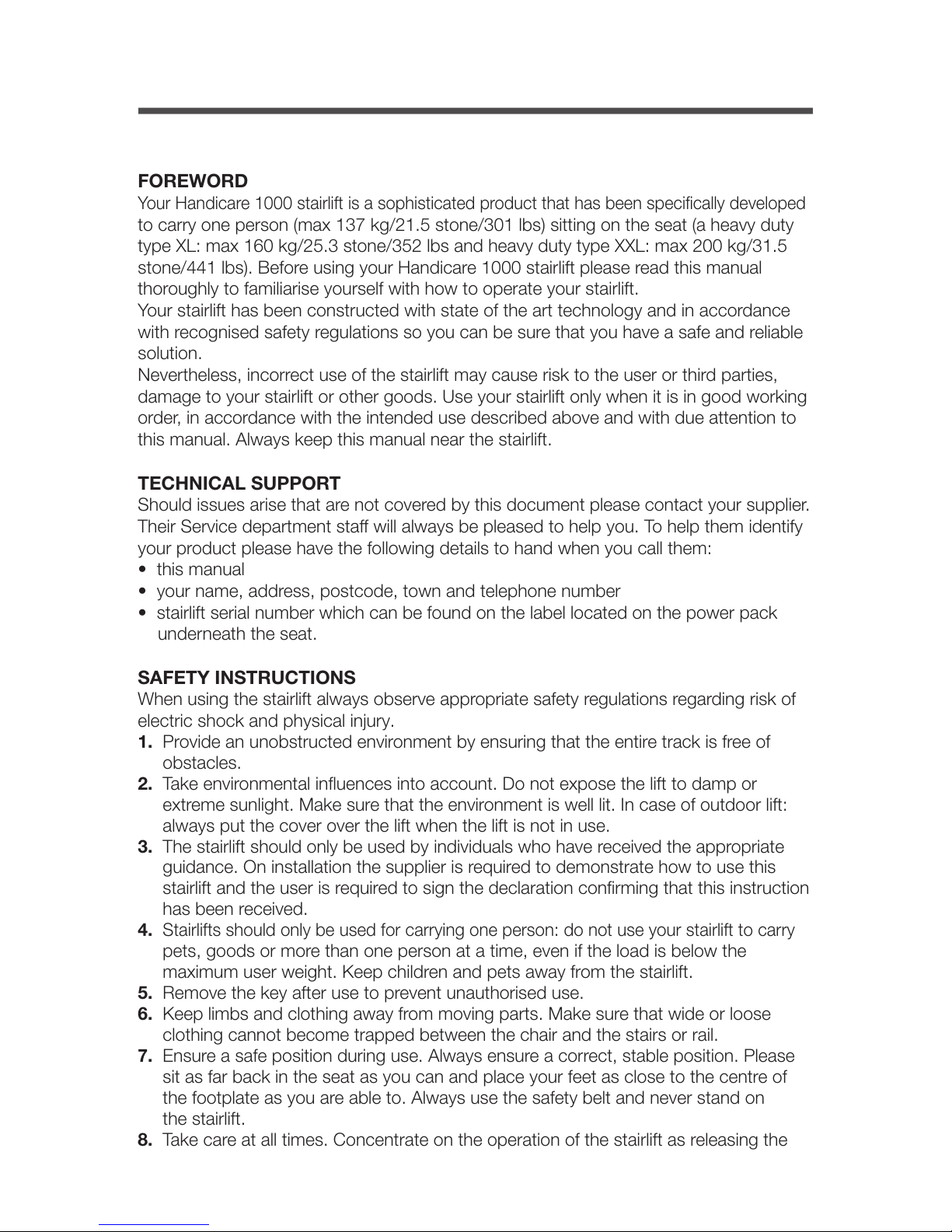

FOREWORD
CONTENT
Make everyday life easier....
USER MANUAL
OPTIONS

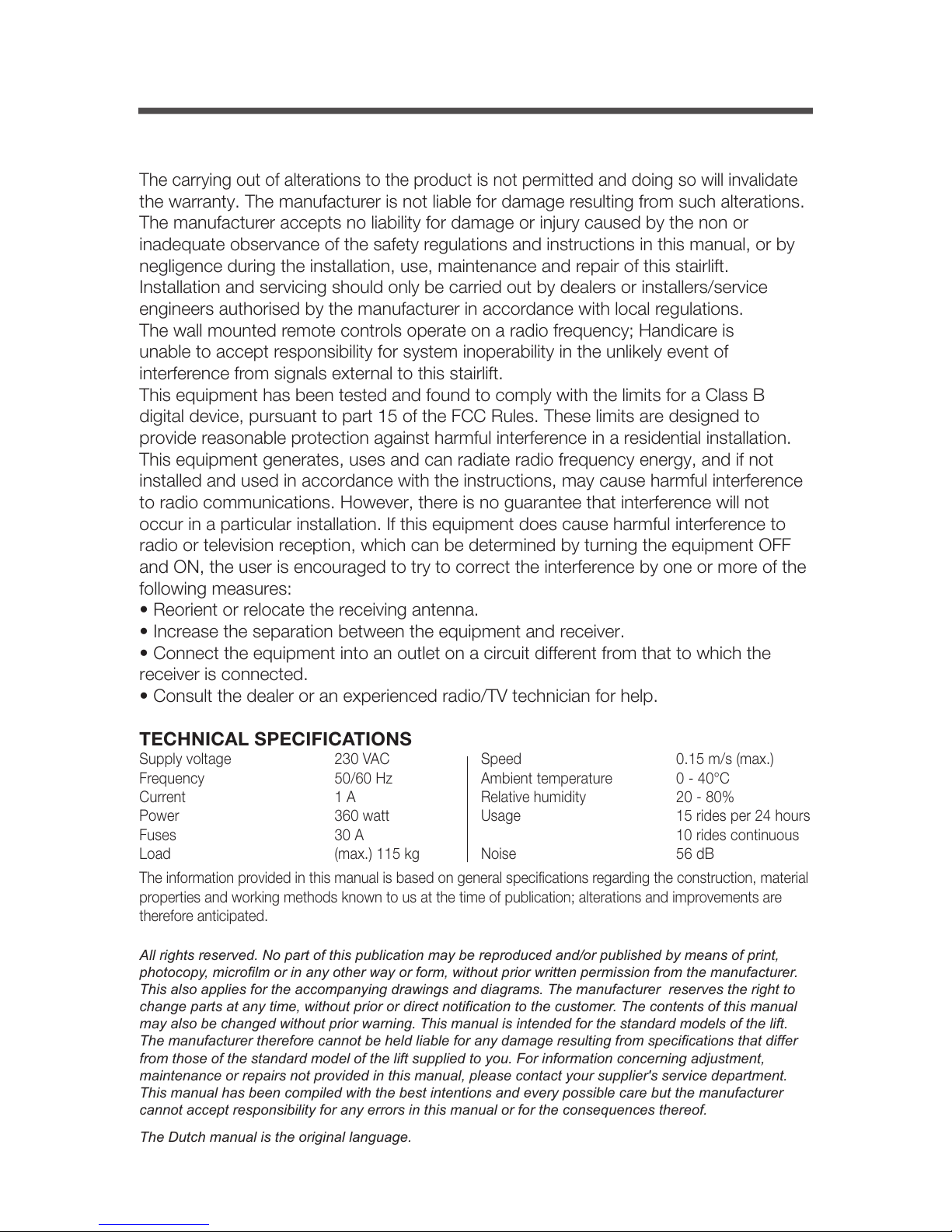

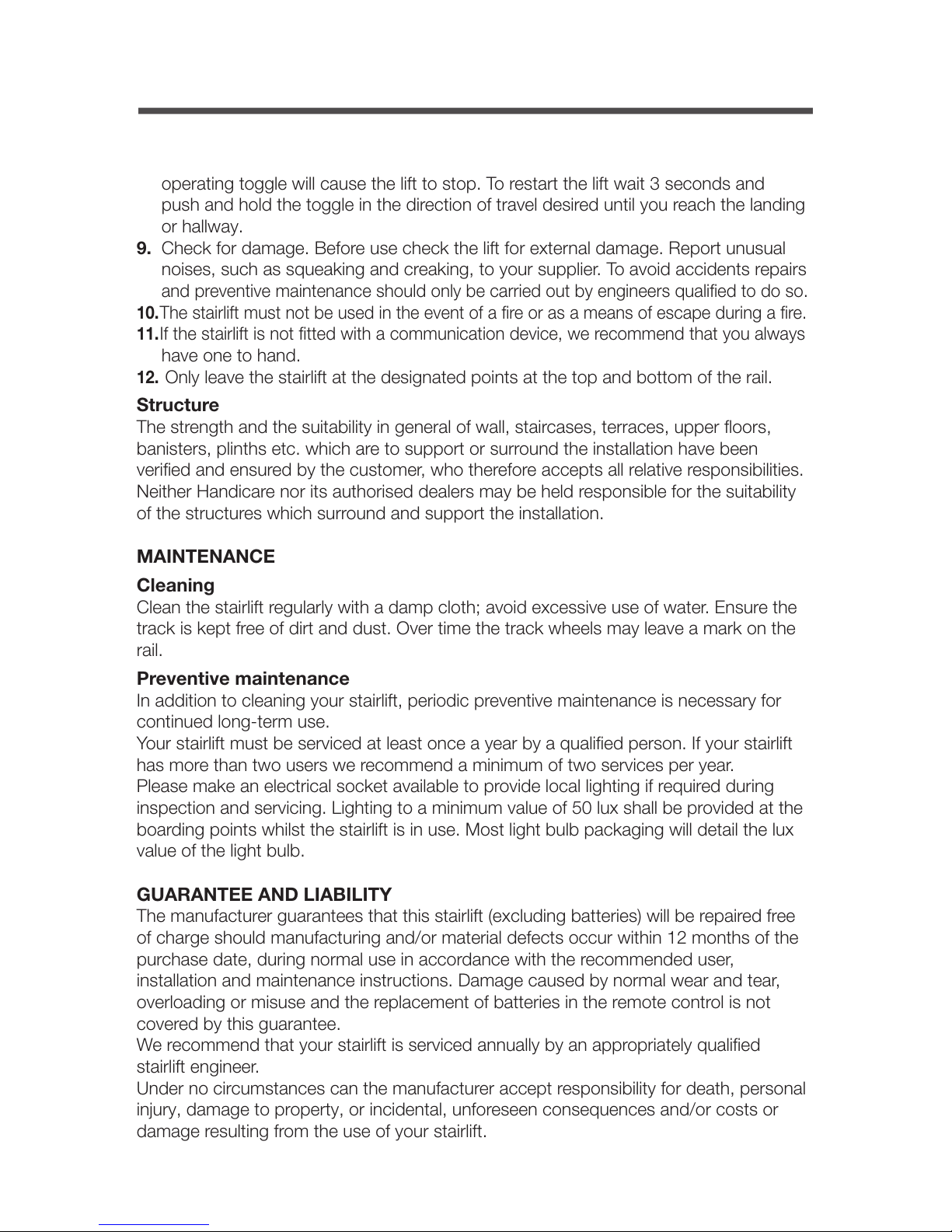

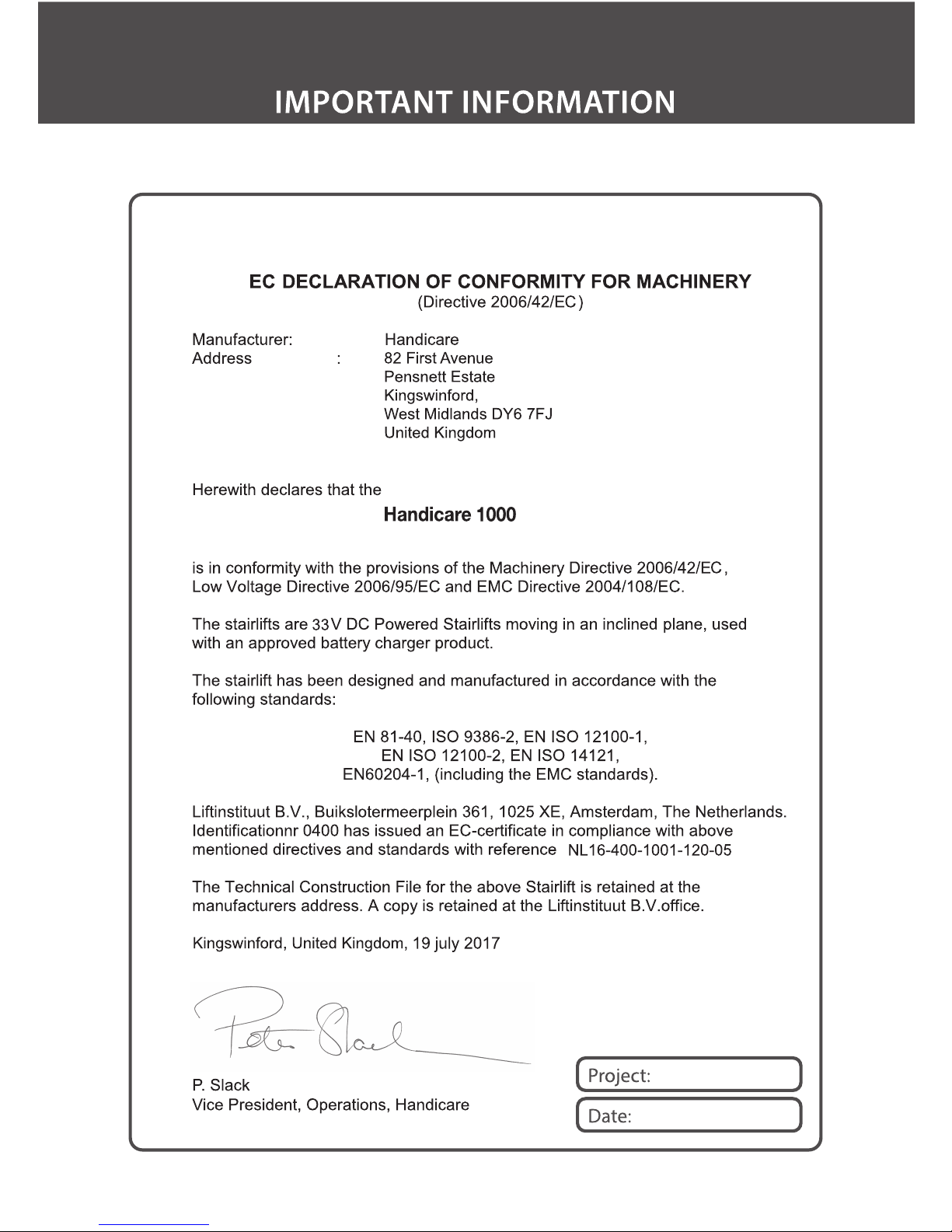

IMPORTANT INFORMATION
FAULT FINDING
ATTACHMENTS
A. Reminders
B. Emergency operation
C. Diagnostic codes
D. Spareparts
Thank you for choosing a Handicare stairlift.
This manual is for the
HANDICARE 1000 lift
type, and includes instructions for the
standard features and optional upgrades.
USER MANUAL 1

1
7
8
2
6
4
5
3
OPTIONS
Automatic Swivel
Powered Footrest

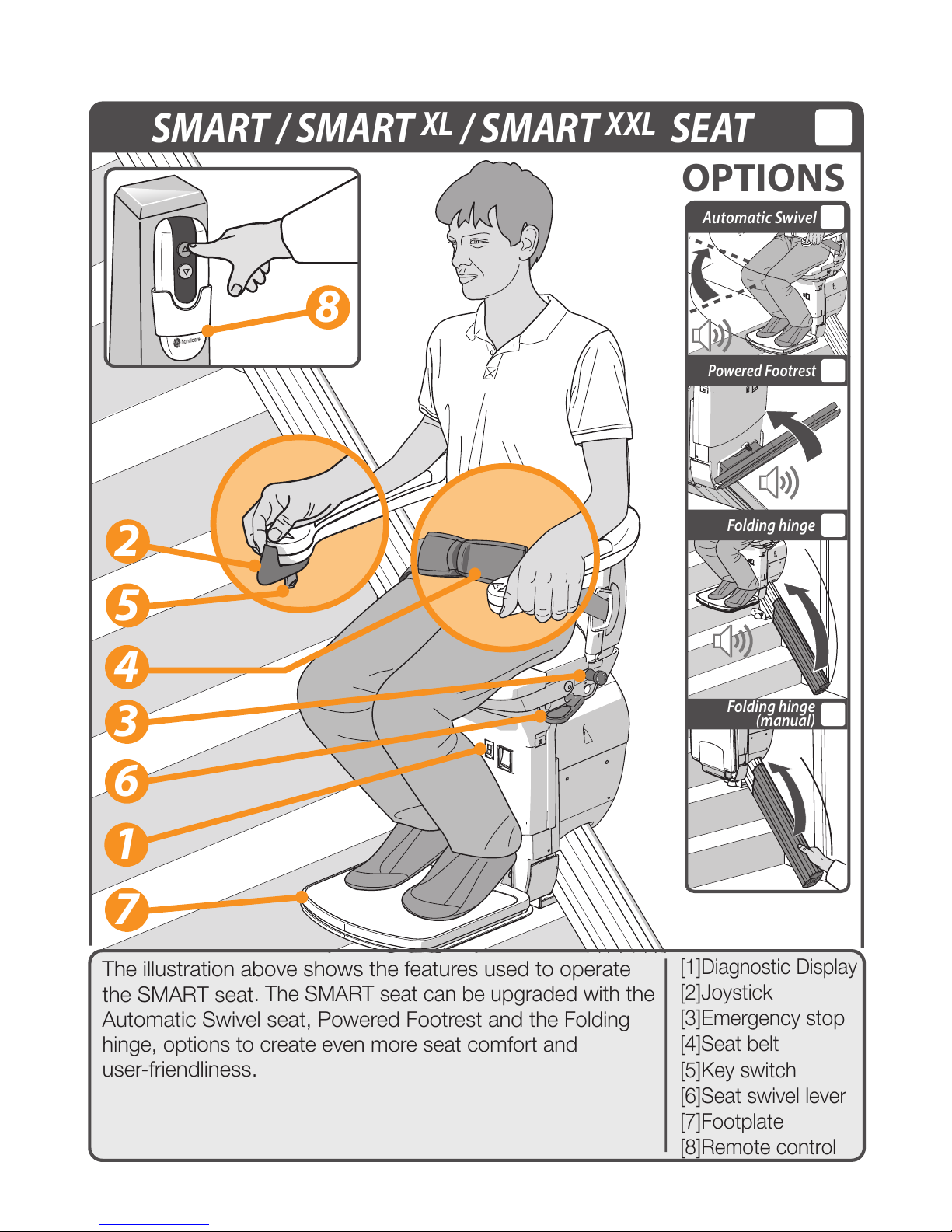

The illustration above shows the features used to operate
the SMART seat
. The SMART seat can be upgraded with the
Automatic Swivel seat, Powered Footrest and the
Folding
hinge, options to create even more seat comfort and
user-friendliness.
[1] Diagnostic Display
[2]Joystick
[3]Emergency stop
[4]Seat belt
[5]Key switch
[6]Seat swivel lever
[7]Footplate
[8]Remote control

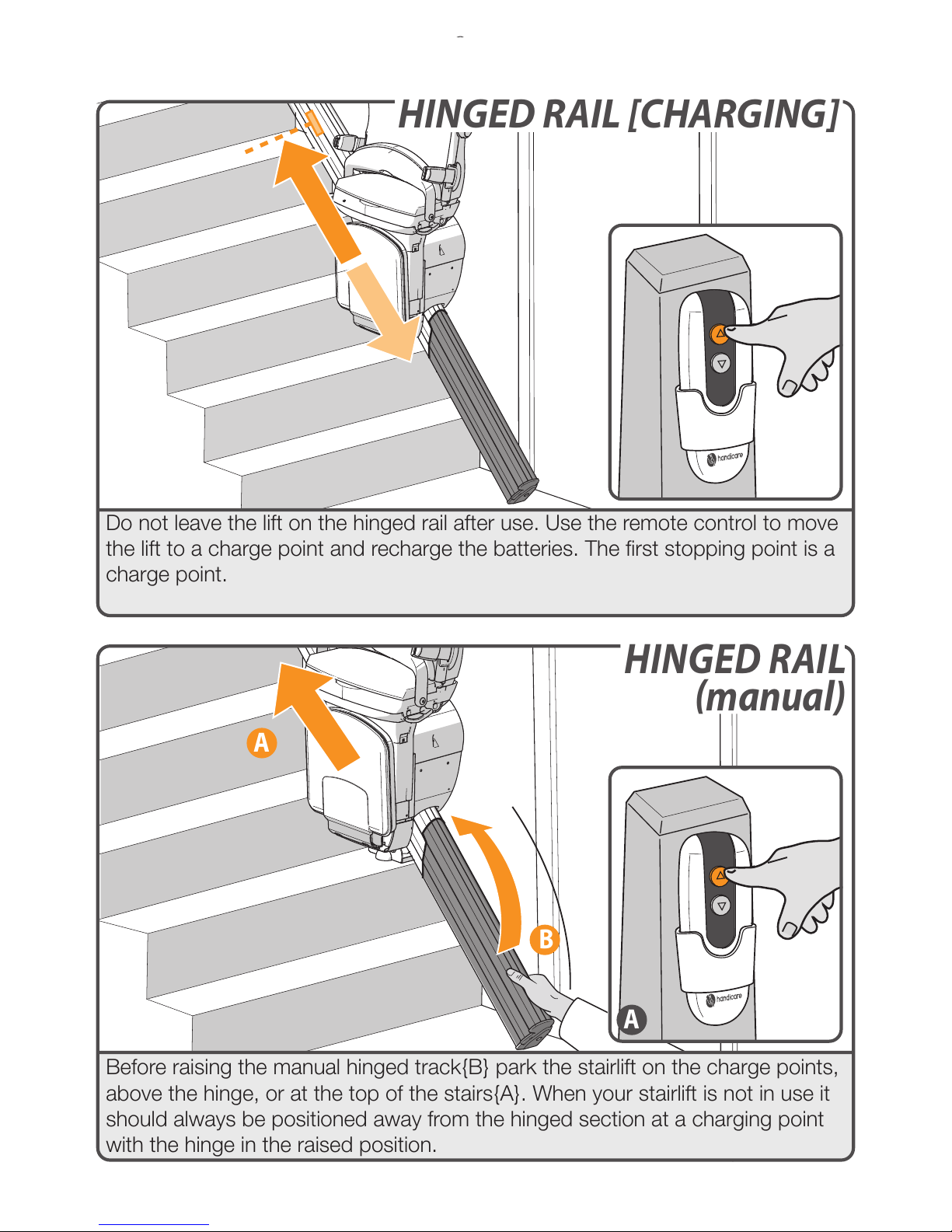

Folding hinge
Folding hinge
(manual)
SMART / SMART XL / SMART XXL SEAT
2 USER MANUAL

FOLD DOWN
Ensure that the on/off switch is set in the 'ON' position. The diagnosic display will
be illuminated when switched on.
Fold down the footplate, the armrests and seat.
page 10 > OPTIONAL POWERED FOOTREST
PLACE FEET
Place your feet on the footplate. Ensure that both feet are completely on the
plate.
USER MANUAL 3

CLICK!

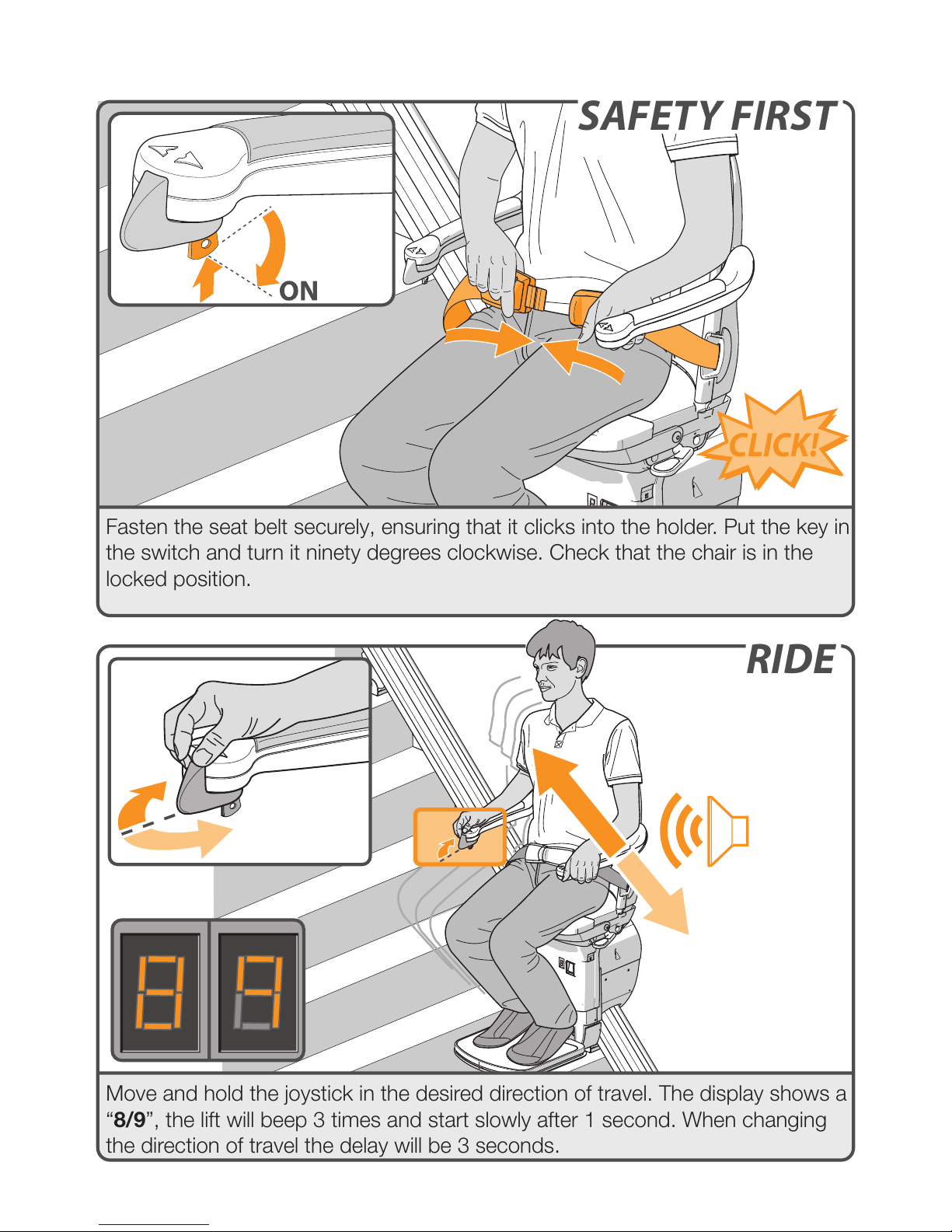

SAFETY FIRST
Fasten the seat belt securely, ensuring that it clicks into the holder. Put the key in
the switch and turn it ninety degrees clockwise. Check that the chair is in the
locked position.
RIDE
Move and hold the joystick in the desired direction of travel. The display shows a
“8/9”, the lift will beep 3 times and start slowly after 1 second. When changing
the direction of travel the delay will be 3 seconds.
4 USER MANUAL

CLICK!
B
A
EMERGENCY STOP
In an emergency, press the emergency stop once. The lift stops straight away.
The emergency stop can be released by turning the emergency button.
SWIVEL
The lift stops automatically at the end of the rail. You should now swivel the seat
manually, making it easier to get on and off. To do this, push down the lever{A}.
Swivel the seat until you hear a 'click'. The seat is now in the correct position{B}.
page 9 > OPTIONAL AUTOSWIVEL
USER MANUAL 5

LOOSEN BELT
Unfasten the seat belt.
STAND UP
Stand up from the seat.
6 USER MANUAL

A
CLICK!
B
FOLD UP
Fold up the armrests, footplate and seat {A}. Push the handle, located to the left
or right under the seat, downwards {B}. Swivel the seat until you hear a 'click'.
The seat is now in the locked position.
PARK
Press and hold the up or down button on the remote control until the lift reaches
a charge point. Upon arrival, the lift stops automatically.
USER MANUAL 7

15
30
45
15 sec.
CHARGE
There are charge points for recharging the lift's batteries at the top and bottom
of the rail (there may be additional charge points). If the lift is not in the correct
position at the charge point, the lift beeps for 15 seconds and the display shows
a “2”. The lift does not work if the batteries are flat.
