iBox®universal

2
One for all …
Since its introduction, the iBox universal has been the first and only basic set for Hansgrohe
and Axor concealed manual and thermostatic solutions. Its features are just as varied as
the number of possible uses. The iBox universal creates more space, freedem of movement
and planning freedom in the bathroom - and is quick and easy to install. So it's no wonder,
then, that the iBox universal has quickly become a firm favourite of the bathroom sector.
PuraVida®
Concealed single lever
bath mixer
Ecostat®S
Thermostat with shut-off/
diverter valve
Raindance®E
Overhead shower with 2 spray types
Raindance®Rainfall®
Overhead shower with 3 spray types
PuraVida®
Concealed single lever
shower mixer
Metris®
Highflow thermostat
Metris®
Thermostat with shut-
off/diverter valve

3
iBox®universal
The concealed system –
also for ShowerSelect

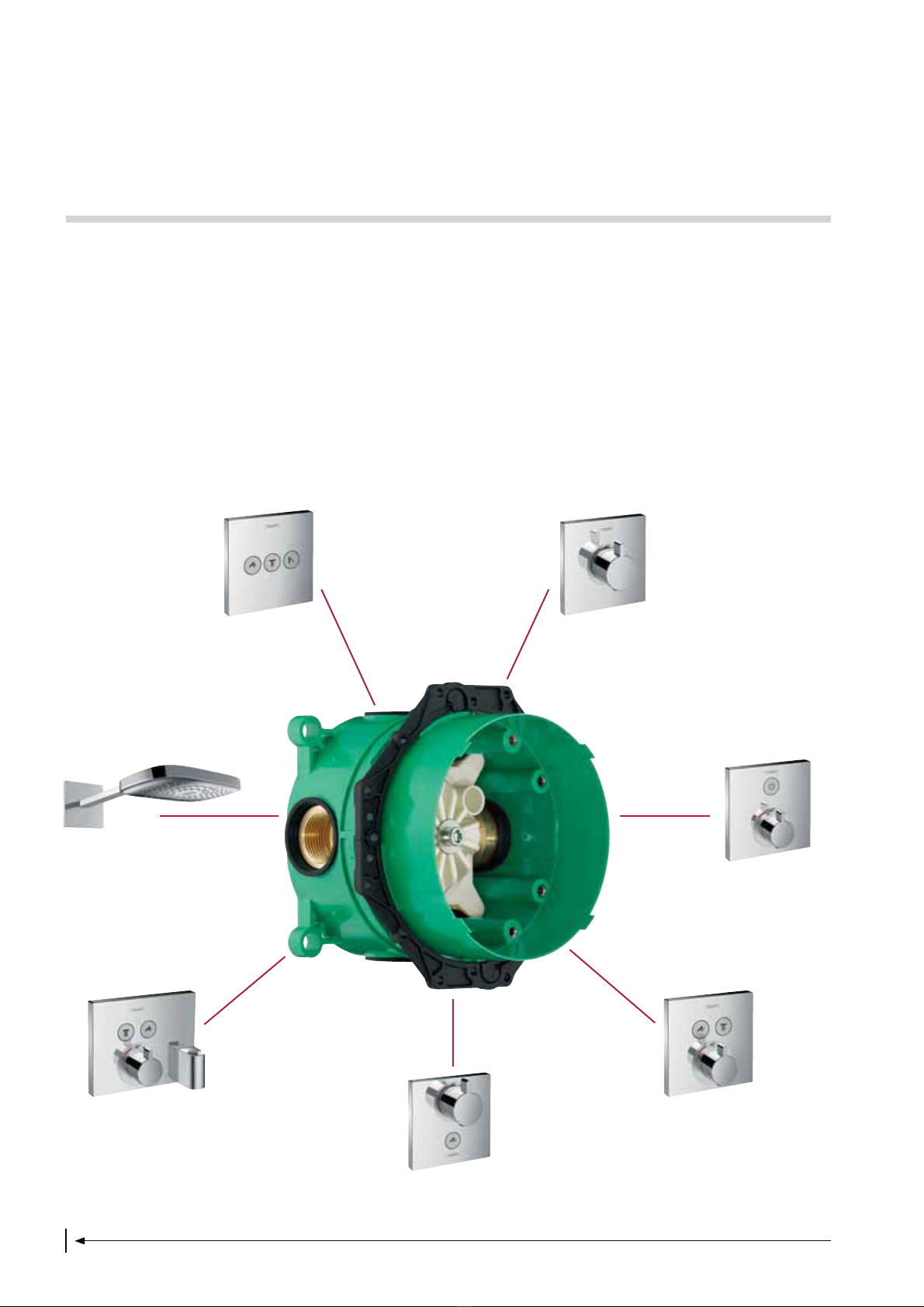

… and select your Shower Pleasure
The iBox universal is the flexible concealed solution, which is also suitable for the latest
milestone in Hansgrohe's history: Select technology. This provides greater shower
pleasure from hand and overhead showers and surface-mounted thermostats because
a simple touch of a button is all it takes to switch the mixer on and off, select or change
the function or change the spray type. The innovative Select control concept is also
available as a concealed solution in combination with the iBox universal using the
new ShowerSelect finish sets.
Select your shower pleasure when:
▪ updating an bathroom with iBox universal as a basic set
▪ building a new house
▪ renovating or modernising
Like all Hansgrohe concealed solutions, the new ShowerSelect
finish sets are easy to fit to the iBox universal.
iBox®universal basic set Functions block ShowerSelect®finish set

4
Concealed – the attractive way to fit a mixer
With the iBox universal, the mixer technology is concealed in the wall. This not only
looks good, but also creates more space and so adds to the shower pleasure. Another
feature is the flexibility of the design and system. The iBox universal can be installed
before a shower system is chosen. As the basic set for any Hansgrohe concealed
solution, it can be changed and upgraded at any time.

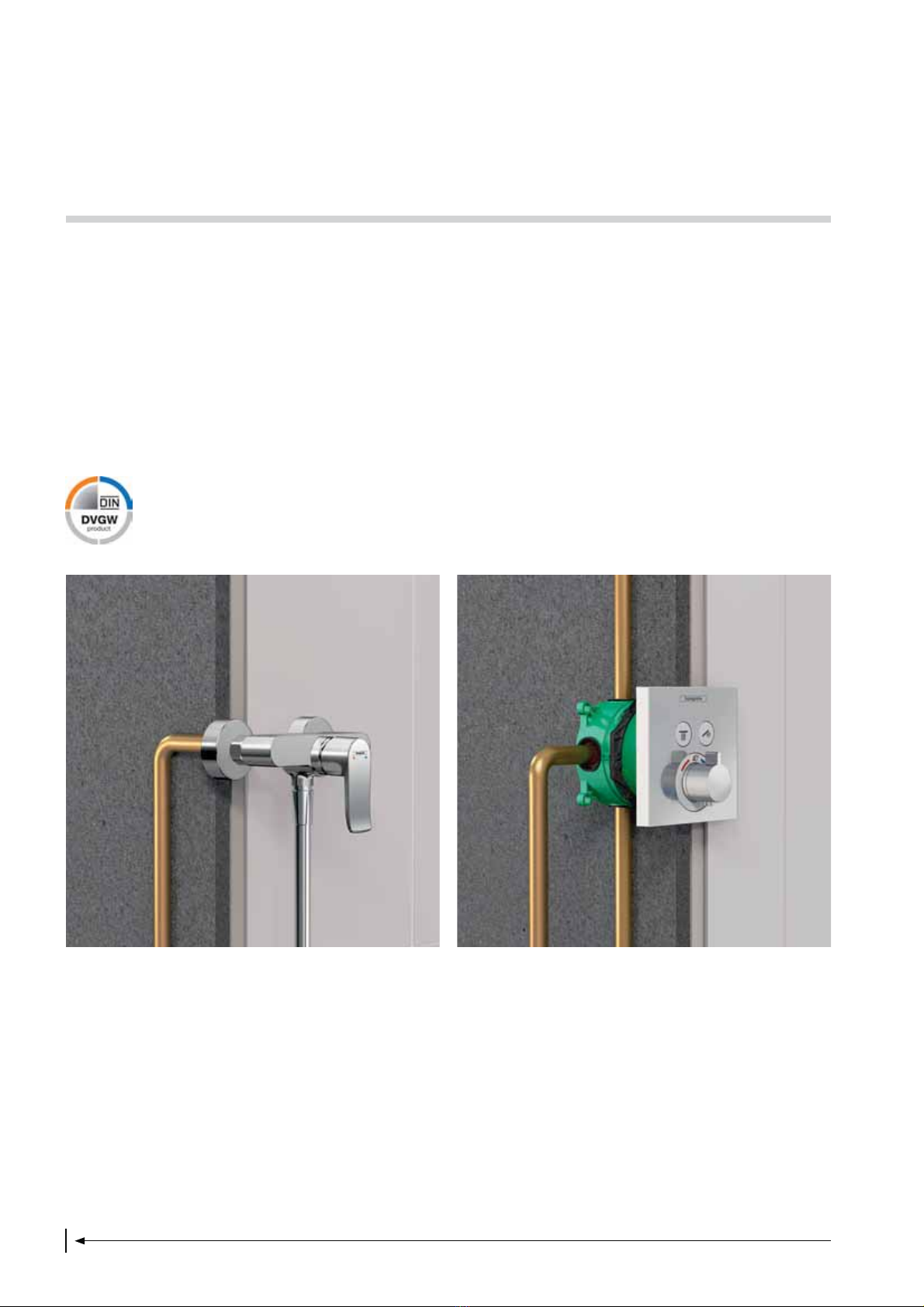

Surface-mounted installation
With a surface-mounted installation, the function unit is entirely in front
of the wall ‒ i.e. on the plaster. The disadvantage is that it takes up more
space, which reduces the freedom of movement when showering.
Concealed installation
With concealed installation, the base unit is housed within the wall, i.e.
behind the plaster. Mixers and shower finish sets from various Hansgrohe
and Axor ranges can be fitted to it.

5
iBox®universal
Advantages of concealed
assembly and iBox universal
iBox®universal: all-round appeal
The iBox universal is the first choice for concealed installation. See for yourself over the
following pages just what the iBox universal has to offer you and your customers.
Flush block included
Marking aid for
positioning
Support points for
a spirit level
Patented flexible adjustment ring for va-
rious installation depths
Patented sound proofing
G¾ connections; G½ connection pos-
sible using enclosed reductions,
including plugs
Moisture protection ,
absolutely waterproof,
horizontal installation possible
Numerous fixing options; can be
connected to all standard systems
A box for any standard Hansgrohe and Axor
bath/shower single-lever mixer, thermostat
finish sets and multi-spray overhead showers
Symmetrical rotation

6
The many advantages of the iBox®universal

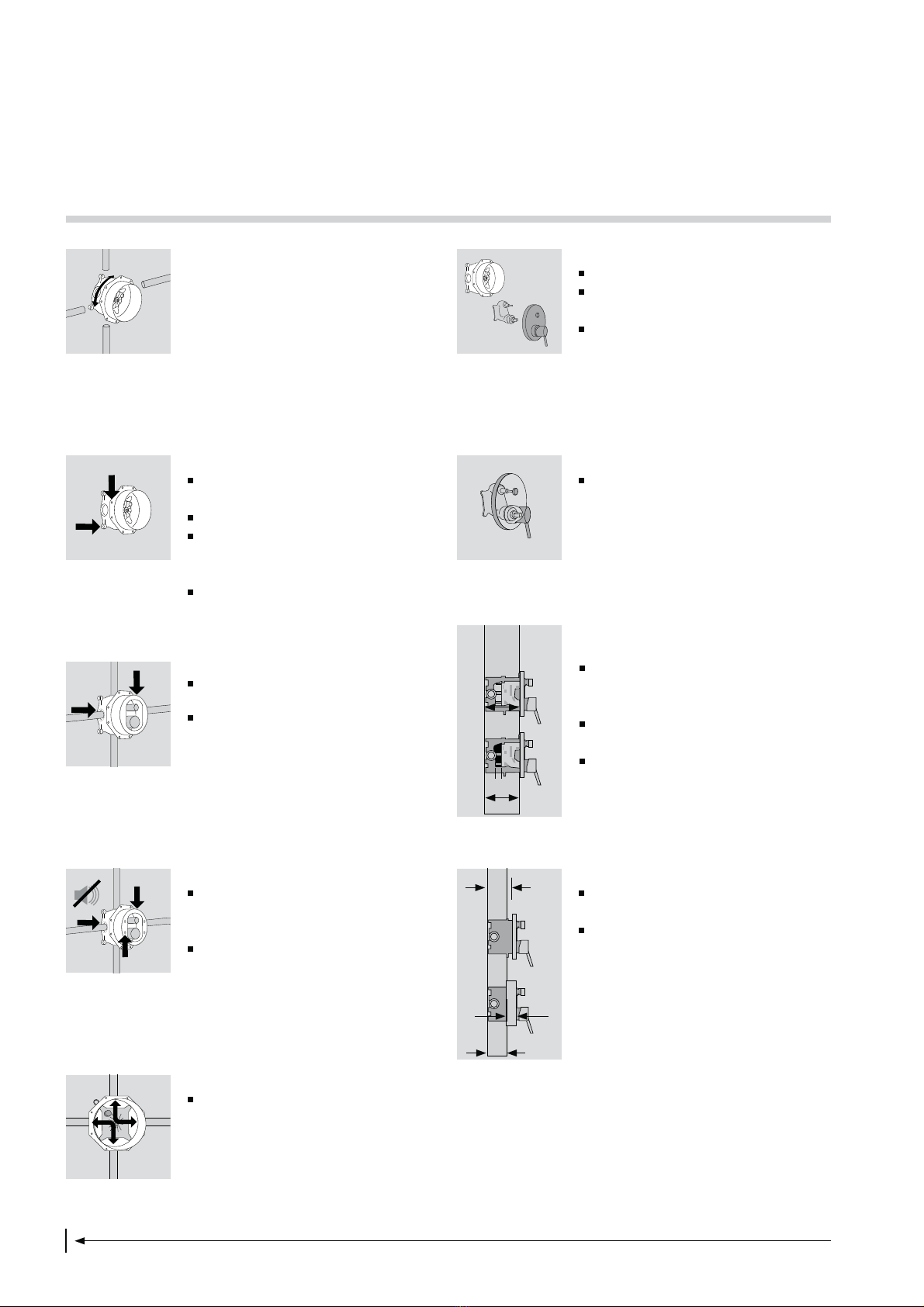

Rotationally symmetrical installation
▪ Symmetrical structure; all connections are
equal.
▪ It is important that the cold water is connected
on the right and the hot water on the left.
▪ When used as a bath mixer, the lower
outflow takes priority.
▪ When the iBox universal is used as a shower
mixer, either the upper or lower outflow can
be connected.
Safe and economical
The basic set contains just the connection block.
The valuable fitting aid is delivered and
installed later, together with the finish set.
Prevents problems like theft, dirt and frost
damage occuring during the building phase
and expensive warehousing becomes
unnecessary.
Multiple installation options
Coordinated with all current installation systems
and all types of connections and fittings.
Patented flexible adjustment ring.
Mounting options at two levels and G¾
connections for universal installation
possibilities.
Also suitable for thicker walls and dry wall
installations as well as for pre-fabricated
housing systems.
Integrated safety combination
When installing a concealed single lever bath
mixer with integrated safety combination –
together with an Exafill bath filler with waste
and overflow set – a non return valve becomes
unnecessary. This reduces installation costs as
well as the number of functional parts inside
the wall.
Excellent protection against humidity
This will protect against splashing water and
moisture coming from any direction.
Seals on all four connections and the supporting
collar.
Solutions for walls that are either very
deep or very shallow
If the iBox universal sits too deep in the wall,
the basic unit extension is fitted between the
connector and the function block.
The extension set ensures safety right up to the
wall and keeps the walls free from dampness.
The iBox universal standard basic set has been
made flatter and is now even better suited for
walls with limited installation depths.
Low noise level
The brass body rests on seals, preventing
sound from the water-conducting parts from
being transferred through the wall.
The supporting collar is screwed to the iBox
universal housing and not to the function block,
which prevents sound from being transferred
through to the tiles.
Collar extension
Thanks to the extension, even limited
installation depths are no longer a problem.
The extension collar makes it possible to install
the iBox universal despite the lack of depth.
Easy rinsing
The rinse block supplied with the iBox universal
can be mounted in different positions. This
makes it easy to flush the pipes through to where
they finish at the wall.
min.
58
13 3
>108
25
22
<80

7
iBox®universal
Strengths and benefits
Flexibility that benefits everyone
Sine the launch in 2001, Hansgrohe's iBox universal has been setting standards in the
bathroom. As a veritable all-rounder, it is designed to go with any standard installation
system, connection and fitting. It also offers unique advantages that benefit you, whether
you are a retailer, installer or wholesaler for project business.
How you as a retailer benefit from the iBox®universal:
▪ You only need one basic set for 16 function solutions
▪ Over 200 Hansgrohe and Axor finish sets fit on the iBox universal
▪ You only have to keep one basic set in stock, which reduces storage
space and costs
▪ The iBox universal fits on lots of installation systems, connection
items and fittings
▪ Durability guaranteed by a tried-and-tested, safe technical
standard
▪ You save time, because the iBox universal is quickly and
easily installed
▪ The iBox is an innovative success factor: proven and consistently
developed for over 12 years
How you benefit from the iBox®universal in your project business:
▪ The iBox universal offers a high level of flexibility and allows
a variety of design options
▪ Your project planning will be much easier: one base unit will serve
for any solution – leaving you with more time to choose the mixer
▪ The iBox is suitable for use in private or public facilities, and
complies with all the main international standards
▪ Covers any consumer solution with up to 4 functions
▪ A concealed system that you can rely on ‒ which has been proven
millions of times over
How the iBox®universal benefits consumers:
▪ More time to choose the mixers
▪ An attractive bathroom, as all the technology hidden behind
the wall
▪ Greater freedom of movement when showering
▪ Easy to replace with new mixers when renovating
▪ The safety of a solution that has been proven for over 12 years

8
The optimum foundation for
the new Select technology
The ShowerSelect finish sets for the iBox universal can be used to offer the innovative
Select technology, which the consumer controls at the touch of a button. The Select
technology delights customers with its design and revolutionary control concept. The
focus is on the Select button. A simple touch of a button is all it takes to switch functions
on and off or change the spray types. Everything works purely mechanically, which
provides long-lasting reliability – and thus permanently satisfied customers.
ShowerSelect®
Thermostat (2 functions)
with FixFit and Porter
Raindance®Select E 300 3jet
Overhead shower
ShowerSelect®
Highflow thermostat (1 function
bottom and one function top)
ShowerSelect®
Highflow thermostat
ShowerSelect®
Thermostat
(2 functions)
ShowerSelect®
Thermostat
(1 function)
ShowerSelect®
Valve
(3 functions)

9
iBox®universal
ShowerSelect design
ShowerSelect®finish sets:
design where everything fits
A geometric shape that blends perfectly with the modern bathroom. Buttons that
integrate flush in the overall picture and a control concept that harmonises with the desire
for shower pleasure. The new, smart ShowerSelect finish sets appeal for a design that
is visually and functionally perfect. So it's practically made for you to help you acquire
new customers.
Award-winning design
The ShowerSelect finish set with its aesthetic appeal and user
friendliness was awarded the "Design Plus Award" by the
Design Council. The ShowerSelect finish set for 2 functions
received the "Bathroom comfort for generations" product
award of the ZVSHK, the German Central Association
Plumbing, Heating and Air Conditioning, for excellent
design for users with restricted mobility.
Contrasts from chrome-coloured
and matt satin surfaces – for better
control/greater clarity
Integrated flat keys – modern
and contemporary appeal, and
easy to clean
Architectural design, generous
surfaces – extremely high quality
Clear, square design – for
a timeless bathroom
Slender, cylindrical pin handle
and eye-catching temperature
display – for easy, intuitive control

1
5
2
6
3
7
4
8
10
iBox®universal and ShowerSelect®:
the new way to control shower pleasure
Form and function go hand in hand with the new ShowerSelect finish sets. From easy-to-
use control elements and intuitive handling to easy cleaning: with their many advantages,
the ShowerSelect finish sets are perfect for selecting your shower pleasure. Delight your
customers with the many advantages of the ShowerSelect finish sets.
Intuitive:
The Select buttons for intuitive,
comfortable control – even for
elderly and less able customers.
Clear:
Easy-to-understand symbols that
do not rub off simplify operation
even further, and are extremely
durable.
Easy to use:
The protruding button instantly
reveals the active functions. Can
be controlled using an elbow or
fist thanks to the button extension
that is included in the box.
User-friendly:
The desired temperature can be
set precisely with the user-friendly
handle.
Clean:
The flush-fit buttons leave a flat
surface that is easy to clean.
Attractive:
The modern rectangular shape
blends perfectly with a tiled
bathroom.
Economical:
The easy push-button encourages
the user to switch the water off
frequently, which helps to save
water.
Luxurious:
The functions can all be set at
the same time – for even greater
shower pleasure.

11
iBox®universal
ShowerSelect advantages
ShowerSelect®– Advantages at
the touch of a button
How you as a retailer benefit from the ShowerSelect®finish sets:
▪ New, unique products on the market in an attractive and
exclusive design
▪ Additional sales opportunities through the acquisition of
new customers
▪ Complete collection for broad range of applications
▪ Universal combinations with any Raindance or Raindance
Select shower and competitor products
▪ Easy to install on the well-known concealed iBox universal
system, tried and tested since 2001
▪ High potential in renovations
▪ Long-lasting thanks to mechanical valves, which means
permanently satisfied customers and no complaints
▪ Direct use possible, as all the required button combinations
are included in the box
▪ Easier installation on 4-function solution
How you benefit from the ShowerSelect®finish sets in your project business:
▪ New architectural design in the Hansgrohe concealed range
▪ Clear, reduced, minimalistic and precise style – for timeless
bathroom design
▪ Attractive price segment
▪ Safe, easy planning, since all the applications are covered
by 1 to 4 functions
▪ Also suitable for semi-public areas, as thermal disinfection
is easily possible
How consumers benefit from the ShowerSelect®finish sets:
▪ Geometric-square design, making it suitable for any bathroom
and lots of tile types
▪ Intuitive, easy control at the touch of a button
▪ Large symbols – for easy handling and clarity
▪ Safe, visible temperature adjustment thanks to the slender,
cylindrical pin handle and eye-catching coloured temperature
display
▪ Fast, inexpensive renovations possible by simply replacing the
existing finish sets
▪ Easy to clean thanks to flush-fit buttons
▪ Easy to push button helps to save water by encouraging the user
to push it
▪ High level of comfort by simultaneously setting several functions

12
66
G 1/2
20
12
155
54-82
44Ø
46
57

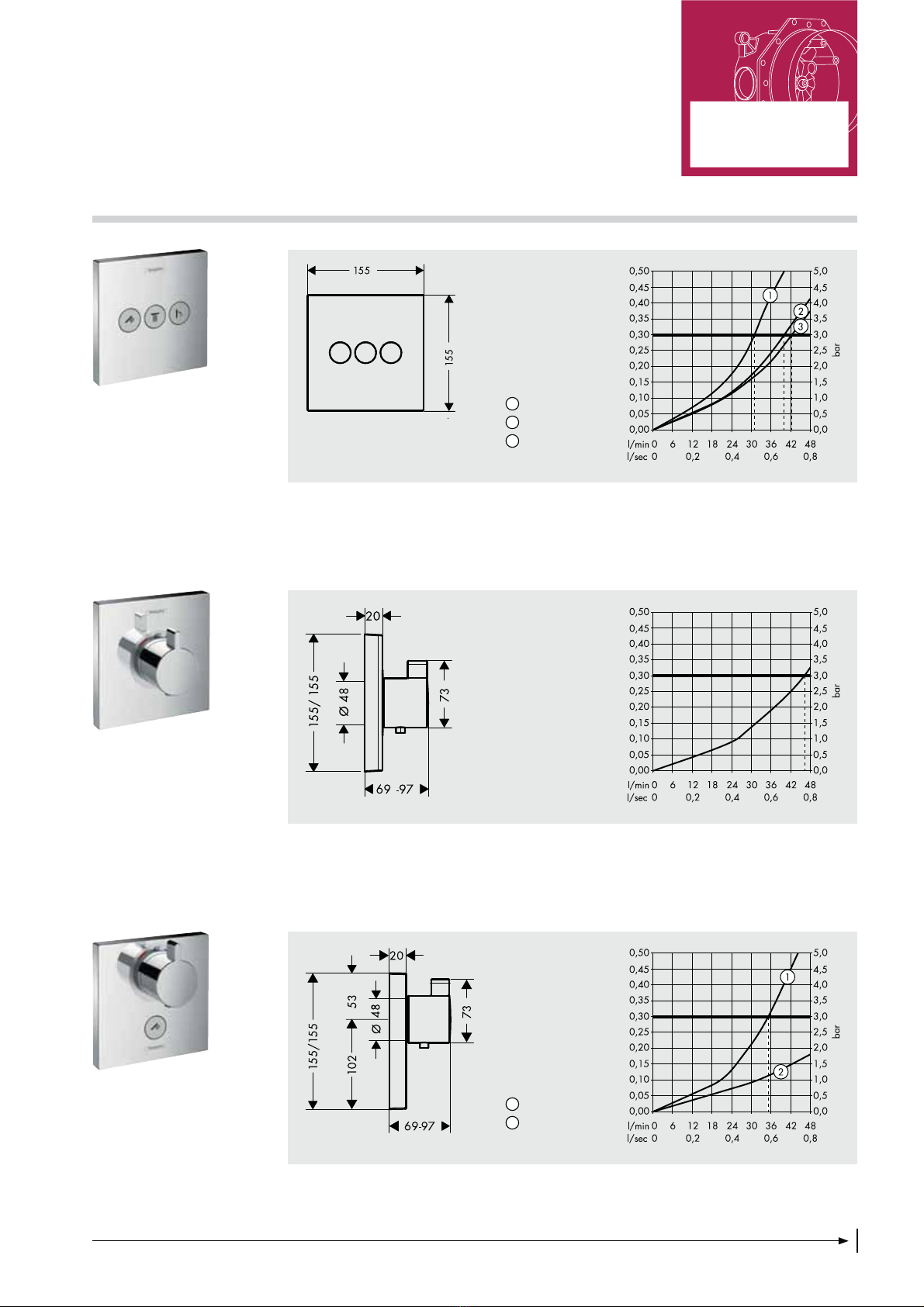

The ShowerSelect®finish set range
Legend
1bottom
2top
Legend
1bottom
2top
ShowerSelect®
Thermostat
for 1 function
# 15762, -000
ShowerSelect®
Thermostat
for 2 functions
# 15763, -000
ShowerSelect®
Thermostat
for 2 functions
with FixFit and Porter
# 15765, -000
All flow rates without functions.
All flow rates without functions.
All flow rates without functions.

13
iBox®universal
The ShowerSelect
finish set range
Legend
1left
2top
3right
ShowerSelect®
Valve
for 3 functions
# 15764, -000
ShowerSelect®
Highflow thermostat
# 15760, -000
ShowerSelect®
Highflow thermostat
for 1 function (bottom) and one
additional function (top)
# 15761, -000
Legend
1bottom
2top
All flow rates without functions.
All flow rates without functions.
All flow rates without functions.

14

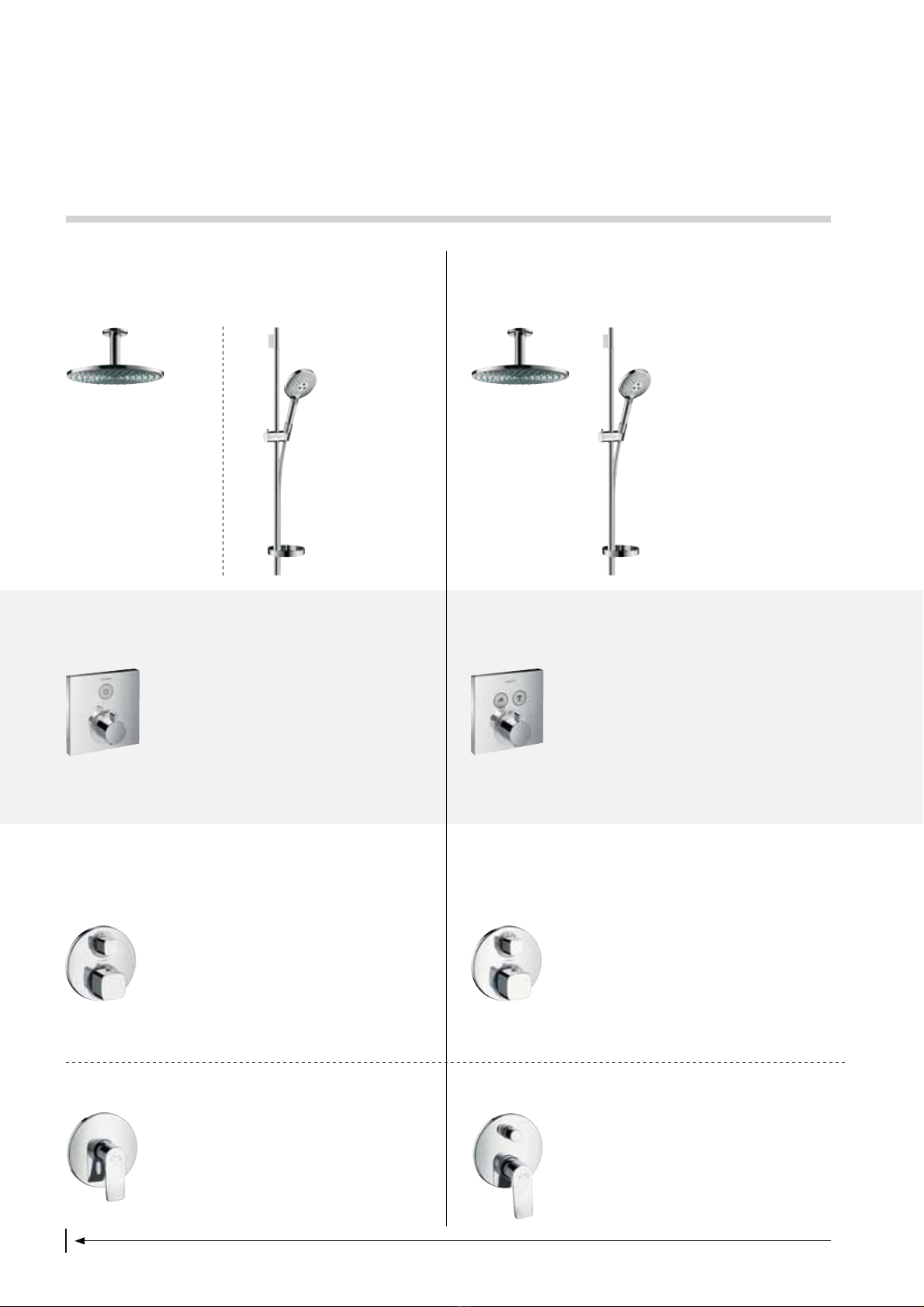

Possible uses for 1 to 4 functions
Shower system with 1 function
For instance, overhead or hand shower
Shower system with 2 functions
For instance, overhead and hand shower
Other possible installations Other possible installations
ShowerSelect thermostat
for 1 function
ShowerSelect thermostat
for 2 functions
Single lever shower mixer
Thermostat with shut-off/diverter
valve
Single lever mixer with diverter
Thermostat with shut-off valve

15
iBox®universal
Examples of uses for
1 to 4 functions

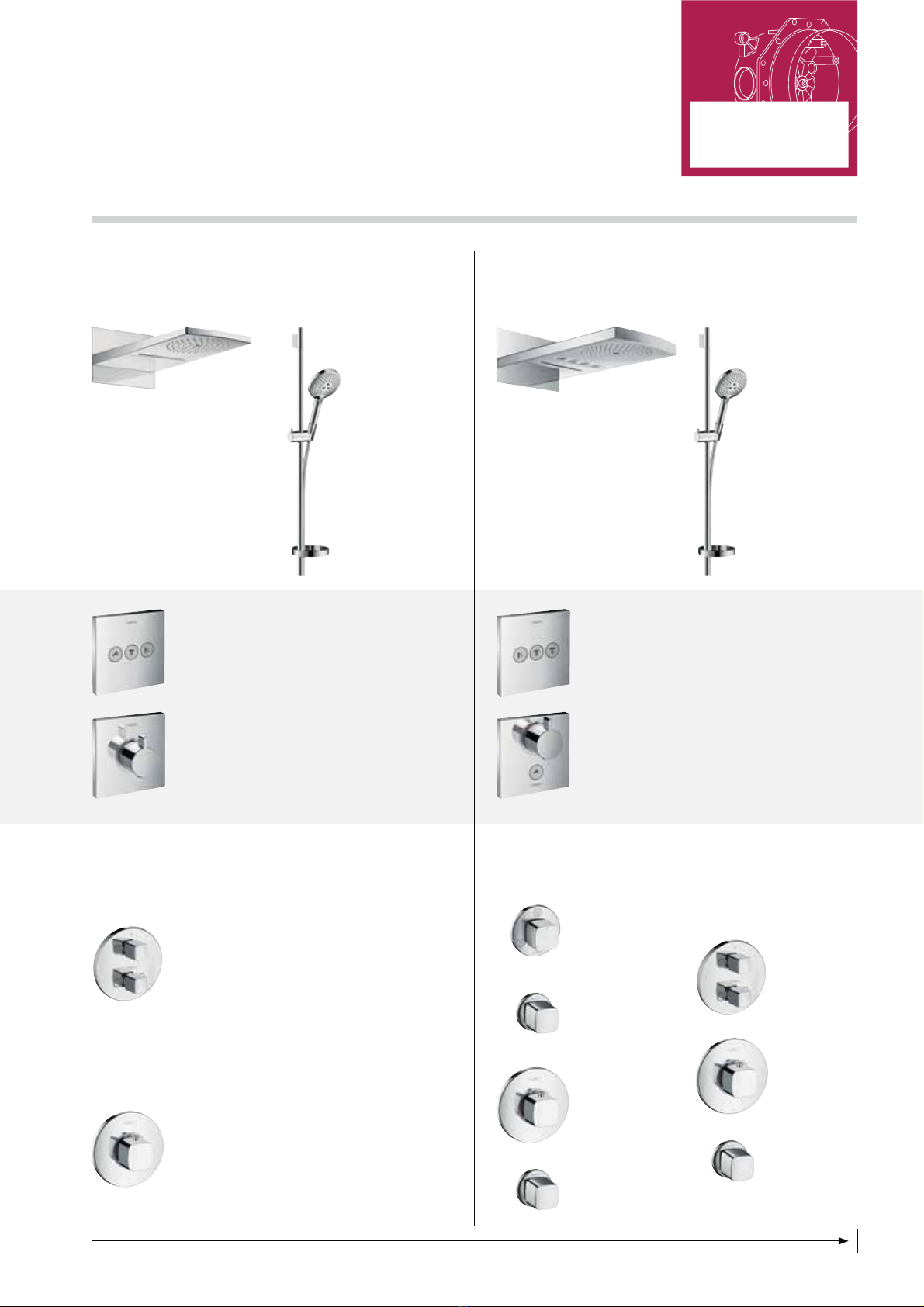

Shower system with 3 functions
For instance, overhead shower (2 spray types) and hand shower
Shower system with 4 functions
For instance, overhead shower (3 spray types) and hand shower
Other possible installations Other possible installations
Highflow thermostat
iControl shut-off/diverter valve
ShowerSelect valve
for 3 functions
ShowerSelect valve
for 3 functions
ShowerSelect Highflow thermostat ShowerSelect Highflow thermostat
for 1 function (bottom) and one
additional function (top)
Trio/Quattro
shut-off/diverter
valve iControl
shut-off/diverter
valve
Shut-off valve
Shut-off valve
Highflow
thermostat
Highflow
thermostat
Shut-off valve

A
B
C
D
16

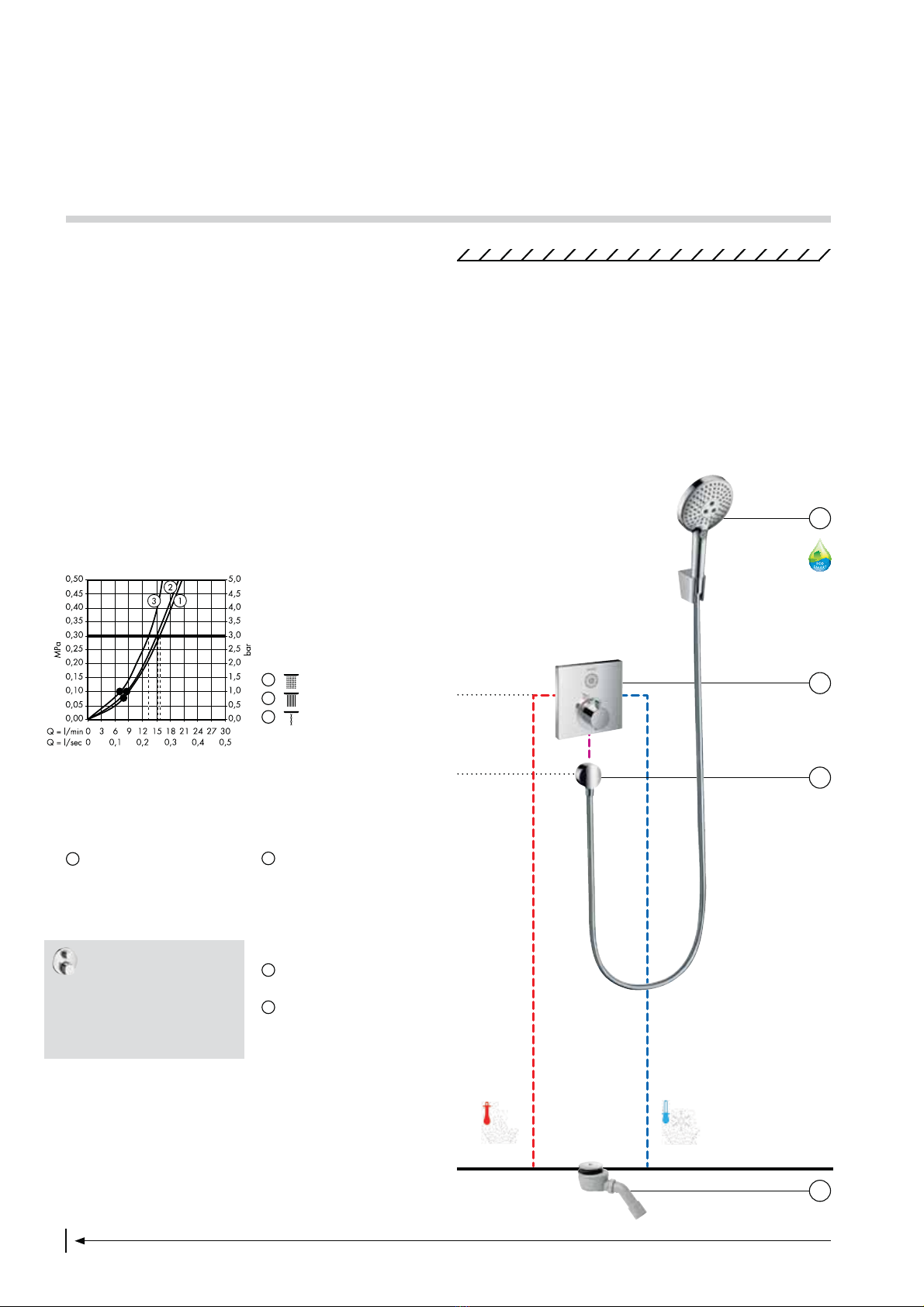

Installation 1 function
Ceiling
Minimum operating pressure •
Components
Mixers
BiBox universal
# 01800180
ShowerSelect thermostat
# 15762000
Alternative:
Metris thermostat
#31572000
Other alternatives possible.
Flow diagram
Hand shower Raindance S 120 3jet
# 26530000
+ iBox universal
Showers
ARaindance Select S 120
#26530000
Shower holder Porter S
#28331000
Shower hose Isiflex
#28276000
CHose connection FixFit
#27453000
DWaste system Staro 90
#60056000
DN 15
(½")
DN 20
(¾") DN 20
(¾")
Legend
1RainAir
2Rain
3Whirl
1200 mm
1000 mm
Floor

A
C
B
D
E
17
iBox®universal
Installation variant
1 and 2 functions
Installation 2 functions
2150 mm
Ceiling
Minimum operating pressure •
Components
Mixers
BiBox universal
# 01800180
ShowerSelect thermostat
# 15763000
Alternative:
Metris thermostat
with shut-off/diverter valve
#31573000
Other alternatives possible.
Flow diagram
Overhead shower Raindance Select S 300 2jet
#27378000
Flow diagram
Hand shower Raindance S 120 3jet
# 26530000
+ iBox universal
Showers
ARaindance Select S 300
2jet Overhead shower
#27378000
CRaindance Select S 120
#26530000
Shower holder Porter S
#28331000
Shower hose Isiflex
#28276000
DHose connection FixFit
#27453000
EWaste system Staro 90
#60056000
DN 15
(½")
DN 15
(½")
DN 20
(¾") DN 20
(¾")
Legend
1Rain
2RainAir
Legend
1RainAir
2Rain
3Whirl
1200 mm
1000 mm
Floor

D
A
E
F
2 1
B
C
18

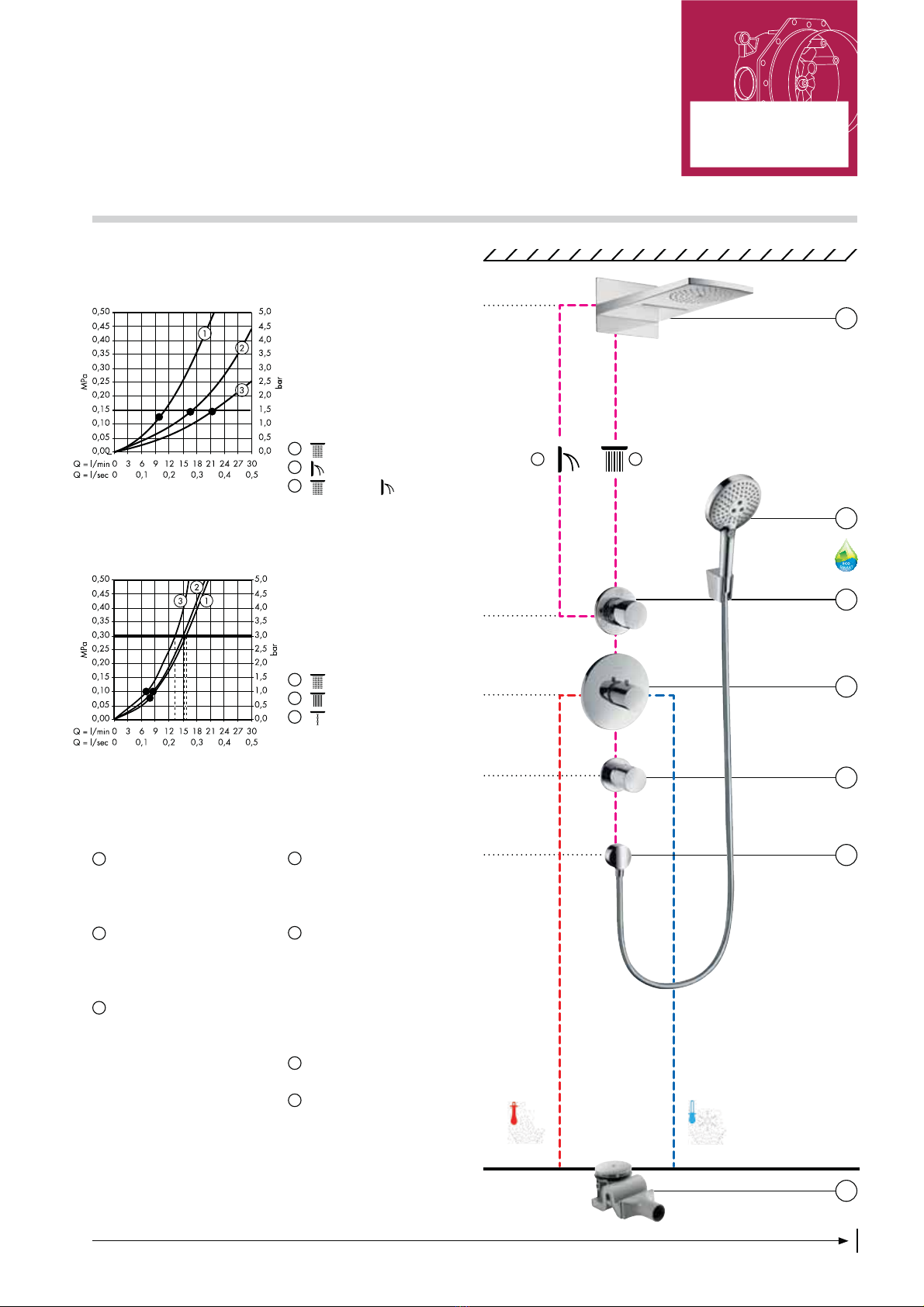

Installation 3 functions: Select
+ iBox universal
+ iBox universal
+ iBox universal
DN 20
(¾") DN 20
(¾")
DN 15
(½")
DN 20
(¾")
Ceiling
Components
Mixer installation
CiBox universal
# 01800180
ShowerSelect valve for
3 functions
#15764000
DiBox universal
# 01800180
ShowerSelect thermostat
#15760000
Alternative:
Metris iControl
#31958000
Metris Highflow thermostat
#31571000
Other alternatives possible.
Flow diagram
Overhead shower Raindance Rainfall 2jet
#28433000
Flow diagram
Hand shower Raindance S 120 3jet
# 26530000
Shower installation
ARaindance Rainfall 2jet
#28433000
iBox universal
# 01800180
BRaindance Select S 120
Hand shower
#26530000
Shower holder Porter S
#28331000
Shower hose Isiflex
#28276000
EHose connection FixFit
#27453000
FWaste system Raindrain XXL
#60067000
Minimum operating pressure •
Legend
1RainAir
2Rainflow
3RainAir + Rainflow
Legend
1RainAir
2Rain
3Whirl
1000 mm
1200 mm
1400 mm
2190 mm
DN 15
(½")
DN 20
(¾")
Floor

B
D
A
E
F
G
2 1
C
19
iBox®universal
Installation variant
3 functions
Installation 3 functions: Standard
Components
Mixer installation
CBasic set Trio/Quattro
# 15981180
Shut-off valve Trio/Quattro S
#15932000
DiBox universal
# 01800180
Ecostat S Highflow thermostat
#15715000
EBasic set shut-off valve
# 15974180
Shut-off valve S DN15/DN20
#15972000
Flow diagram
Overhead shower Raindance Rainfall 2jet
#28433000
Flow diagram
Hand shower Raindance S 120 3jet
# 26530000
Shower installation
ARaindance Rainfall 2jet
#28433000
iBox universal
# 01800180
BRaindance Select S 120
3jet Hand shower
#26530000
Shower holder Porter S
#28331000
Shower hose Isiflex
#28276000
FHose connection FixFit
#27453000
GWaste system Raindrain XXL
#60067000
Ceiling
+ iBox universal
+ iBox universal
DN 20
(¾")
DN 15
(½")
DN 15
(½")
DN 20
(¾") DN 20
(¾")
DN 15
(½")
DN 20
(¾")
Minimum operating pressure •
Legend
1RainAir
2Rainflow
3RainAir + Rainflow
Legend
1RainAir
2Rain
3Whirl
1000 mm
800 mm
1200 mm
1400 mm
2190 mm
Floor

D
A
E
F
13 2
B
C
20

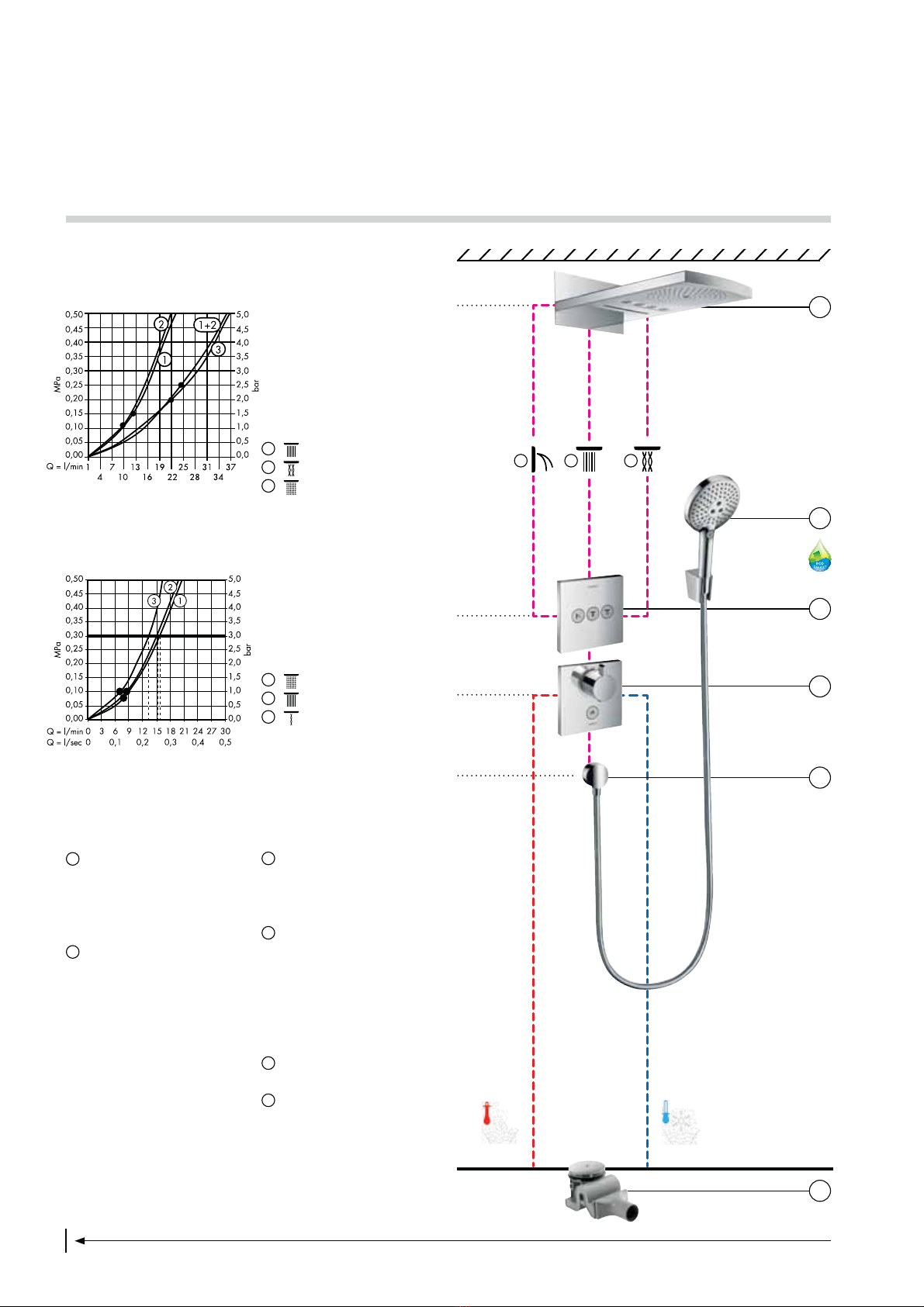

Installation 4 functions: Select
Components
Mixer installation
CiBox universal
# 01800180
ShowerSelect valve for
3 functions
#15764000
DiBox universal
# 01800180
ShowerSelect thermostat
#15761000
Flow diagram
Overhead shower Raindance Rainfall 3jet
#28411000
Flow diagram
Hand shower Raindance S 120 3jet
# 26530000
Shower installation
ARaindance Rainfall 3jet
#28411000
iBox universal
# 01800180
BRaindance Select S 120
Hand shower
#26530000
Shower holder Porter S
#28331000
Shower hose Isiflex
#28276000
EHose connection FixFit
#27453000
FWaste system Raindrain XXL
#60067000
Minimum operating pressure •
Ceiling
+ iBox universal
+ iBox universal
DN 20
(¾") DN 20
(¾")
DN 15
(½")
DN 20
(¾")
DN 20
(¾")
+ iBox universal
Legend
1Rain
2Whirl
3RainAir
Legend
1RainAir
2Rain
3Whirl
1000 mm
1200 mm
1400 mm
2190 mm
DN 15
(½")
DN 20
(¾")
Floor
